Free Design Solar Panel Triangle Mounting Brackets Flat Roof Solar Panel Mounting System Structure For Home
- Category: >>>
- Supplier: Sunforson Power (Xiamen) Co. Ltd.
Share on (1600854328657):
Product Overview
Description
Products Description
item | value |
Warranty | 10YEARS |
Free installation service | NO |
Place of Origin | China |
Fujian | |
Brand Name | SunRack |
Model Number | SFS-AM-01 |
Application | Commercial |
Solar Panel Type | Monocrystalline Silicon |
Battery Type | Lead-Acid, Lithium Ion |
Controller Type | shingle roof rack |
Load Power (W) | 10KW, Others |
Output Frequency | shingle roof rack |
Work Time (h) | shingle roof rack |
Pre-sales project design | Y |
Product name | Solar Roof Rack for Home Solar System |
Applicable Roof Cladding | Suitable for most types of cladding |
Roof Slope | Angle up to 60 |
Wind Load | Up to 130mph(60m/s) |
Snow Load | Up to 30psf(1.4kN/m2) |
Applicable Module | Framed or frameless panel |
Module Orientation | Landscape or portrait |
Design standards | CE&AS/NZS 1170&Int'l Standards |
Material | Aluminum, stainless steel |
Warranty | 10years on material |

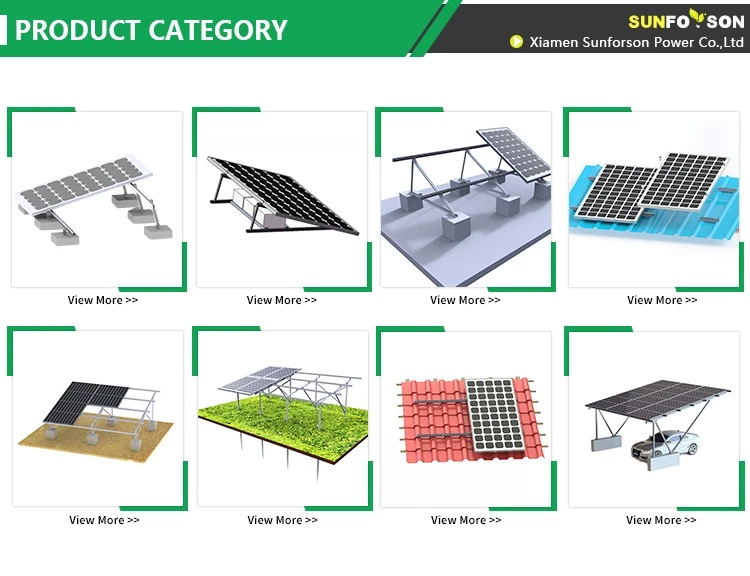

Recommend Products

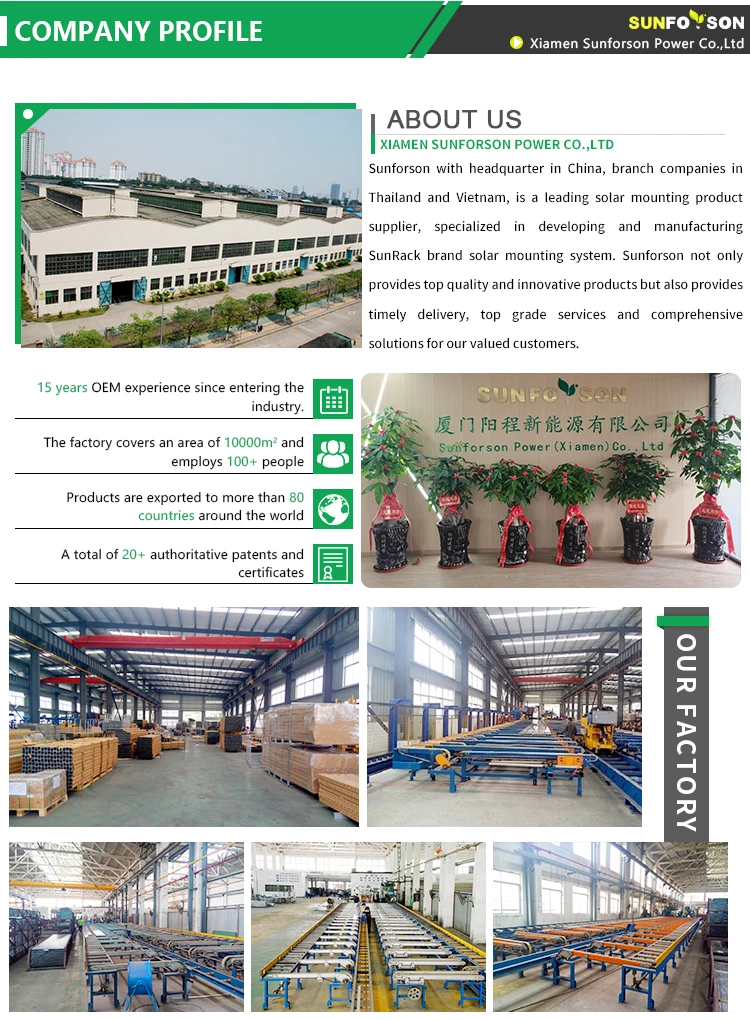

Company Profile
Certification of Solar Roof Rack for Home Solar System- Inquire with suppliers
Our customers visiting and PV EXPO
Why Choose Us
FAQ
Necessary info. for Sunforson to design and quote the solar mounting structures:
roof solar mounting system roof solar mounting system roof solar mounting system
Part 1
1: What kind of solar mount? roof mount,ground mount or carport mount? Part 2: 1.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
Part 2:
1.Solar Panels Dimension: __mm (Length) x__mm (Width) x__mm (Thickness)
2.The layout of the solar panels __Rows x__columns, horizontal or vertical orientation
3.How many panel are you going to install? __Nos
4.Maximum Wind load: __m/s or__km/h or __mph 5.Maximum Snow Load: __KN/m2 (if have)
Part 3:
A:For Pitch Roof Solar Mounting System；
6.Roof type: tile roof, tin roof, asphalt shingle roof, or other? B:For Flat Roof Mount Brackets/ Ground Mount
Supports/Carport Mount Structures
Supports/Carport Mount Structures
7. Ground/ roof clearance (Height of panel lowest end off ground/roof floor): __mm
8.Solar mount tilt angle: __degree
