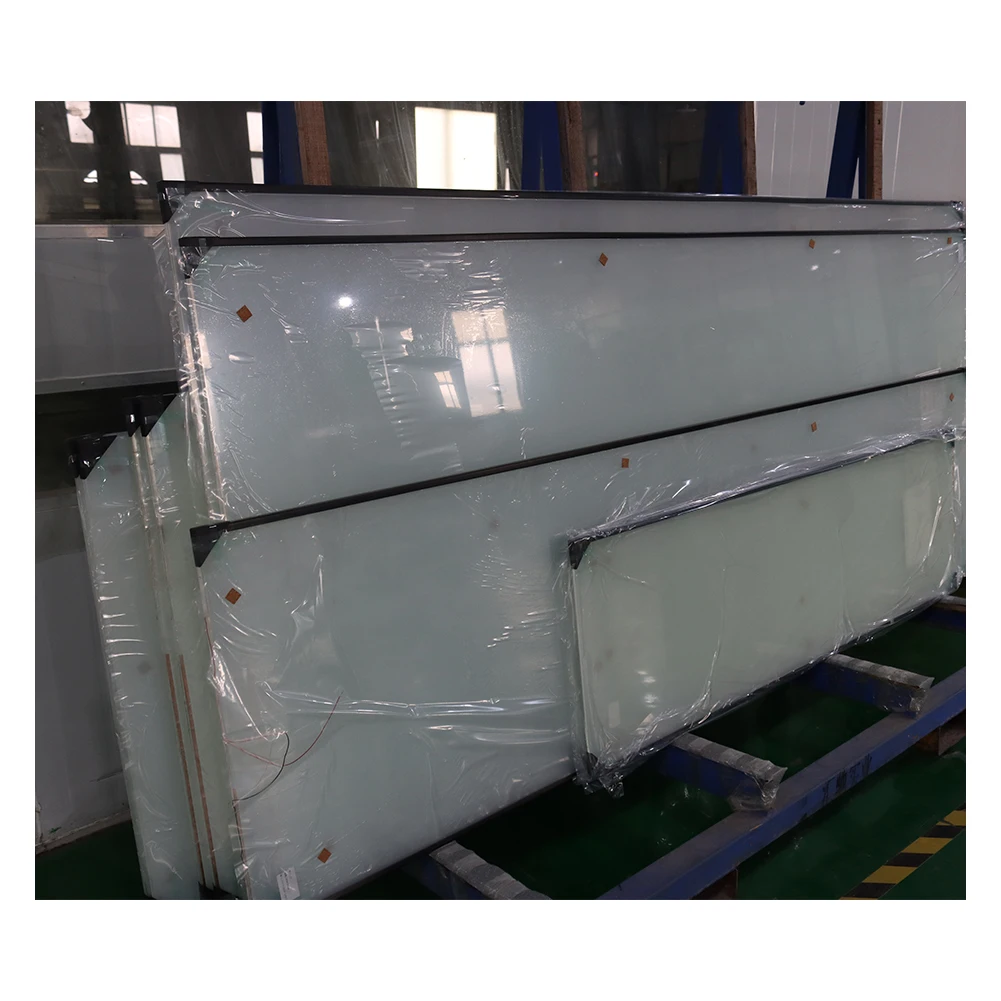

Low Cost Switchable Mirror Tint Film For Glass Windows Doors Partitions
- Category: >>>
- Supplier: Guangzhou Huichi Industrial Development Co. Ltd.
Share on (1600854630503):
Product Overview
Description
Ultra Clear Self-adhesive PDLC Smart Film

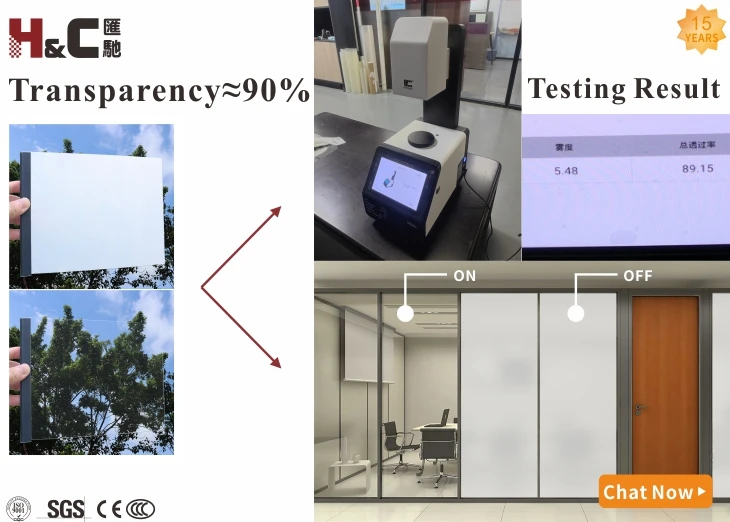

,which is the new developed and upgraded type of film, is different from the standard self-adhesive PDLC smart film. We know that PDLC smart film allows the glass to change from opaque to transparency. The Ultra clear film has the best transparent performance, which can reach as high as 90%.
Products Description

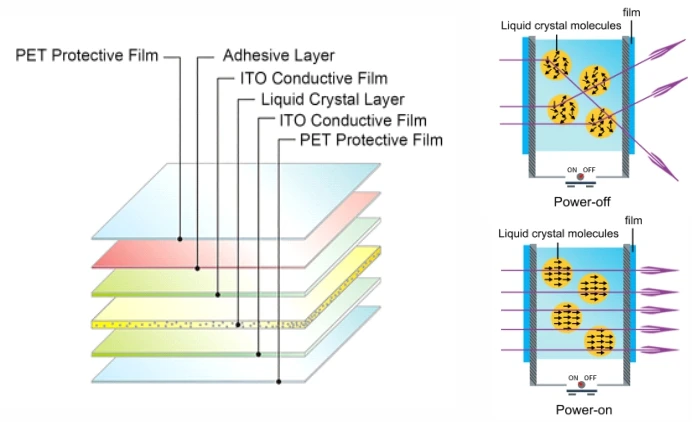

Principle:The self-adhesive smart film contains 3 layers: ITO conductive film-Liquid Crystal-ITO conductive film. When thepower is OFF, the liquid crystal molecules are irregular, which twist the incoming light and make the smart film “opaque”When the power is ON, the LC molecules become regular, which allows the light going
Parameter
Item Description | Z-CT-125 | Z-CT2-188 | Z-CT-50 | ||||
Optical Test | Transmittance(Visable) | ON | 89.0% | 87.0% | 89.5% | ||
Haze | OFF | ≥60% | ≥60% | ≥70% | |||
Haze | ON | 4.0% | 3.5% | 3.5% | |||
Infrared blocking coefficient | OFF | 98% | 97% | 96.5% | |||
Visual Angle | ON | ＞145° | ＞145° | ＞150° | |||
Infrared blocking coefficient | ON | 16% | 16% | 13.5% | |||
Infrared blocking coefficient | OFF | 60.5% | 60.5% | 36.5% | |||
UV barrier coefficient | ON | 92.2% | 92.2% | 92.2% | |||
OFF | 97.9% | 97.9% | 97.1% | ||||
Eletricale Test | Working Voltage | ON | AC 60V | AC 48-60V | AC 48-60V | ||
Power Consumption | ON | 6w/sqm | 6w/sqm | 6w/sqm | |||
Mechanical Spec | Color | Mikey white | Mikey white | Mikey white | |||
Thickness | 0.37mm | 0.4mm | 0.2mm | ||||
Maximum Width | 1200mm | 1200mm | 1200mm | ||||
Width/mm | 1200mm | 1200mm | 1200mm | ||||
length | 30M | 50M | 50M | ||||
Environmental spec | Service Life | ＞50000 hours | ＞50000 hours | ＞5000hours | |||
Swith Life | ＞1000000 | ＞1000000 | ＞1000000 | ||||

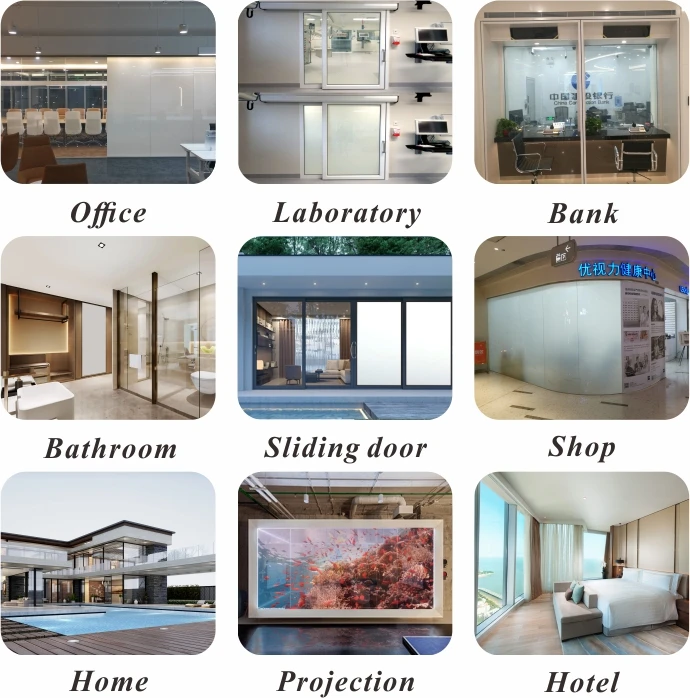

Application Scenerio

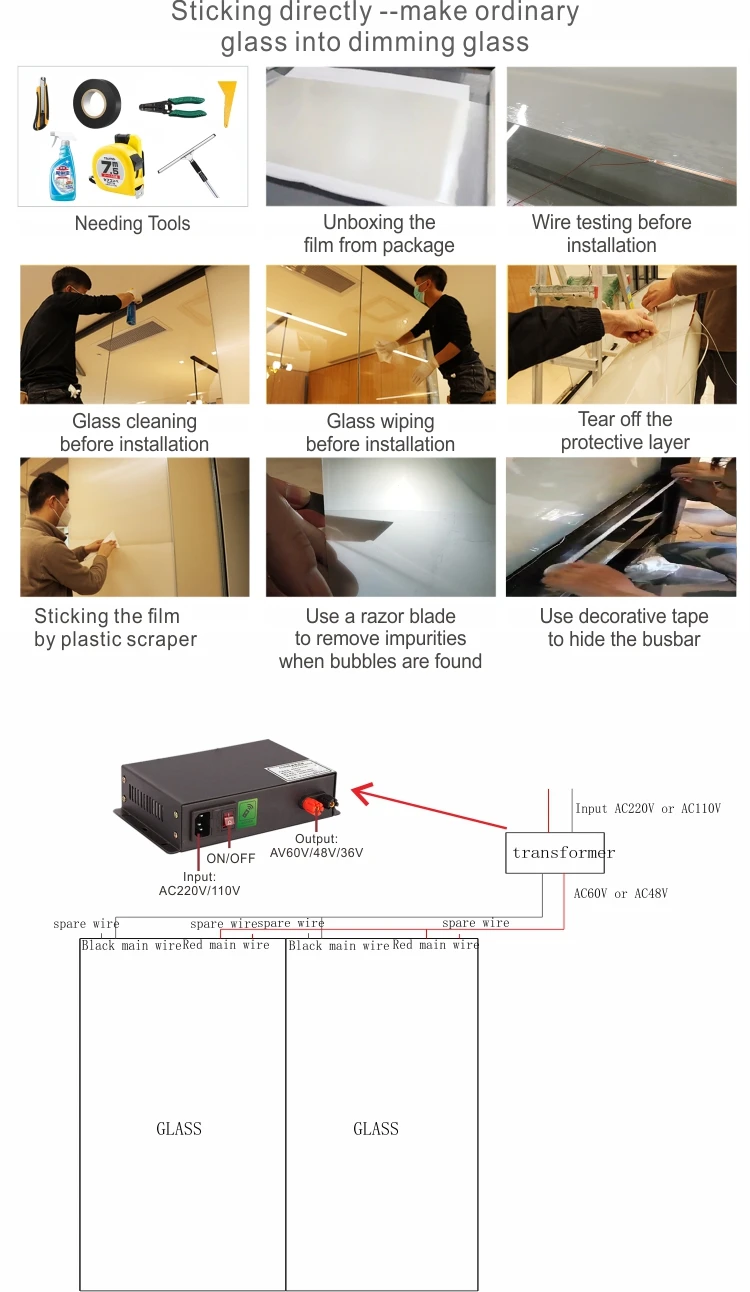

Installation & Wiring
Product Recommendation
Company Profile

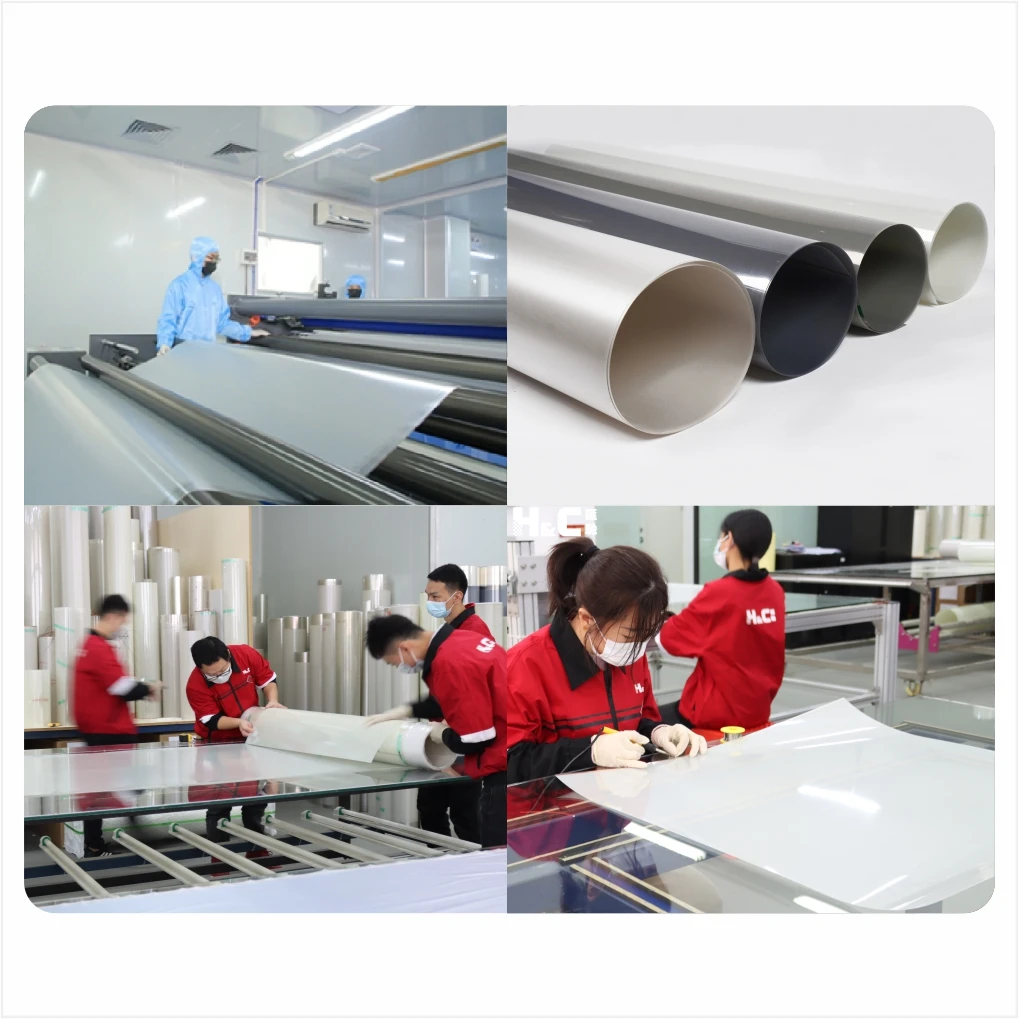

Guangzhou Huichi Industrial Development Co., Ltd. is a smart optoelectronic glass manufacturer and product solution provider.The main products of us are smart switchable glass, PDLC smart film, LED luminous glass and other products. What’s more, we are one of the first companies to mass produce smart liquid crystal dimming films, and the first manufacturer in China to launch partitioned dimming glass products with changeable patterns
Exhibition&Certifications
Faq
1.How does smart film work?
In “off state” when no electrical power is applied on the smart film, the light is absorbed and scattered by the Liquid Crystal layer, so the film looks opaque (milky, grey or black). In “on state” the light goes straight through the film, so the film looks transparent.
2.Can i get a sample before bulk order?
Yes, it is ok. Sample is free, but freight should be prepaid.
3. Is smart film energy efficient?
Yes, it's a green product that only consumes 6 W/㎡.
4.What is the difference between standard smart film and ultra clear smart film?
Standard type PDLC smart film is in different transparency and haze comparing with ultra clear type PDLC smart film. The latter is more transparent when it is in “on state”. Please compare them by our catalogue for more.
5. Is there a MOQ requirement?
Yes, but 1 square meter only.
6.How long is the warranty time of the smart film?
1 year
7.Is it hard to install the films by myself?
No, it is very easy to install, as we will provide series of installation videos and details to you.
In “off state” when no electrical power is applied on the smart film, the light is absorbed and scattered by the Liquid Crystal layer, so the film looks opaque (milky, grey or black). In “on state” the light goes straight through the film, so the film looks transparent.
2.Can i get a sample before bulk order?
Yes, it is ok. Sample is free, but freight should be prepaid.
3. Is smart film energy efficient?
Yes, it's a green product that only consumes 6 W/㎡.
4.What is the difference between standard smart film and ultra clear smart film?
Standard type PDLC smart film is in different transparency and haze comparing with ultra clear type PDLC smart film. The latter is more transparent when it is in “on state”. Please compare them by our catalogue for more.
5. Is there a MOQ requirement?
Yes, but 1 square meter only.
6.How long is the warranty time of the smart film?
1 year
7.Is it hard to install the films by myself?
No, it is very easy to install, as we will provide series of installation videos and details to you.
