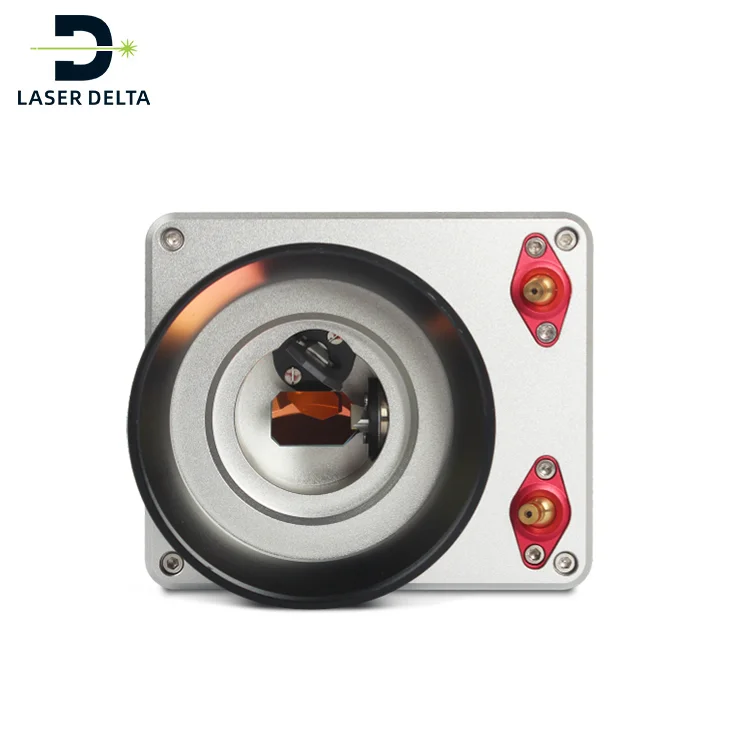

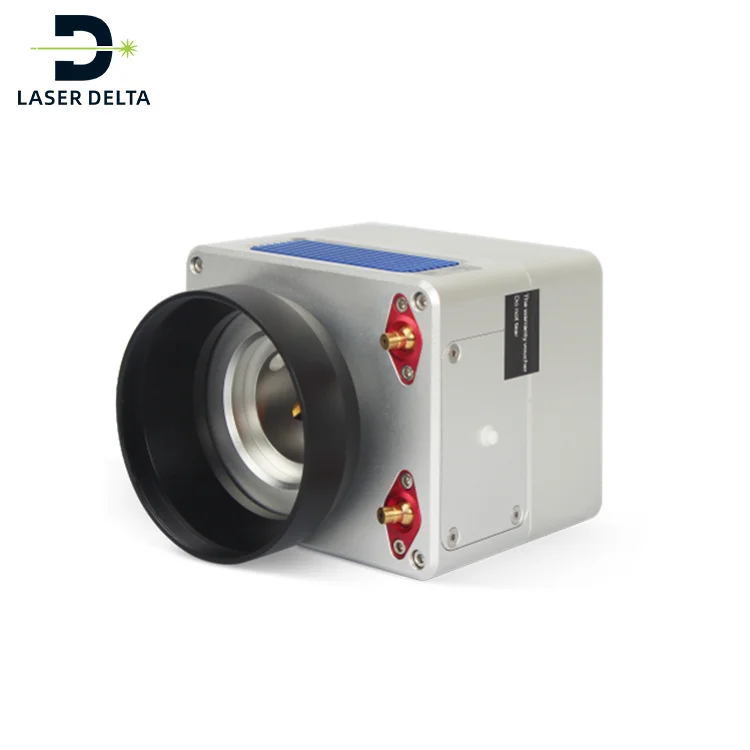

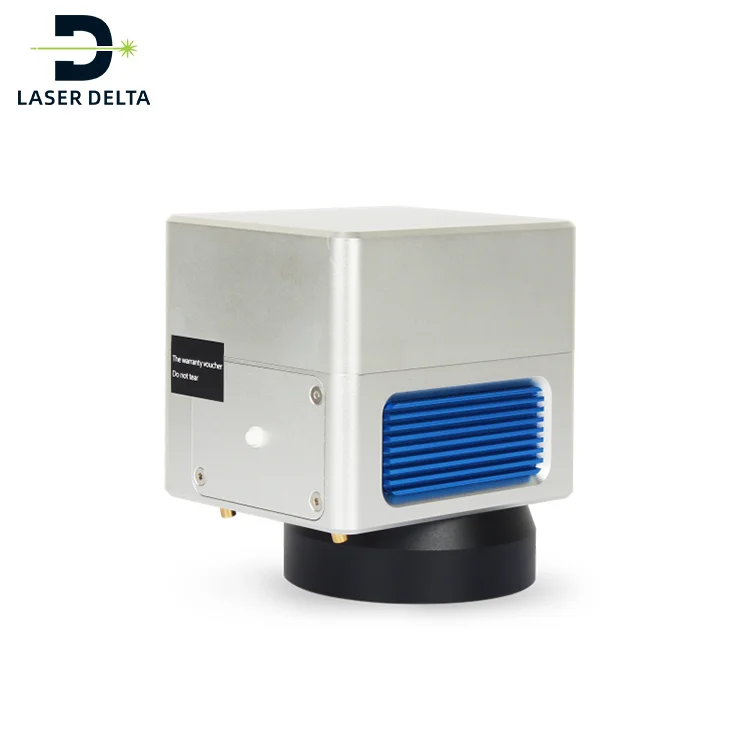

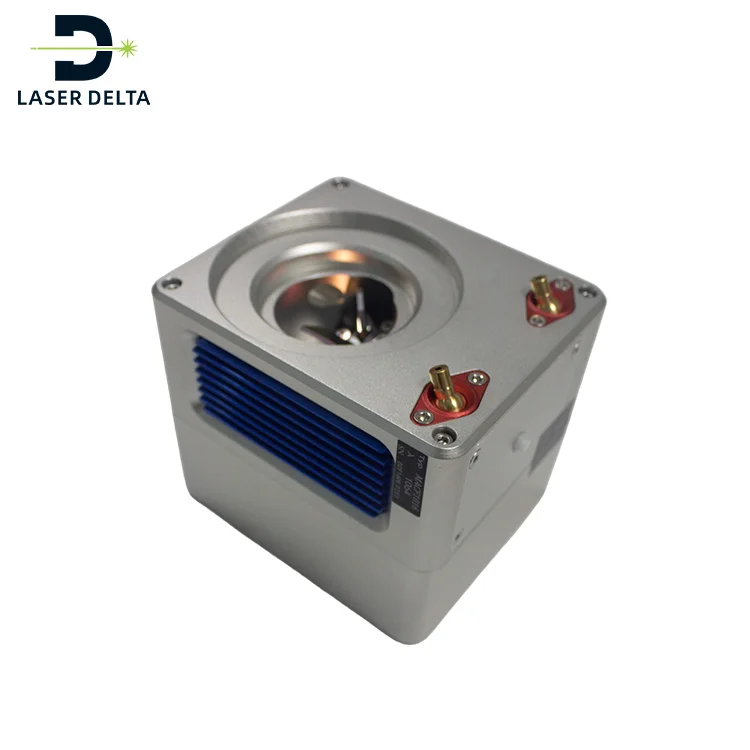

Spare Parts Galvanometer Scanning Head Scanner For Laser Marking Machine
- Category: >>>
- Supplier: Laser Delta Co. Ltd.
Share on (1600854671480):
Product Overview
Description
 |
Product Description
| Product Series | AR-1016 Series Dual Red Ligh | ||
| Marking speed | 12000 mm/s High Speed | ||
| Product model | ARF1016 | ARC1016 | ARZ1016 |
| Compatible type | FIBER | CO2 | UV |
| Compatible Wavelength | 1064 nm | 10.6 um | 355 nm |
| Input Beam Aperture(mm) | 10 | ||
| (mm) Beam Dispiacement | 12.54 | ||
| (ms) Tracking Error | 0.2 | ||
| (μrad) Repeatability | <30 | ||
| (μrad/K) Offset Drift | <30 | ||
| (ppm/K) Gain Drift | <110 | ||
| (mrad) Drift over 8 hours | <0.5 | ||
| (ms) 1% of Full Scale | 0.5 | ||
| (ms) 10% of Full Speed | 1.3 | ||
| (m/s) Positioning Speed | 9 | ||
| (°) Typical Scan Angle | ±12.5 | ||
| (mrad) Typical Scan Angle | <10 | ||
| (mrad) Zero Offset | <10 | ||
| (%) Nonlinearity | <10 | ||
| Power Requirements | ±15VDC, ≥3A | ||
| Digital Interface | XY2-100 | ||
| (℃) Operation Temperature | 25±10 | ||
| (kg) Weight | 1.9 | ||
