Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
flexo printing machine 4 color Non woven rolling printing machine craft paper flexographic printers
- Category: >>>
- Supplier: Ruian Nuoxin Machinery Co. Ltd.
Share on (1600854704154):
Product Overview
Description
Product Overview
Introduction
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing

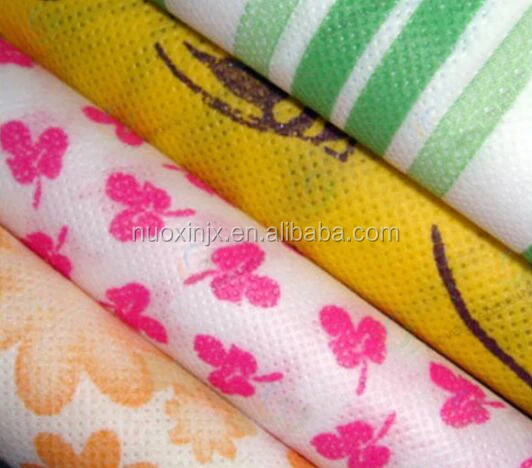

6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Note:Different printing material , machine some parts design different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1. Easy operation,flexible starting,accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic operation printing cylinder lift and lower,is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the
machine when the plate is installed.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic operation printing cylinder lift and lower,is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the
machine when the plate is installed.
Machine Video

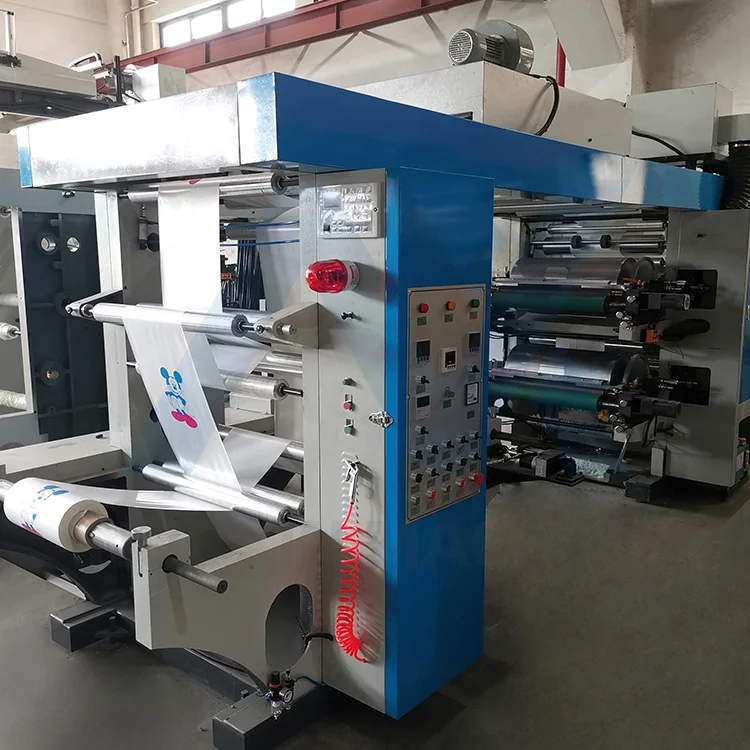

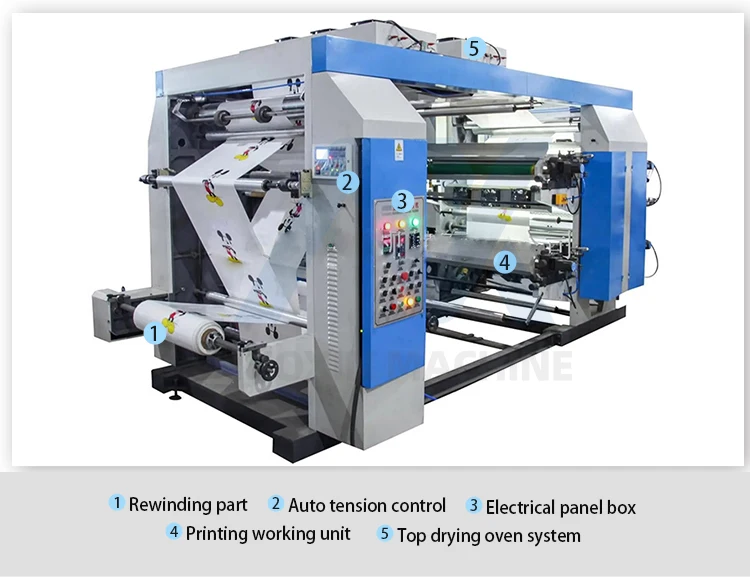

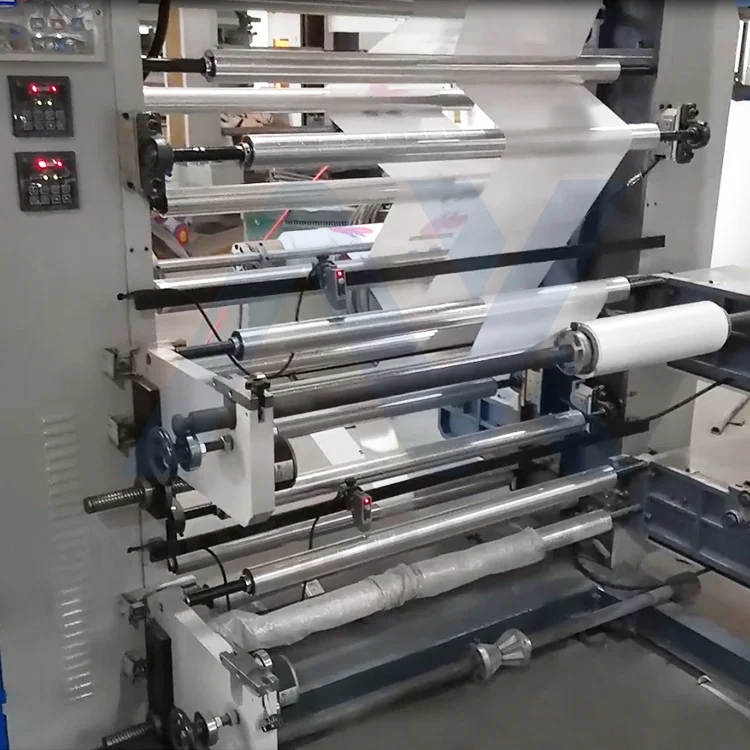

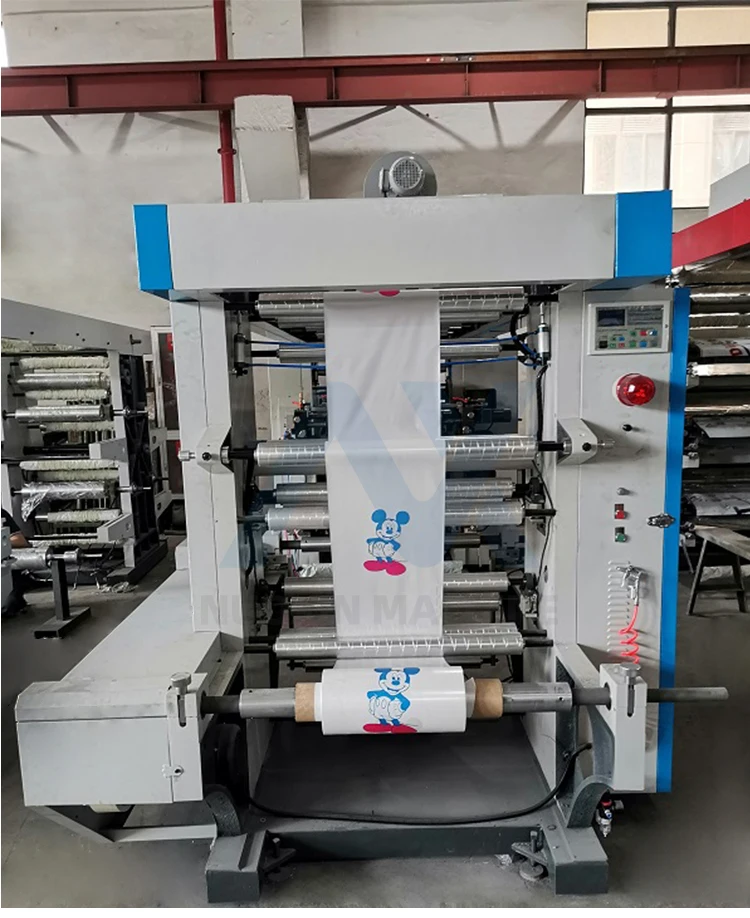

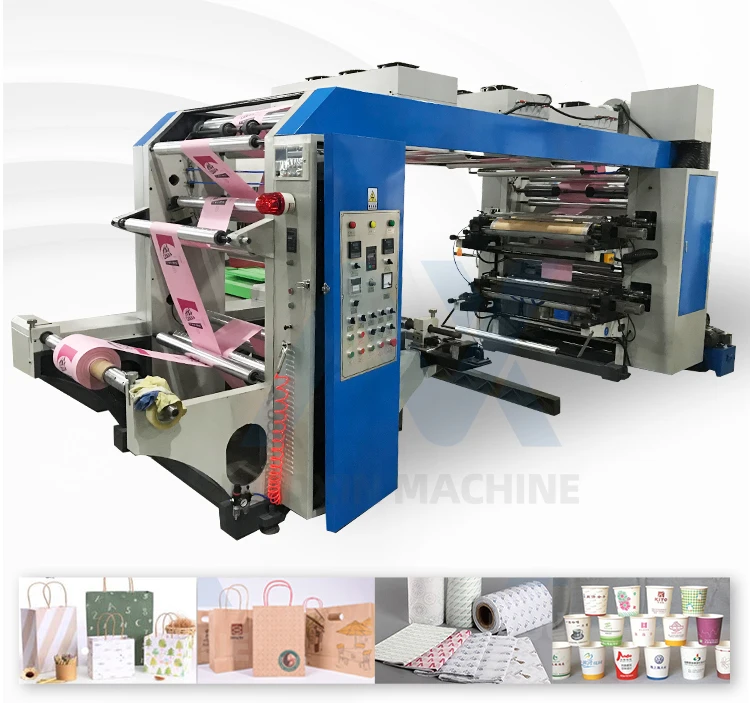

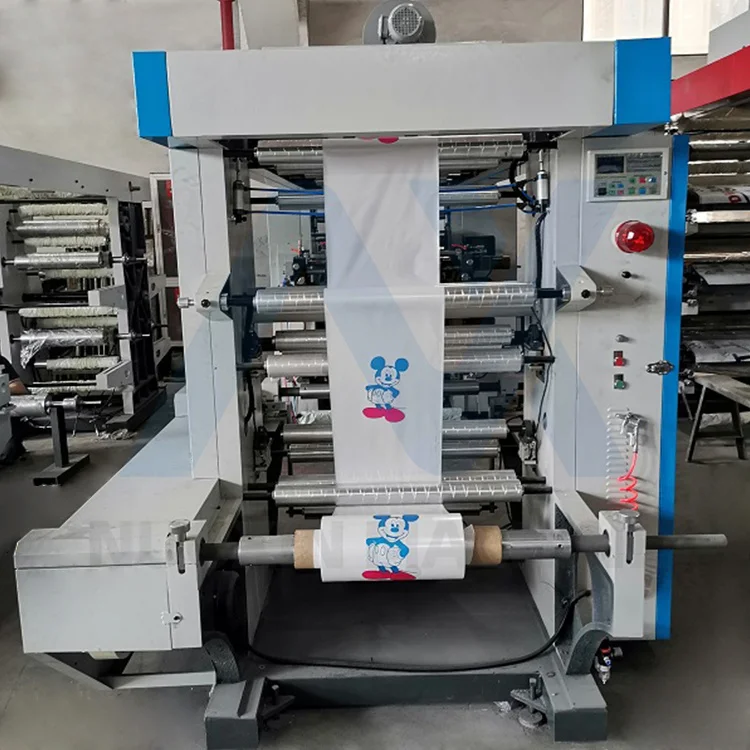

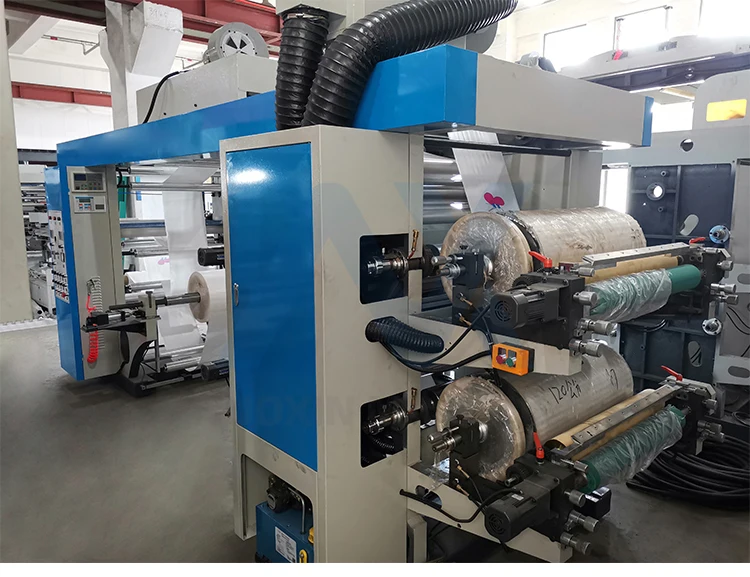

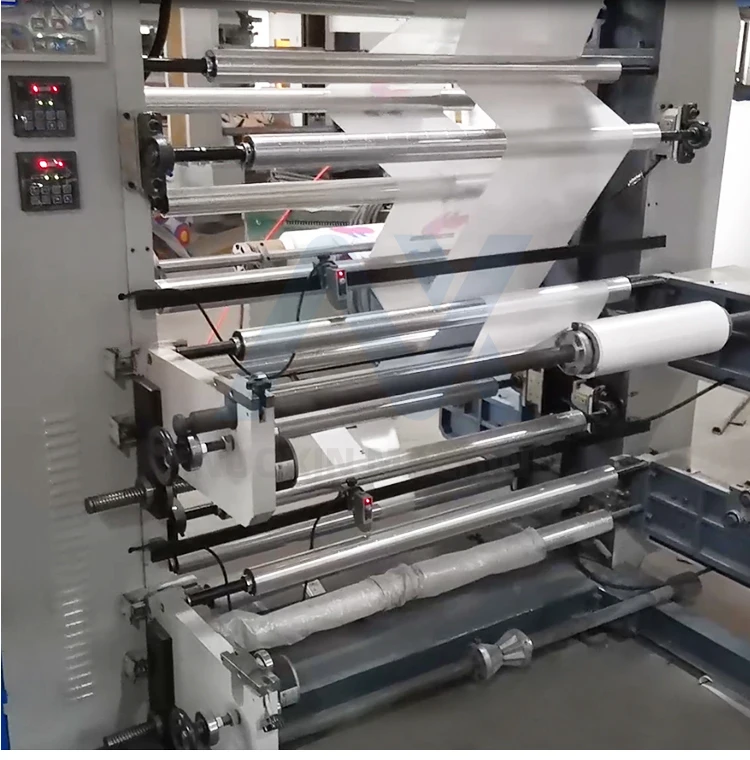

Machine Photos:
Technical Parameter
Model | NXZ4-600 | NXZ4-800 | NXZ4-1000 | NXZ4-1200 | NXZ4-1400 | |||||||
Max. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | |||||||
Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | |||||||
Printing length | 190-1060mm | |||||||||||
Drive type | Straight gear drive | |||||||||||
Printing cylinder lift | Pneumatic control up and down | |||||||||||
Mechanical speed without material | 80m/min | |||||||||||
Max. running speed | 60m/min | |||||||||||
Plate Thickness | 2.38mm (Both side adhesive tape included) | |||||||||||
Anilox roller | Metal anilox roller:100-300LPI | |||||||||||
Unwind/rewind Diameter | Φ600mm | |||||||||||
Drying way | Electric heating | |||||||||||
Machine power | 18kw | 20kw | 22kw | 24kw | 26Kw | |||||||
Overall Dimension | 4.5×1.8×2.6m | 4.5×1.9×2.6m | 4.5×2.1×2.6m | 4.5×2.3×2.6m | 4.5×2.5×2.6m | |||||||
Machine Also can made as client requirement. If you need other width Size or high speed machine, pls kindly contact us directly. | ||||||||||||
Details Images
unwind parts
1.Automatic stop machine when break the material. When machine stop, keep tension and avoid the material loose or line deflection.
2.Single unwinding system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
3.Discharge maximum diameter: 600mm
4.Pneumatic load and unload to transport and loading material.
2.Single unwinding system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
3.Discharge maximum diameter: 600mm
4.Pneumatic load and unload to transport and loading material.
Printing Sections
1.Printing consists of: central drum, plate roller, ceramic anilox roller, single doctor blade and chamber doctor blade.
2.Repeat length: 200-1060mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.
2.Repeat length: 200-1060mm.
3.Print material: resin plate or rubber plate.
4.Transmission: central drum with big gear drive the printing station.

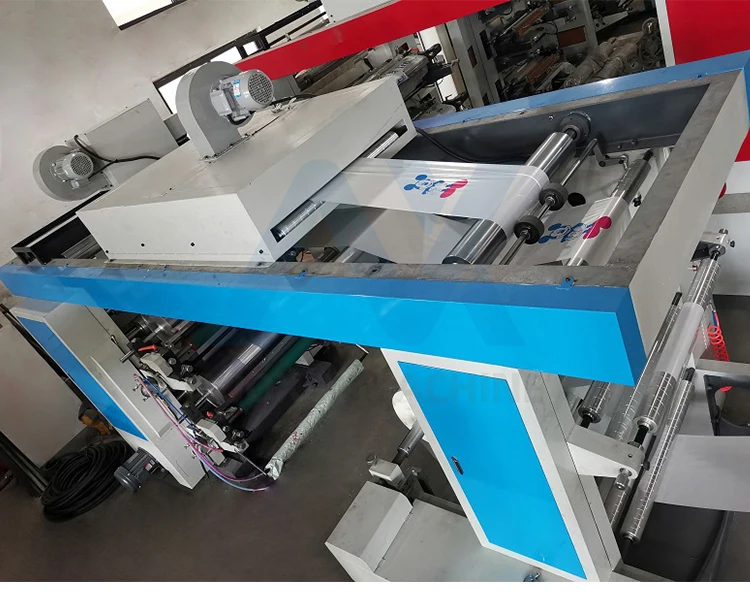

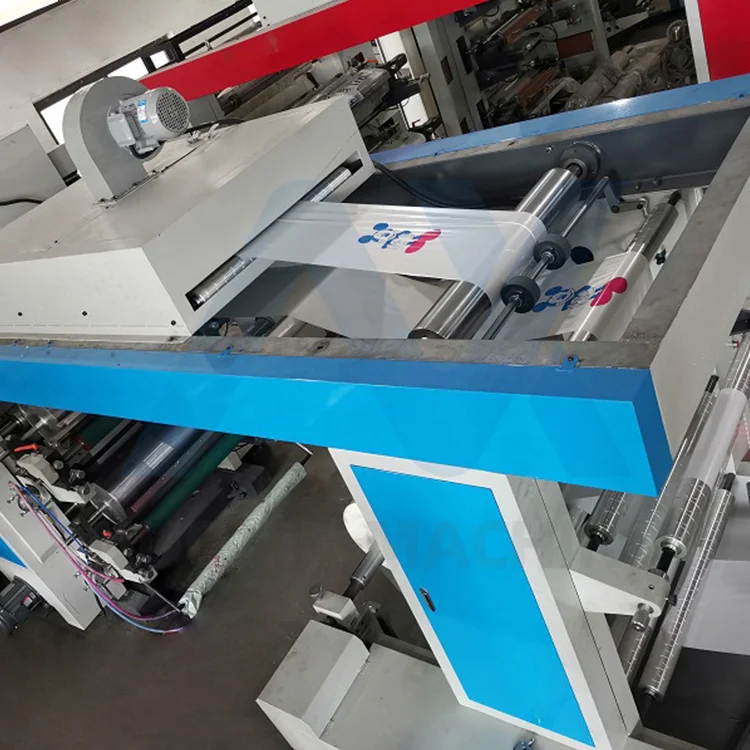

Drying System
1.Use hot air drying, intelligent constant temp control.
2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel.
3. The dryting system after the printing it is about 30kw.
2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel.
3. The dryting system after the printing it is about 30kw.
Rewinding Part
1.Single unwinder system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.
2.Discharge maximum diameter: 600mm
3.Different material and weight have different design.
4.Pneumatic load and unload to transport and loading material.
2.Discharge maximum diameter: 600mm
3.Different material and weight have different design.
4.Pneumatic load and unload to transport and loading material.

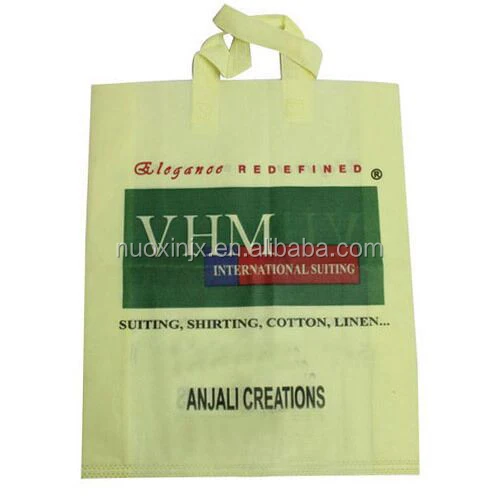

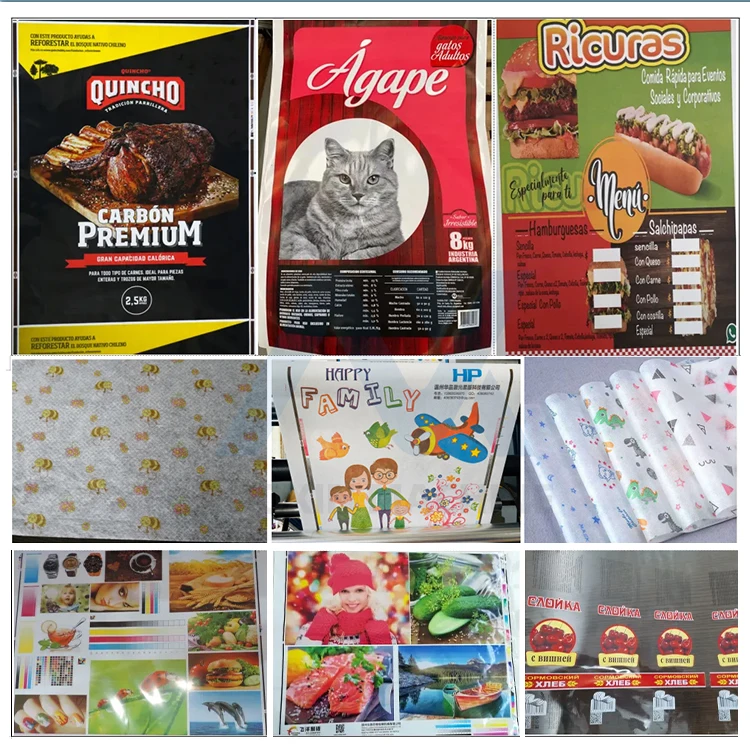

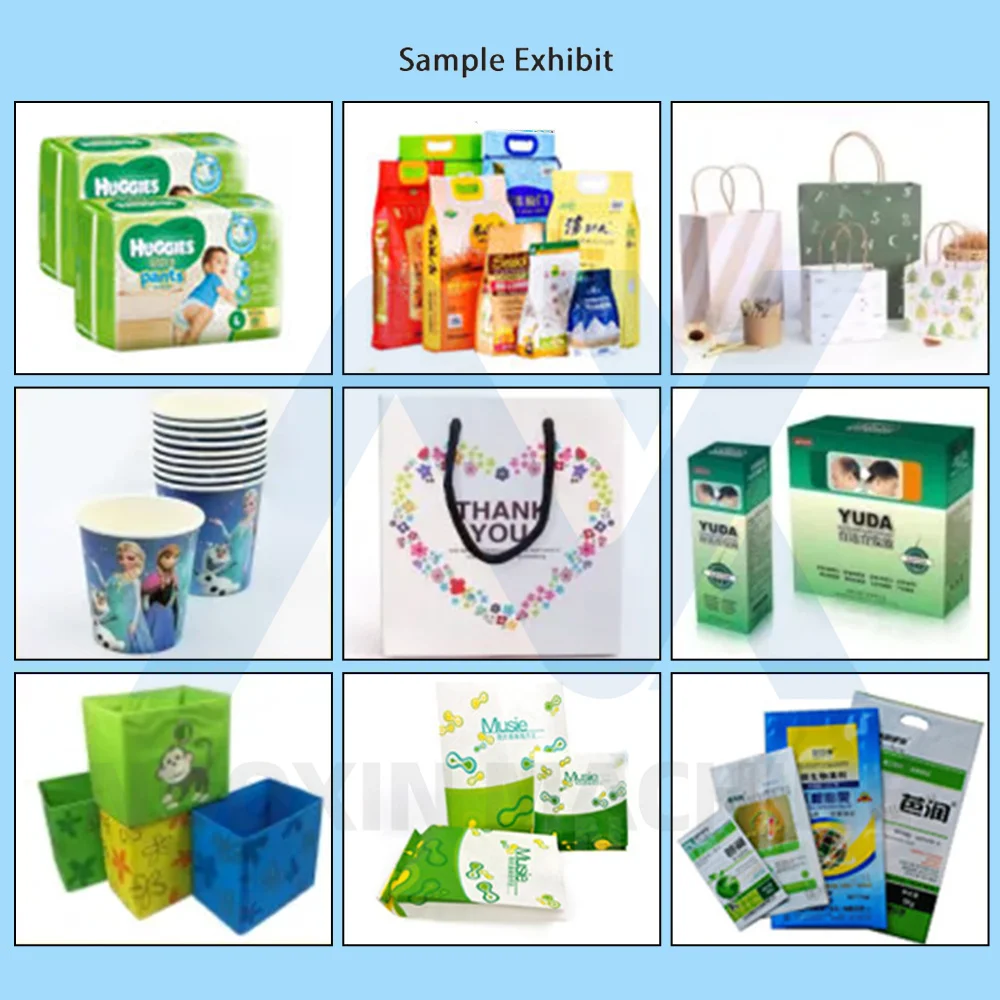

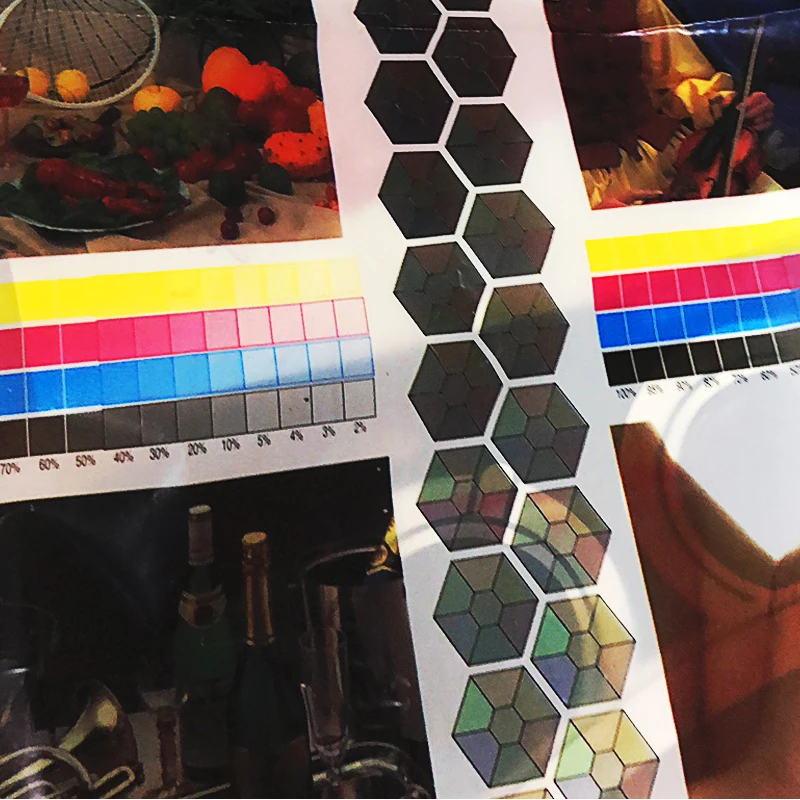

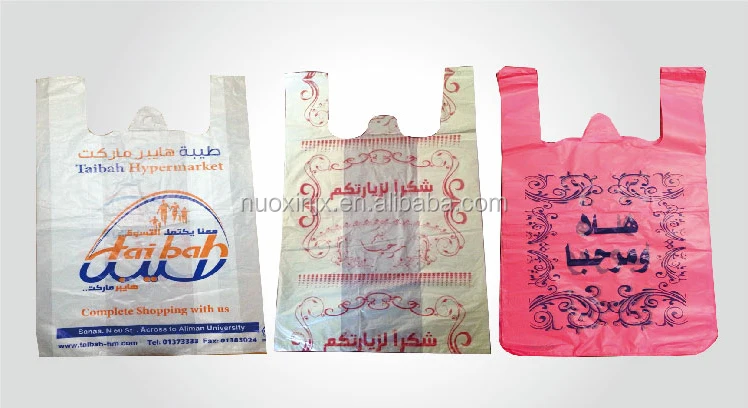

Printed Samples
Company Profile
Successful Project
The client in Spain.
The client in Spain.
The client in Guatemala.
The client in Ghana.
Our Service
Packing & Delivery
FAQ
Q1.Which industries are widely used in of your machines?
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4: What about your main market?
A4: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
Q6.What is your machine guarantee?
Q7.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
A1:The machines are widely used in various roll drum material printing.
Q2.Are you manufacturer or trading company?
A2:We are manufacturer , we have a history more than 14 years.
A2:We are manufacturer , we have a history more than 14 years.
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4: What about your main market?
A4: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
Q5:How does your factory do regarding quality control?
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q6.What is your machine guarantee?
A6:One year , we will give you spare parts for free.During this period, if the machine has some problems, our engineers can go abroad to fix for you.Our after-service is forever!
Q7.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
A8:TT , LC , trade insurance.
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
