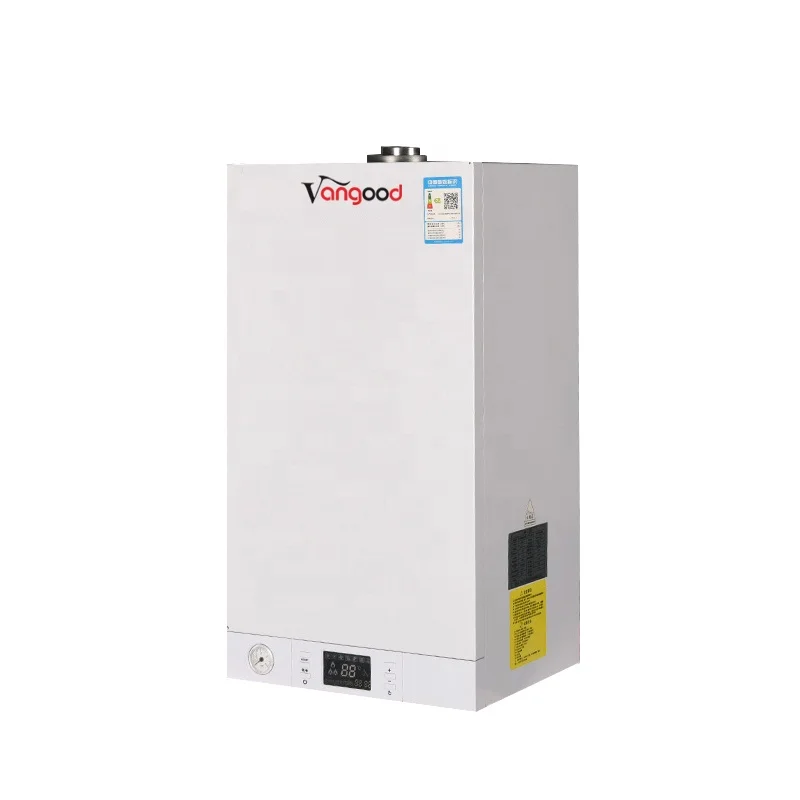

Product model | SB1P24-G |
Gas type and gas supply pressure | Natural gas 12T/2000Pa |
Applicable pressure range of gas | 1500(pa)~3000(pa) |
Rated heating heat input | 24(kw) |
Rated Heating Heat Output | 21.6(kw) |
Minimum Heating Heat Input | 9.6(kw) |
Minimum Heating Heat Output | 8.16(kw) |
Heat sink heating temperature range | 30°C~85°C |
Floor heating temperature adjustment range | 30℃~60℃ |
Applicable pressure for heating system | 0.05MPa~0.3MPa |
Expansion tank volume | 6L |
Maximum water volume of heating system | 100L |
Pump lift (M) | 5m |
Reference heating area | 80m2~108m2 |
Voltage frequency | 220V~50Hz |
Maximum input electric power | 120W |
Coaxial air supply and exhaust | Medium 60/Ф100 |
waterproof level | IPX4 |
Product Size | 740x400x270mm |
Package Size | 810x460x310mm |
Net weight/Gross weight | 31/34kg |
