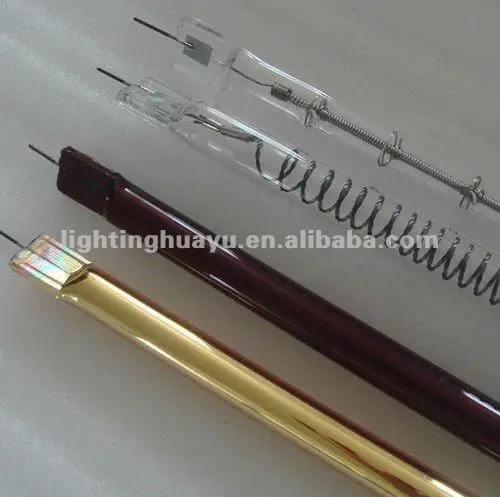

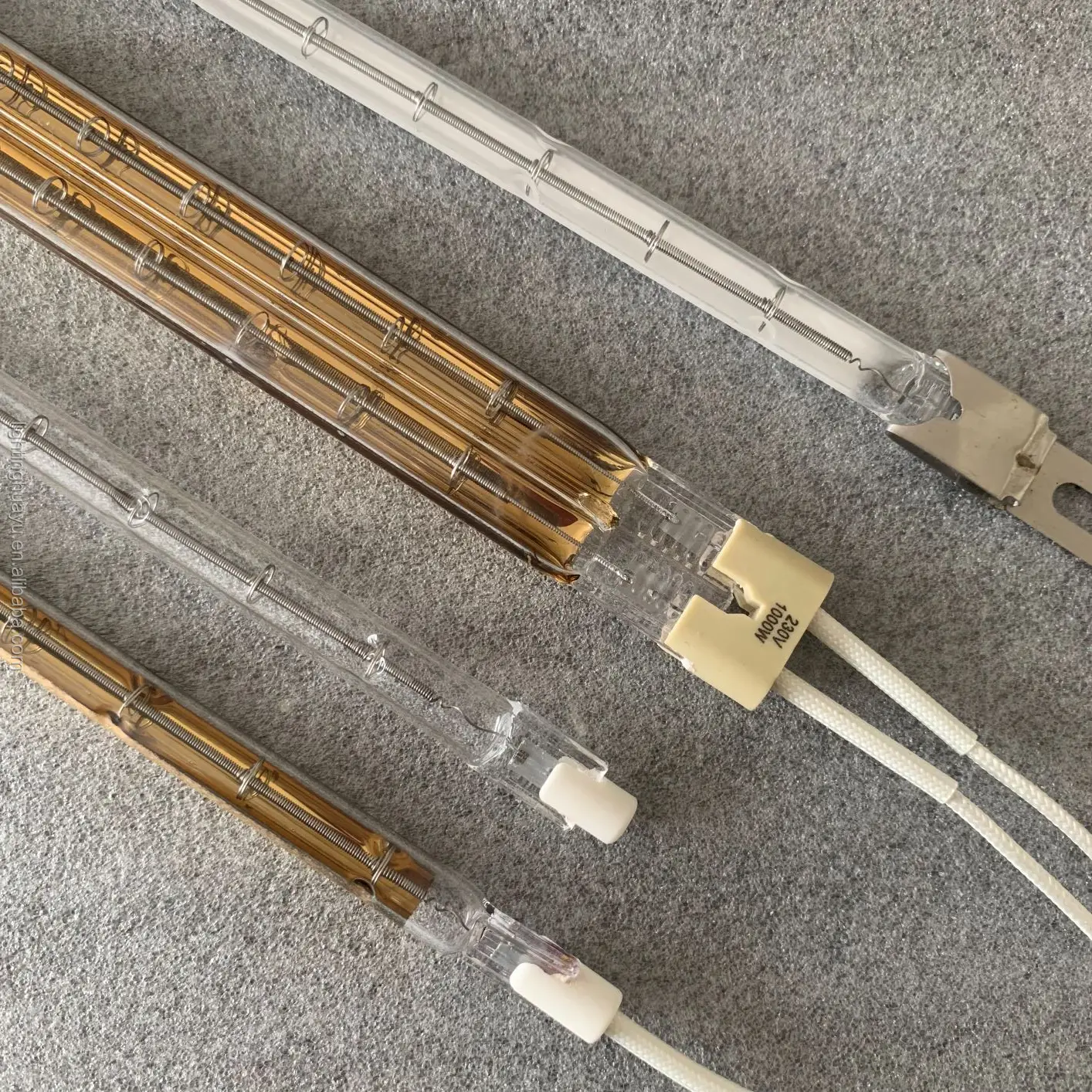

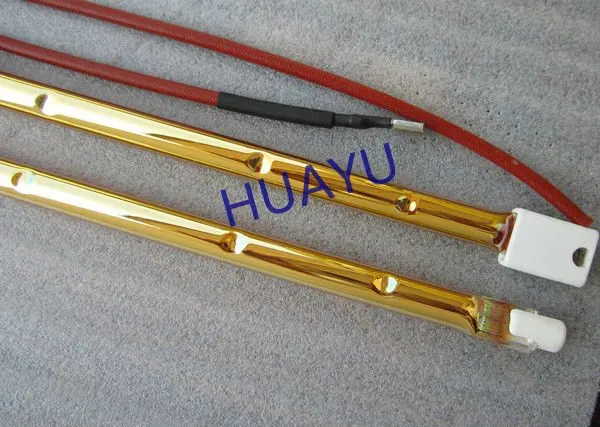

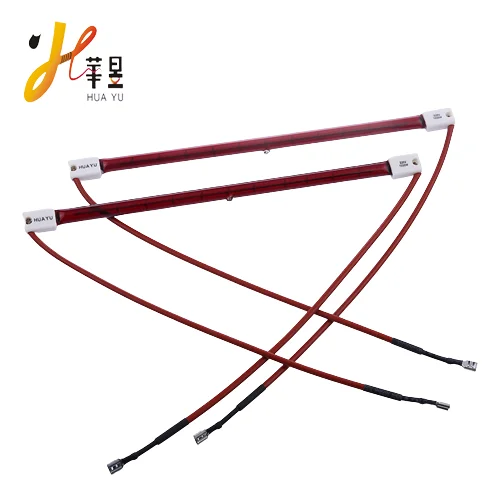

Quartz Infrared IR Heating Lamp 1.5KW

Product Overview

Description

1500W Quartz Halogen Infrared Heat Lamp



We are manufacturer of Lamps from 2003, produce infrared heating lamp,quartz infrared halogen lamp,gold coated infrared halogen lamp, carbon fiber infrared heater lamp and UV lamps



Short Wave ir heating lamp:



1.gold coated infrared heater lamp

2.white reflector infrared halogen lamp

3.clear infrared heating lamp

4.ruby infrared halogen heating lamp

5.gold reflector infrared heating lamp

6.other special lamps(Twin tube infrared halogen heating lamp)



Far wave infrared heating lamp:



1.Clear infrared carbon fiber lamp

2.ruby infrared carbon heating lamp

3. gold infrared carbon heating lamp

4. gold reflector carbon fiber infrared heating lamp





Benefits VS Features:



1.Versatility of heat source:



Wide range of lamps lengths and power available.



2.Clean:  No byproducts, no pollution.



3.Safe:  Quartz envelope, heat shock resistant.



4.Economical:  More than eighty-five percent of consumed energy transmitted into infrared heat.



5. Long life:   More than 5000 hours.



6.Near infrared heating:



The wave of infrared is from seven hundred fifty nm to one thousand five hundred nm.



Application:



Dry and baking equipment



Heater and car painting, spray painting



Sterilizing device,etc.



Food baking and industrial production oven.



High temperature curing for glue and printing ink.



PET bottle blowing laminating and Paper drying



Wood drying and preheating before painting



Plastic softening and synthesis cable production.



Beauty apparatus,infrared physical therapy care.



Infrared drying for shoes making machine.



 Heating lamp for wave soldering ,reflow soldering equipment.





 We also can do the lamp as the customer need, please feel free contact me if you have any question .



IR halogen

Model	Power W	Voltage V	Color temperature K	The peak wavelength um	Life H	Diameter MM	Size MM
IR-1	300	120	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	325	120	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	400	120-240	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	500	120-240	980-1380	2.5-4.5	5000	8-10	200-450
IR-1	600	120-240	980-1380	2.5-4.5	5000	8-10	250-600
IR-1	800	120-240	980-1380	2.5-4.5	5000	8-10	250-800
IR-1	1000	120-240	980-1380	2.5-4.5	5000	10-12	300-1500
IR-1	1200	120-240	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	1500	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	1800	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
IR-1	2000	120-380	980-1380	2.5-4.5	5000	10-12	350-1500
