Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole
Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole

Cheap absolute value encoder RS485 absolute 16 bit encoder KM60 ssi hollow shaft absolute encoder through hole

Share on (1600854969031):


Price:

Quantity:


Product Overview

Description



Products Description

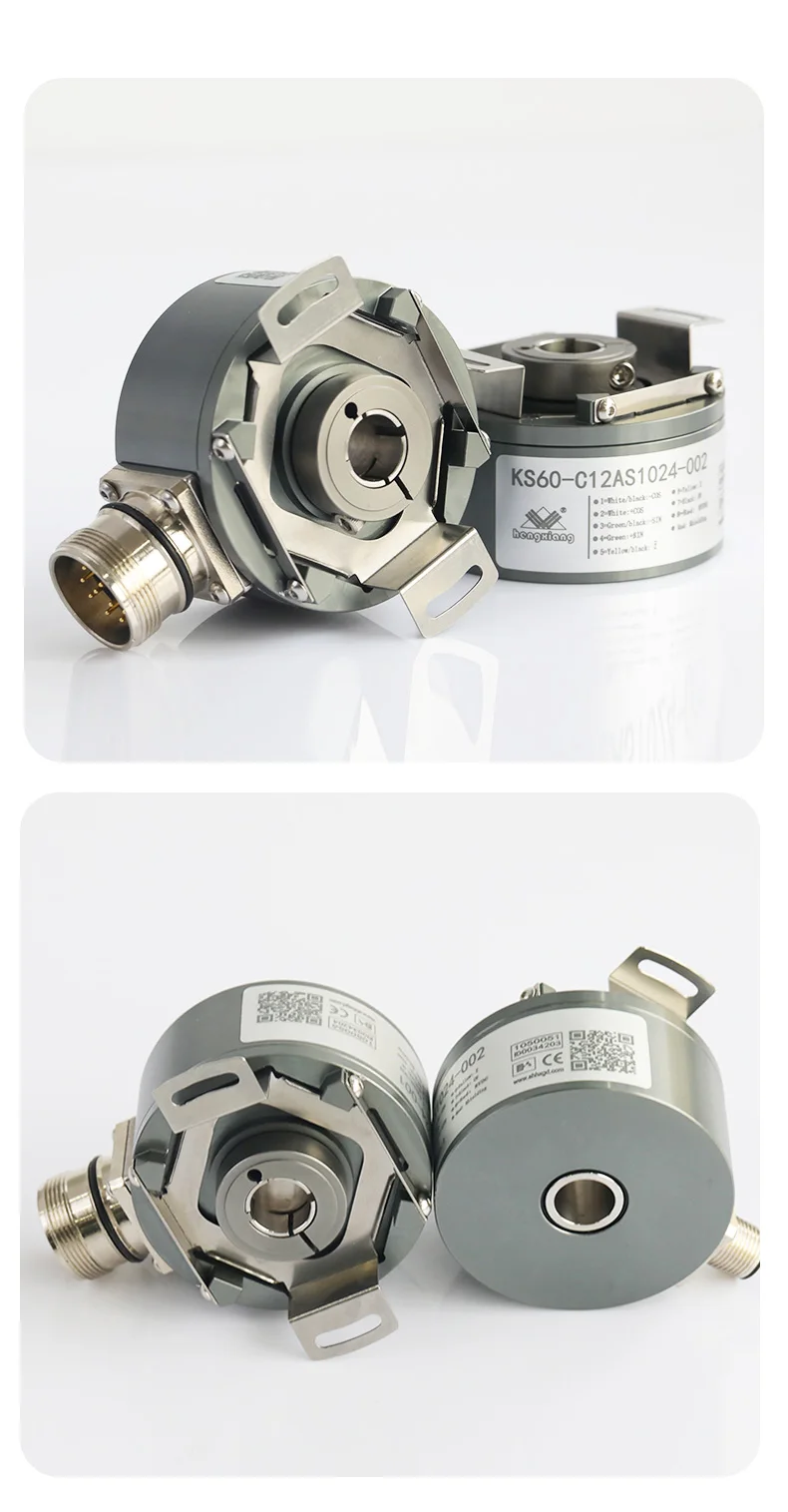

Details Images

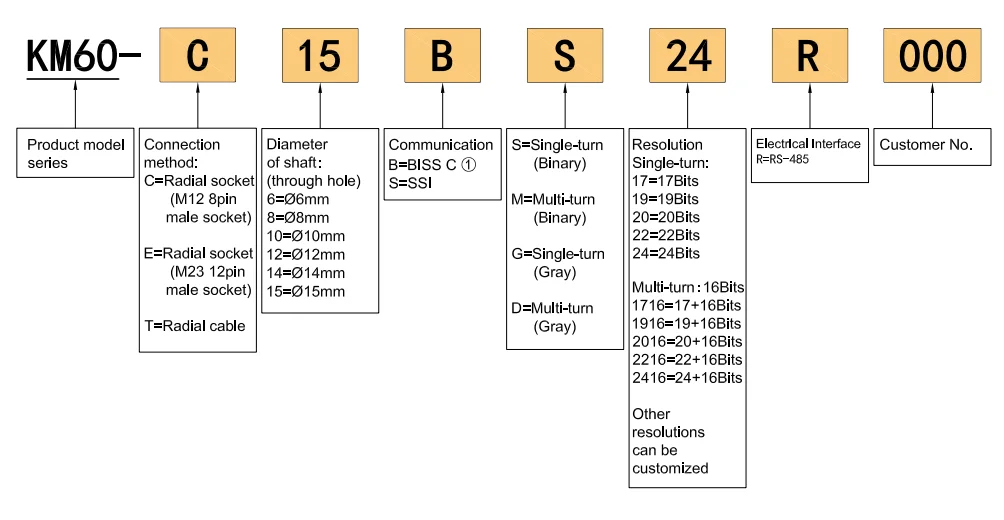

Model Selection Guide






Product Paramenters


Items
Basic parameters
Brand
HENGXIANG
Encoder type
Absolute encoder
External diameter
60mm
Thickness
39.8mm

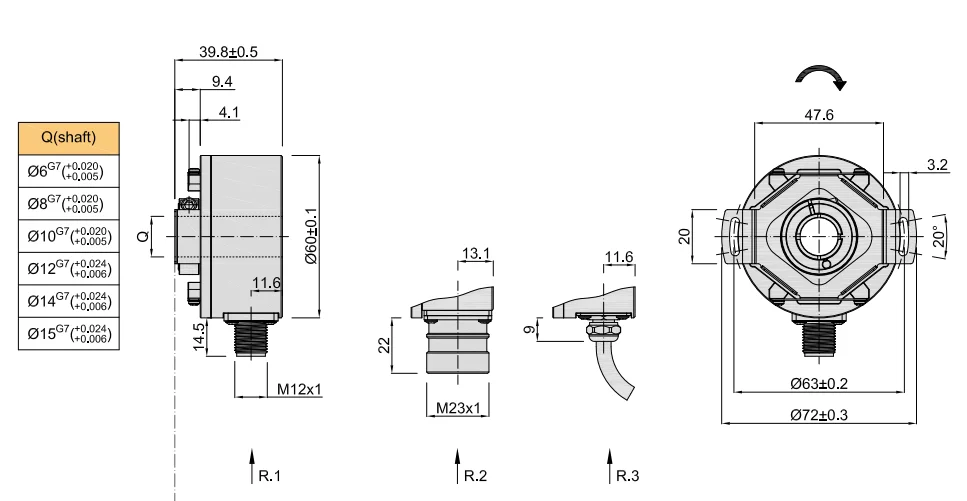

Installation dimension
63±0.1mm diameter
Shaft type
Through shaft
Shaft diameter
6mm; 8mm;10mm; 12mm; 14mm; 15mm
Bit(steps)
Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; Multi-turn: 16bits+(17-26bits)
Outlet type
Cable connection; Radial socket
Electrical interface
RS-485
Communication
BISS C Binary/Gray)
SSI (Binary/Gray)

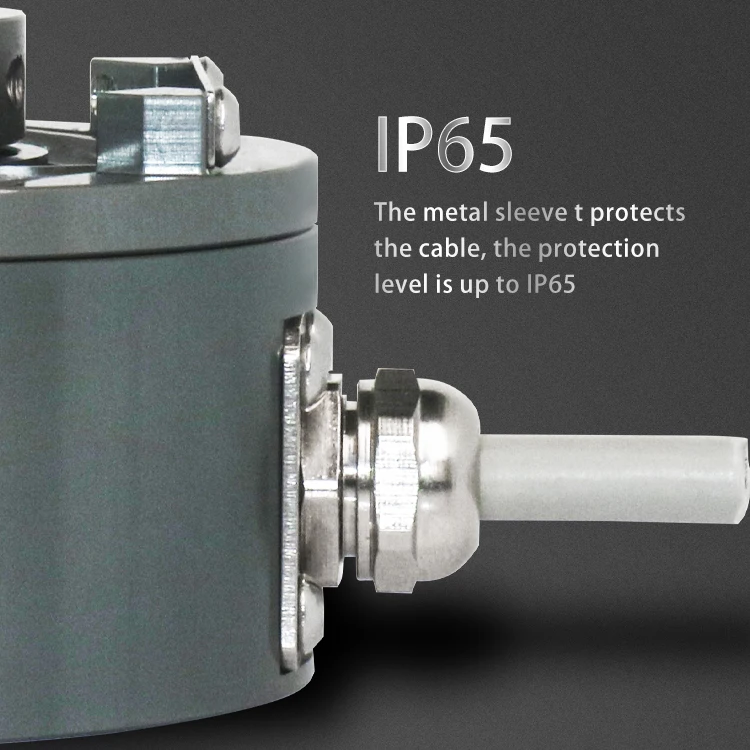

Protection grade
IP65
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Response speed
Normal action: 6000min-1
RMS position signal noise
±2 @18 Bits/r
Communication clock frequency
≤10 MHz (BiSS) or ≤5 MHz (SSI)
Starting time
Typical value: 13ms
Absolute position sampling priod
≤75 ns

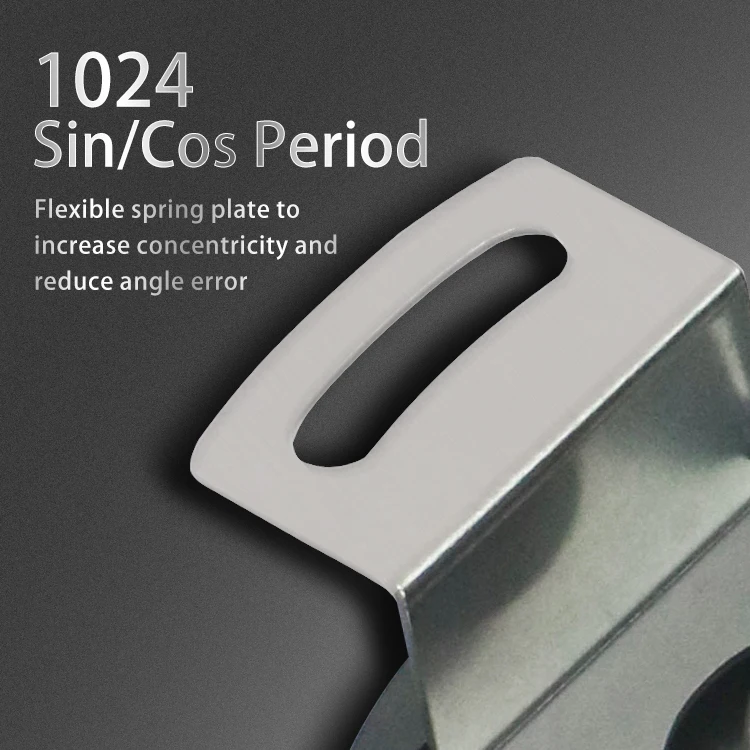

Mechanical connection
Ring locking with shaft, flexible spring plate fixed connection
starting torque
less than 9.8x 10-3N.m
Intertia moment
less than 6.5x 10-6kg.m2
Shaft load
Radial 30N; Axial 20N
Allowed speed
≤6000r rpm
Environmental temperature
Operating:-40 ～+95°C；storage:-40 ～+95°C
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Shock(endure)
980m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
Aluminum alloy
Certification
CE
package
Carton box
Net weight
About 350g (with package)


About Factory




Our Certifications


CE/ATC/ISO/QMS/INVENTIONS OF PATENTS
Awarded 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO quality management system certificate, QMS quality management system certificate, pioneer enterprise and other honorary enterprise certificates
We have passed the national quality management system certification and all the inspected projects meet the requirements, possessing professional production qualifications.
