Water Quality Monitoring Ph Compensation Rs485 Output Online Ammonia Nitrogen Sensor
- Category: >>>
- Supplier: Yantai Chemins Instrument Co. Ltd.
Share on (1600855042010):
Product Overview
Description

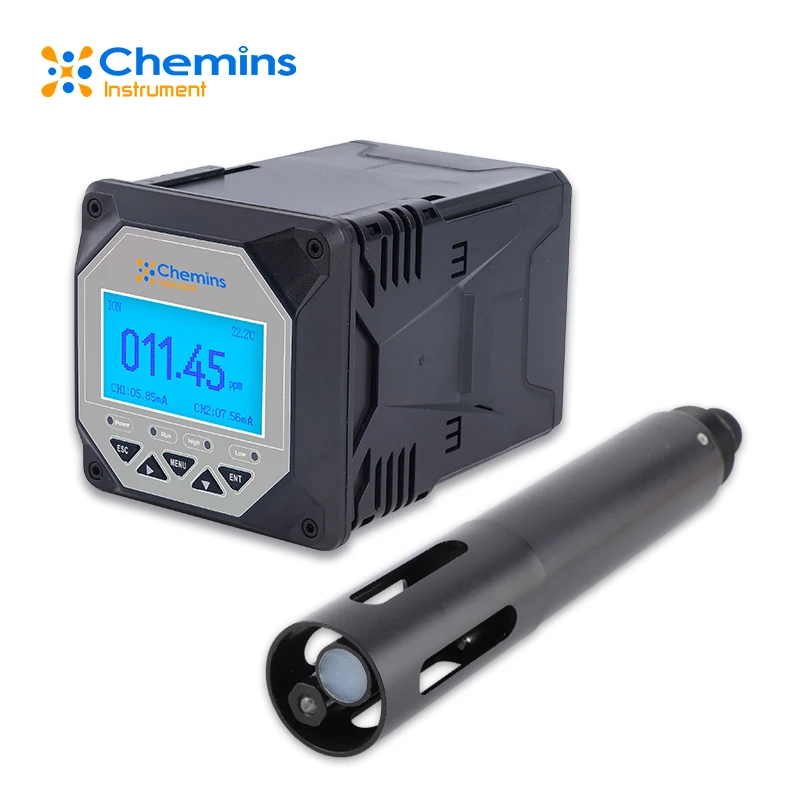

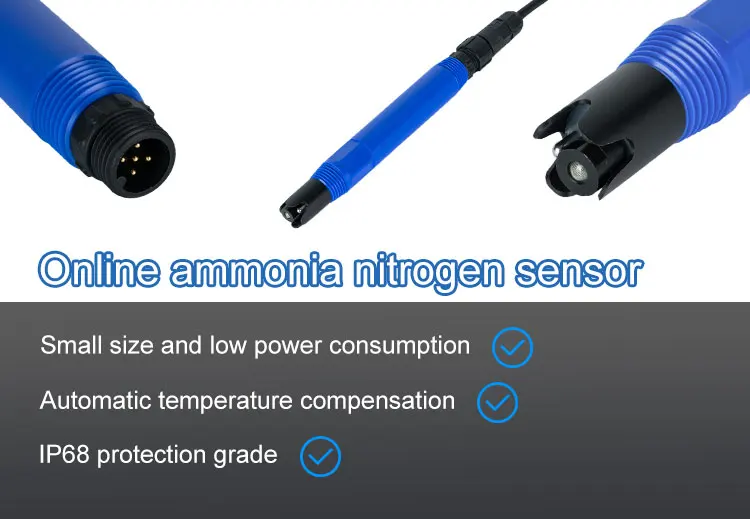

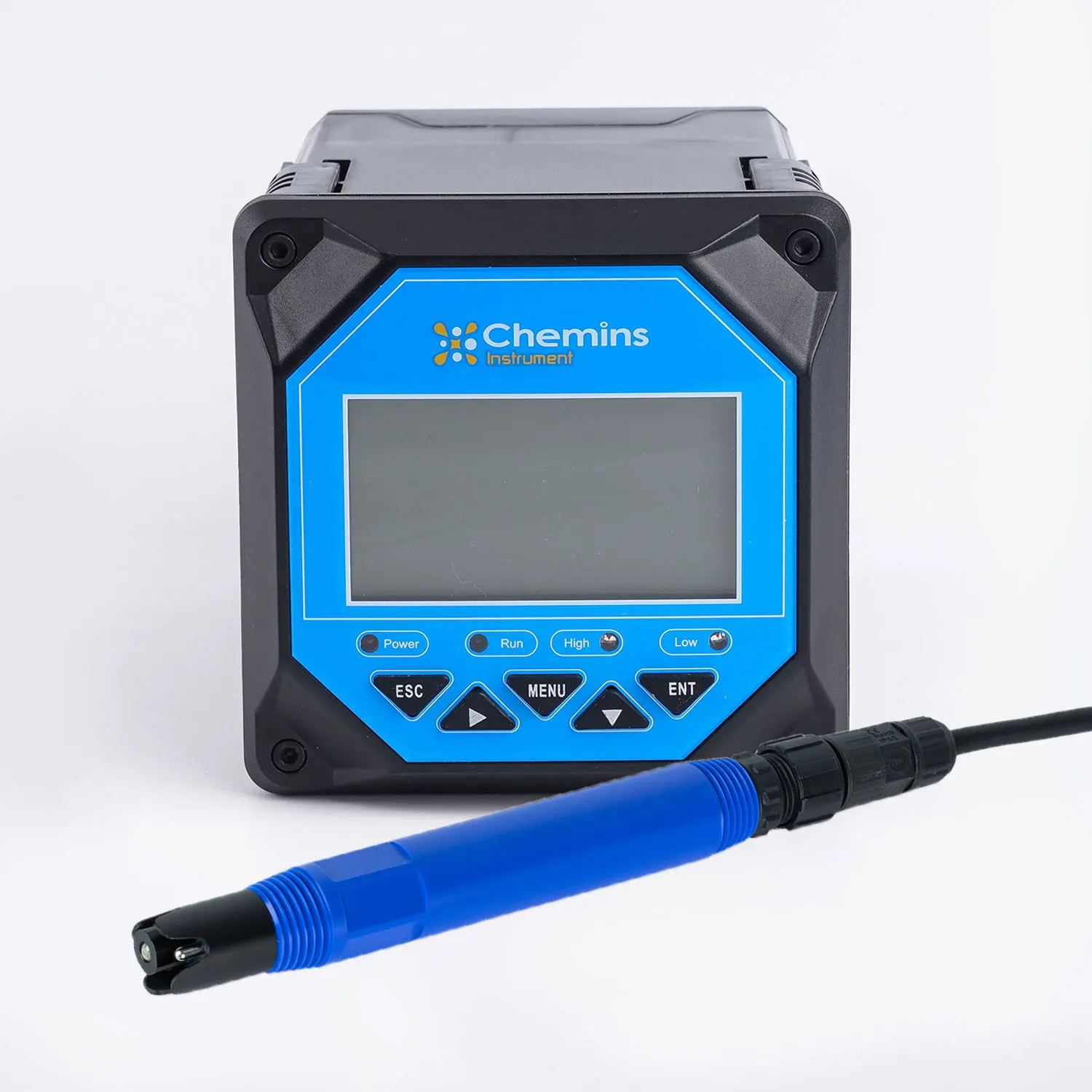

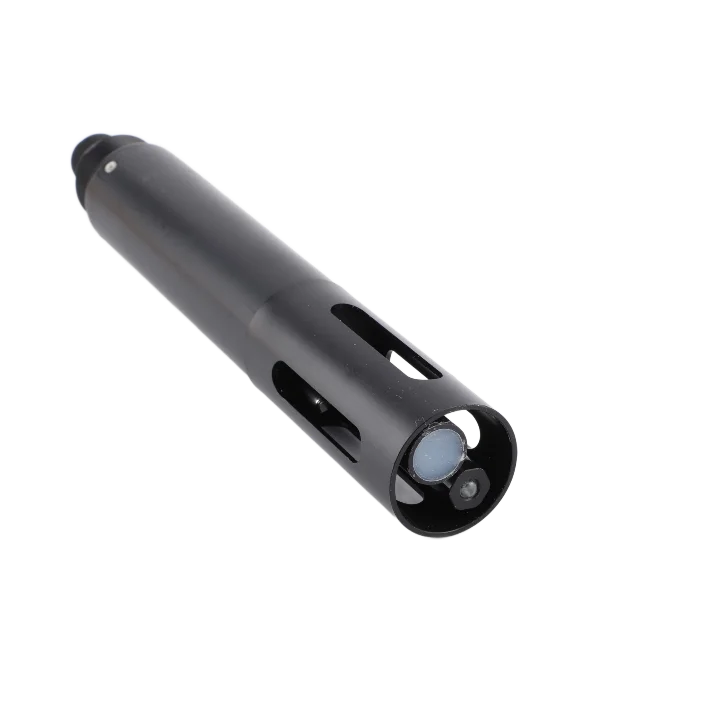

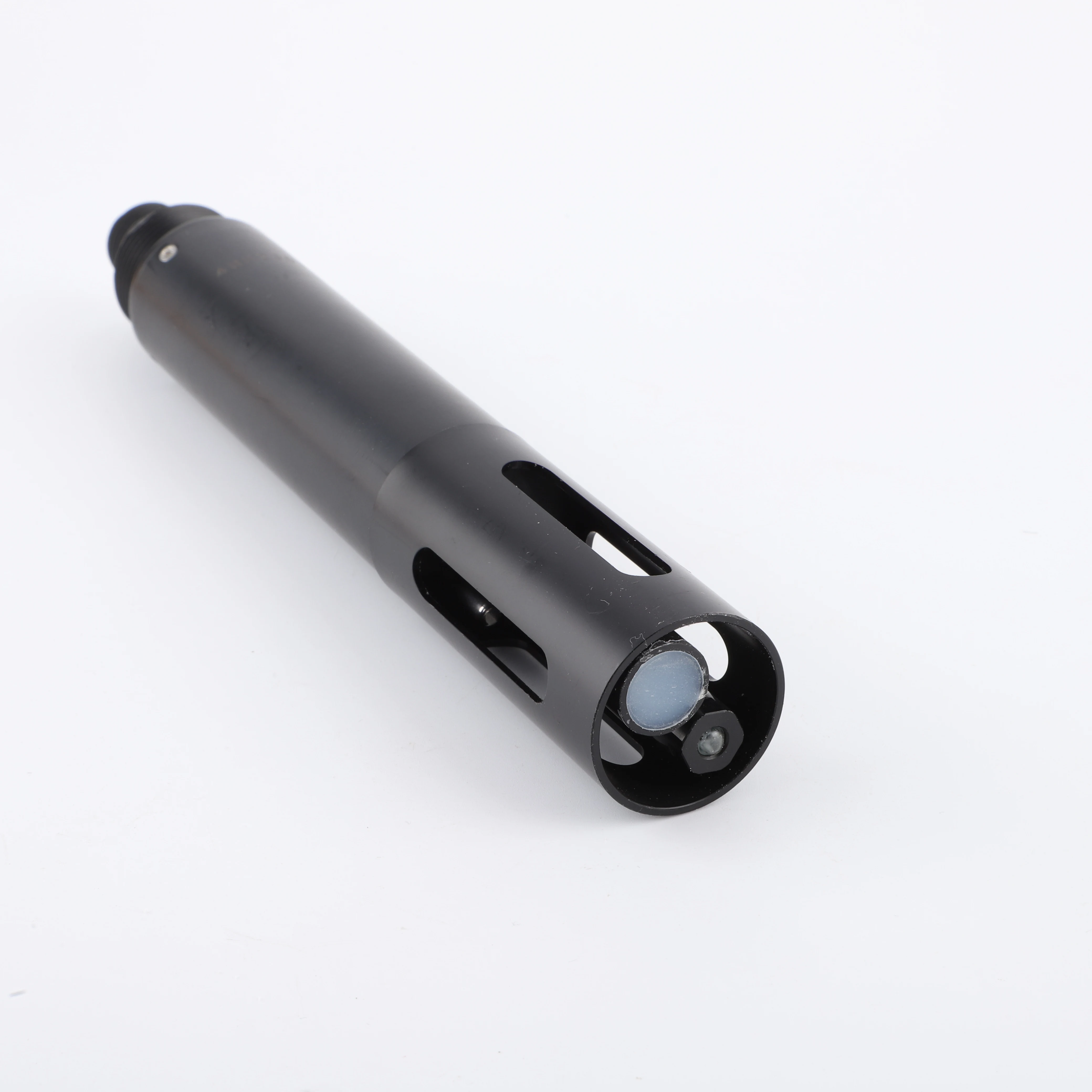

iNH-306 Online Ammonia Nitrogen Sensor
iHN-306 integrally Online ammonia sensor is a PVC-based film forming the ammonium ion-selective electrode, the ammonium ion content of the test for the water, with temperature compensation to ensure that the test be fast, simple, accurate and economical. The present specification details the contents of the technical parameters of the ammonia sensor, maintenance and use of communication protocols.
1、Signal output: RS-485bus,Modbus / RTUprotocol
2、Easy connection to a third-party equipment PLC, DCS, industrial control computer, universal
controller, paperless recording instruments and a touch panel.
3、The patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
4、Easy installation: Submerged installation .
5、IP68 protection class.
1、Signal output: RS-485bus,Modbus / RTUprotocol
2、Easy connection to a third-party equipment PLC, DCS, industrial control computer, universal
controller, paperless recording instruments and a touch panel.
3、The patented ammonium ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 KPa (1 Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
4、Easy installation: Submerged installation .
5、IP68 protection class.
Products Description
Specification
model | iNH-306 |
Measuring range | 0～10.00mg/L（0～100.00mg/L） |
Resolution | 0.1mg / L |
Accuracy | ±10% or ±1mg/L, ±0.5℃ |
Operating temperature | 0 ~ 40 ℃ |
Working pressure | <0.1MPa |
pH range of the medium | 4 ~ 10 pH |
Temperature compensation | Automatic temperature compensation (Pt100) |
Power supply | 12 ~ 24VDC |
Signal output | RS-485bus,Modbus / RTUprotocol |
Wetted | PVC and POM |
Mounting | Immersion installation |
Cable length | 5m, Other lengths can be customized |
Calibration methods | Two-point calibration |
Power | 0.1W@12V |
Protection class | IP68 |
HangZhou CHEMINS INSTRUMENT Co.,LTD was established in 2011, is a high-tech enterprise specializing in water environment monitoring.The company has a complete research, product, sales and technical service team, dedicated to the innovation and application of various water environment monitoring technologies, providing professional and comprehensive sensor solutions for river and lake water quality monitoring and marine environment monitoring.
