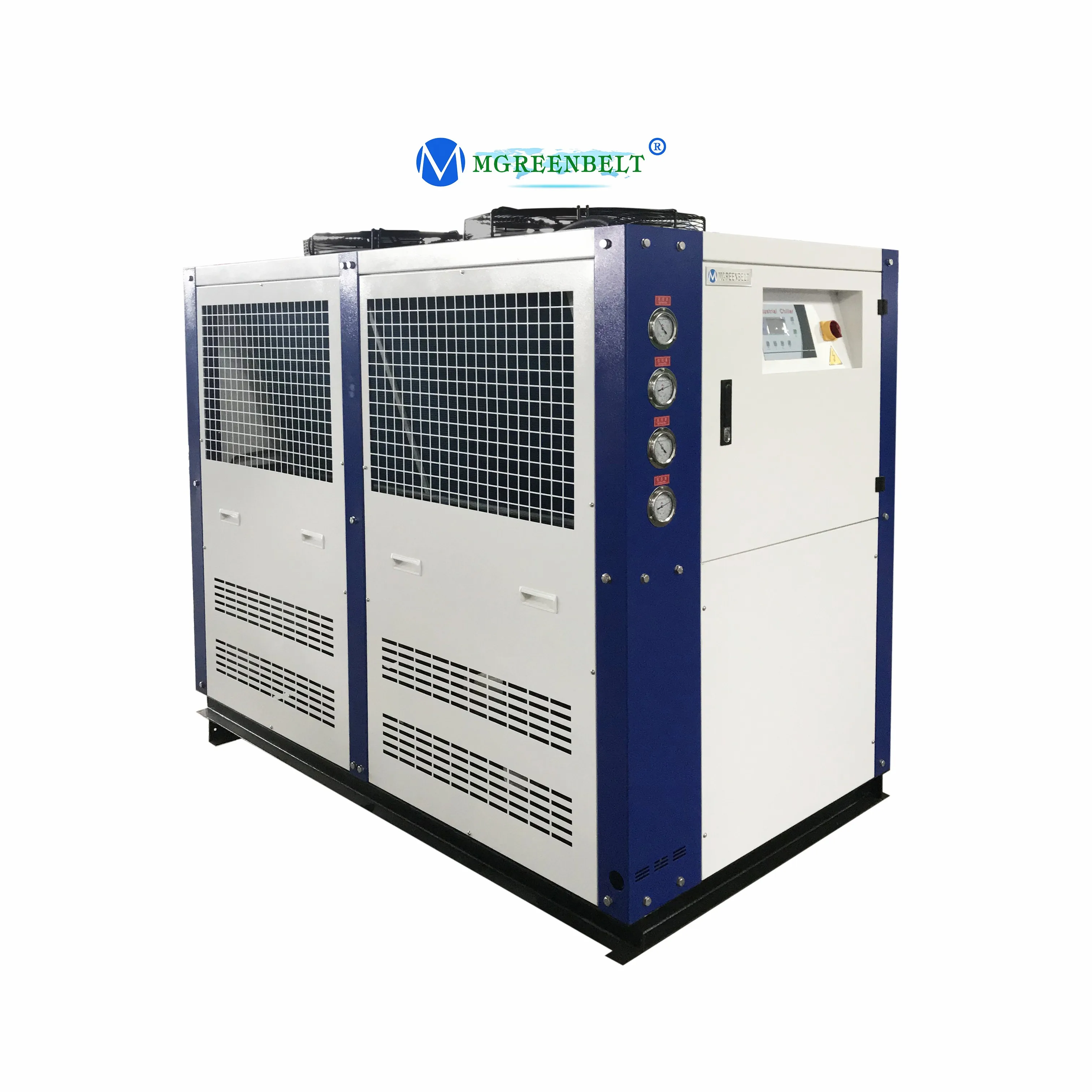

16ton chiller refrigerator chiller machines price chiller brand
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600855050006):
Product Overview
Description
Product Description

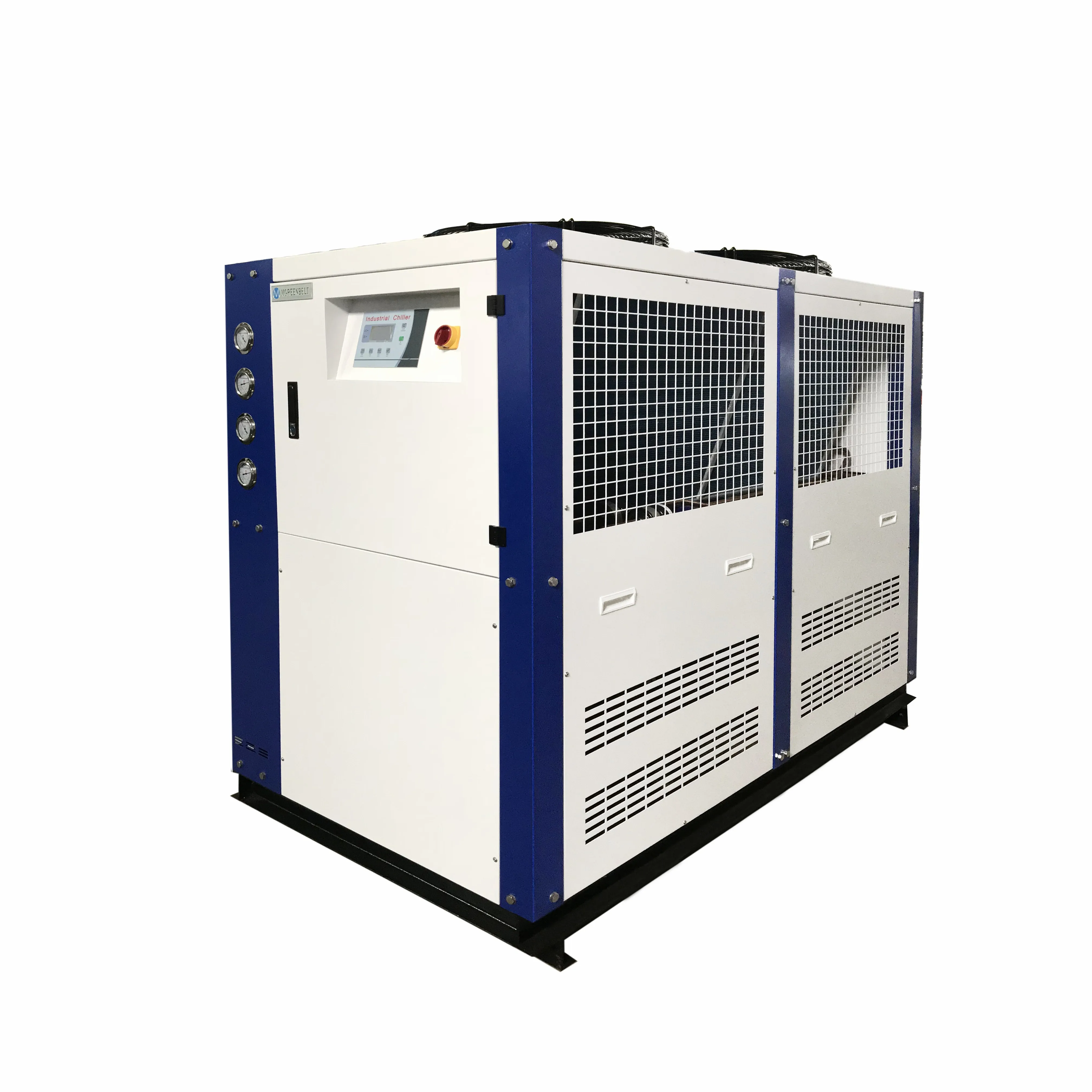

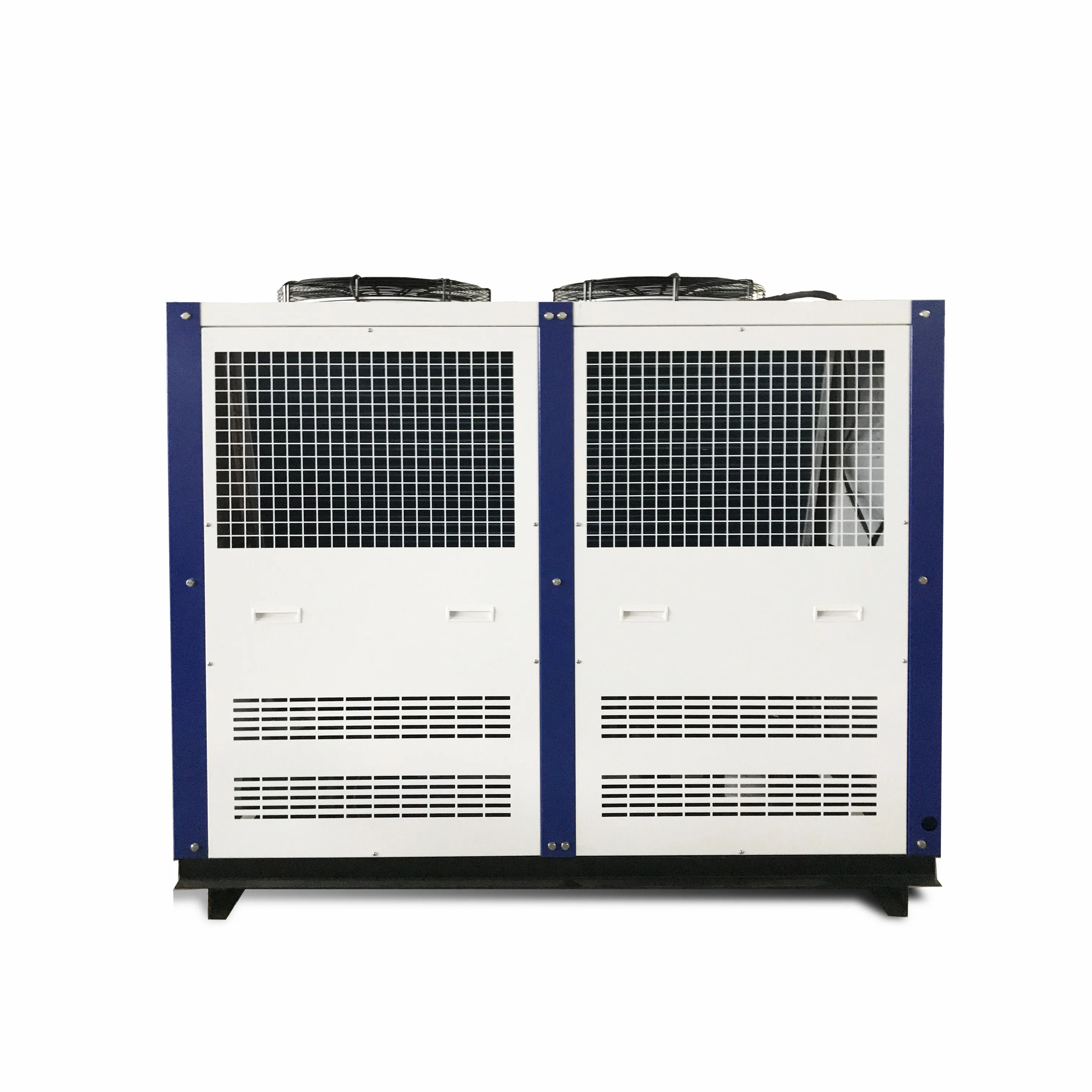

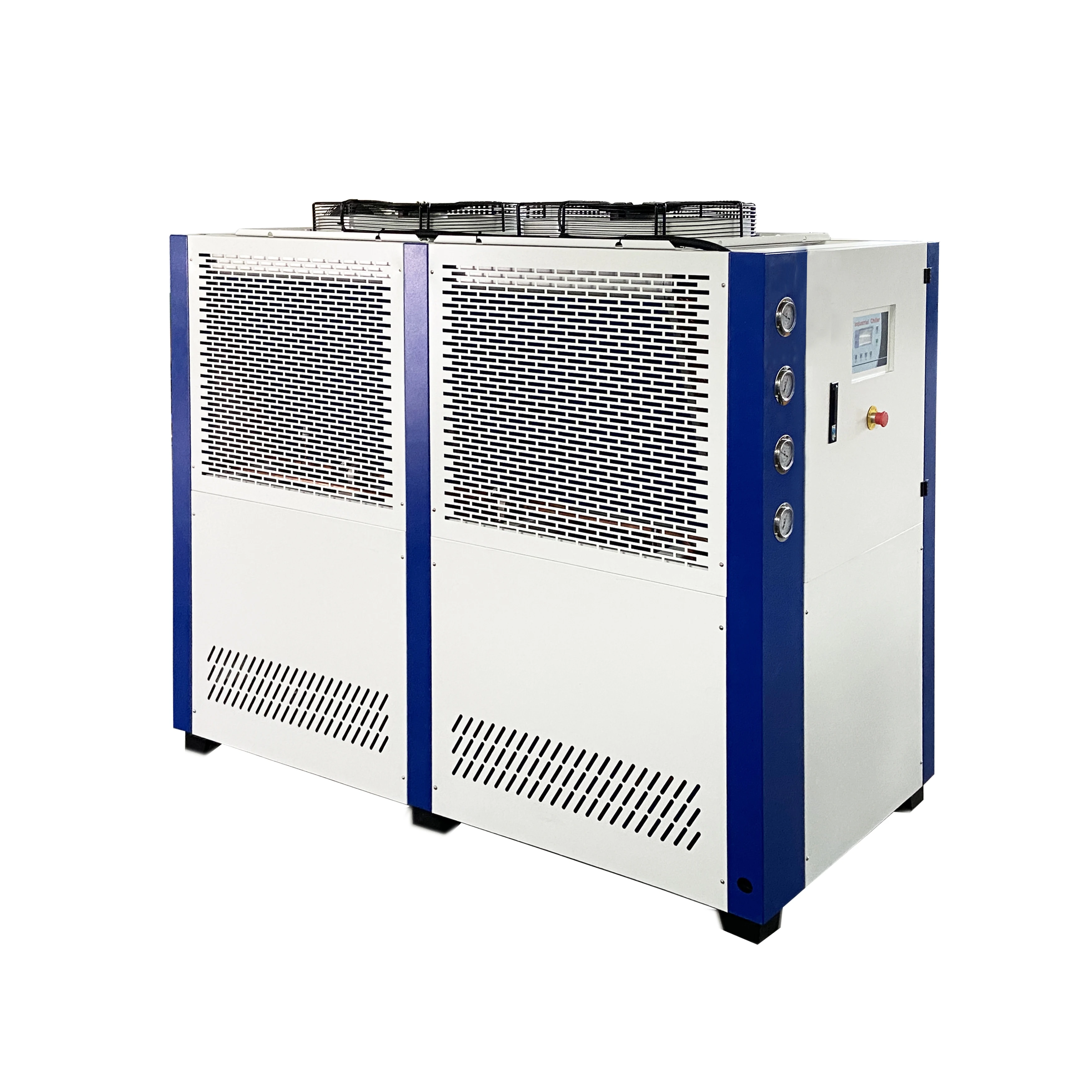

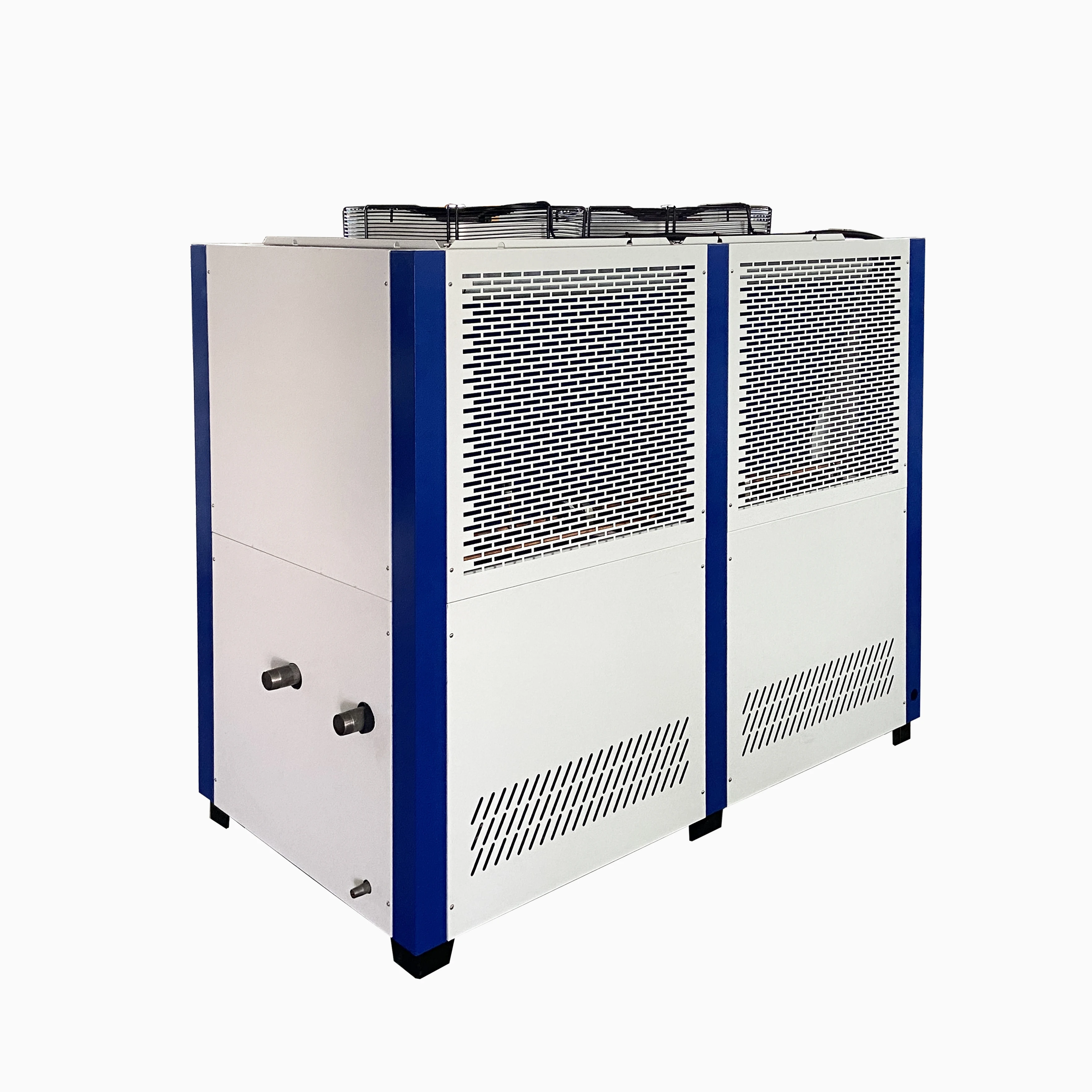

Mgreenbelt Air Cooled Scroll Chiller Features：
1. Regular case color
Blue and white cabinet, all aircraft cabinet. (Color can be customized)

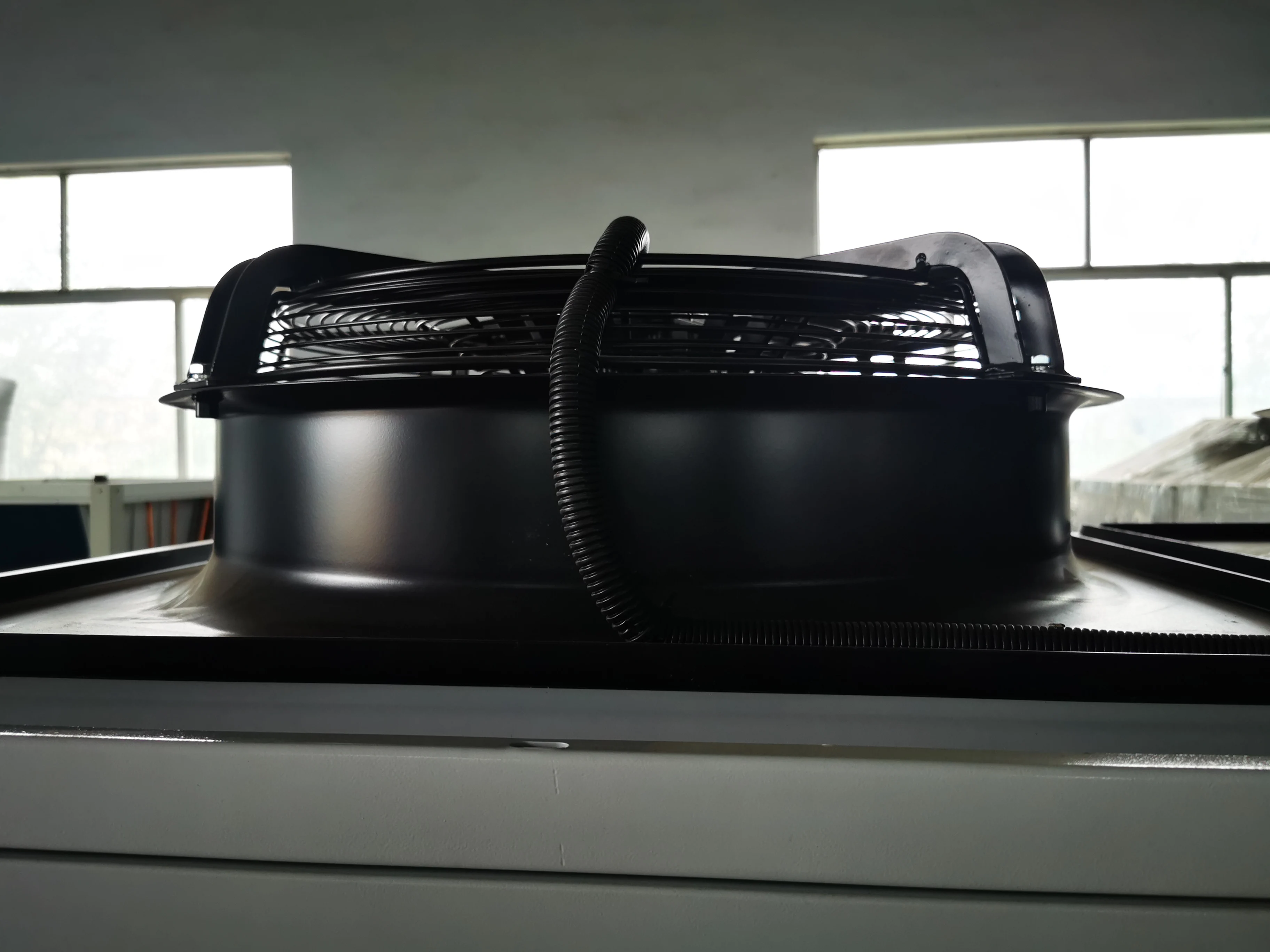

2. Condenser fan
Low noise external rotor axial flow fan. Mainly have Marr, Dunli, Shimmer, Yonghan and other brand fans.
3. The evaporator
High efficiency shell and tube evaporator (directly connected to the user's equipment), the main forms are shell and tube type, water tank coil type, plate replacement.
4. The condenser
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency.
5. Electric parts
All electrical control parts adopt international famous brand Schneider electrical parts, the quality is guaranteed.
6. Control panel
Microcomputer control, good man-machine interface, within the safe operating range of the unit, the unit can be freely set operation conditions; Once set, the unit can realize automatic operation, automatic adjustment.
7. Built-in chilled water pump and water accessories
1. Regular case color
Blue and white cabinet, all aircraft cabinet. (Color can be customized)
2. Condenser fan
Low noise external rotor axial flow fan. Mainly have Marr, Dunli, Shimmer, Yonghan and other brand fans.
3. The evaporator
High efficiency shell and tube evaporator (directly connected to the user's equipment), the main forms are shell and tube type, water tank coil type, plate replacement.
4. The condenser
Hydrophilic aluminum window corrugated finned copper pipe with internal thread, high heat exchange efficiency.
5. Electric parts
All electrical control parts adopt international famous brand Schneider electrical parts, the quality is guaranteed.
6. Control panel
Microcomputer control, good man-machine interface, within the safe operating range of the unit, the unit can be freely set operation conditions; Once set, the unit can realize automatic operation, automatic adjustment.
7. Built-in chilled water pump and water accessories
Application
At present, many industries need refrigeration facilities in daily production. The application range of chiller is increasingly wide. It can control the temperature within a specific range, and the refrigeration effect is stable, which is suitable for many industries. Examples include plastics and rubber manufacturing, electronic products, wine brewing, medical chemistry, ultrasonic cooling and printing business, food processing, machinery manufacturing, etc. It can accurately provide the required temperature for modern industrial manufacturing and greatly improve efficiency and product quality.
MGREENBELT industrial chiller simple operation, reasonable design, excellent quality, there are more than one hundred models, is the best choice of modern industry.

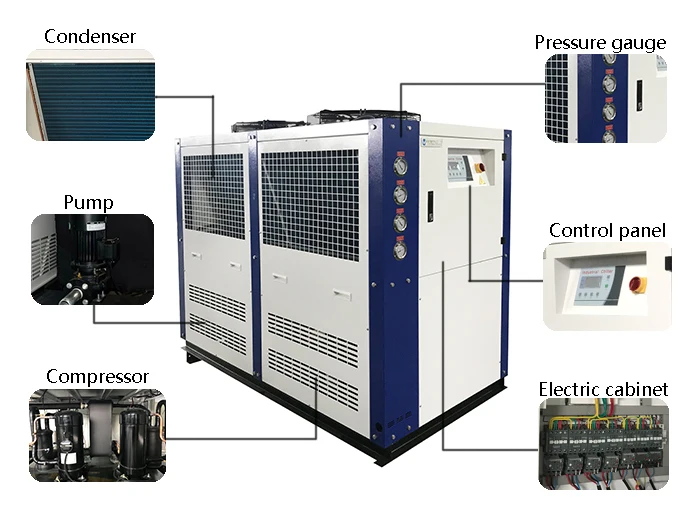

Product Details

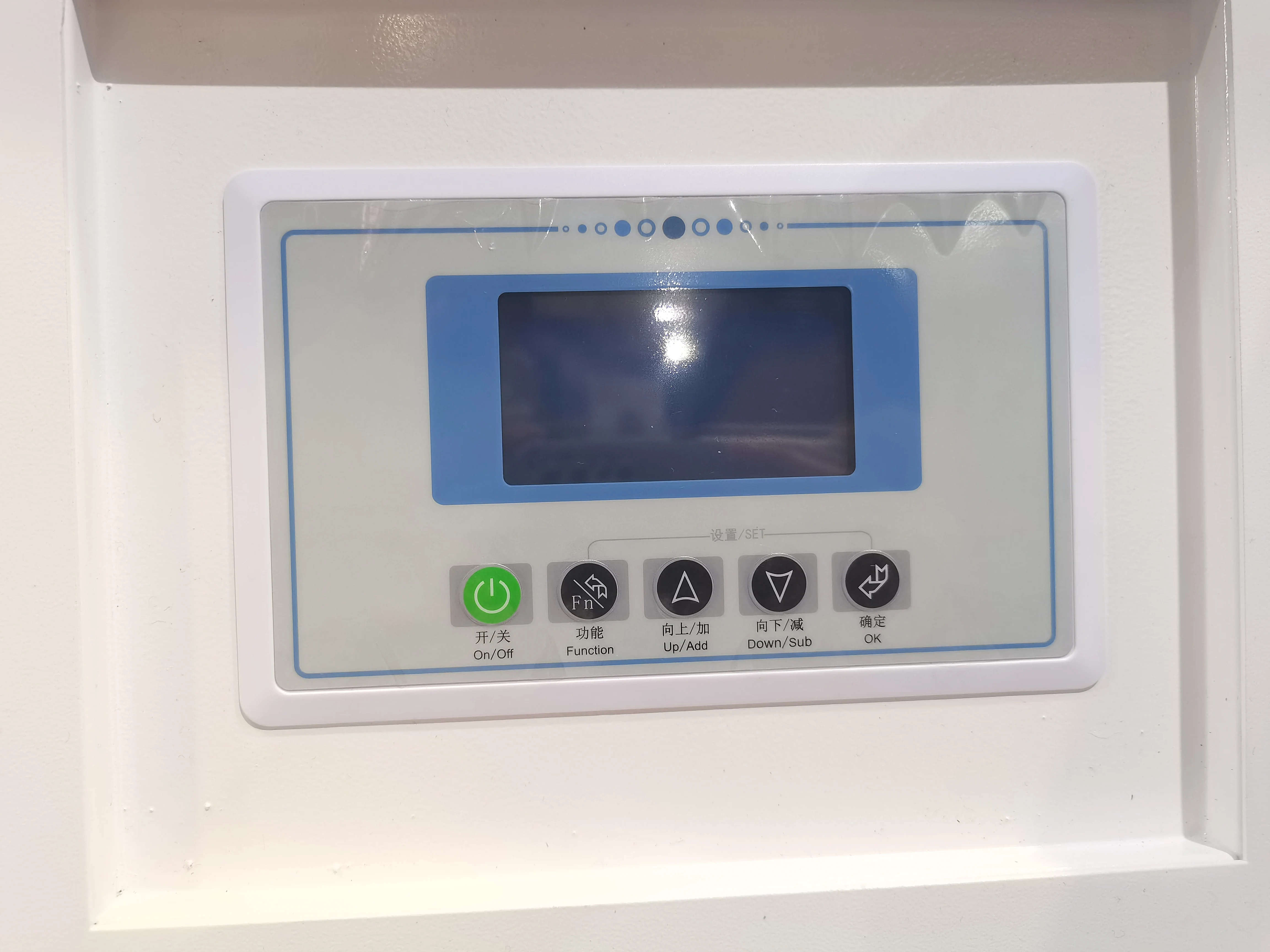

Adopt micro-computer controller:
Auto display the temperature, protect, fault code and compressor, working situation, each parts para is shown to the control panel, easy operation.

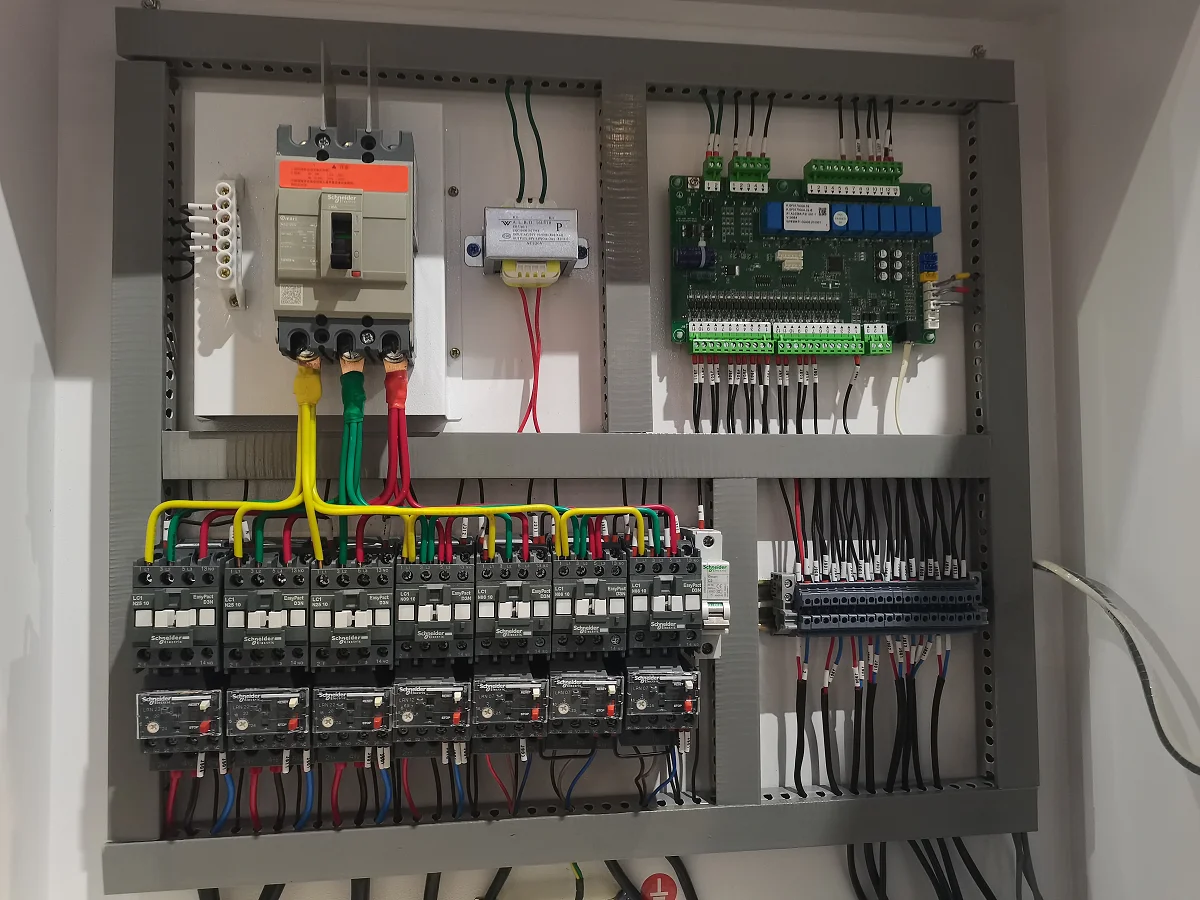

French Schneider electric accessories:
Well designed and reasonable pipelines-ensures power supply and saves energy.
Multipath protection device: Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system-safe and durable.

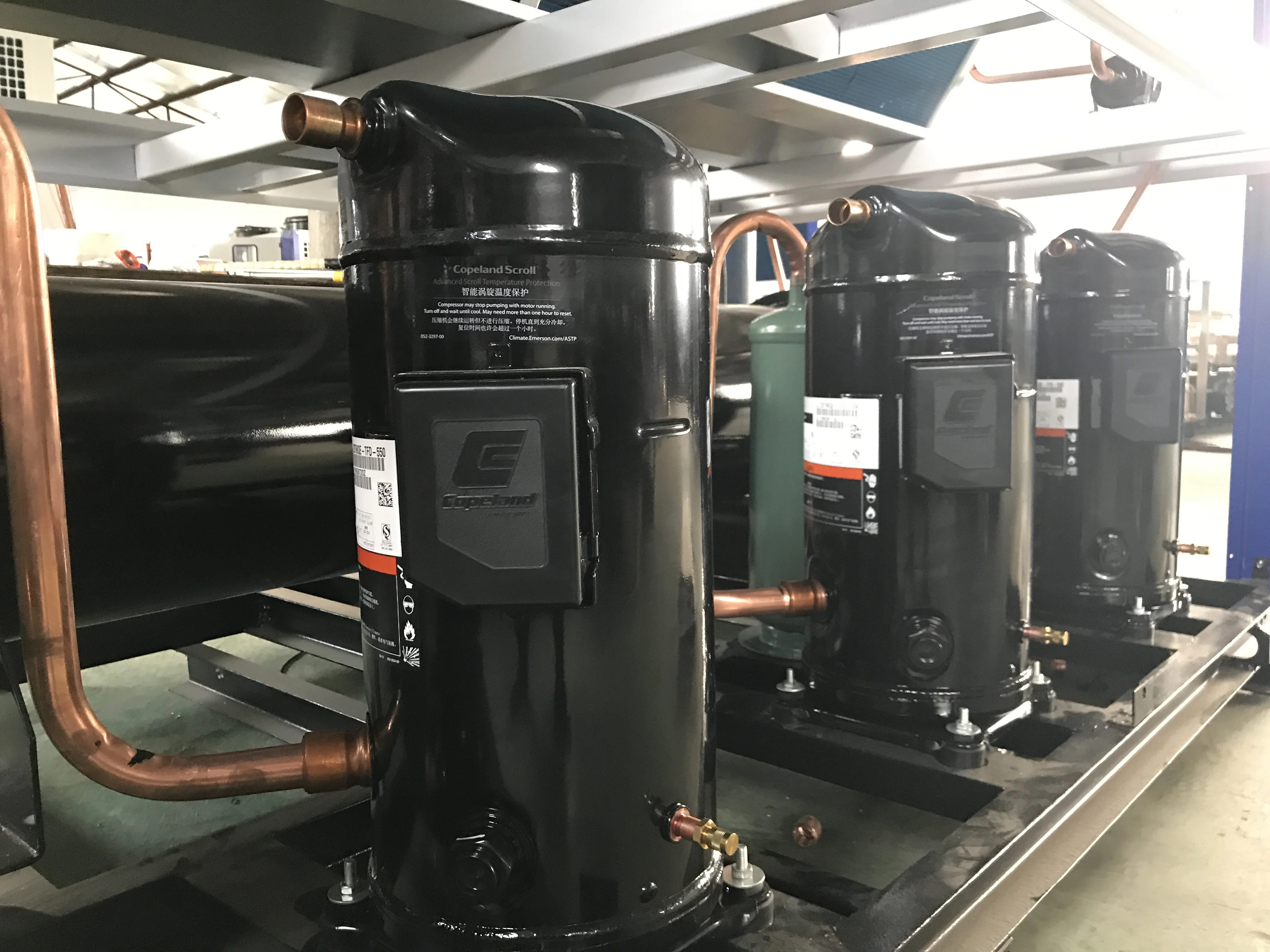

world famous brand compressors from Panasonic, Copland, Danfoss etc, new and original (not re-condition) compressors; low noise and super cooling. Available three
compressor --economical and efficient.

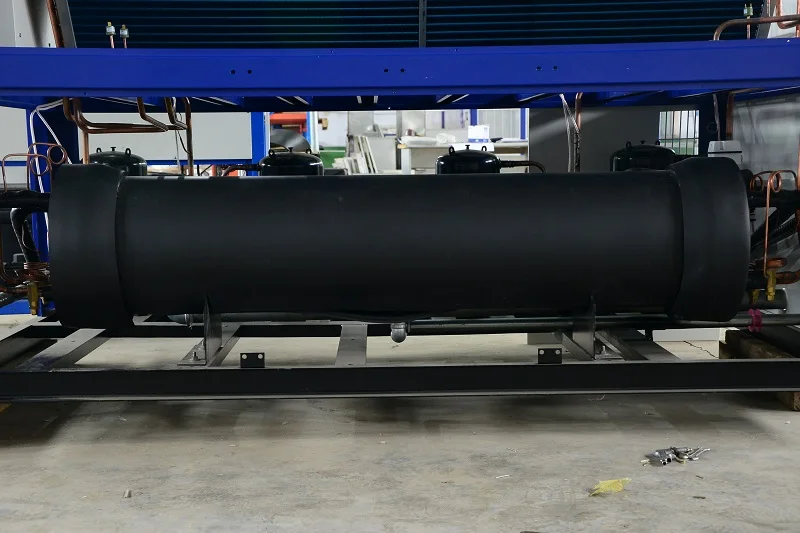

High effective Evaporator:
Optional Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect..

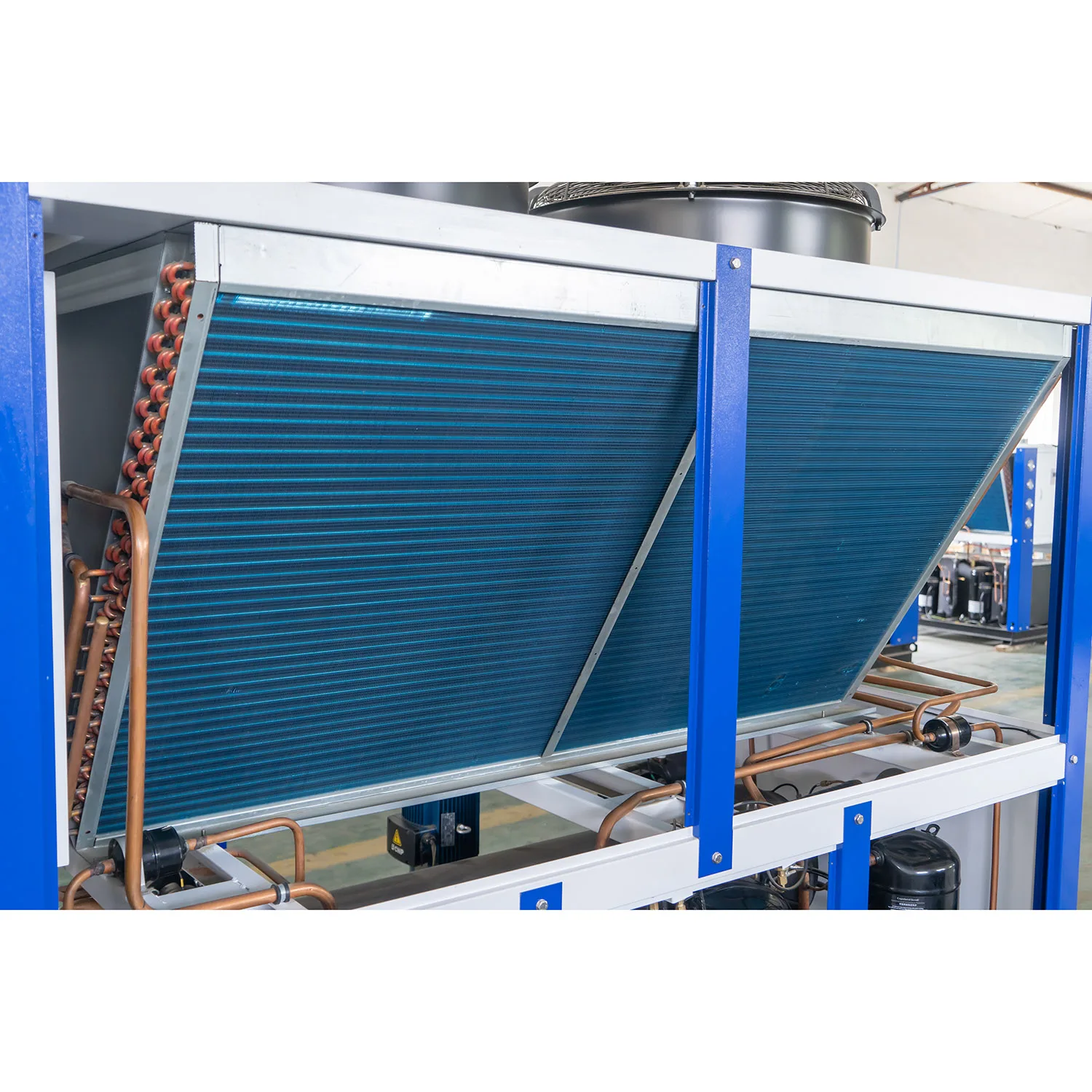

High efficiency, 30% higher than normal condenser; aluminum finned copper tube- separate circuit, excellent cooling, quiet with low electric consumption.
low noise and small vibration. Air cooled chiller is easy installation, not need cooling tower.

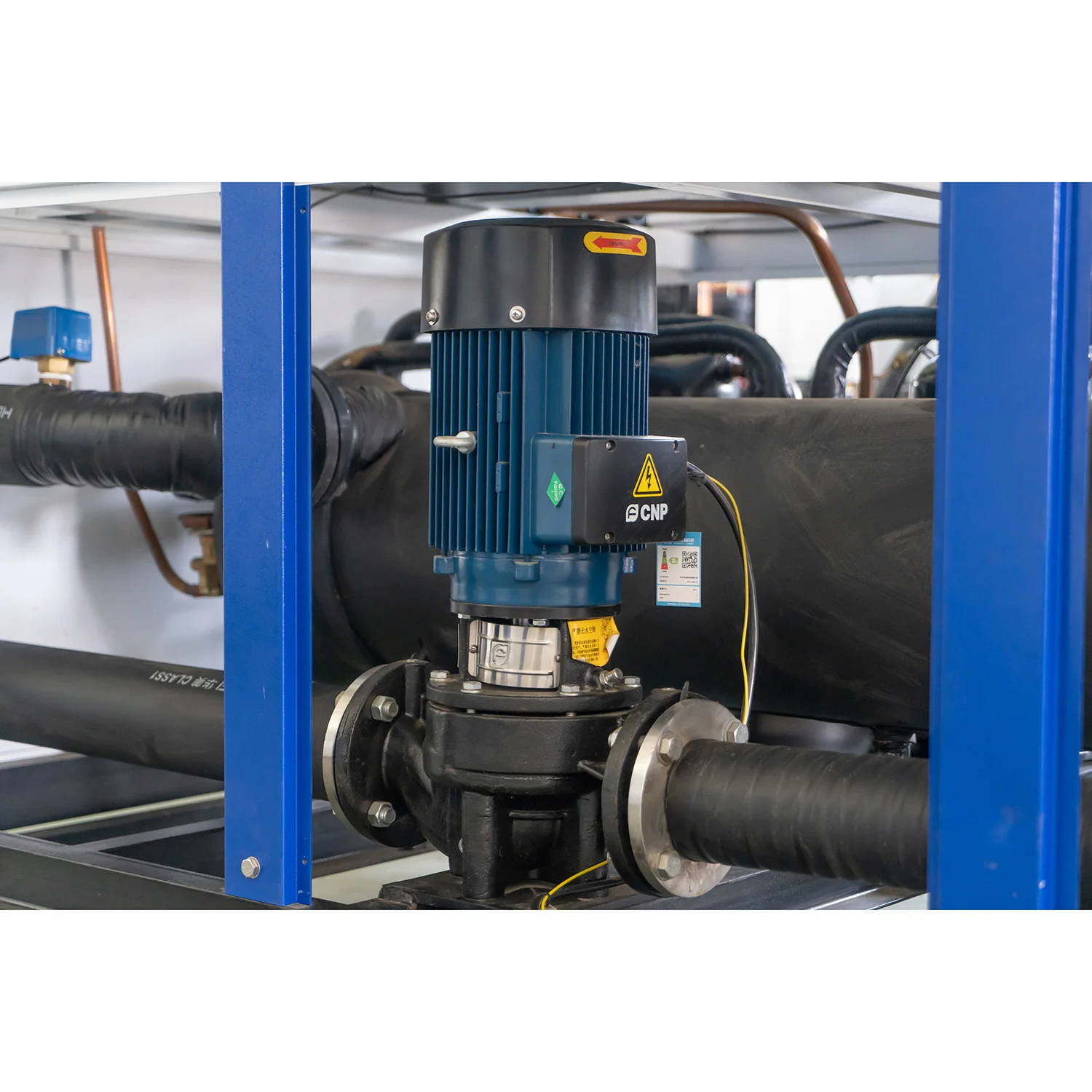

Built-in Stainless steel 304 Circulation water pump, super high efficiency and low noise.
Main Brands

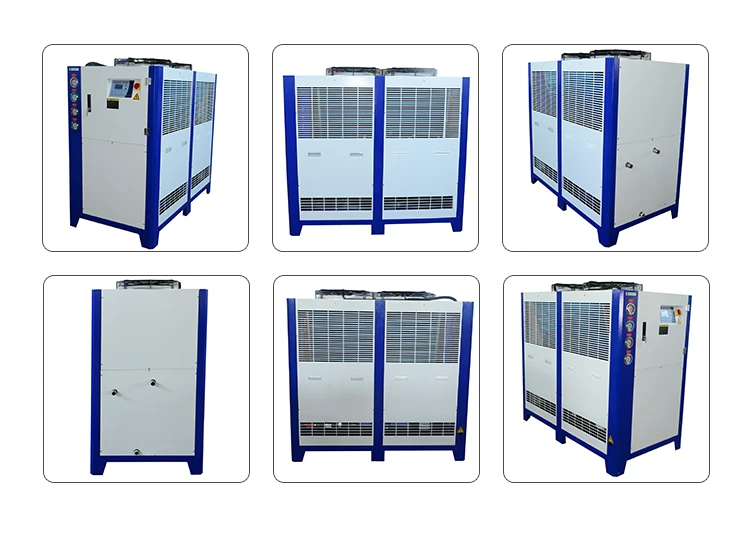

Products Show
Air cooled scroll chiller | ||||||||||||||||
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | ||||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | |||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | ||||||||
Power input | 3PH-380V-50HZ | |||||||||||||||
Type | R22/R407C | |||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | |||||||||
Type | SS Tank with coil or Shell and tube | |||||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | |||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | |||||||||
Type | Centrigual water pump | |||||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | |||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | |||||||||
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | ||||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | |||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Other Products
Other different models chiller in our factory:
1. Air cooled water chiller from 1HP to 40HP scroll type
2. Air cooled screw chiller from 40HP to 200HP
3. water cooled scroll chiller and water cooled screw chillers with cooling tower.
Air Cooled Scroll Chiller
Cooling Capacity: 2.7 Kw~128 Kv
Cooling Capacity: 2.7 Kw~128 Kv
Out Temp Range:-15 C~+35 C
Compressor: Hermetic Scroll type
Compressor Quantity:
From 2.7Kw~21Kw, 1circuit
From 2.7Kw~21Kw, 1circuit
From 28Kw~63Kw, 2 circuits
83.6kW, 3 Circuists
From 116.4Kw~128Kw, 4circuits
From 116.4Kw~128Kw, 4circuits
Compressor brand: Panasonic/ Copeland
Air Cooled Screw Chiller
Cooling Capacity:78Kw~600 Kw
Out Temp Range:-30 C~+35C
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 78Kw~600Kw, 1 circuits
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 78Kw~600Kw, 1 circuits
From 150Kw~600Kw, 2 circuits
Compressor brand:Hanbell/Bitzer
Compressor brand:Hanbell/Bitzer
Water Cooled Scroll Chiller
Cooling Capacity: 14 Kw~176 Kw
Out Temp Range:-15 C~+35C
Compressor: Hermetic Scroll type
Compressor Quantity: 14Kw, 1 circuit
From 30Kw~70Kw, 2 circuits
From 30Kw~70Kw, 2 circuits
92kW, 3 Circuists
From 120Kw~176Kw, 4 circuits
From 120Kw~176Kw, 4 circuits
Compressor brand: Panasonic/ Copeland
Water Cooled Screw Chiller
Cooling Capacity:92Kw~1400 Kw
Cooling Capacity:92Kw~1400 Kw
Out Temp Range:-30C~+35C
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 92Kw~700Kw, 1 circuits
Compressor: Semi-Hermetic Screw type
Compressor Quantity:
From 92Kw~700Kw, 1 circuits
From250Kw~1400Kw, 2circuits
Compressor brand:Hanbell/Bitzer
Compressor brand:Hanbell/Bitzer

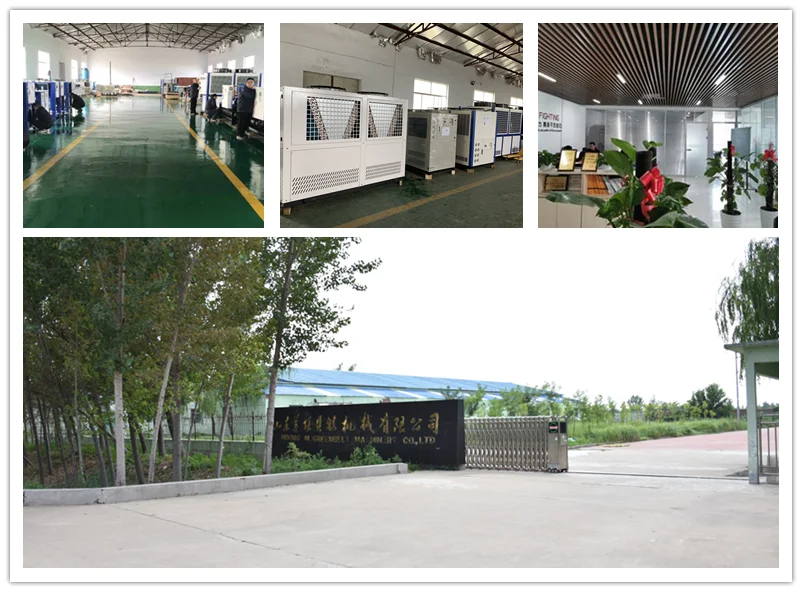

Our Company
Shandong Mgreenbelt Machinery Co., Ltd. mainly specialized in the research and manufacturing of industrial chiller, refrigeration unit and other refrigeration equipment. After more than ten years of innovation and development, our company has passed ISO9001 quality system certification, EU CE certification, international BV, SGS and other third-party certification bodies inspection and testing, and gradually grown into a manufacturer committed to one-stop refrigeration solutions, providing customers with systematic and supporting industrial chiller. Our products are exported at home and abroad, covers more than hundreds of countries and regions in the world. It provides a stable, efficient, intelligent and environmental solutions for the food, beverage, plastics, chemical, electroplating, medical, electronics, concrete, vacuum pump, power generation equipment and ultrasonic cleaning and other industries.
Our Certifications
Customer Photo
Our products are exported at home and abroad, covers more than hundreds of countries and regions in the world and we have established cooperative relations with many countries and customers
Our Service
Technical service:
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After-sale service:
1. where the purchase of our company's products will be implemented in three guarantees: debugging, training and guidance installation. All products are free warranty for 12 months, lifelong maintenance, fully ensure that customers have no worries.
2. The company has a perfect after-sales system to ensure that customers' after-sales problems are solved in time to achieve customer satisfaction and recognition.
3. Timely and considerate on-site maintenance services.
4. Lifelong free pre-sales, sales, after-sales technical support.
Packing & Delivery
Package:
LCL SHIPMENT: Use plastic foam protect, then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container, will use plastic foam package and wooden pallet.
Shipping Terms:
1. We can arrange the shipping by sea, by air, by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent, if you have other goods will packaged in one container, we would like to arrange that for you.
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
