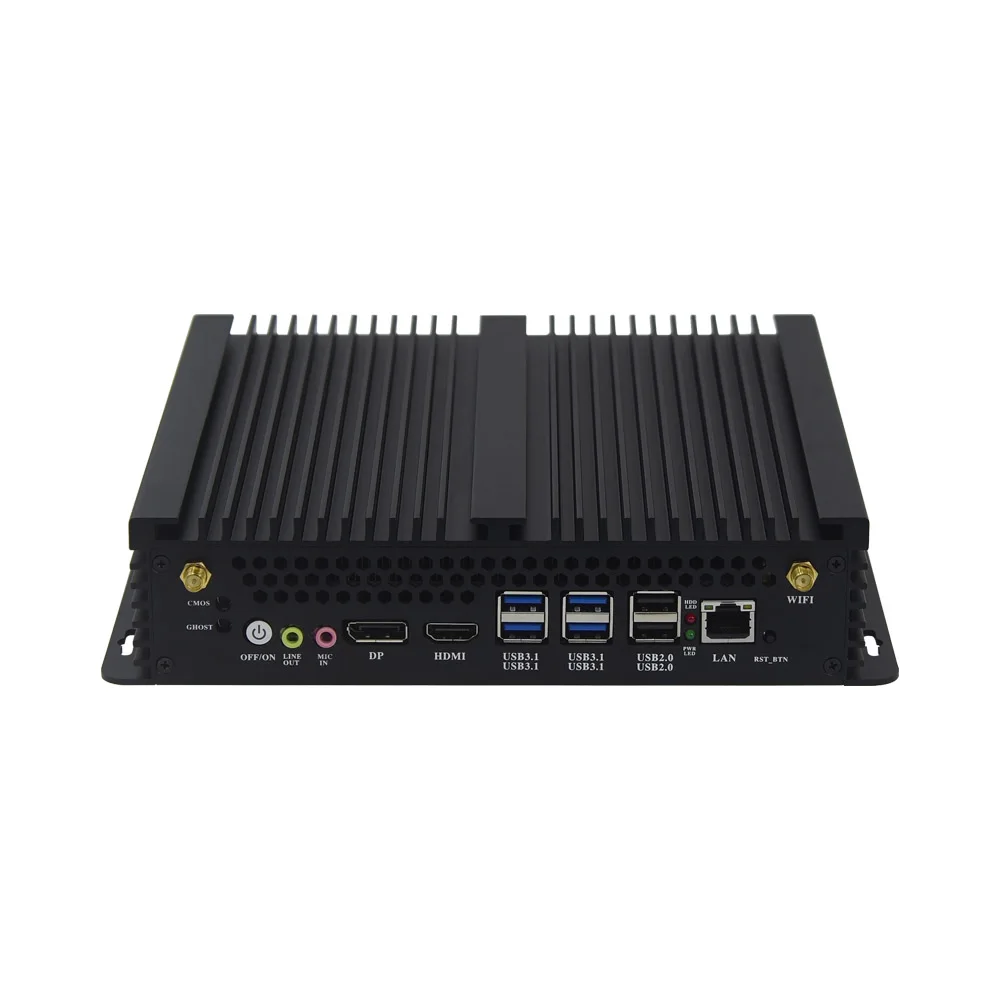

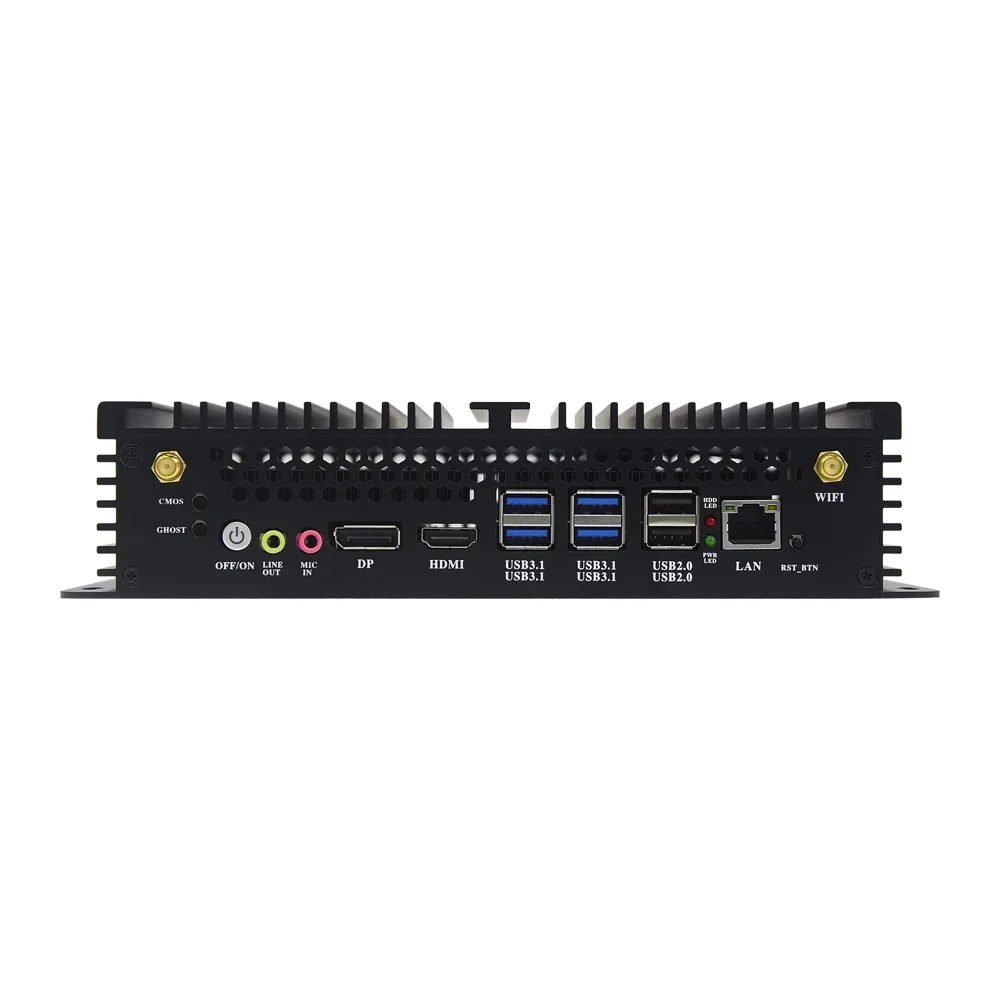

Factory direct Industrial Thin Client Computer Intel 4K all in one desktop PC win10/linux/win11 Mini Pc
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (1600855111171):
Product Overview
Description
Product Description
Specification
Motherboard Model | MX8900 V1.1 | ||
主板尺寸 | 190mm*170mm*20mm（Thickness of the bottom of the motherboard 5mm） | ||
CPU | Support Coffee Lake 8 generation 9 generation platform 1151 pin i3, i5, i7, i9 | ||
Chipsets | Intel H310 Chipset | ||

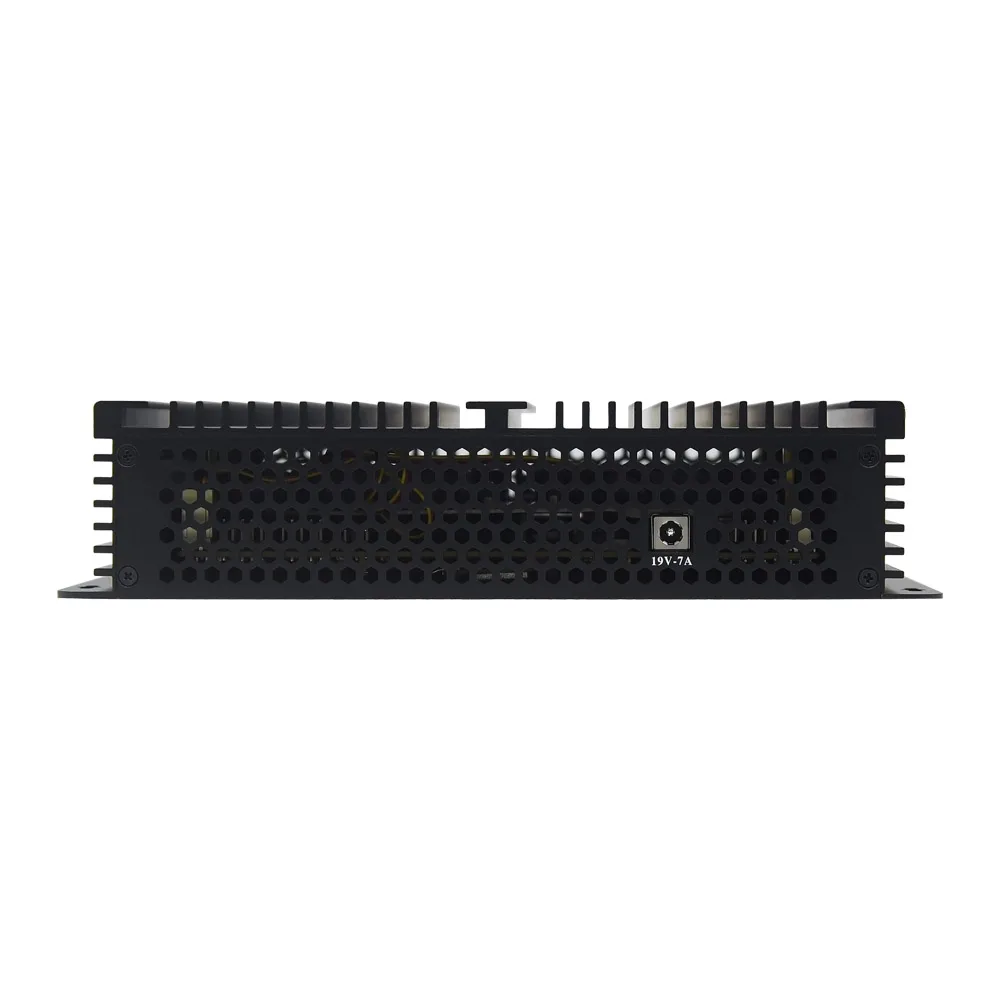

Power supply | 1*DC_IN | DC head inner diameter is 2.5MM, support 12V/19V | |
Motherboard full load power consumption of about 90W, it is recommended to use 12V10A or 19V6A or more power supply | |||
Memory | 2*SO DIMM slots | NB-DDR4 memory, support 2133/2400MHZ memory, support up to 32G | |
Display Functions | Integrated display (CPU comes with) | Intel Ultra Core Graphics 630 | |
Solo display | 1*MXM slot, supports graphics card NVIDIA GTX1050Ti-4G | ||
Support single display, double / triple / quadruple display copy, double / triple / quadruple display extension, single display under DOS | |||
1*HDMI 2.0 interface | Support 4K resolution 4096/3840*2160@60Hz | ||
1*DP 1.2 interface | Support 4K resolution 4096/3840*2160@60Hz | ||
Daughter card side HDMI and DP ports | Support 4K resolution 4096/3840*2160@60Hz | ||
Network Functions | 1*LAN interface | Realtek 8111H Gigabit NIC with Wake-on-LAN support, PXE functionality | |
1*MINI_PCIE interface | Support WIFI/3G/4G/Bluetooth module; can change MSATA | ||
USB function | 3*USB3.1 interface | Rear standard USB3.1 Gen1 interface with a maximum transfer bandwidth of 5Gbps (500MB/s) | |
3*USB2.0 interface | Rear standard USB2.0 interface with a maximum transfer bandwidth of 480Mbps (60MB/s) | ||
Sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller | ||
1*LINE_OUT interface | Support audio output (green) | ||
1*MIC_IN interface | Microphone input support (red) | ||
Hard Drive Features | 1*SATA3 interface | Support 2.5 inch SSD disk / mechanical hard disk | |
1*NGFF interface | Supports M.2 2242/2280 hard drives with optional SATA / NVME (PCIE) protocol | ||
Switch function | 1*F_PANEL pin | Switch, power light, HDD light, restart pin (9Pin, 2*5Pin, 2.54mm) | |
1*PWR_SW button | Switch button | ||
1*RST_BTN button | Restart button | ||
1*AUTO_SW1 pin | Power on set jump cap (1*3Pin, 2.0mm) | ||
Other I/O | 1*COM1 pin | Support standard RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.54mm) | |
1*COM2 pin | Support standard RS232 (9Pin, 2*5Pin, 2.54mm) | ||
1*JCOM1 pin | COM1 pin 9 setting 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) | ||
1*SIM_CARD slot | Support SIM card, need SIM card when using 3G/4G | ||
1*J5 pin | Main board clear and discharge pins (3Pin, 1*3Pin, 2.0mm) | ||
1*FAN1 pin | CPU fan pin, support temperature control (3Pin, 1*3Pin, 2.54mm) | ||
1*FAN2 pin | System fan pins, does not support temperature control (3Pin, 1*3Pin, 2.54mm) | ||
2*LED indicator | Motherboard power indicator and hard drive indicator | ||
1*GHOST button | System one-button restore button | ||
1*CMOS_SW button | Mainboard clear and discharge button | ||
1*OPS interface | 80Pin standard OPS interface | ||
Operating Environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | ||
BIOS | AMI BIOS, support power on, timer boot, remote switch on device intelligent identification | ||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | ||
Operating System | Support Windows 10 64bit, Linux, etc. | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Production Line

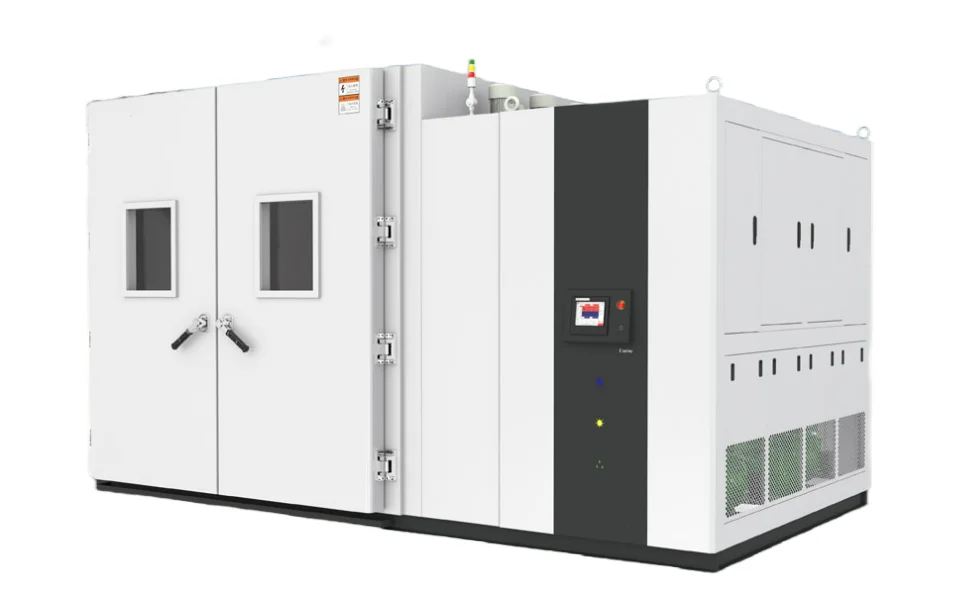

Walk-in constant temperature and humidity test room
Walk-in constant temperature and humidity test room for the whole machine or large parts of low temperature, high temperature,
high and low temperature changes, constant humidity and heat, high and low temperature alternating humidity and heat test for the
industry to provide large parts, semi-finished products, finished products of the large temperature and humidity test environment
space, suitable for testing a large number of products, large volume of test equipment such as: computer terminals, automotive
parts
high and low temperature changes, constant humidity and heat, high and low temperature alternating humidity and heat test for the
industry to provide large parts, semi-finished products, finished products of the large temperature and humidity test environment
space, suitable for testing a large number of products, large volume of test equipment such as: computer terminals, automotive
parts
