Product Overview
Description
OVERVIEW

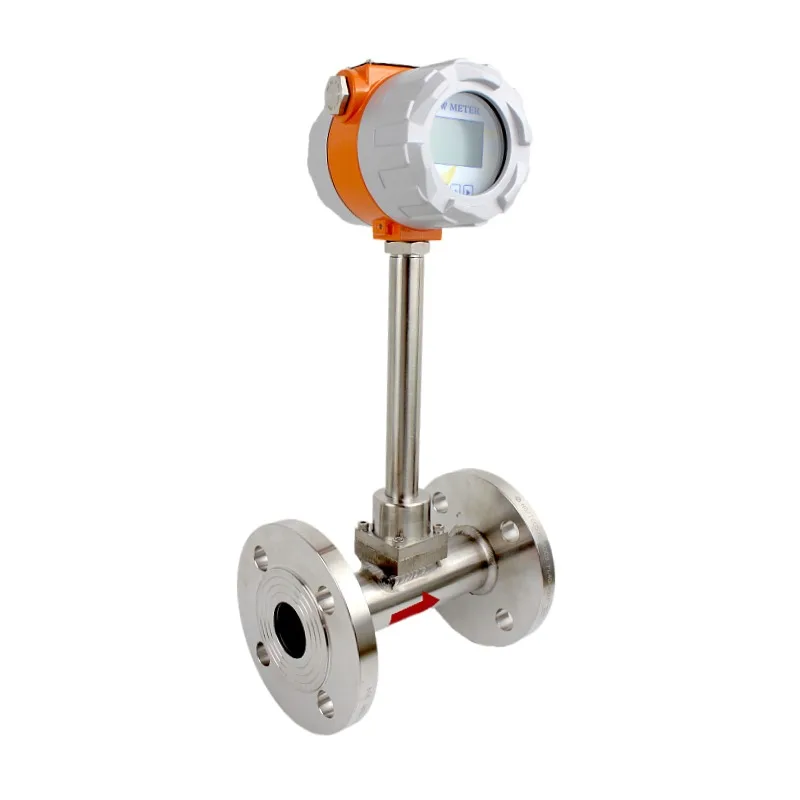

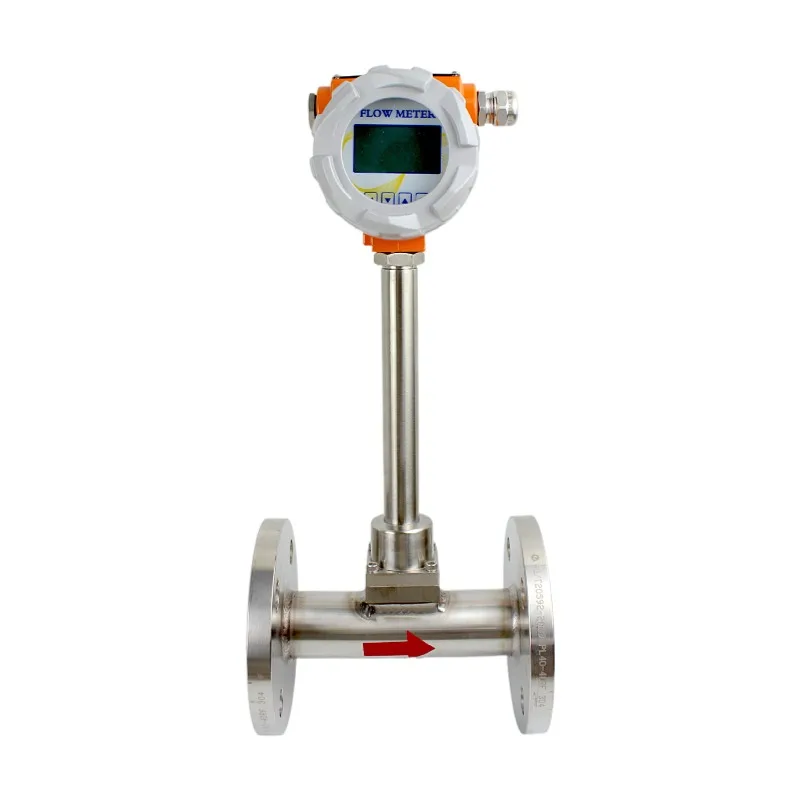

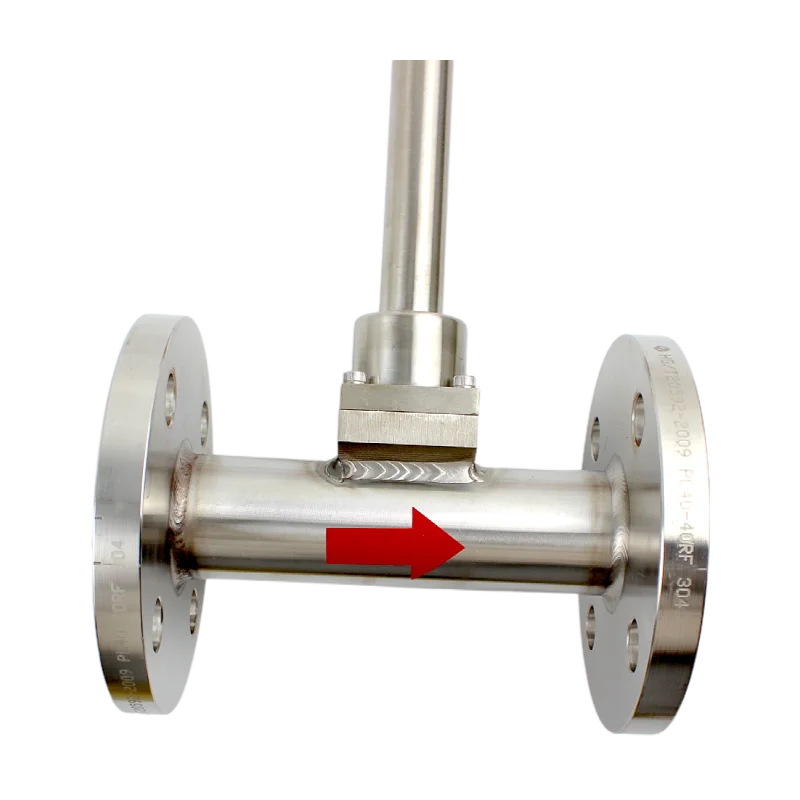

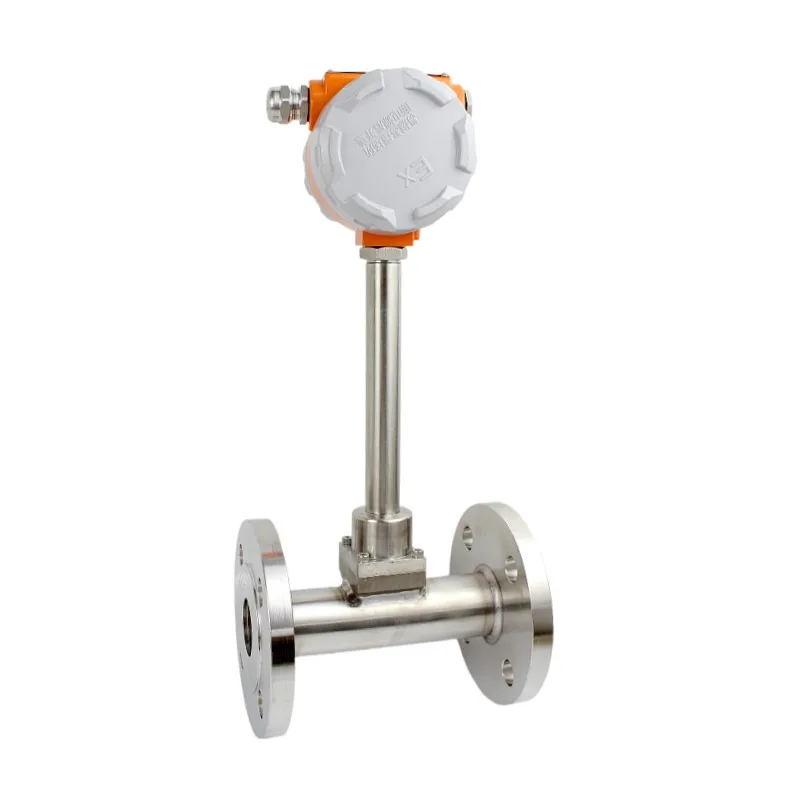

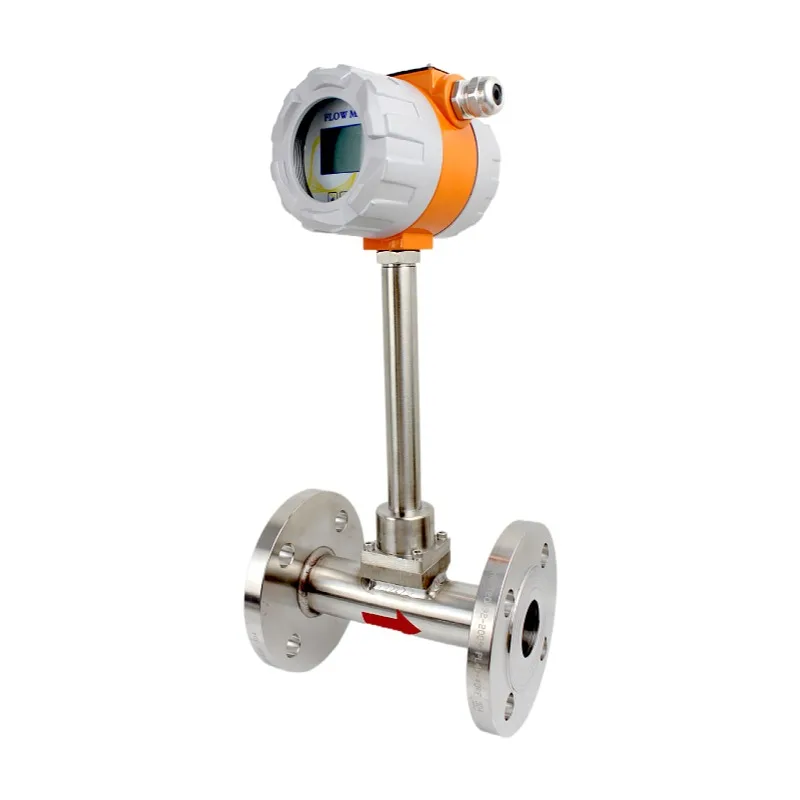

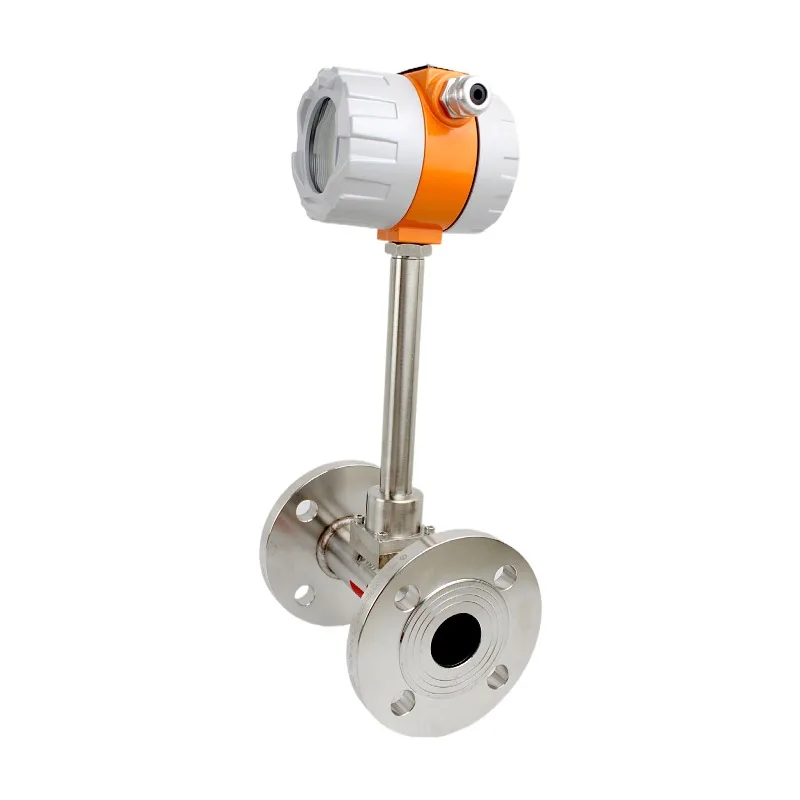

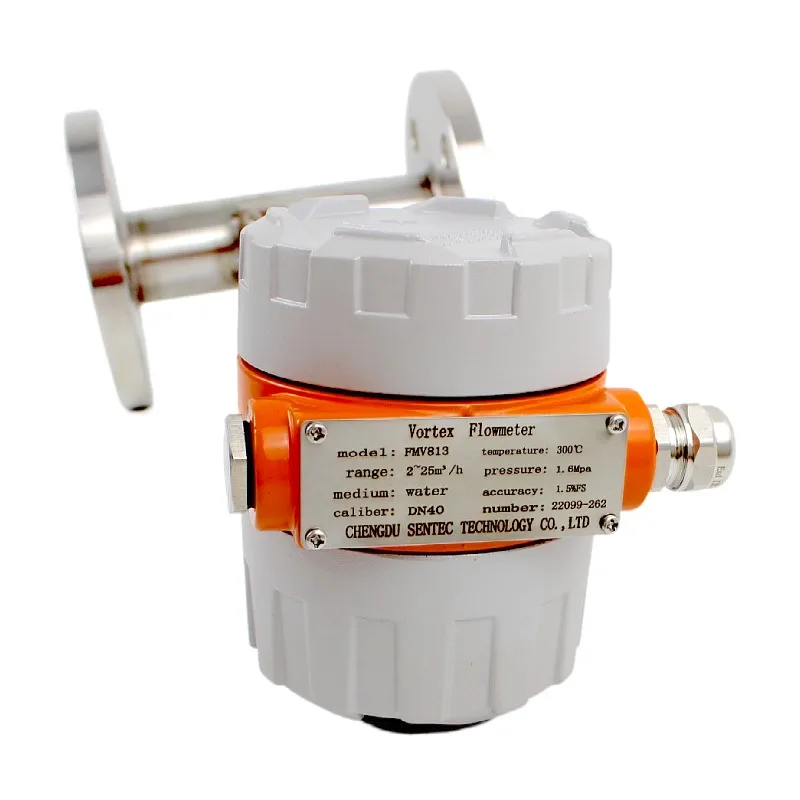

FMV813 vortex flowmeter is a flowmeter applying Karman vortex principle. It is mainly used for flow measurement of
industrial pipeline medium fluid, such as air, compressed air, steam, superheated steam, saturated steam and other gases, liquids and other media.

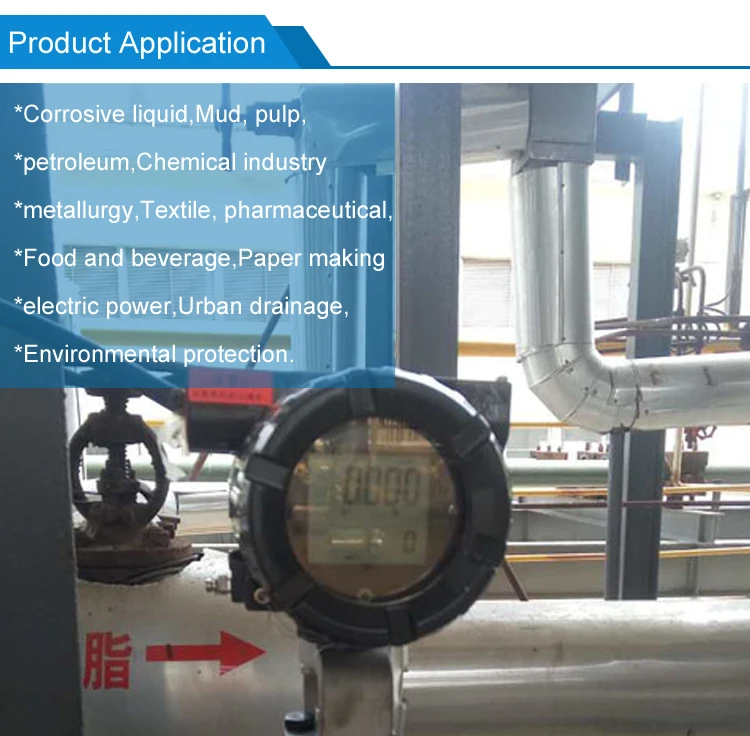

The vortex flowmeter has no moving mechanical parts, so it has high reliability and small maintenance. Instrument parameters can be stable for a long time. The vortex flowmeter uses a piezoelectric stress sensor with high reliability and can operate in the operating temperature range of -20 °C to +250 °C. There are analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers. It is a relatively advanced and ideal measuring instrument. Widely used in chemical, pharmaceutical, paper, metallurgy, electric power, environmental protection, food and other industries.
FMV813 vortex flowmeter is a flowmeter applying Karman vortex principle. It is mainly used for flow measurement of
industrial pipeline medium fluid, such as air, compressed air, steam, superheated steam, saturated steam and other gases, liquids and other media.
The vortex flowmeter has no moving mechanical parts, so it has high reliability and small maintenance. Instrument parameters can be stable for a long time. The vortex flowmeter uses a piezoelectric stress sensor with high reliability and can operate in the operating temperature range of -20 °C to +250 °C. There are analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers. It is a relatively advanced and ideal measuring instrument. Widely used in chemical, pharmaceutical, paper, metallurgy, electric power, environmental protection, food and other industries.
Specification
Measure medium | Liquid, gas, steam (saturated steam, superheated steam) |
Size | DN15-DN300 |
Accuracy | Gas-free compensation type: 1.5% (DN15~DN25), 1.0% (DN32-DN200), 1.5% (.DN250-DN300) Liquid without compensation type: 1.0%(DN15-DN300) Temperature and pressure compensation type: 1.5% (DN25-DN300) |
Range ratio | When the gas density is 1.2kg/m3, the turndown ratio is 8:1 When the liquid density is 1000kg/m3, the turndown ratio is 8:1 (when the medium density is different, the turndown ratio will change) |
Power supply | 24VDC±5%, lithium battery 3.6VDC (battery life is more than 2 years) |
Maximum medium temperature | -40°C-+260°C, -40°C-+300°C |
Output signal | The instantaneous flow corresponds to the voltage frequency pulse (low level ≤ 1V, high level ≥ 6V) Instantaneous flow corresponds to 4-20mA output (load resistance ≤ 300 ohms) |
Communication mode | RS485, RS232, MODBUS protocol, HART Protocol (optional) |
Body material | Stainless steel (more customized) |
MAIN FEATURES
* It can realize the continuous disassembly and disassembly of the sensor.
* It has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability.
* Simple structure, convenient installation and maintenance, no moving parts, no mechanical wear.
* The new design, the body adopts precision casting process, beautiful appearance, high temperature resistance and strong corrosion resistance.
* Commonly used signals have pulse or analog signals, the signal is stable, and the anti-interference ability is strong.
* Adopt the descrambling circuit and anti-vibration sensor head to make the instrument have certain anti-environmental vibration performance.
* It has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability.
* Simple structure, convenient installation and maintenance, no moving parts, no mechanical wear.
* The new design, the body adopts precision casting process, beautiful appearance, high temperature resistance and strong corrosion resistance.
* Commonly used signals have pulse or analog signals, the signal is stable, and the anti-interference ability is strong.
* Adopt the descrambling circuit and anti-vibration sensor head to make the instrument have certain anti-environmental vibration performance.
Certifications
Packaging&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Q: How to contact you?
A: Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Q: How to contact you?
A: Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
