Product Overview
Description

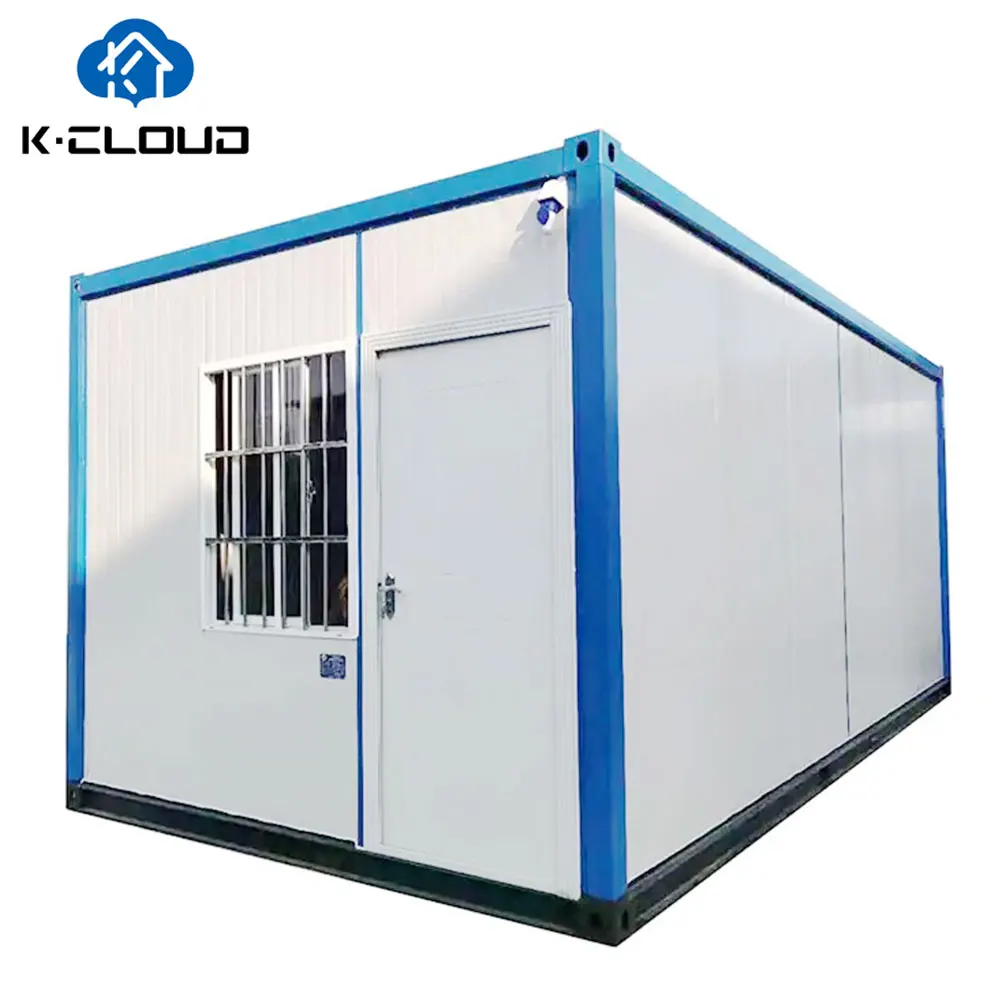

Flat pack container house is the star product of China's temporary construction. As a new modular house in recent years, it is made of steel frame material, which is not only convenient to build and move, but also has superior fireproof and heat preservation performance and long life, etc. It does not produce any construction waste and does not change the geological environment of the site, so it is gradually favored by the majority of construction companies and home buyers.
External dimensions: 5990*2435*2896 Internal size: 5830*2275*2515 | name | ||
Profile: 2.3mm top frame | top frame | 2.3mm galvanized forming beam, galvanized content 80g/㎡, 180mm wide and 5568mm long | |
2.3mm galvanized forming beam, galvanized content 80g/㎡, 180 wide and 2133mm long | |||
Galvanized C90*30*20 cross brace, galvanized content 80g/㎡ | |||
20*20mm galvanized square tube, galvanized content 80g/㎡ | |||
W water retaining plate, galvanized content 80g/㎡ | |||
Lower beam angle steel flashing, 5630mm | |||
Angle steel flashing of lower beam, 2195mm | |||

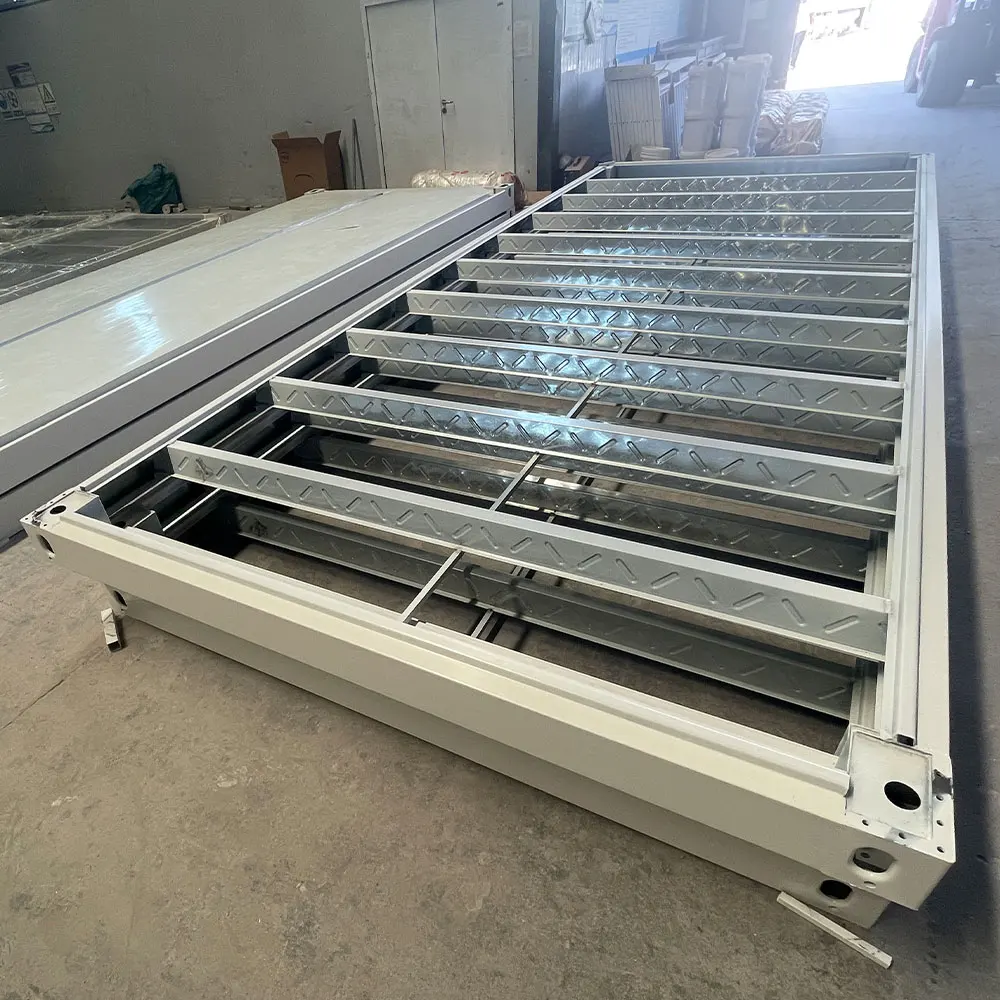

Profile: 2.3mm bottom frame | Bottom frame | 2.3mm galvanized forming beam, galvanized content 80g/㎡, 160 wide and 5568mm long | |
2.3mm galvanized forming beam, galvanized content 80g/㎡, 160 wide and 2133mm long | |||
Galvanized "Ji" steel cross brace, galvanized content 80g/㎡ | |||
Integrated sink with flashing base, L5630mm | |||
Integrated sink with flashing base, L2195mm | |||
Profile: 2.3mm column | column | 2.3mm galvanized column, galvanized content 80g/㎡ 210 wide, 150 wide 2536mm | |
Connector 2.0mm, galvanized content 80g/㎡ | |||
L-shaped column reinforcement | |||
Special hanger for container house | hanging head | 8mm corner fittings, galvanized content 80g/㎡ 200mm high 150mm wide 210mm long | |
8mm corner fittings, galvanized content 80g/㎡ 160mm high 150mm wide 210mm long | |||
Lock capping plate Single tile capping | Single tile roofing | 0.4mm color steel single tile, 360-degree joint, special waterproof method | |
Auxiliary material Moisture-proof | Moisture-proof | Moisture-proof film, PE resin film 1.0mm | |
Auxiliary material 100 glass wool | 100 glass wool | 100mm glass wool insulation quilt + tinfoil, 14kg/m³ | |
Auxiliary Material Color | color | Electrostatic spraying of outdoor special paint, baking varnish process, no discoloration for 5 years | |
Auxiliary material Bolt | bolt | Inner hexagon (galvanized) | |
downspout downspout | Downspouts | 50 downspout | |
ceiling tile | Ceiling tile | 0.3 thick, 831 color steel integrated ceiling board, film-coated | |

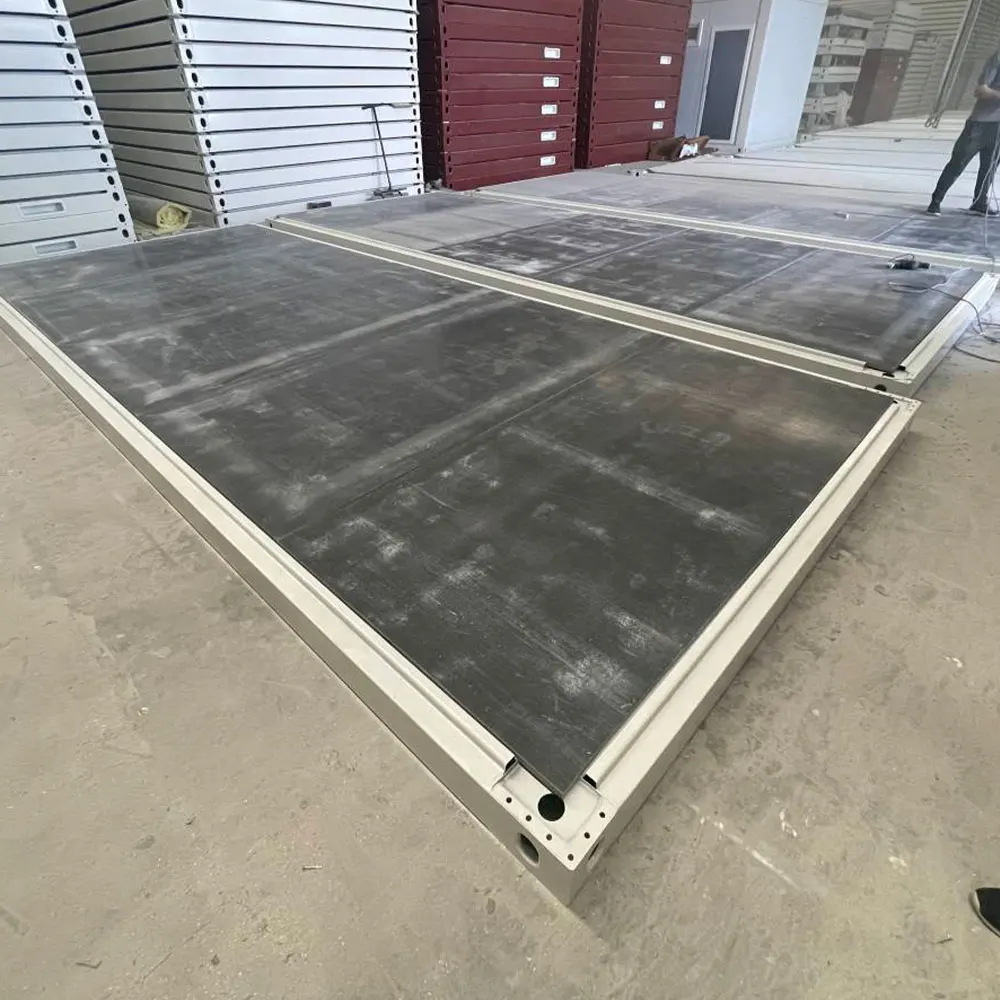

Floor Concrete pressure plate | cement pressure plate | 18mm thick, 1175*2820mm | |
Floor Decoration Plastic Floor | Plastic flooring | 1.6mm, wear-resistant plastic floor leather | |
door steel door | steel door | 970*1970mm 0.4mm (1150 type wallboard) | |
Window Plastic steel anti-theft window | Plastic steel anti-theft window | 1130*1130mm double glass 0.3mm (1150 type wall panel) | |
Auxiliary materials | Auxiliary material | screw, sealant | |
Electric Advanced Electric Distribution | Advanced distribution | Industrial socket box + industrial socket 16A (1 set), distribution box J-8 (1), leakage protection (16A) (1), circuit breaker (2P32A) (1), circuit breaker (2P10A) ordinary socket 16A ( 3), air conditioner socket 32A (1), switch 1, long lamp 2 | |
Wallboard 0.3mm on both sides (Type 950) | Double-sided 0.3mm (Type 950) | 50*950mm double-sided 0.3mm 50kg/m³ rock wool board, orange peel outside and flat inside | |
Products Description
First, the application way

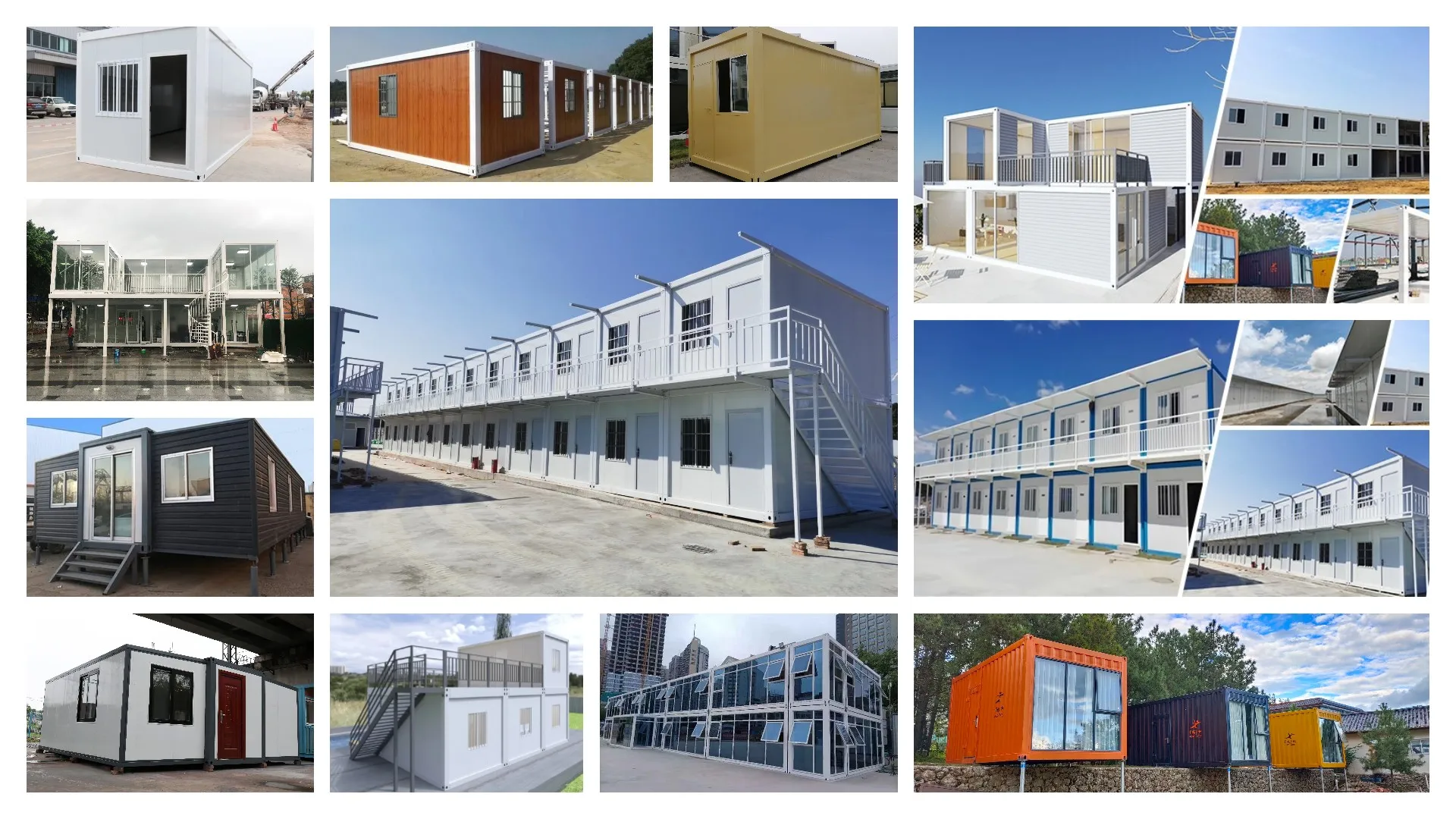

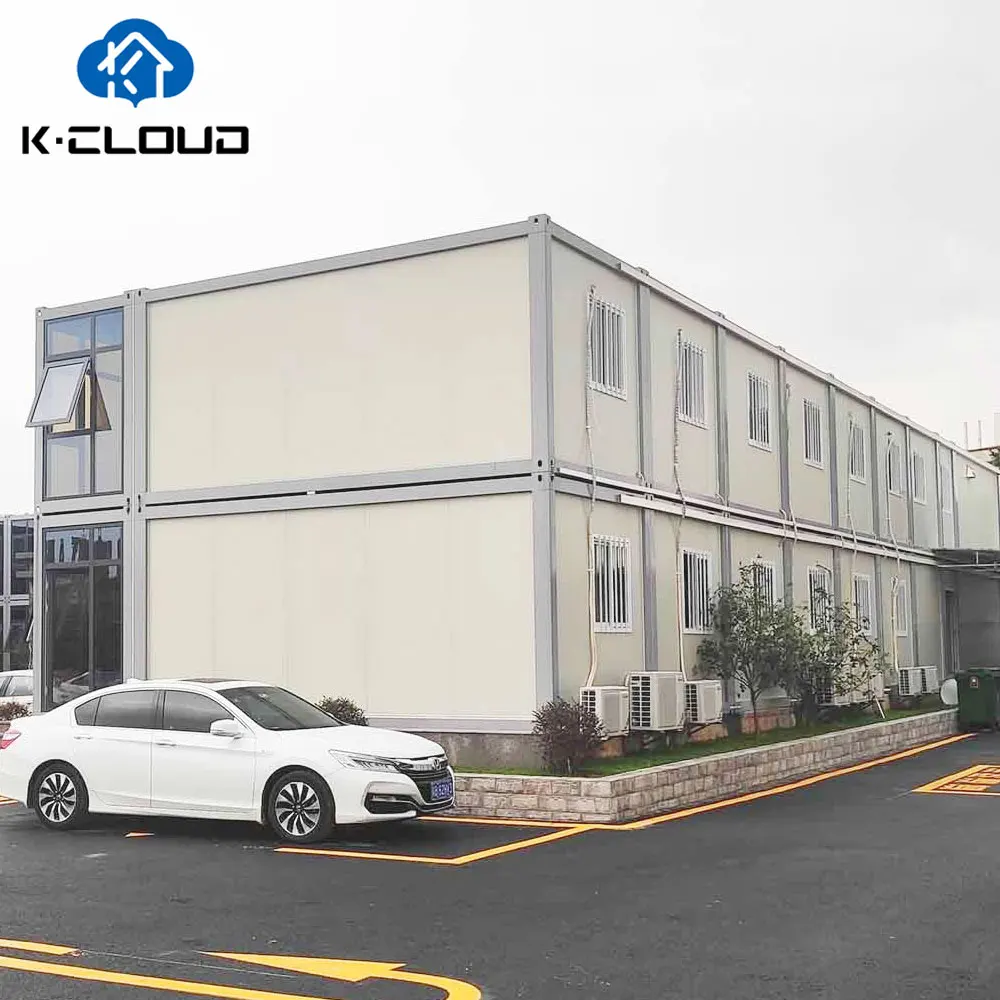

Flat pack container house is generally used in multi-storey (2-3 storey) and high-rise below 15m in height. Like mobile office, site dormitory, medical and health care, leisure and entertainment, education field, residential villas, mobile security post, temporary command, temporary exhibition hall, etc. mostly choose packing box to build, bringing great convenience and considerate service to people's life and office.
Second, the structure and its characteristics
Flat pack container house is a welded structure and bolted structure, the frame is a special type of pressed steel plate, the side panels have special sound insulation, heat insulation filler, can play the role of heat insulation, sound insulation, cold and fire prevention, non-combustible, non-moldy, non-moth, durable, structural life of 30 years. Electrostatic spraying and galvanizing technology greatly improves the corrosion resistance of the components, and the service life of flat pack container house can be more than 30 years.
Third, the design concept
The flat pack container house design introduces modern home elements, according to the different environments in which the house is located, according to the demand, free assembly and disassembly. According to the change of environment, users can choose the assembly method of each module to create a personalized house, adjustable house base, can also adapt to the requirements of different ground. The exterior of the house can also be attached to other building decoration materials as the enclosure structure and surface decoration or decoration.

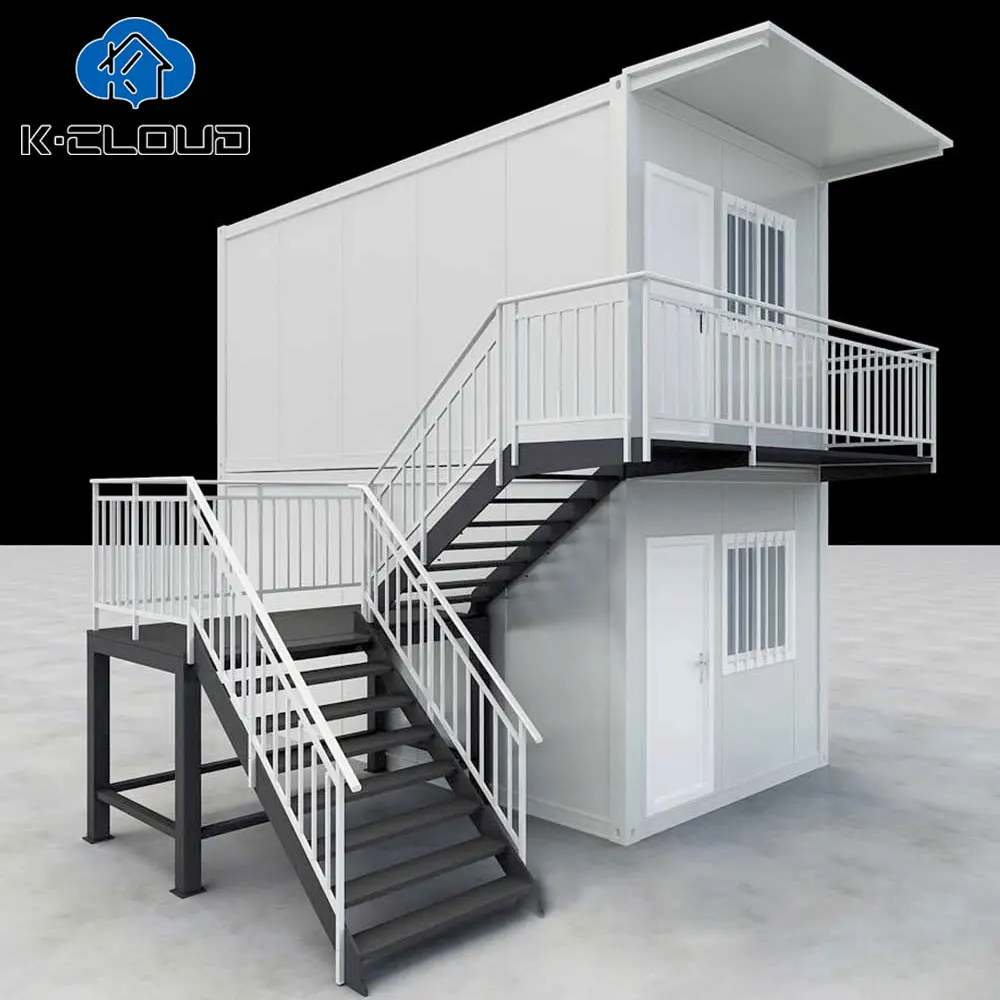

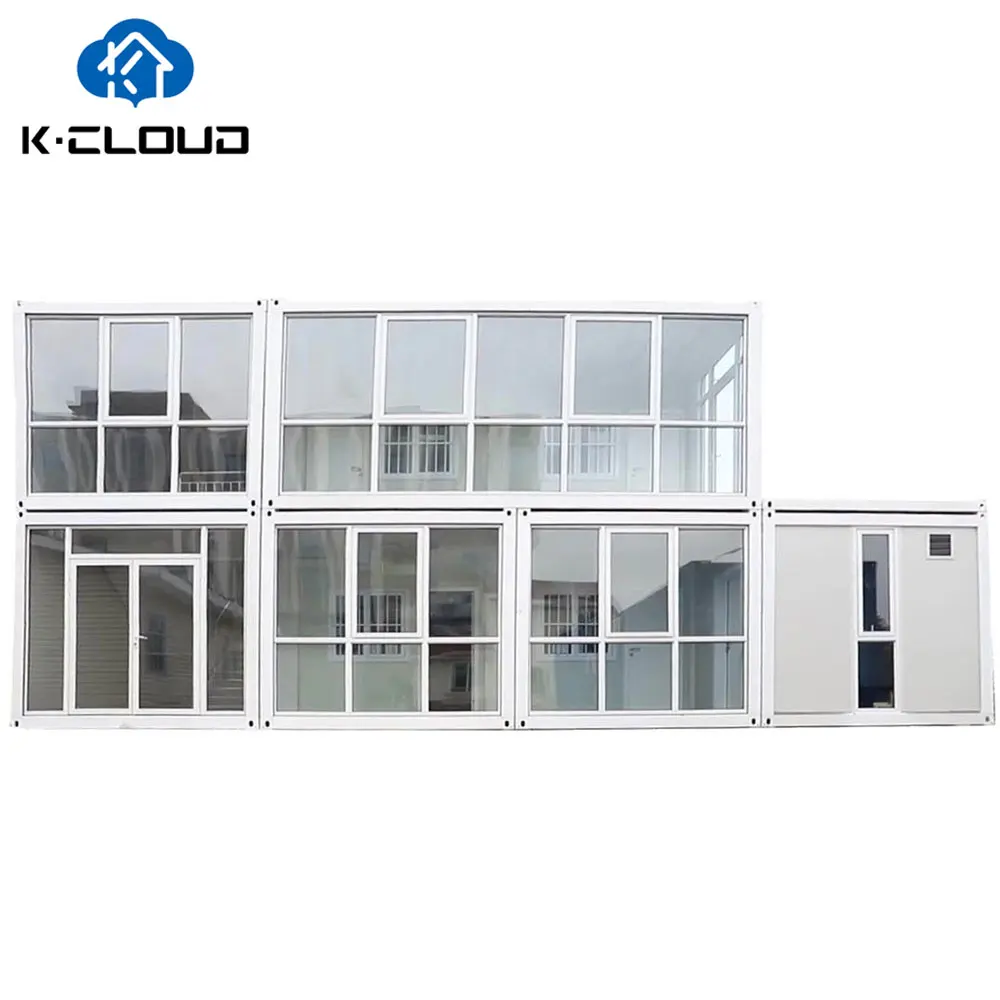

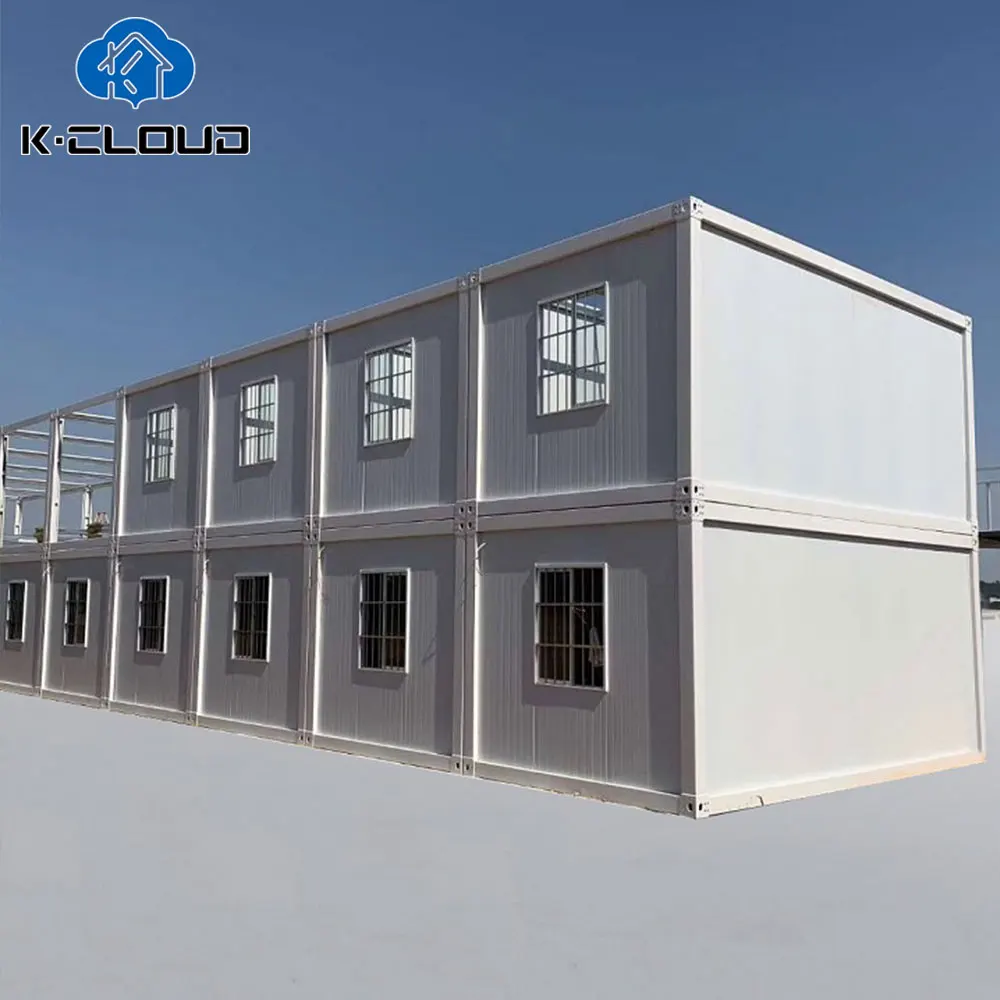

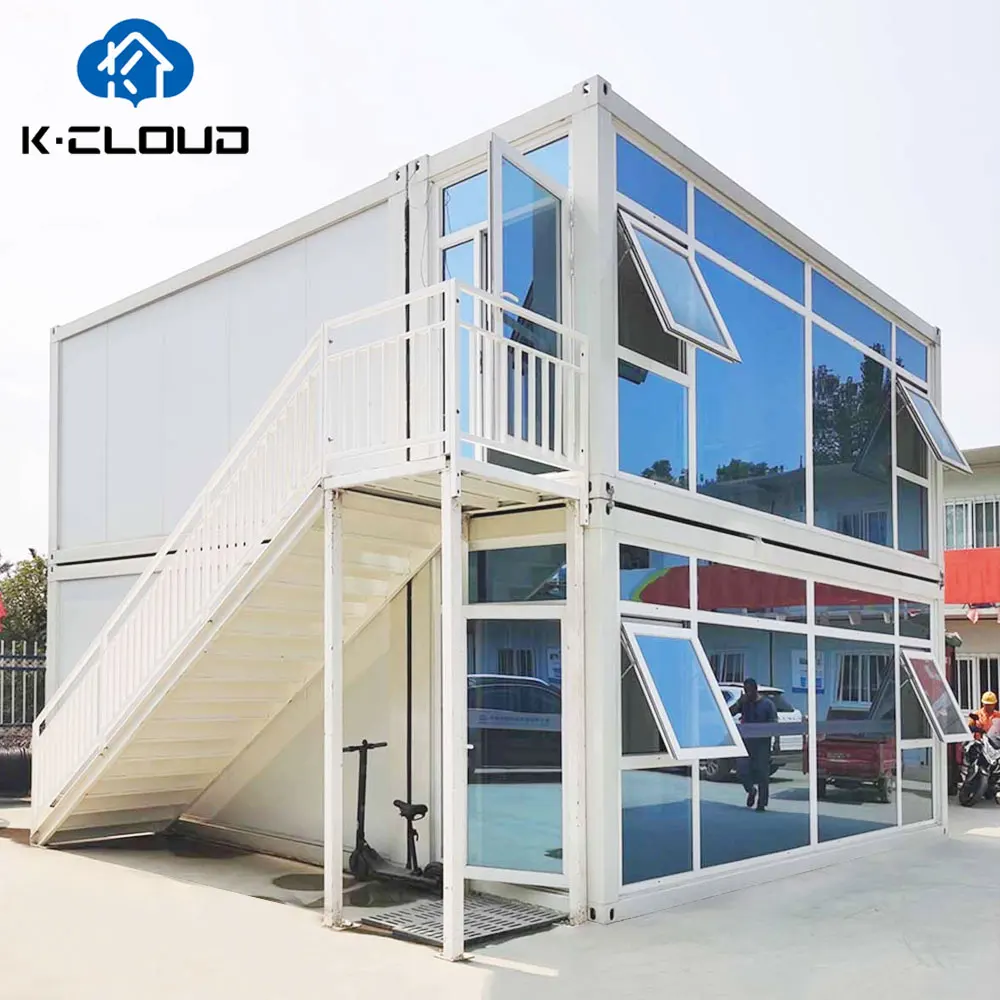

The flat pack container house is built as a single unit and can be stacked and combined at will. A modular unit can be either a whole room or several rooms, or a part of a large room. flat pack container house can be assembled and combined in any length and width direction, and can be stacked in three layers, and can be decorated with shaped roofs and terraces. flat pack container house uses insulation measures for the top and bottom frames. The design is more reasonable, each room is decorated according to the standard, and all living facilities can be assembled.
The flat pack container house is built as a single unit and can be stacked and combined at will. A modular unit can be either a whole room or several rooms, or a part of a large room. flat pack container house can be assembled and combined in any length and width direction, and can be stacked in three layers, and can be decorated with shaped roofs and terraces. flat pack container house uses insulation measures for the top and bottom frames. The design is more reasonable, each room is decorated according to the standard, and all living facilities can be assembled.
IV. Installation process
Quick installation, short construction period, 4 workers can complete the installation of a single box in 3 hours; also the whole box can be shipped, and it can be used after it is connected to water and electricity at the site. The same day installation, the same day use.
V. Transportation

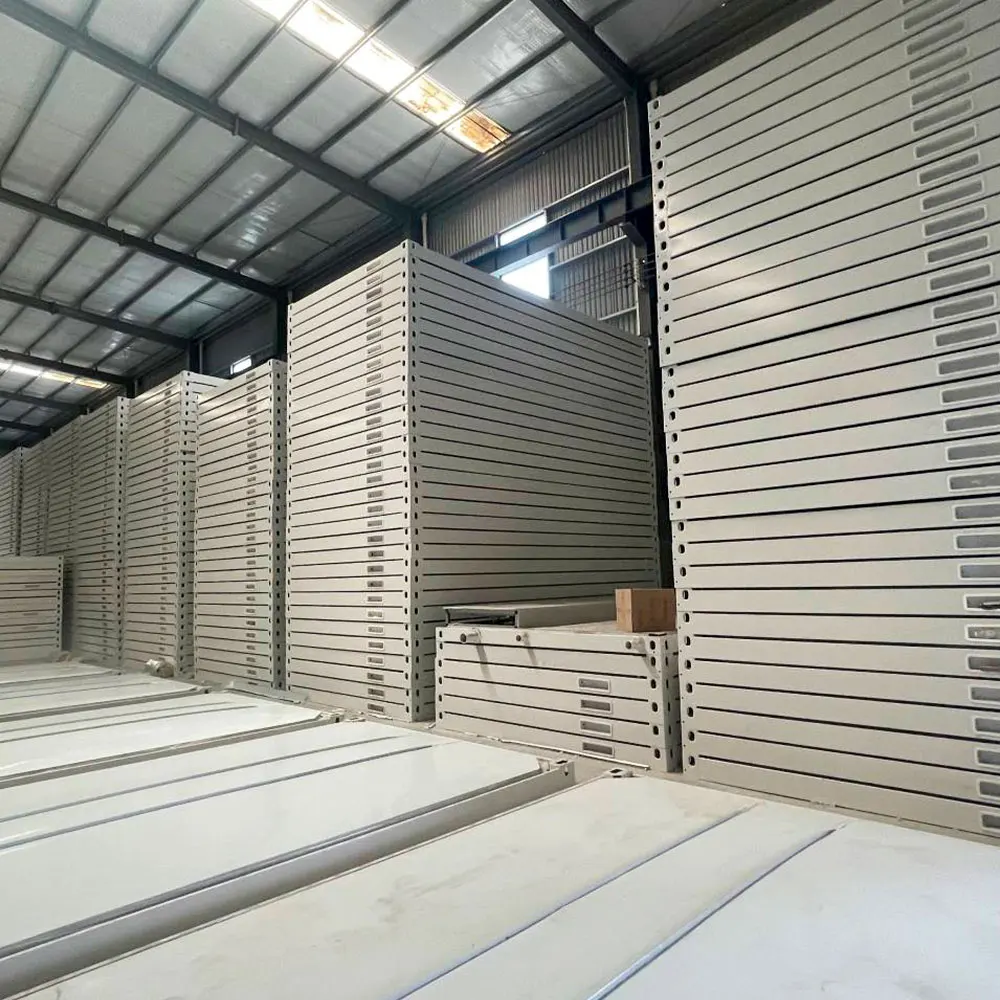

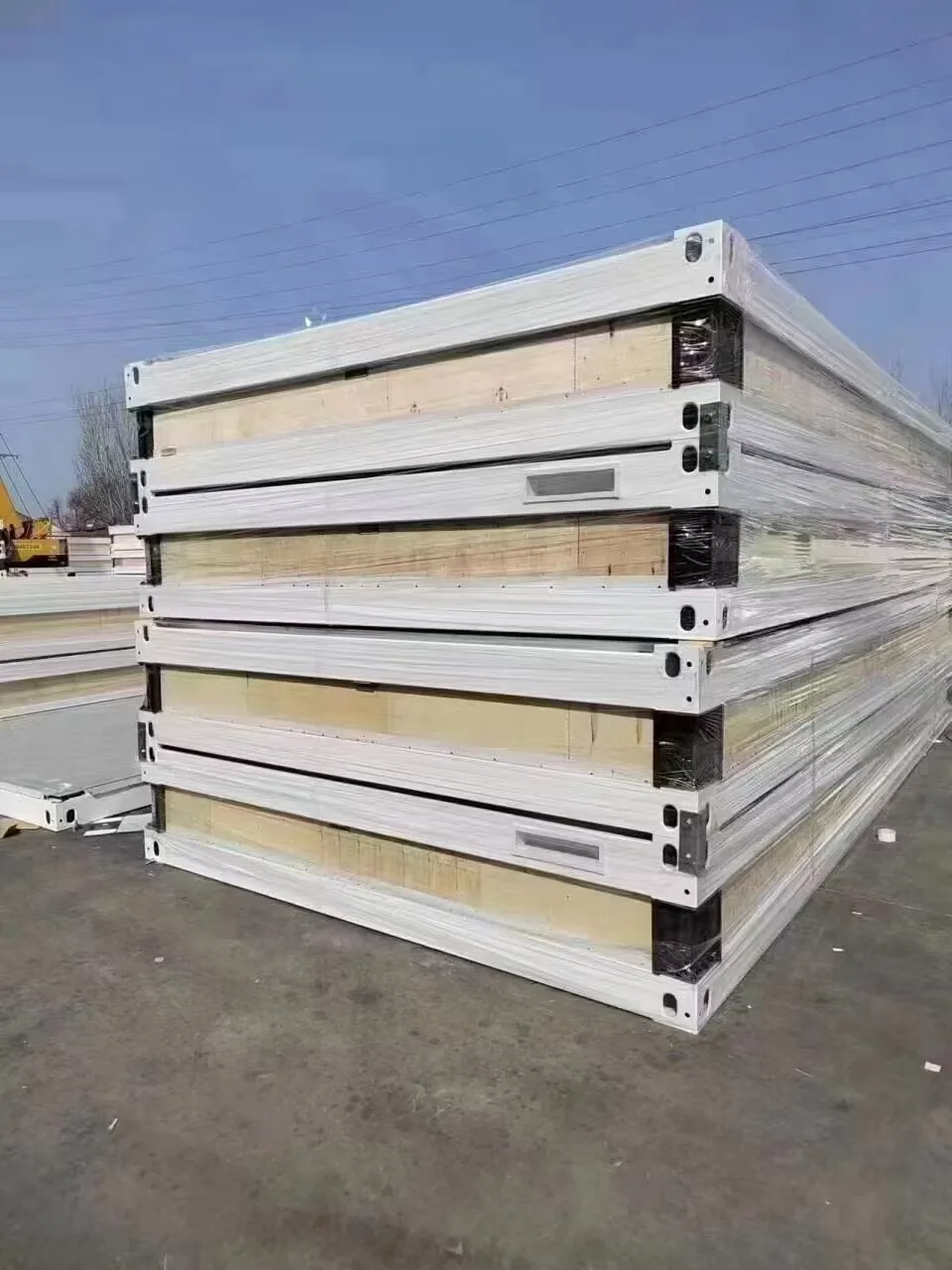

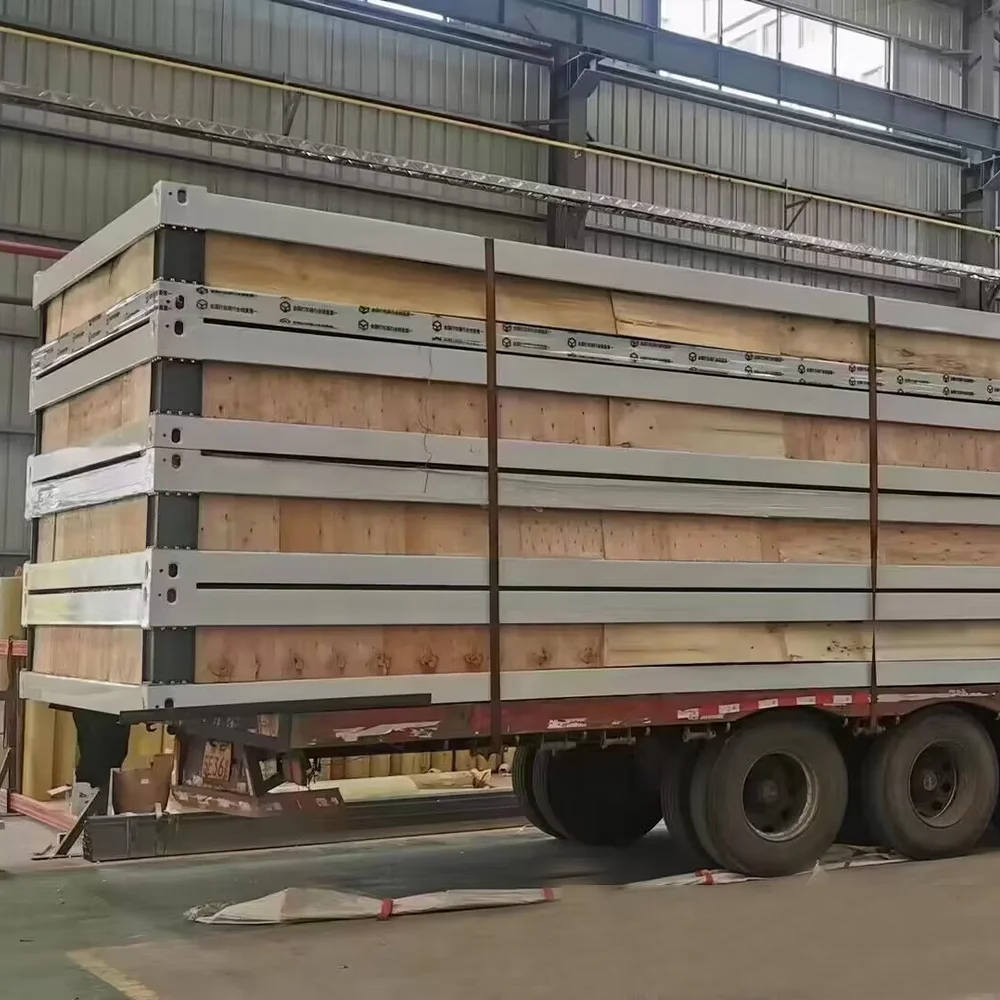

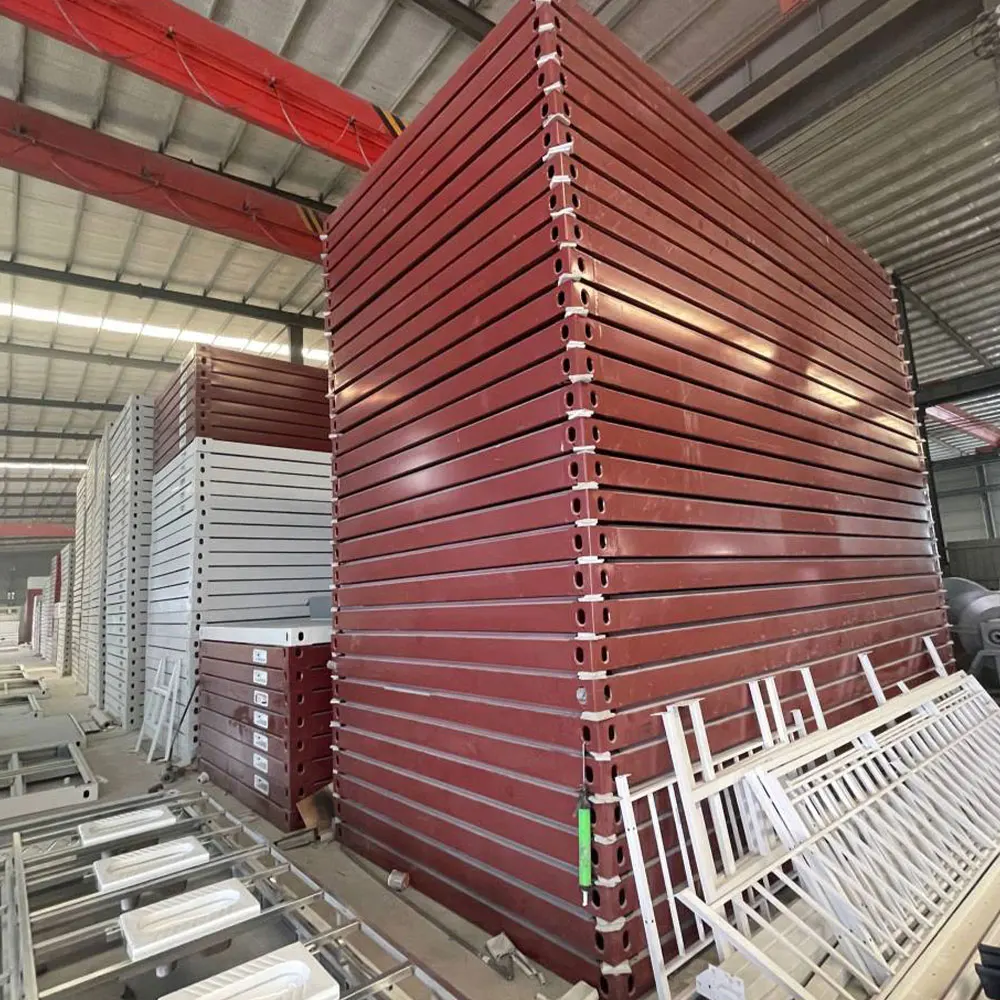

The flat pack container house can be disassembled and made into board type packaging, suitable for sea and land transportation. Domestic transportation with a 17.5m flatbed truck plus a 13m truck can load about 20 sets of packing box full set of materials, every 4 sets is equivalent to 1 standard 20 feet container size, saving 3/4 freight; 1 40 feet high container can be shipped 6 sets.
The visible parts of the house can be customized, including doors, windows, interior and exterior walls, roof, etc. Color,material, version, thickness, etc. can be customized according to customer needs.
