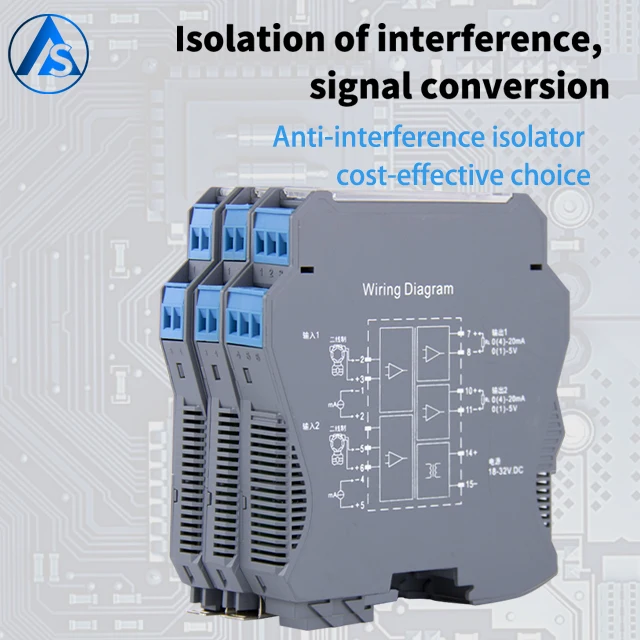

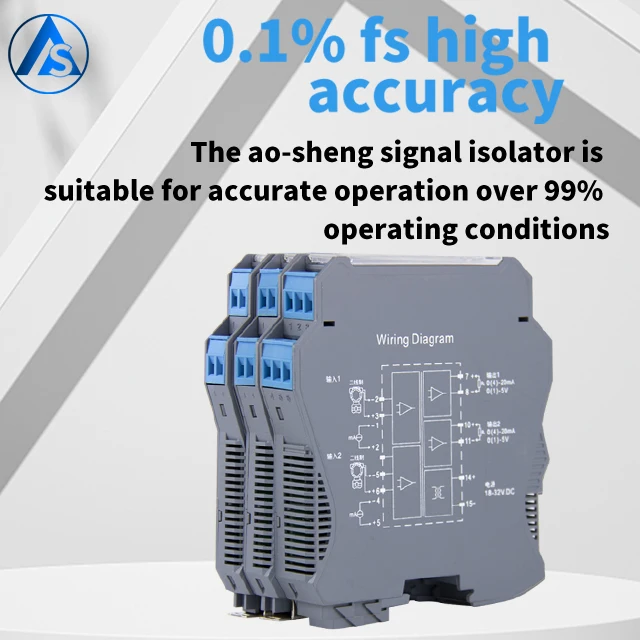

AOSHENG Signal isolator 4 20mA input output
- Category: >>>
- Supplier: Aosheng (Jiangsu) Automation Technology Co. Ltd.
Share on (1600855866558):
Product Overview
Description

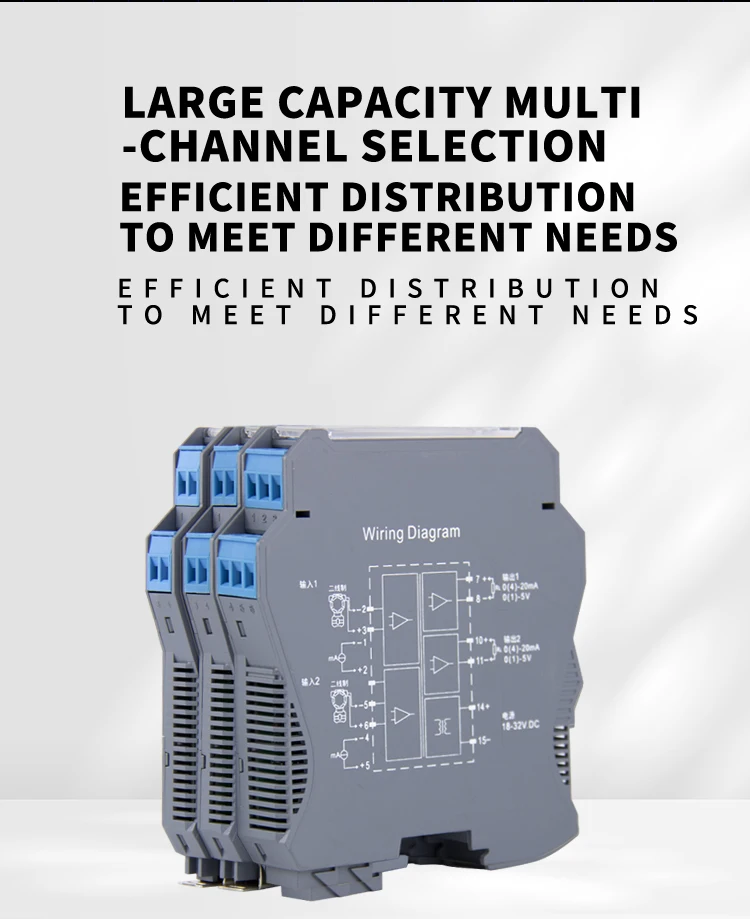

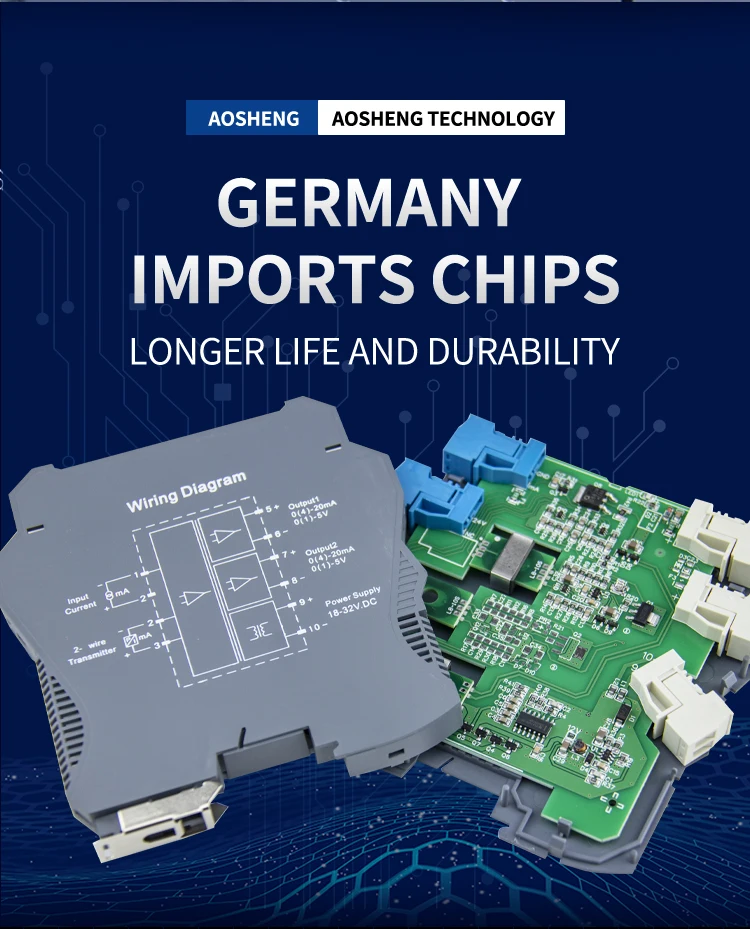

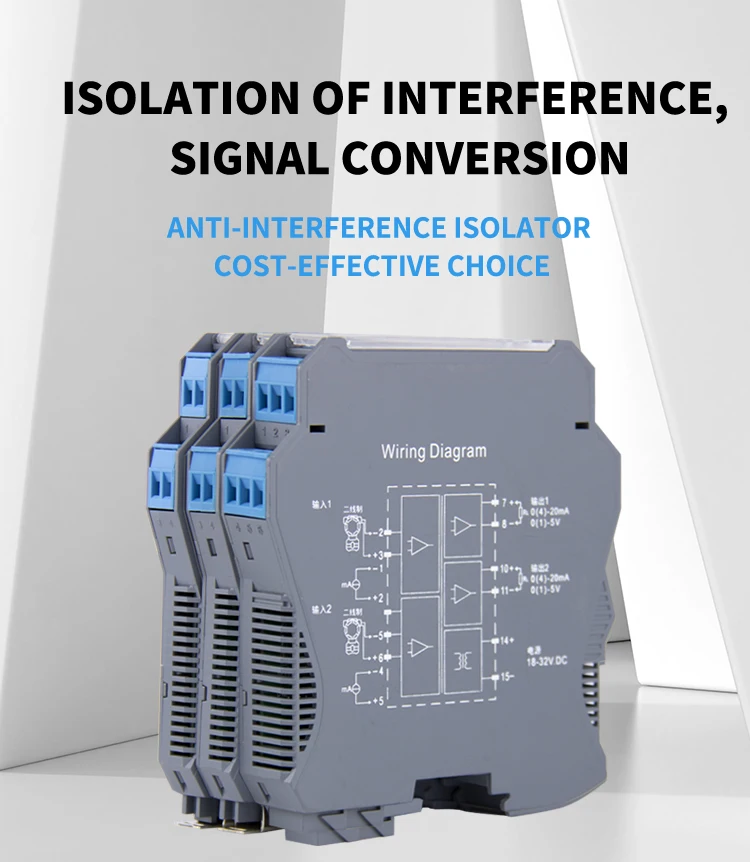

Details Images
Product Specification
Input | |||||||||
Input signal | 4-20mA,0-20mA,0-5V,1-5V,0-10V | ||||||||
Input resistance | Impedance ≤50Ω, voltage Impedance ≥250 KΩ | ||||||||
Maximum input current / voltage | ≤30mA/≤10.5V | ||||||||
Current isolator output | |||||||||
Output signal | 0-20mA,0-20mA,0-5V,1-5V,0-10V | ||||||||
Output load | 4-20mA, 0-20mA load resistance RL≤400Ω; 0-5V, 1-5V load resistance RL≥250KΩ, 0-10V load resistance RL≥500KΩ | ||||||||
Voltage isolator output | |||||||||
Output signal | 0-20mA,0-20mA,0-5V,1-5V,0-10V | ||||||||
Output load | 4-20mA, 0-20mA load resistance RL≤400Ω; 0-5V, 1-5V, 0-10V load resistance RL≥20KΩ | ||||||||
Power supply | |||||||||
Power supply | DC20-32V | ||||||||
Power consumption | Single Output Power: ≤0.8W; Dual Output Power: ≤1.0W | ||||||||
Other parameters | |||||||||
Insulation resistance | ≥100MΩ (500VDC) | ||||||||
Dielectric strength | 2000Vrms (1 min, no spark) | ||||||||
Operating temperature | -10 ~ 50 °C (no condensation, no freezing) | ||||||||
Relative humidity | 25%~85%RH | ||||||||
Storage temperature | -10 ~ 60 °C (no condensation, no freezing) | ||||||||
Temperature drift | 0.0075%FS/℃ | ||||||||
Dimensions | 13 * 108 * 121.2mm (W * H * D) | ||||||||

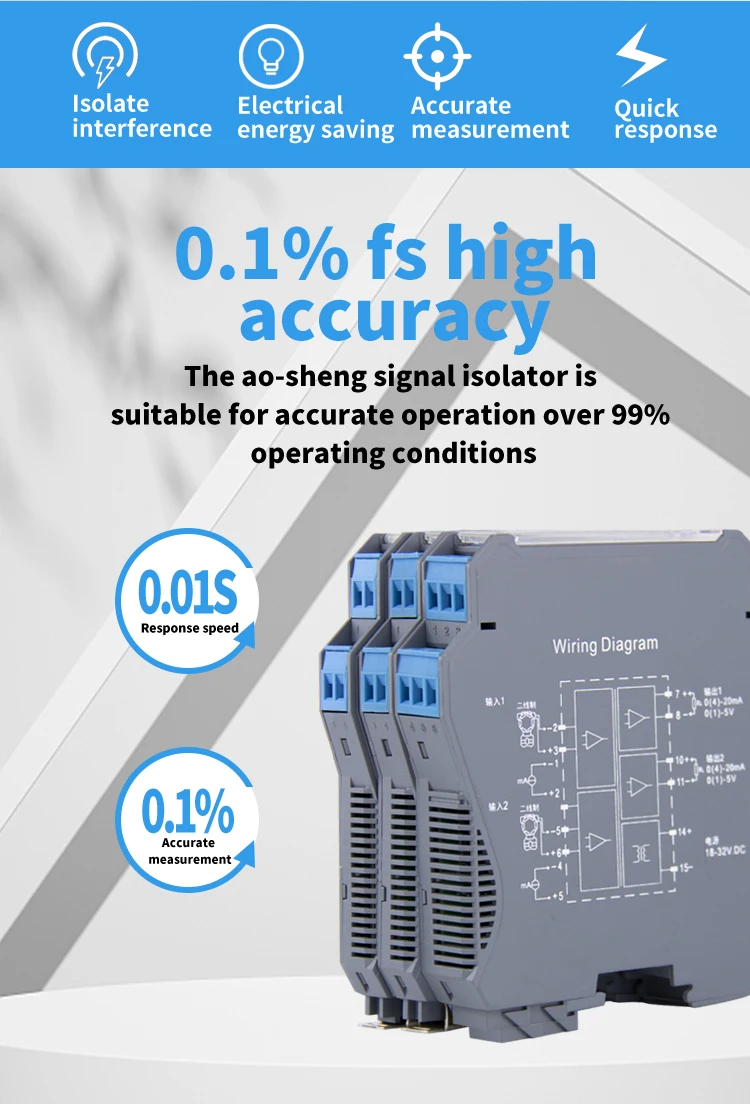

Transmission accuracy (20 °C) | 0.15%FS | ||||||||
Response time | ≤2ms | ||||||||
Mounting style | 35mmDIN rail mounting | ||||||||
Weight | Approximately 130 g | ||||||||
Electromagnetic compatibility | In line with GB/T18268 industrial equipment application requirements | ||||||||
Field devices applicable | DC voltage / current source | ||||||||

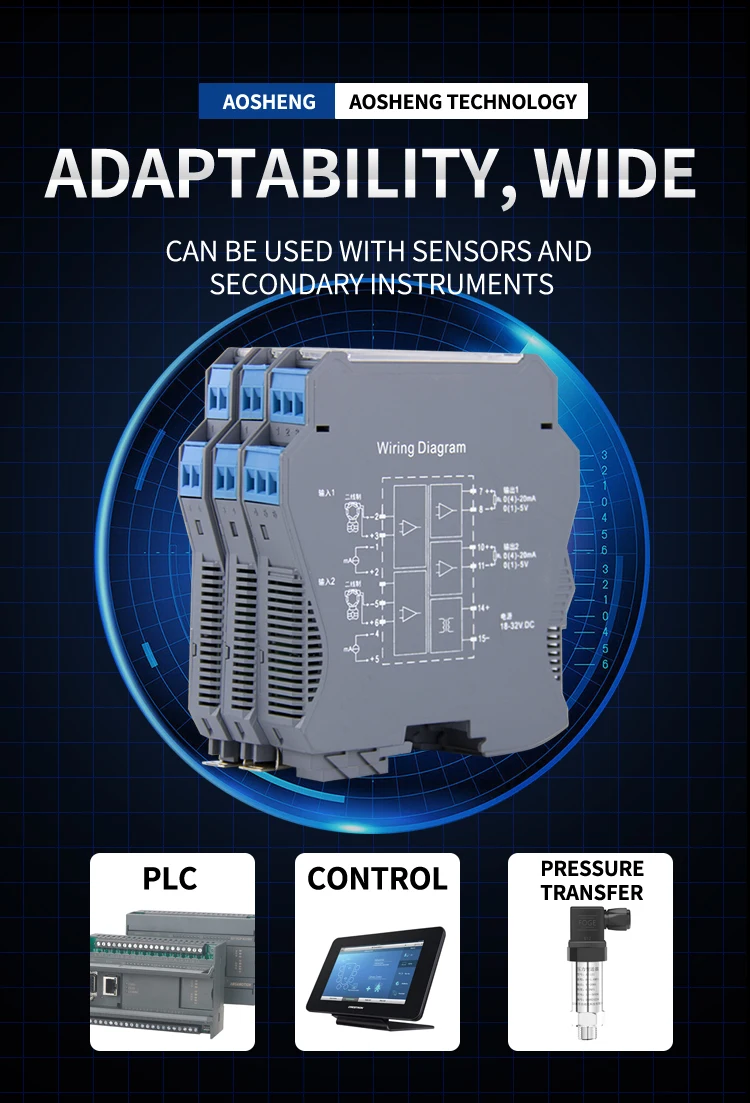

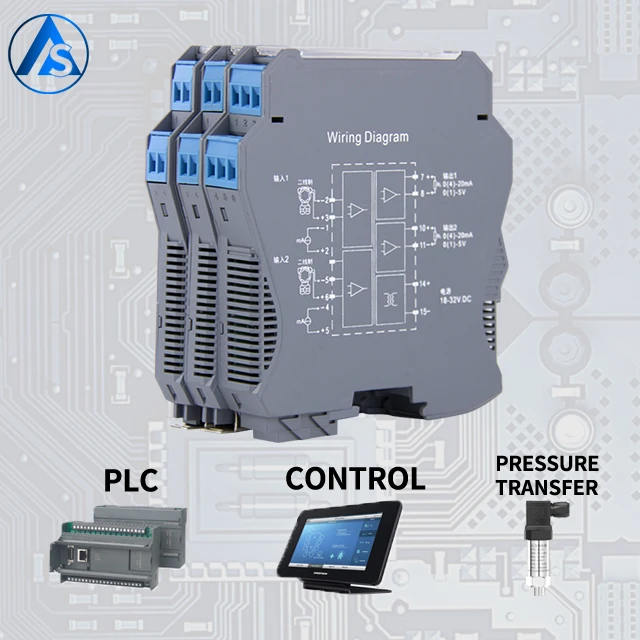

Product application
