SOEASY 6# Landscape Flat Plain Slate Tile Roof Solar Hook for Solar Panel Mounting
Product Description

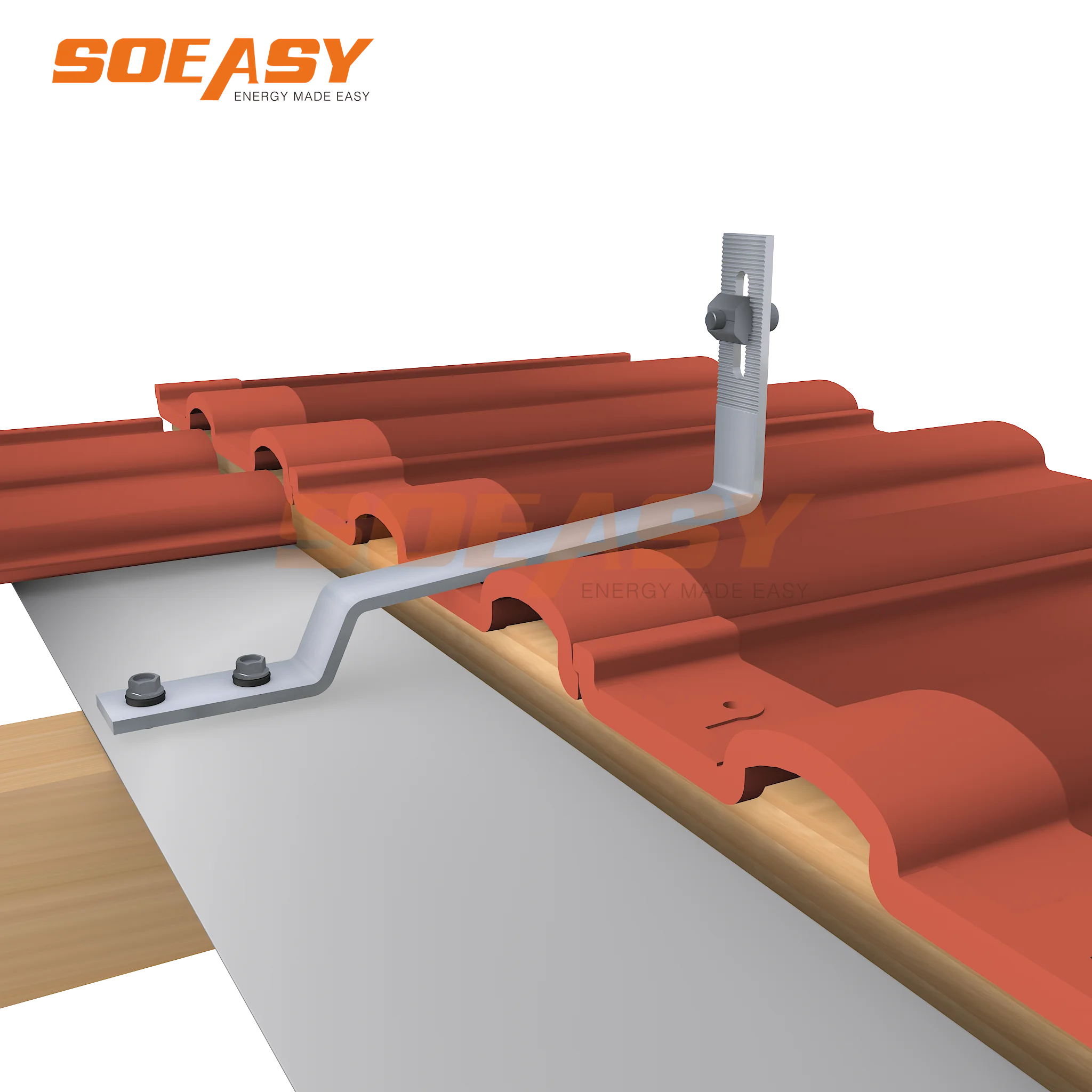

Stainless Steel Solar Roof Hook
Our stainless steel roof hook has been developed as a universal system in the Rooftop mount system . By using the patented aluminum base rails , click-in clamp and base rail pre-clamp technology can eliminate customer cutting and enables particularly fast installation.

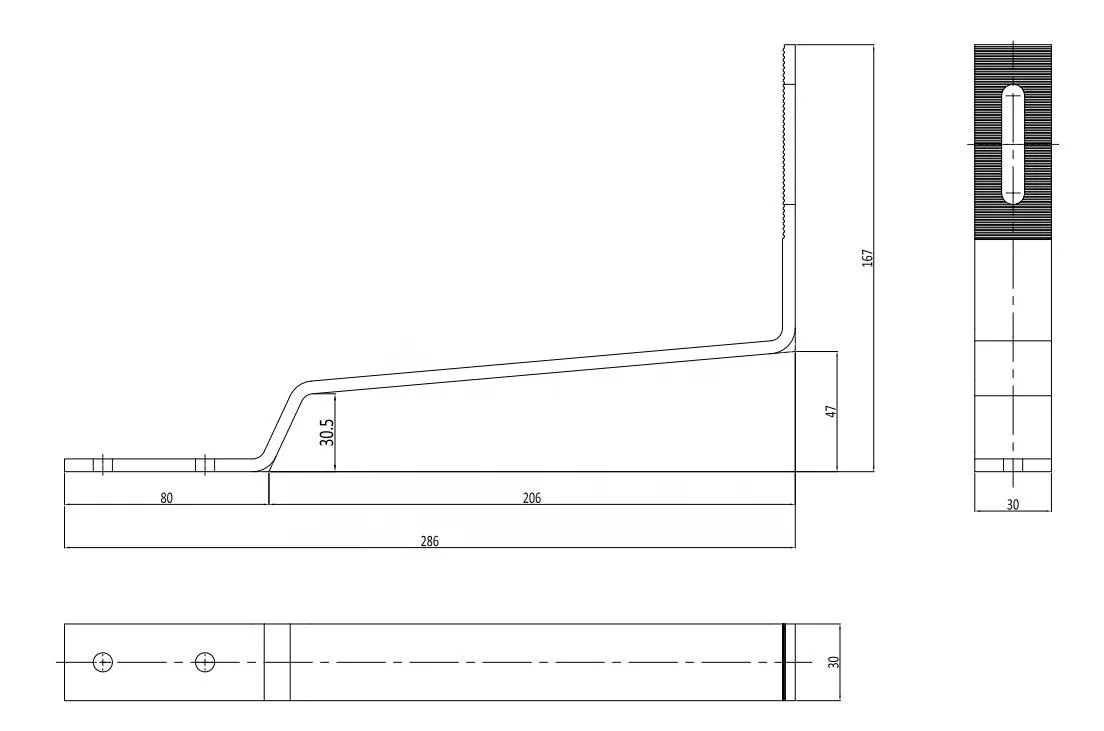

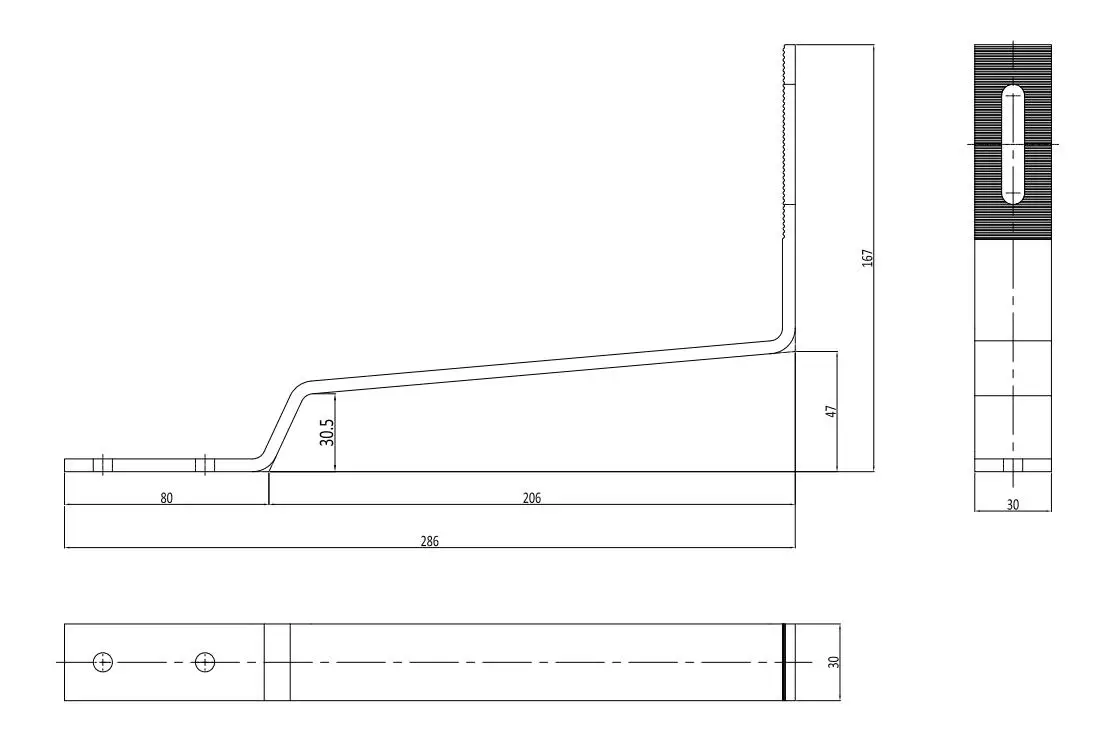

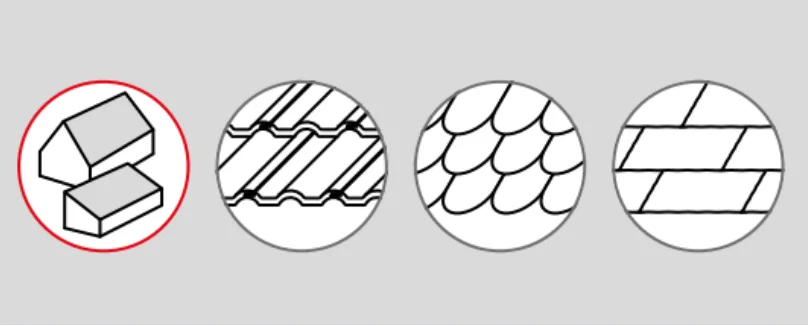

Reference Adaptive Roof Tile Type
Customized according to your roof tile type!
Hook size, adjustable space, thickness, and material are all customized！
* Corrosion Resistance SUS 304
* Compatible with most Rails and modules
* High-quality fasteners and hardware.
* Maximum service life
* High-quality fasteners and hardware.
* Maximum service life
Technical Parameters
TECHNICAL DATE | ||
APPLICATION | Pitched Pan /Roman/Slate tile roof | |
MODEL NUMBER | 6# Fixing Tile Hook | |
WIND LOAD | Up to 42m/s | |
SNOW LOAD | 1.4 KN/m² | |
PV MODULES | Framed | |
MATERIALS | Stainless Steel 304 Solar Panel Roofing Hook | |
MODULE ORIENTATION | Portrait , landscape | |
MODULE INCLINATION | 0°- 45° | |
BUILDING HEIGHT | Up to 20m | |
STANDARDS | JIS8955:2017/DIN1055/ASCE_7-05/AS/NZS 1170 | |
WARRANTY | 10 years | |

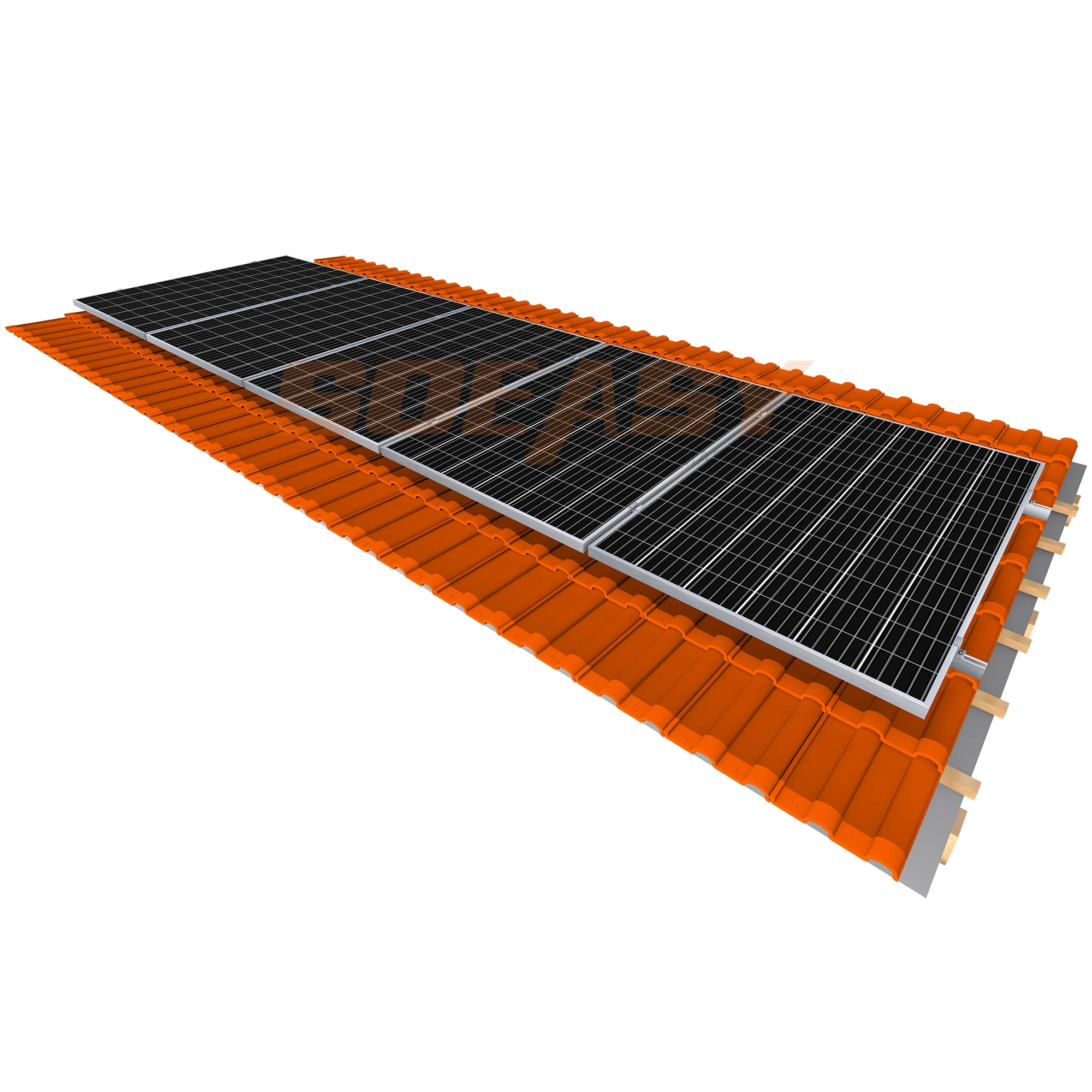

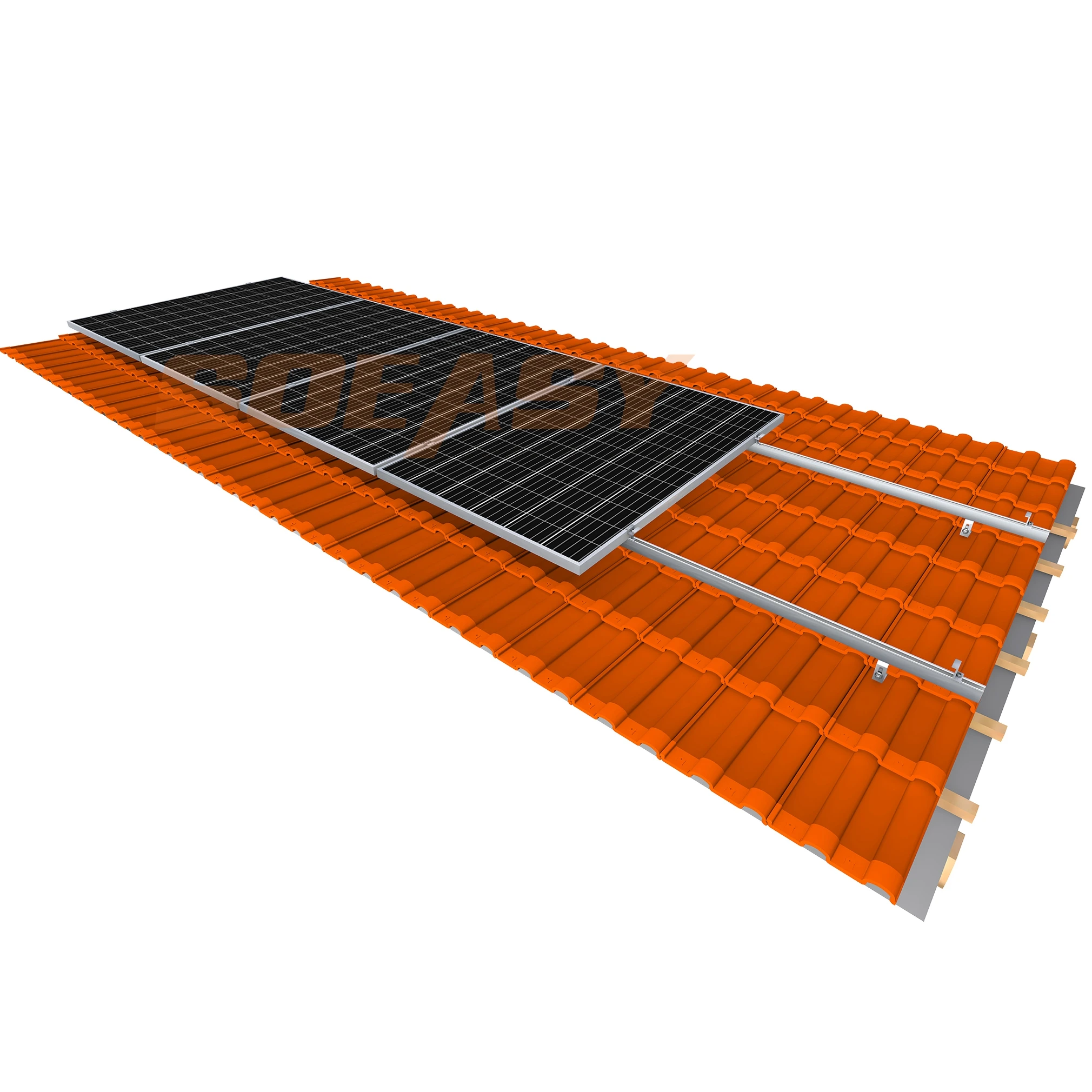

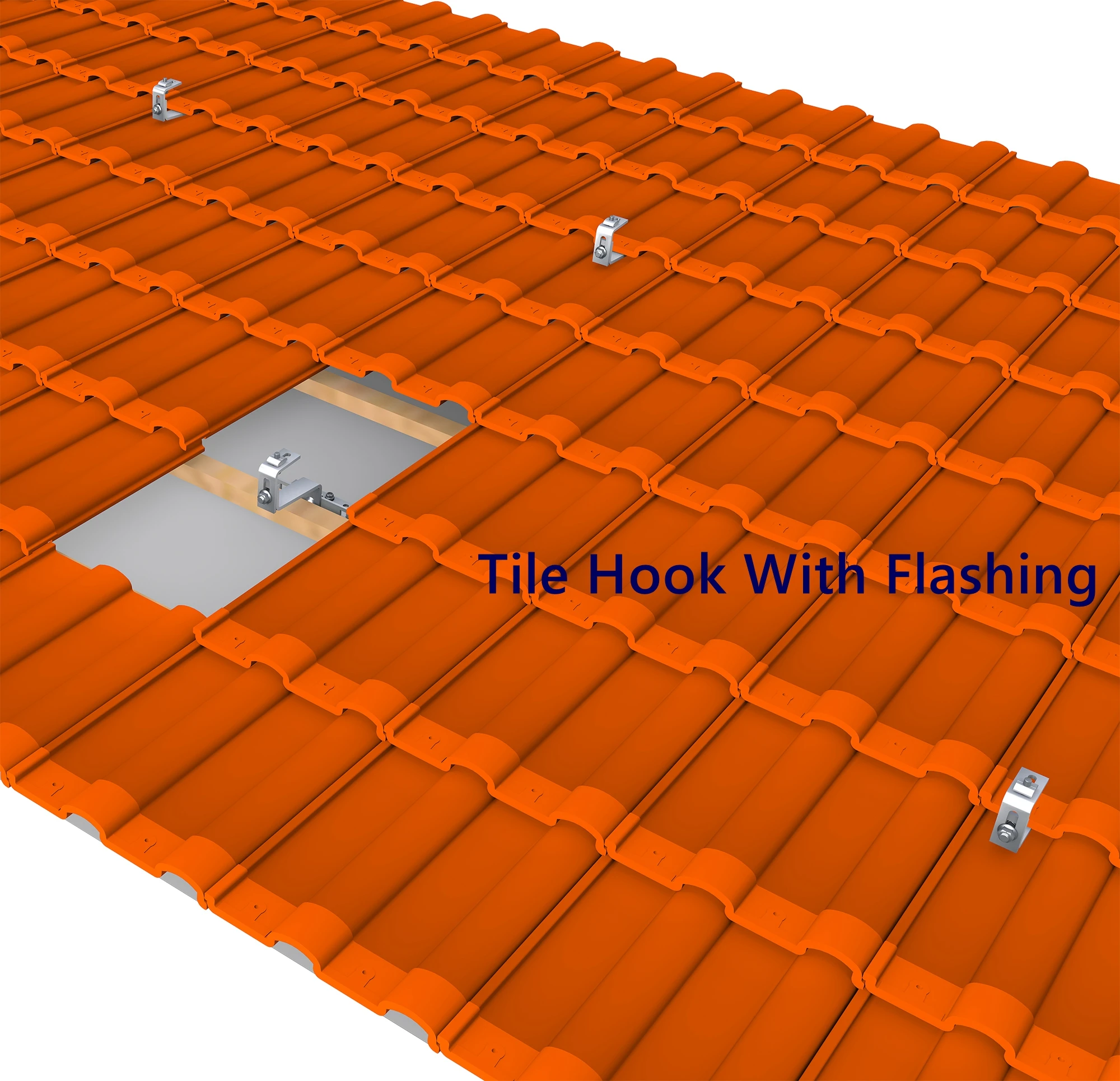

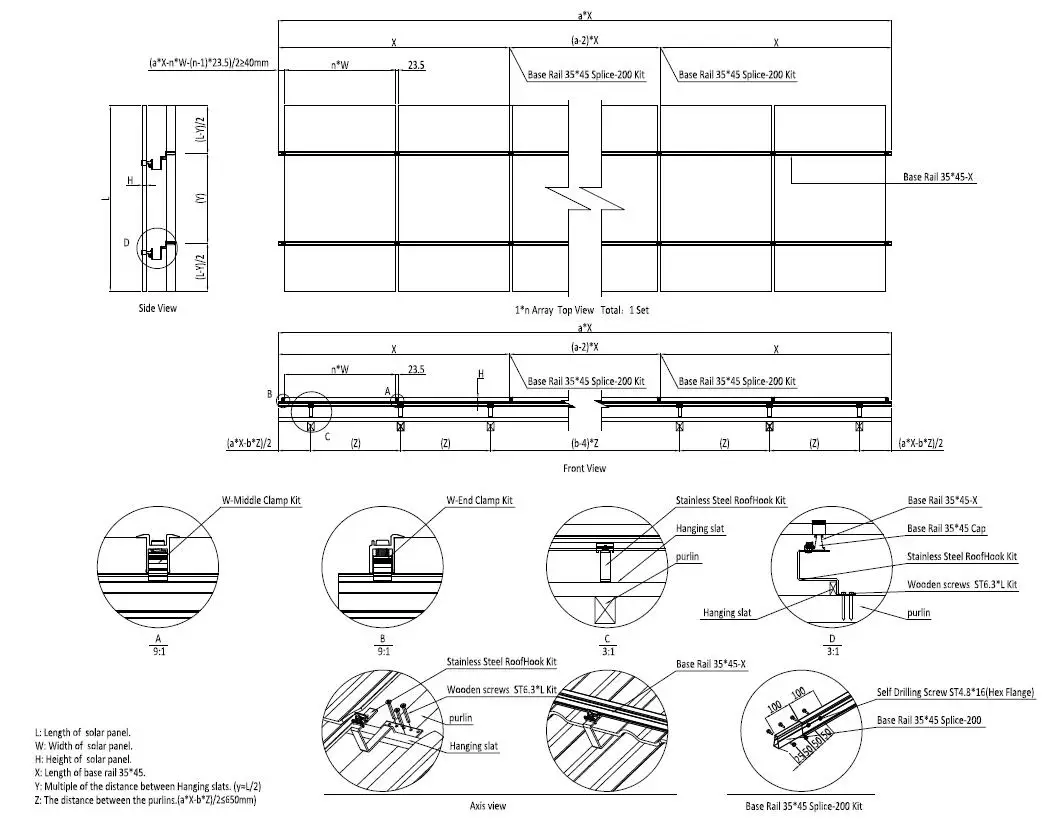

Installation Details

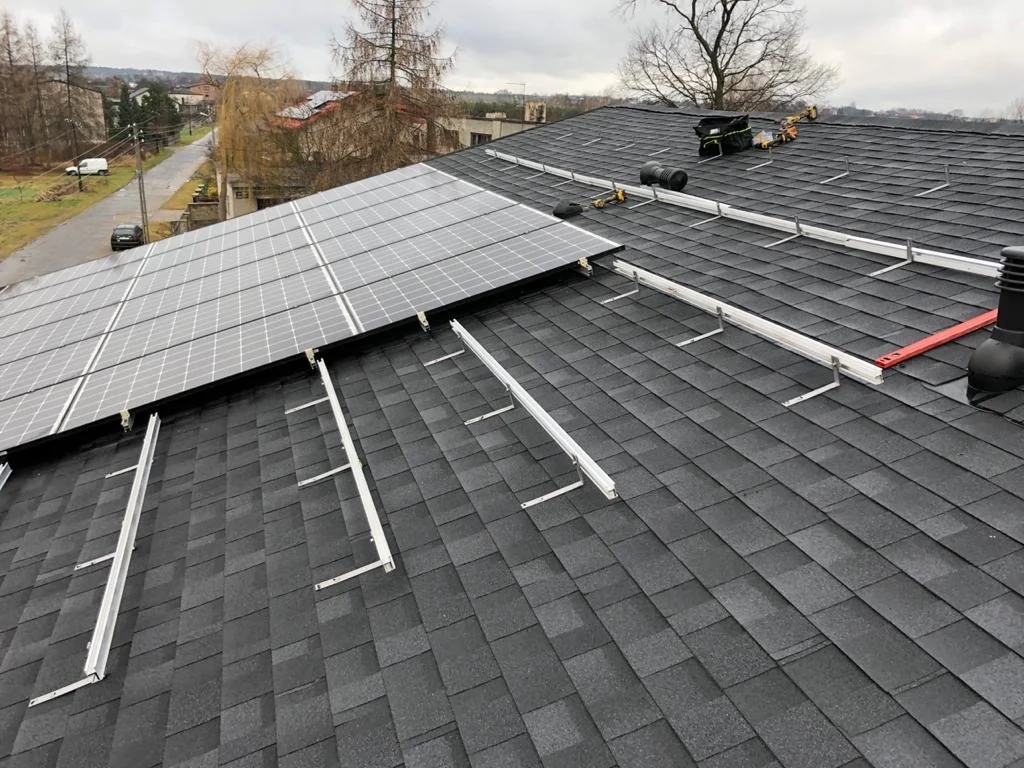

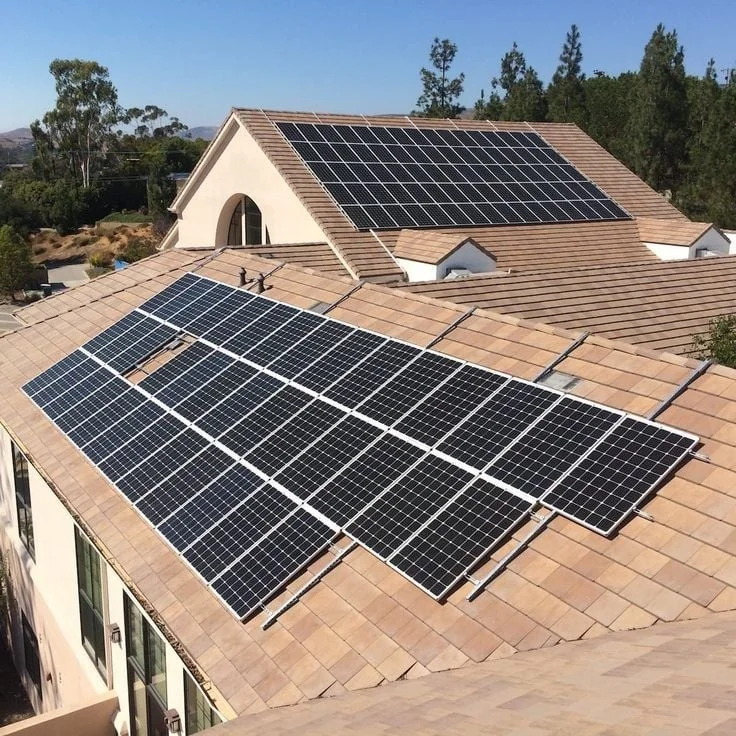

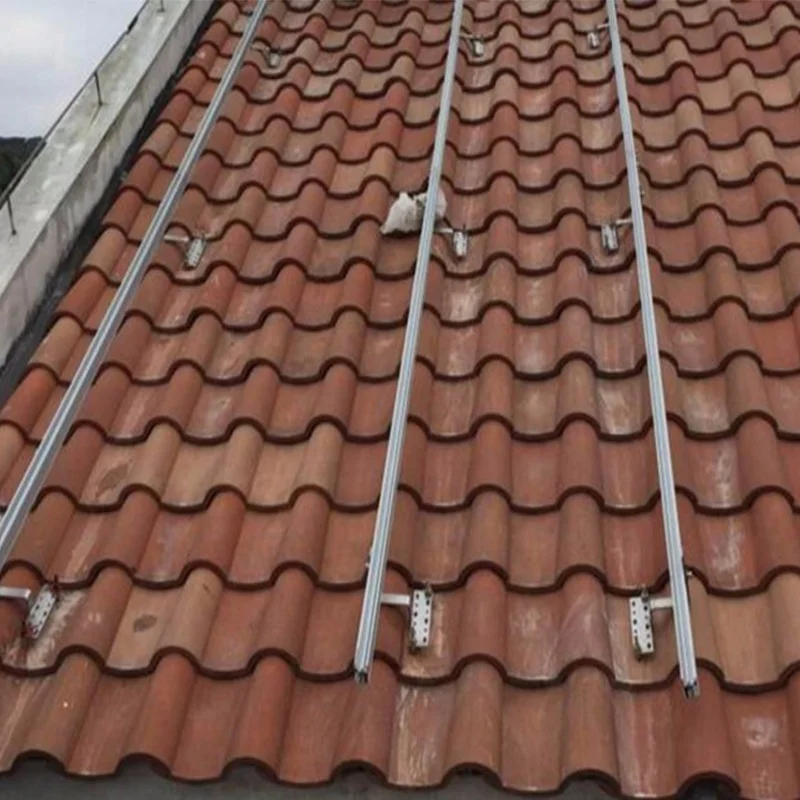

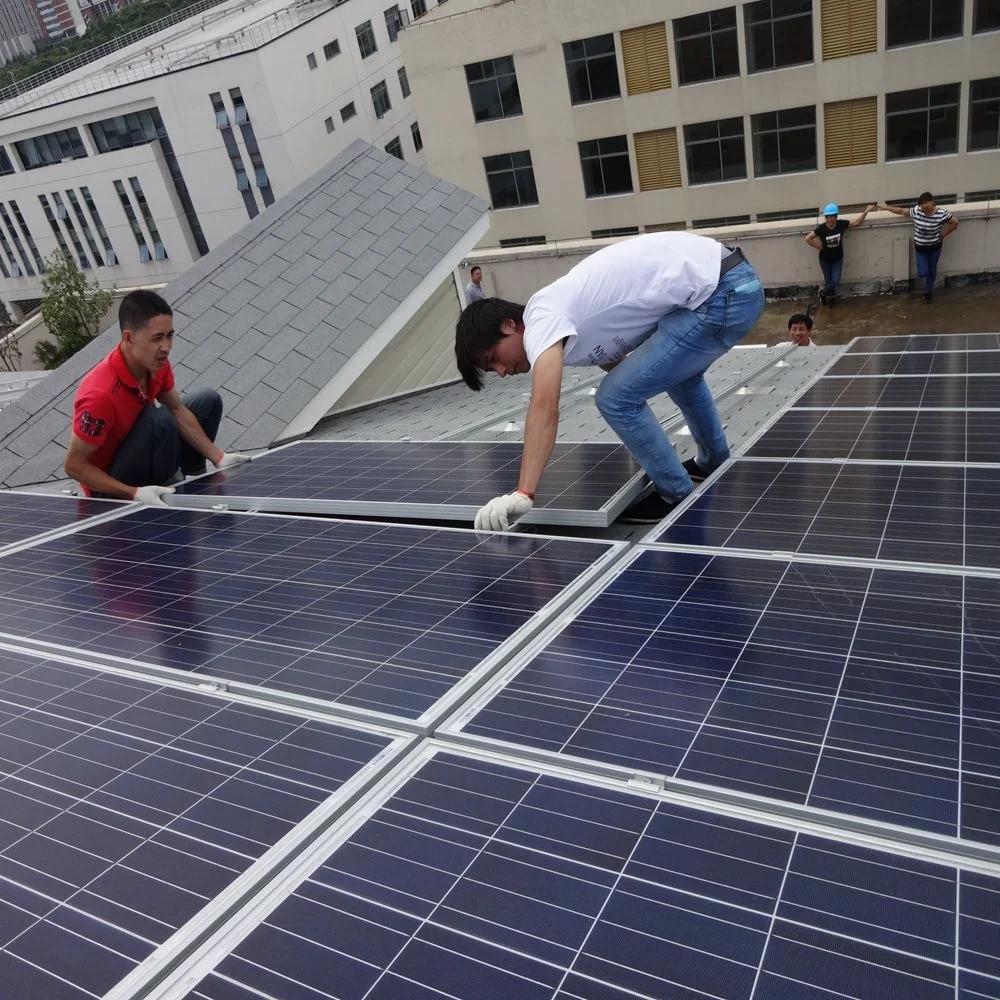

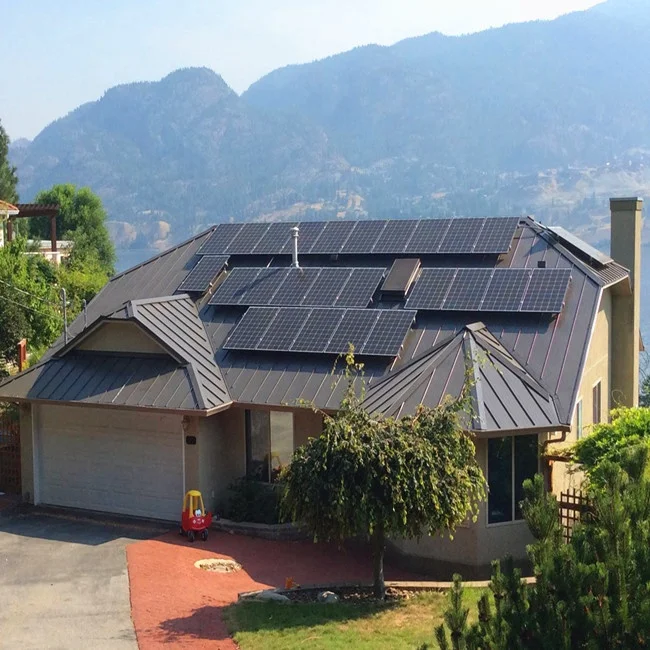

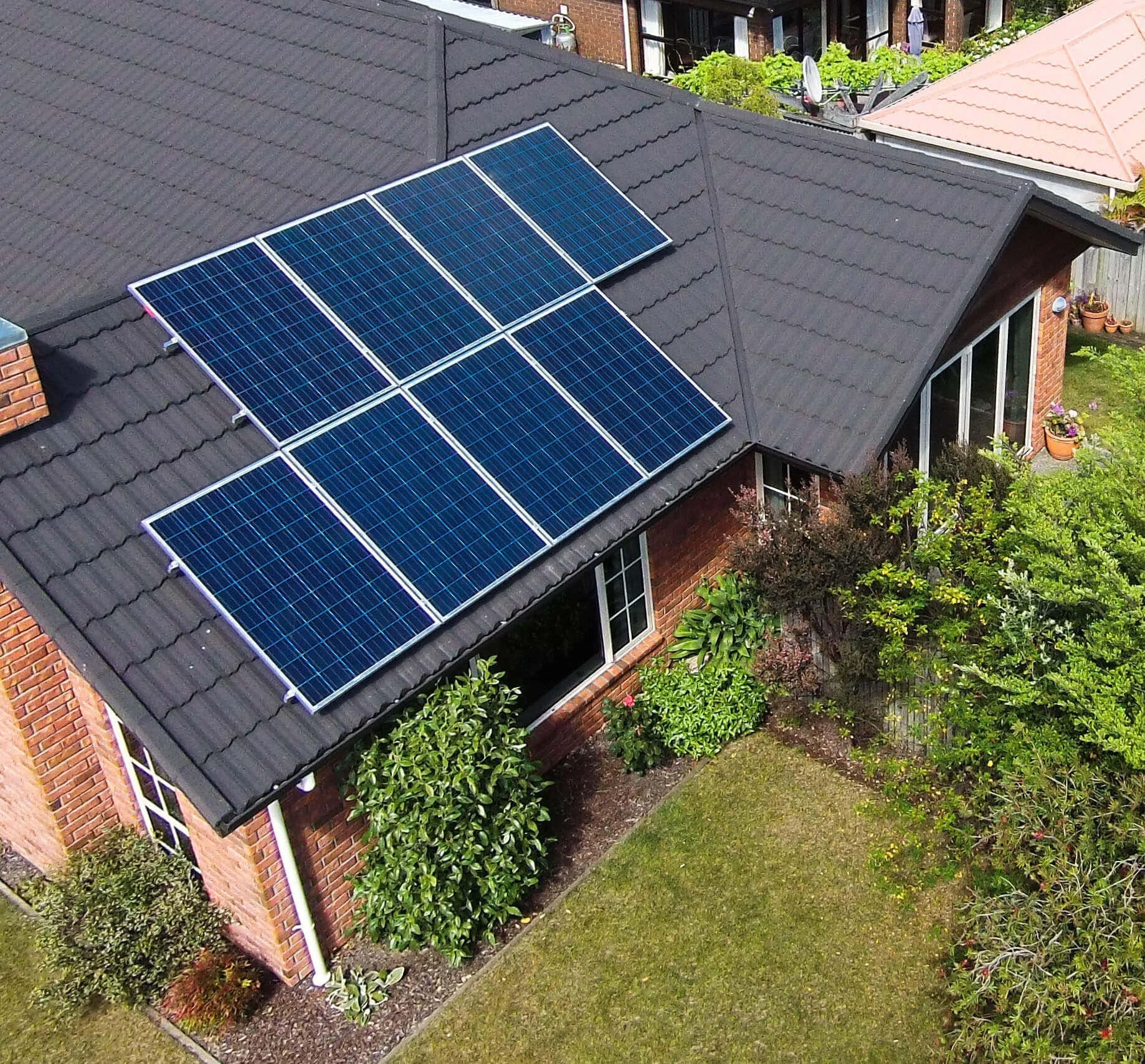

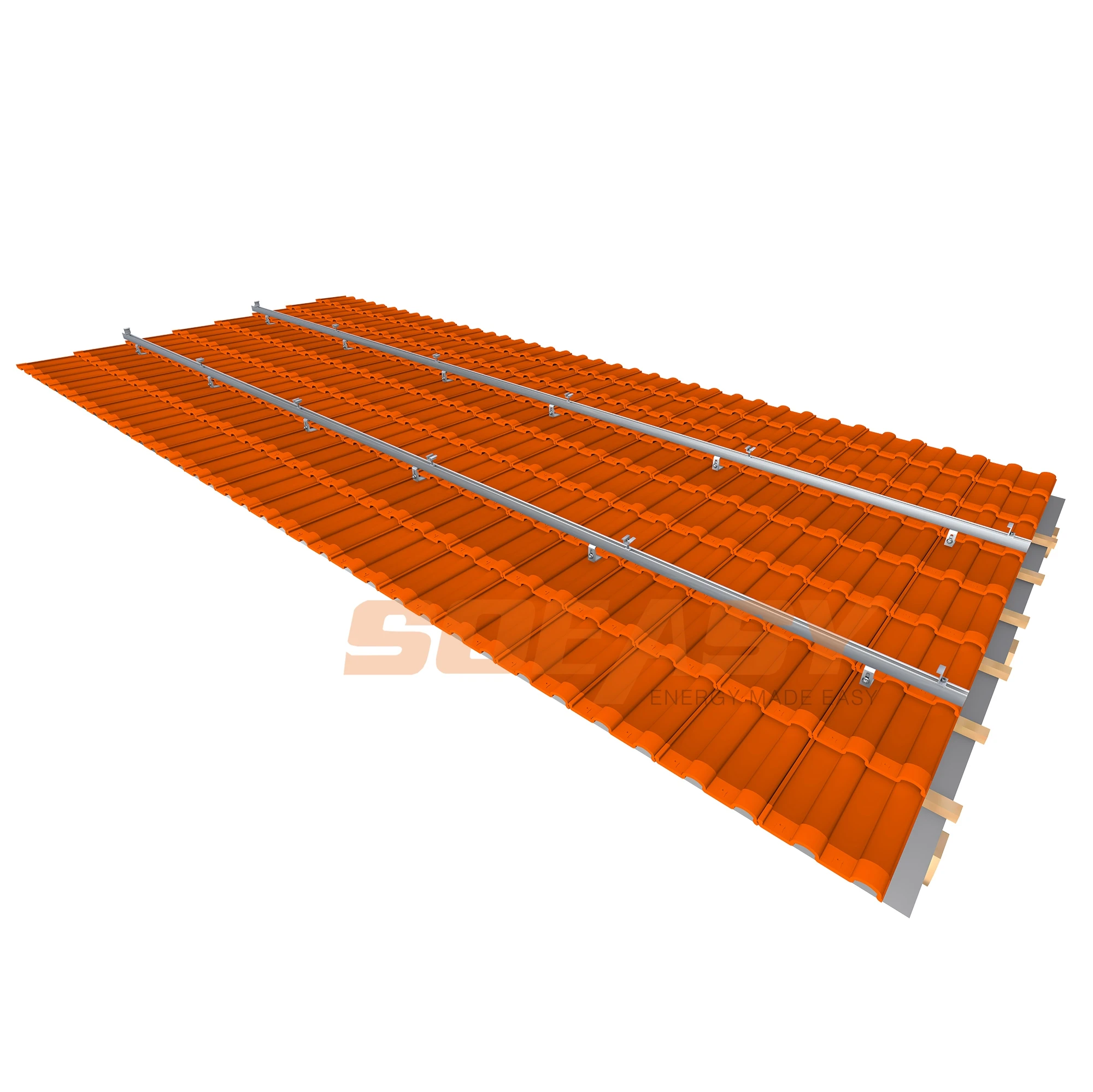

Practical Application
Parking and Shipping
- Package: Standard Carton & Steel Pallet
- Shippment: BY SEA
- Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
- Wrapped the aluminium profile with plastic film to against the moisture during shipping
- Always shipped on time !!!
- Shippment: BY SEA
- Put Warranty solar mounting products into standard carton/ wooden pallet/other customized packages.
- Wrapped the aluminium profile with plastic film to against the moisture during shipping
- Always shipped on time !!!
Soeasy Free Design
* What is your pv panels dimension? _____mm Length x _____mm Width x ____mm Thickness
* How many panel are you going to mount? _______Nos
* What is the tilt angle? __________degree
* What is your planned pv assembly block? ________Nos. in a row
* How is weather there, such as wind speed and snow load?
* ___m/s anit-wind speed and____KN/m2 snow load.
* What is the height from the lowest point of the panel to the ground? ________mm
* How many panel are you going to mount? _______Nos
* What is the tilt angle? __________degree
* What is your planned pv assembly block? ________Nos. in a row
* How is weather there, such as wind speed and snow load?
* ___m/s anit-wind speed and____KN/m2 snow load.
* What is the height from the lowest point of the panel to the ground? ________mm
Company Introduction
SOEASY (Xiamen)Photovoltaic Technology Co., Ltd. started to set up production, R&D, and sales team in 2015. It has its own production base of 5000 square meters in the coastal city of Xiamen, with an annual production capacity of 1500MW. As well as modern office area of 1,000 square meters, with more than 80 employees. Since its establishment, the company has successively obtained the ISO9001 quality management certification system, more than 30 patent certificates, and government qualified suppliers, AAA-level integrity enterprises, etc.. The products have been sold to more than 100 countries or regions around the world, and the products are spread all over the world, the cumulative export volume exceeds 3GW.
