10G Fiber Optic Module 1330nm LC Single Mode Fiber Optical SFP Modules For Fiber Optic Switch Router
- Category: >>>
- Supplier: Shanghai Belite Technology Co. Ltd.
Share on (1600856749348):
Product Overview
Description
PRODUCT INFORMATION
Product: | 10G optical Transceiver Module |
Fiber type | Single-mode SMF |
Transmission distance: | 10KM |
Fiber interface: | LC simplex |
OEM&ODM: | yes |
Applicable: | fiber optic network switches, network storage devices, servers, network firewalls, fiber optic network cards, fiber optic network routers, server rooms, etc. |
SFP+10G 10G single mode optical module LC single mode 10KM fiber optical transceiver modules single mode 10g 10km fiber optic receiver module suppliers

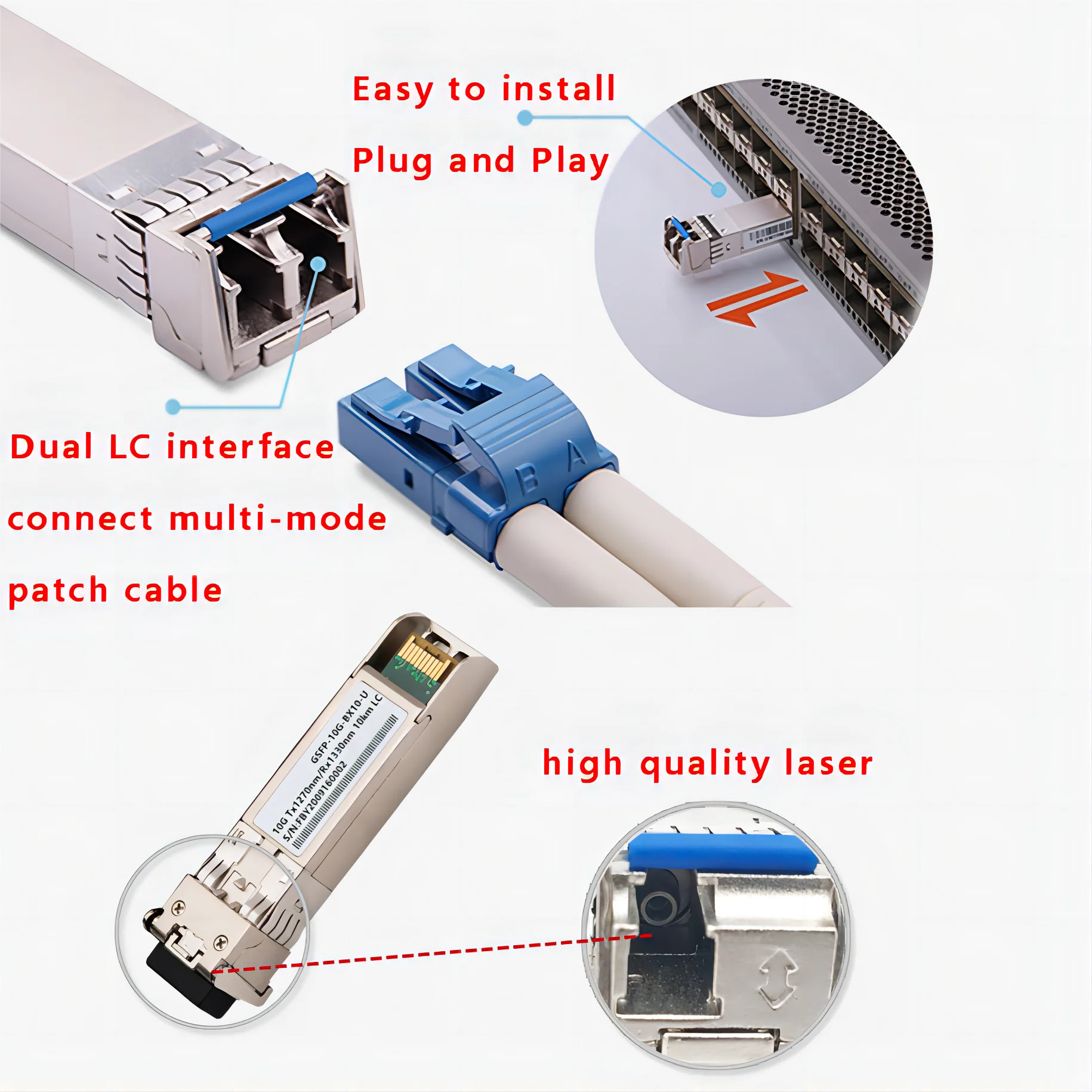

Easy to install Plug and Play
Dual LC interface, connect multi-mode patch cable, easy to plug and unplug, simple and fast to connect devices

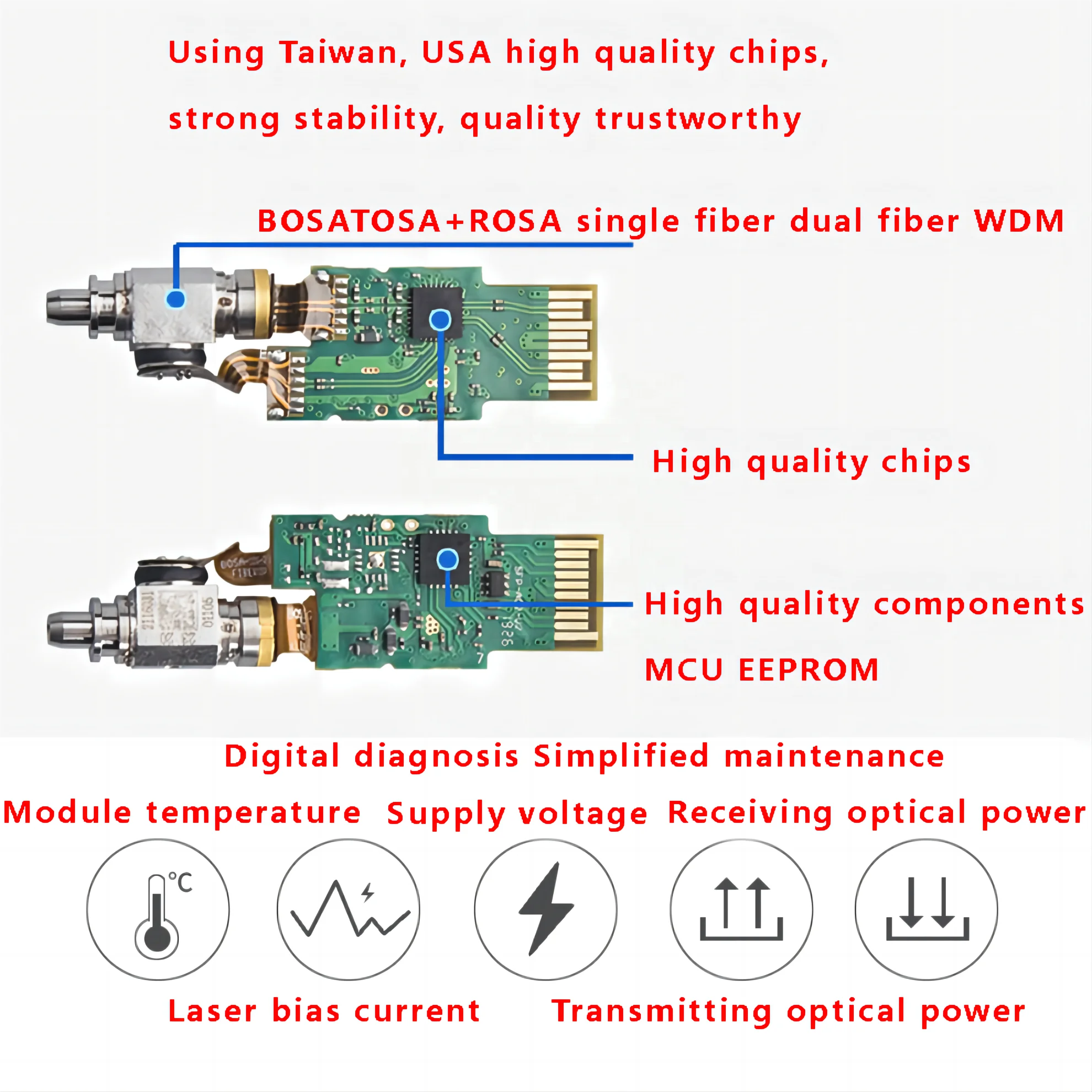

Chip using Taiwan, the United States quality chip, strong stability, quality is trustworthy
BOSATOSA+ROSA single fiber dual fiber WDM
Widely used in switches, servers, routers, fiber optic network cards, fiber optic transceivers and other network equipment with SFP optical port, and fully compatible with Cisco, Huawei, H3C, HP, Ruijie, Mylos, D-link and other major brands
connect single-mode patch cable, easy installation Plug-and-play, simple and fast connection to the device
10 Gigabit SFP module transmission distance up to 10-KM
Package type: SFP+
Operating wavelength: TX 1270nm / RX 1330nm
Transmission rate:10Gb/s,10000Mbps
Transmission distance:10km
Fiber type: Single-mode SMF
Fiber interface: LC simplex
Transmit optical power:-8.2-0.5dBm
Commercial temperature:0-70°C
Data Diagnosis(DDM/DOM:Yes)
Laser type: DFP BiDi
Receiving Sensitivity:<-14.4dBm
Operating Protocol:IEEE 802.3ae SFP+ MSACPRI, eCPRI
Compatible brands: Cisco, Huawei, H3C, HP, Ruijie, Mellanox, Juniper, D-link, Intel, Dell, etc.
Easy to install Plug and Play
Dual LC interface, connect multi-mode patch cable, easy to plug and unplug, simple and fast to connect devices
Chip using Taiwan, the United States quality chip, strong stability, quality is trustworthy
BOSATOSA+ROSA single fiber dual fiber WDM
Widely used in switches, servers, routers, fiber optic network cards, fiber optic transceivers and other network equipment with SFP optical port, and fully compatible with Cisco, Huawei, H3C, HP, Ruijie, Mylos, D-link and other major brands
connect single-mode patch cable, easy installation Plug-and-play, simple and fast connection to the device
10 Gigabit SFP module transmission distance up to 10-KM
Package type: SFP+
Operating wavelength: TX 1270nm / RX 1330nm
Transmission rate:10Gb/s,10000Mbps
Transmission distance:10km
Fiber type: Single-mode SMF
Fiber interface: LC simplex
Transmit optical power:-8.2-0.5dBm
Commercial temperature:0-70°C
Data Diagnosis(DDM/DOM:Yes)
Laser type: DFP BiDi
Receiving Sensitivity:<-14.4dBm
Operating Protocol:IEEE 802.3ae SFP+ MSACPRI, eCPRI
Compatible brands: Cisco, Huawei, H3C, HP, Ruijie, Mellanox, Juniper, D-link, Intel, Dell, etc.
