AWT100 4GHW IoT Smart 4G Gateway Wireless Communication 4G LTE Support Global Frequency Module 4G Smart Gateway With RS485
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1600856924640):
Product Overview
Description
Solutions & Applications
Products Description

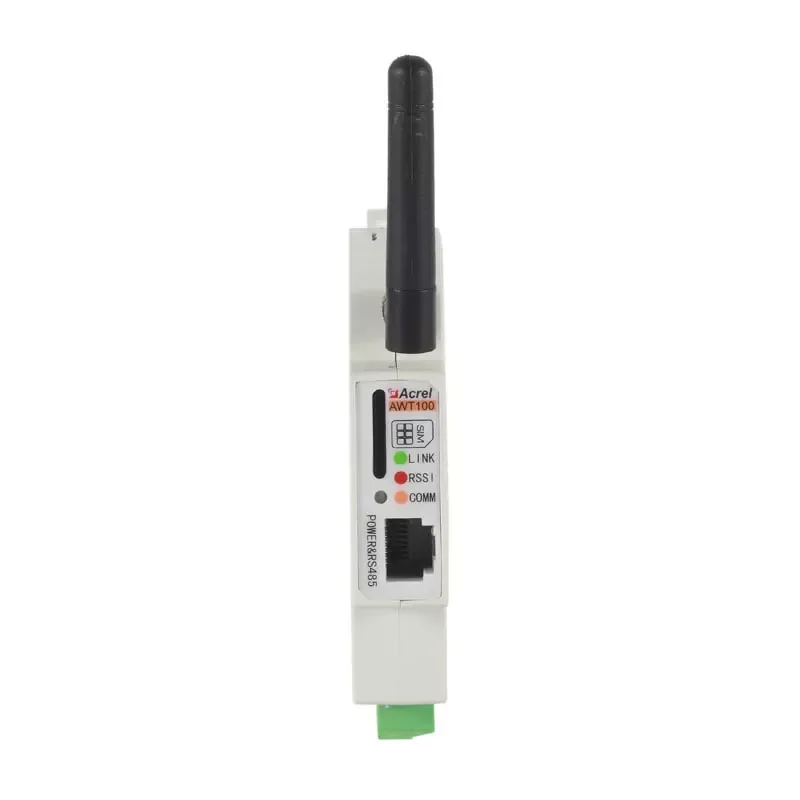

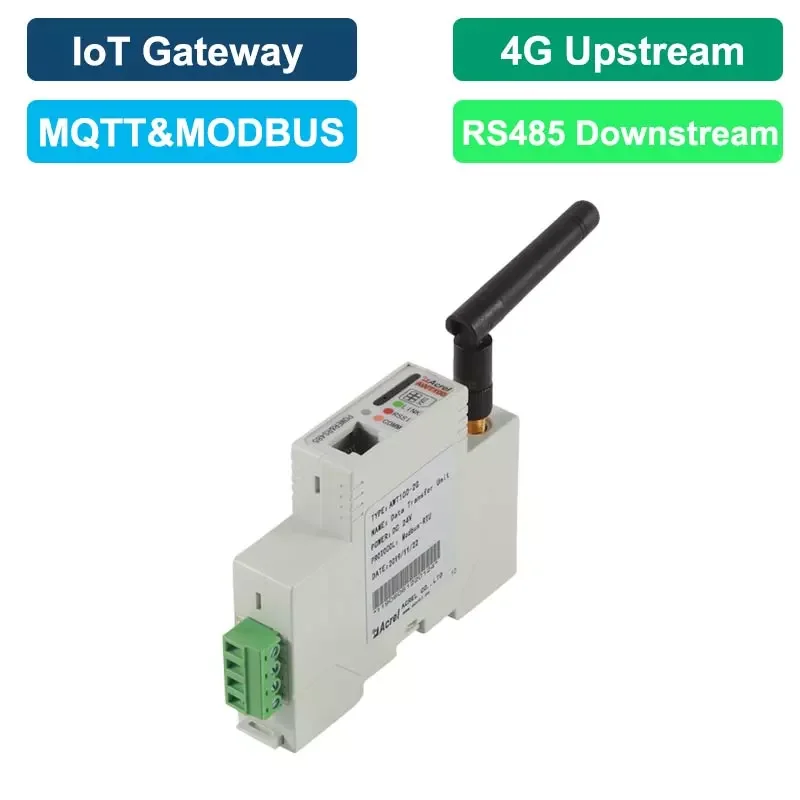

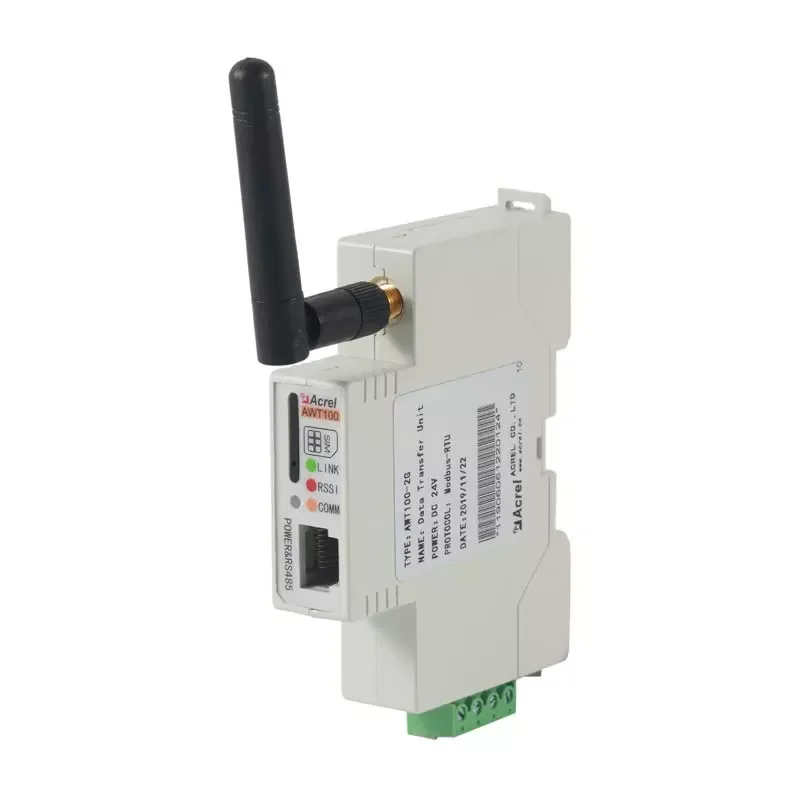

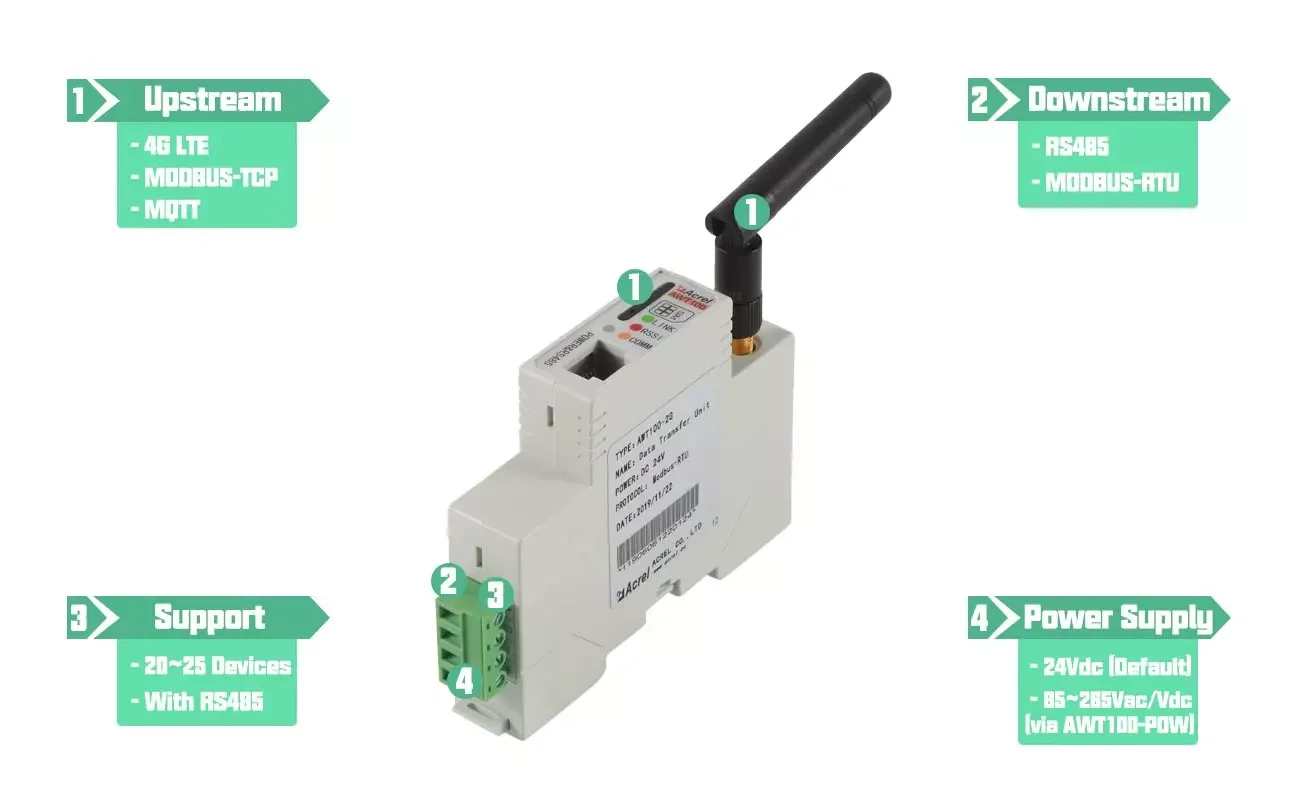

AWT100-4GHW IoT Smart 4G Gateway

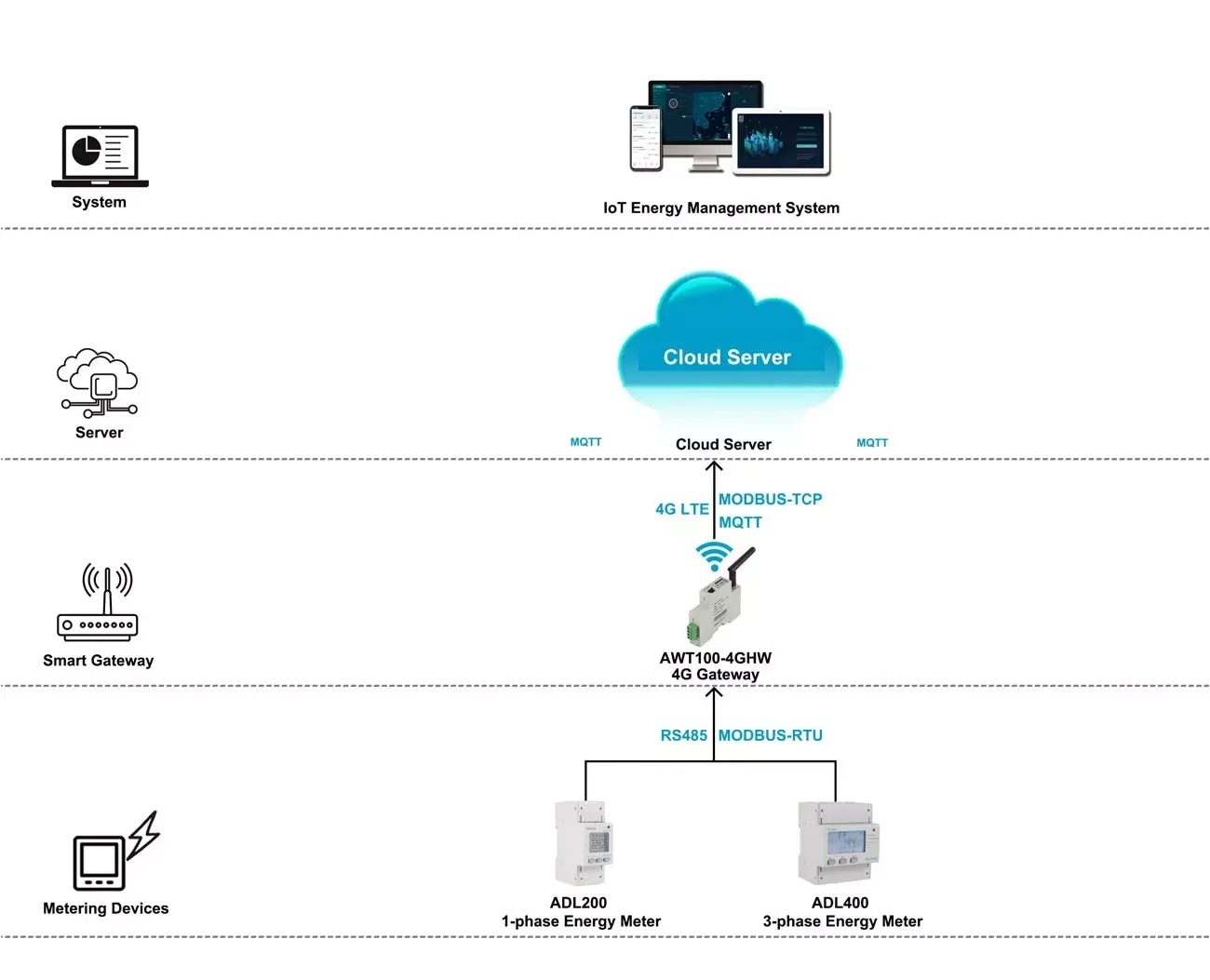

AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The up link communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The down link interface provides a standard RS485 data interface,which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.
● Upstream Methods: 4G LTE (Support Global Frequency Bands)
● Upstream Protocol: MODBUS-TCP, MQTT
● Downstream Methods: RS485 Interface
● Downstream Protocol: MODBUS-RTU
● Support: Up to 20~25 Acrel Devices with RS485 (MODBUS-RTU)
● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)
● Standard&Certificate: CE-RED; IEC; LVD; EMC
● Upstream Protocol: MODBUS-TCP, MQTT
● Downstream Methods: RS485 Interface
● Downstream Protocol: MODBUS-RTU
● Support: Up to 20~25 Acrel Devices with RS485 (MODBUS-RTU)
● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module)
● Standard&Certificate: CE-RED; IEC; LVD; EMC

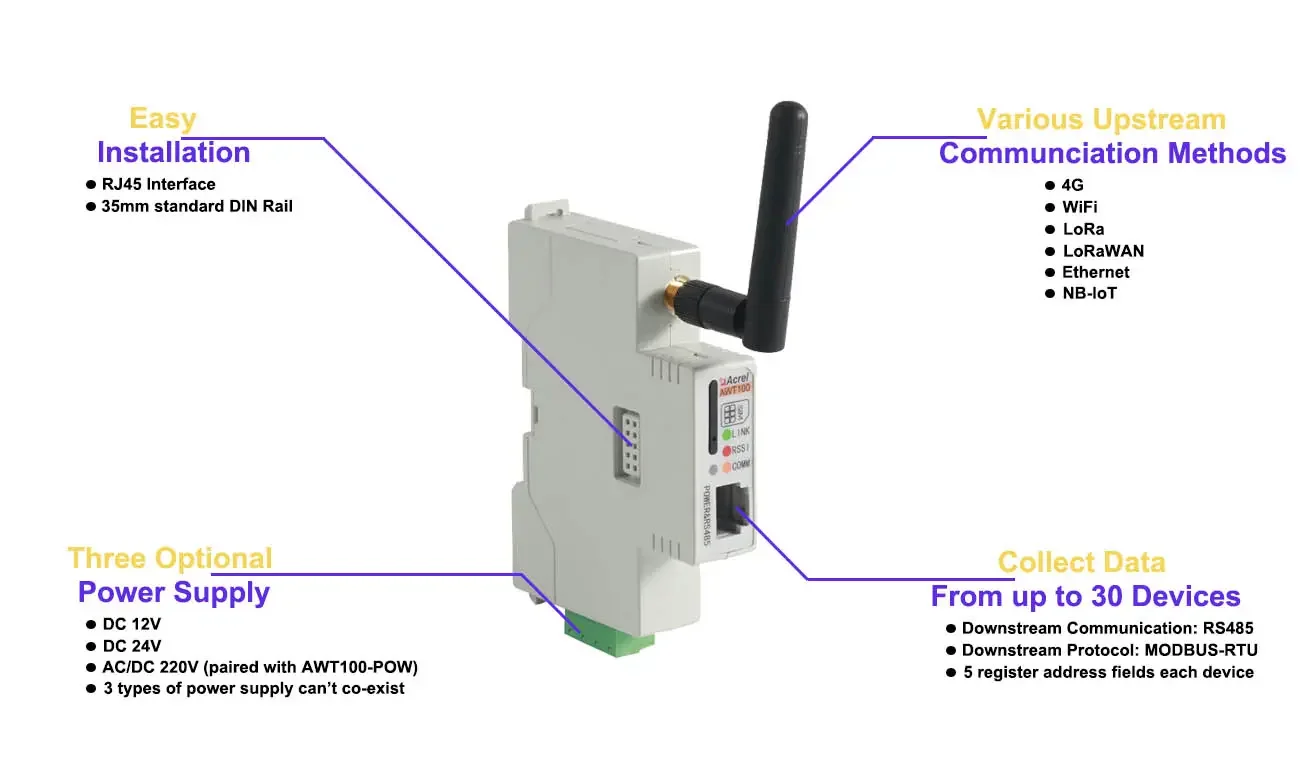

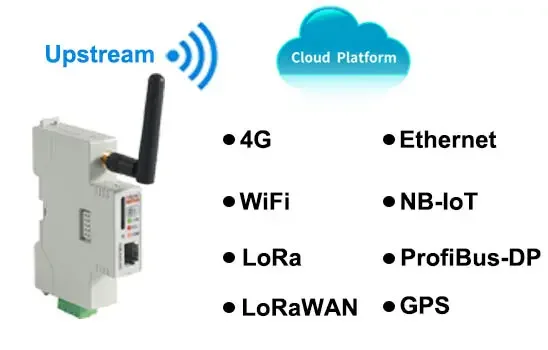

Various Upstream Communication Methods
● 4G (Support Global Frequency Bands)
● WiFi
● LoRa
● LoRaWAN
● Ethernet
● NB-IoT
● ProfiBus-DP
● GPS
● WiFi
● LoRa
● LoRaWAN
● Ethernet
● NB-IoT
● ProfiBus-DP
● GPS

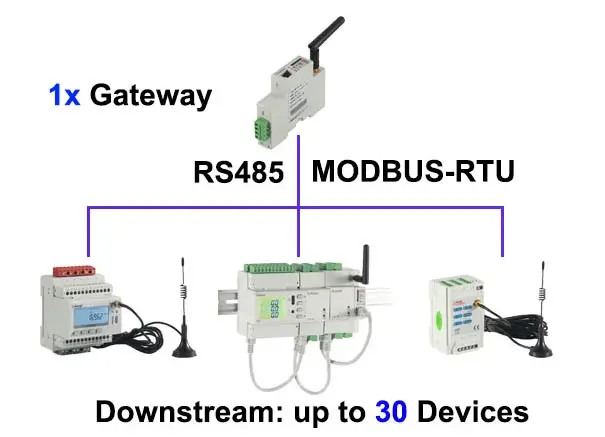

Collect Data from up to 30 Devices
● Downstream Communication: RS485
● Downstream Protocol: MODBUS-RTU
● Data acquisition of 5 register address fields each device
● Downstream Protocol: MODBUS-RTU
● Data acquisition of 5 register address fields each device

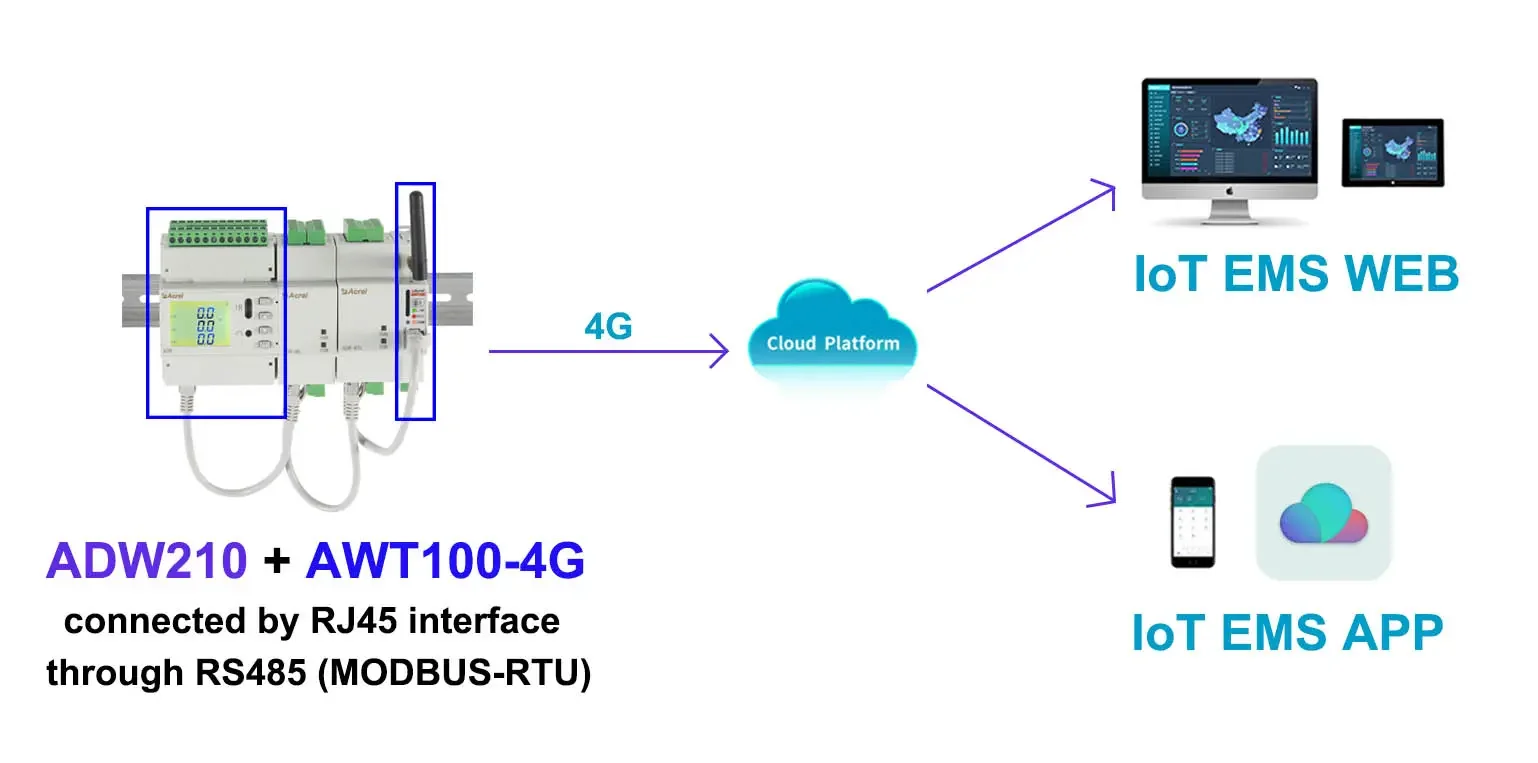

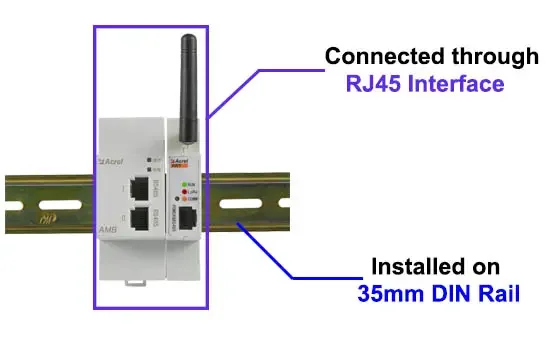

Easy Installation
● RJ45 Interface
● 35mm standard DIN Rail
● 35mm standard DIN Rail

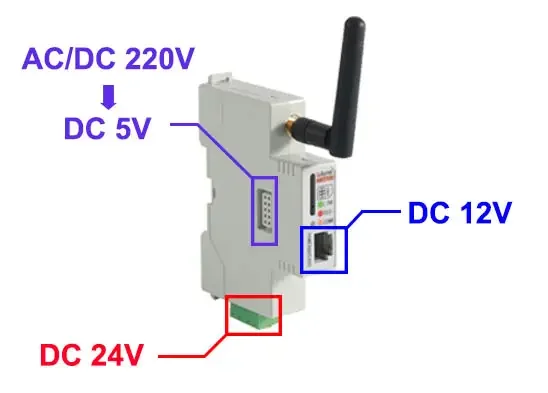

Three Optional Power Supply
● DC 12V
● DC 24V
● AC/DC 220V→DC 5V (paired with AWT100-POW)
● 3 types of Power Supply can’t co-exist
● DC 24V
● AC/DC 220V→DC 5V (paired with AWT100-POW)
● 3 types of Power Supply can’t co-exist

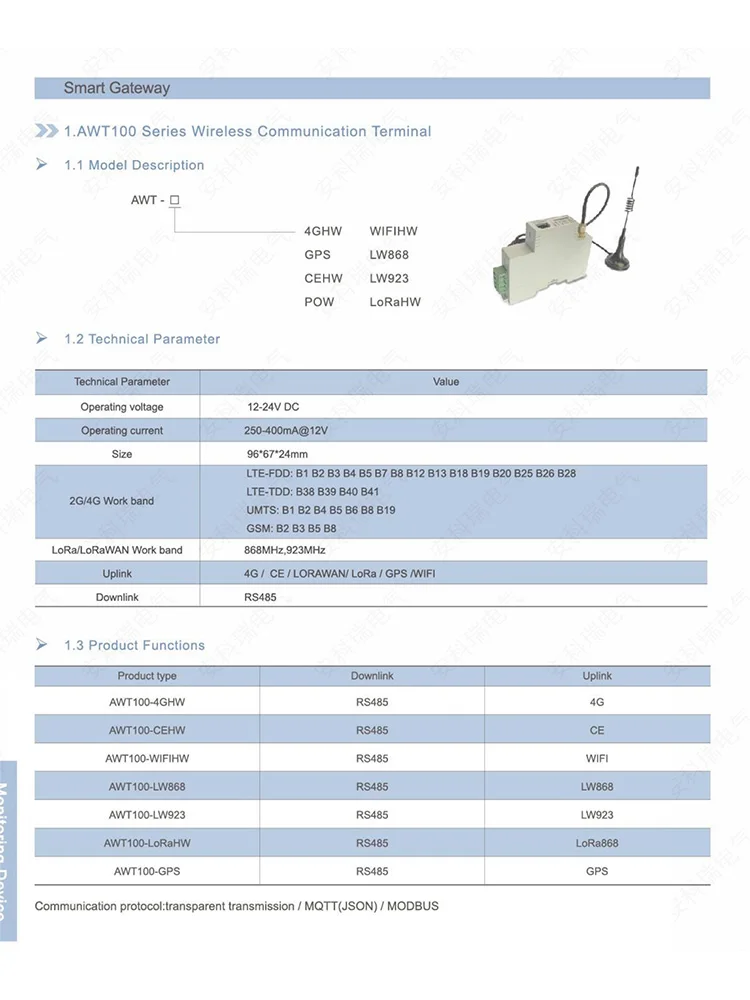

Function & Parameter
Dimension & Installation

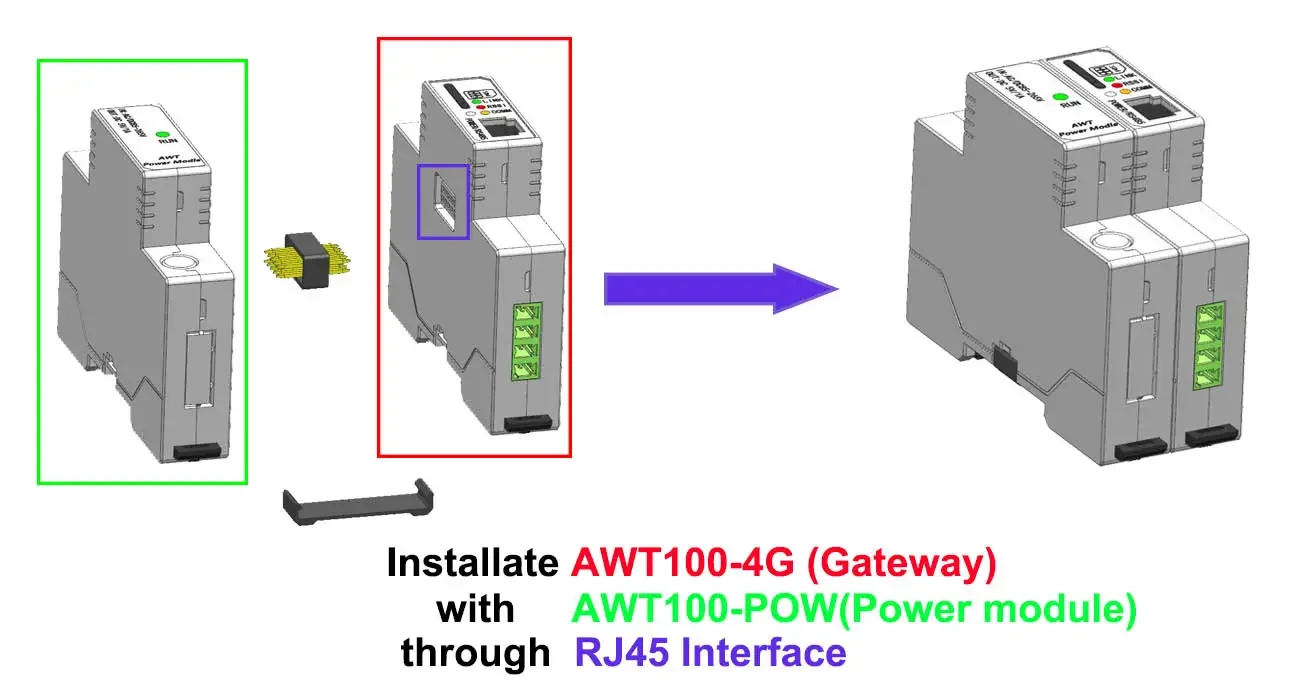

Installation Instruction
Wiring Instruction

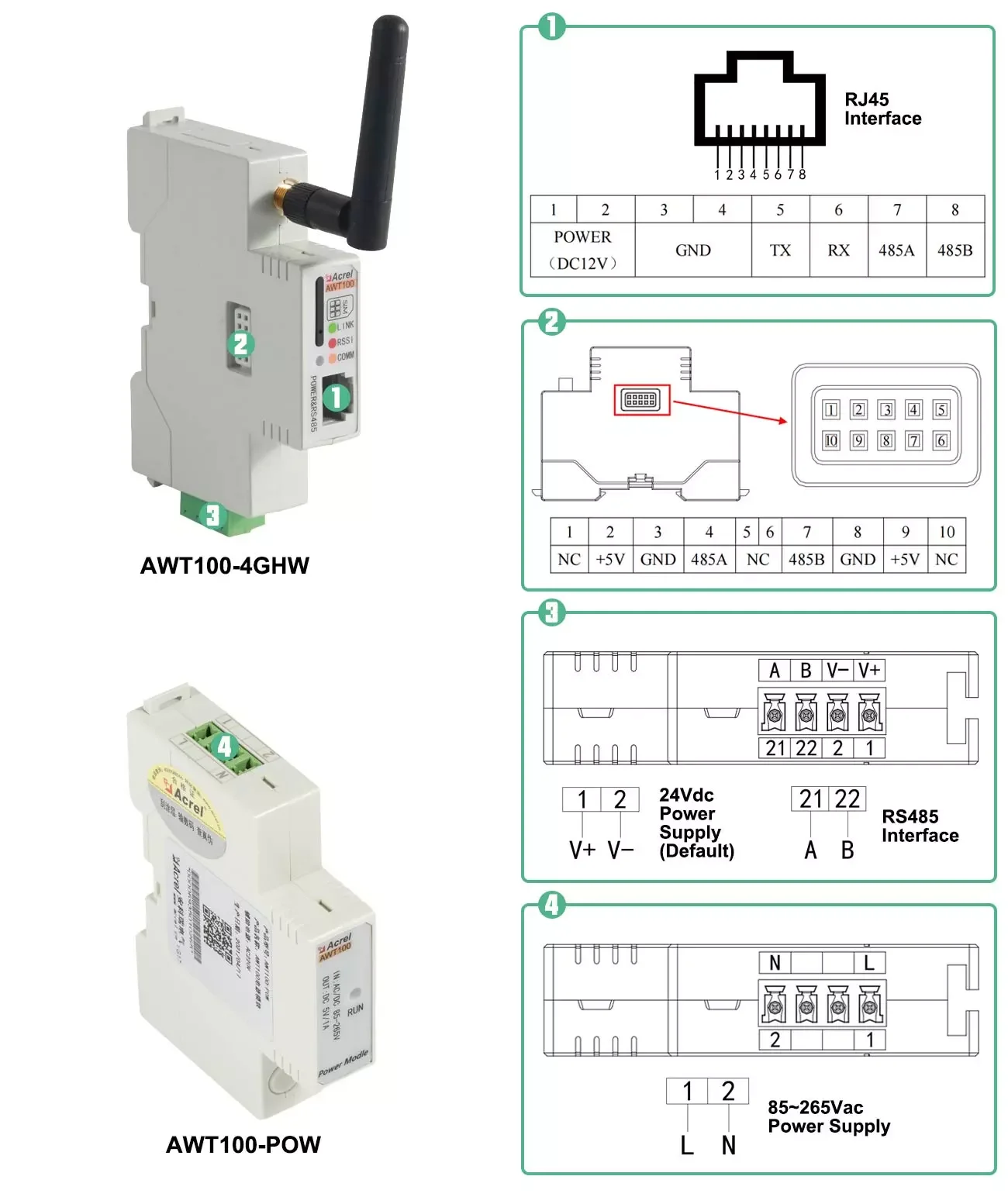

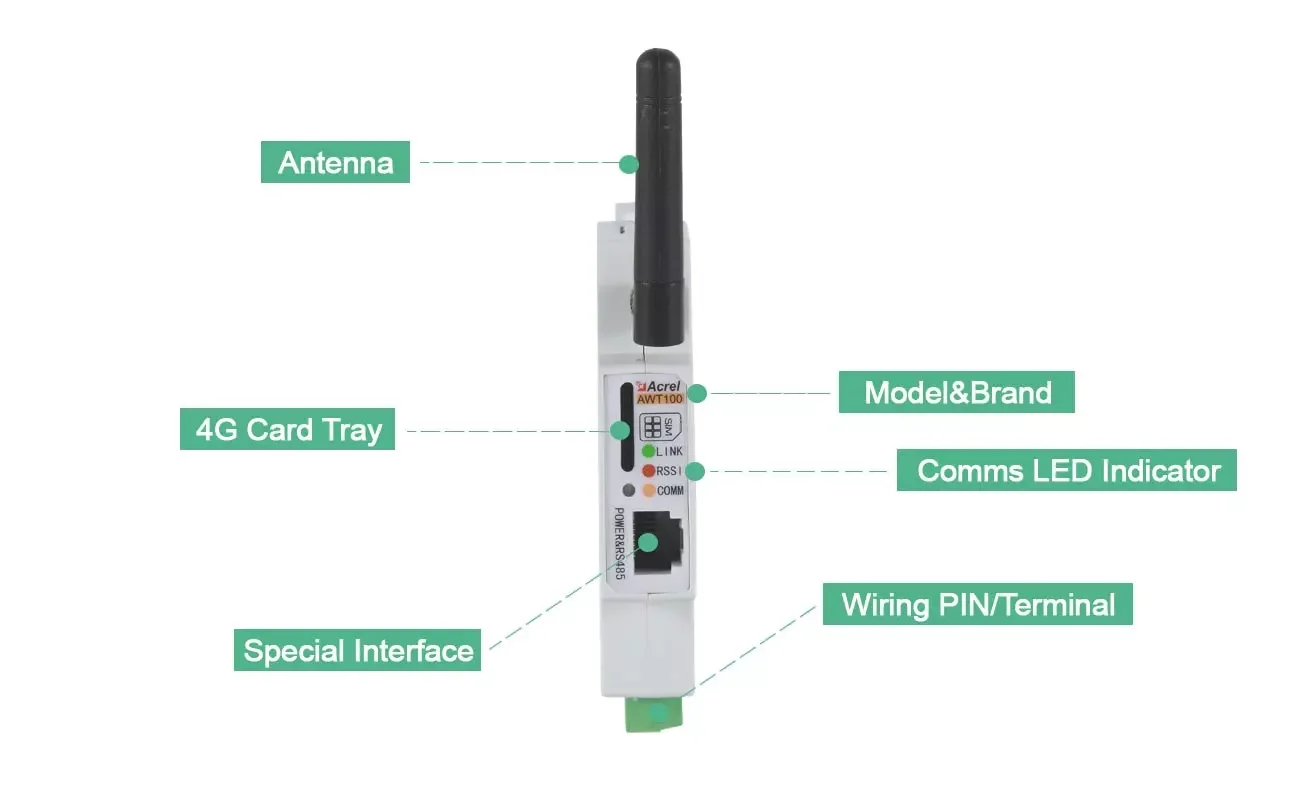

PIN/Terminal Overview of AWT100-4GHW Gateway and AWT100-POW Power Module

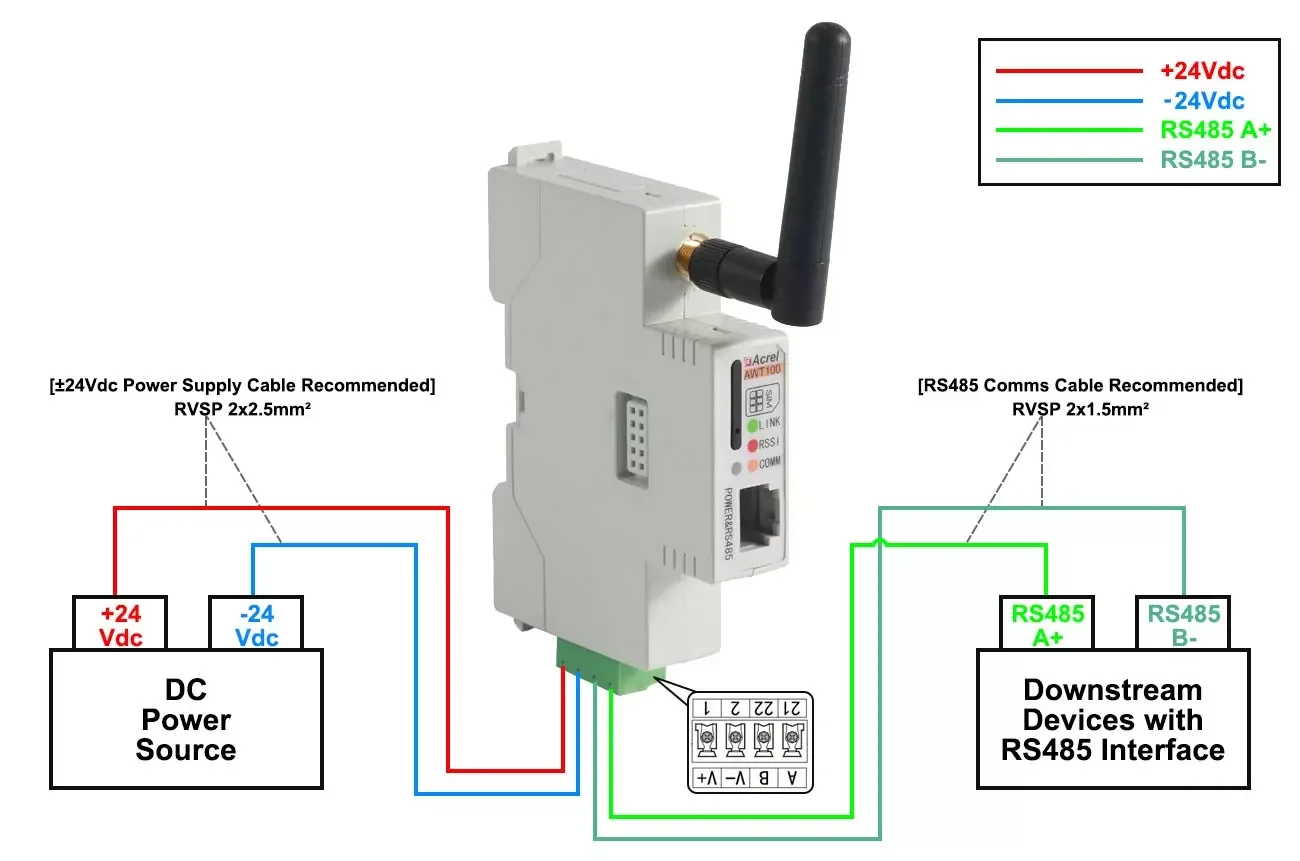

Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

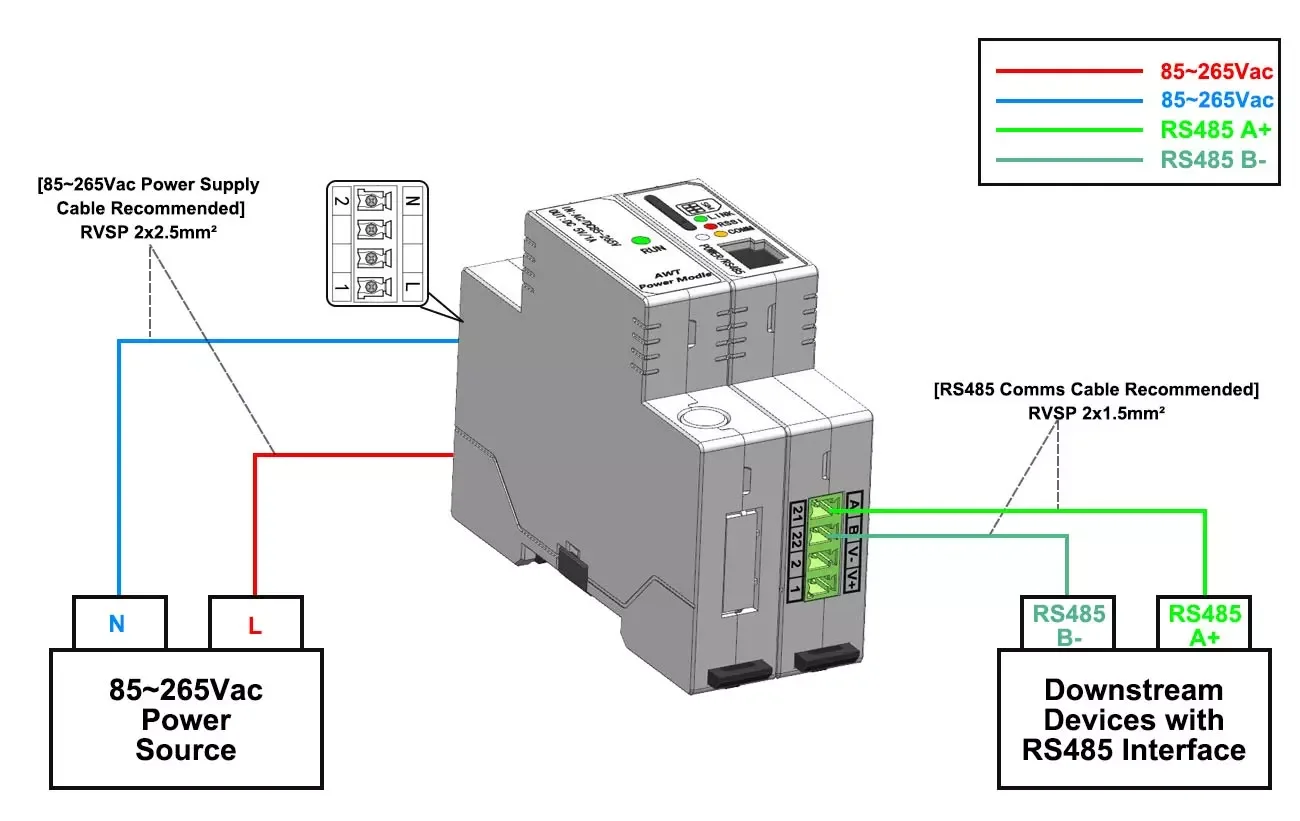

Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)
