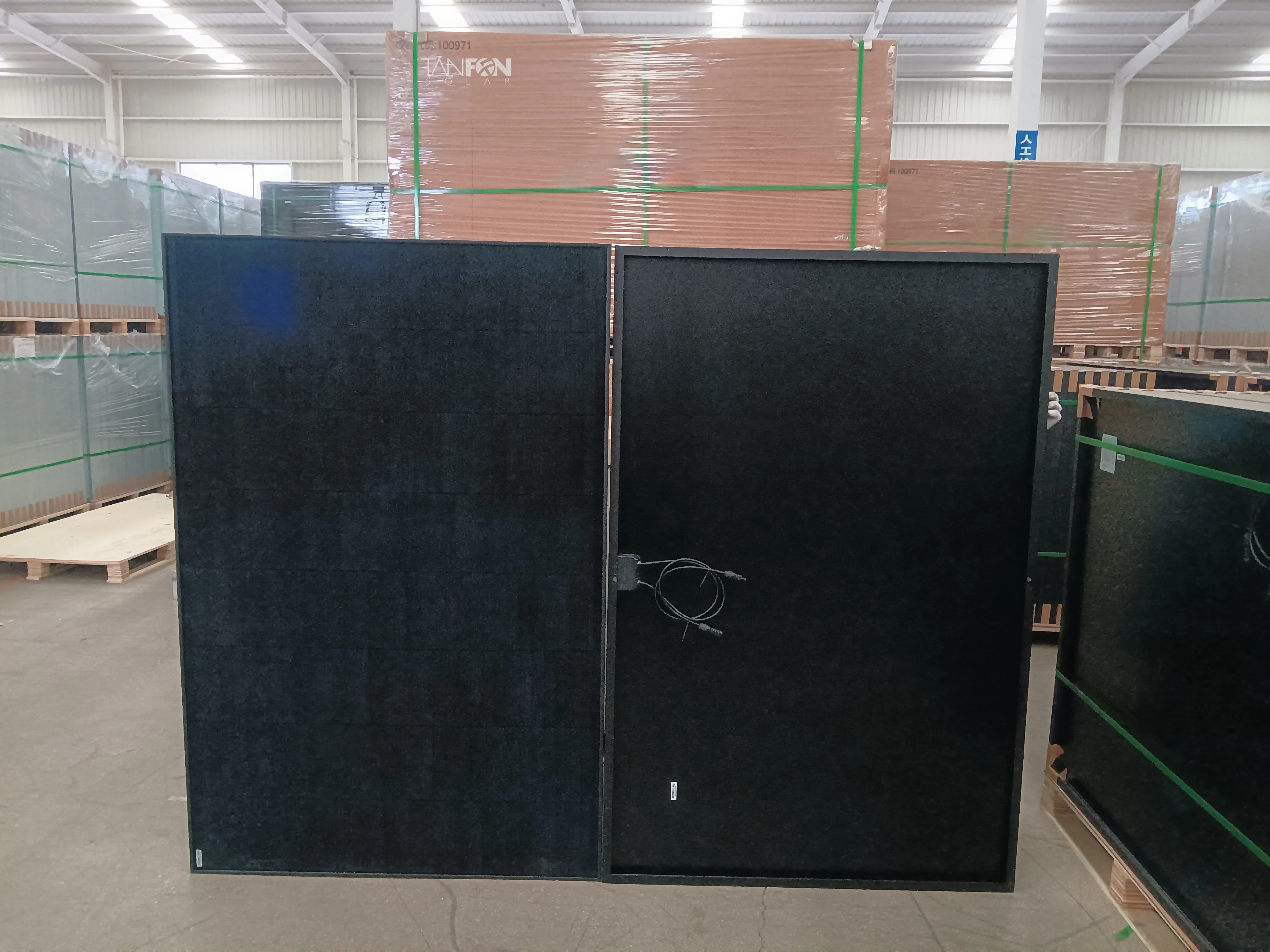

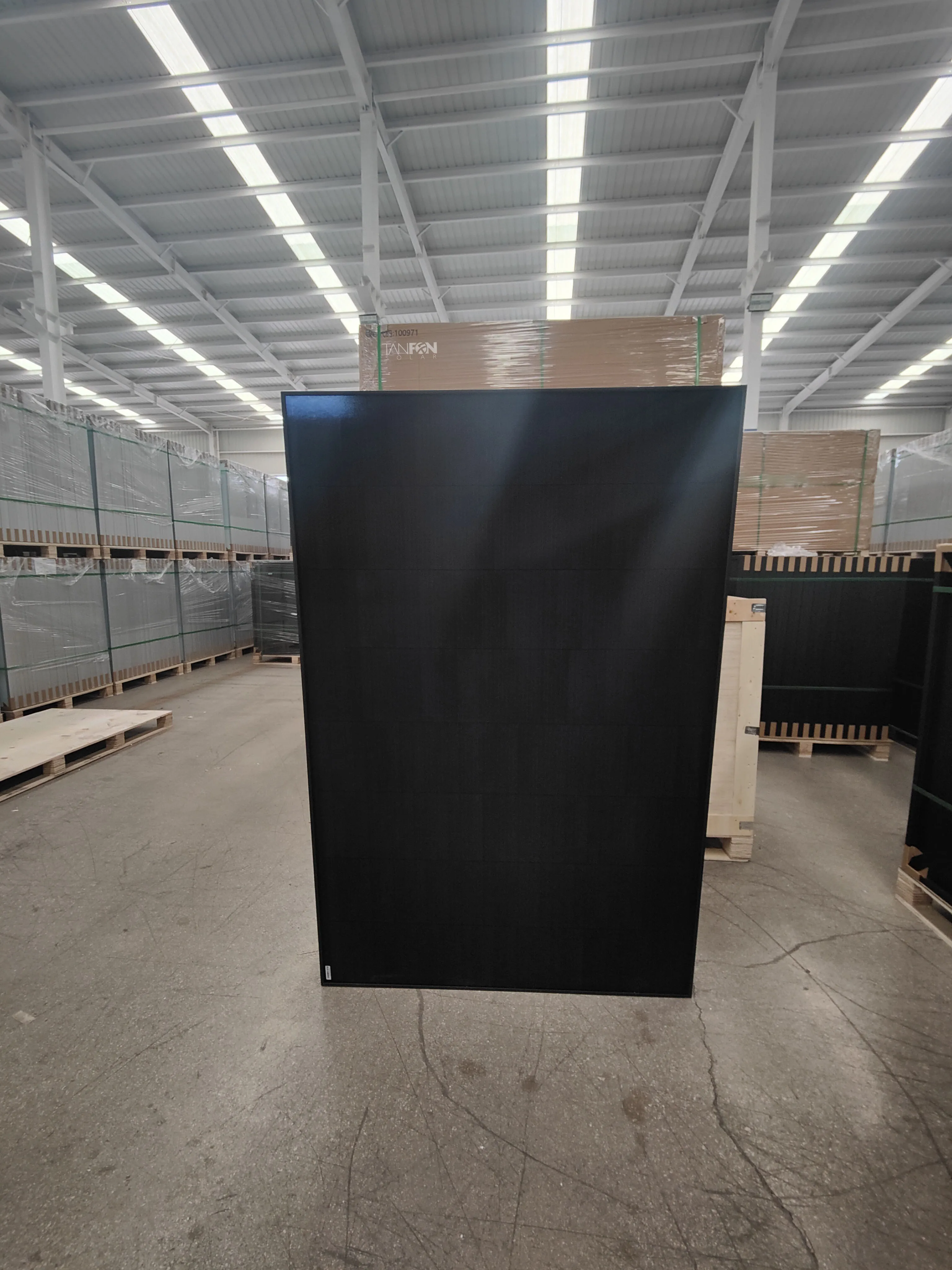

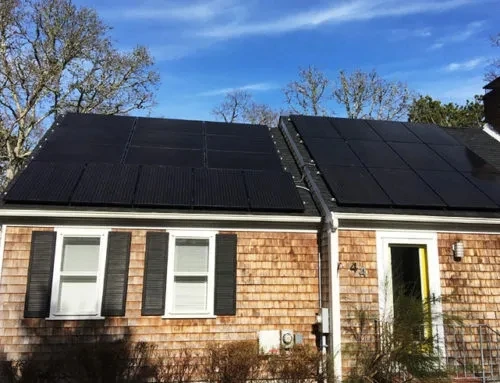

solar panel array for home para casa government program 400 watt portable tanfon costos 550w 1000w price flexible solar panel
- Category: >>>
- Supplier: Foshan Tanfon Energy Technology Co. Ltd.
Share on (1600856926740):
Product Overview
Description
shingled solar panels 540w 545w 550w 555w solar cell off grid solar system solar panel 1000w 550W solar panel 550w
Electrical Characteristics at Standard Test Conditions(STC) | ||||||||||
TFL-210X30_10_36 | 555 | 550 | 545 | 540 | 520 | |||||
Maximum Power-Pm [W] | 555 | 550 | 545 | 540 | 520 | |||||
Open Circuit Voltage-Voc [V] | 48.081 | 48.077 | 48.08 | 48.08 | 48.08 | |||||
Short Circuit Current-Isc [A] | 14.690 | 14.672 | 14.657 | 14.543 | 14.013 | |||||
Maximum Power Voltage-Vm [V] | 39.50 | 39.49 | 39.45 | 39.42 | 39.41 | |||||
Maximum Power Current-Im [A] | 14.690 | 14.672 | 14.657 | 14.543 | 14.012 | |||||
Module Efficiency-η [%] | 21.88 | 21.66 | 21.45 | 21.23 | 21.02 | |||||
Mechanical Characteristics | ||||||||||
Dimensions | 2056×1236×35mm (L×W×H) | |||||||||
Weight | 25.6kg | |||||||||
Front Glass | White toughened safety glass, 3.2mm | |||||||||
Cells | 210*210 PERC solar cells | |||||||||
Back Sheet | high weatherability backsheet | |||||||||
Frame | Anodized aluminum profile | |||||||||
Junction Box | IP68,TUV,two diodes | |||||||||
Cable | Length 1200mm, 1×4mm² | |||||||||
Connector | Compatible with MC4 | |||||||||
Temperature Characteristics | ||||||||||
NMOT | 42.3℃(±2) | |||||||||
Temperature Coefficient of Voc | -0.27%/℃ | |||||||||
Temperature Coefficient of Isc | 0.04%/℃ | |||||||||
Temperature Coefficient of Pm | -0.34%/℃ | |||||||||
Maximum Ratings | ||||||||||
Maximum System Voltage [V] | DC 1500IEC) | |||||||||
Series Fuse Rating [A] | 20 | |||||||||
Maximum Surface Load Capacity [Pa] | 5,400 | |||||||||
Temperature Range [°C] | – 40~+ 85 | |||||||||
Withstanding Hail | Maximum diameter of 25 mm with impact speed of 23 m/s | |||||||||
Recommend Products
Use automatic welding machine to connect solar cells in series
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string.
typeset the battery string.
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
