Full Black Solar Mono Half Cell Pv Panels 420W 425W Solar Panel Price
- Category: >>>
- Supplier: Helios Technology Co. Ltd.
Share on (1600856962829):
Product Overview
Description
Structural parameters | ||
Type of battery cell | N-type monocrystalline silicon battery cells | |
Number of half cell cells | 108（2*54） | |

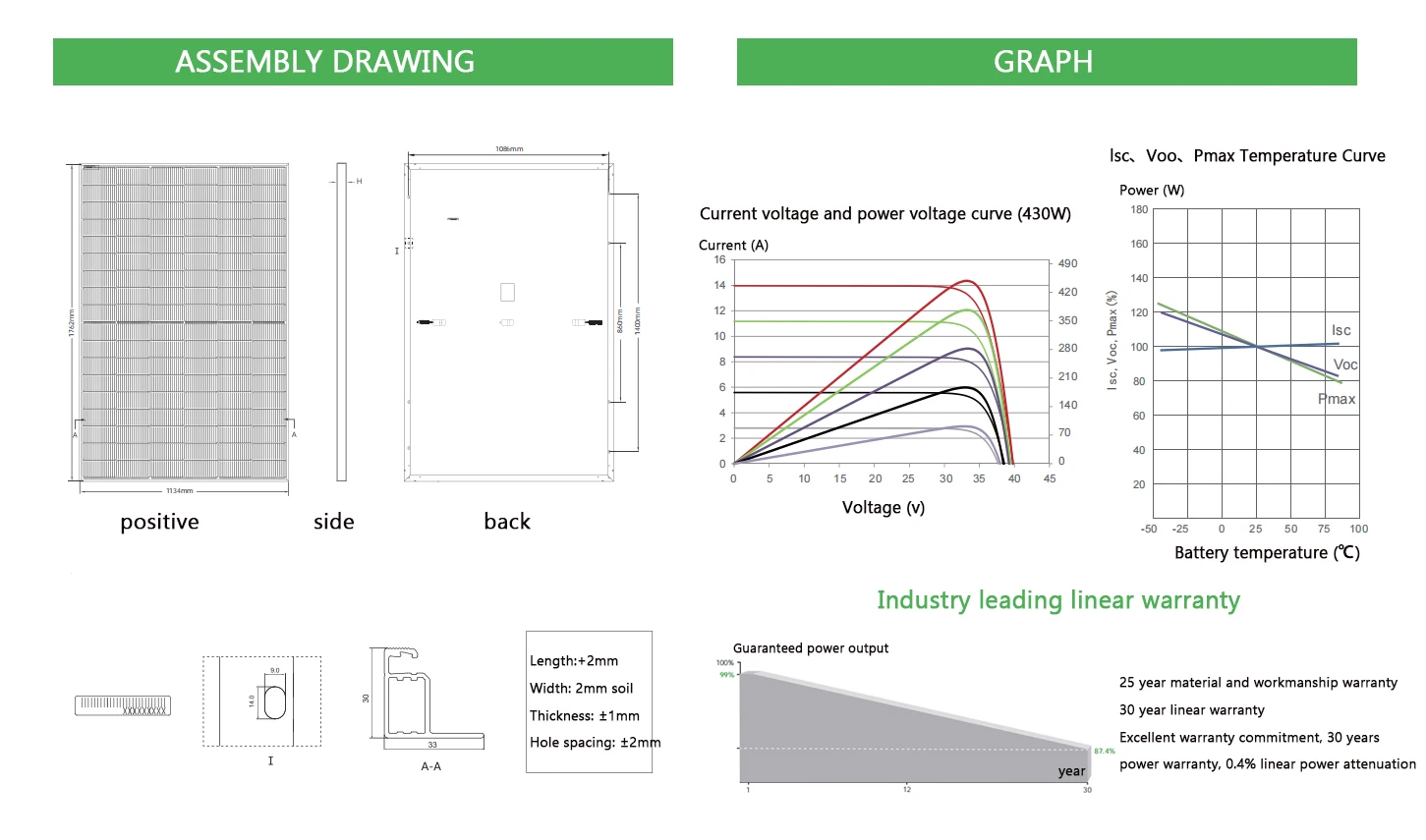

Component dimensions | 1762*1134*30mm | |
Component weight | 22kg | |
Upper surface glass material | 3.2mm, high permeability coated glass, low iron semi tempered, embossed | |
cheek | Anodized aluminum alloy | |
Junction box | Protection level IP68 | |
Output wire | TUV 1*4.0mm ² Wire length: (+): 300mm, (-): 200mm; Or customized“ | |
Component model | HSP1-420M | HSP1-425M | HSP1-430M | ||||||||
Test conditions | STC | NOCT | STC | NOCT | STC | NOCT | |||||
Maximum power (Pmax) | 420 | 316 | 425 | 320 | 430 | 323 | |||||
Optimal working voltage (Vmp) | 32.16 | 29.95 | 32.37 | 30.19 | 32.58 | 30.3 | |||||
Optimal working current (Imp) | 13.06 | 10.55 | 13.13 | 10.6 | 13.2 | 10.66 | |||||
Open circuit voltage (Voc) | 38.74 | 36.8 | 38.95 | 37 | 39.16 | 37.2 | |||||
Short circuit current (Isc) | 13.51 | 10.91 | 13.58 | 11.96 | 13.65 | 11.02 | |||||
Component efficiency (%) | 21.27%21.02% | 21.27% | 21.52% | ||||||||
Working temperature range (℃) | -40℃～+85℃ | ||||||||||
Maximum system voltage | 1000/1500VDC (IEC) | ||||||||||
Maximum rated fuse current | 25A | ||||||||||
Output power tolerance | 0～+3％ | ||||||||||
Temperature coefficient of maximum power (Pmax) | -0.29%/℃ | ||||||||||
Temperature coefficient of open circuit voltage (Voc) | -0.25%/℃ | ||||||||||
Temperature coefficient of short-circuit current (Isc) | 0.045%/℃ | ||||||||||
Battery operating temperature (NOCT) | 45±2℃ | ||||||||||
Component model | HSP1-435M | HSP1-440M | |||||
Test conditions | STC | NOCT | STC | NOCT | |||
Maximum power (Pmax) | 435 | 327 | 440 | 331 | |||
Optimal working voltage (Vmp) | 32.78 | 30.5 | 32.99 | 30.73 | |||
Optimal working current (Imp) | 13.27 | 10.72 | 13.34 | 10.77 | |||
Open circuit voltage (Voc) | 39.36 | 37.39 | 39.57 | 37.59 | |||
Short circuit current (Isc) | 13.72 | 11.08 | 13.8 | 11.14 | |||
Component efficiency (%) | 21.77% | 22.02% | |||||
Working temperature range (℃) | -40℃～+85℃ | ||||||
Maximum system voltage | 1000/1500VDC (IEC) | ||||||
Maximum rated fuse current | 25A | ||||||
Output power tolerance | 0～+3％ | ||||||
Temperature coefficient of maximum power (Pmax) | -0.29%/℃ | ||||||
Temperature coefficient of open circuit voltage (Voc) | -0.25%/℃ | ||||||
Temperature coefficient of short-circuit current (Isc) | 0.045%/℃ | ||||||
Battery operating temperature (NOCT) | 45±2℃ | ||||||
