JIECANG Electric Lift System Mini Compact Wireless Controller Industrial Linear Actuator for Vent System
- Category: >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (1600856983894):
Product Overview
Description
JIECANG Electric Lift System Mini Compact Wireless Controller Industrial Linear Actuator for Vent System
Product Description

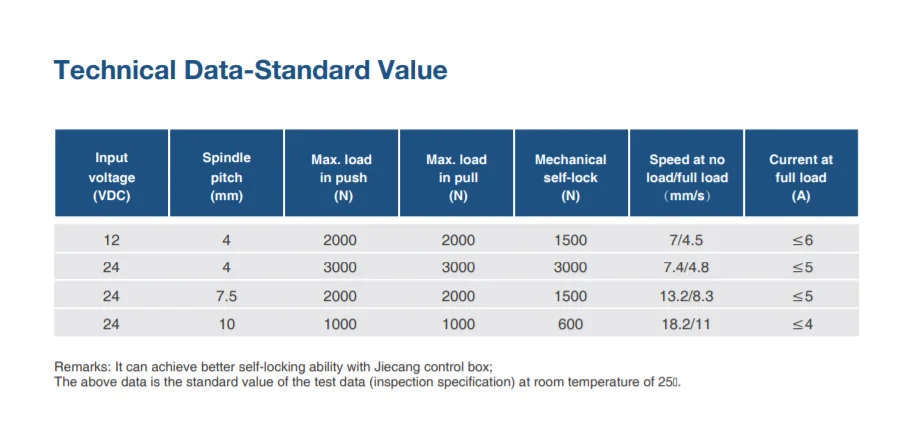

Specification
Item No. | JC35W5 |
Dynamic Load Push(N) | 3000 |
Dynamic Load Pull(N) | 3000 |
Static Load Push(N) | 3000 |
Static Load Pull(N) | 3000 |
Input (VDC) | 24/12 |
Speed at Full Load (mm/s) | 5.5 |
Stroke Length (mm) | 50-300 |
Color | Black |
Limit Switch | Build-in |
Duty Cycle | 10%, max 2 min. continuous use |
IP Grade | Up to IP67 |
Operating Temperature | -35℃-+70℃ |
Optional Features | Hall sensor option |

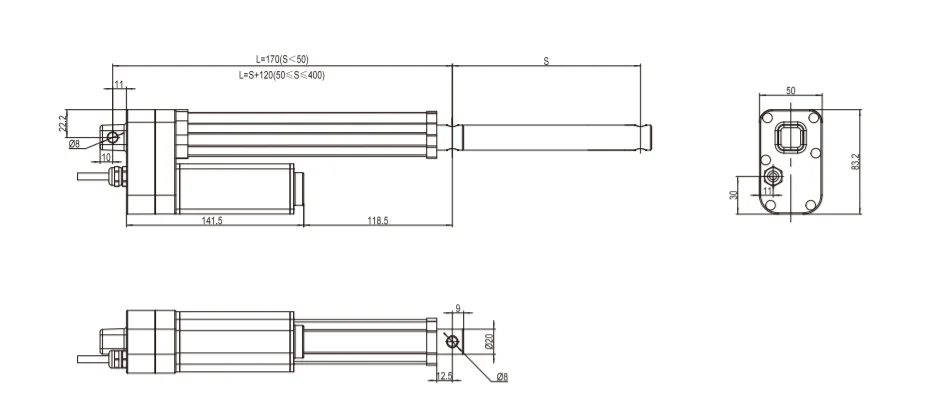

Dimensions
If you need 2D, 3D, Spec design drawings
please contact us.
Company Profile
FAQ
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email
address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email
address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
