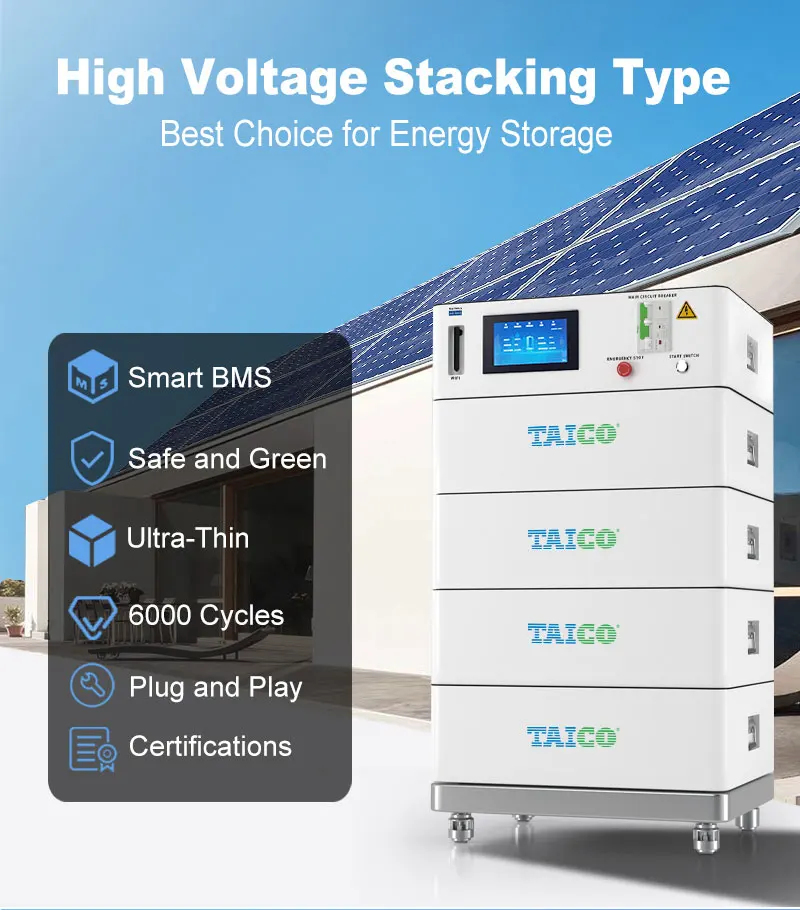

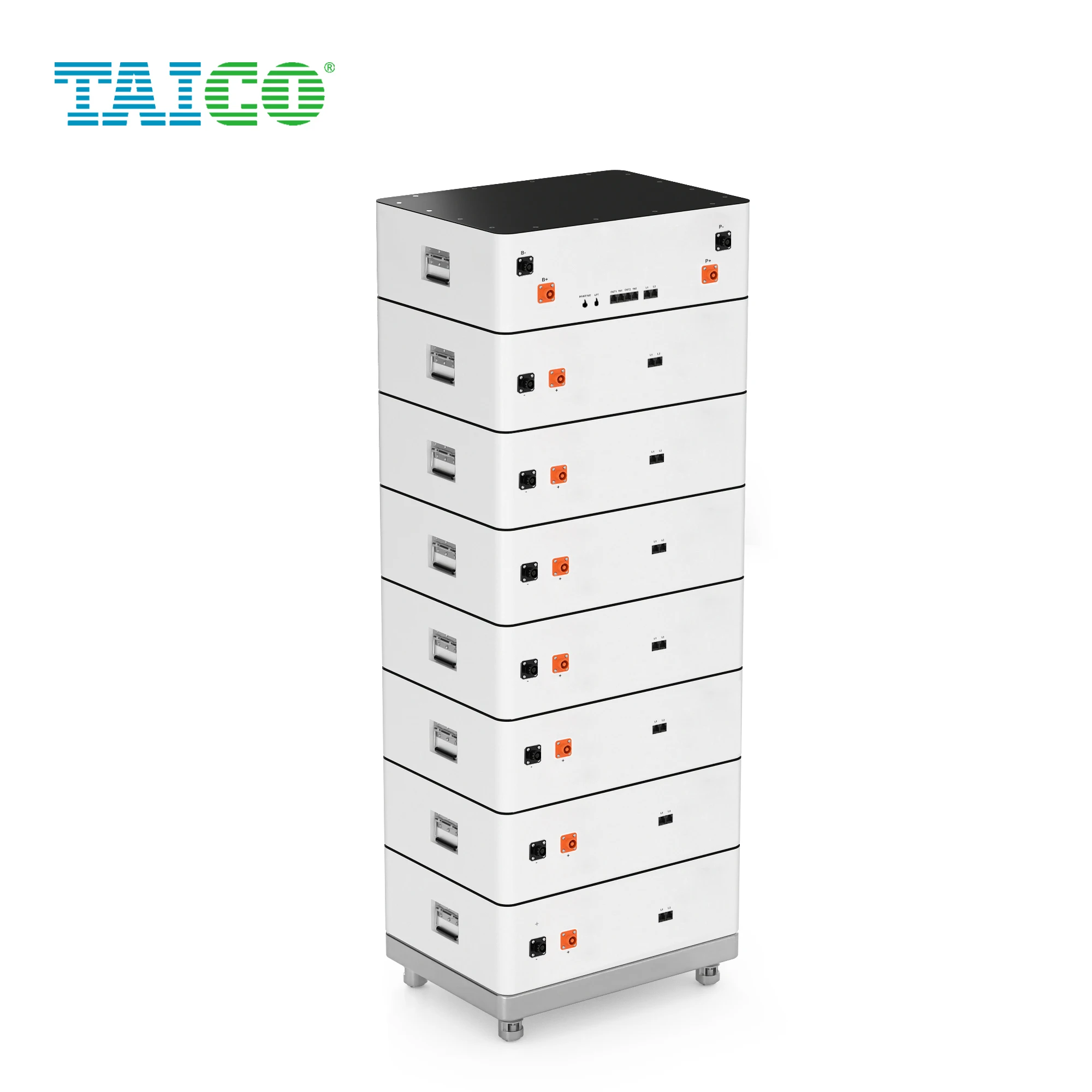

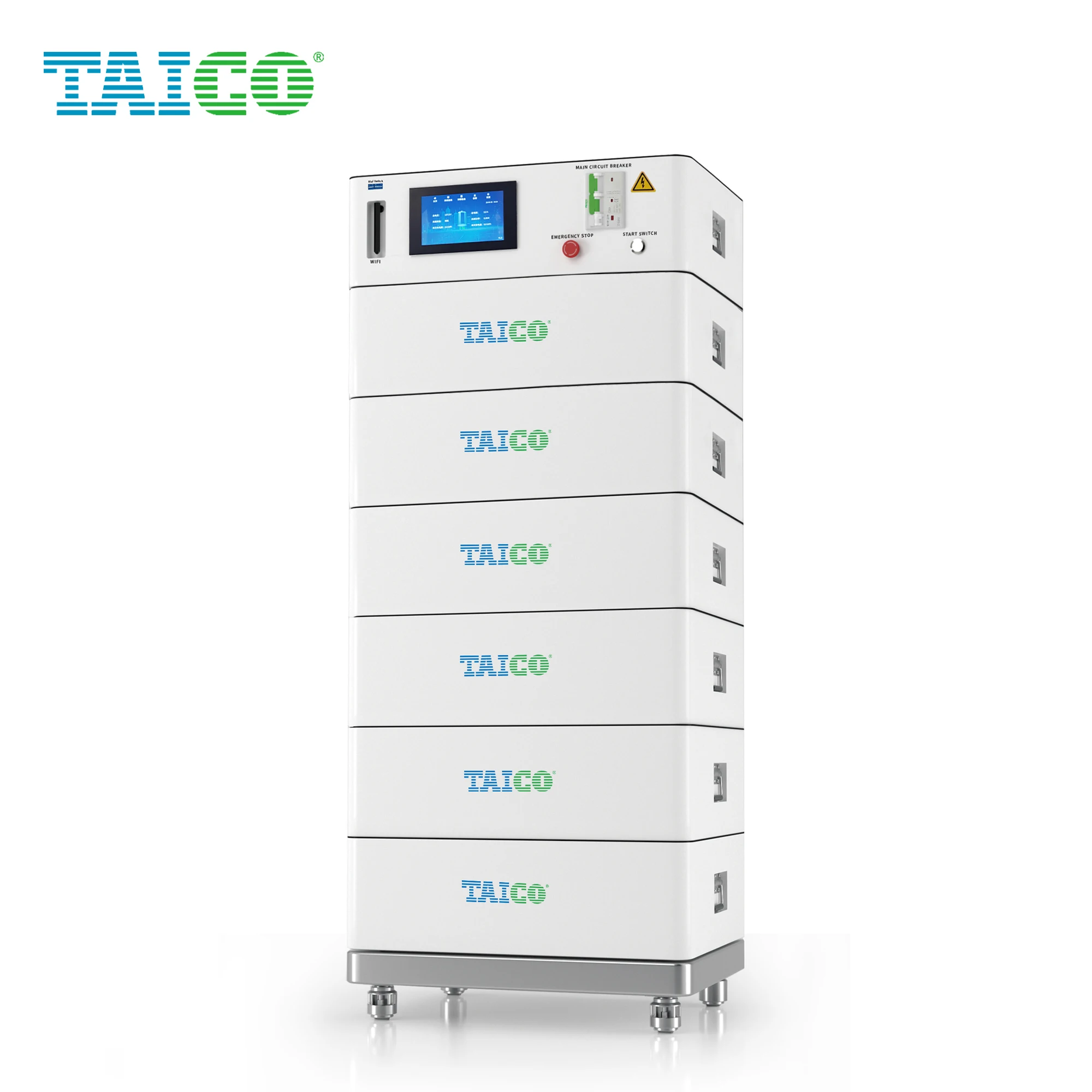

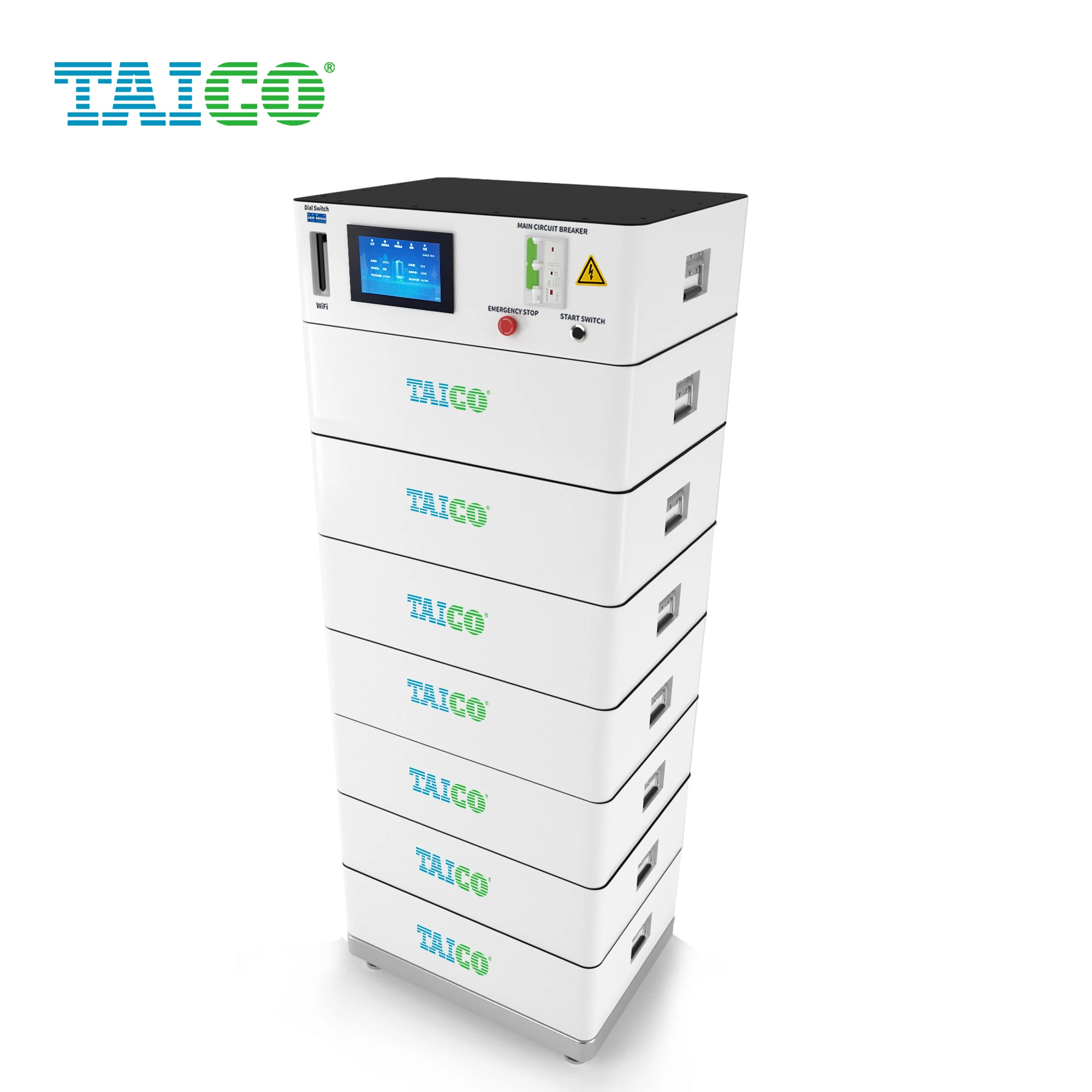

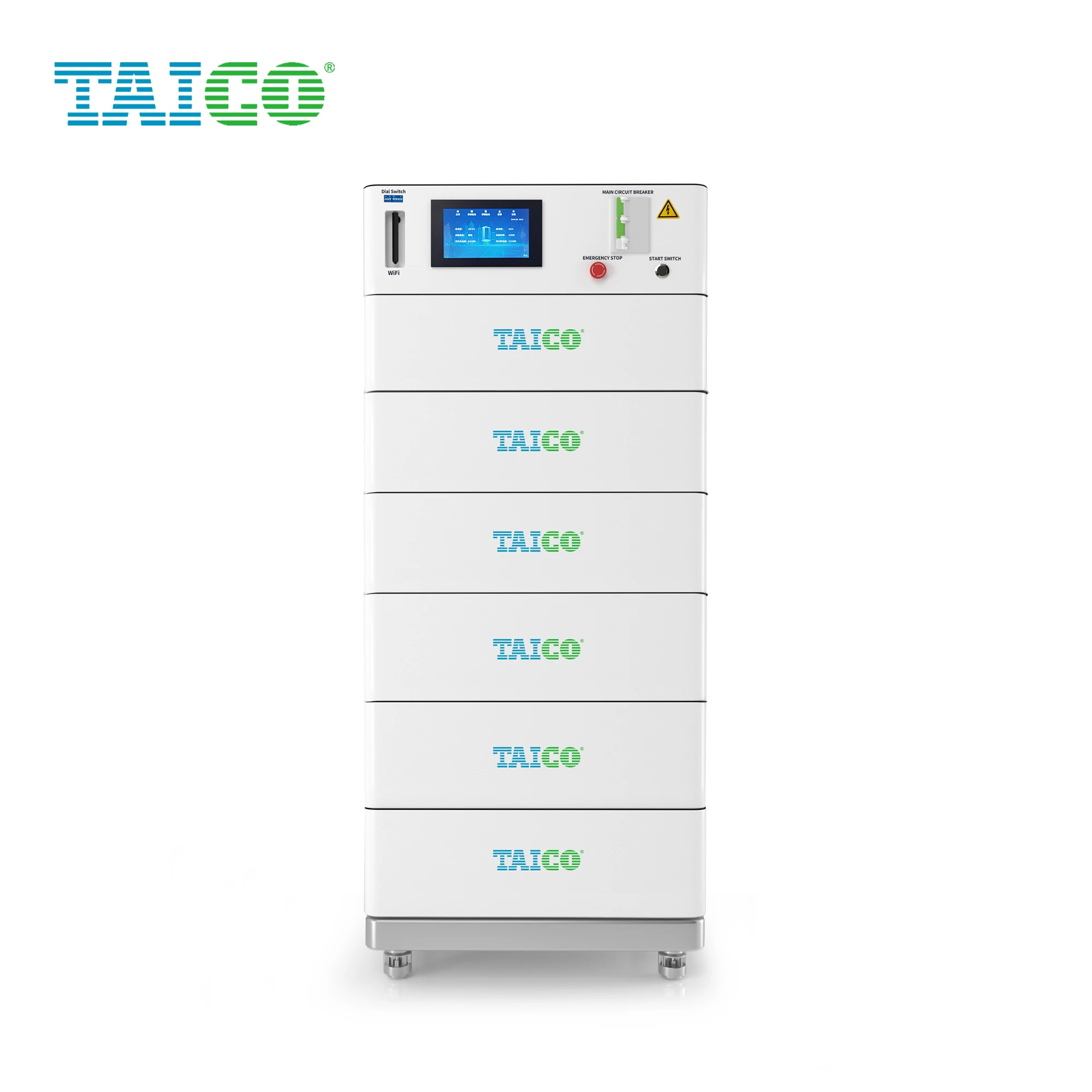

48v lifepo4 battery power station 5kw 10kw 15kw solar energy system solar off grid inverters for home
- Category: >>>
- Supplier: Shenzhen Taico Technology Co. Ltd.
Share on (1600856983983):
Product Overview
Description
Model Number | ESS-T10 | ESS-T15 | ESS-T20 | ESS-T25 | ESS-T30 | ESS-T35 | ESS-T40 | ||||||
Rated voltage | 102.4V | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V | ||||||
Working voltage range | 80-116.8V | 120-175.2V | 160-233.6V | 200-292V | 240-350.4V | 280-408.8V | 320-467.2V | ||||||
Rated capacity | 105AH | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V | |||||||
Energy | 10.75KWH | 16.13KWH | 21.5KWH | 26.88KWH | 32.26KWH | 37.63KWH | 42.97KWH | ||||||
Rated charge current | 50A | ||||||||||||
Rated discharge current | 105A | ||||||||||||
Peak charge current | 200A | ||||||||||||
Peak discharge current | 200A | ||||||||||||
Charge temperature | 0-55°C | ||||||||||||
Discharge temperature | -10-55°C | ||||||||||||
Optimum temperature | 15-25°C | ||||||||||||
Cooling method | Natural cooling | ||||||||||||
Relative humidity | 5%-95% | ||||||||||||
Altitude | ≤2000M | ||||||||||||
Cycle Life | ≥3500 times @ 80% DOD, 0.5C/0.5C, 25'C | ||||||||||||
Communication interfaces | CAN2.0/RS485/Dry | ||||||||||||
Protection | Over temperature, over current, over voltage, insulation and other multiple protection | ||||||||||||
Display | LCD | ||||||||||||
Design lifetime | ≥10 years | 29.2+1Vdc | 58.4±1Vdc | ||||||||||
Certification | UN38.3/UL1973/IEC62619 | ||||||||||||
Dimension (L*W*H) | 580x430x400 | 580x430x600 | 580x430x800 | 580x430x1000 | 580x430x1200 | 580x430x1400 | 580x430x1600 | ||||||
Weight | 115KG | 160KG | 205KG | 250KG | 295KG | 350KG | 395KG | ||||||

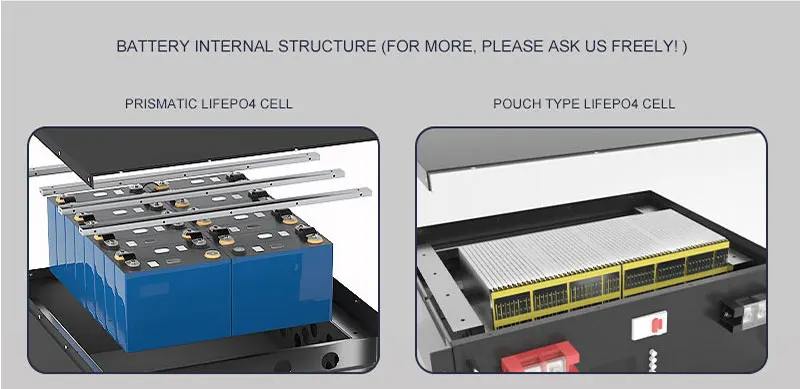

Module | 51.2V 105AH | ||||||||||||
Seria/Parallel | 32S1P | 48S1P | 64S1P | 80S1P | 96S1P | 112S1P | 128S1P | ||||||
Module dimension | 580x430x200MM | ||||||||||||
Module weight | 45KG | 40V | |||||||||||

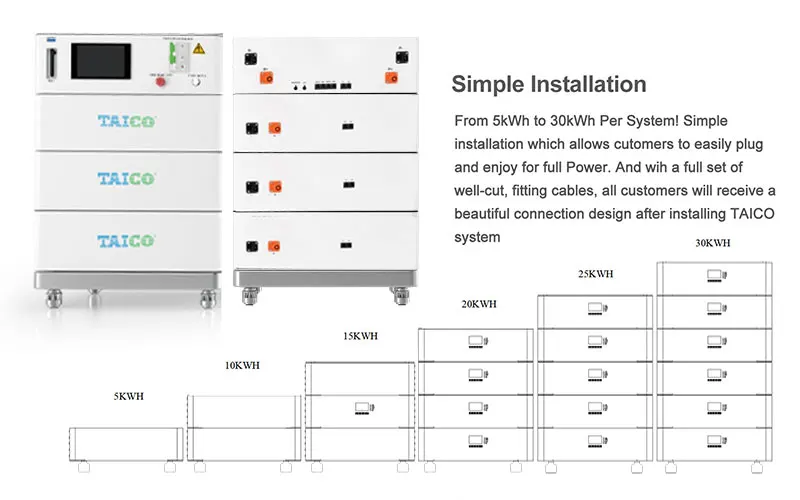

Number of modules | 2PCS | 3PCS | 4PCS | 5PCS | 6PCS | 7PCS | 8PCS | ||||||
Battery type | -20°C to 60°C(-4°F to 140°F) | ||||||||||||
