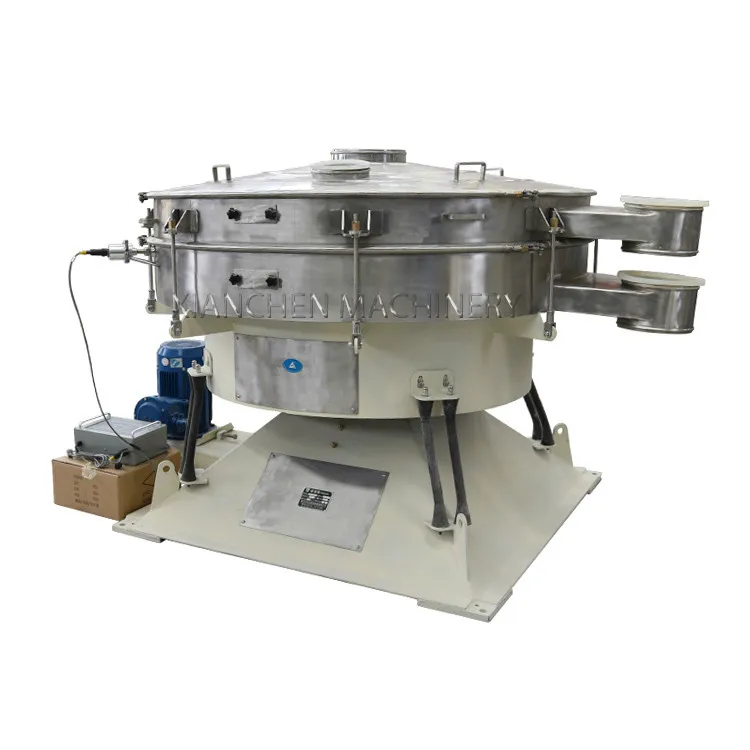

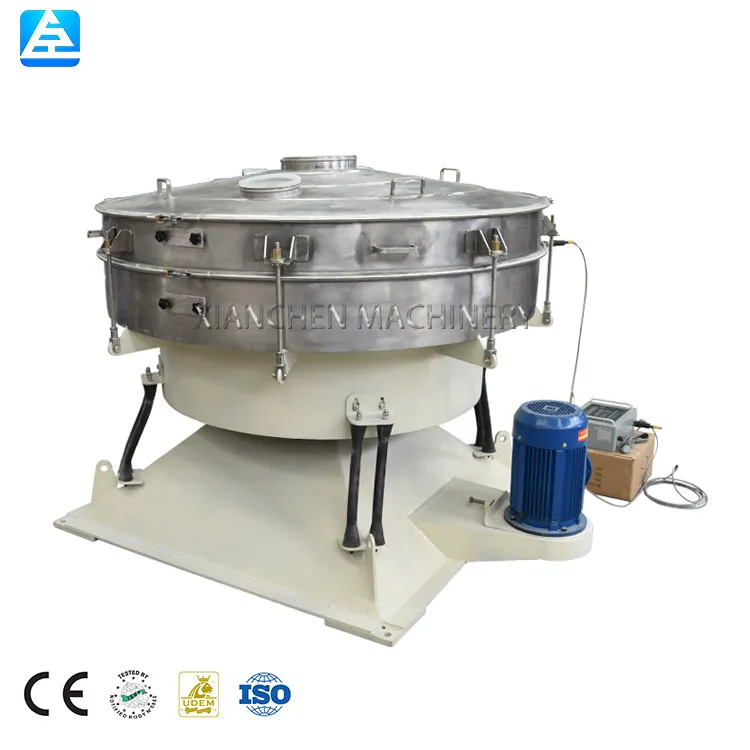

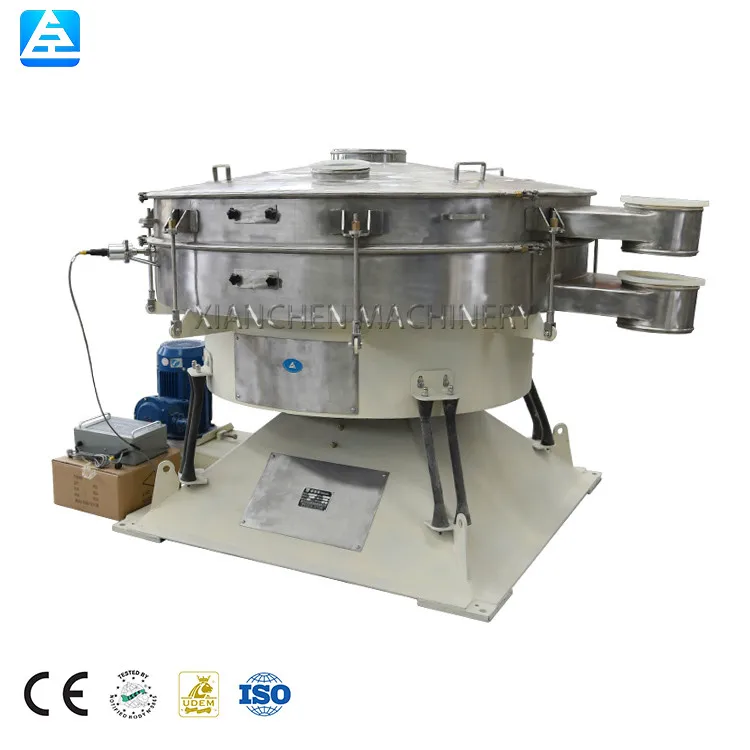

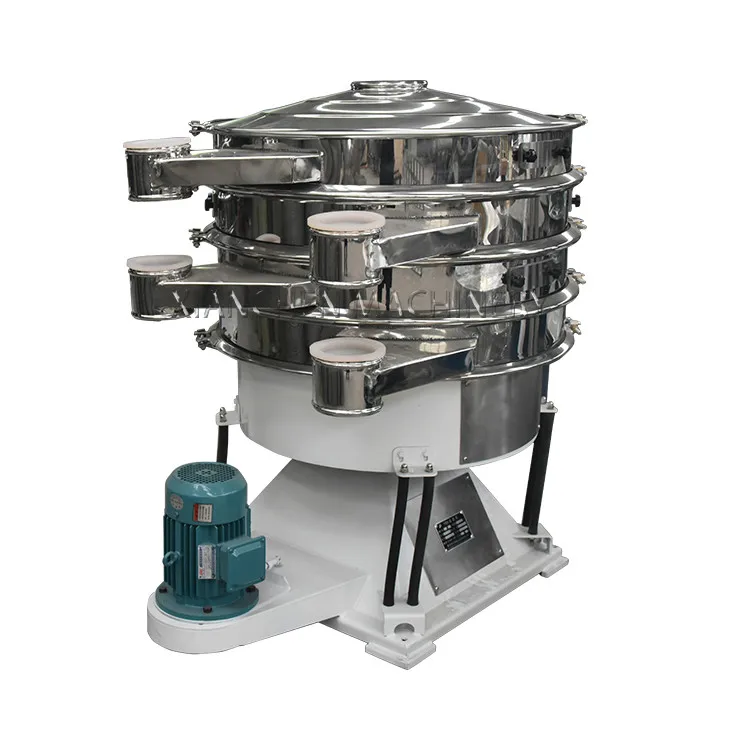

XC, Заводская нержавеющая сталь/углеродистая сталь, ротационная вибрационная экранная машина, разделительное сито для порошка
- Category: Mining Machinery >>>
- Supplier: Xinxiang Xianchen Vibration Machinery Co. Ltd.
Share on (1600857338698):
Product Overview
Description
Product Overview

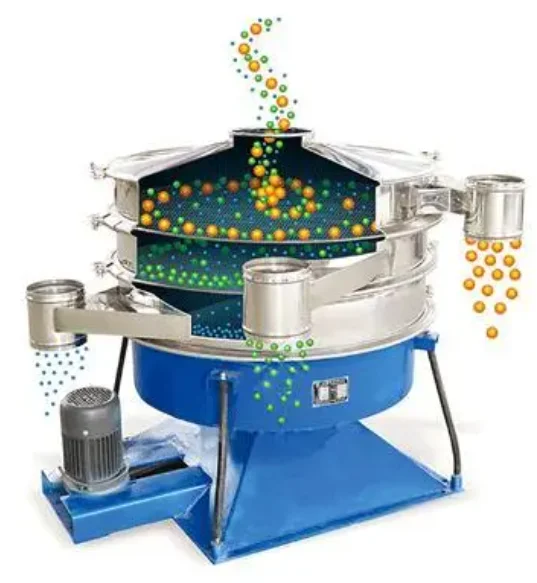

Overview of Swing sieve:
XC large capactity swing sieve is an efficient screening machine designed specially to meet the large output and high precision screening of the manufacturers. Swing sieve machine is the mechanical simulation of it, which is the most effective simulation of the effective principle of artificial screening (screening accuracy, efficiency, and the service life are 5-10 times of the conventional circular screen), and meets all the fine and ultrafine particulate materials.
Characteristics of Swing sieve:
1. The output per unit area up to 5 times; the separation accuracy reaching 6 level, screening efficiency as high as 90%-99%; using silicone rubber ball, ultrasonic etc. high effect clear net device system, the mesh won't be blocked.
2. Dust closed removal, safety operation; the acceleration is 4.5 times of the vibrating screen, the life of the screening part is improved, and the maintenance is reduced; the noise is less than 70 dB.
3. Optimal equilibrium, low dynamic load of foundation.
2. Dust closed removal, safety operation; the acceleration is 4.5 times of the vibrating screen, the life of the screening part is improved, and the maintenance is reduced; the noise is less than 70 dB.
3. Optimal equilibrium, low dynamic load of foundation.

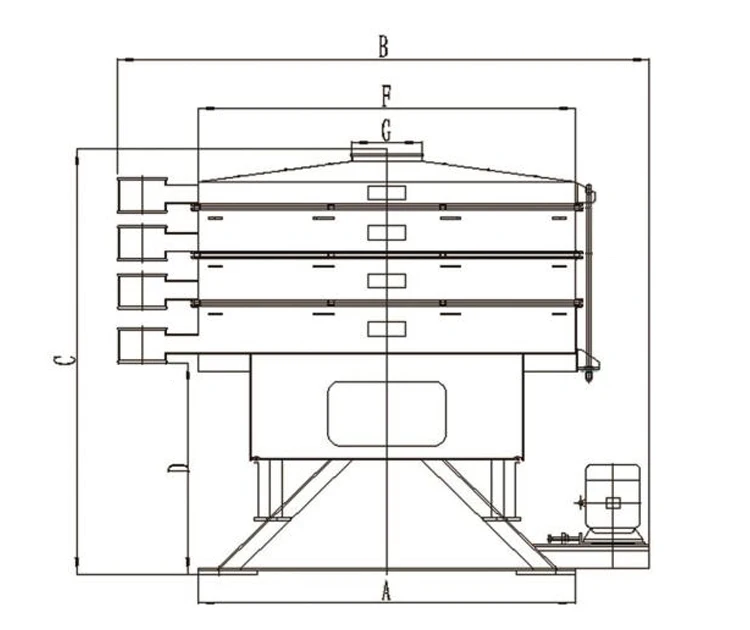

Model | Power | Layer | Effective area （Each layer） | External dimension reference(mm) | ||||||||||
A | B | C | D | F | G | |||||||||
XCYB600 | 0.75kw | 1-3 | 0.283 m2 | 500 | 1040 | 800-1160 | 460 | 600 | 150 | |||||
XCYB1000 | 1.5kw | 1-3 | 0.785 m2 | 900 | 1550 | 1060-1440 | 685 | 1000 | 200 | |||||
XCYB1200 | 1.5kw | 1-3 | 1.13 m2 | 1100 | 1800 | 1060-1440 | 690 | 1200 | 250 | |||||
XCYB1500 | 4kw | 1-3 | 1.766 m2 | 1500 | 1950 | 1330-1480 | 855 | 1500 | 280 | |||||
XCYB1600 | 4kw | 1-3 | 2.0 m2 | 1500 | 2250 | 1370-1850 | 855 | 1600 | 280 | |||||
XCYB1800 | 4kw | 1-3 | 2.543 m2 | 1700 | 2700 | 1550-2120 | 975 | 1800 | 280 | |||||
XCYB2000 | 4kw | 1-3 | 3.14 m2 | 1900 | 3300 | 1480-2136 | 930 | 2000 | 300 | |||||

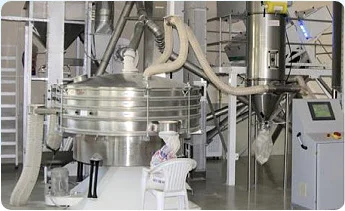

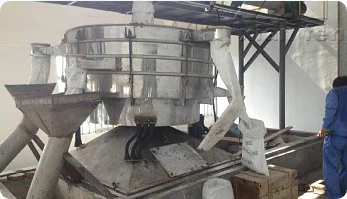

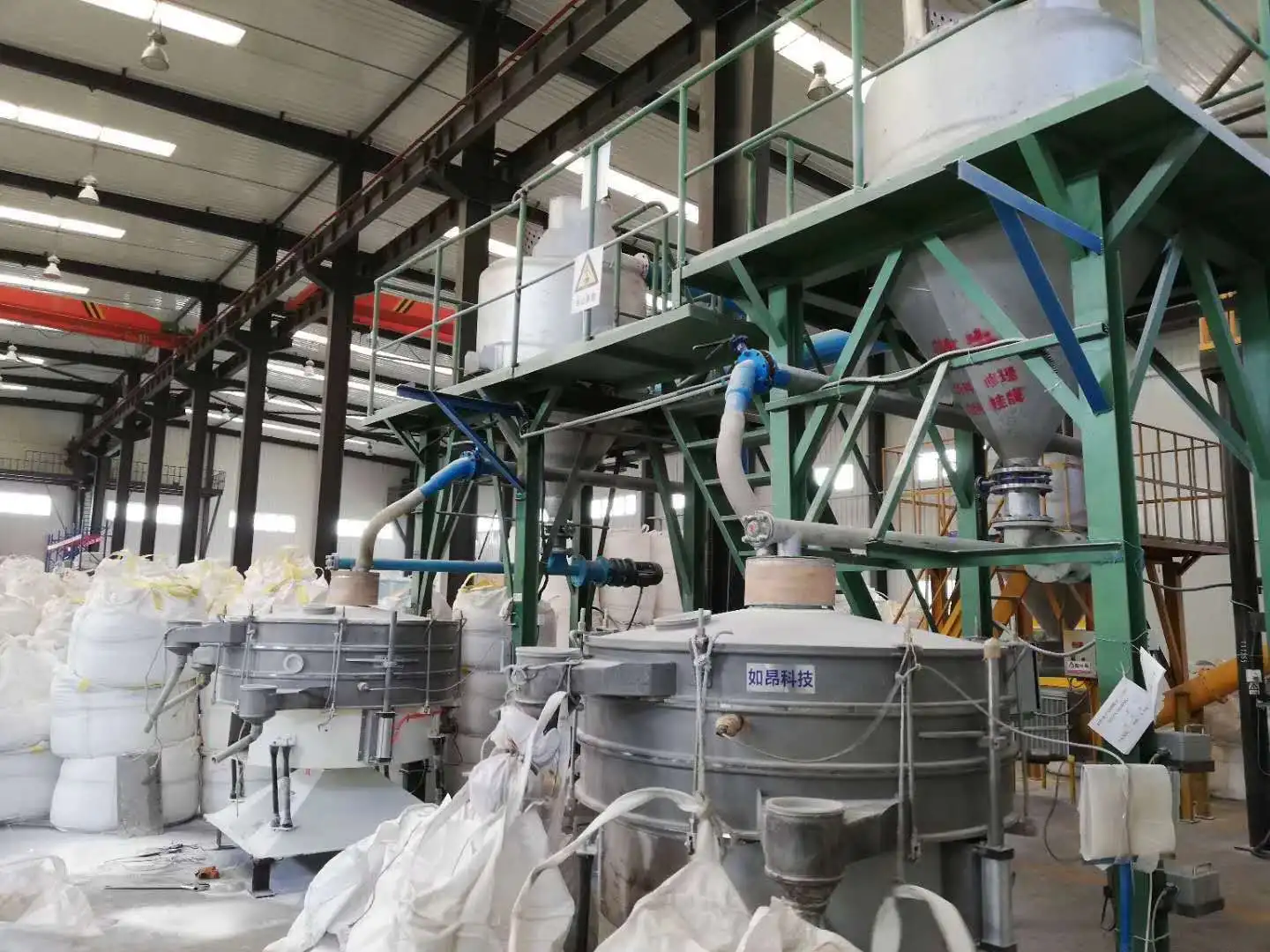

Swing sieve application scenario：
Product Details

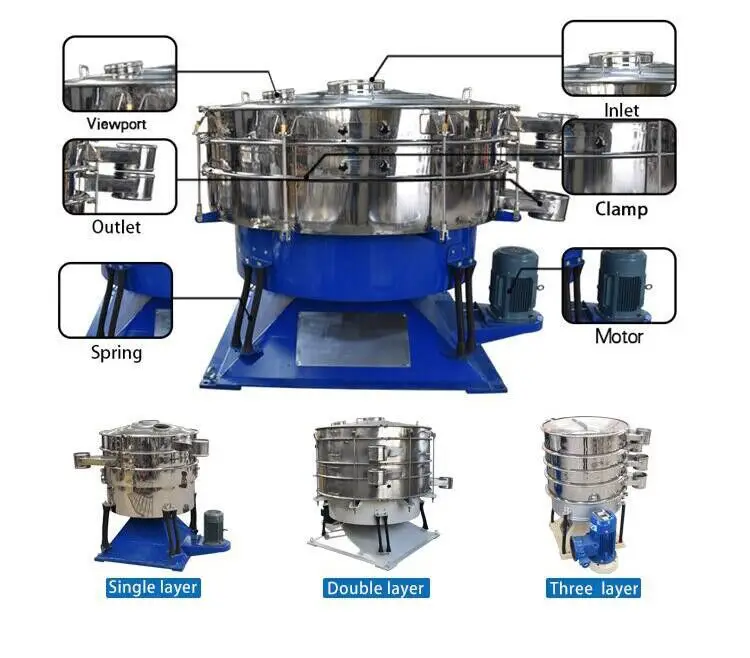

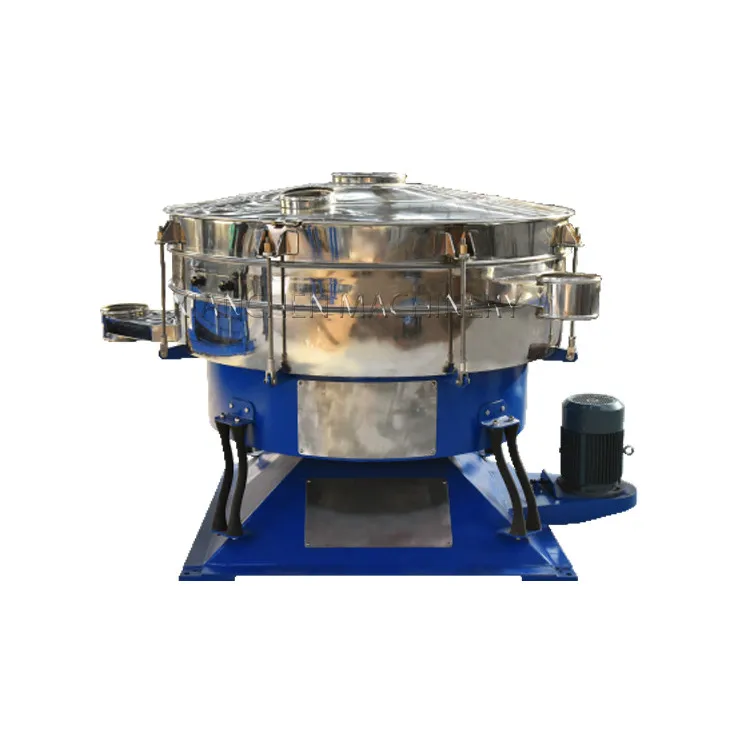

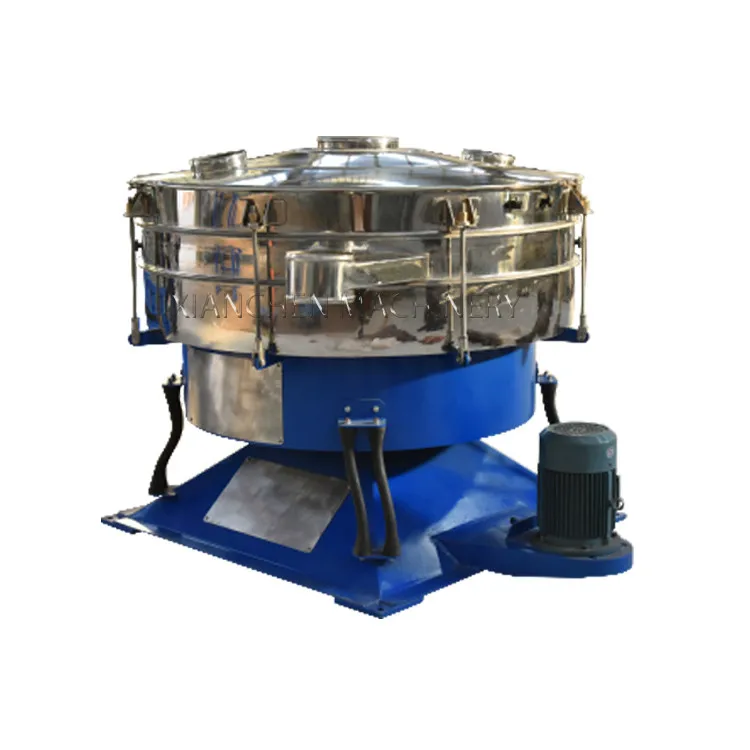

Swing sieve Details：
Product related industries
About the Company
Company presentation:
Xinxiang Xianchen Vibration Machinery Co., Ltd. has a large-scale production capacity with excellent technology level. To provide large customers with equipment customization and restructuring needs, your needs are our own requirements. Based on the concept of "honesty, genuine goods at a fair price, and attentive service", we provide customers with suitable equipment.
Main Products: Swing Screen, Cyclone Screen, Rotary Vibrating Sieve, High Frequency Screen, Ultrasonic Vibrating Screen, Plastic Screen, Linear Screen, Airflow Screen, Direct Row Screen, Forced Screen, Slap Screen, Roller Screen, Vibrating Feeder, Inspection screens, screw conveyors, vertical elevators, small mine screens, bucket elevators, vibration motors and other vibration equipment.
Main Products: Swing Screen, Cyclone Screen, Rotary Vibrating Sieve, High Frequency Screen, Ultrasonic Vibrating Screen, Plastic Screen, Linear Screen, Airflow Screen, Direct Row Screen, Forced Screen, Slap Screen, Roller Screen, Vibrating Feeder, Inspection screens, screw conveyors, vertical elevators, small mine screens, bucket elevators, vibration motors and other vibration equipment.
Our Certificate
Our Exhibition
FAQ
1.How about the quality of your product?
a.Our products manufactured strictly according to national and international standard.
b. We take a test on every product before delivery.
Note: You had better send us the pictures you have ever used.
2.How about price of this product?
a. We can give the lowest price than market one.
b. We do quotation as soon as possible for any customer.
c. Discount can be given according to quantity.
1.How about the quality of your product?
a.Our products manufactured strictly according to national and international standard.
b. We take a test on every product before delivery.
Note: You had better send us the pictures you have ever used.
2.How about price of this product?
a. We can give the lowest price than market one.
b. We do quotation as soon as possible for any customer.
c. Discount can be given according to quantity.
