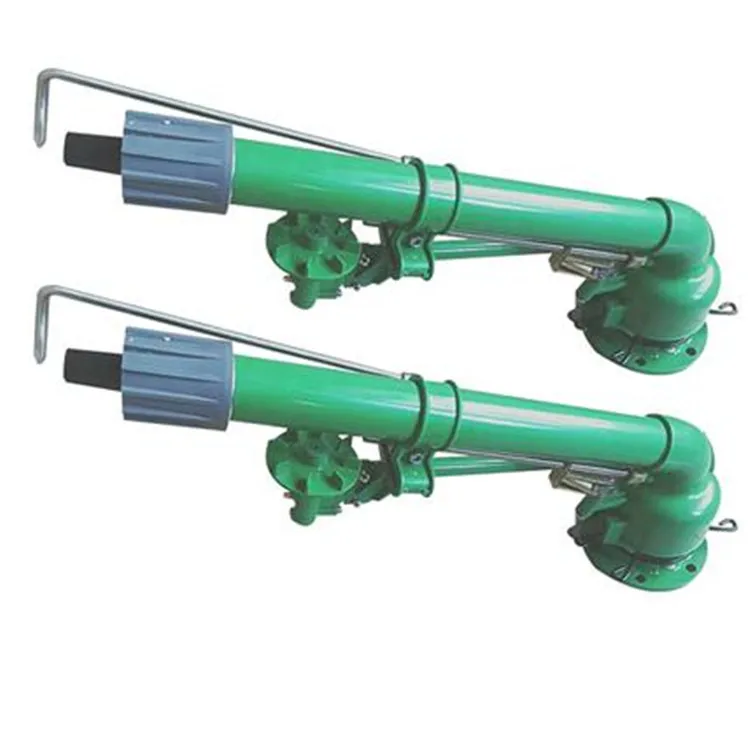

Agricultural irrigation 50 Turbo Vortex Big Impact 360 Degree Rotation watering spray gun Irrigation Sprinkler System
- Category: >>>
- Supplier: Zhejiang Jinnong Medical Machinery Co. Ltd.
Share on (1600857455481):
Product Overview
Description
Product Display
Rain Gun Impact Sprinklers Irrigation
Rocker sprinkler is a kind of commonly used sprinkler irrigation equipment in the open air, and it is an important irrigator in
irrigation equipment. Rocker sprinkler head is widely used in field irrigation, open nursery, fruit garden and horticulture and
other places, is one of the most widely used, the most stable performance of sprinkler head. All copper, zinc alloy and plastic
three materials. With reversing mechanism, can be full circle or arbitrary fan-shaped spray. Anti-wear sealing ring, unique rocker
arm design, long life, stable performance.
irrigation equipment. Rocker sprinkler head is widely used in field irrigation, open nursery, fruit garden and horticulture and
other places, is one of the most widely used, the most stable performance of sprinkler head. All copper, zinc alloy and plastic
three materials. With reversing mechanism, can be full circle or arbitrary fan-shaped spray. Anti-wear sealing ring, unique rocker
arm design, long life, stable performance.
Nozzle Gauge (mm) | Working Pressure (kg/cm2) | Flow Rate (m3/h) | Spray Radius (m) |
16mm | 2 | 17.8 | 26 |
3 | 21.8 | 28 | |
4 | 25.2 | 32 | |
5 | 28.1 | 35 | |
18mm | 3 | 27.1 | 32 |
4 | 31.6 | 35 | |
5 | 35 | 38 | |
6 | 38.7 | 41 | |
20mm | 3 | 31.6 | 36 |
4 | 36 | 40 | |
5 | 40.3 | 43 | |
6 | 44 | 46 | |
22mm | 4 | 44.2 | 41 |
4.5 | 44.8 | 43 | |
5 | 47.3 | 45 | |
6 | 51.8 | 48 | |
24mm | 4 | 49.2 | 43 |
4.5 | 52.2 | 45 | |
5 | 55 | 47 | |
6 | 60.3 | 50 | |
26mm | 4 | 56.7 | 45 |
5 | 63.4 | 48 | |
6 | 69.6 | 51 | |
7 | 75 | 53 |
