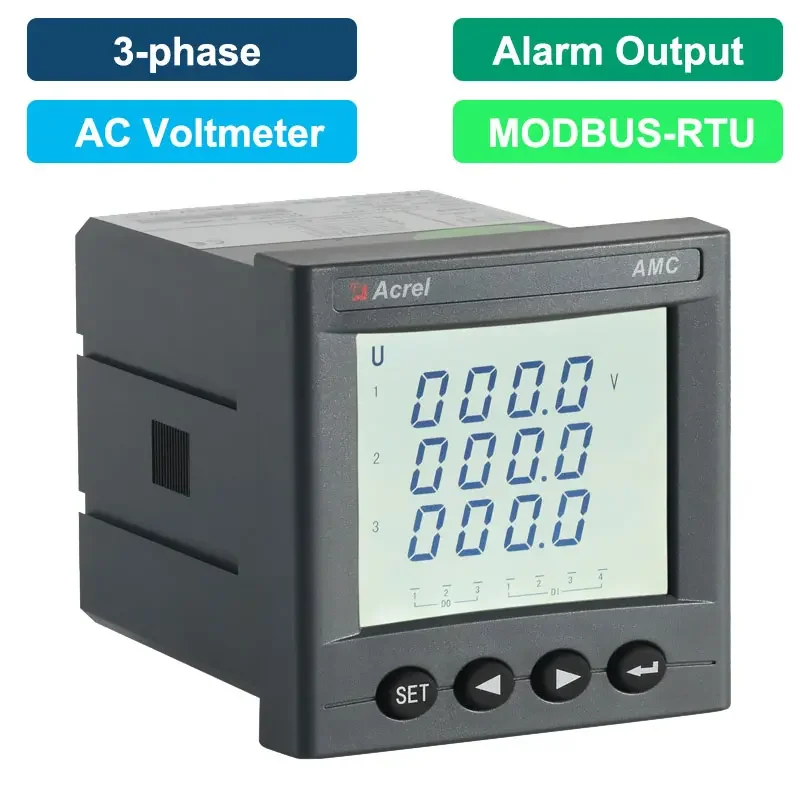

Characteristic

* Communication:  RS485 Modbus-RTU

* Display: LCD display, set multiplying power

* Rated U and I:  AC current: AC 1A,5A

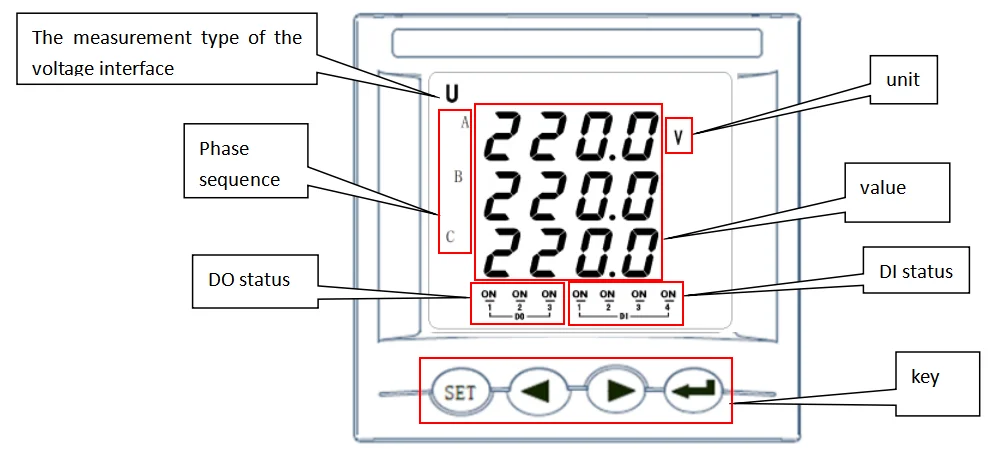

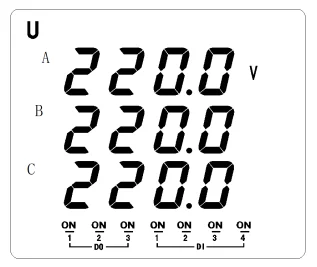

LCD Display

Function

Accuracy: Voltage:Class 0.5  Power Supply: AC 220V  Input consumption: Current:Power consumption:< 0.5VA; Power supply:power consumption≤5VA
	Installation      Embedded installing      Dimension(L*W*H)      Faceplate(L×W):75*75mm      Cutout(L×W):67*67mm      Housing(L×W×H):66*66*98mm      Switch relay      DC 30V/3A AC 220V/3A      Starting current      0.3%

Wiring

Typical connection

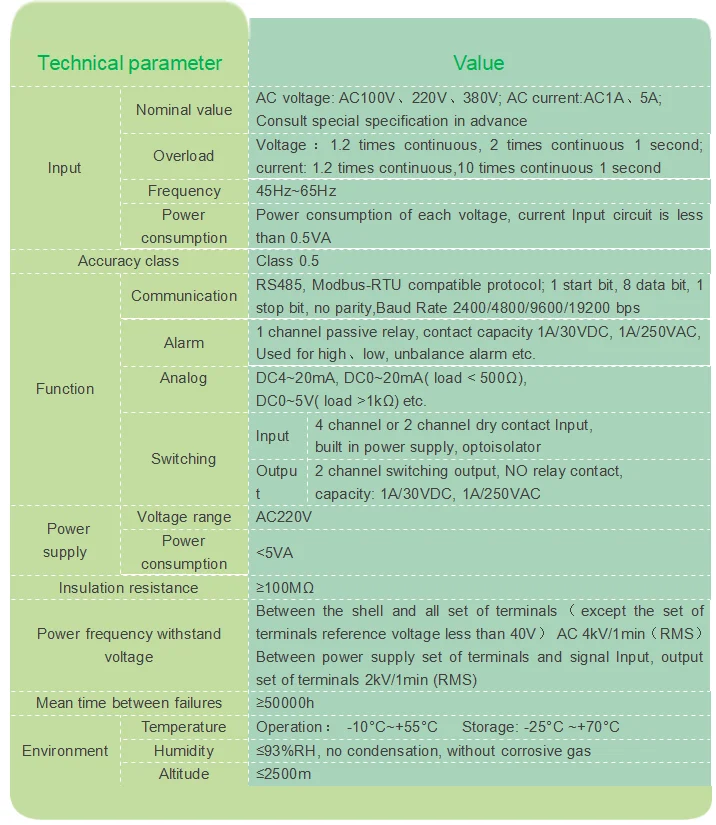

Parameter

About us

Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.

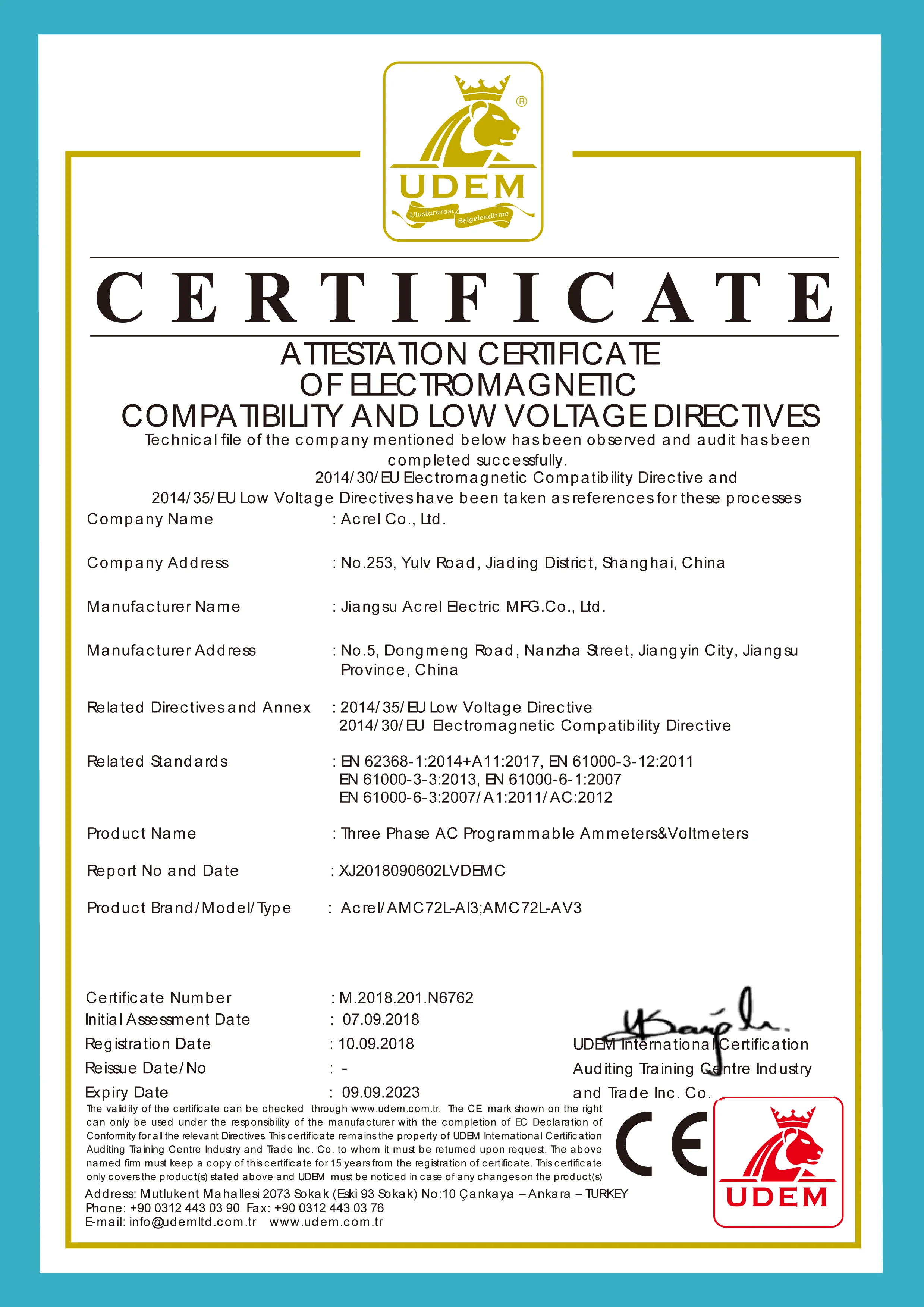

Certificate

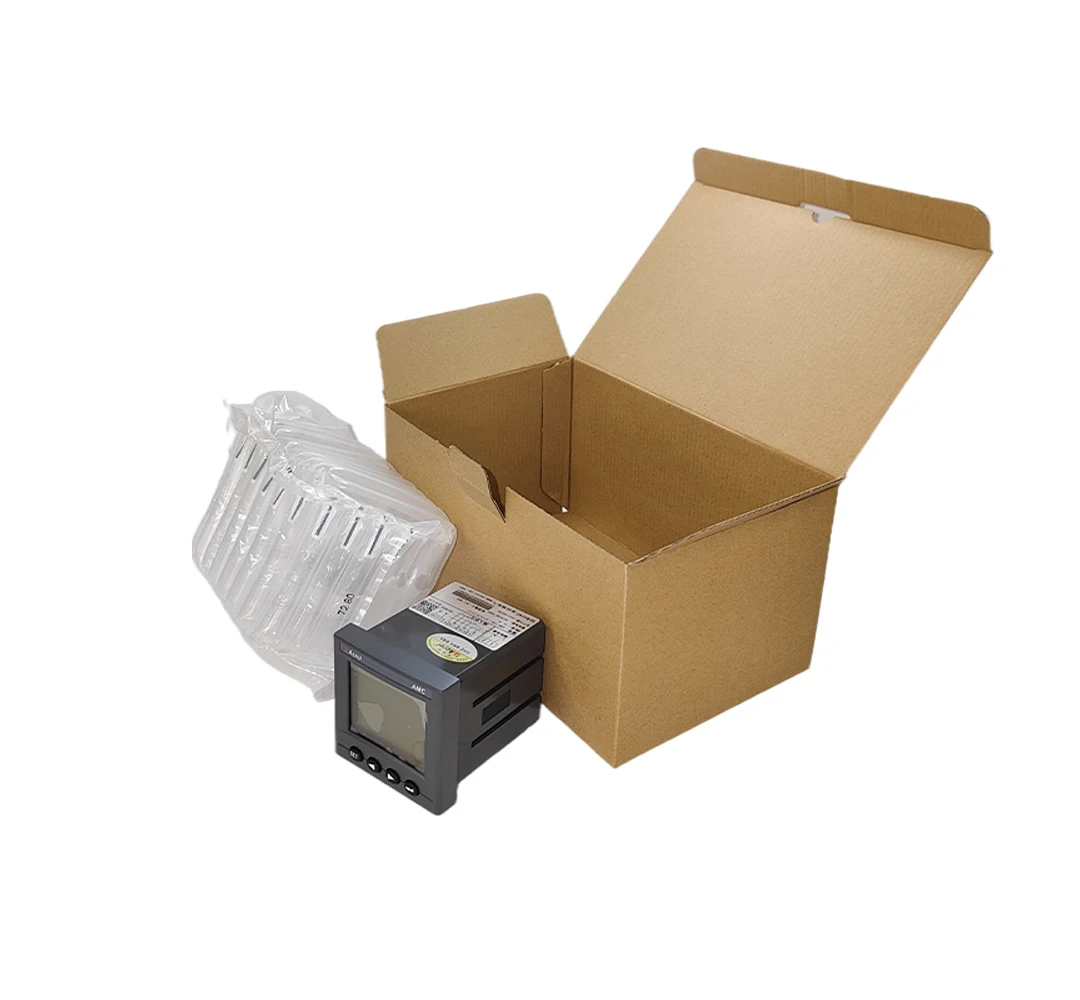

Packing

Shipping
