TESmart Manufacturers 16 Ports Switches 16x1 Ports 16 in 1 out remote control 3D 4K HDMI switch KVM Console 16x1 HDMI KVM Switch
- Category: >>>
- Supplier: Shenzhen Zhichuang Liangyi Information Technology Co Ltd.
Share on (1600857705103):
Product Overview
Description
Products Description

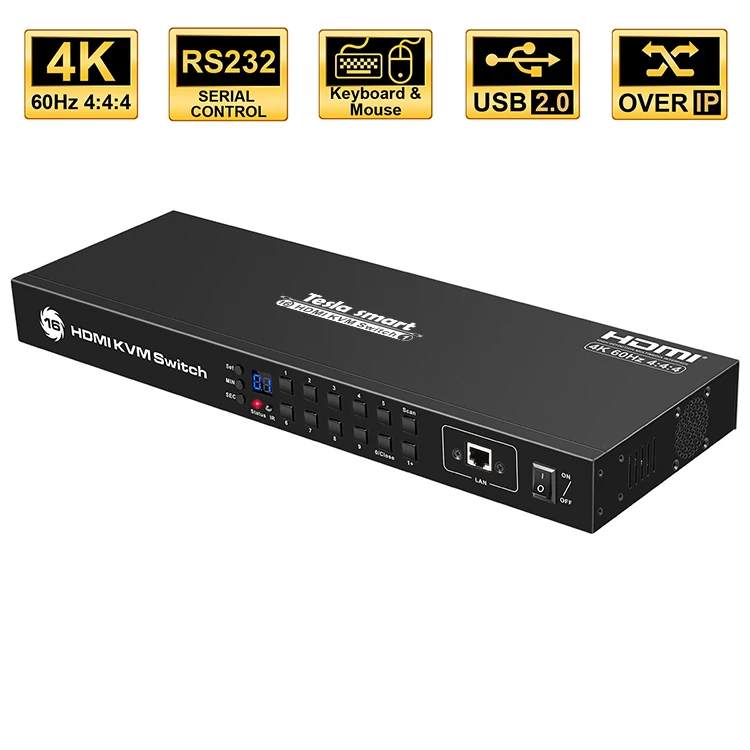

16x1 HDMI KVM Switch
# HKS1601A1U
This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.Features:

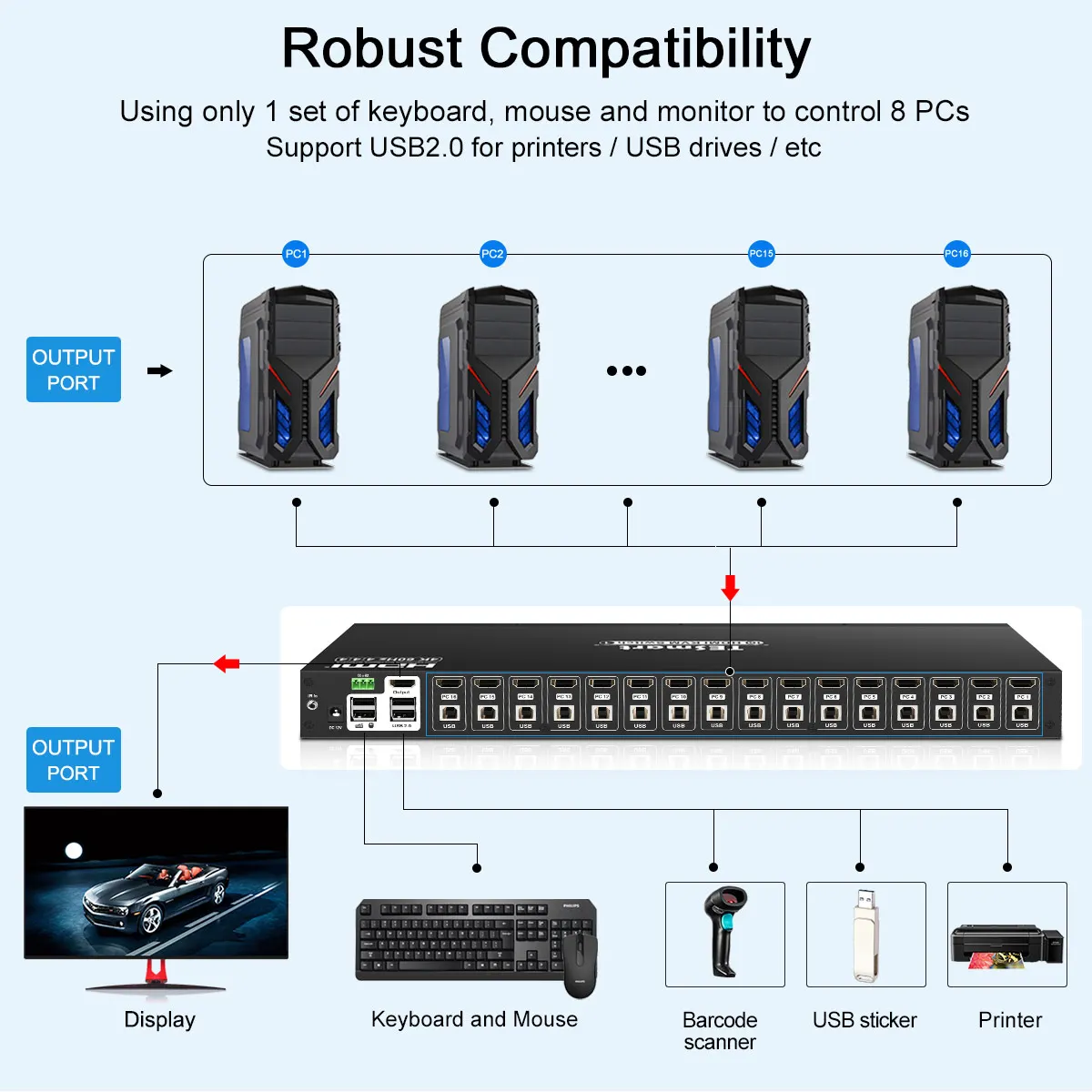

⭐Using only 1 set of keyboard and mouse to control 16 PCs
⭐Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
⭐With EDID emulators in every input ports, keep PCs always have correct display information
⭐Support hot plug, connect or disconnect devices to the KVM switch in any time without turning off devices
⭐Support auto switching to monitor computers in a specified time interval

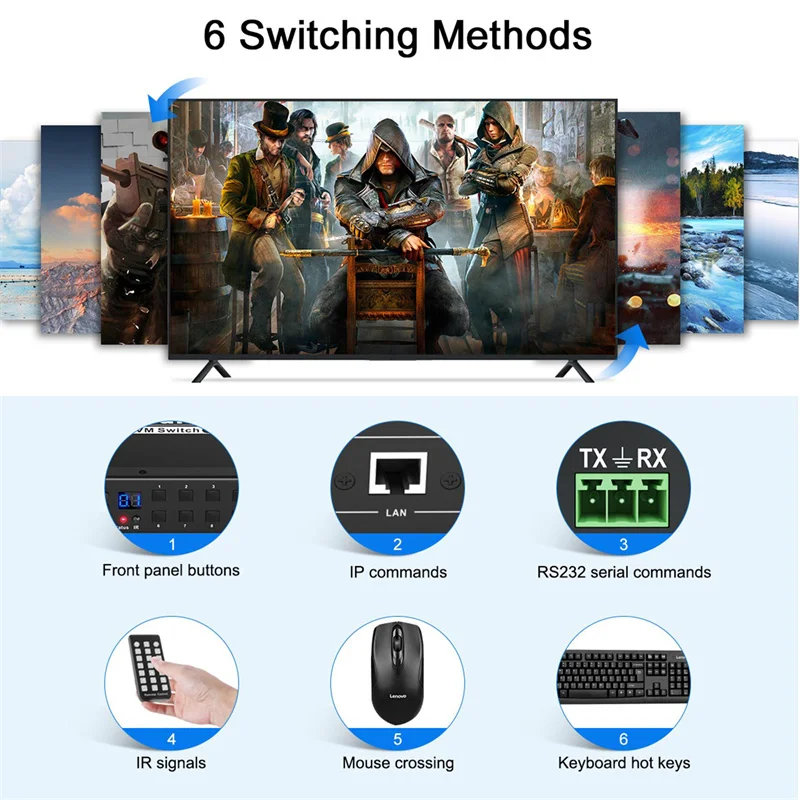

⭐Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
⭐Available to use keyboard without any delay after switch input sources
⭐Support resolution up to 3840*2160@60Hz
⭐With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
⭐Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

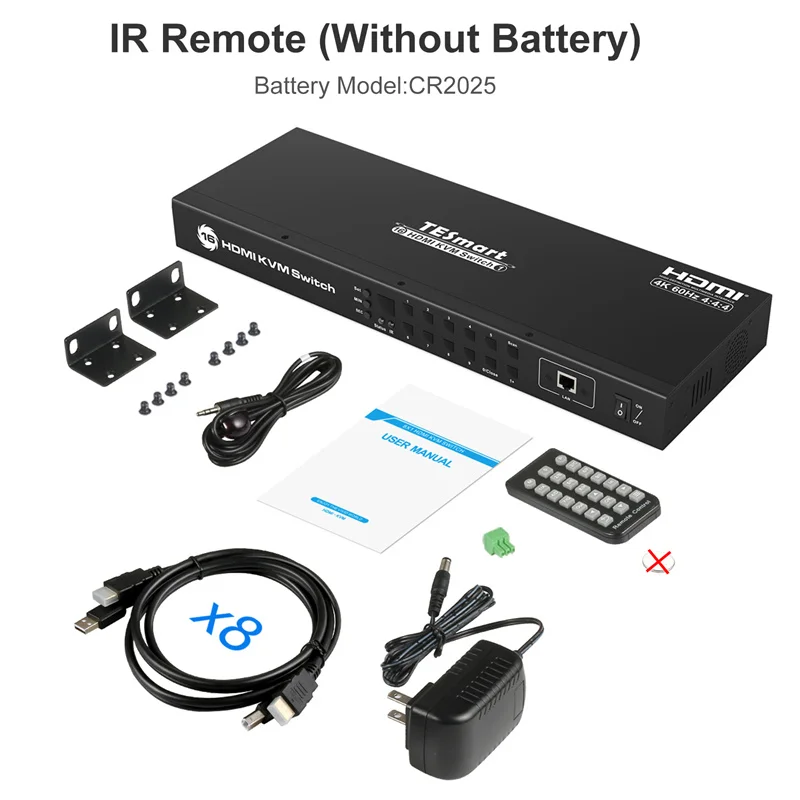

Packing list
1 * 16x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
⭐Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
⭐With EDID emulators in every input ports, keep PCs always have correct display information
⭐Support hot plug, connect or disconnect devices to the KVM switch in any time without turning off devices
⭐Support auto switching to monitor computers in a specified time interval
⭐Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
⭐Available to use keyboard without any delay after switch input sources
⭐Support resolution up to 3840*2160@60Hz
⭐With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
⭐Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 16x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
Specification
HKS1601A1U | 16x1 HDMI KVM Switch | |||||
Functionality: | ||||||
Auto Scan | Yes | |||||
Port selection | Front panel buttons | Yes | ||||
Keyboard hotkeys | Yes | |||||
IR remote control | Yes | |||||
Console commands | RS232 / IP | |||||
Technical: | ||||||
Max. Resolution | 3840x2160@60Hz | |||||
Auto to get EDID | Yes | |||||
Data rate | 18 Gbps | |||||
Auto scan interval | 5~3600 Seconds | |||||
Beep Sound | On/Off | |||||
OSD | No | |||||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||||

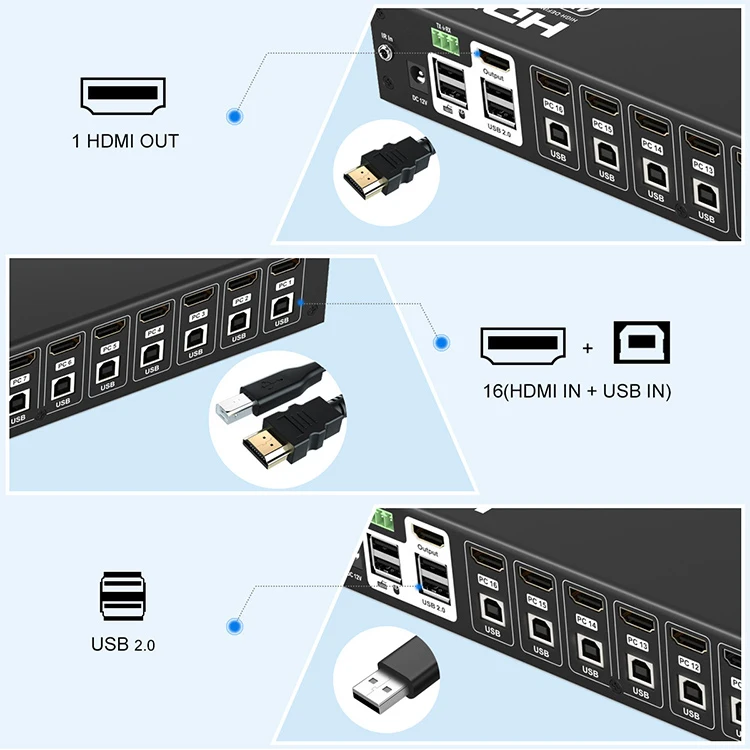

Console ports | Keyboard emulation | 1 * USB Type A | ||||
Mouse emulation | 1 * USB Type A | |||||
USB 2.0 Hub ports | 2 * USB Type A | |||||
Video /Audio | 1 * HDMI Type A | |||||
RS232 | 3 Pins jack | |||||
LAN (TCP/IP) | 1 * RJ45 | |||||
IR extension input | 1 * AUX | |||||
System ports | USB Data | 16 * USB Type B | ||||
Video / Audio | 16 * HDMI Type A | |||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||||
Mechanical: | ||||||
Chasing material | Metal | |||||
product | Dimension | 440(L) x 150(D) x 44.5(H)mm | ||||
Weight | 1904.4g | |||||
