Product Overview
Description
Product Description

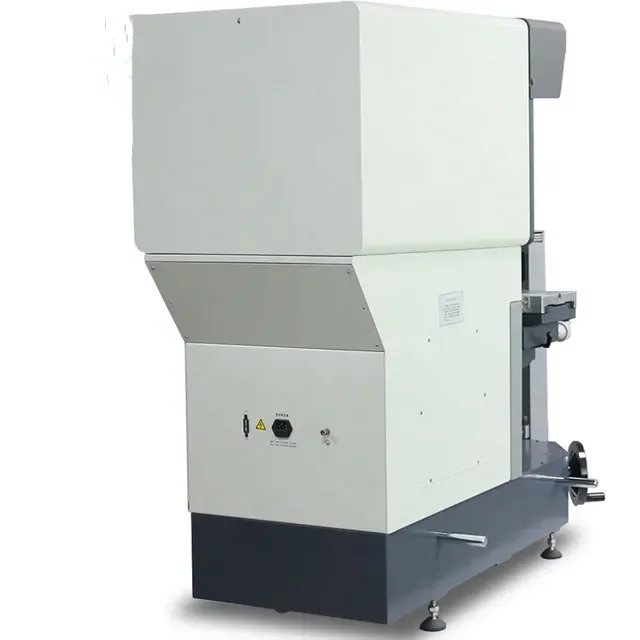

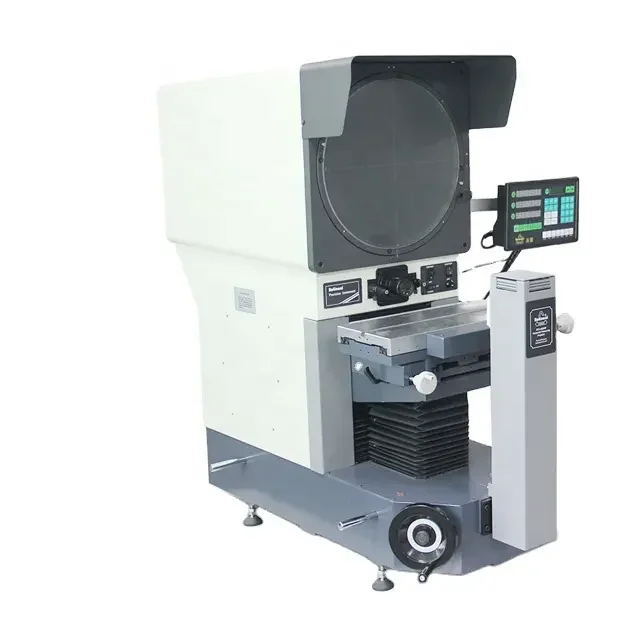

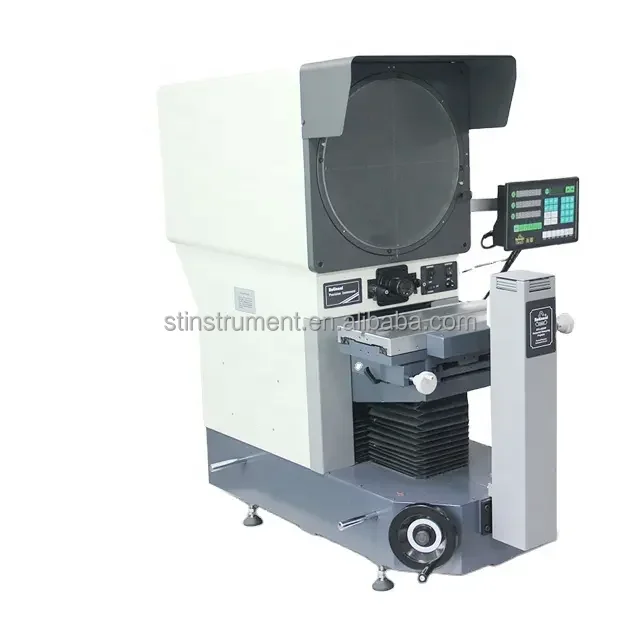

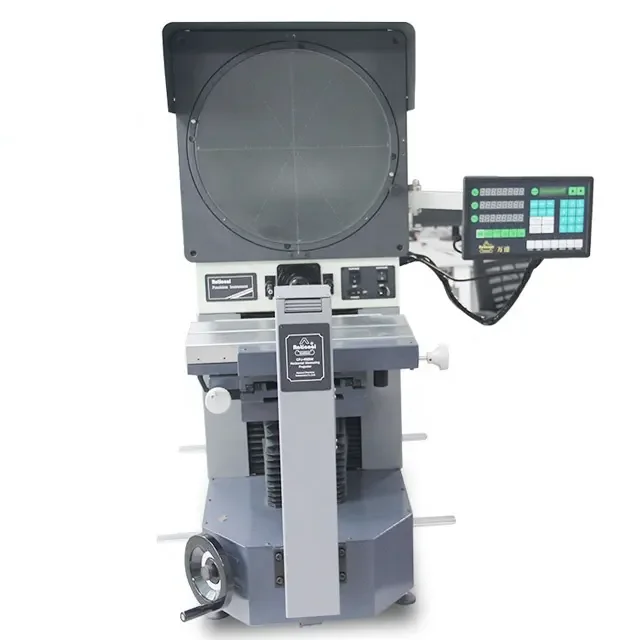

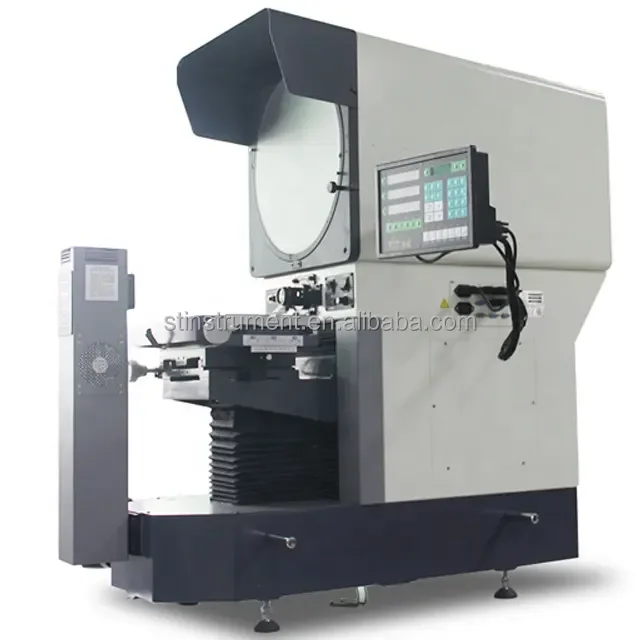

Long stroke Horizontal Profile Projector CPJ3020W
Product brief
Horizontal Profile Projectors, ergonomic measuring instruments with reliable mechanical structure and high precision magnification, are specially designed for the measurements that cannot be easily or effectively achieved by traditional (vertical) profile projectors. The systems allow to inspect and measure the profile, section, surface and outline of complicated workpieces, such as cutters, wheel gears, screws and springs.
Features:
1.Horizontal profile projector
2. Easy to operate
3. Resolution of linear scale: 0.5um
4. Powerful Digital Readout to support easy and accurate measurement
5. Reliable and cost-effective
6. Precise and accurate
7. Low maintenance cost
8. Optional Proprietary software
| X-axis Travel (mm) | 200 | 250 | ||||
| Y-axis Travel (mm) | 100 | 150 | ||||
| Worktable size (mm) | 400×150 | 450×200 | ||||
| Swing range | ±15° | ±15° ( can be custom made to ±25°) | ||||
| Resolution (μm) | 0.5 | |||||
| Indication error (mm) | X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm) | |||||
| Z-axis Travel (mm) | 75 (focusing) | 100 (focusing) | ||||
| Weight (kg) | 160 | 240 | ||||
| Dimension (mm) | 1090×830×1010 | 1215×646×1210 | ||||
| Projectorscreen | Size (mm) | ∅ 300 | ∅400 | |||
| Rotary range | 0~360° | |||||
| Resolution | 1’ or 0.01° | |||||
| Lens (CPJ-3020W) | Magnification | 10× (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Field of view (mm) | ∅30 | ∅15 | ∅6 | ∅3 | ||
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Lens (CPJ-4025W) | Magnification | 5× (Optional) | 10× (Standard) | 20× (Optional) | 50× (Optional) | 100× (Optional) |
| Field of view (mm) | ∅ 80 | ∅40 | ∅20 | ∅8 | ∅4 | |
| Working distance (mm) | 93.7 | 103.9 | 9 5.1 | 65.7 | 35.0 | |
| Data processing system | Multi-functional DRO DC-3000 | |||||
