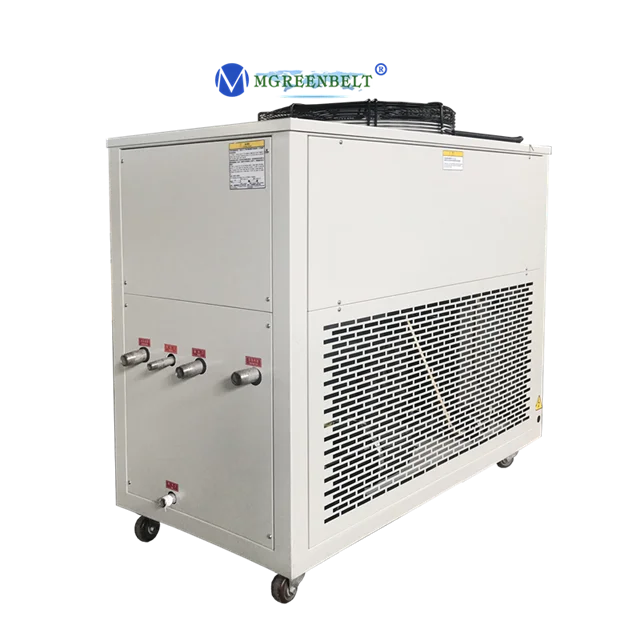

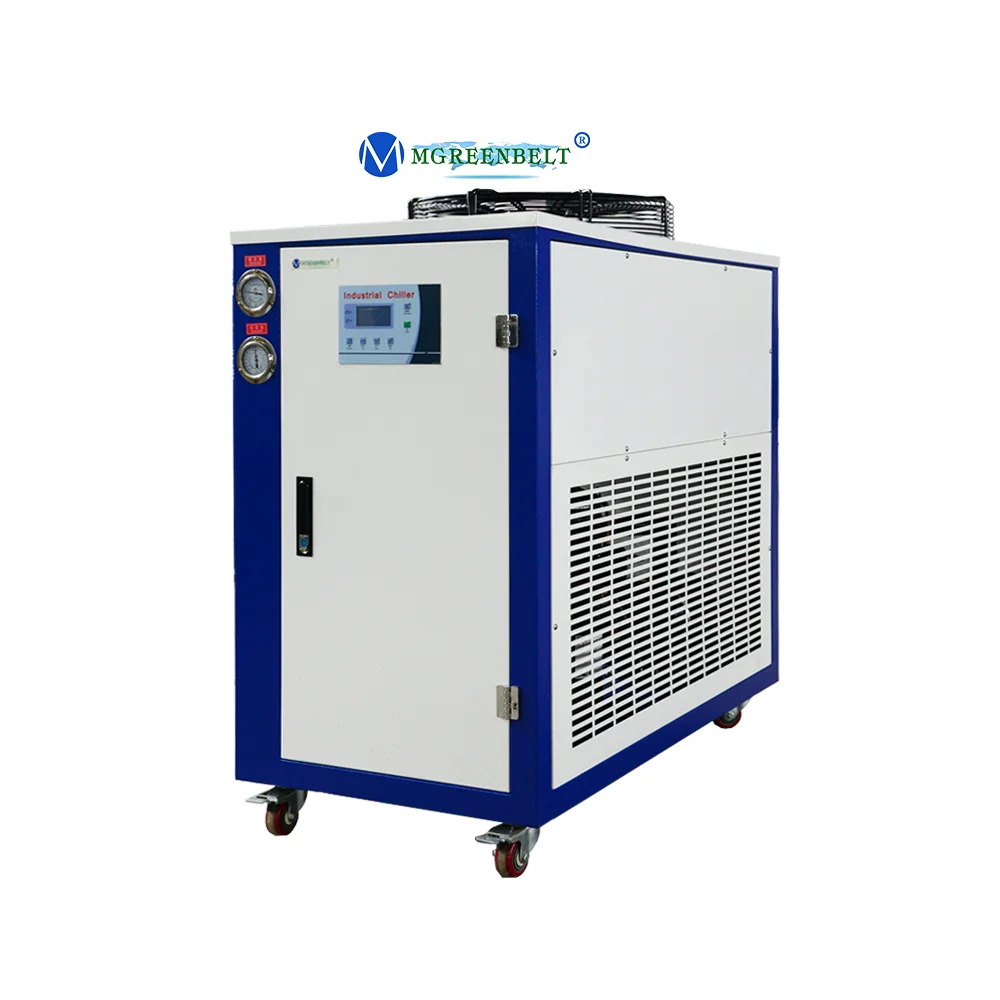

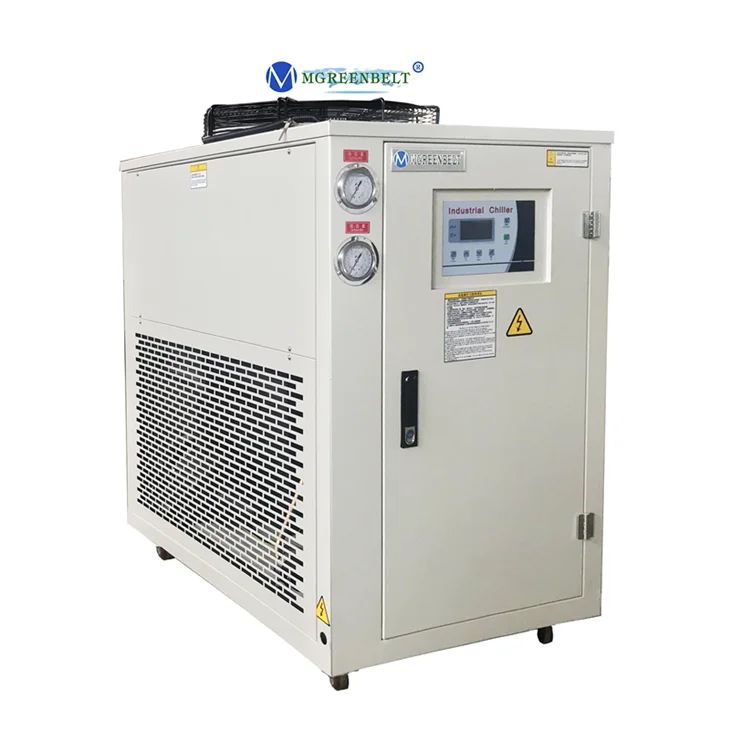

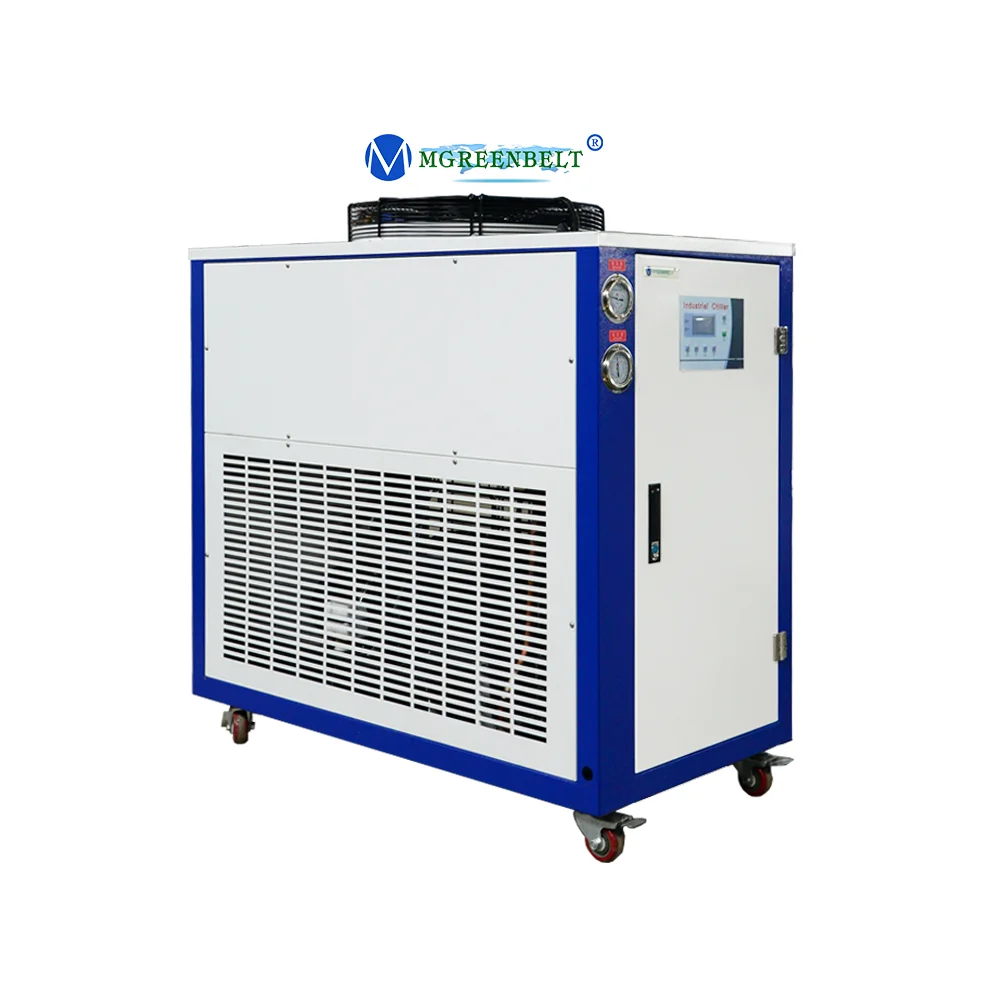

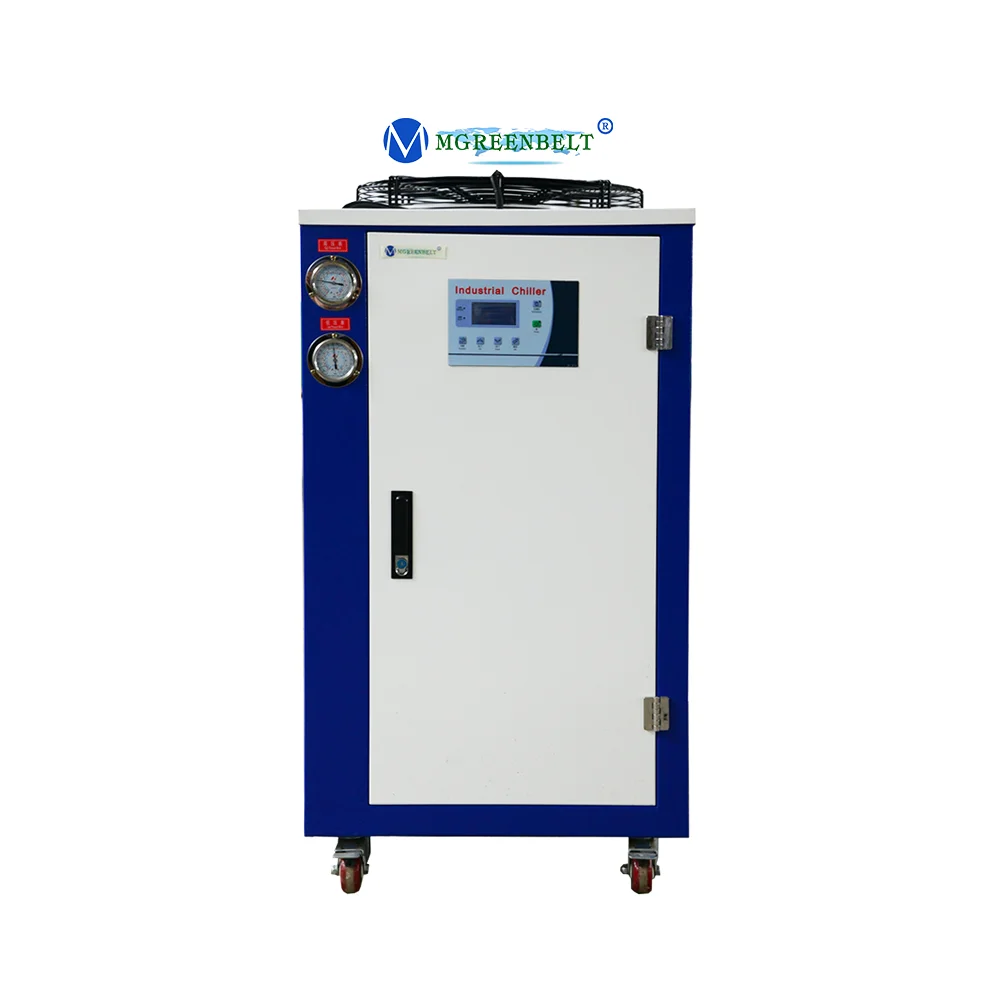

3 ton 5HP Refrigerator Air Cooled Glycol Portable Water Chiller
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600858534320):
Product Overview
Description
Products Description
1. Import brand compressor,
2. Schneider electric components,
3. World famous brand efficiency expansion valve,
4. Intelligent microcomputer controller,
5. Stable water pump,
6. Shell and tube, or tank with coil type evaporator
7. V-type aluminum foil condenser
The cooler is equipped with open-type stainless steel or shell tube type temperature preservation water tank, which features long service life and convenient and quick cleanup and maintenance.
2. Schneider electric components,
3. World famous brand efficiency expansion valve,
4. Intelligent microcomputer controller,
5. Stable water pump,
6. Shell and tube, or tank with coil type evaporator
7. V-type aluminum foil condenser
The cooler is equipped with open-type stainless steel or shell tube type temperature preservation water tank, which features long service life and convenient and quick cleanup and maintenance.
Specification for 5hp Air cooled scroll chiller | ||||||
Nominal | kcal/h | 7694 | ||||
Cooling capacity | kw | 8.9 | ||||
Power | kw | 5.45 | ||||
Power supply | 3ph-380V/50hz(can be customized) | |||||
Refrigerant | Type | R22/R407C | ||||
Control | Thermostatic expansion valve | |||||
compressor | power(kw) | 4.36 | ||||
Type | Hermetic scroll/piston | |||||
Evaporator | Type | Plate exchanger type | ||||
chilled fluid flow(m3/h) | 1.83 | |||||
inlet and outlet pipe diameter (inch) | DN20 | |||||
Condenser | Type | Hydrophilic aluminum foll finned type | ||||
fan Power(kw) | 0.52 | |||||
Dimension | L*W*H(mm) | 1200*600*1100 | ||||
Net weight | Kg | 200 | ||||
Pump | Type | centrigual Stainless steel water pump | ||||
Power(kw) | 0.55 | |||||
Lift(m) | 20 | |||||

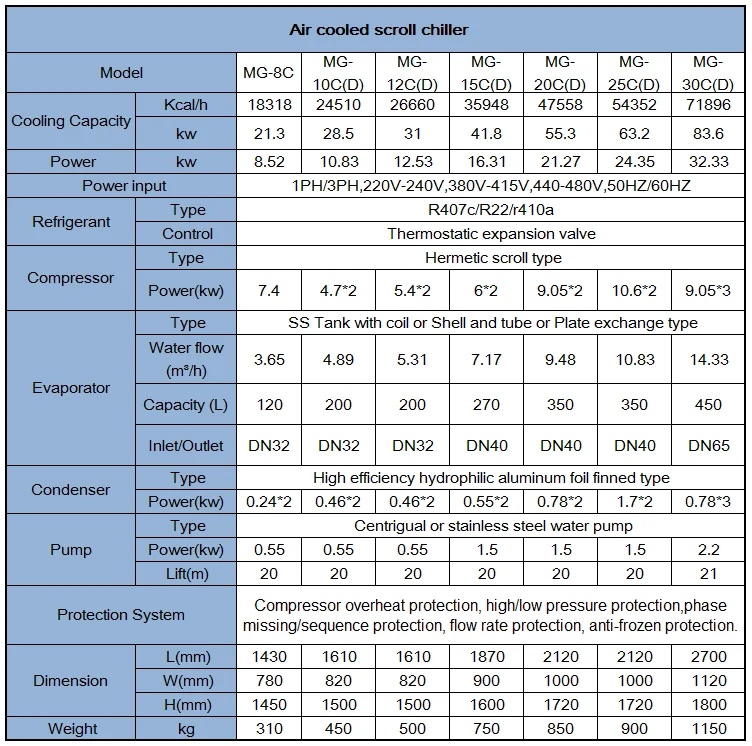

Chiller Specifications
Item | Brand |
Compressor | Panasonic |
Evaporator | MGREENBELT |
Condenser | MGREENBELT |
Expansion Valve | EMERSON/DANFOSS |
Controller | PUNP |
Electric parts | SCHNEIDER |
Filter Dryer | EMERSON/DNAFOSS |
Water pump | CNP |

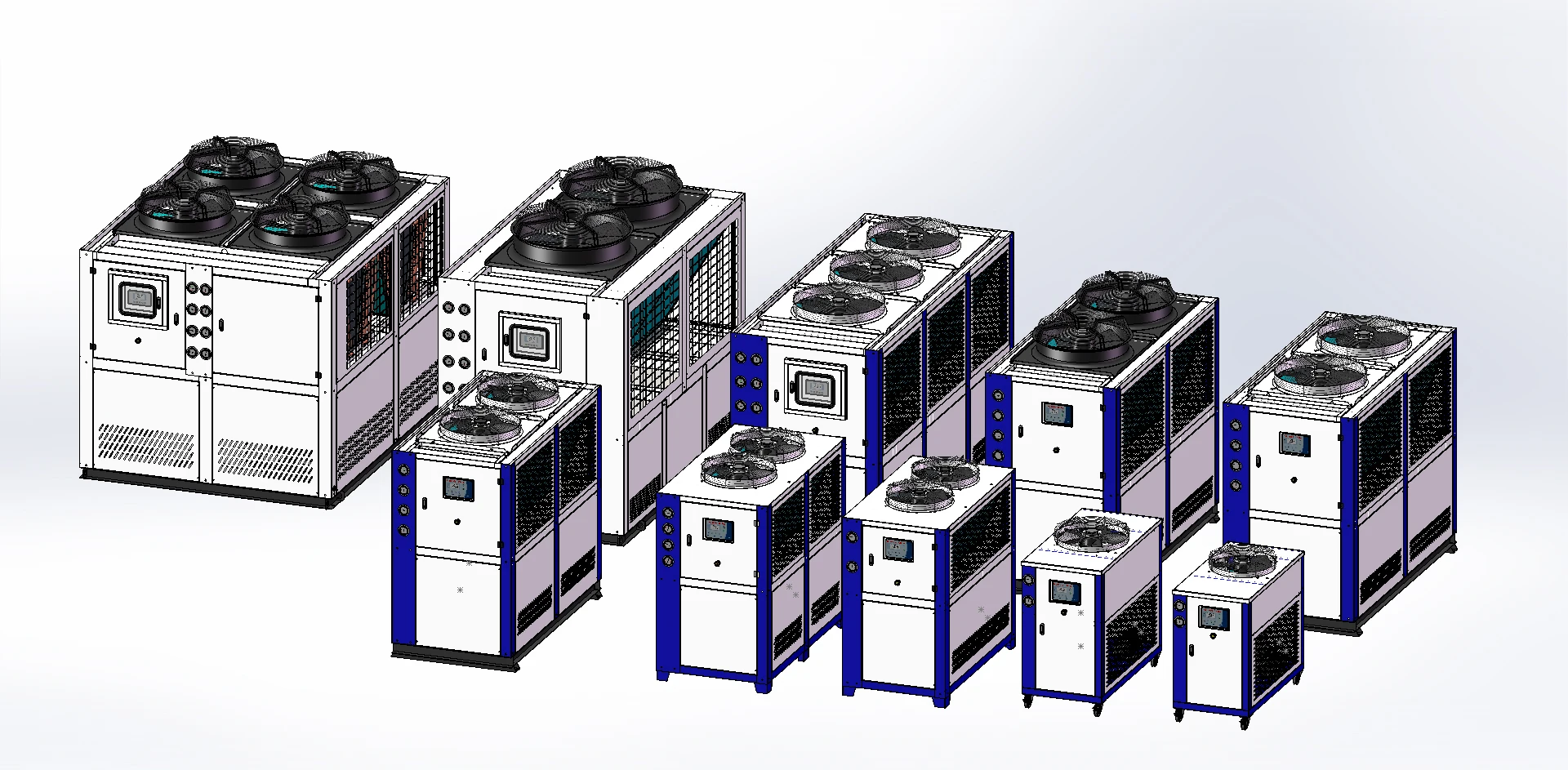

As industrial chiller, this air cooled water chiller of box-type has the following features: Chiller, air cooled chiller
1. Cooling capacity: 8.8kw~110.6kw
2. Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Ambient temperature is 35 degrees.
3. Operating range: Chilled water inlet temperature 9~20 degrees.
4. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%.
5. Accept orders for special requirements.
6. Scroll hermetic compressor international brand-free maintenance.
7. Electrical elements and refrigeration components are used from world-renowned brand.
8. Industrial and durable design, with stainless steel water tank and high-lift pumps.
9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
10. Designed as an independent refrigeration circuit, each compressor corresponding to one refrigeration circuit.
11. Friendly choose to use environmentally R407C or R134A refrigerant.
CHILLER, WATER CHILLER, AIR COOLED CHILLER
1. Cooling capacity: 8.8kw~110.6kw
2. Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Ambient temperature is 35 degrees.
3. Operating range: Chilled water inlet temperature 9~20 degrees.
4. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%.
5. Accept orders for special requirements.
6. Scroll hermetic compressor international brand-free maintenance.
7. Electrical elements and refrigeration components are used from world-renowned brand.
8. Industrial and durable design, with stainless steel water tank and high-lift pumps.
9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
10. Designed as an independent refrigeration circuit, each compressor corresponding to one refrigeration circuit.
11. Friendly choose to use environmentally R407C or R134A refrigerant.
CHILLER, WATER CHILLER, AIR COOLED CHILLER
Product Details
Product Packaging

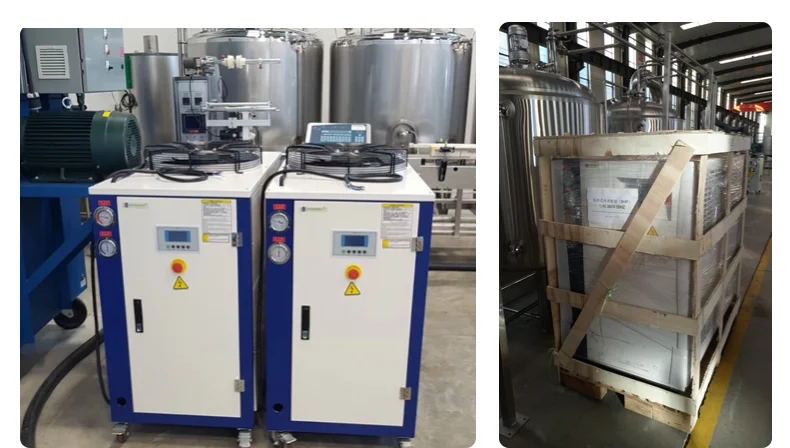

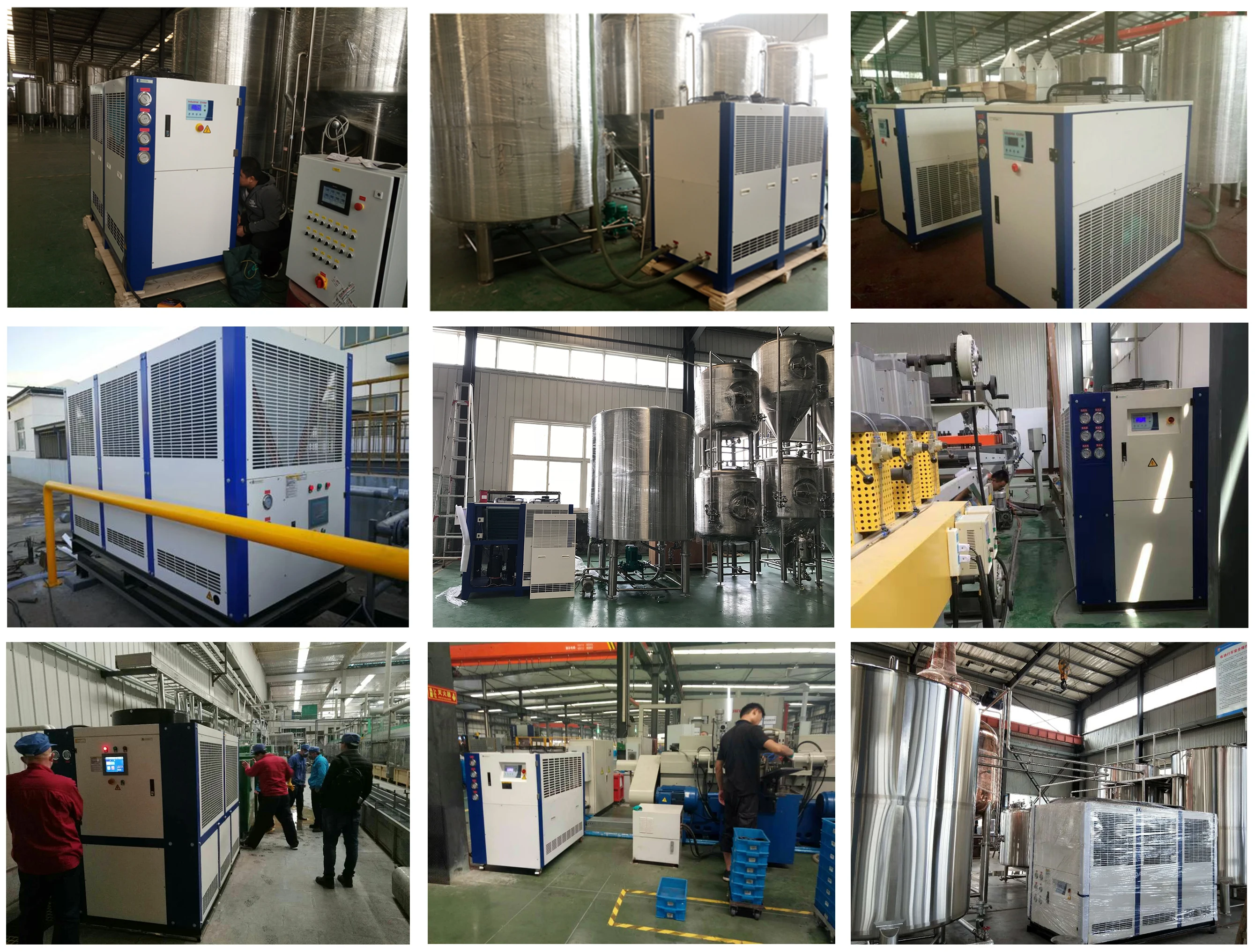

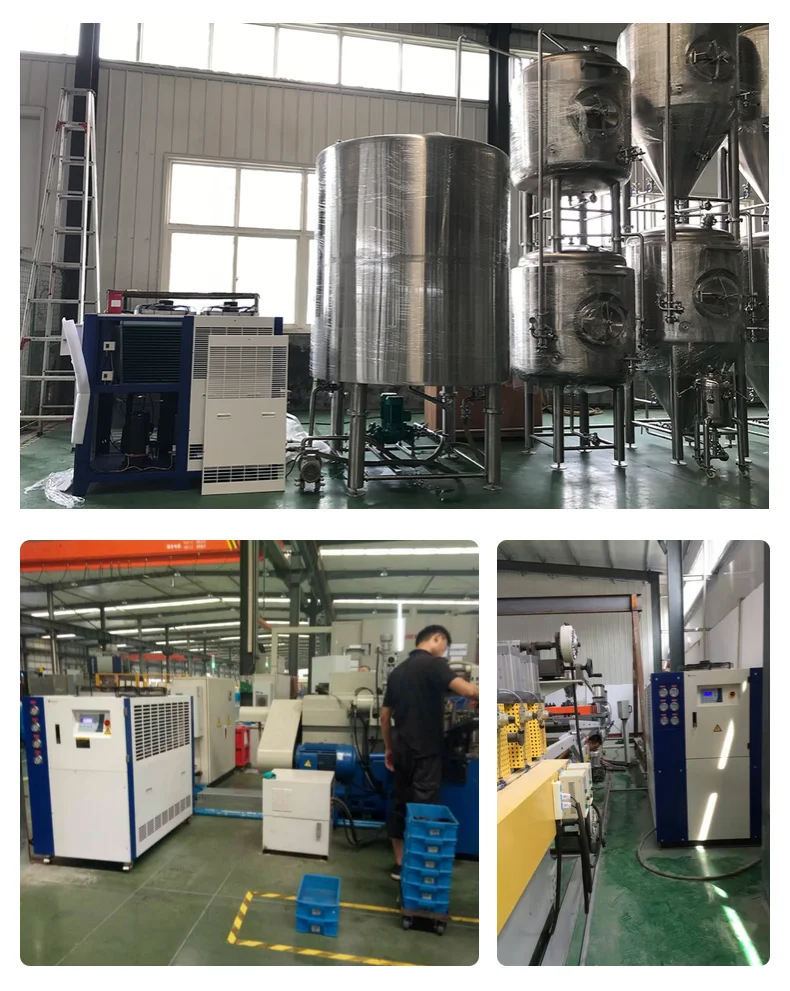

Customer site

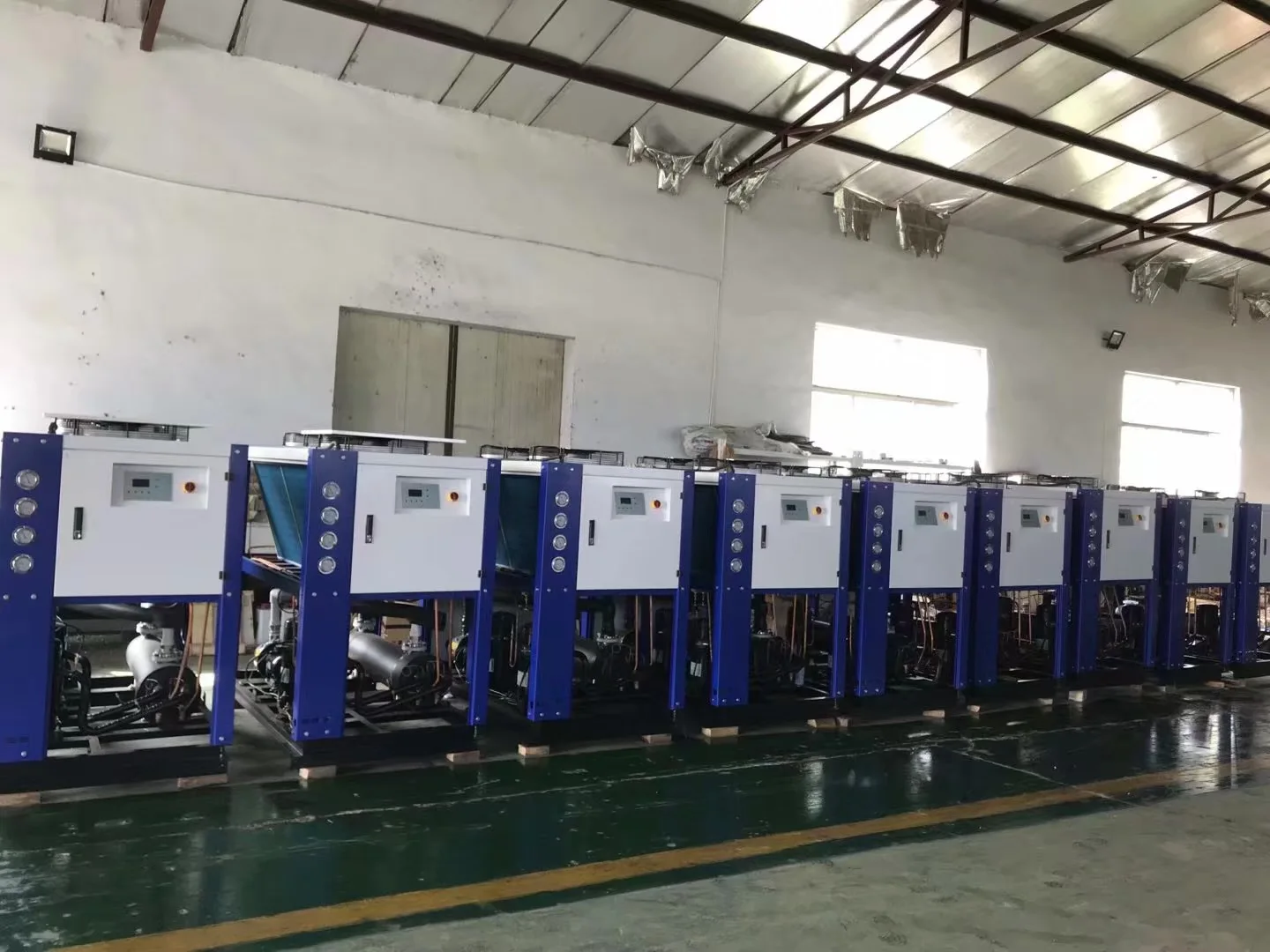

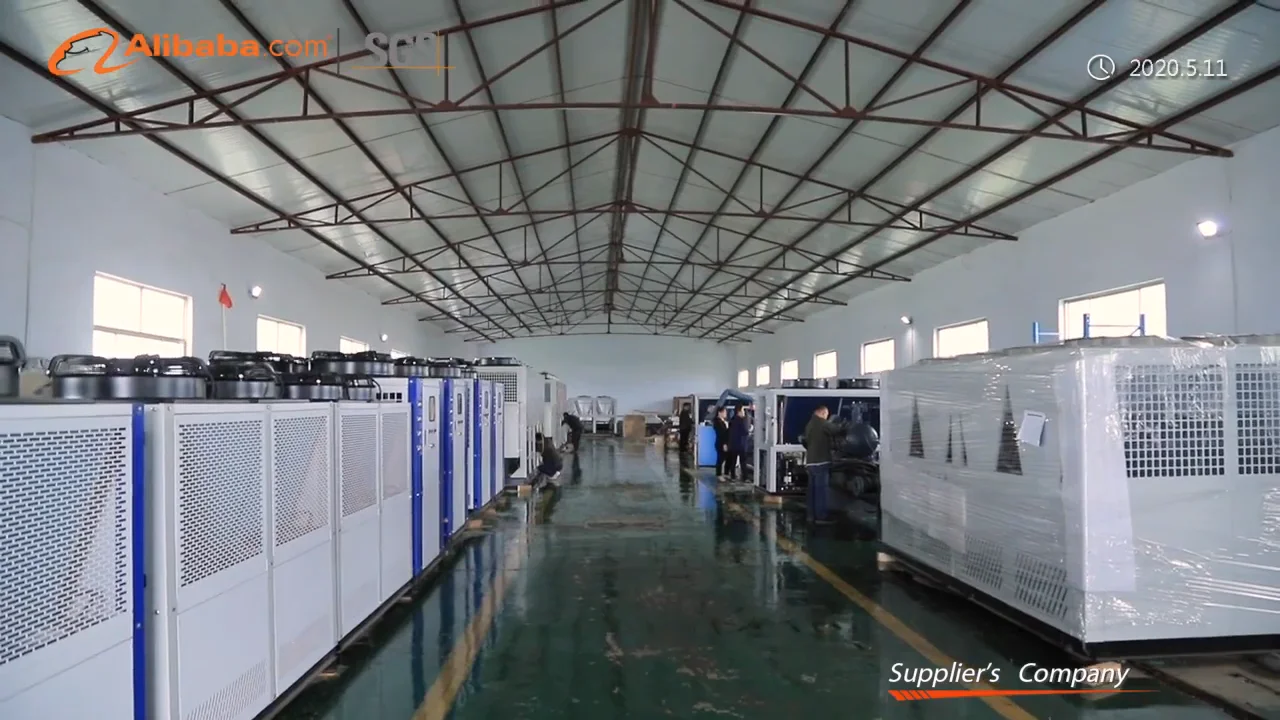

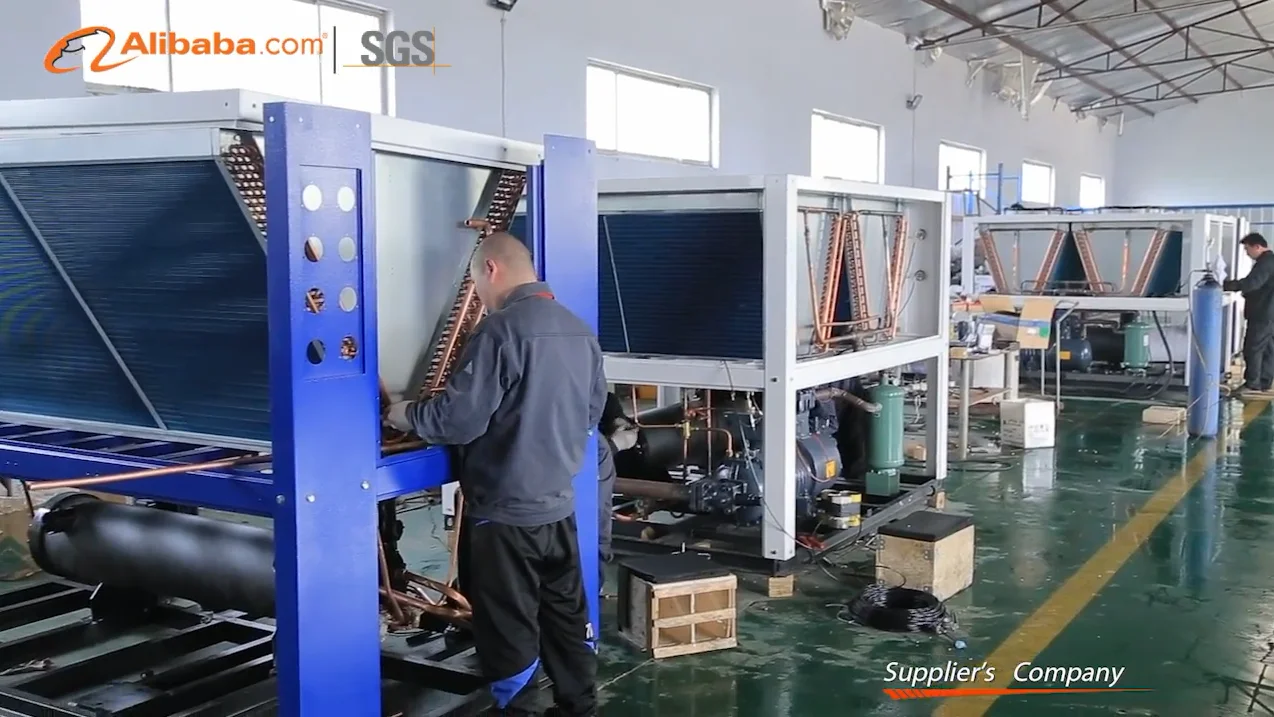

Factory production
Company Profile
FAQ
Pls kindly offer the following information:
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
Contact me if you need ！
Maneger: Amanda
Email : sales04@mgreenbelt.com
Wechat/Whatsapp: +8617853516989
Tel: 0086-17853516989
Shandong Mgreenbelt Machinery Co.,ltd.
Website: www.mgreenbeltchillers.com
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
Contact me if you need ！
Maneger: Amanda
Email : sales04@mgreenbelt.com
Wechat/Whatsapp: +8617853516989
Tel: 0086-17853516989
Shandong Mgreenbelt Machinery Co.,ltd.
Website: www.mgreenbeltchillers.com
