Wooden Staples Making Machine making Pin Metal/Hardwood floor staple Sofa Nail Forming Machine F T Straight Brad Nail Machine
- Category: >>>
- Supplier: Xuchang Huarui Machinery Co. Ltd.
Share on (1600858822207):
Product Overview
Description
PRODUCTS DESCRIPTION

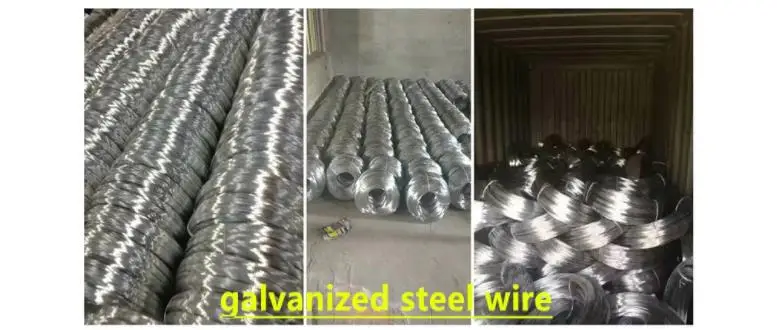

Raw Material:
1. Flatting Machine
Function: Flattening is the first process in the entire production process. The raw materials are flattened to the corresponding thickness according to the requirements. The overall bearing is composed of the machine body, the pay-off cage, the column and the pressure plate.
Power | 2.2KW |
Working speed | 0-350m/min |
Crimping range | 0.4-2mm |
Machine Weight | 900KG |
2. Stitching Machine
Function: Line splicing machines are also called glue splicing machines and thread concentrating machines. It uses two A glues and one Bglue to bond the pressed silk in a row through an oven to form a wire board for molding. The line width is 15 cm, the line speed is 15 meters, the motor power is 2.2 kW, and the heating power is 10.5 kW. The stitching machine occupies an area of 21-25 meters, and can also be designed according to the length of the customer's workshop
Power | 9KW |
Working speed | 2-18m/min |
Crimping range | 0.4-2mm |
Line splicing width | 50-150mm |
Machine Weight | 900KG |

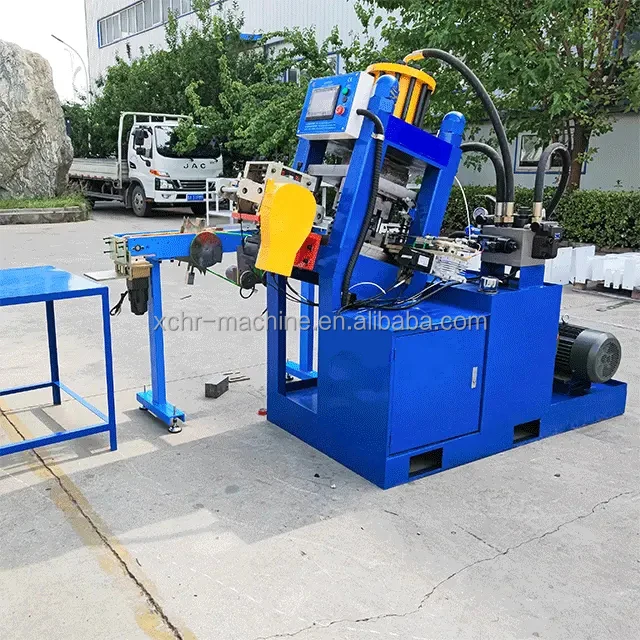

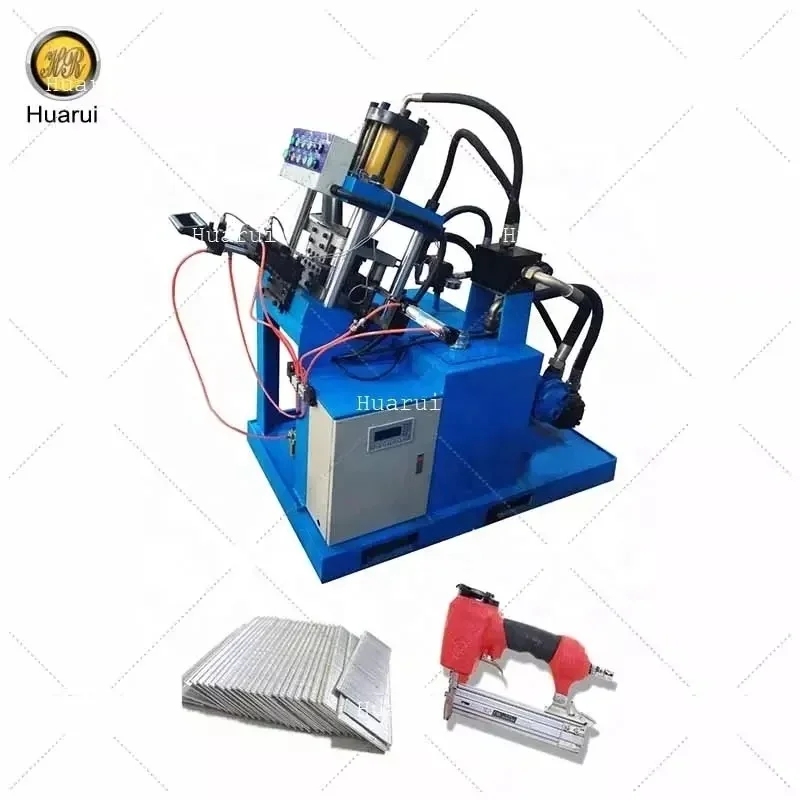

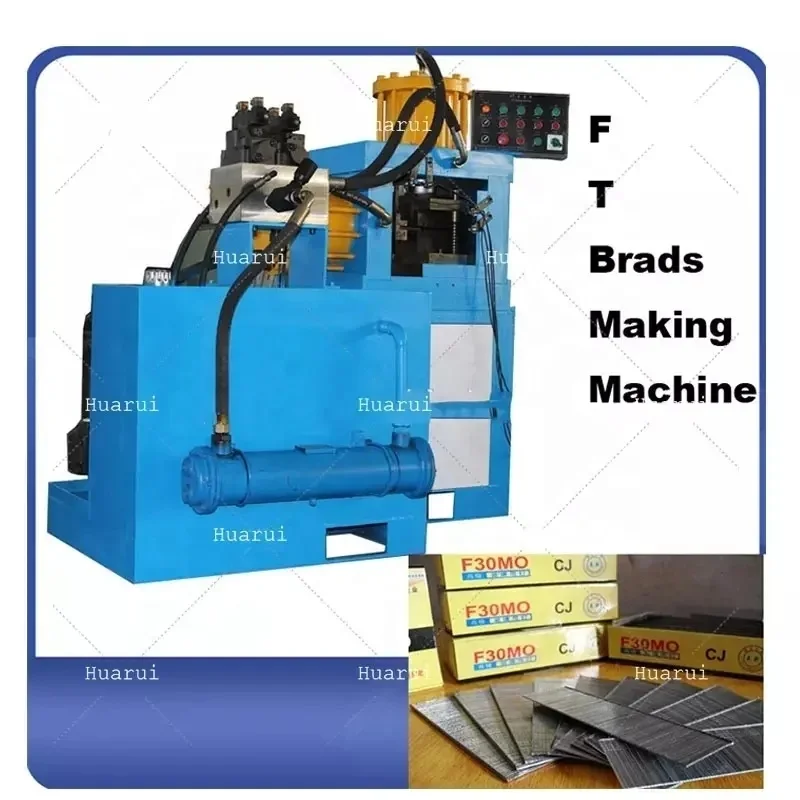

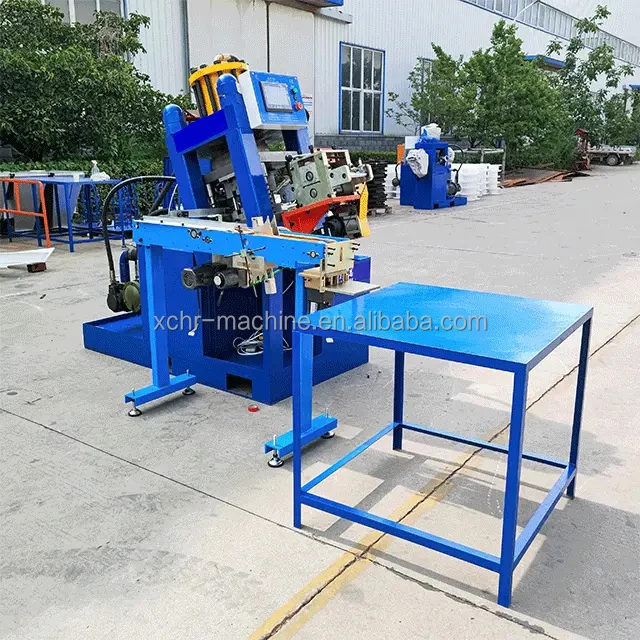

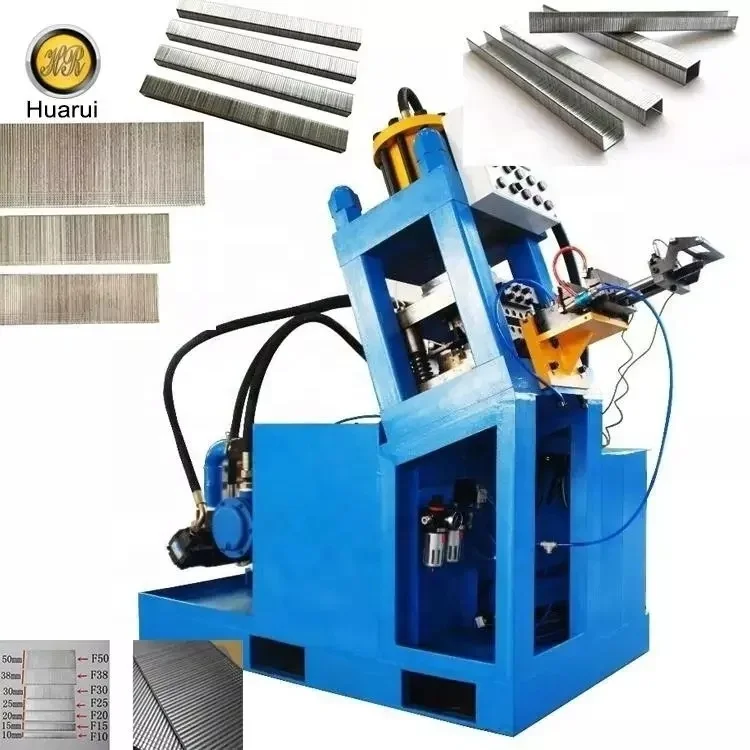

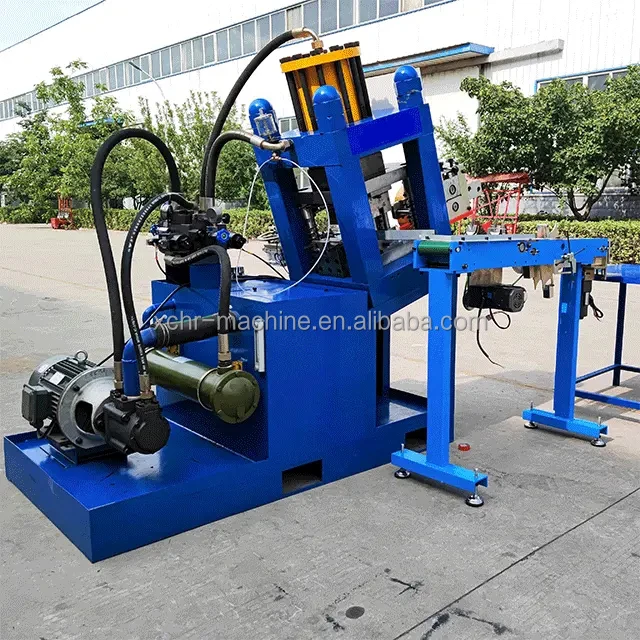

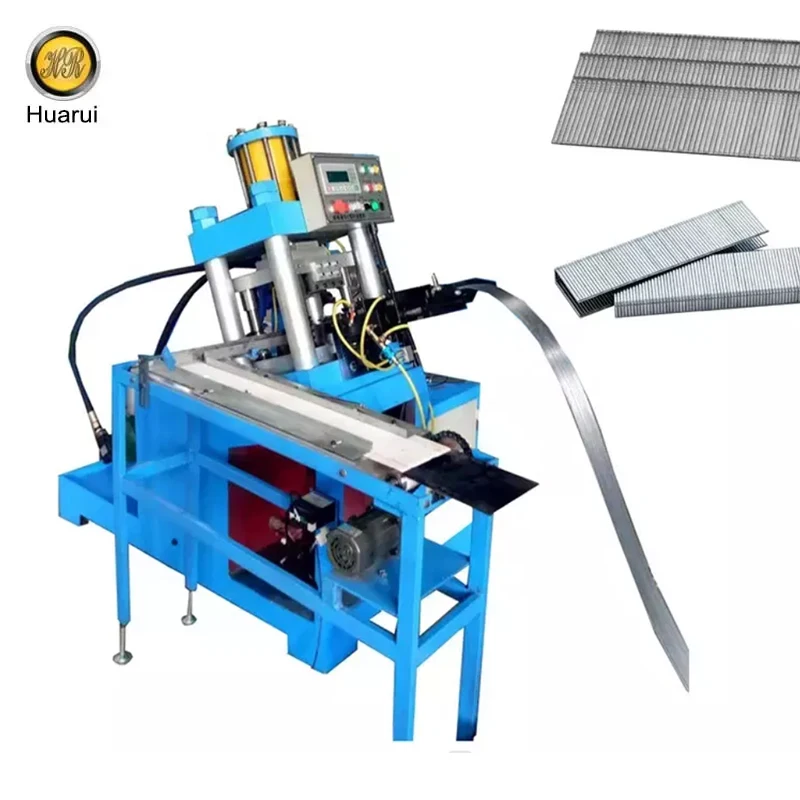

3. Staple Making Machine
Function: J nail hydraulic Staple nail forming machine adopts Taiwan imported feeder, PLC control, including nail picking machine. It can produce 130 pieces per minute with a cylinder diameter of 140 mm.
Power | 7.5KW |
Working speed | 100-140pcs/min |
Diemensions | 2*1*1.65 m |
Machine Weight | 2000 kg |
Applications | F10, F15, F20, F25, F30，T25, T32, T45, T57, T38, T50 |

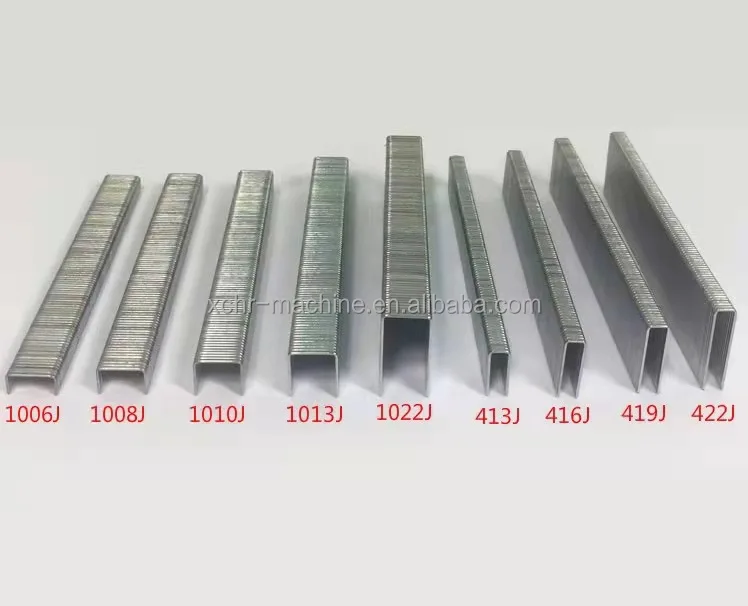

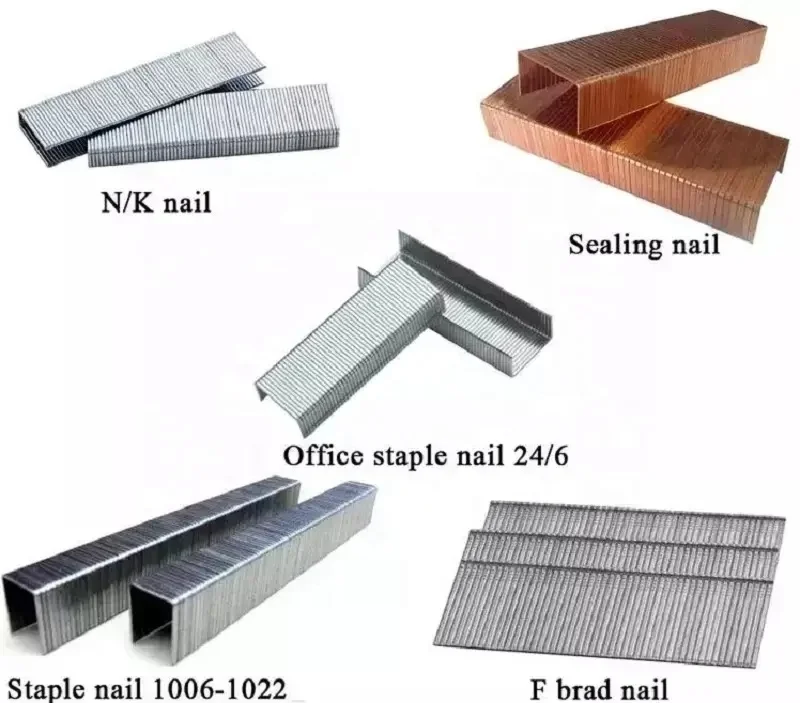

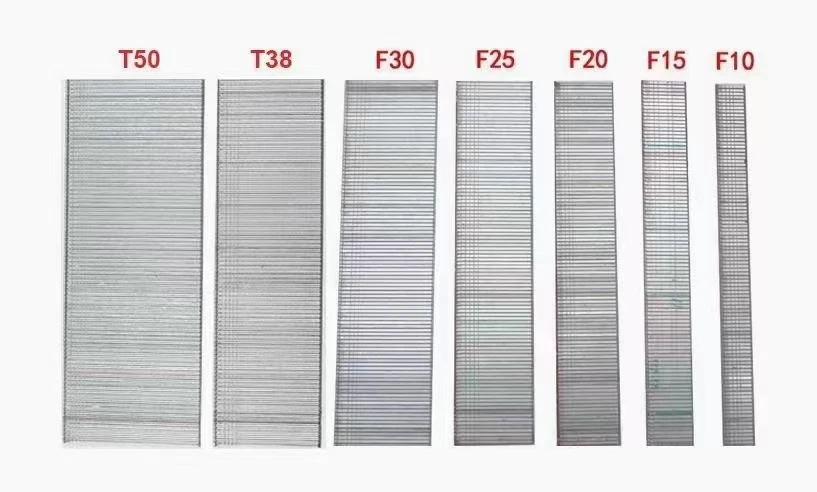

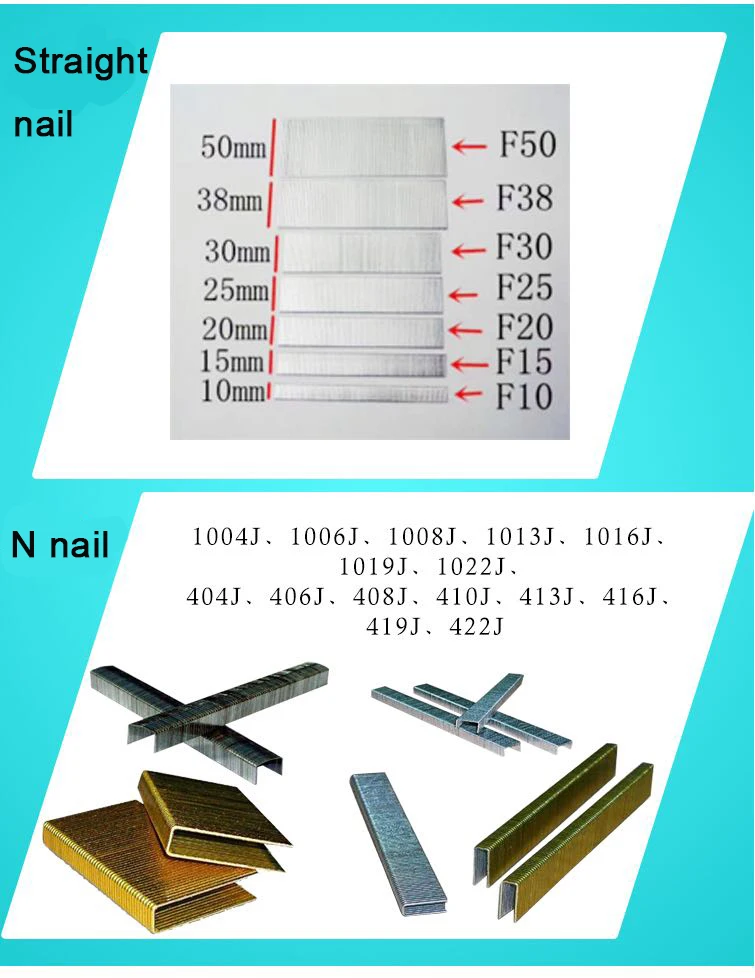

Common Type of Straight Row Nails | ||||||||
Name | Nail Type | Wire Rod | Flattening Thickness | Specifincations (length) | ||||
Straight nail | F nail | 1.02-1.03 | 0.82-0.83 | F10, F15, F20, F25, F30 | ||||
T nail | 1.4 | 1.15-1.16 | T25, T32, T45, T57, T38, T50 | |||||
MACHINE DISPLAY

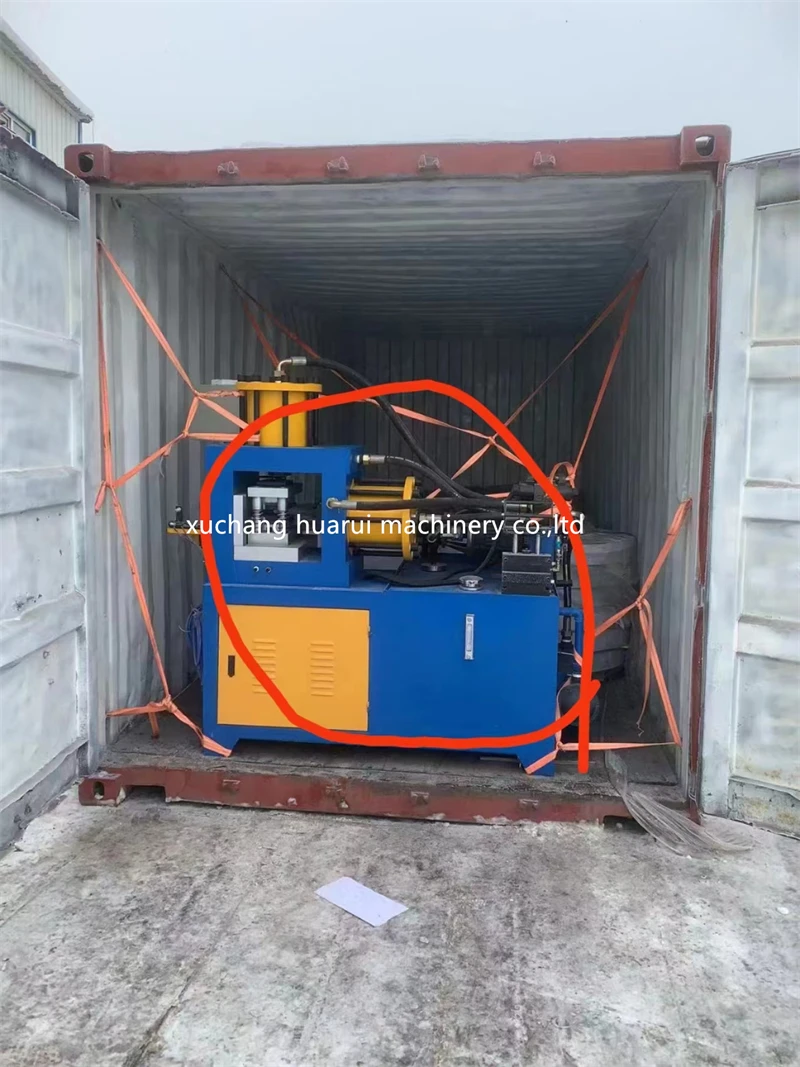

Packing and Shipping
Wooden case package or customized as request, to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in R&D and manufactures nail making machines, waste tire recycling machines and auxiliary equipment. After years of pragmatic innovation, exploration and development, Xuchang Huarui
Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company
Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company
Our Service
1. Two-year guarranty.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.
2. If quality problems happen within guarantee period, our company will repair for free.
3. 100% test and adjust the machine before delivery, and production pictures will be sent to clients, to help them know the machines better.
4. Additionally, our company provides technical support and fittings for life.
5. After-sales service is available any time.
6. If needed, our technician is available overseas to help you.
Photo with Our Clients
FAQ
Q1. Why do we choose Huarui Machinery?
A1. We have more than more than 30 years experience in producing high quality nail making machines and we can provide a reasonable nail production line according to customers' demand.
Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.
Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Uzbekistan, Kyrgyzstan, Kazakhstan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand,Pakistan, Algeria and so on.
Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.
Q5. How to choose the machines?
A5. Please tell us the nail size and type that you want to produce, we will recommend the most suitable machine models to you.
Q6. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.
Q7. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.
Q8. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.
Q9. What is your MOQ ?
A10. 1 set of any machine model.
