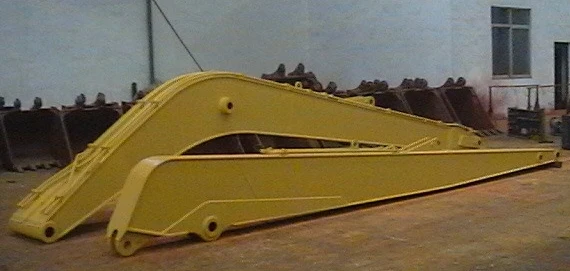

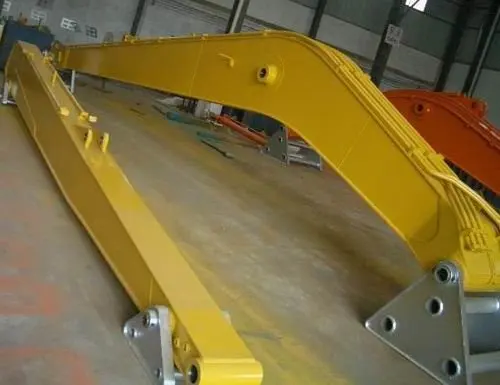

RSBM 14meter Excavator Long Reach Boom and Arm Stick
- Category: >>>
- Supplier: Ransun Heavy Industry Technology(Shanghai) Co. Ltd.
Share on (1600859013108):
Product Overview
Description
Specification
Long reach Boom
Applied Size – From 1 to 50 tons (Could be larger for customization)
Characteristic –
1) For works with a distance couldn’t reached by a single bucket, the set of boom and arm could be a great help.
2) There’re 3 sets of cylinders respectively connect the pump to boom, the boom to arm and arm to bucket.
Application –
Characteristic –
1) For works with a distance couldn’t reached by a single bucket, the set of boom and arm could be a great help.
2) There’re 3 sets of cylinders respectively connect the pump to boom, the boom to arm and arm to bucket.
Application –
As a necessary device, standard boom and arm attachments is often applied in connection with the excavator itself
and the attachment (bucket, for example).
and the attachment (bucket, for example).
Long Reach Boom | ||||||||||||||
Models | Extension Arm | Extended Bucket Rod | Transport Height | Radius | Maximum Unload Height | Maximum Digging Height | Maximum Digging Depth | |||||||
12T | 7100mm | 5900mm | 290omm | 11200mm | 73500mm | 9350mm | 9000mm | |||||||
20T | 8220mm | 7160mm | 2980mm | 14500mm | 10390mm | 12510mm | 11340mm | |||||||
25T | 8220mm | 7160mm | 3050mm | 145D0mim | 10490mm | 12610mm | 11370mm | |||||||
30T | 10000mm | 8000mm | 3210mm | 17300mm | 11720mm | 13920mm | 13010mm | |||||||
35T | 11000mm | 9000mm | 3210mm | 19200mm | 12920mm | 15120mm | 15000mm | |||||||
40T | 12000mm | 1000omm | 3400mm | 21100mm | 14240mm | 16900mm | 16500mm | |||||||
45T | 1.3000mm | 11D00mm | 3400mm | 22900mm | 15230mm | 17800mm | 18000mm | |||||||
Demolition boom | ||||||||||||||
Models | Total Length for 3 Segments | Transport Height | Lifting Transport Height | Hydraulic Shear Weight limit | Spare Cylinder Size | Working Weight | Counter Weight | |||||||
25T | 16000mm | 3160mm | 14900mm | 2000kg | 20T | 5000kg | 4T | |||||||
30T | 18000mm | 3300mm | 17000mm | 2000kg | 20T | 6500kg | 4.5T | |||||||
35T | 20000mm | 3300mm | 19000mm | 2000kg | 20T | 7000kg | 4.5T | |||||||
40T | 22000mm | 3400mm | 21050mm | 2000kg | 22T | 7800kg | 5T | |||||||
45T | 24000mm | 3400mm | 23100mm | 2000kg | 22T | 8500kg | 5T | |||||||
