2200W mobility scooter,mini golf cart
US $4650-$5650
2023 New Chinese 72V 4KW 5KW 7KW AC motor 4 wheel 2 2 Seater Golf Carts Electric Golf Kart
- Category: >>>
- Supplier: Suzhou Lexsong Electromechanical Equipment Co. Ltd.
Share on (1600859020474):
Product Overview
Description
Products Description

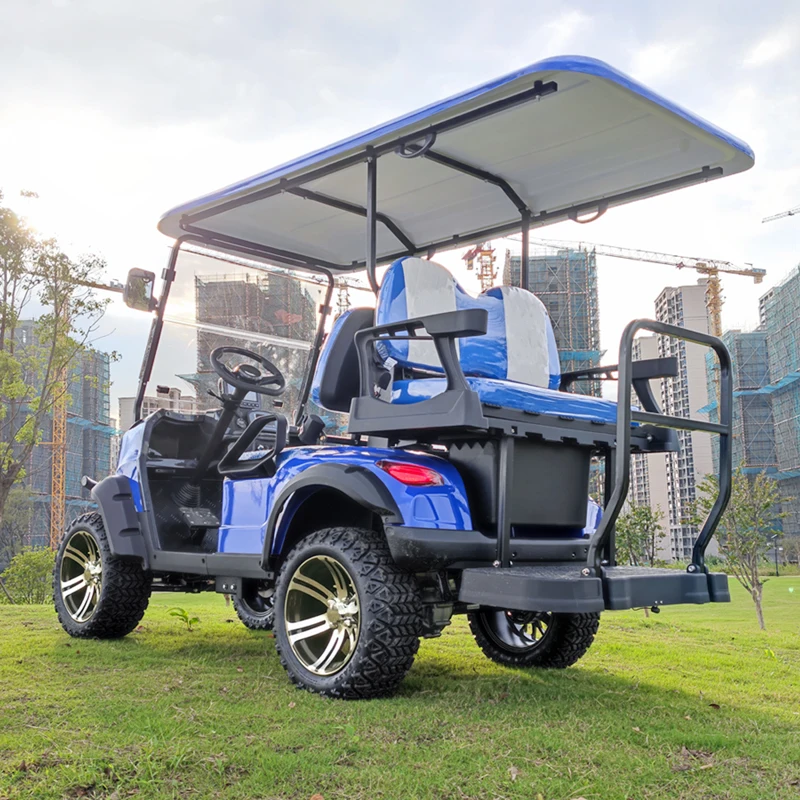

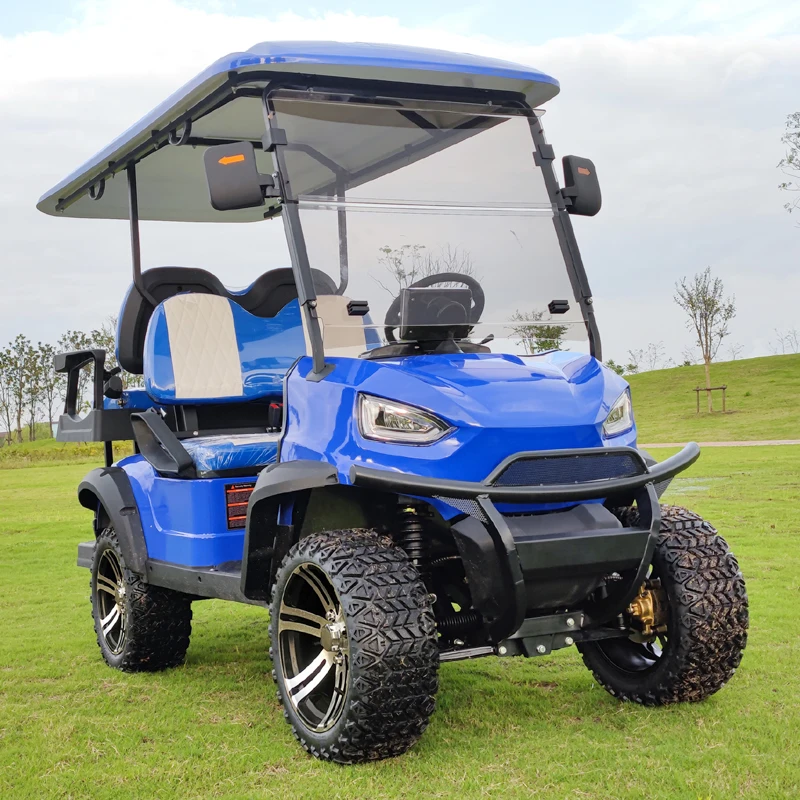

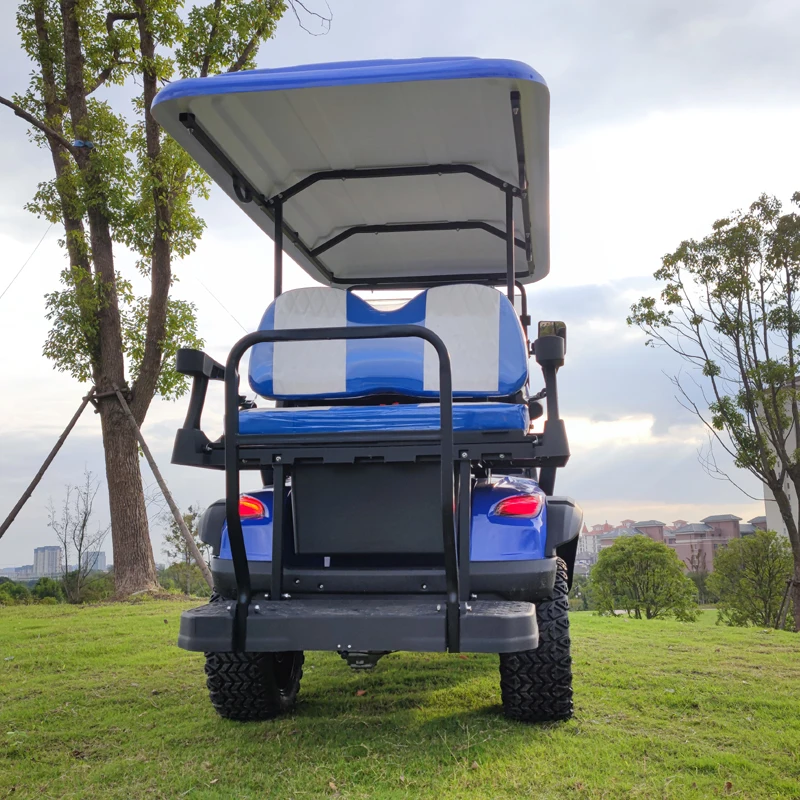

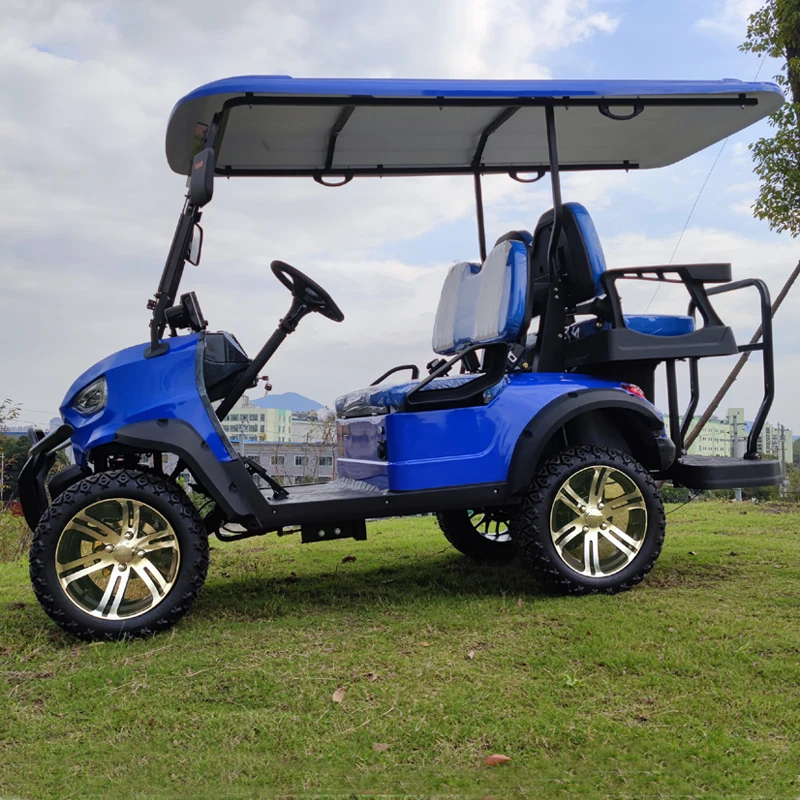

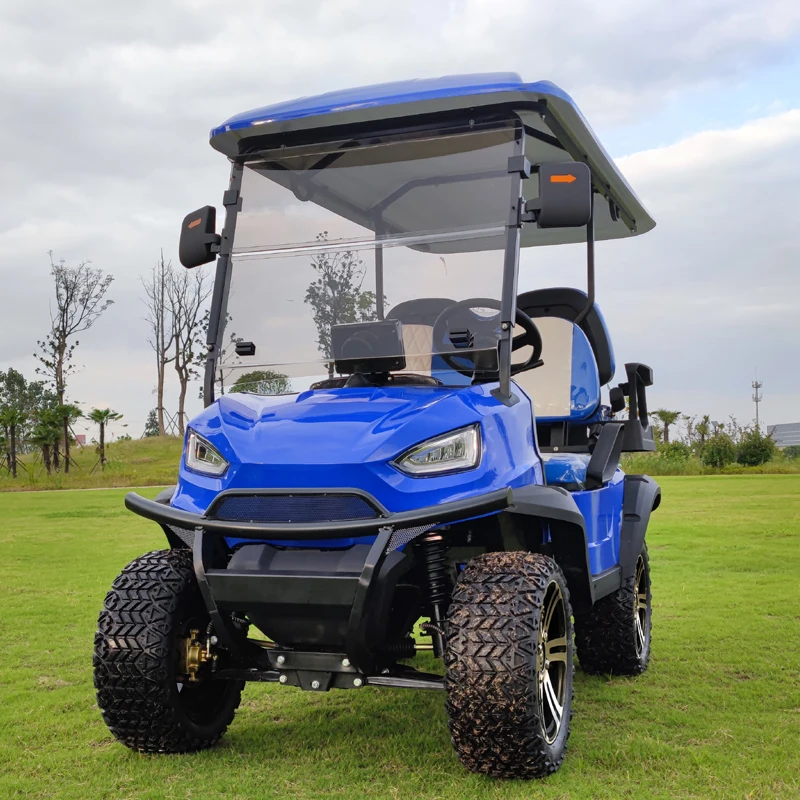

4 Wheel Lithium Battery Electric Golf Hunting Buggy Cart LS2020ASZ is powered by 72V AC motor and lithium battery. The big teeth 23 inch off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc.. It has many features, such as 4 wheel hydraulic brake, front independent suspension, LED lights, digital meter.
Detailed Specifications of Golf Cart | ||
Key Componets | ||
Battery | 72V115AH Lithium Ion Battery (can upgrade to 170Ah or 228Ah) | |
Motor | 5KW/7.5KW AC Motor | |
Controller | 350A Enpower (or other equal brand) / 400A Curtis AC programmable controller | |
Charger | Onboard, Smart HF charger, Input 100-240V, output 72V/15A or 18A, with charging plug for different countries. | |
Dimensions | ||
Overall dimensions (mm) | 2950x1340x1990 | |
Min.ground clearance (mm) | 170 | |
Wheelbase (mm) | 1680 | |
Front wheel tread (mm) | 850 | |
Rear wheel tread (mm) | 975 | |
Body and Frame | ||
Chassis Frame | Welded steel framework to be treated in galvanization and powder coating | |
Body Cover | PP injection plastic front body + PP injection plastic rear body | |
Roof | PP injection (Black) or vacuum plastic | |
Windshield | Organic Glass windshield, split, tinted or clear | |
Backrest and cushion | Comfortable foam + artificial leather + plastic armrest | |
Dashboard | PP injection plastic in black, with cup-holders and glove box | |
Steering wheel | Sports style | |
Side trim | Plastic | |
Side mirrors | Foldable | |
Electric System | ||
Lighting system and horn | All LED lights, including 2 headlights (with turning light combined, H/L beam), 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 72V to 12V), electric horn, buzzer | |
Digital Meter | LCD screen, with speedometer, mileage, lights indicators, Battery SOC, Voltage, current | |
Steering, Brake and Suspension | ||
Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |
Brake system | 4-wheel hydraulic brake front disc rear drum + regenerative brake + electrical park brake | |
Accelerator | Stepless speed change | |
Suspension system | Front macpherson independent and rear trailing arm suspension, with semi-air shock absorber | |
Driving mode | Rear axle two stage deceleration, motor direct driving | |
Rear Axle | Integrated, gear ratio 12.76:1 | |
Wheel & Tyre | 12x7 aluminum wheel + 23" off road tire（23*10.5-12） | |
Company Profile
Suzhou Lexsong Electromechanical Equipment Co., Ltd.

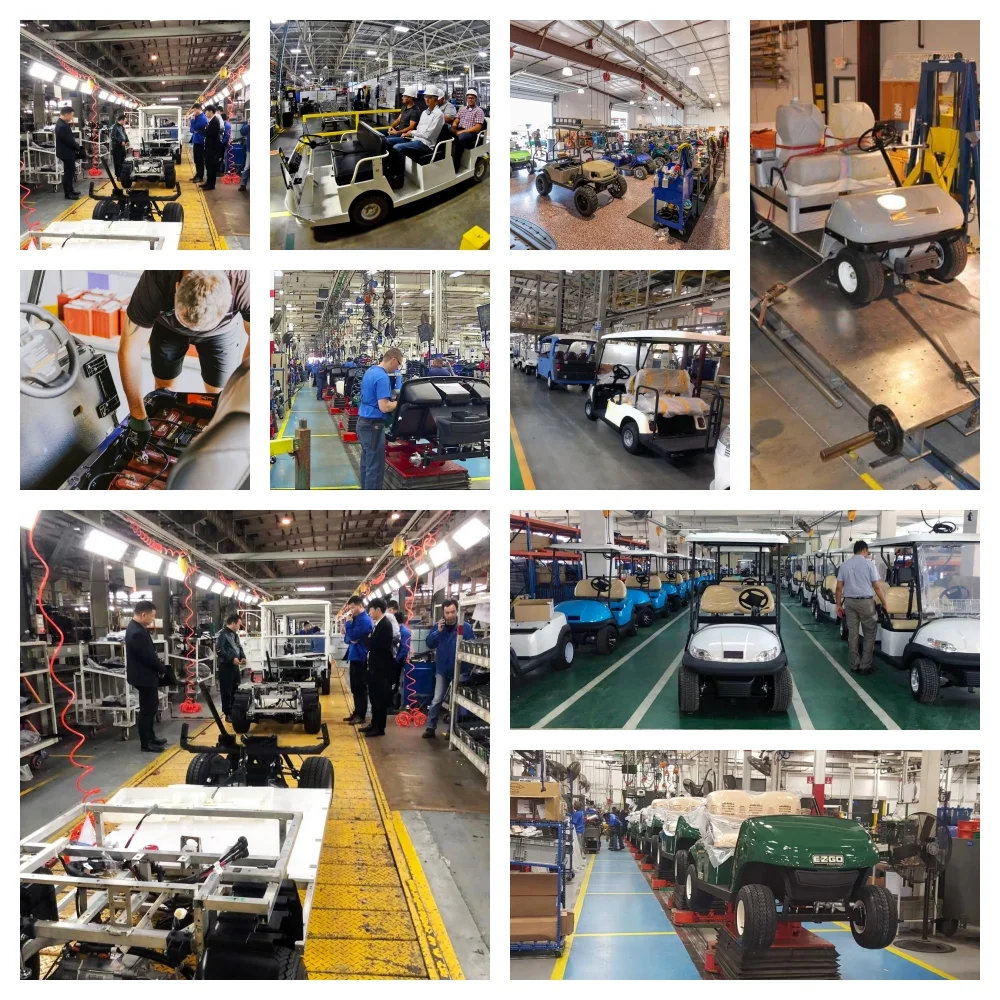

More than 15 years experience in electric vehicle business, has 3 production lines with the capacity of 3000 units monthly.We have 50+ workers and 10+ engineers for electric scooters business, which can ensure our production capacity and quality and ennovation.
Our electric vehicles has been exported to more than 40 countries around the world.We have more than 20 models electric scooters for you to choose. Some of the models are homologated under EU regulations and have been exported to EU countries.
Our electric vehicles has been exported to more than 40 countries around the world.We have more than 20 models electric scooters for you to choose. Some of the models are homologated under EU regulations and have been exported to EU countries.
