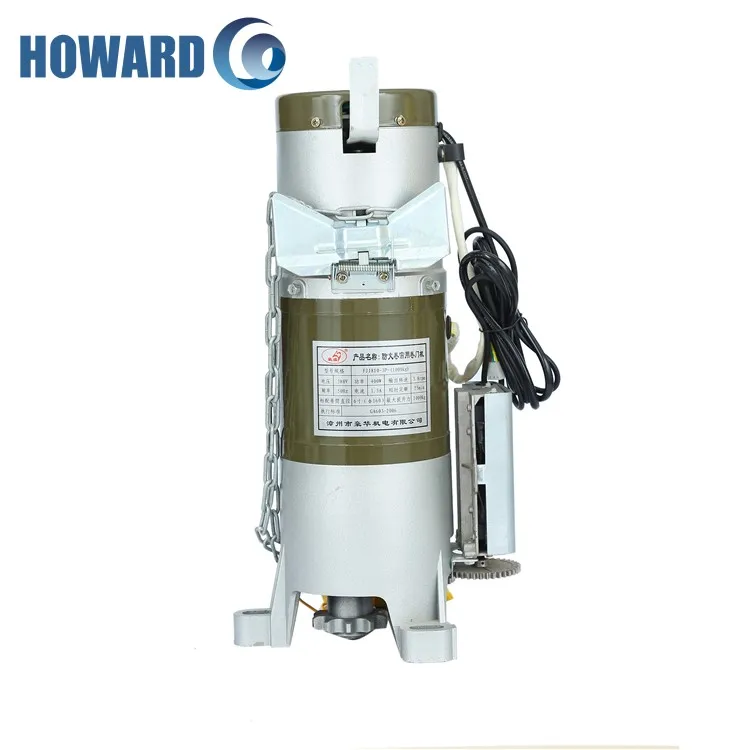

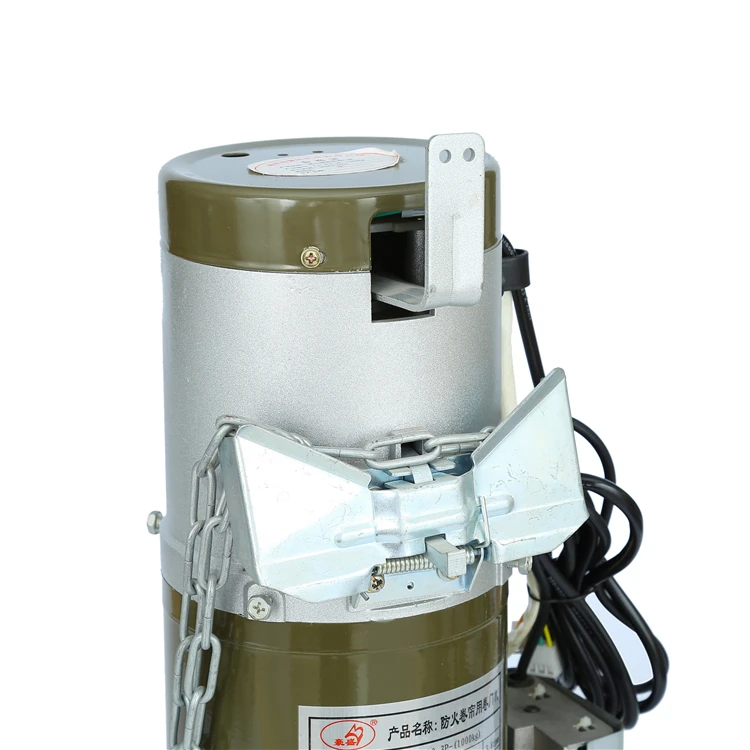

1500kg Fireproof Roller Shutter motor

Function Brief

FJJ series electric fireproof rolling door motor , the latest type rolling door motor that produced after doing large researching on domestic new technology and advanced type machine and later absorbing the advantages. The fireproof rolling door motor with many advantages ,it is high quality , multiple function , easy installation etc . It is the ideal complementary products and the symbol of modern life.

Left installed or right installed both are ok for our fireproof rolling door motor . Can choose to install in fixed single track bracket or movable double track bracket . And the motor engine equipped with fuse protector to sense the working environment and situation.

Feature Of Product

·pretty appearance , advanced structure , strong power ;

·equipped with high-power but low loss ring transformer , can directly use utility supply to     drive the motor

·low noise , ,slight vibration , little power consumption ;

·light weight , small size , easy installation , long life ;

·with convenient and reliable remote control function , can control the motor in a long distance ;

·the battery of UPS is the universal product in the market(4A/24V) ;

·UPS with energy efficiency and environmental protection light , can use around 3 minutes.

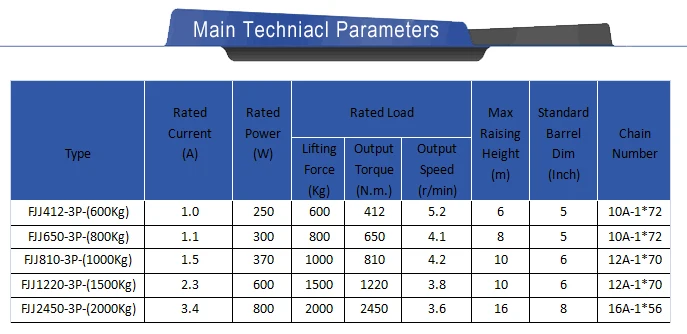

Main specifications and technical data of the FJJ series fireproof motor

1. temperature of ambient air changing with the season

2. relative humidity is 90% (25 ℃)

3. Short-term operated ,can not be continuous operation for more than 5 minutes

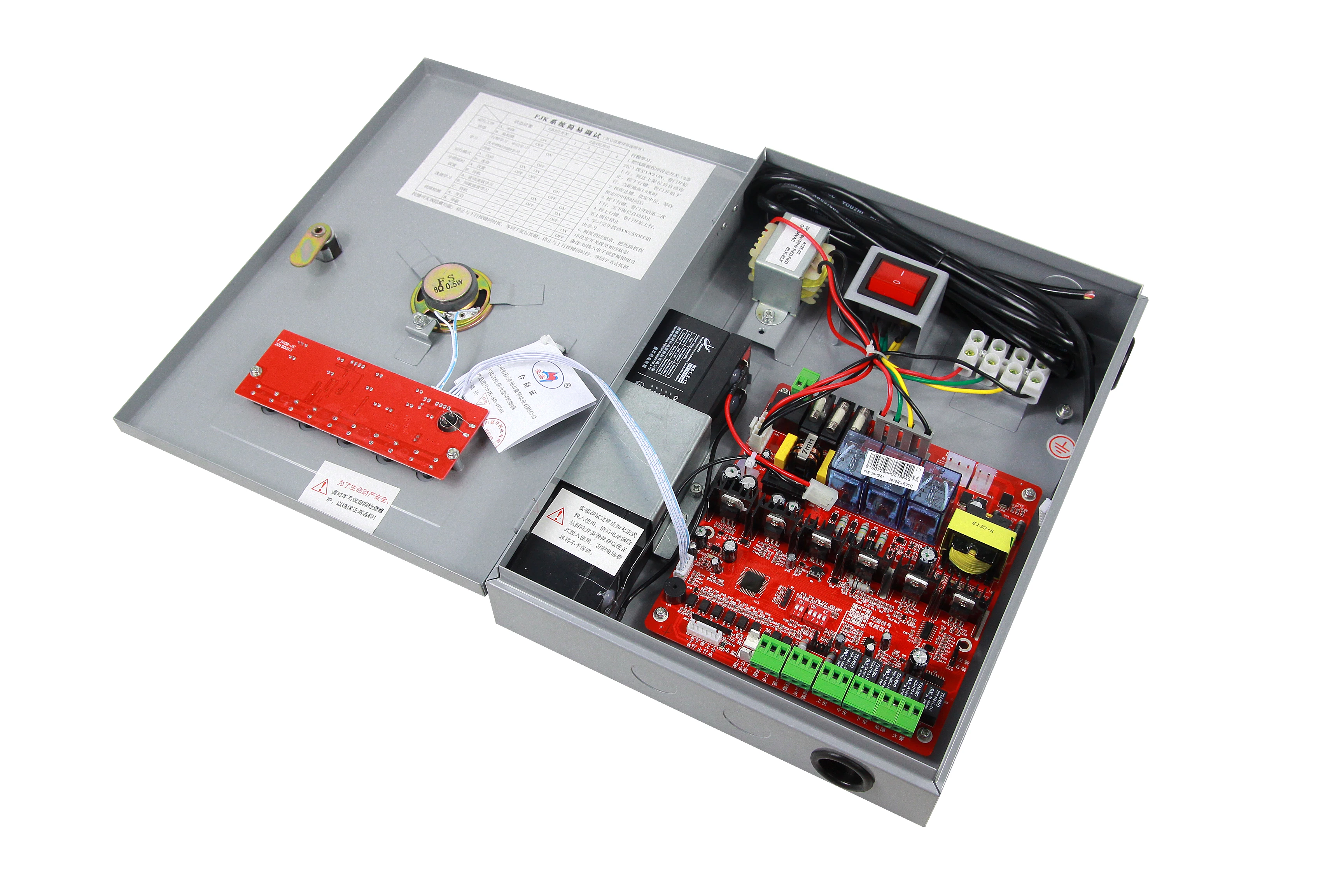

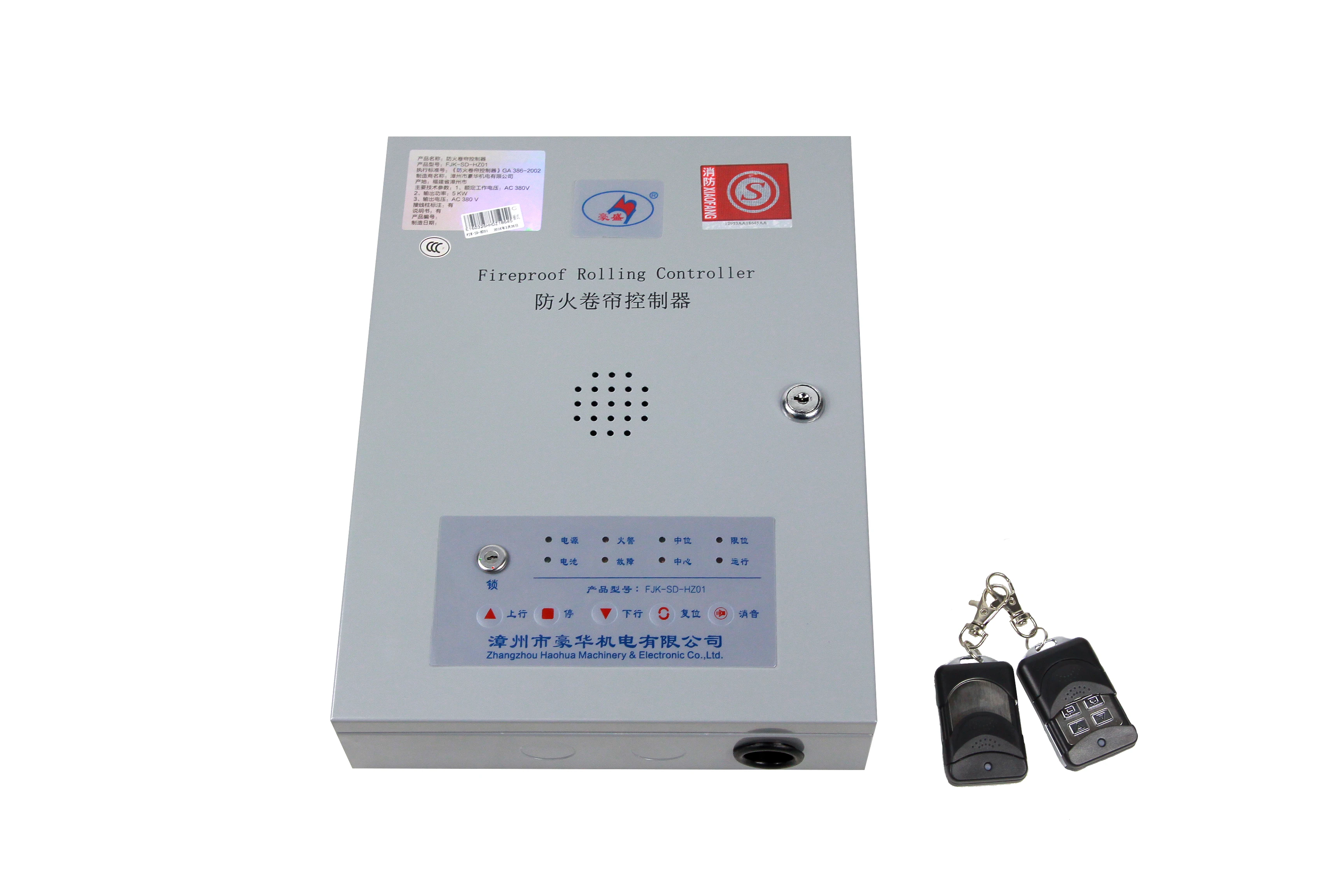

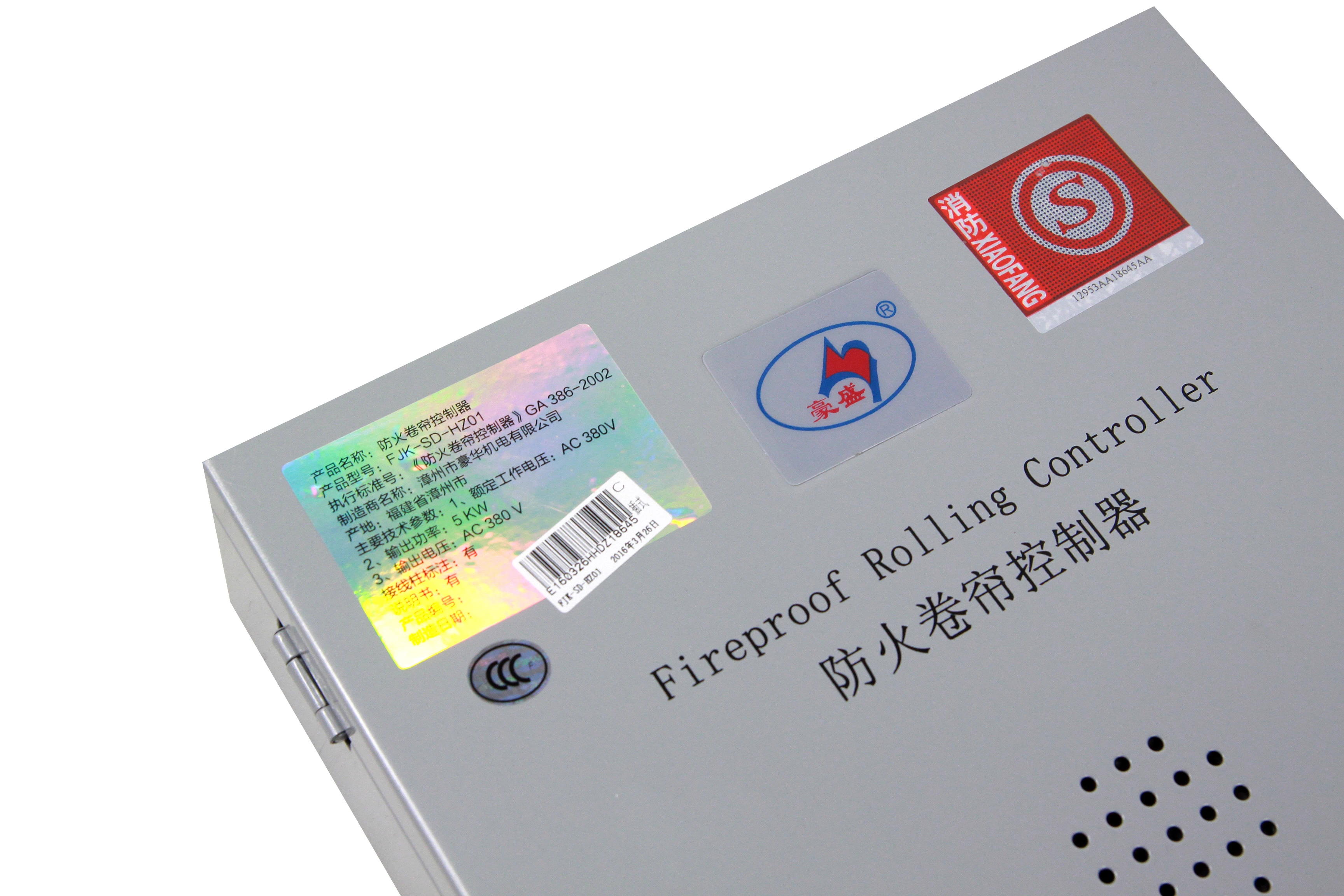

Fireproof Control Box Specifications

·Middle Limit control is acceptable .When adjusting the limit ,  position accuracy is±10cm;

·Delay of sudden stop (means the signal of temperature delay or the all close single delay ) time ranges around 6~ 300s ;

·Contact capacity of primary loopis AC200V / 10A ;

·Contact capacity of transfer failure ,shutter location and detector movement signal to Fire Service Center is DC30V/1A ;

·Responese time of failure is less than 3.0s ;

·Fire detector movement signal and Fire Service Center signal response time is less than 1s ;

·The alarm volume can reach at around 92dB ;

·Capacity of emergency battery is 12V/3Ah*2;

·Charging time of battery is less than 24 hours;

·Scheduled maintenance of battery is 45 days ;

·Three phase four wire system , rated voltage is 323~ 418V;

·System Consumption is less than 15W .
