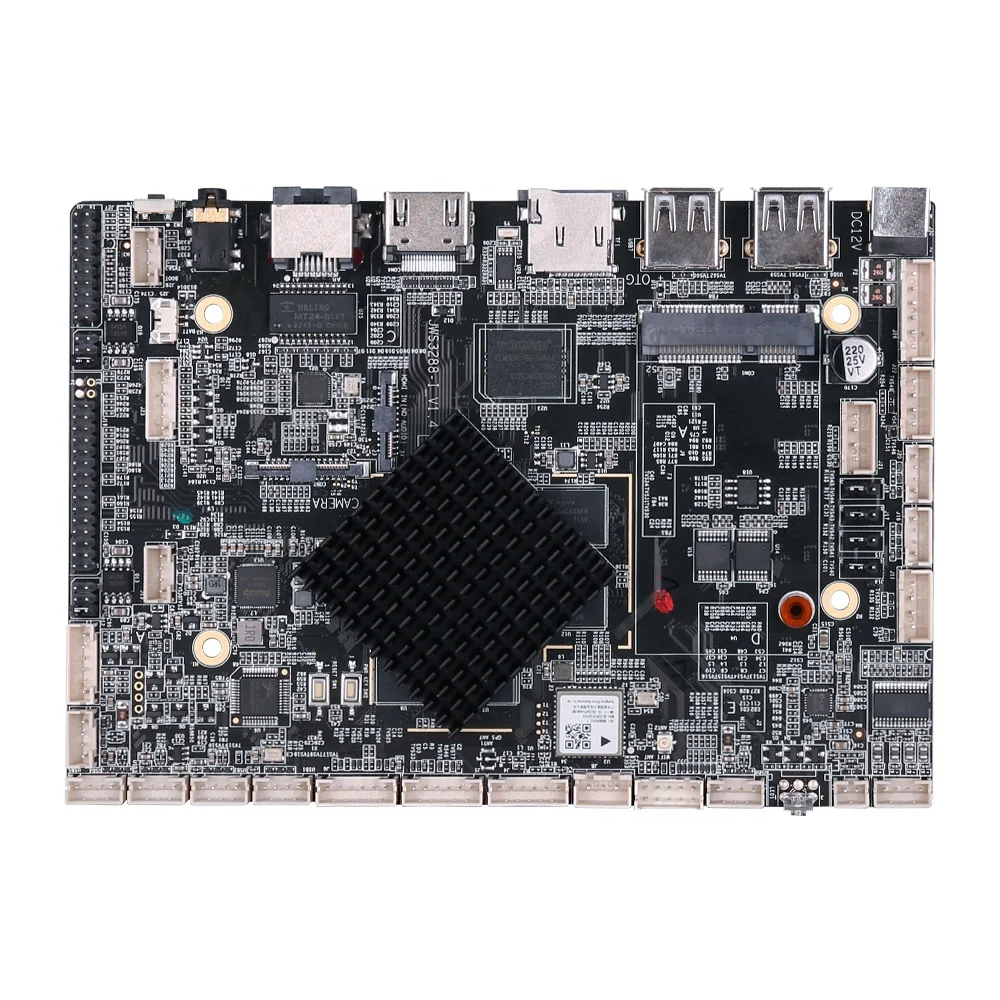

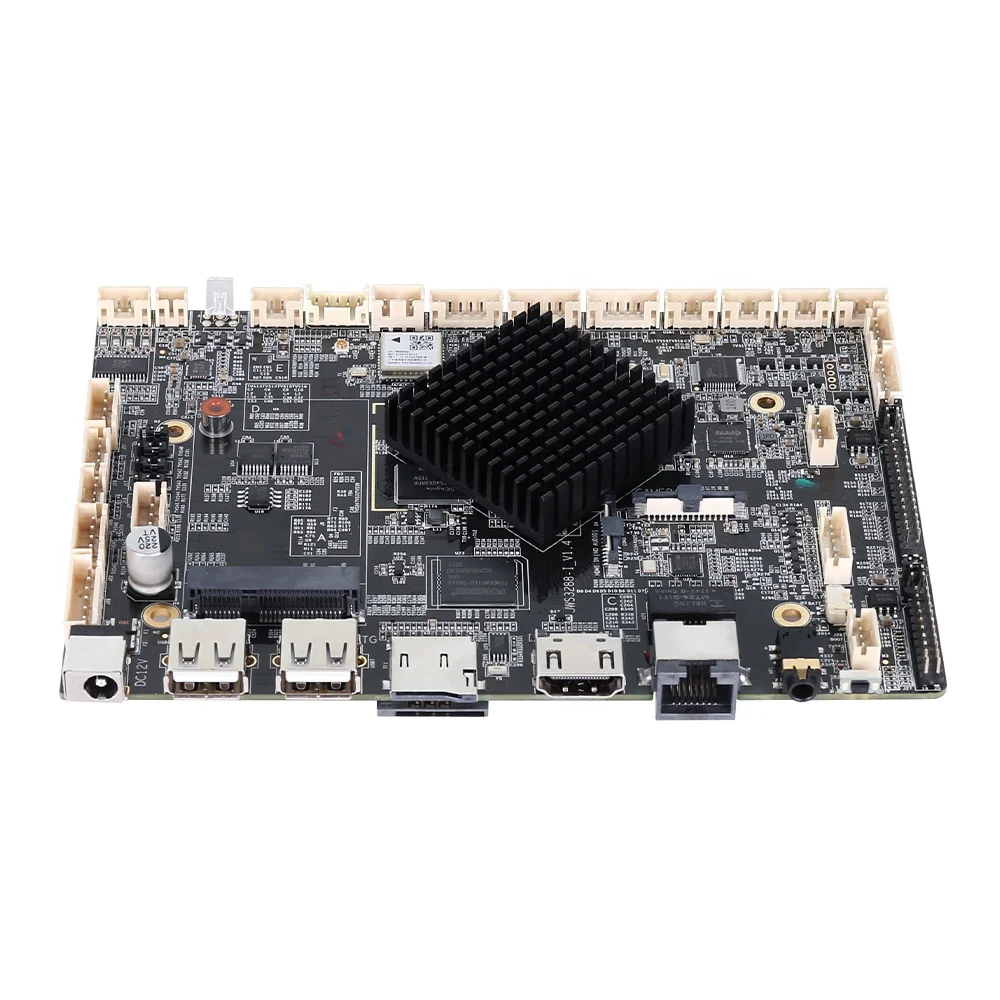

DC12V 36V Rk3288 Module BT4.2/Wifi/GMS 2G 16G 4K HD Linux/Android Controller Board for Industrial Touch PC /Advertising Display
- Category: >>>
- Supplier: Shenzhen Ctfly Electronic Technology Co. Ltd.
Share on (1600859159730):
Product Overview
Description

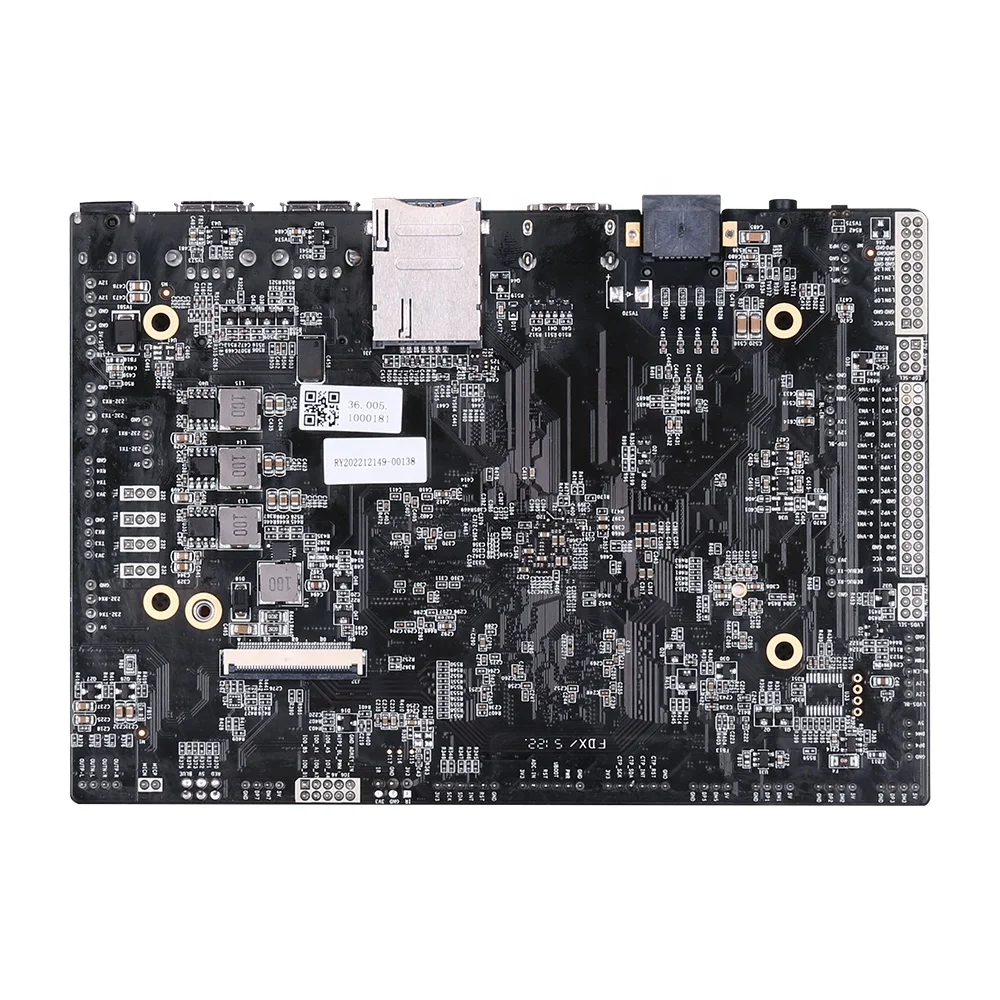

ROCKCHIP RK3288 ANDROID INDUSTRIAL MOTHEBOARD
JWS3288-I uses RK3288 Cortex-A17 quad-core processor, its basic frequency is 1.6GHz,it supports Android7.1/10.0/12.0 OS. JWS3288-I Uses Mali-T764 GPU, it has H.265 hardware decoder to supports 4K display. Whether it is game, test performance score or decoding, JWS3288-I is your best choice for human-computer interaction and industrial control projects.
Features:
1.High integration. JWS3288-I integrated LVDS/EDP/Ethernet/HDMI/WIFI/Blue tooth functions to itself.
2.Built-in PCI-E 4G module. JWS3288-I Supports PCIE 3G/4G module from HUAWEI,ZTE or other brand, it also supports VoLTE.

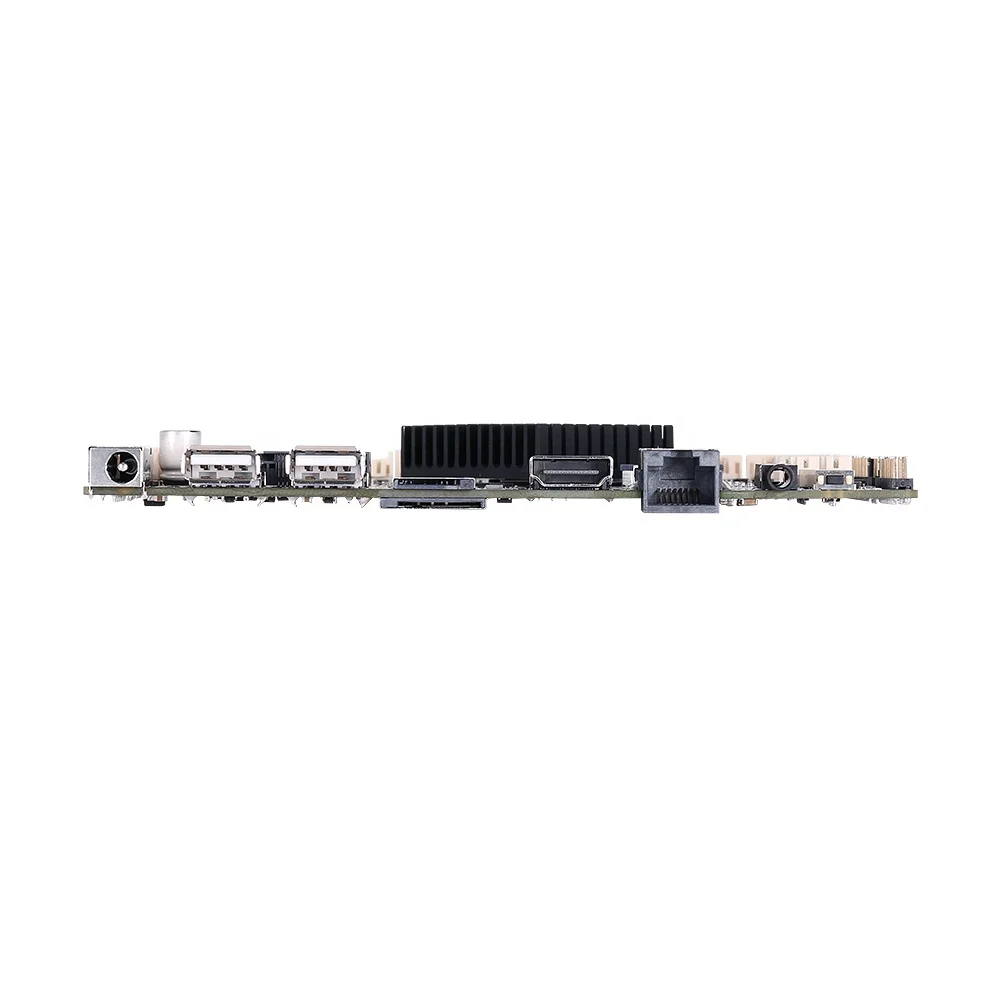

3.Various expansion interfaces. JWS3288-I has eight USB ports(six internal expansion ports and two USB standard ports.), a 232 port, two switchable TTL/232 ports, it can suit your customization requirement.
4.High definition.JWS3288-I supports 4K 3840x2160 decoding and LCD display with various LVDS/EDP ports, it also supports Special-shaped screens of various sizes and resolutions.

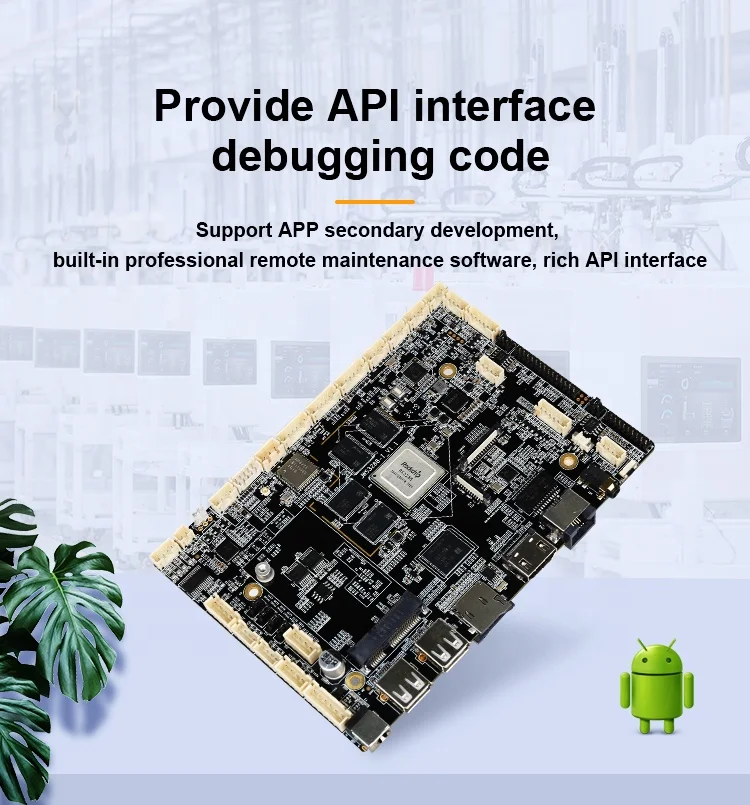

5.Android system customization. JWS3288-I provides system calling interface and API reference code, it supports upper-layer application’s development perfectly.
6.JWS3288-I supports infrared, optical, capacitance, resistance and other mainstream touch screen, it also supports drive-free HID configuration which no need to debug before using.
7.WIFI module supports 2.4G/5G frequency and 5.0 blue-tooth.
2.Built-in PCI-E 4G module. JWS3288-I Supports PCIE 3G/4G module from HUAWEI,ZTE or other brand, it also supports VoLTE.
3.Various expansion interfaces. JWS3288-I has eight USB ports(six internal expansion ports and two USB standard ports.), a 232 port, two switchable TTL/232 ports, it can suit your customization requirement.
4.High definition.JWS3288-I supports 4K 3840x2160 decoding and LCD display with various LVDS/EDP ports, it also supports Special-shaped screens of various sizes and resolutions.
5.Android system customization. JWS3288-I provides system calling interface and API reference code, it supports upper-layer application’s development perfectly.
6.JWS3288-I supports infrared, optical, capacitance, resistance and other mainstream touch screen, it also supports drive-free HID configuration which no need to debug before using.
7.WIFI module supports 2.4G/5G frequency and 5.0 blue-tooth.
Applicability:
JWS3288-I is a intelligent terminal motherboard can be applied in advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.
JWS3288-I is a intelligent terminal motherboard can be applied in advertising machine, digital signage, intelligent self-service terminal, intelligent vending machine, O2O smart equipment, industrial control computer, robot and other equipment.
Product Description

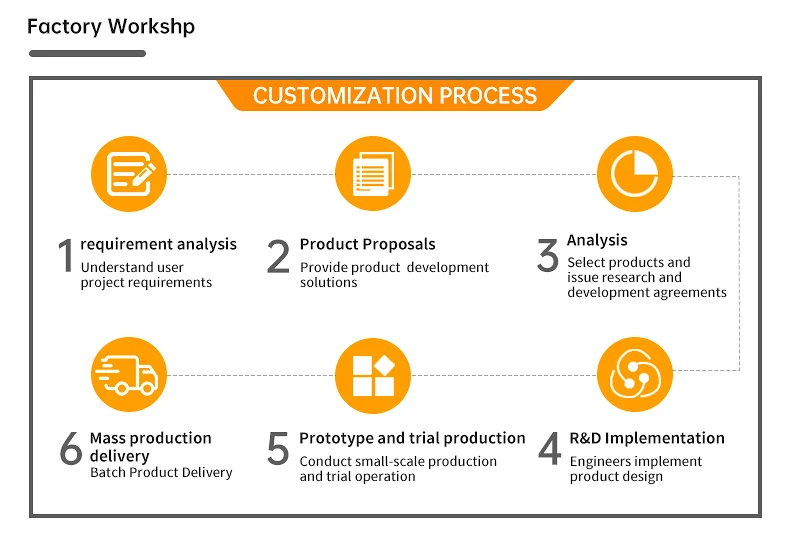

Customized service
Product Specification
CPU | RK3288, Quad-core, 1.6GHz |
Memory | 2G(4G optional) |
Storage | EMMC 16G(8/32/64G optional,maximum 64G) |
ROM | 4KB EEPROM |
Resolution | Maximum 3840*2160 |
OS | Android 7.1/10.0/12.0 Linux4.4/Ubuntu18.04/Debian10.0 |
Play Mode | Supports multiple play modes such as loop,timing and interstitial. |
Network | 4G,Ethernet,WiFi/BT5.0,Wireless peripheral extension |
Video Format | Support WMV,AVI,FLV,RM,RMVB,MPEG,TS,MP4 etc |
Photograph Format | Support BMP,JPEG,PNG,GIF |
USB | USB HOST*1,USB OTG*1,USB interface*6 |
Serial Port | 232*1，TTL/232 switch port*2 |
GPS | External GPS(Optional) |
WIFI、BT | Built-in dual frequency WIFI，BT5.0 |
3G | Unlocked,Support voice call(base on 4G module,Optional) |
Ethernet | 10M/100M/1000M adapt Ethernet |
TF Card | Trans flash Card supported |
LVDS | LVDS*1,support 50/60Hz LCD panel |
EDP | Support Multi-resolution EDP interface LCD panel |
HDMI | HDMI*1, support 1080P@120Hz，4kx2k@60Hz output |
HDMI IN | Video signal input only |
AV Output | Support left and right channel output, built-in dual 4Ω/20W，8Ω/10W amplifier |
Real Time Clock | Supported |
Timing turn on/off | Supported |
OS upgrade | Support upgrade through TF,USB |
Recommend Products
Company Profile
Shenzhen CTFLY Electronic Technology Co.,Ltd is is a professional motherboard manufacturer dedicated to the R & D of ARM industrial control motherboard solutions, based on PCBA development, production and sales. We are a embedded development platform supplier, and provide ARM platform software and hardware custom development, Android and other operating system layer software consulting and custom development and other related services. CTFLY has been committed to chip solutions such as Rockchip and Allwinner as the leading direction for many years, focusing on the development of ARM industrial control motherboard solutions, such as A64, RK3568, RK3588, RK3288, RK3399 and other series of embedded ARM industrial control motherboards, with various product styles. The products are complete, the quality is excellent, and the supporting after-sales service is excellent, to meet the application needs of different industries, and have won unanimous praise from customers.

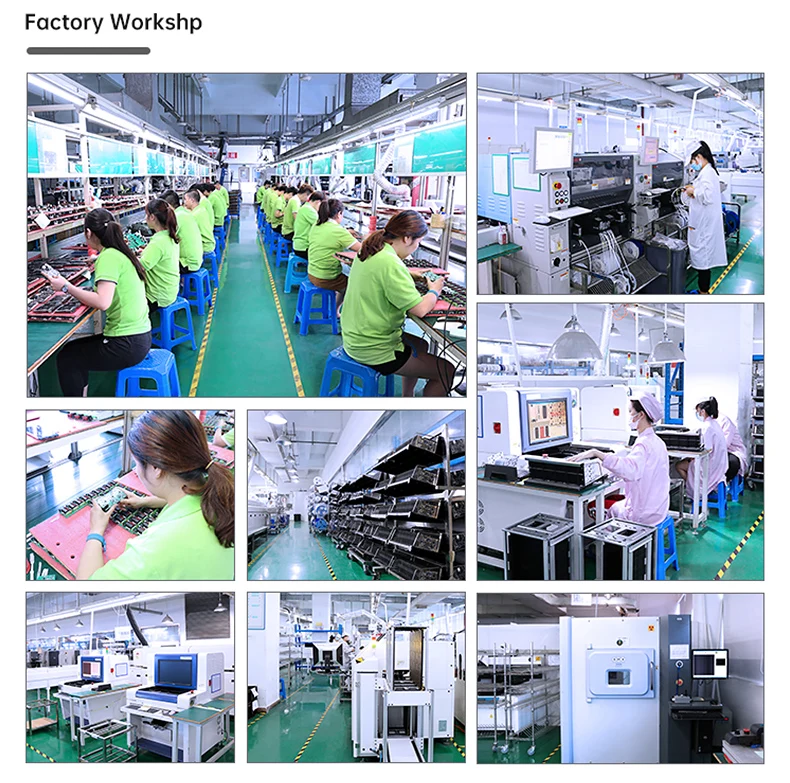

With over 90+ R&D engineers and our own production factory, we offer a full range of one-stop OEM/ODM service and end-to-end customization services based on all operating systems. Our extensive hardware and software design capabilities enable us to help you shorten the cycle from product selection, R&D project, small volume trial production to mass production delivery, and quickly seize market opportunities through our ecosystem of embedded platforms, application design, and certified manufacturing service. We continuously offer diversified services to help clients create more business value.
With over 90+ R&D engineers and our own production factory, we offer a full range of one-stop OEM/ODM service and end-to-end customization services based on all operating systems. Our extensive hardware and software design capabilities enable us to help you shorten the cycle from product selection, R&D project, small volume trial production to mass production delivery, and quickly seize market opportunities through our ecosystem of embedded platforms, application design, and certified manufacturing service. We continuously offer diversified services to help clients create more business value.
Why Choose Us
Why choose us?
1. ISO9001 quality assurance system implemented
2. Strong R&D team over 60 people with hardware engineers, software engineers and our own production factory, we offer a full range of one-stop OEM/ODM service and end-to-end customization services based on all operating systems.
3.Three-level inspection: Incoming Quality Control (IQC), Production Process Management and Outgoing Quality Control (OQC).
4. Mass stock! Competitive Price! Best Service!
5. Quick Delivery: various Express supported, have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.
6. Package: Strict package, all the panels are in original package from original factory, and all the packages have labels and serial number from original factory.
2. Strong R&D team over 60 people with hardware engineers, software engineers and our own production factory, we offer a full range of one-stop OEM/ODM service and end-to-end customization services based on all operating systems.
3.Three-level inspection: Incoming Quality Control (IQC), Production Process Management and Outgoing Quality Control (OQC).
4. Mass stock! Competitive Price! Best Service!
5. Quick Delivery: various Express supported, have competitive freight fee from DHL/UPS/EMS/FedEx/TNT Express companies.
6. Package: Strict package, all the panels are in original package from original factory, and all the packages have labels and serial number from original factory.
Packing & Shipping
FAQ
Q1: Are you the manufacturer of the products?
A1: Yes, certainly we are, We are manufacture that have OEM/ODM experience for over 13 years.We have confidence to offer you satisfying products with
better quality and better price.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 3-5 working days for one sample, 15 working days for a large quantity.
Q5: What payment method do you accept ?
A5:T/T,Western Union,PayPal, alibaba trade assurance
A1: Yes, certainly we are, We are manufacture that have OEM/ODM experience for over 13 years.We have confidence to offer you satisfying products with
better quality and better price.
Q2: Do you accept OEM / ODM order?
A2: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 3-5 working days for one sample, 15 working days for a large quantity.
Q5: What payment method do you accept ?
A5:T/T,Western Union,PayPal, alibaba trade assurance
Q6:What is application of our industrial motherboard?
A6:Our motherboard products are widely used in smart cities, IoT smart devices, retail self-service terminal equipment, education terminal equipment, security monitoring equipment, smart home, face recognition, gate channels, industrial control terminals and other fields , It is deeply integrated with mainstream APK applications, MES system, smart campus information system, POS cash register system, face recognition algorithm and other industry application software
Q7: How long is the warranty time for your products?
A7: Our officially promised warranty time is 3 years after delivery at best.
Q7: How long is the warranty time for your products?
A7: Our officially promised warranty time is 3 years after delivery at best.
