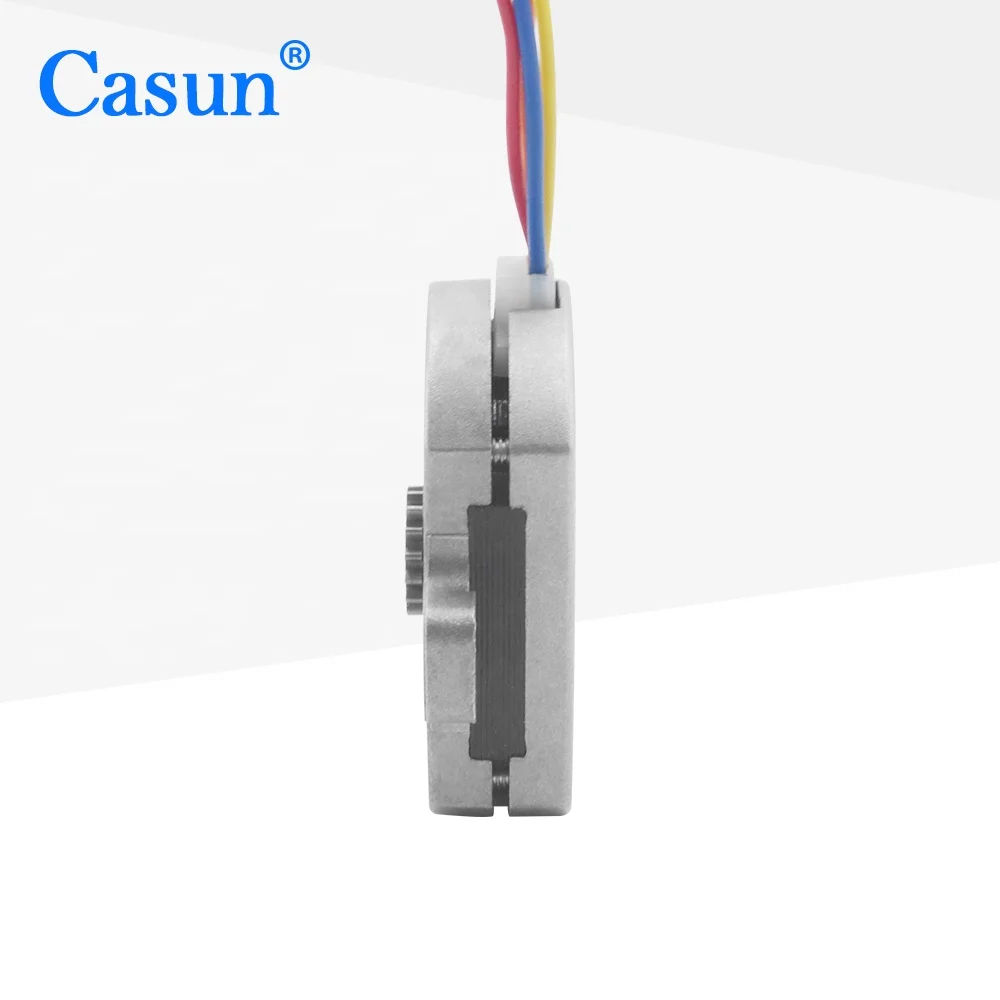

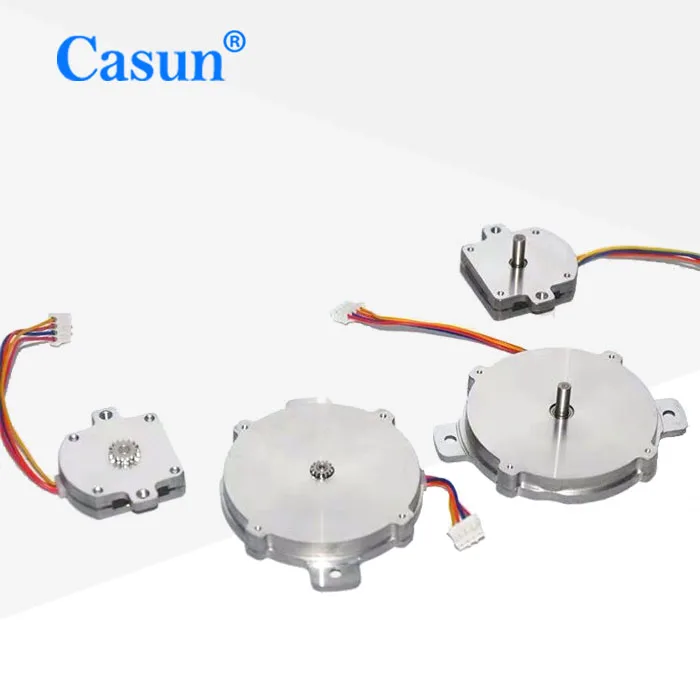

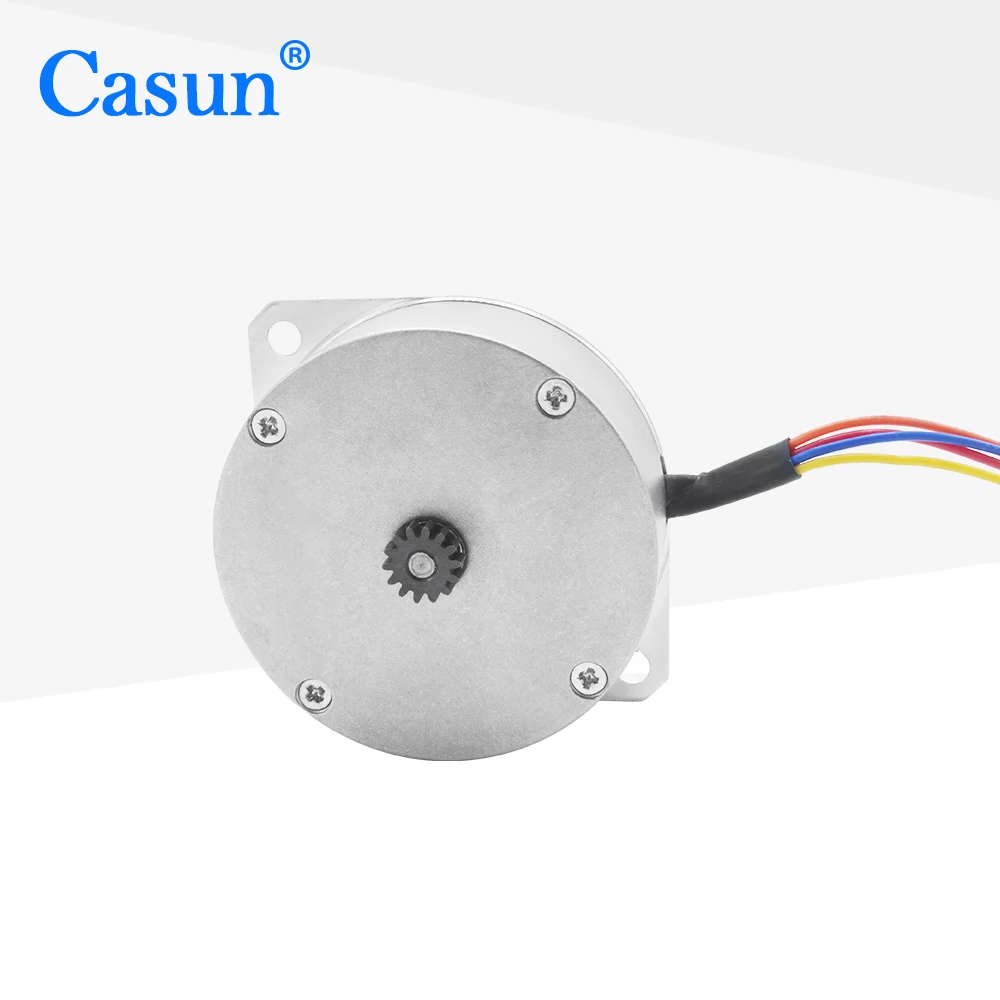

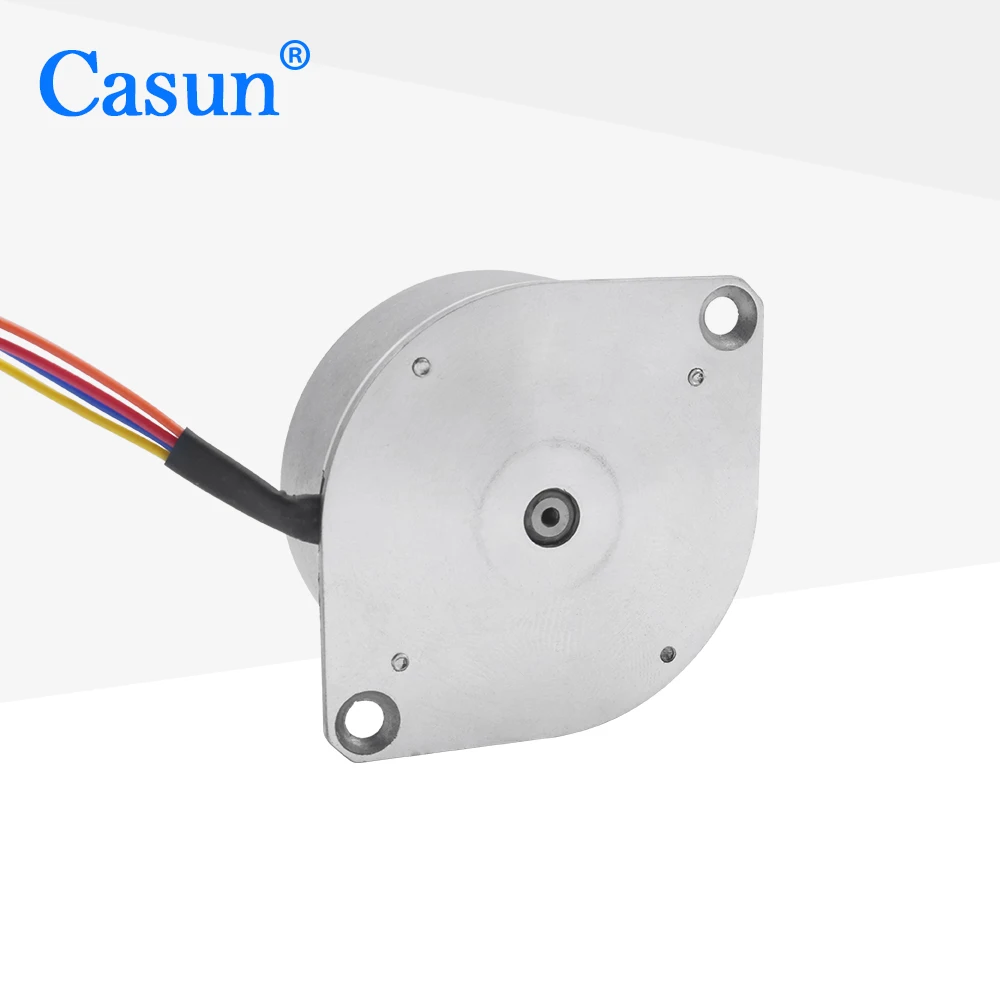

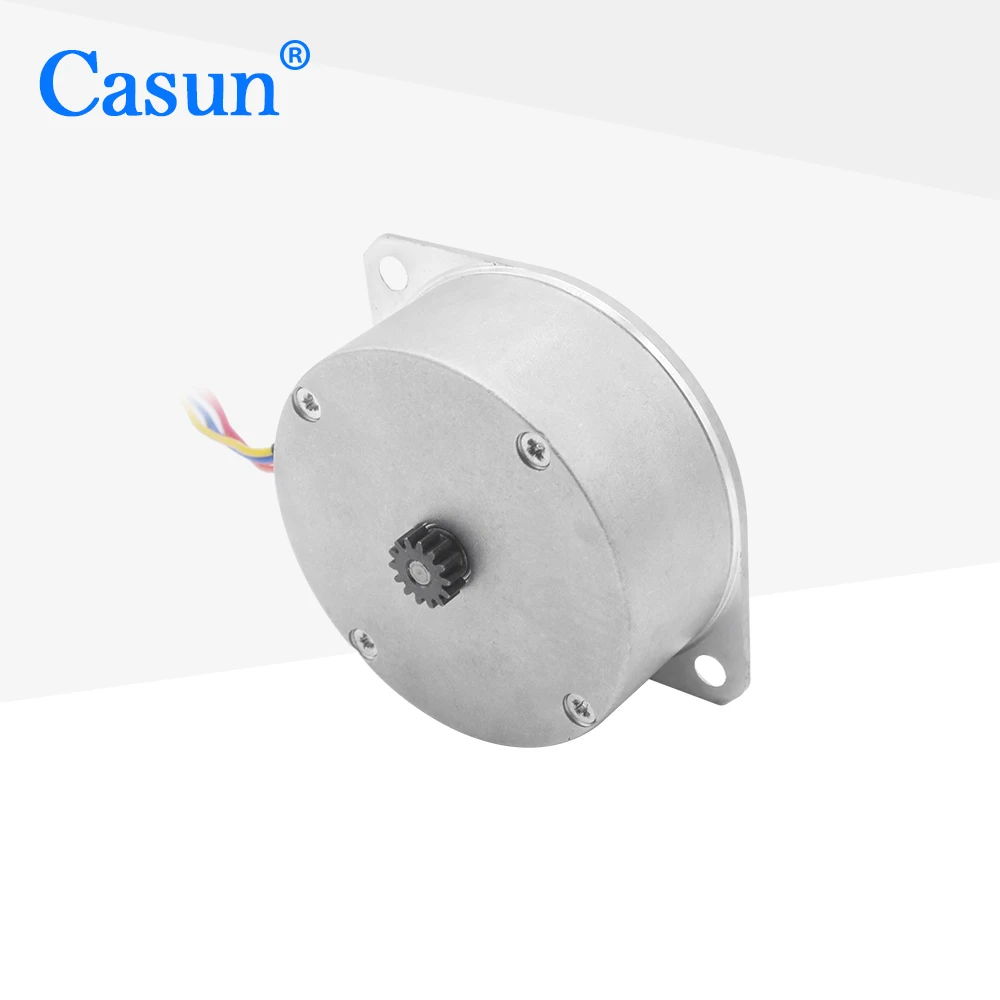

Casun pancake stepper motor Ultra thin step motor 46SHY 1.8 degree 170mN.m flat step motor for SMT
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (1600859246397):
Product Overview
Description
Recommend Products
Product Paramenters
Product Name | NEMA pancake Stepper Motor | ||||||

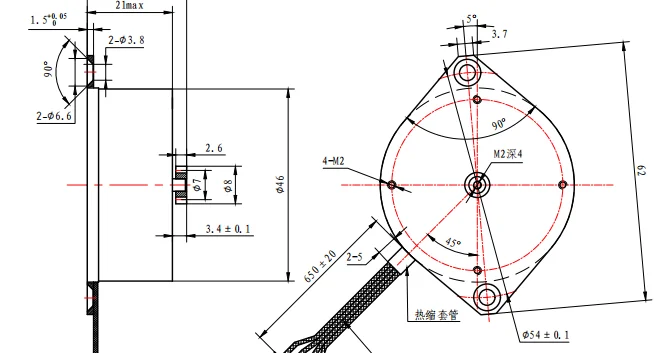

Size | 46mmx46mmx21mm | ||||||
Shaft | 2.8mm | ||||||
Brand | Casun | ||||||
Model | 46SHY4302-3A2L650 | ||||||
General Specification | Electrical Specification | ||||||
Step Angle | 1.8° | Rated Voltage | 1.7V dc | ||||
Number of Phase | 2 | Rated Current | 2A | ||||
Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 0.85Ω±10% | ||||
Insulation Class | Class B | Inductance per Phase | 1mH±20% | ||||
Rotor Inertia | 18g.cm² | Holding torque | 175mN.m | ||||
Mass | 0.2Kg | Detent torque | 12mN.m | ||||
Company Profile
Casun company is a professional manufacture of Stepper motor more than 10 years.
Our customers are come from all over the world.
-Factory price
-Strict quality inspection department
-Product diversification
-Customer first
Our customers are come from all over the world.
-Factory price
-Strict quality inspection department
-Product diversification
-Customer first
That's why we've become more and more popular with customers over the past decade.
FAQ
Q1.Are you manufacturer of trade company ??
A1:We has been verified as manufacturer (10years) by inspection company and Alibaba.
Q2.How can I place an order ?
A2:Please send a message to below. The receptionists will send a link for payment.
Q3.Is this your final price?May i have the discount?
A3:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q4.How can I find the motor what I need ?
A4:Feel free to send a message to our receptionists. We can share more information and help to make a recommendation.
Q5:Do you offer OEM AND ODM service?
A6:Yes.welcome! We don't charge extra design free for customized motor.
A6:Yes.welcome! We don't charge extra design free for customized motor.
Q7:What's the delivery time?
A7:Except special order.For samples usually 10-14 working days .For batch order .Usually 17-25days. For Stock motors usually 1~2 days.
