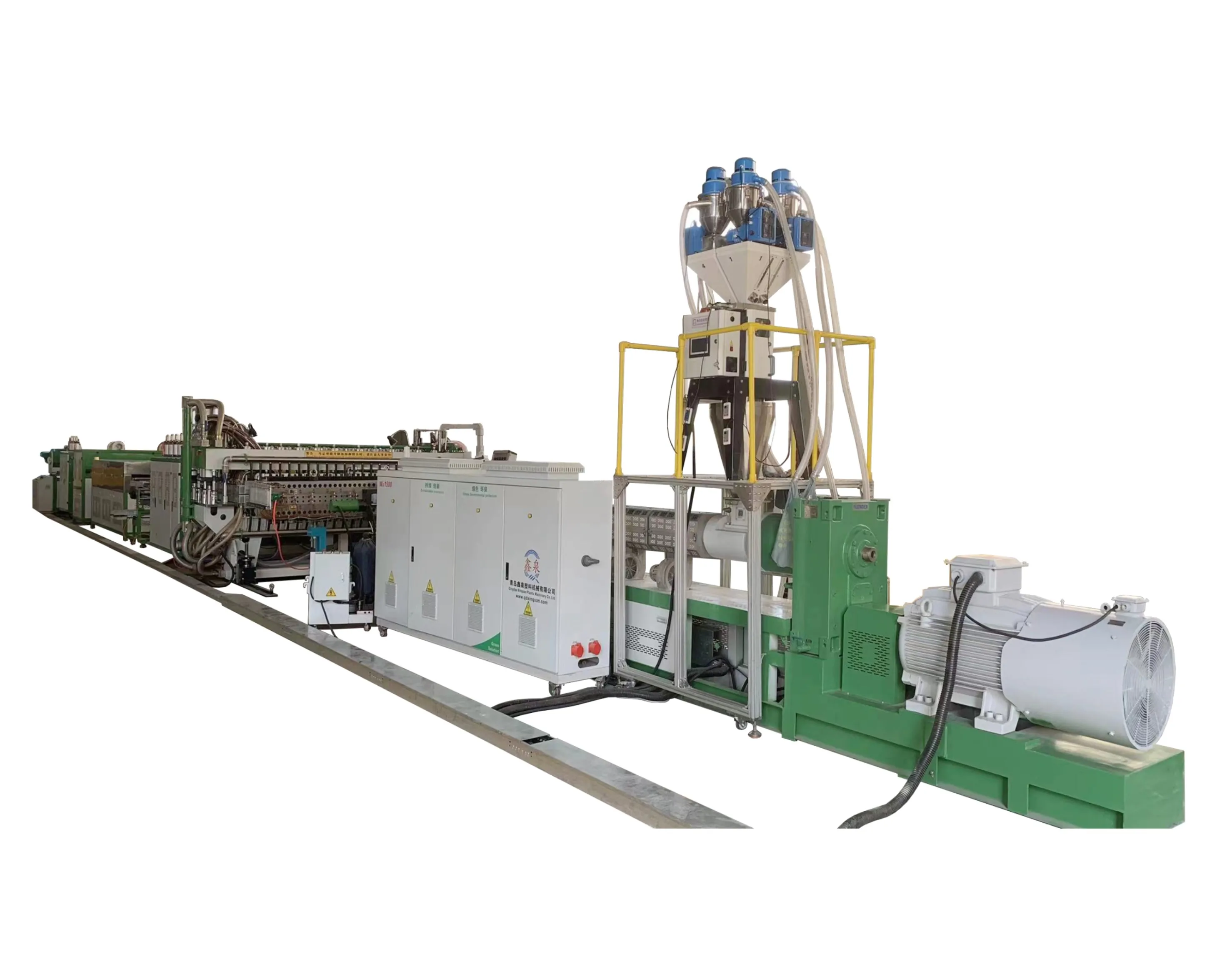

Supplier Plastic Board Plate Making Machine Extruder PP PC Hollow Grid Sheet Formwork Extrusion Production Line
- Category: >>>
- Supplier: Qingdao Xinquan Plastic Machinery Co. Ltd.
Share on (1600859256203):
Product Overview
Description
Product description
Extruder model | SJ-100/35 | SJ-120/35 –SJ150/35 |
Motor power | 75KW | 110-132KW |
Product width | 1300-1600mm | 1600-2600mm |
Product thickness | 2-10mm | 2-10mm |

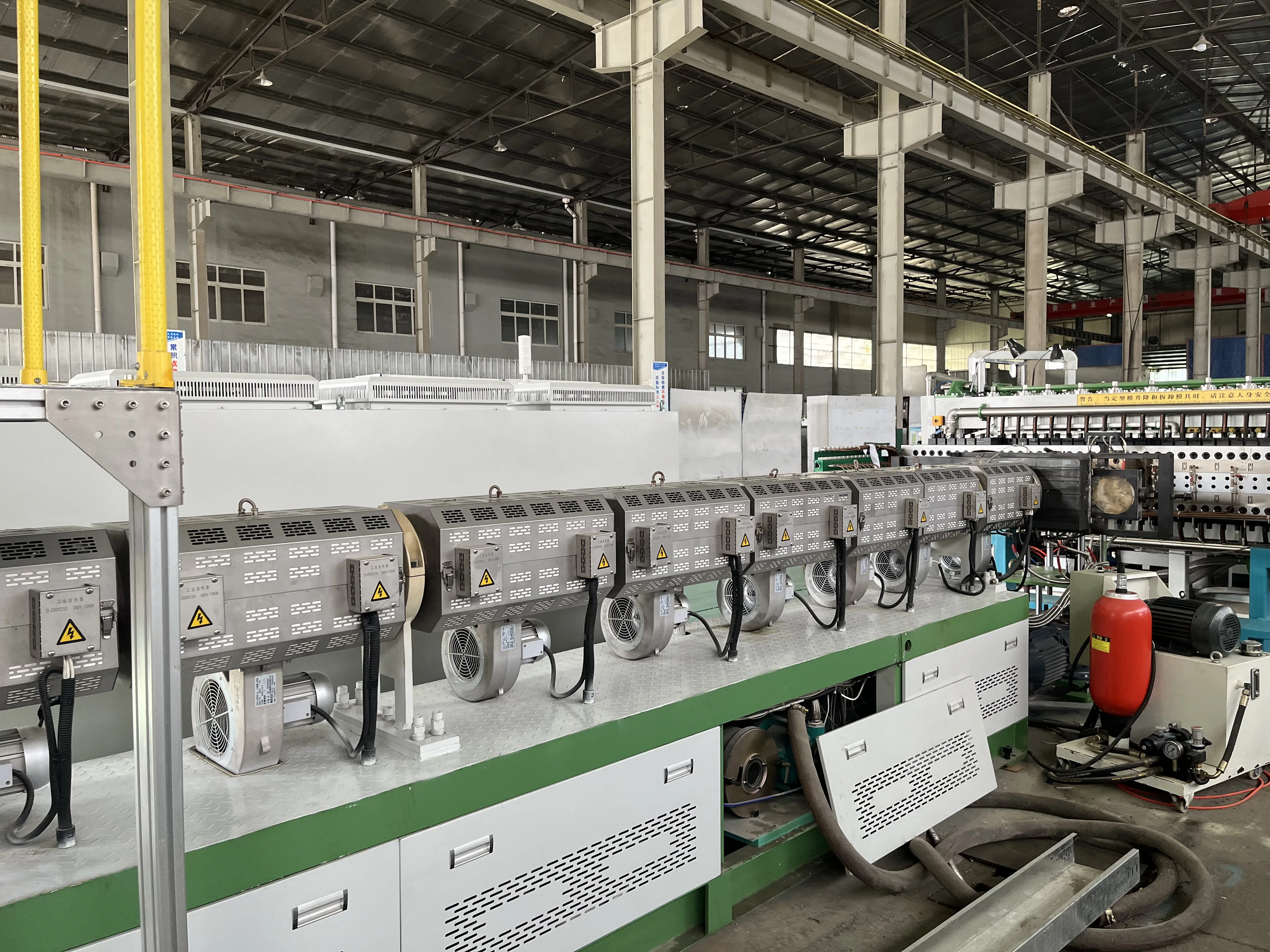

Single screw extruder
Most specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding. auto spiral screw feeding system. screw and barrel material is 38CrMoAla. complete line is fully automatic.
Most specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding. auto spiral screw feeding system. screw and barrel material is 38CrMoAla. complete line is fully automatic.

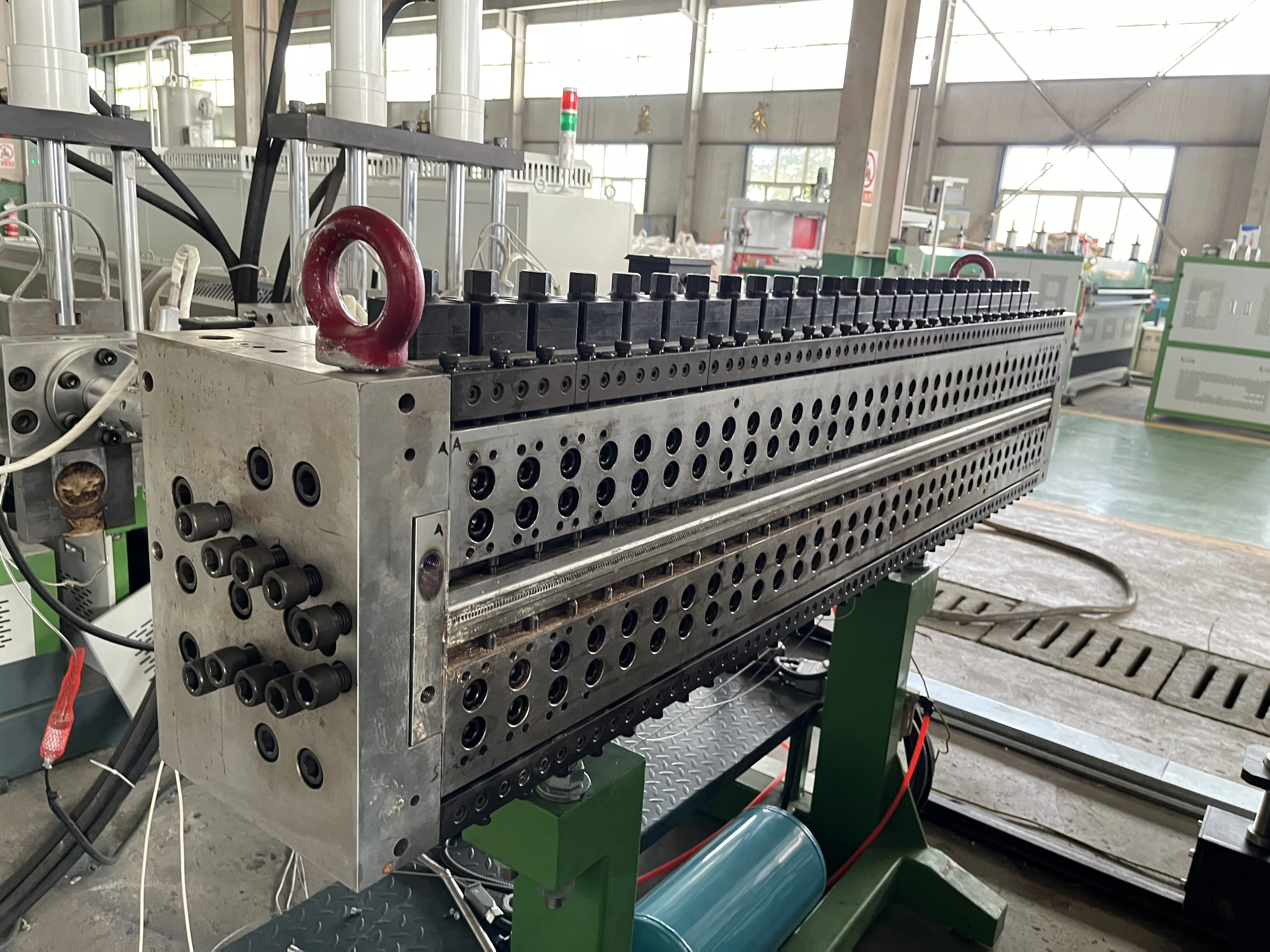

Mould of extruder
The mould uses high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
The mould uses high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

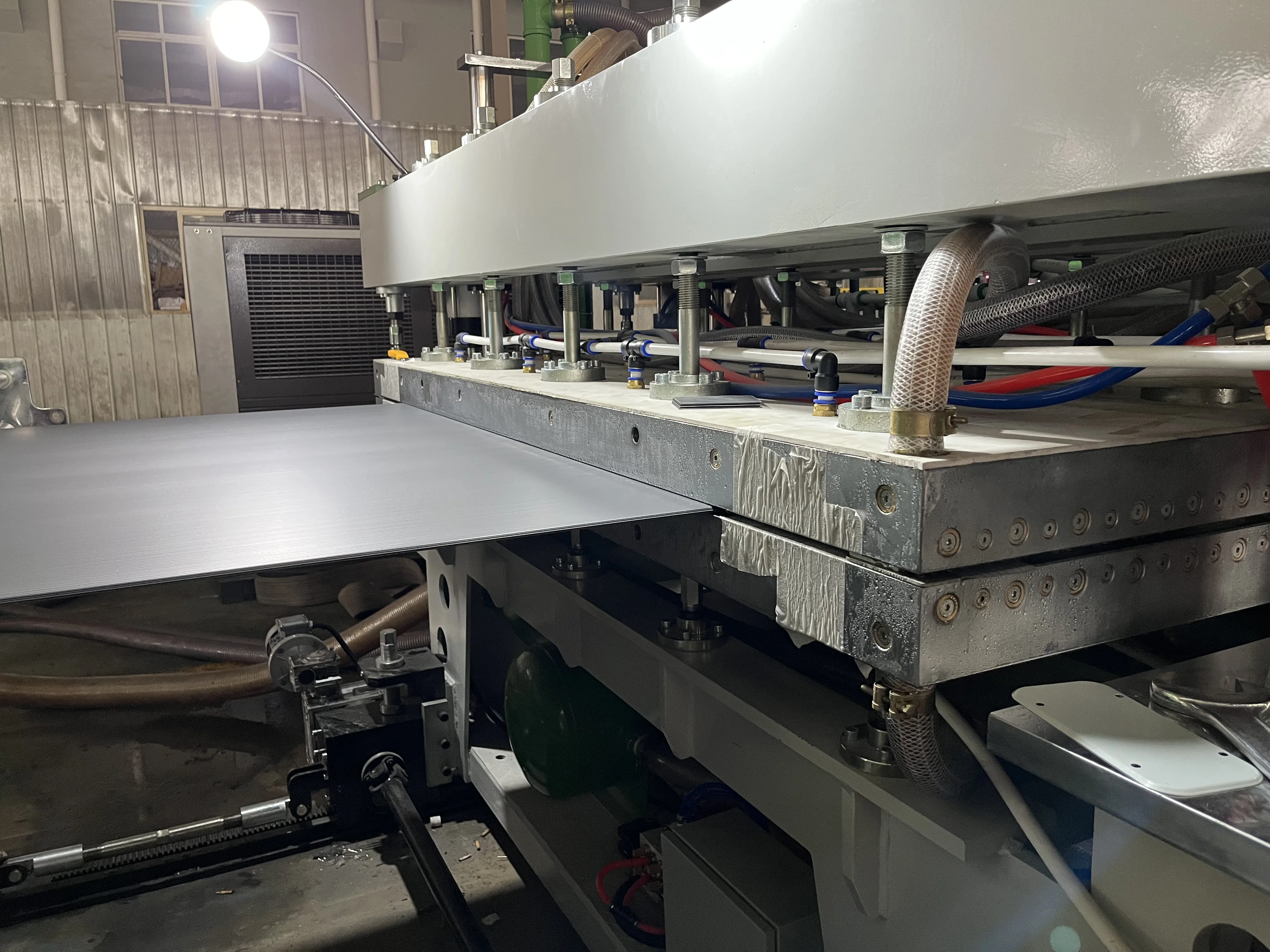

Forming device
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point
type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree
of plate surface.
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point
type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree
of plate surface.

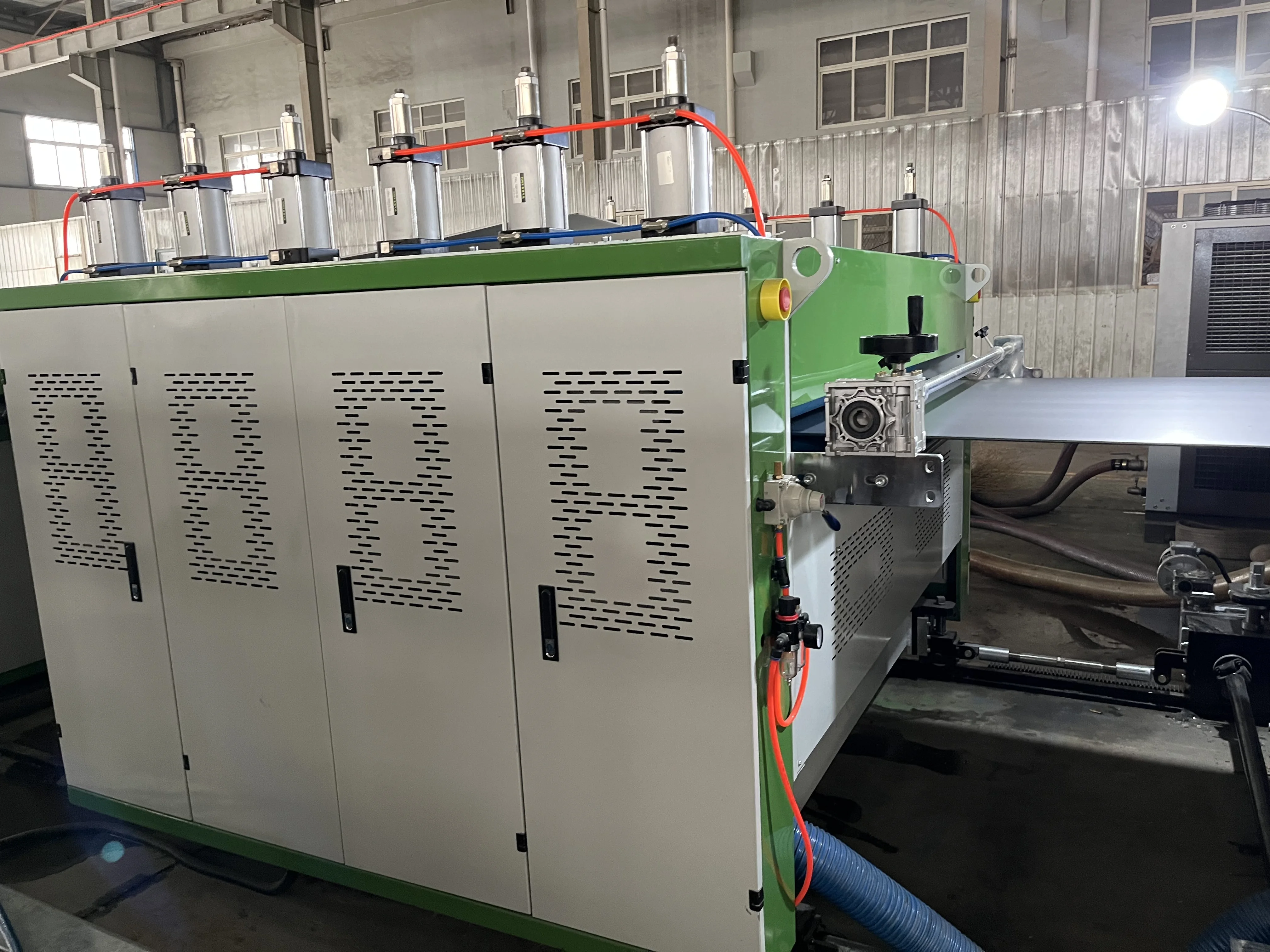

Haul-off
Configure two haul-off for whole line. first one is high power/ reduction ratio, multi-roller type, well low-speed operation, be able to draw the plate up from the calibrating table evenly and synchronous. The second is designed to remove stress, equip edge-cutting device to ensure the valid width and cutting edges.
Configure two haul-off for whole line. first one is high power/ reduction ratio, multi-roller type, well low-speed operation, be able to draw the plate up from the calibrating table evenly and synchronous. The second is designed to remove stress, equip edge-cutting device to ensure the valid width and cutting edges.
Oven machine
The oven removes the stress of hollow sheet, the heating oven is made by 304 stainless steel, equipped with separately temperature control system for each zone to ensure the heating to be uniform, 4 meter lengths for heating oven operation is necessary.
The oven removes the stress of hollow sheet, the heating oven is made by 304 stainless steel, equipped with separately temperature control system for each zone to ensure the heating to be uniform, 4 meter lengths for heating oven operation is necessary.
Cooling unit
Cooling improve the surface finish of plastic products, reduce the surface marks and internal stress of plastic products, keep the products from shrinking and deformation, accelerate product shaping, and improve the production efficiency of plastic molding machines.
Cooling improve the surface finish of plastic products, reduce the surface marks and internal stress of plastic products, keep the products from shrinking and deformation, accelerate product shaping, and improve the production efficiency of plastic molding machines.
Automatic cutter
After corona treatment, the cutting machine accurate instant length-fixed cutting and automatic up-down discharging system
combined with alloy steel sharp blade to realize high-quality cutting. forward and backward is controlled by pneumatic.
After corona treatment, the cutting machine accurate instant length-fixed cutting and automatic up-down discharging system
combined with alloy steel sharp blade to realize high-quality cutting. forward and backward is controlled by pneumatic.
Hollow grid plate
The pp hollow profile board has the features, light weight, high tenacity, damp proof, environmental performance and secondary
processing. Instead of cartons paper with high recycling rate.
The pp hollow profile board has the features, light weight, high tenacity, damp proof, environmental performance and secondary
processing. Instead of cartons paper with high recycling rate.
Product Application

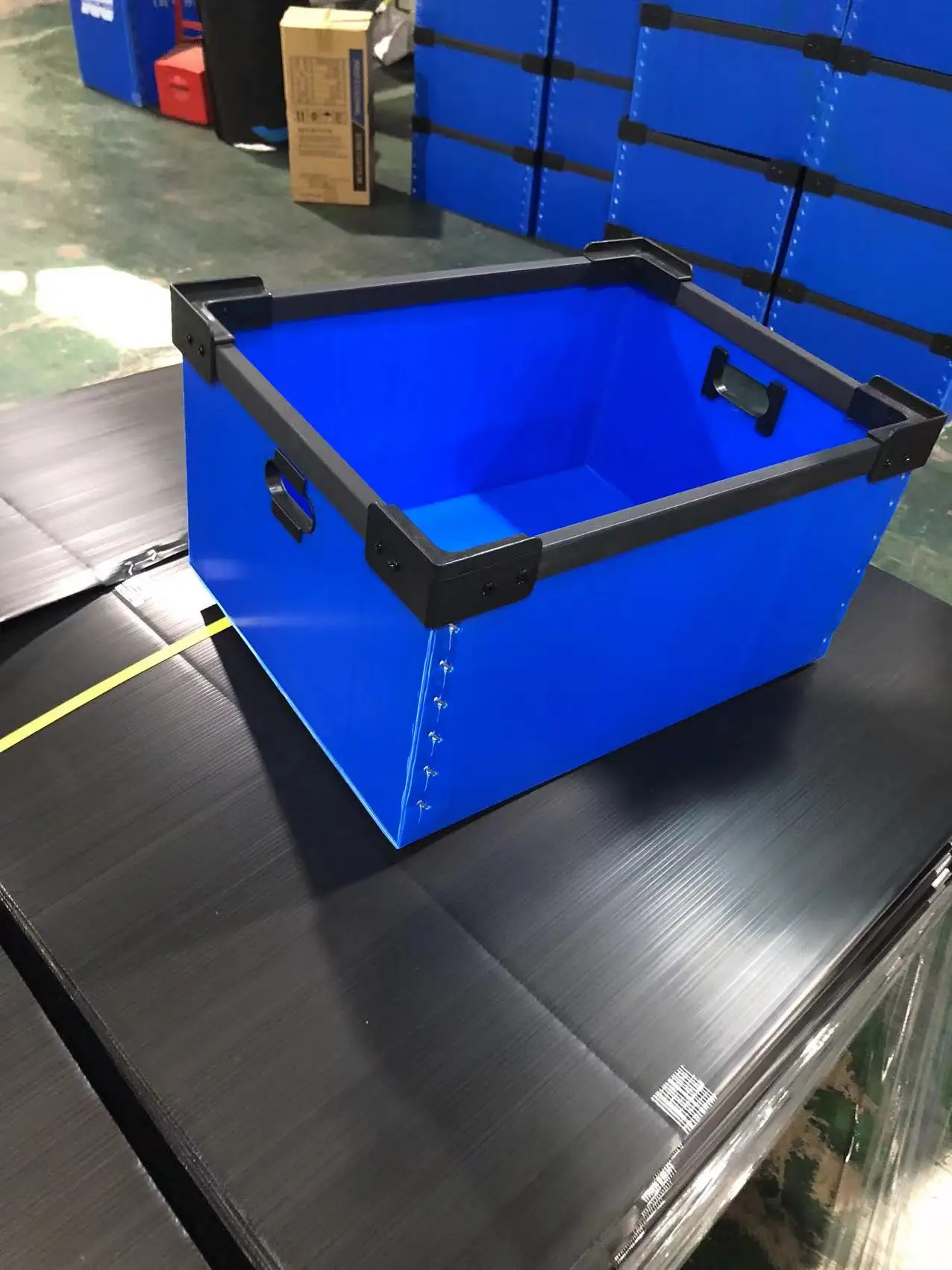

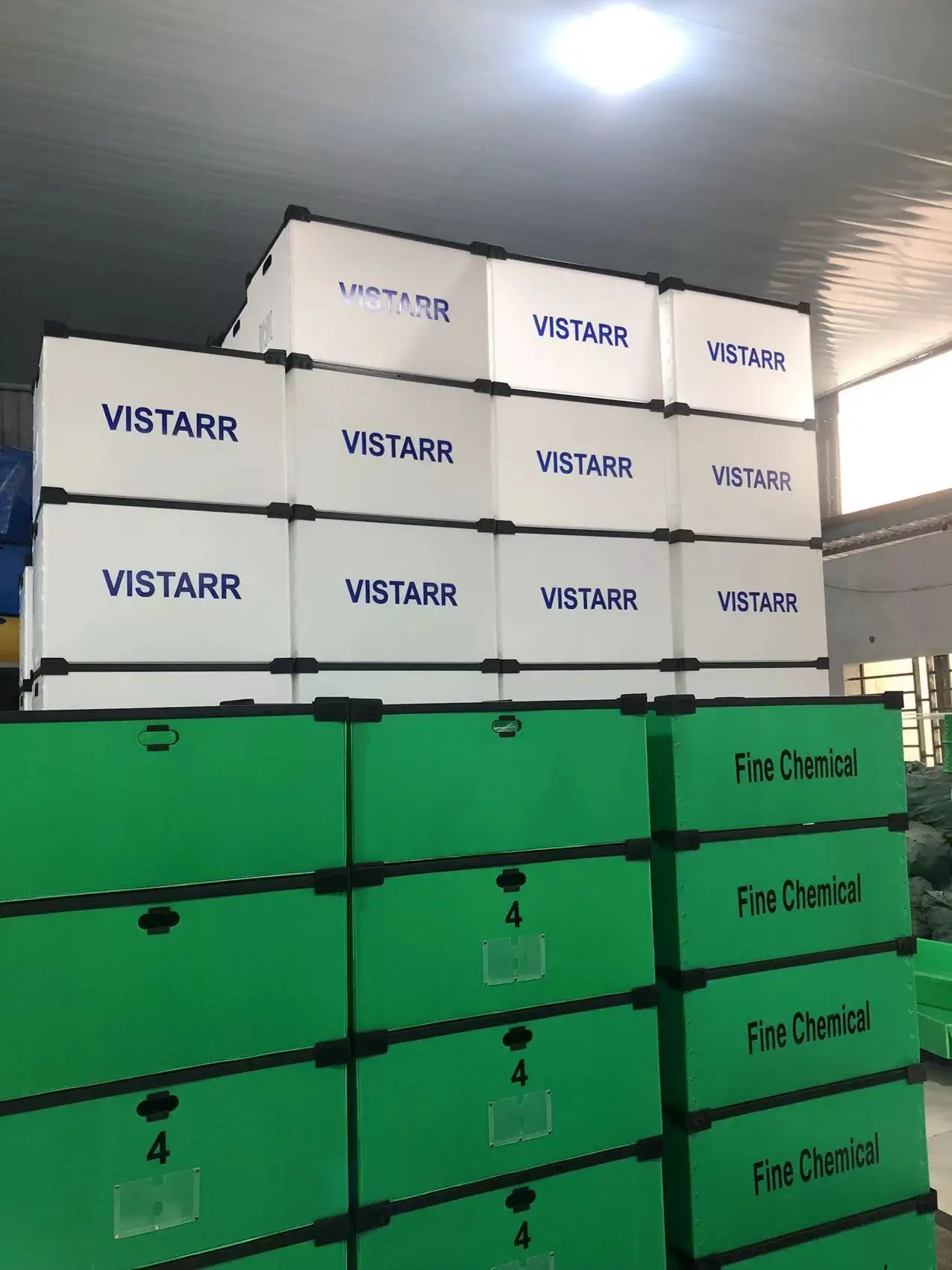

The PP hollow grid board can be processed into turnover case, packaging case, clapboard, lining board, backing board and pallet,etc, due to its advantages of light weight, high tenacity, damp proof, environmental performance and secondary processing. It is widely used in such fields as the electron, household electrical appliances, packaging, machinery, postal, food, pesticide and advertisement decoration, etc.
