Sanding Machine Sander Polishing for MDF HDF/Particle Board/Chipboard/OSB/Plywood Board Man Made Wood Based Panel Grinding
- Category: >>>
- Supplier: Qingdao Zhongding Machinery Co. Ltd.
Share on (1600859257946):
Product Overview
Description

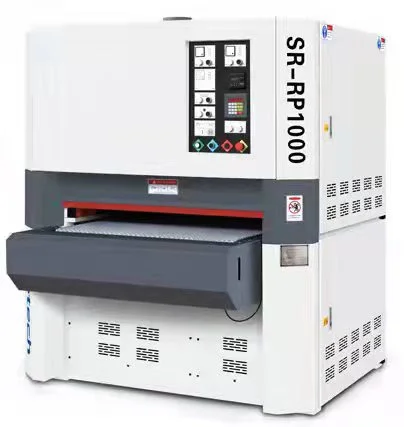

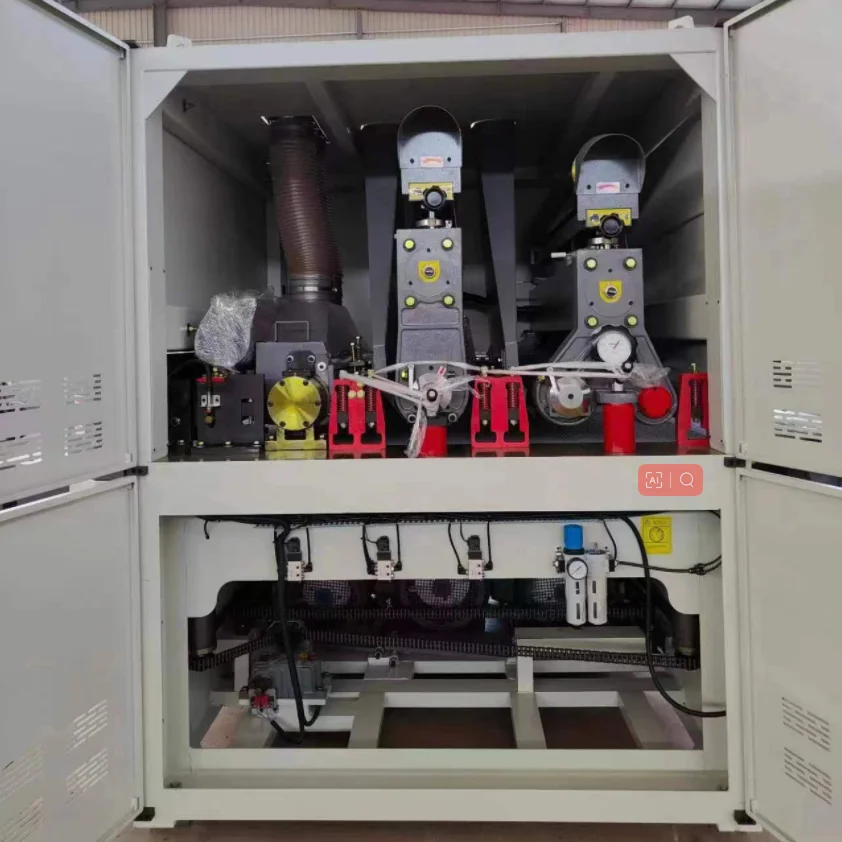

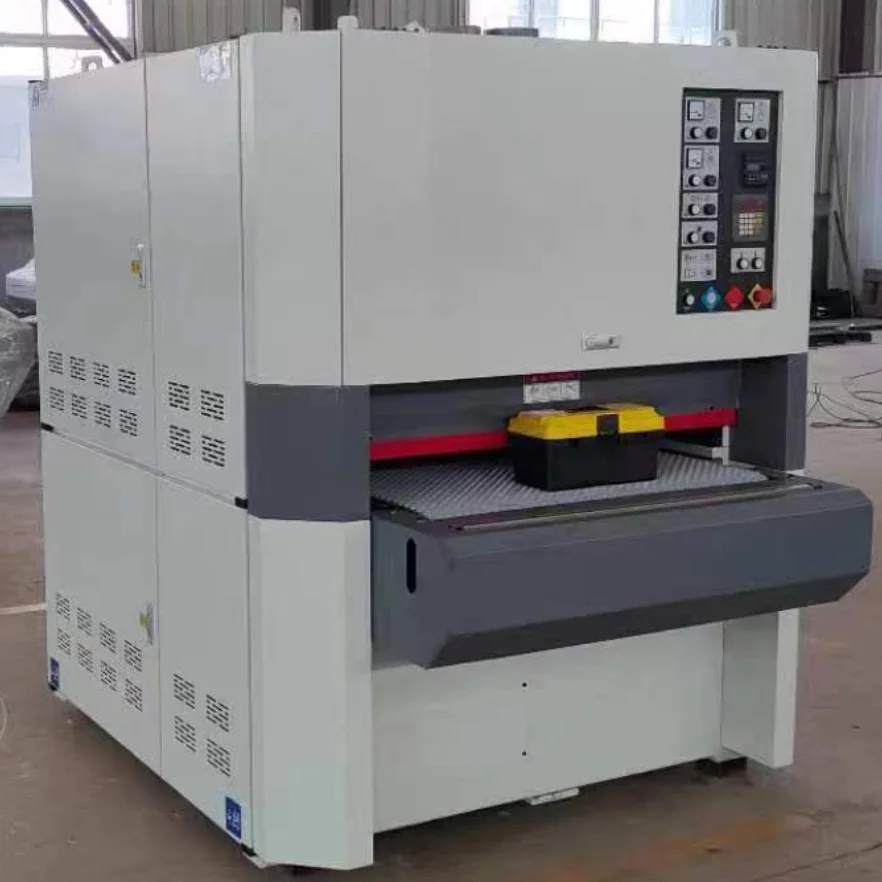

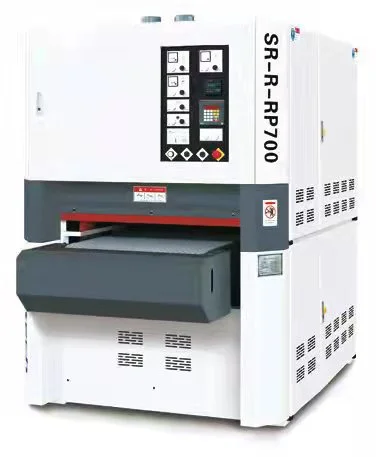

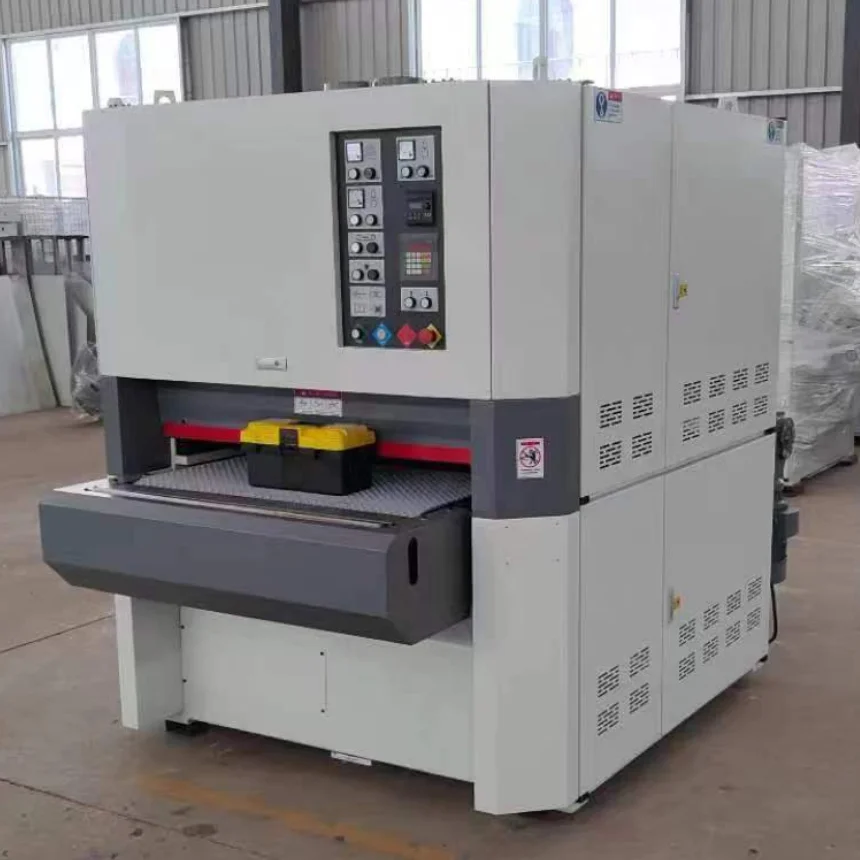

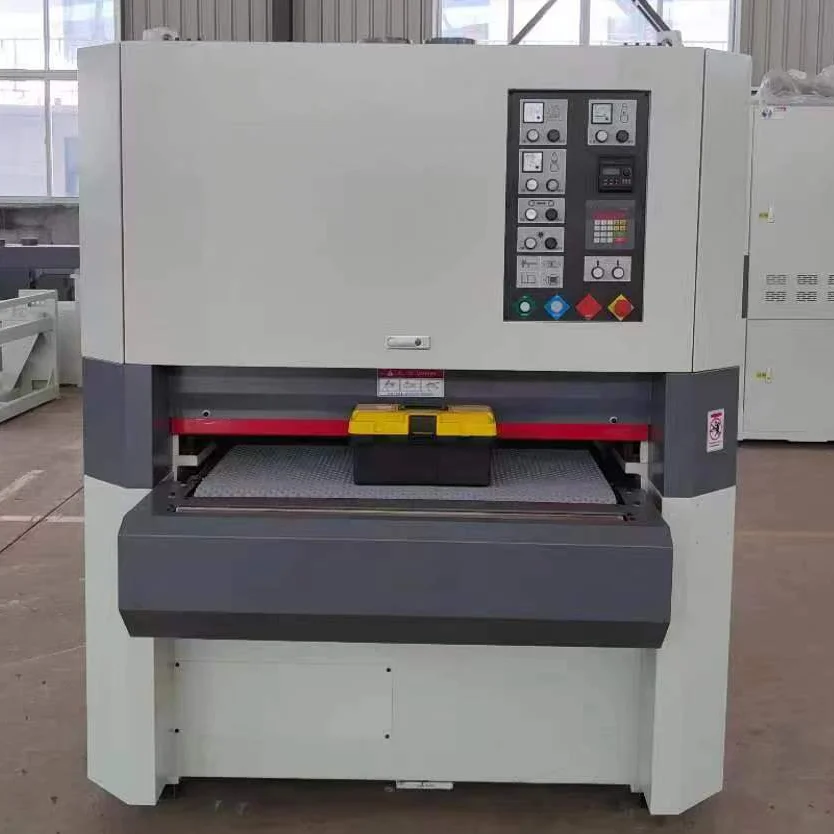

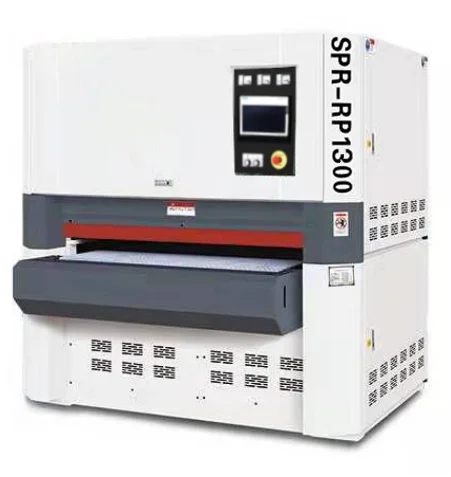

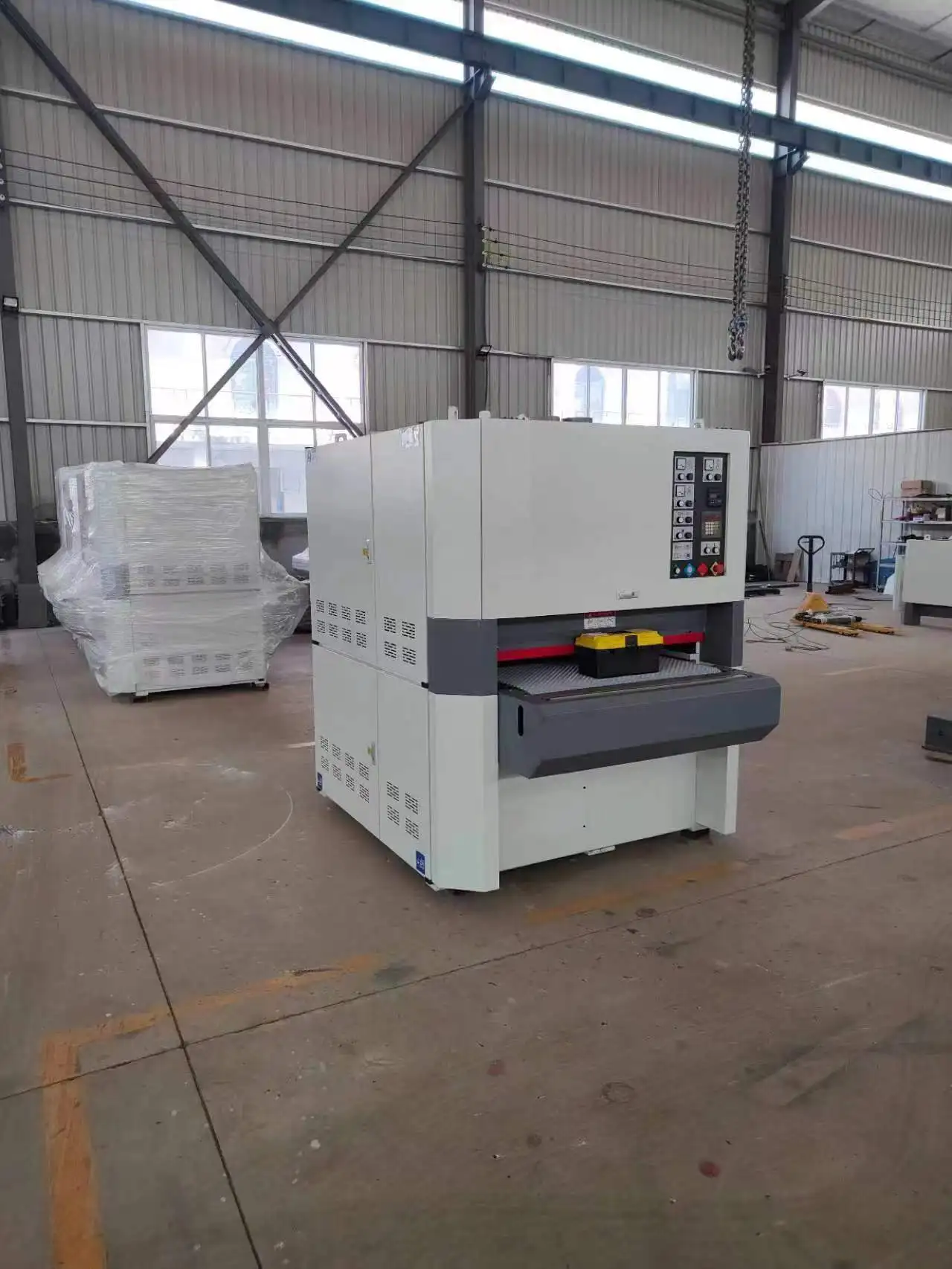

SPR-RP700/1000/1300 plane wood all-in-one equipment
Technical Specification | SPR- RP1300 | SPR- R1000 | SPR- P700 |
Max working width | 1300mm | 1000mm | 700mm |
Min working length | 540mm | 356mm | 491mm |
Working thinkness | 10-160mm | 10-160mm | 10-160mm |
Feeding speed | 5-30m/min | 5-30m/min | 5-30m/min |
Abrasave belt size | 1330×2200mm | 1030×2000mm | 730×1900mm |
Total Moter power | 78.92KW | 59.24KW | 43.94KW |
Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Air consumption | 17m3 /h | 17m3 /h | 12m3 /h |
Volume of dust collection device | 13700m 3 /h | 13700m 3 /h | 8500m 3 /h |
Overall dimensions | 2020×2770×2190mm | 1663×2544×1980mm | 1363×2544×1980mm |
Net weight | 5600kg | 3350kg | 2800kg |
1. Body sheet metal part
1. The lower body adopts heavy chassis, which is welded around by the whole board. The bottom is welded with dense groove steel and steel plate, which enhances the stability and strength of the lower body and ensures that the base does not deform.
2. The conveying bed is processed and welded by t18 thick steel plate, and the smoldering process is adopted to eliminate the internal stress and ensure the accuracy and sanding accuracy of the conveying bed.
3. The thickening roller cantilever is made of a large 180 * 200 rectangular pipe, with high strength and good stability.
4. The beam seat and the hanging plate are made of precision castings, which can effectively absorb the shock and ensure the permanent nondeformation.
5. Sheet metal and door plate are made of high-standard cold-rolled steel plate and reinforced plate to prevent deformation.
6. The surface of the whole machine is treated by plastic injection, with environmental protection and not discoloration.
1. The lower body adopts heavy chassis, which is welded around by the whole board. The bottom is welded with dense groove steel and steel plate, which enhances the stability and strength of the lower body and ensures that the base does not deform.
2. The conveying bed is processed and welded by t18 thick steel plate, and the smoldering process is adopted to eliminate the internal stress and ensure the accuracy and sanding accuracy of the conveying bed.
3. The thickening roller cantilever is made of a large 180 * 200 rectangular pipe, with high strength and good stability.
4. The beam seat and the hanging plate are made of precision castings, which can effectively absorb the shock and ensure the permanent nondeformation.
5. Sheet metal and door plate are made of high-standard cold-rolled steel plate and reinforced plate to prevent deformation.
6. The surface of the whole machine is treated by plastic injection, with environmental protection and not discoloration.

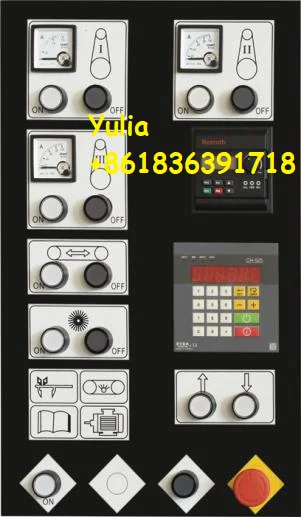

2. Electrical parts part

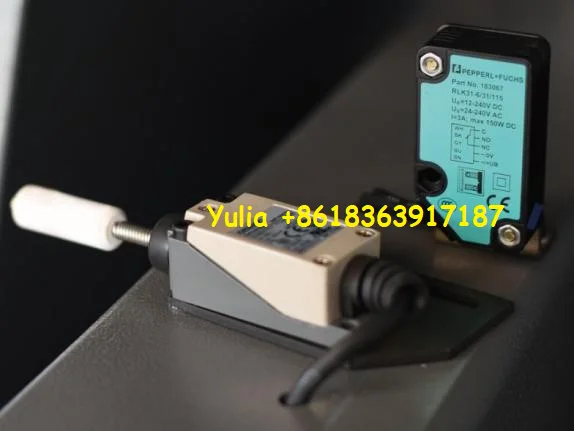

1. Optical control adopts German "doub" photoelectric switch with strong penetration, large effective distance and durable.
2. The limit switch adopts the Japanese "Omron" brand, which is flexible, durable and has a long service life
1. Optical control adopts German "doub" photoelectric switch with strong penetration, large effective distance and durable.
2. The limit switch adopts the Japanese "Omron" brand, which is flexible, durable and has a long service life

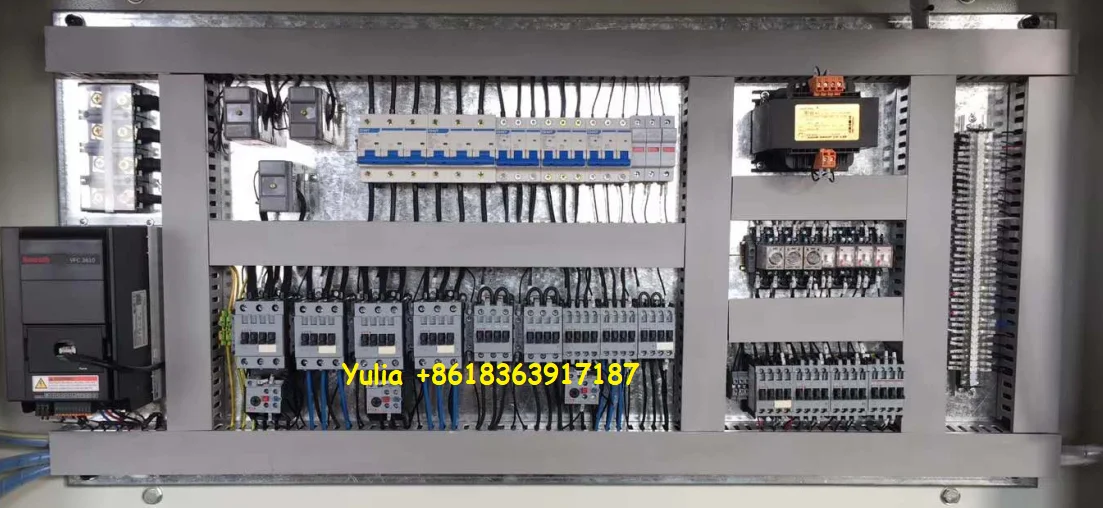

3.The internal circuit breaker and AC contactor of the distribution box are made of German "Siemens" low-voltage electrical parts, which are safe and reliable and have a long service life.
4. The proximity switch adopts the Korean "Otunix" high-quality parts, which is sensitive, adjustable and reliable in use. 5. The start button is Siemens with lamp button, which is intuitive and visible
6. The motor adopts HM2 series three-phase asynchronous motor produced by Shandong Huali Motor Group Co., LTD., a Chinese primary enterprise, with good stability, sufficient power, protection level IP54 and durability.

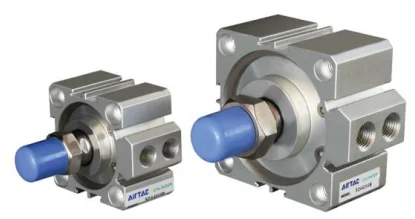

7. The solenoid valve, throttle valve and pressure control valve adopt the original version of Taiwan "Adecker", which is stable and reliable.
7. The solenoid valve, throttle valve and pressure control valve adopt the original version of Taiwan "Adecker", which is stable and reliable.
Customization
As a manufacturer, we can meet any requirement of sanding. Whether it is the technical specification of the machine or the brand of accessories, as well as different functions, you have many choice. Build a custom woodworking cnc machine that only belongs to you!

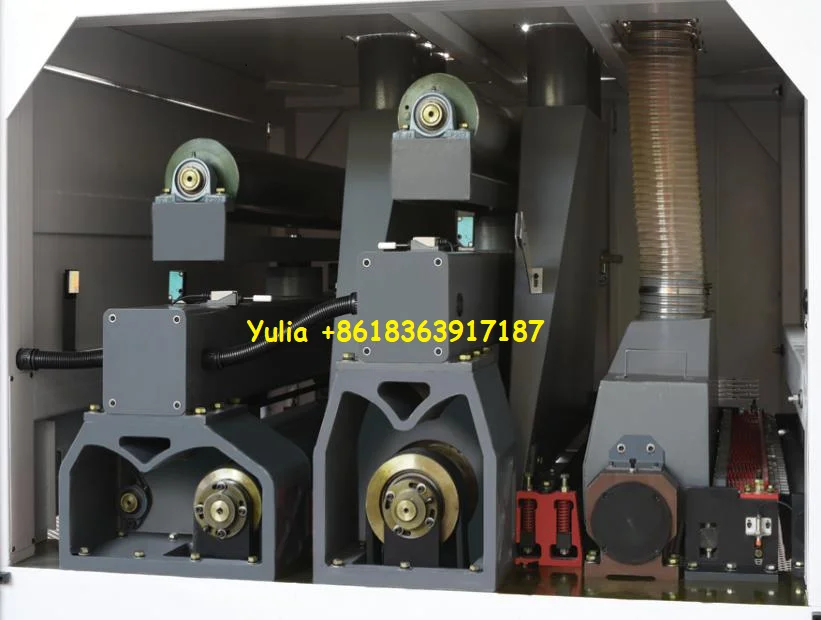

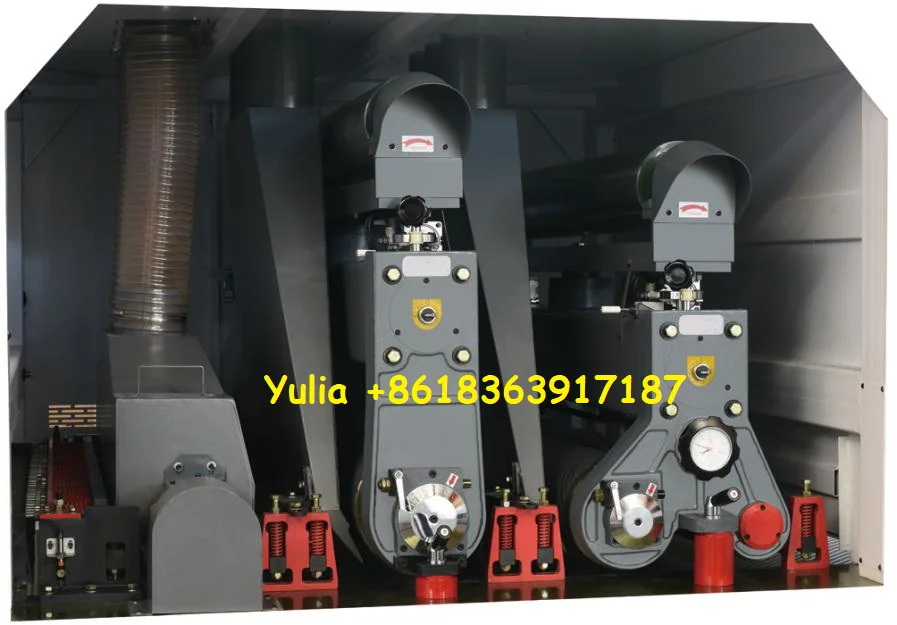

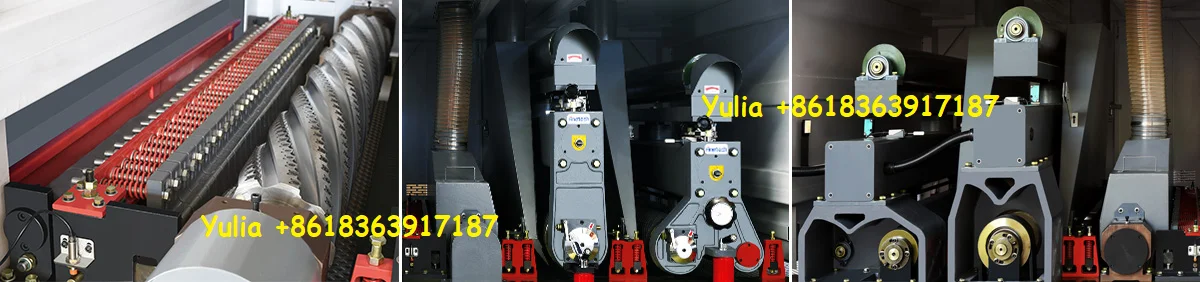

3.Gring and sanding parts

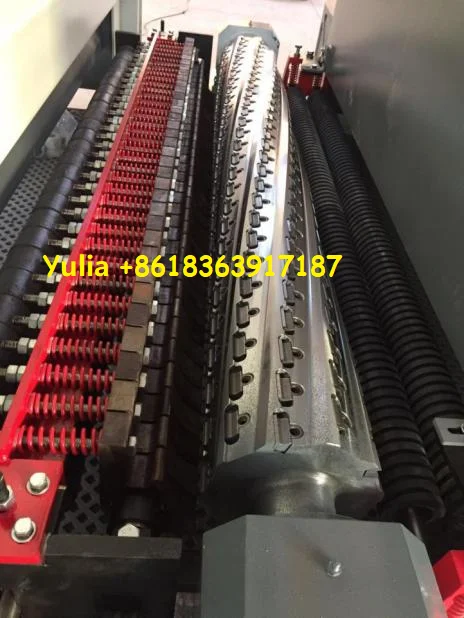

1. Cutting knife roller adopts ₵ 180 heavy cutting 10 blade, equipped with imported 30x12x2.5mm carbide blade, easy to use, good cutting quality, and motor power of 30KW.2. The planer roller is equipped with a close cooperation between the adjustable section pressing boots and the pressing roller, and the rear of the planer roller is equipped with a reversible pressing plate and a double pressing roller structure to ensure the large sand cutting amount of the workpiece and the sanding of the narrow material.

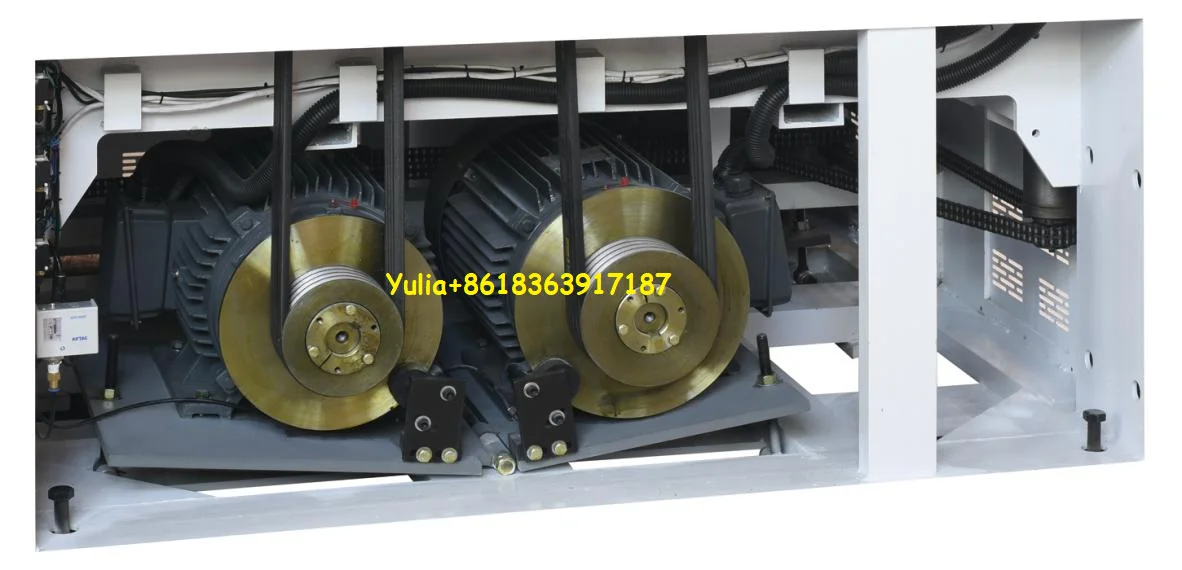

3. The first set of sanding adopts 22KW high power motor and ₵ 240 large diameter eccentric helical thickening roller to achieve the effect of setting sanding.
4. The second group of polishing adopts the motor of 22KW power, ₵ 210 eccentric fine sand rubber fixed thick roller and removable flat steel pressure pillow, to achieve the effect of polishing

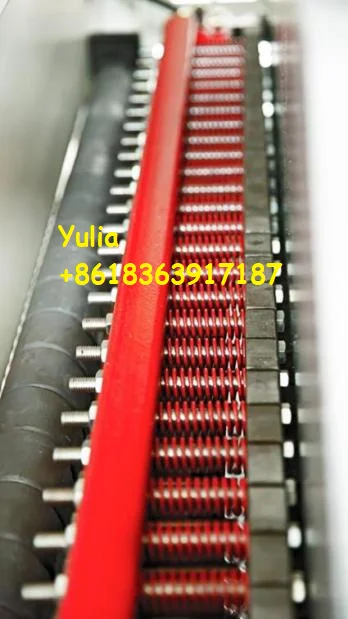

5. Safety protection is equipped with ultra-thick material detection device and casting reverse check device, and equipped with 6 sets of inert pressure wheel structure, which can effectively ensure the safety of operators

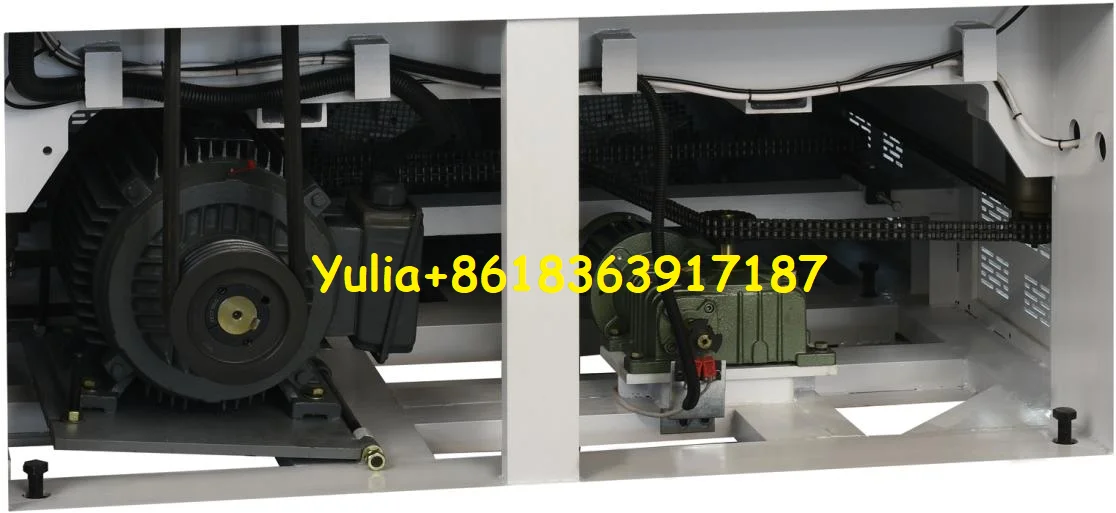

4. Transmission part
1. The plane cutter roller bearing adopts Swedish SKF bearing and Japanese NSK bearing, which extends the working life without maintenance and improves the reliability of equipment operation.2. The conveyor belt is selected with WL12-GY special sanding machine belt, including rubber on the surface layer, excellent surface wear resistance, high friction, through the frequency conversion inclined tooth-spiral cone gear reducer feeding power of 4KW, more smooth and powerful
4. Transmission part
3. The transmission platform is 0.55KW and is equipped with double chain transmission, with compact structure, high reliability and long service life.
4. The outlet is equipped with electric dust removal device, which can remove residual ash and power 0.37KW.
4. The outlet is equipped with electric dust removal device, which can remove residual ash and power 0.37KW.
Appliance
The sander can not only be used for sanding wooden boards, but also for processing plastic or metal boards, it can be customized according to your needs, the minimum order quantity is 1 piece.

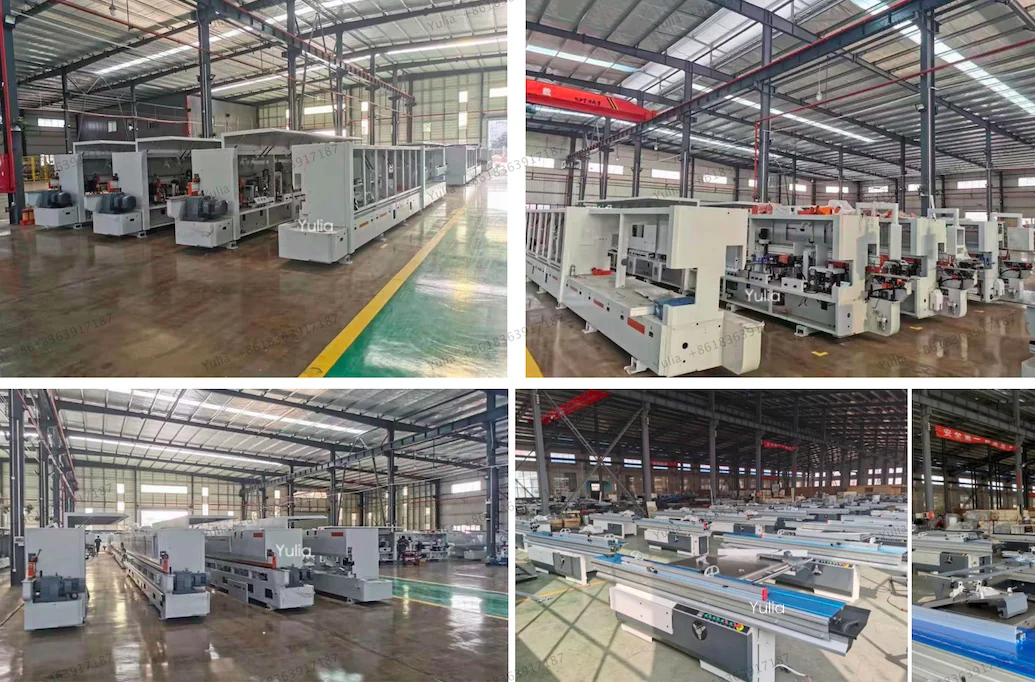

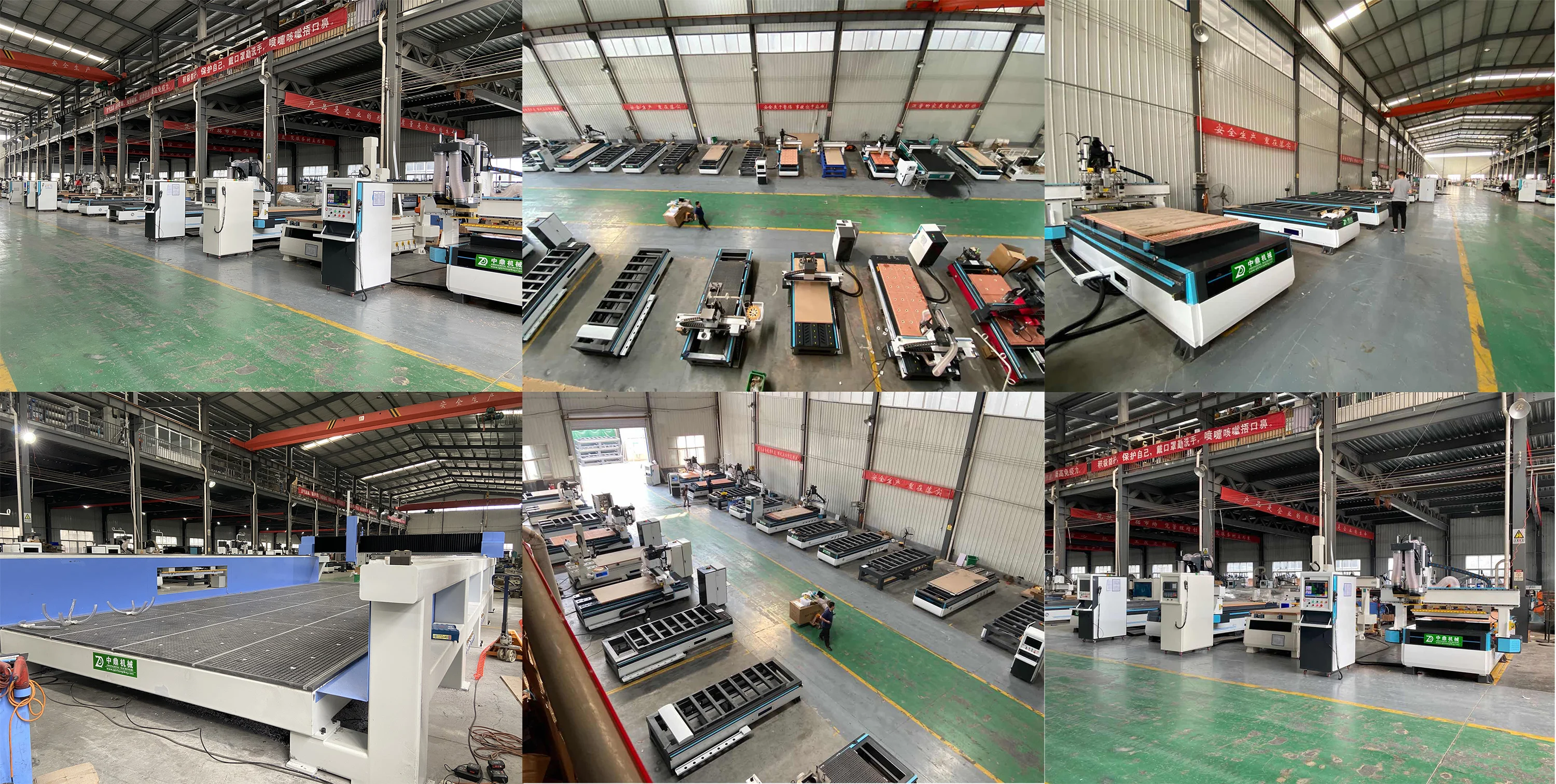

Factory

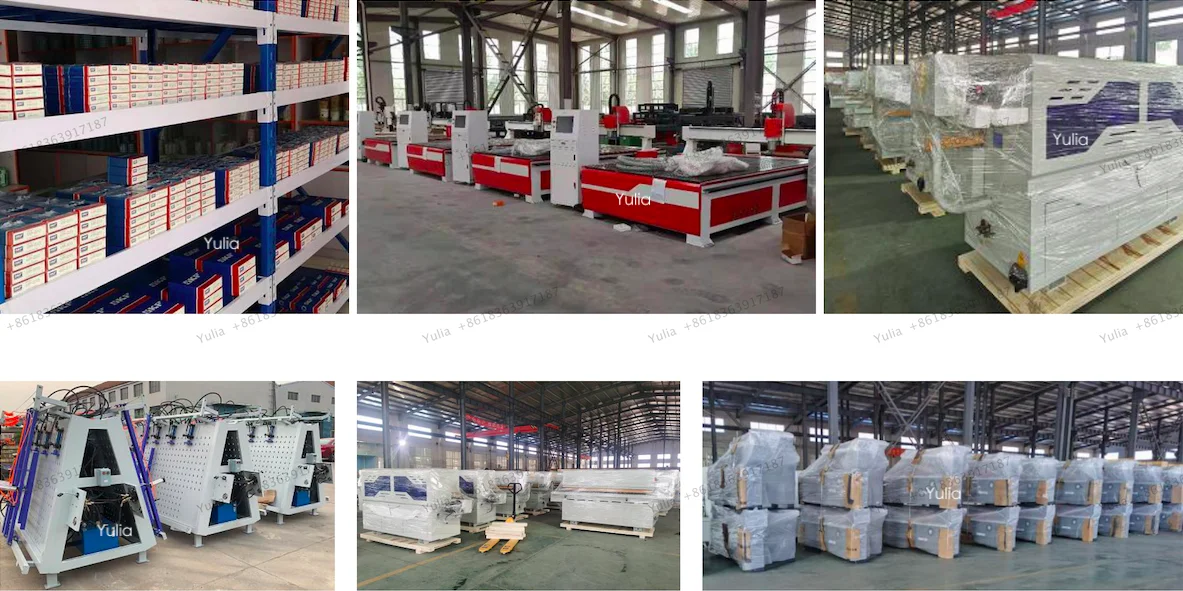

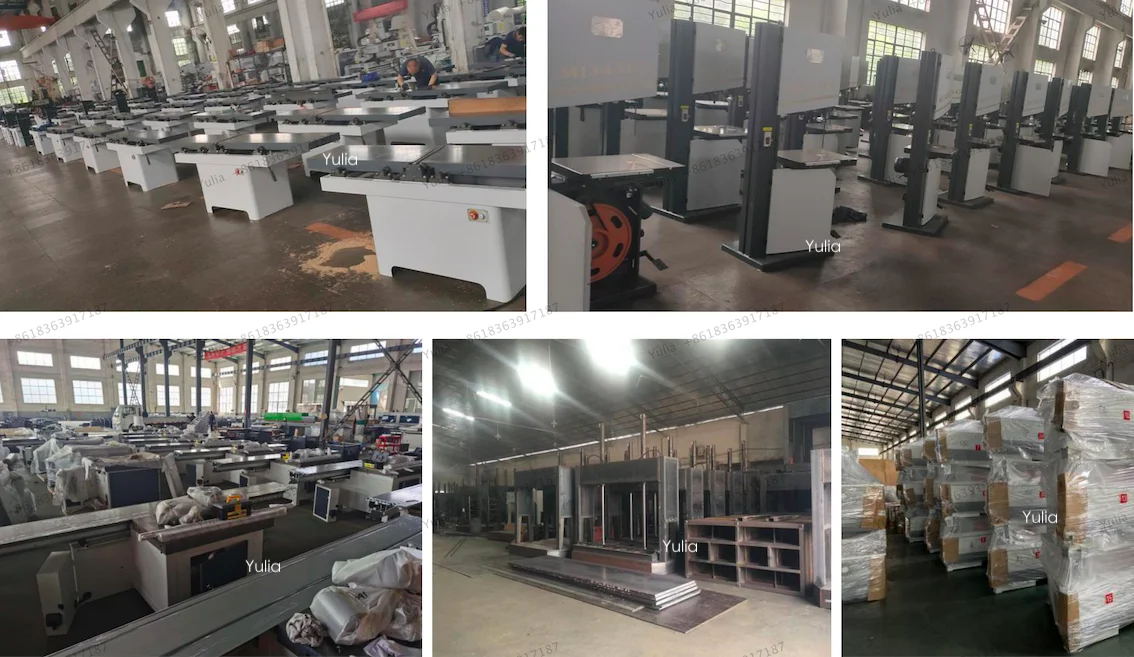

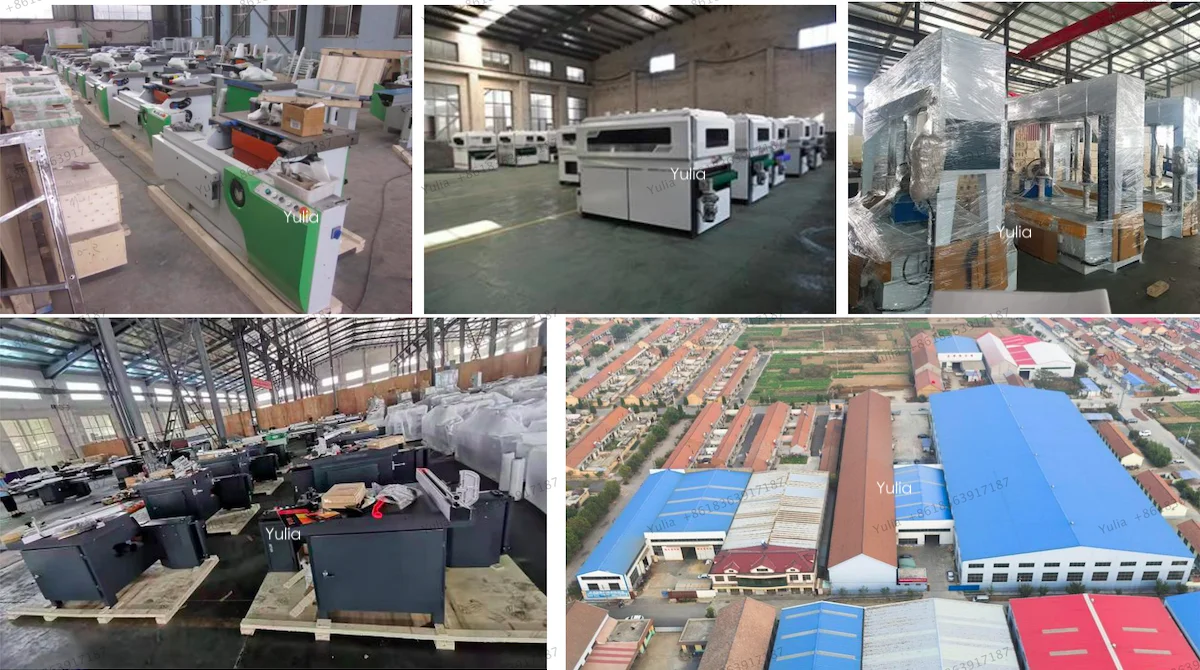

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.

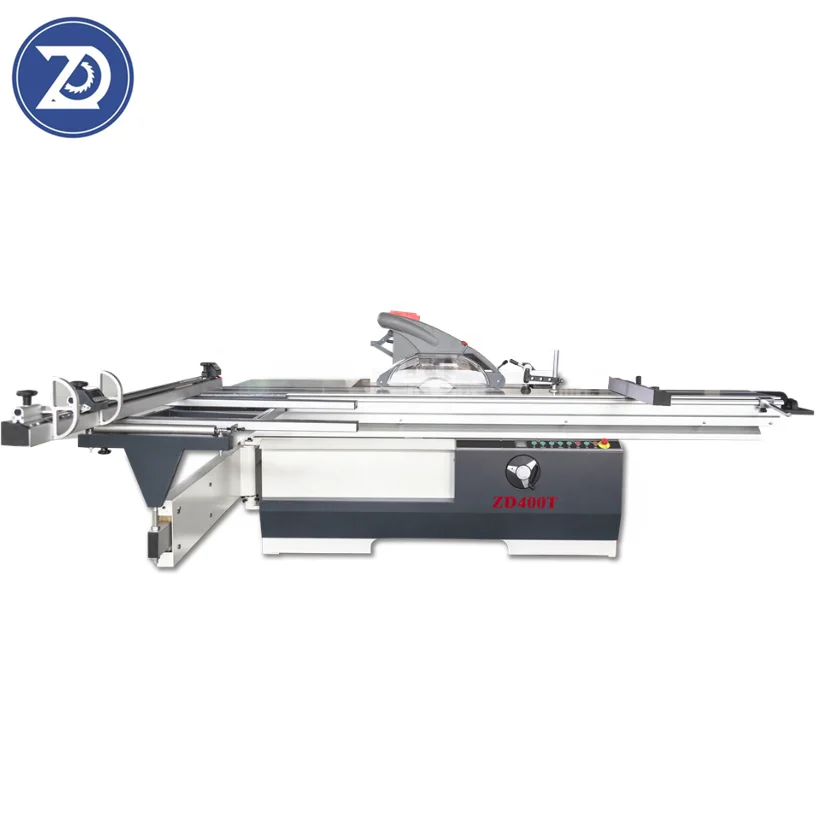

Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
RFQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 14 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging. The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is small, like Western union, Master card and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
