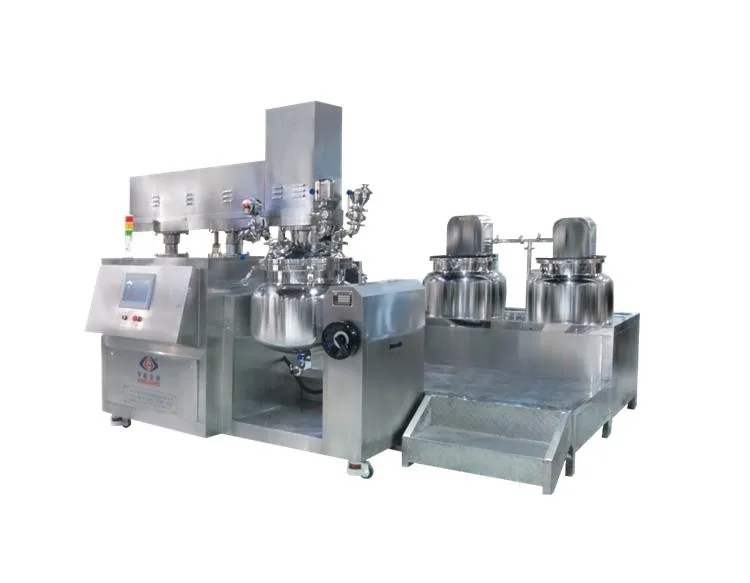

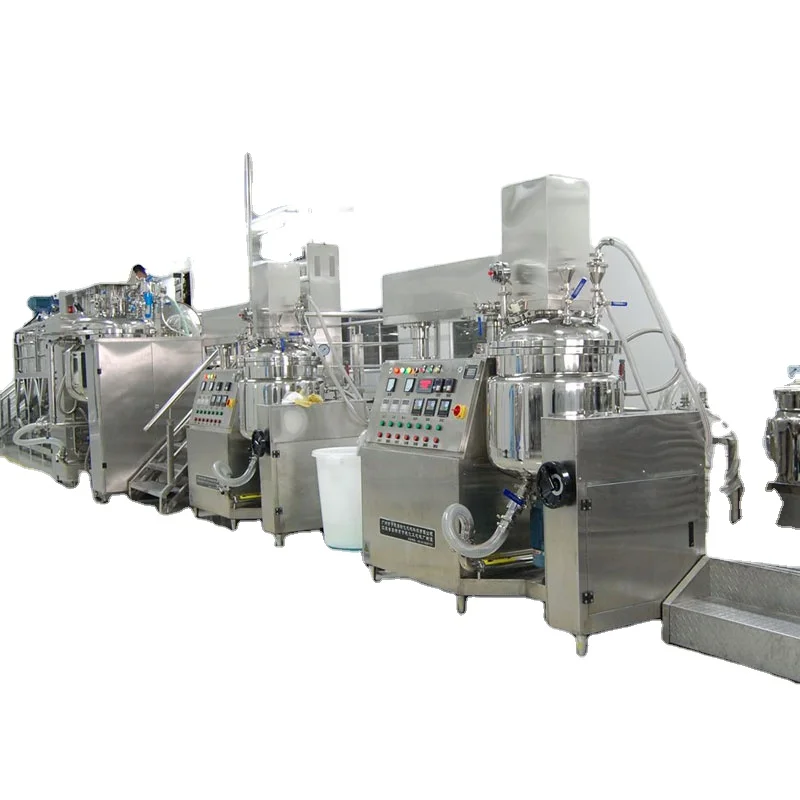

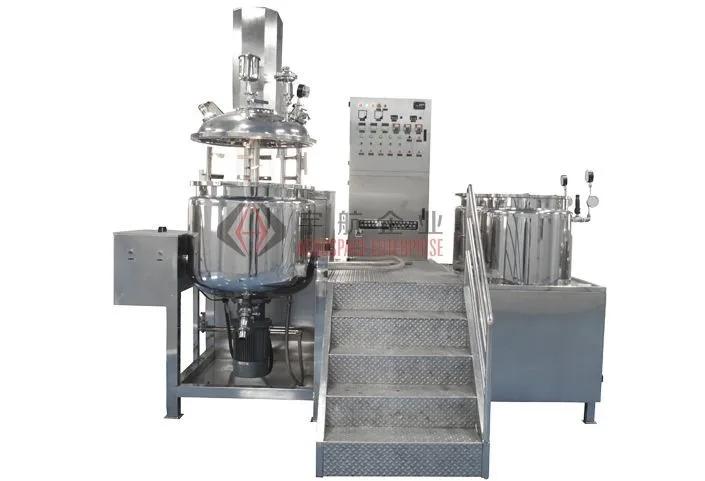

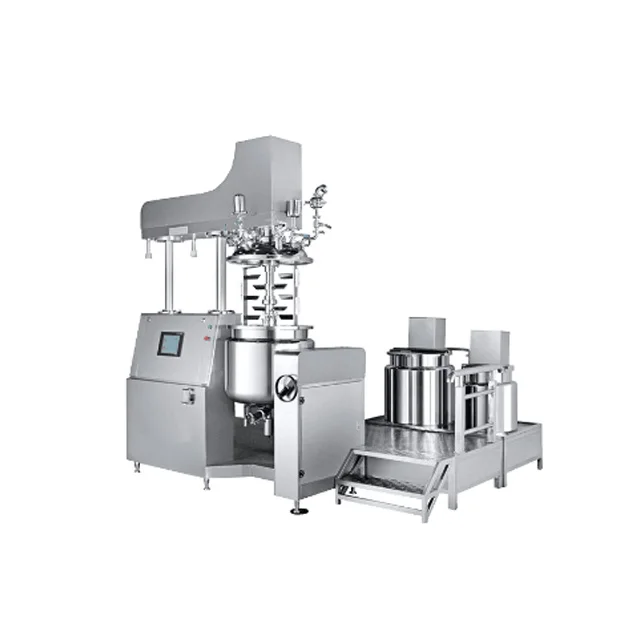

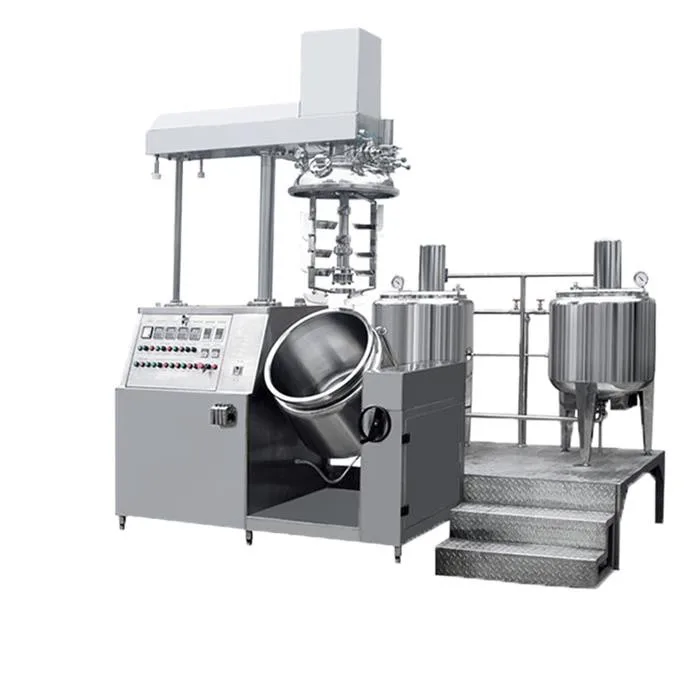

500L Factory Price Large Capacity Vasline Mixing Tank Vacuum Moisturizing Face Cream Making Machine Clay Masque Homogenizer

Product Overview

Description

500l Factory Price Large Capacity Vasline Mixing Tank Vacuum Moisturizing Face Cream Making Machine Clay Masque Homogenizer





The Hydraulic Lifting Vacuum Homogenizer is a high-performance machine that is designed for mixing, emulsifying and homogenizing liquids, pastes, and powders. It is widely used in industries like cosmetics, pharmaceuticals, food, and chemicals.

Features:

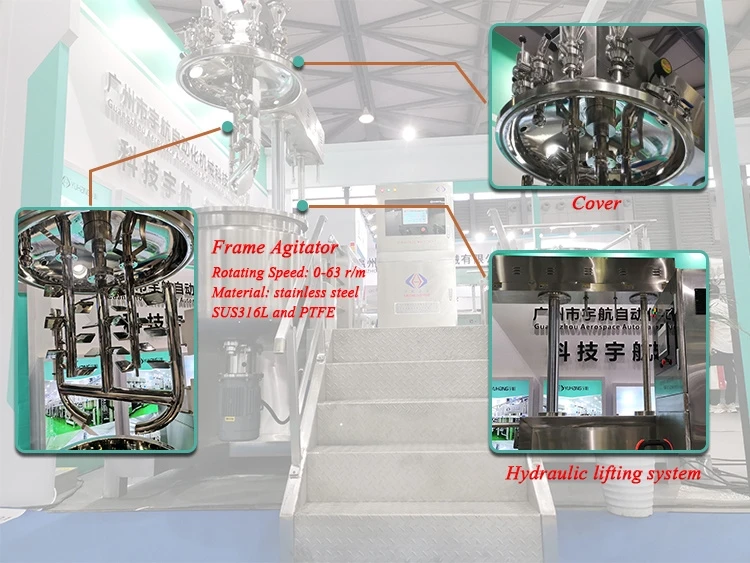

The machine is equipped with a hydraulic lifting system, which makes it easy to operate and clean.

It has a powerful emulsifying and homogenizing function that can mix liquids and powders efficiently.

The vacuum system ensures that the product is sterile and free from contamination.

The machine is made from high-quality stainless steel, which makes it durable and corrosion-resistant.

The machine is customizable to suit different production needs.

Specifications:







Applications:

Cosmetics: cream, lotion, shampoo, perfume, etc.

Pharmaceuticals: ointment, syrup, injection, etc.

Food industry: sauce, dressing, mayonnaise, etc.

Chemicals: paint, ink, adhesive, etc.

Pictures:

[Insert pictures of Hydraulic Lifting Vacuum Homogenizer here]

Conclusion:

The Hydraulic Lifting Vacuum Homogenizer is a versatile and efficient machine that can handle various mixing, emulsifying, and homogenizing tasks. Its hygienic design and customizable features make it a popular choice for many industries.











Description



Vacuum emulsifying homogenizing machine is a kind of chemical product making machine for the liquid material. With the high-speed rotation of the homogenous head connected to the engine to cut, disperse and impact the material. In this way the material will become more delicate, causing the oil and water to melt. Widely used in cosmetics, shower gel, sunscreen, and many other cream products. Sauces, juices, etc. in the food industry.



Feature

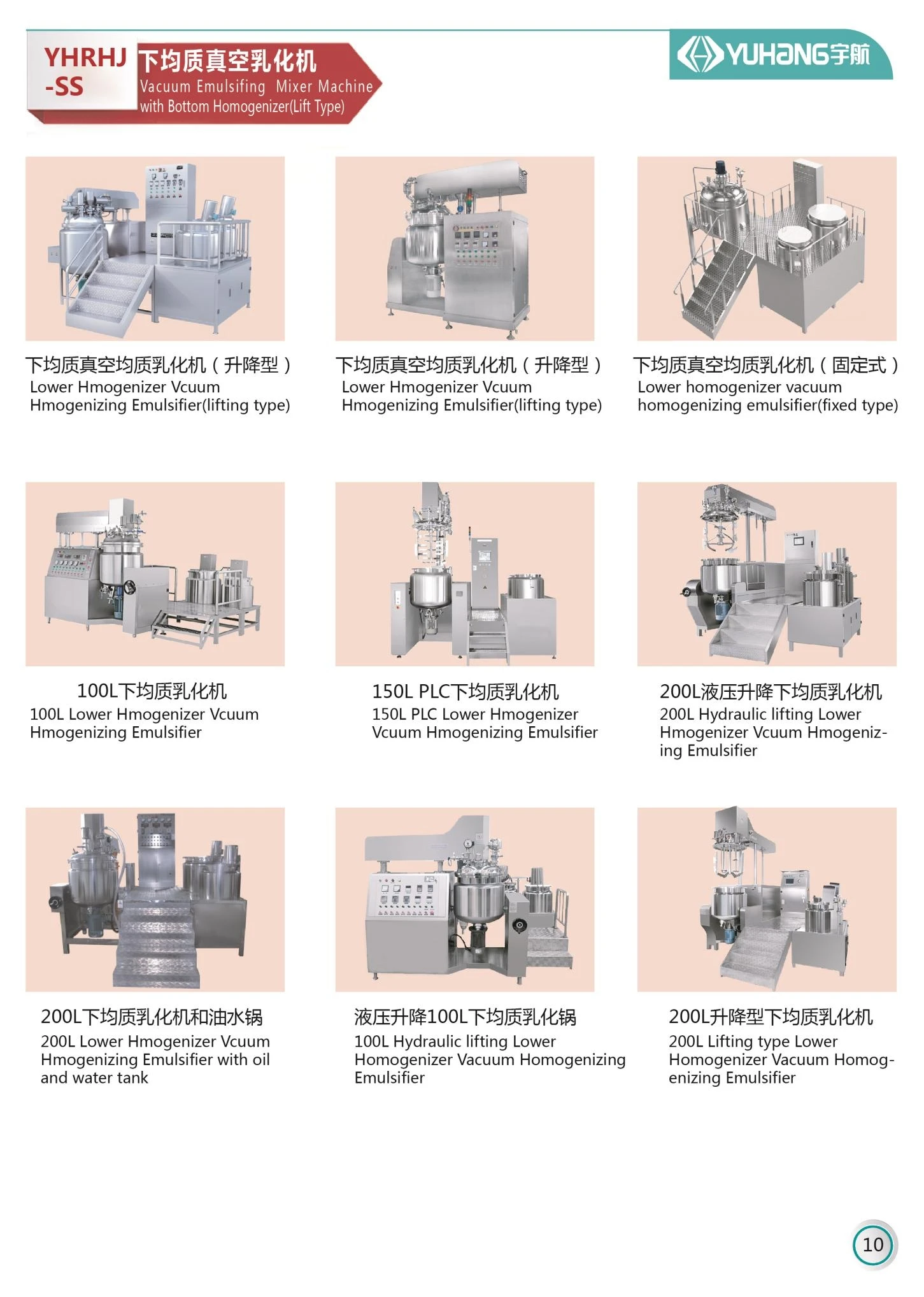

♦ The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include top homogenizer, bottom homogenizer, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer requirements.

♦ The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.

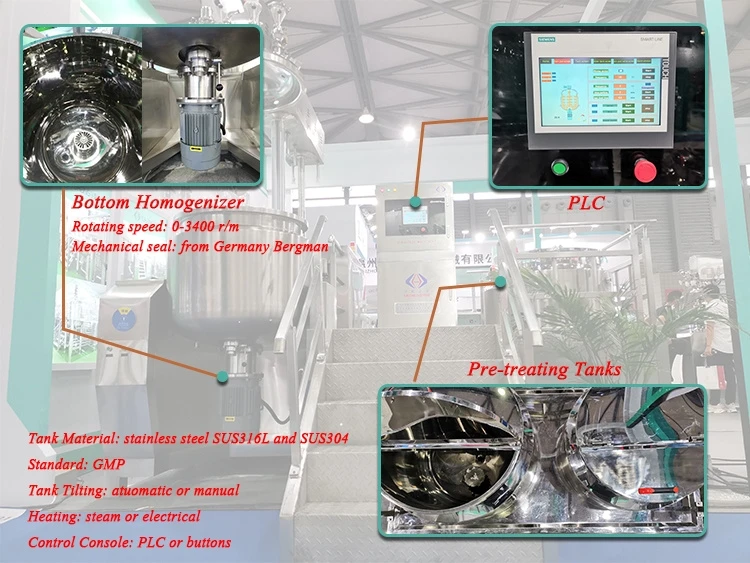

♦ The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach3,500 rpm and the highest shearing fineness can reach 0.2-5um.

♦ The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust

♦ The emulsifying pot cover can adopt lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

♦ The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.

♦ According to technological requirements, the tank body can heat or cool the materials. The heating modes mainly include steam heating or electric heating.

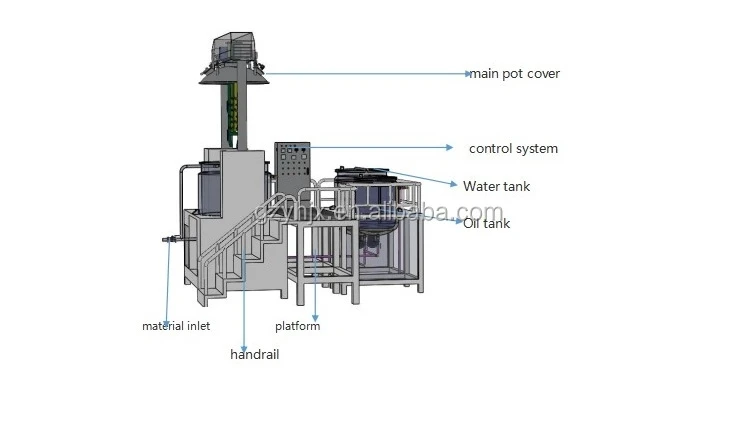

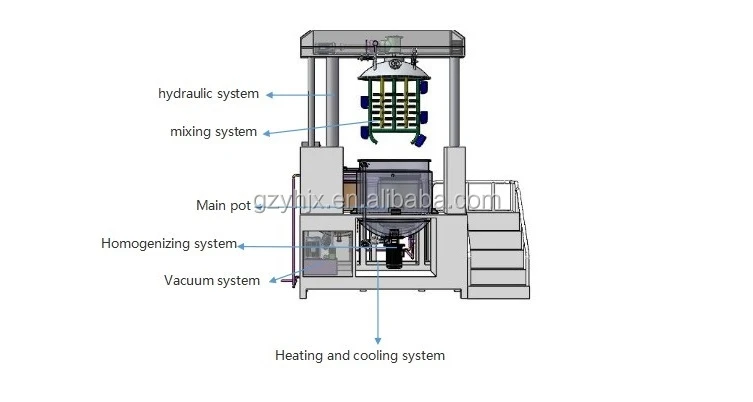

Main Structure

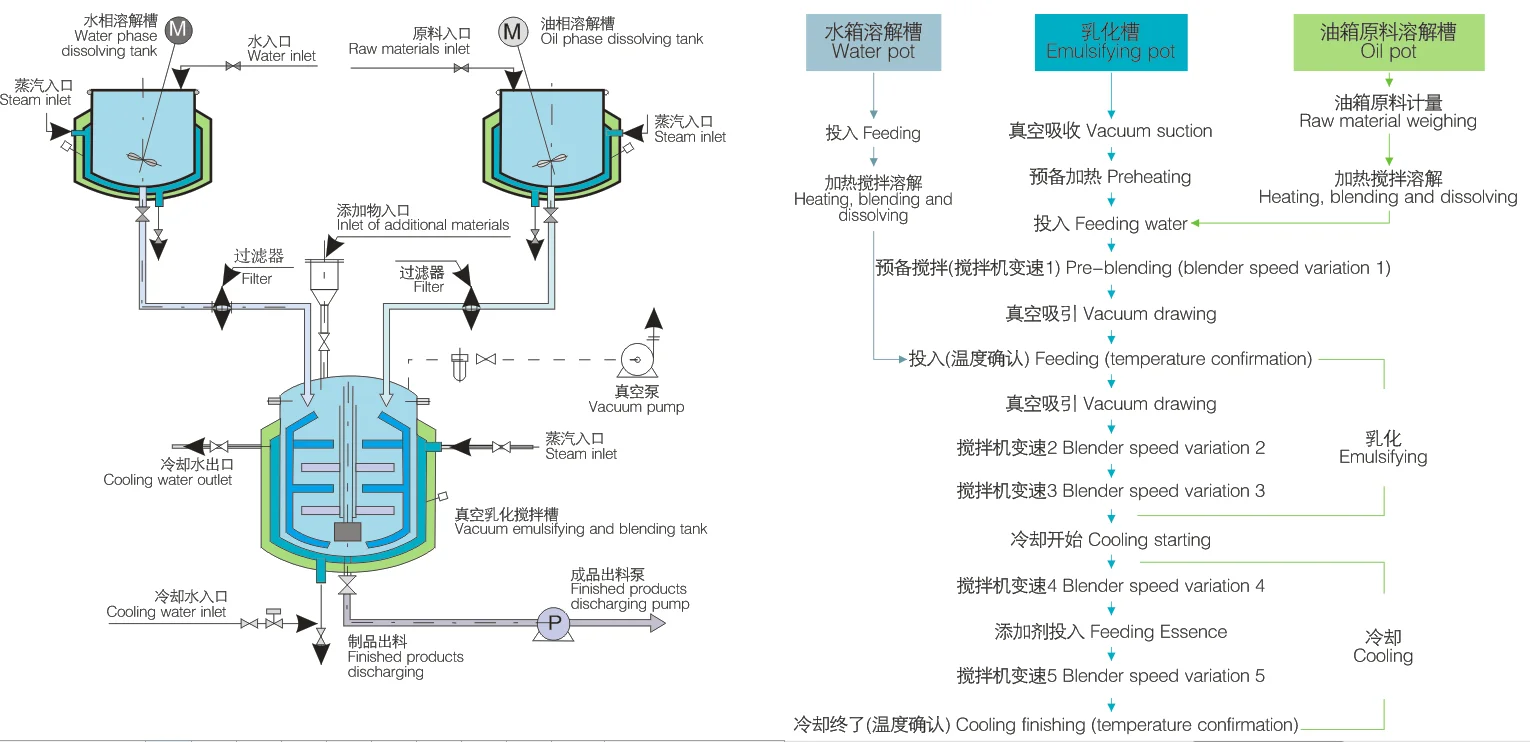

Vacuum emulsifying homogenizing mixer is composed of 3 tank, 6system and 1 working platform.

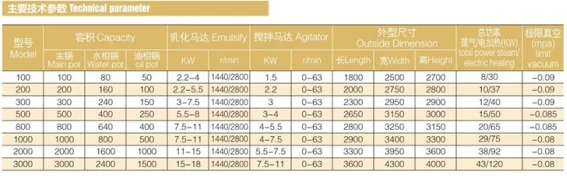

Technical parameter

Model /Parameter		50L	100L	200L	500L
Main Pot	Design Volume	60L	120L	240L	600L
	Working Volume	50L	100L	200L	500L
	Inner layer thickness	5mm	5mm	6mm	8mm
	Middle layer thinckness	5mm	5mm	6mm	8mm
	Out layer thickness	3mm	3mm	3mm	3mm
Water Pot	Design Volume	40L	96L	192L	500L
	Working Volume	40L	80L	160L	400L
	Inner layer thickness	4mm	4mm	4mm	6mm
	Middle layer thickness	4mm	4mm	4mm	6mm
	Out layer thickness	3mm	3mm	3mm	3mm
Oil Pot	Design volume	30L	60L	120L	300L
	Working volume	25L	50L	100L	260L
	Inner layer thickness	4mm	4mm	4mm	6mm
	Middle layer thickness	4mm	4mm	4mm	6mm
	Out layer thickness	3mm	3mm	3mm	3mm
Speed(r/pm)	Main pot mixing speed	0-63	0-63	0-63	0-63
	Homogenizing speed	0-3400	0-3400	0-3400	0-3400
	Water&oil pot mixing speed	0-880	0-880	0-880	0-880

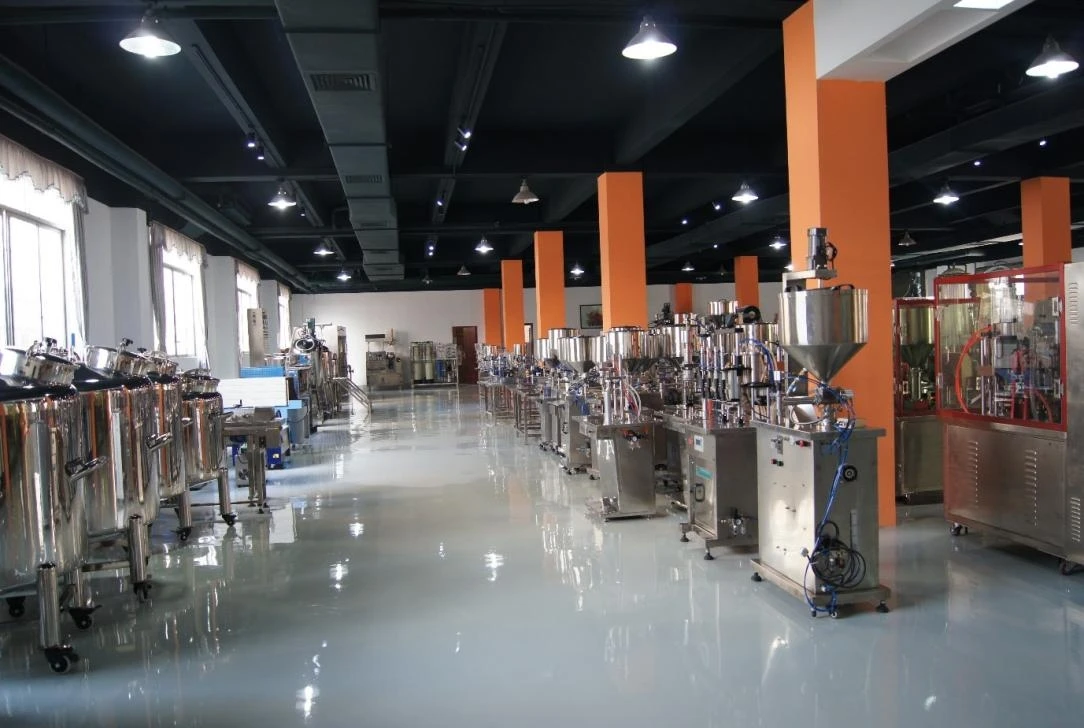

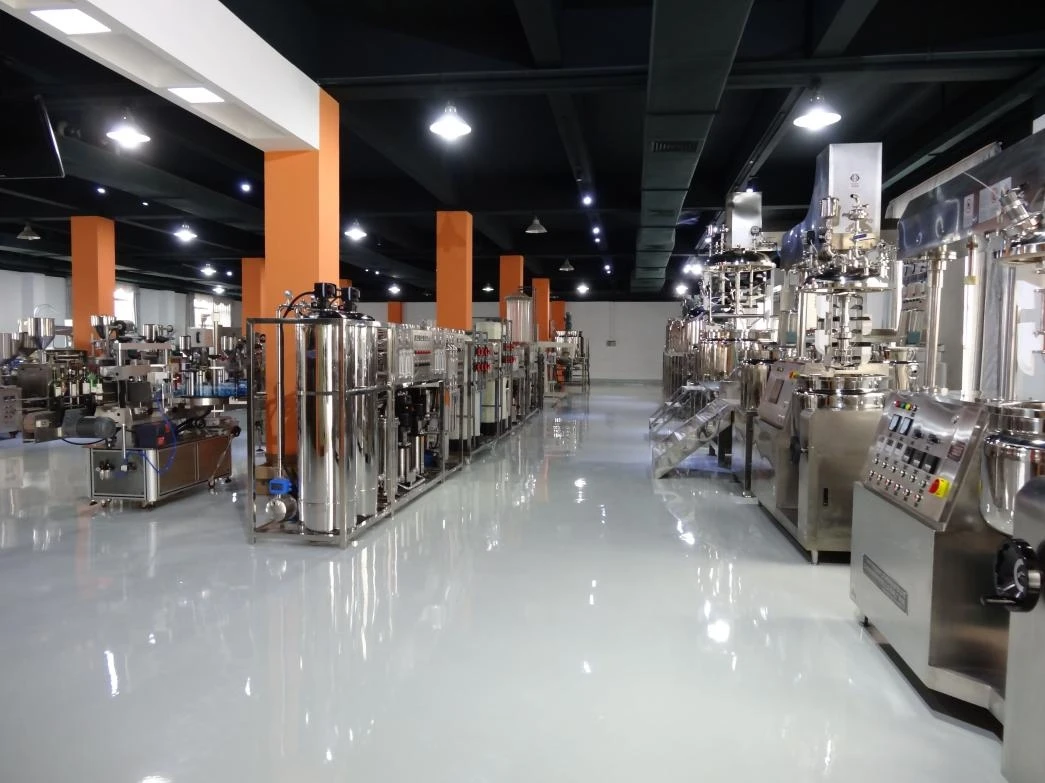

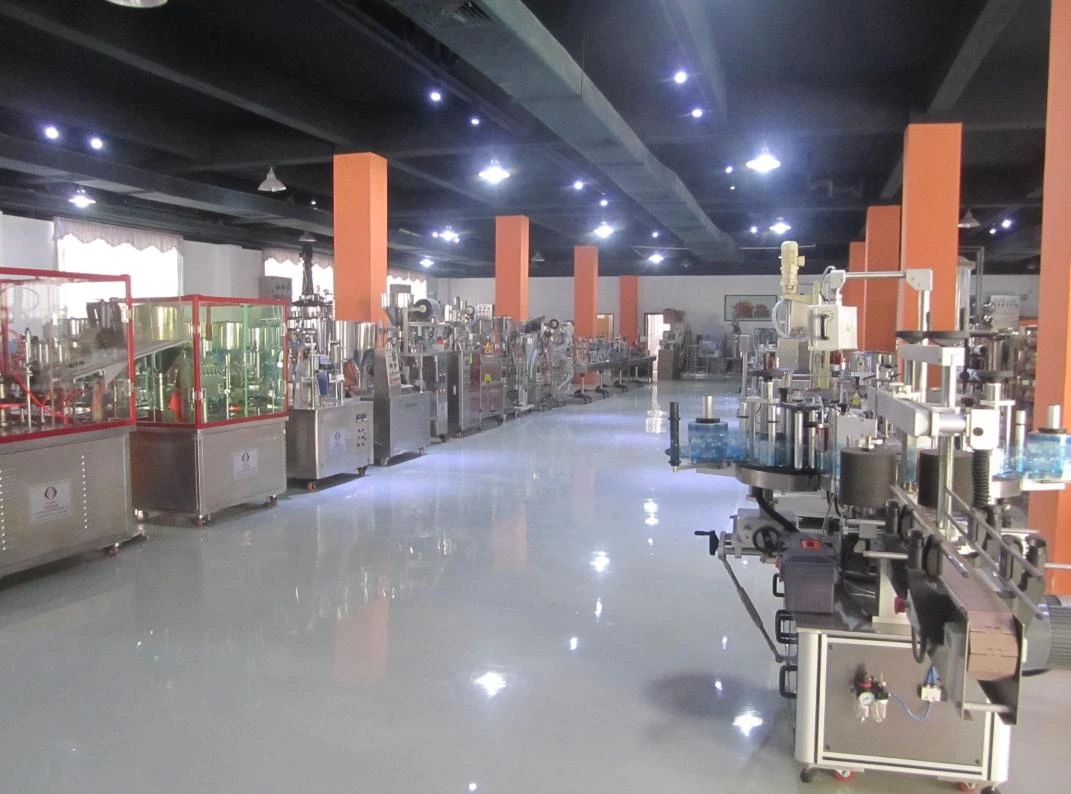

Company Information Our Exhibition room
