9 inch Touchscreen JDSU VIAVI MTS 4000 V2 OTDR Machine E4136C 46/45/45dB 1310/1550/1625nm Fiber Optic OTDR

Product Overview

Description



9 inch Touchscreen OTDR VIAVI JDSU MTS-4000 v2 OTDR Machine 1310 1550 1625nm otdr

Module: E4136C (1310/1550/1625nm)

Mainframe: MTS-4000v2





VIAVI T-BERD/MTS-4000 V2  Optical Test Platform

Modular Test Platform designed for the installation, turn-up and maintenance of fiber optic networks





     The VIAVI T-BERD^®/MTS-4000 V2 is the optical test platform engineers, technicians, installers and contractors can rely on, providing:

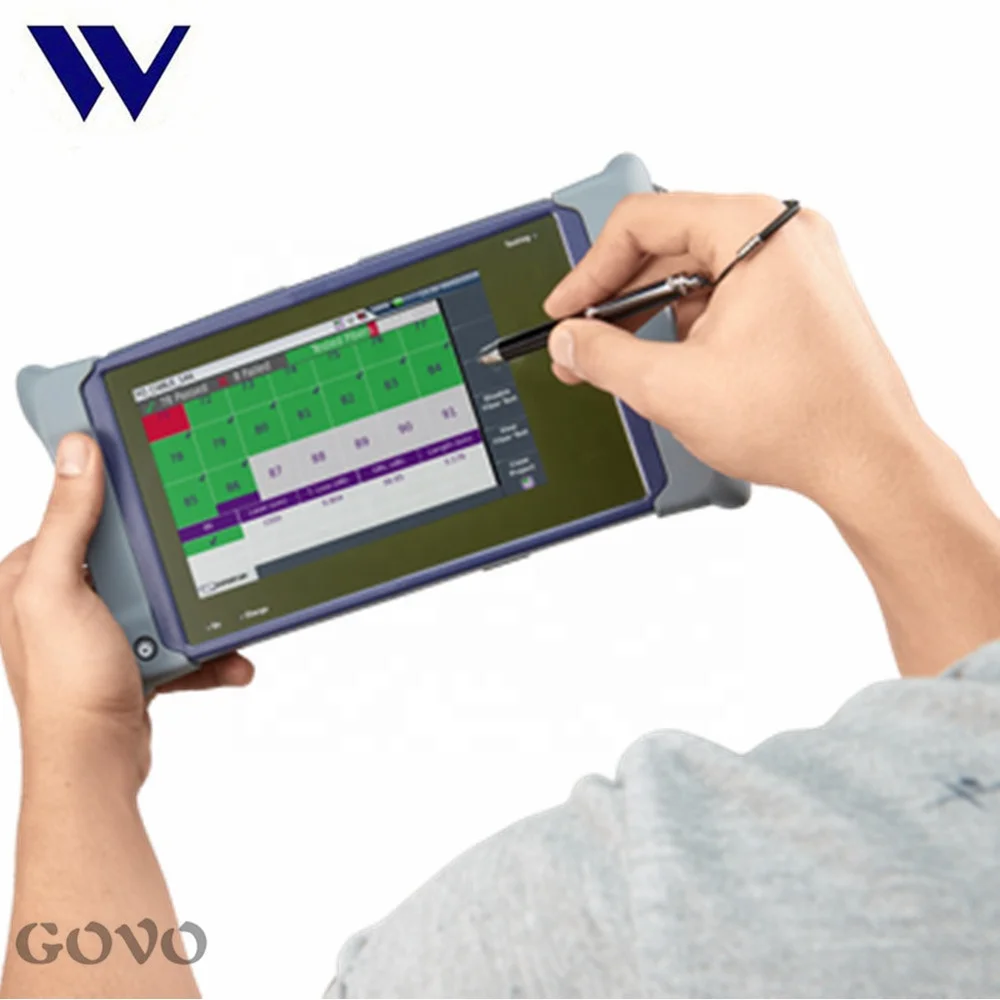

• An easy-to-use solution with intuitive icon-based graphical user interface (GUI) and multi-touch screen requiring minimal training


• A compact platform with field-replaceable modules covering multiple optical test functions (OTDRs, optical power & loss testing, Optical Spectrum Analyzer (OSA), etc…) that enable complete optical network qualification.


• Optimum workflow and operation within the platform or through the cloud with VIAVI StrataSync and SmartAccess Anywhere

Key Benefits

       1.  MTS-4000 V2 Platform :

• Certify the fiber physical layer of FTTx/PON,access, metro and enterprise networks


• Two field-replaceable modules increase flexibility


• Smarter and faster field testing with tablet user interface


• Advanced cloud support and remote connectivity

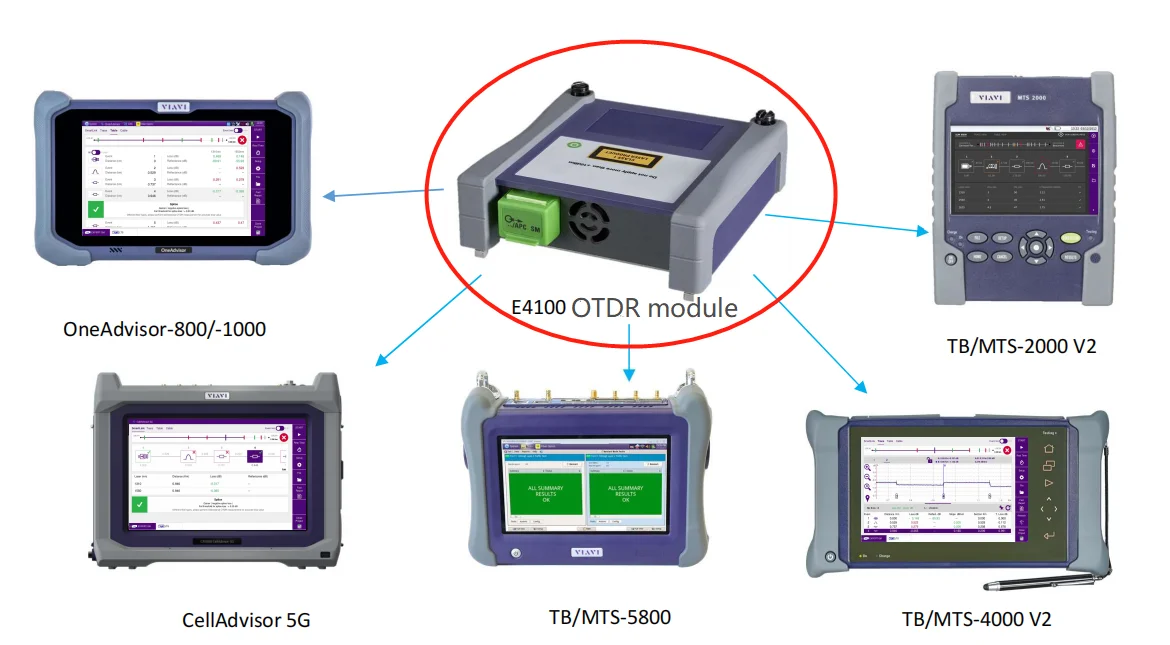

2.OTDR modules E4100 series :

• Combines OTDR, power meter and continuous light source for added testing flexibility


• Performs accurate PON networks troubleshooting with dedicated wavelengths for in-service troubleshooting


• Avoids the risk of live signal interference or damage to the optical transmitter when performing  OTDR test with instantaneous automatic traffic detection



•

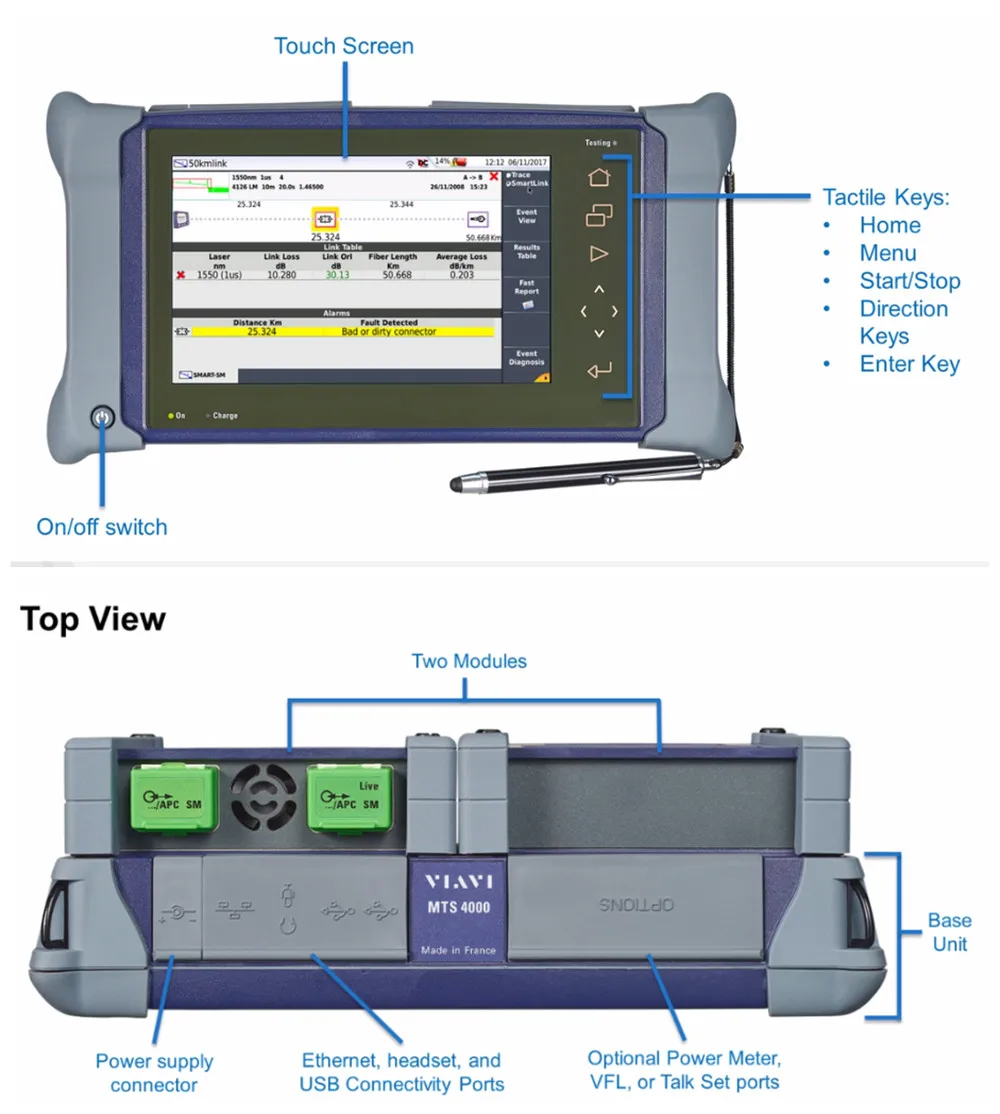

  Dual-modular handheld platform

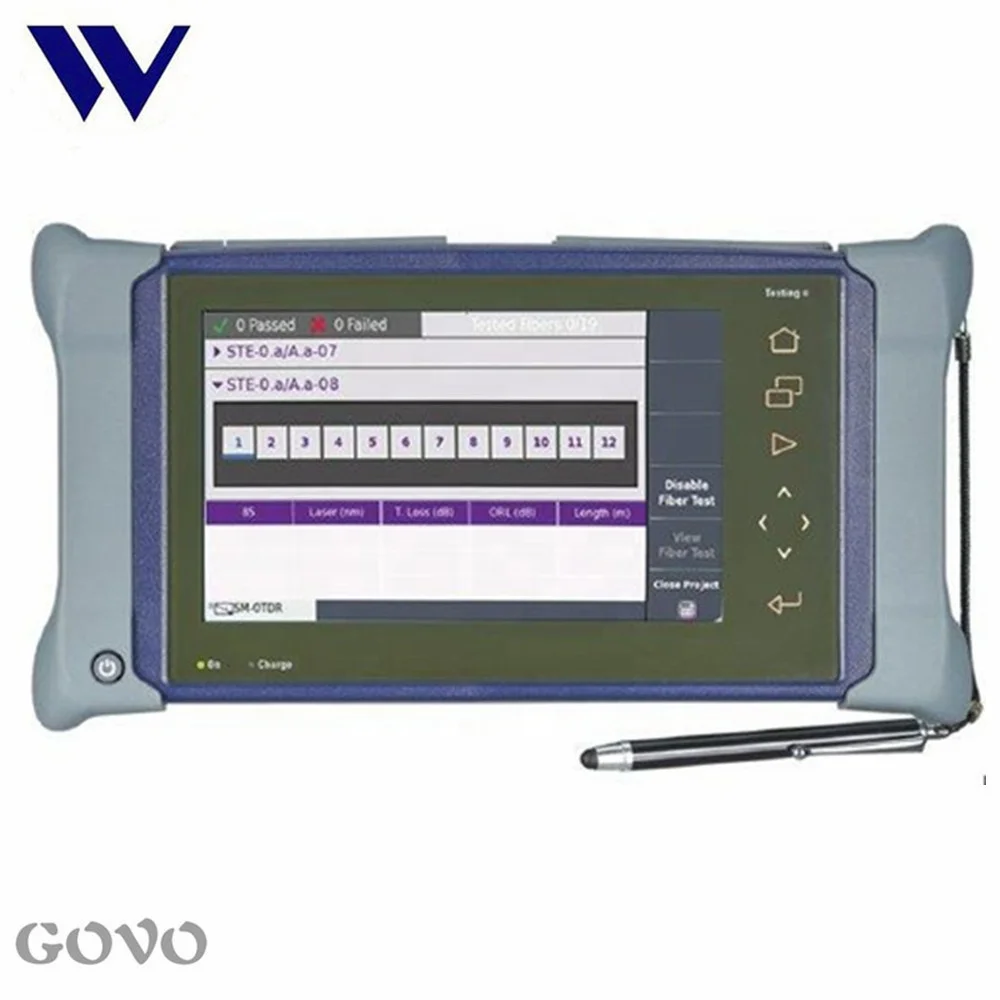

•        Large 9-inch high visibility touchscreen with permanent function keys


•        Essential tools integrated and supported in the platform (visual fault locator, optical power meter, optical microscope  and talkset)


•      Flexible connectivity; Ethernet, WiFi


•  Smart Access Anywhere (SAA) for remote control & field tech support


•   StrataSync enabled — centralized cloud based asset, configuration, test data and workflow management

Applications:

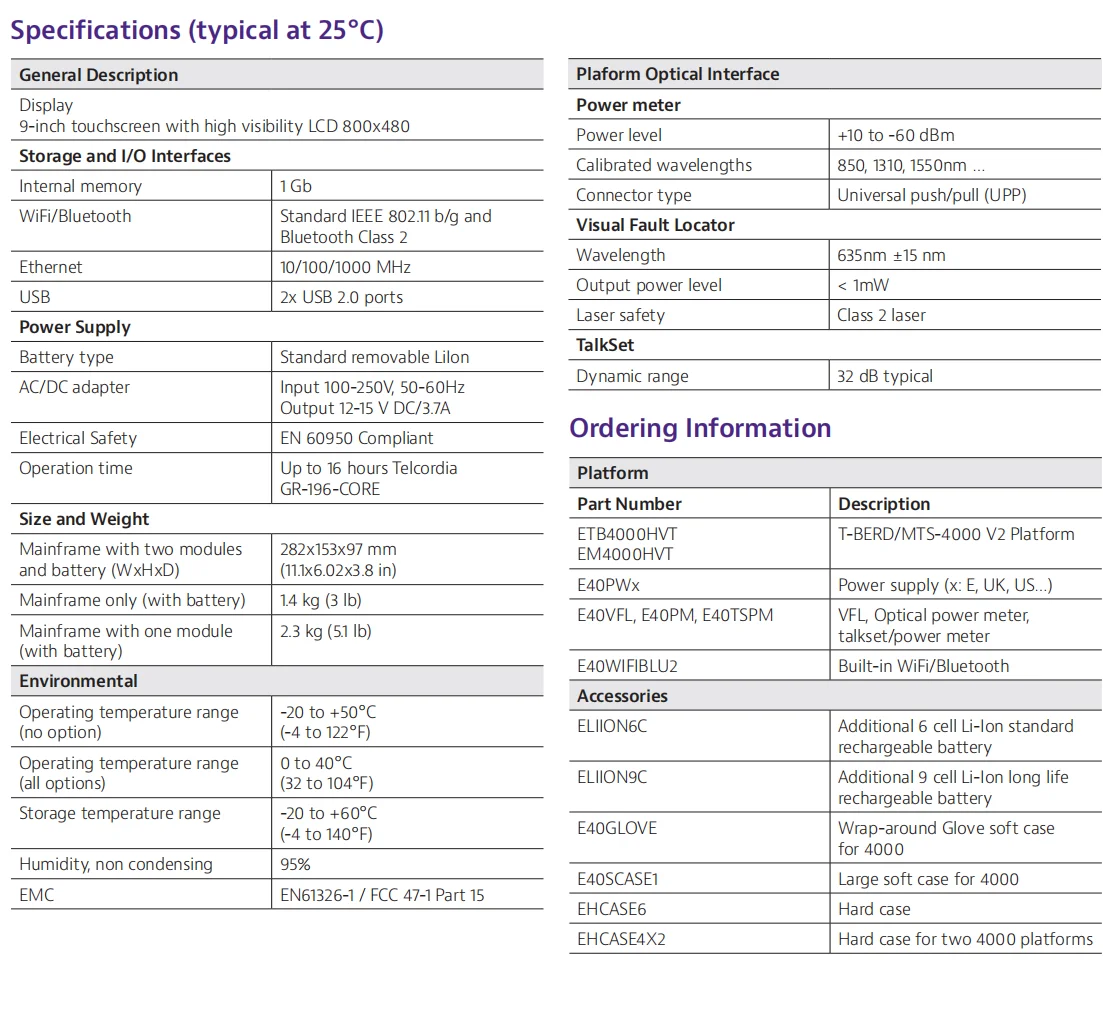

 1. MTS-4000 V2 platform  :

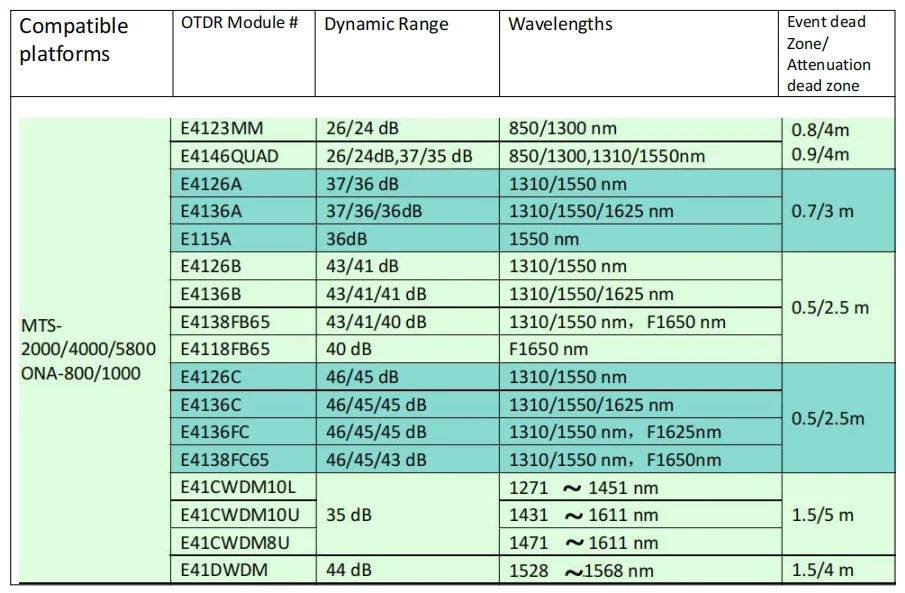

 2.OTDR modules E4100 series :

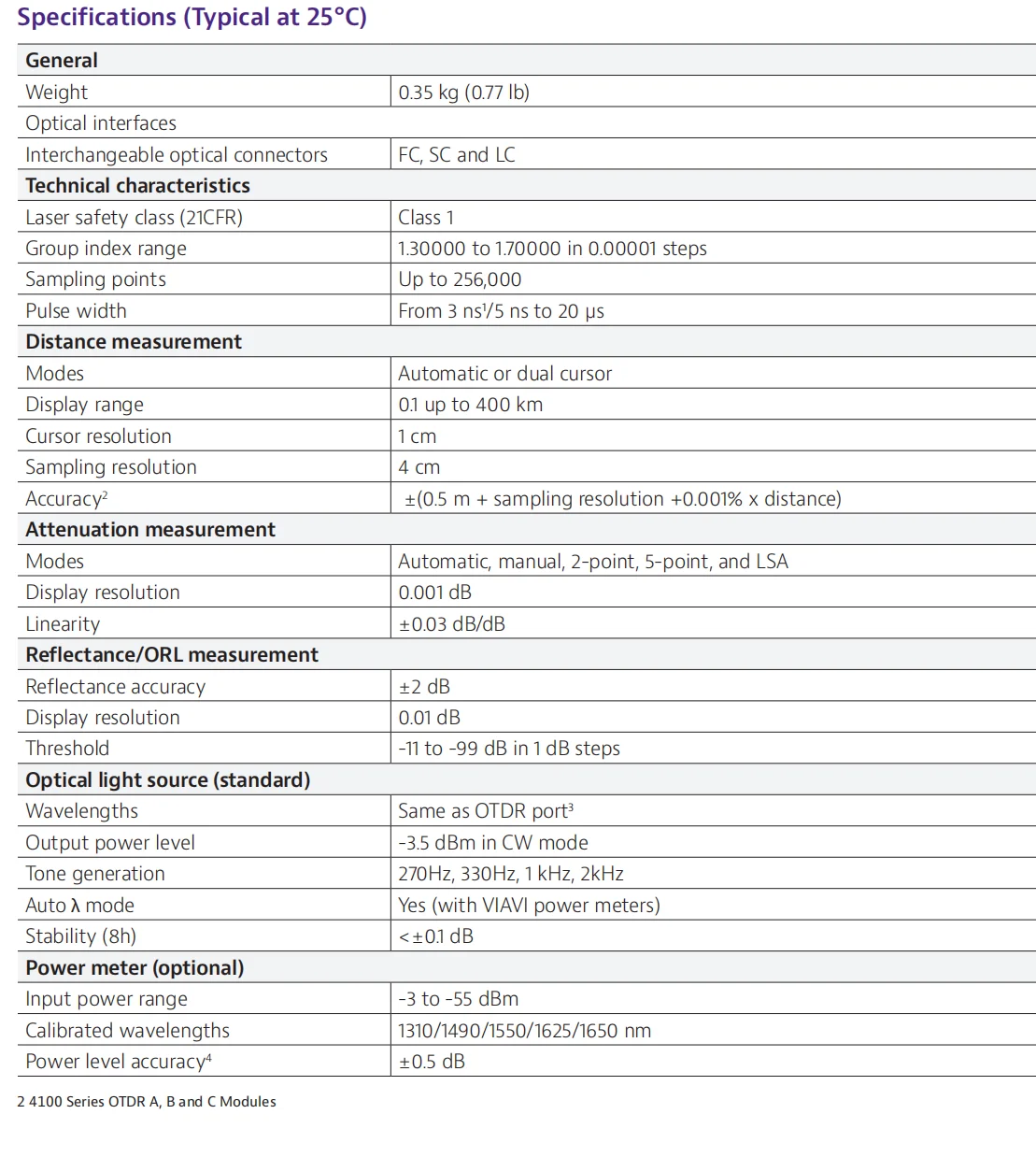

please contact us for Datasheets (MTS-4000 v2 Platform and OTDR module).

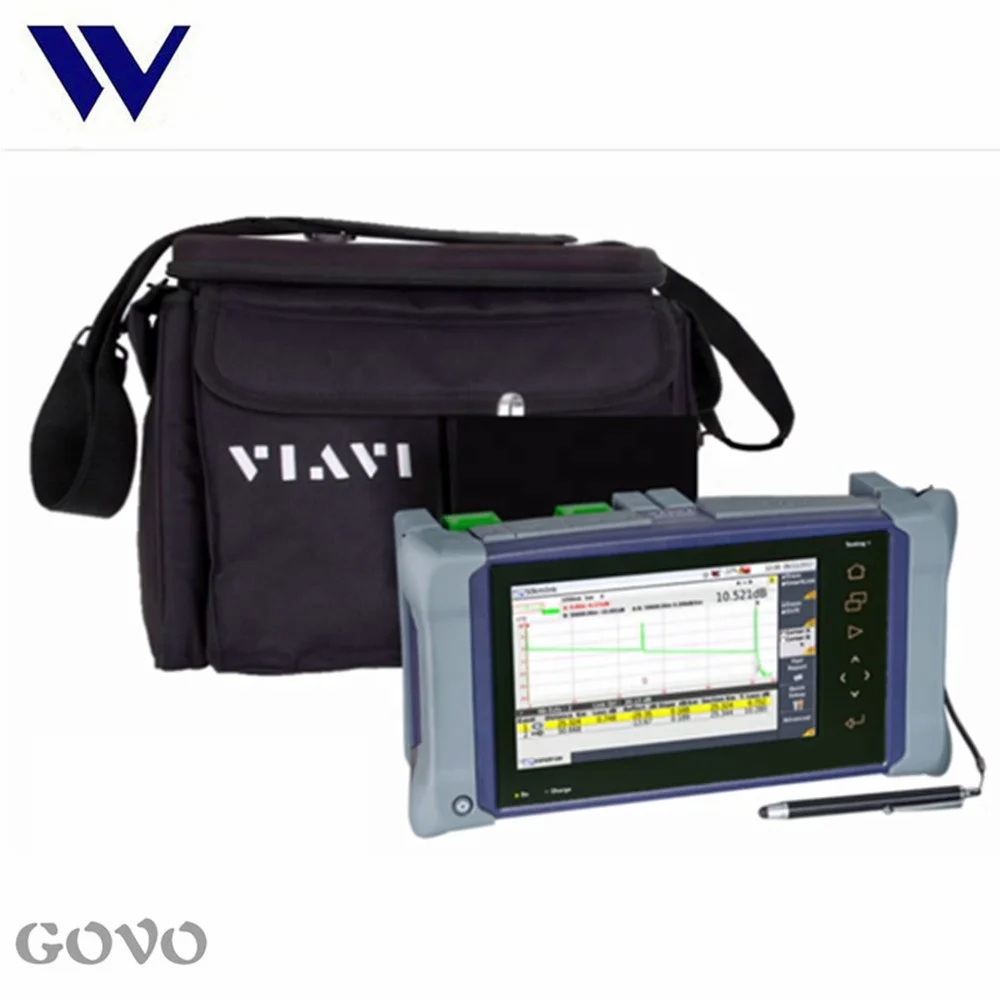

1. Main body

2. Built-in battery

3. OTDR module

4. AC adapter

5. standard connector port: FC/PC ;

6. Calibration Certificate

we also offer FC-LC, FC-SC and FC-ST adapters. plz contact us if you need them.
