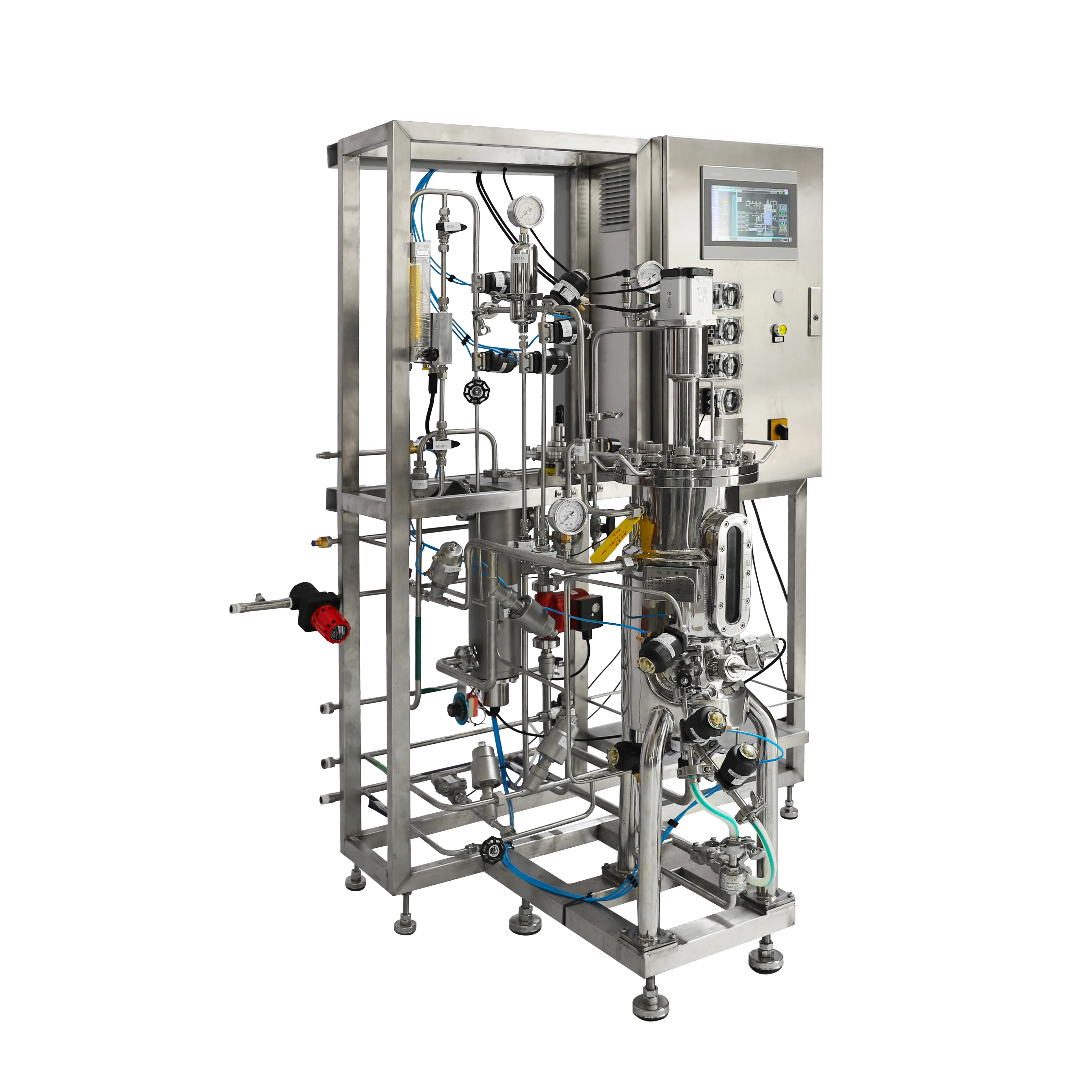

Stainless Steel Industrial Bioreactors 100L 200L 500L 1000L
- Category: >>>
- Supplier: Labfirst Scientific Instruments (shanghai) Co. Ltd.
Share on (1600859603419):
Product Overview
Description
About Us
Product Description
Lab1st offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Technical Data
Controller Technical Data

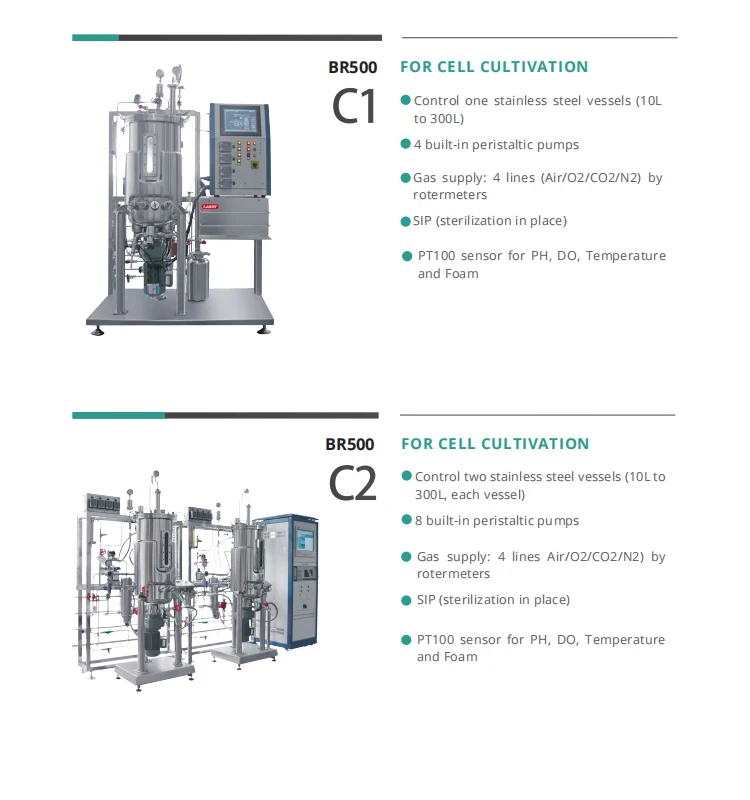

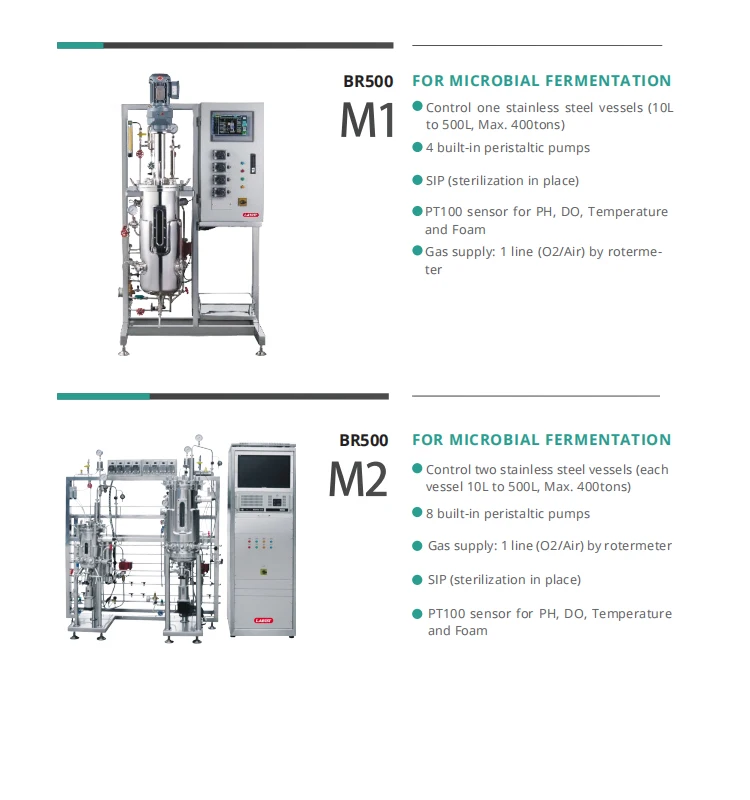

Control Unit | BR500-M1 | BR100-M2 | BR100-C1 | BR100-C2 | BR500-M2 | BR500-C1 | BR500-C2 | ||||||||
Digital controller, colored touch screen | ● | ||||||||||||||
Temperature, DO, agitation speed | ● | ||||||||||||||
Adding acid/alkali/CO2 to control PH | ● | ||||||||||||||
Rotameter | ● | ||||||||||||||
Low noise stirring motor | ● | ||||||||||||||
Peristaltic pump | 4pcs | 8pcs | 4pcs | 8pcs | 8pcs | 4pcs | 8pcs | ||||||||
Adjusting PH (acid/alkali), deform, feeding | |||||||||||||||
Stainless Steel Vessel Technical Data
Standard stainless steel vessel volume: 10L - 500L, Max. 400tons (up to 300L for cell culture)
Standard stainless steel vessel volume: 10L - 500L, Max. 400tons (up to 300L for cell culture)
Culture Vessel | 10L | 15L | 20L | 30L | 50L | 100L | |||||
H:D ratio | 1:2.2~2.8 | ||||||||||
Total volume | 13 | 18 | 27 | 34 | 58 | 132 | |||||
Working volume | 9.8L | 13.5L | 20.3L | 25.5L | 43.5L | 99L | |||||
Minimal working volume | 3.3L | 4.5L | 6.8L | 8.5L | 14.5L | 33L | |||||
Agitation speed range | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~800rpm | 5~700rpm | |||||
Motorpower | 0.75 | 1 | 1 | 1 | 0.75 | 1.5 | |||||

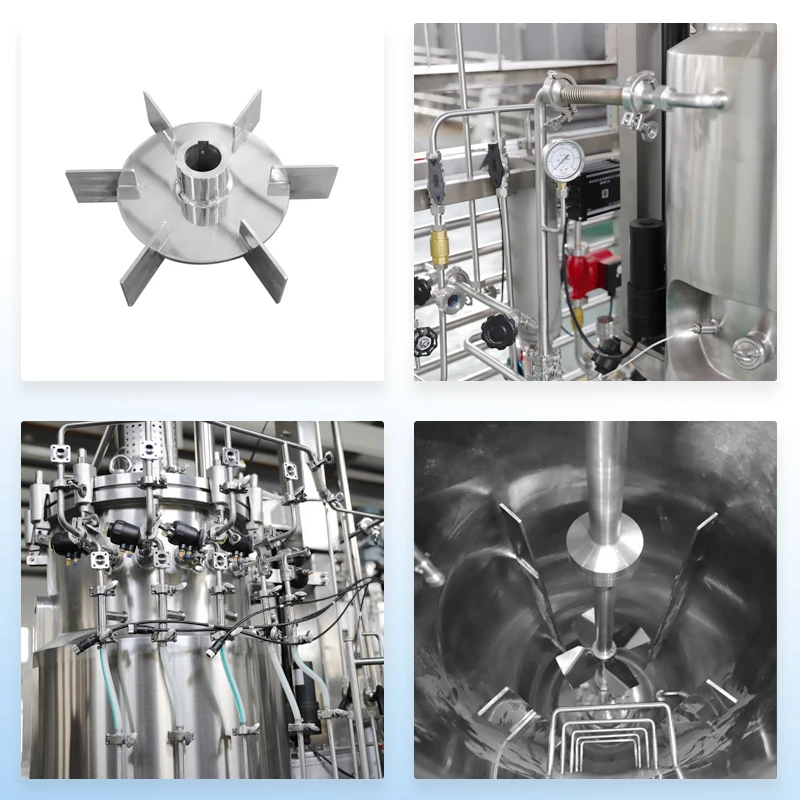

Impeller to vessel diameter ratio | ≈1:2.2~2.8 | ||||||||||
Contact Us
Labfirst Scientific Instruments (Shanghai) Co., Ltd
Mail: sales@lab1st.com
Web: www.lab1st.com
Facebook: Lab1st Scientific
Ins: lab1st_extraction
Web: www.lab1st.com
Facebook: Lab1st Scientific
Ins: lab1st_extraction
About Us
Product Description
Lab1st offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Technical Data
Controller Technical Data
Control Unit | BR500-M1 | BR100-M2 | BR100-C1 | BR100-C2 | BR500-M2 | BR500-C1 | BR500-C2 | ||||||||
Digital controller, colored touch screen | ● | ||||||||||||||
Temperature, DO, agitation speed | ● | ||||||||||||||
Adding acid/alkali/CO2 to control PH | ● | ||||||||||||||
Rotameter | ● | ||||||||||||||
Low noise stirring motor | ● | ||||||||||||||
Peristaltic pump | 4pcs | 8pcs | 4pcs | 8pcs | 8pcs | 4pcs | 8pcs | ||||||||
Adjusting PH (acid/alkali), deform, feeding | |||||||||||||||
Stainless Steel Vessel Technical Data
Standard stainless steel vessel volume: 10L - 500L, Max. 400tons (up to 300L for cell culture)
Standard stainless steel vessel volume: 10L - 500L, Max. 400tons (up to 300L for cell culture)
Culture Vessel | 10L | 15L | 20L | 30L | 50L | 100L | |||||
H:D ratio | 1:2.2~2.8 | ||||||||||
Total volume | 13 | 18 | 27 | 34 | 58 | 132 | |||||
Working volume | 9.8L | 13.5L | 20.3L | 25.5L | 43.5L | 99L | |||||
Minimal working volume | 3.3L | 4.5L | 6.8L | 8.5L | 14.5L | 33L | |||||
Agitation speed range | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~800rpm | 5~700rpm | |||||
Motorpower | 0.75 | 1 | 1 | 1 | 0.75 | 1.5 | |||||
Impeller to vessel diameter ratio | ≈1:2.2~2.8 | ||||||||||
