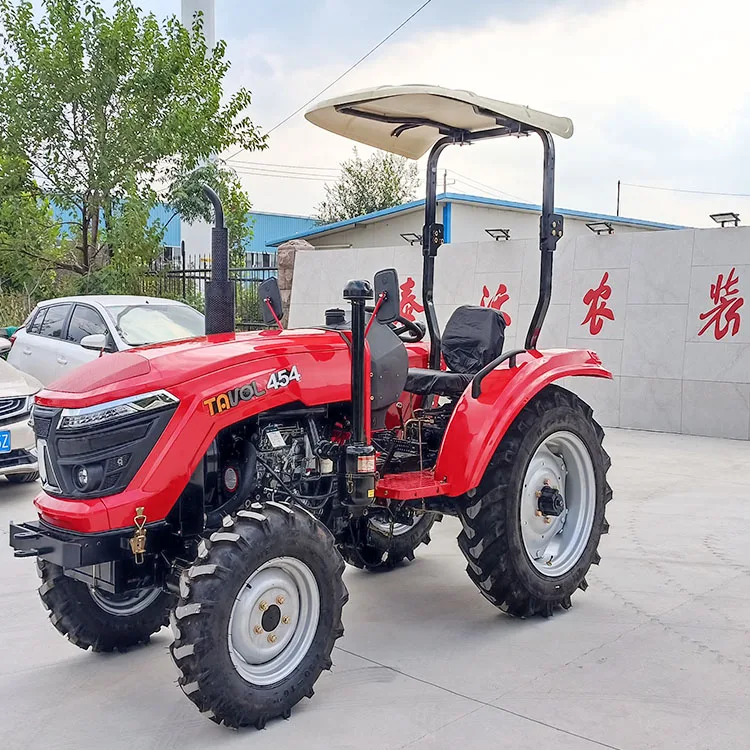

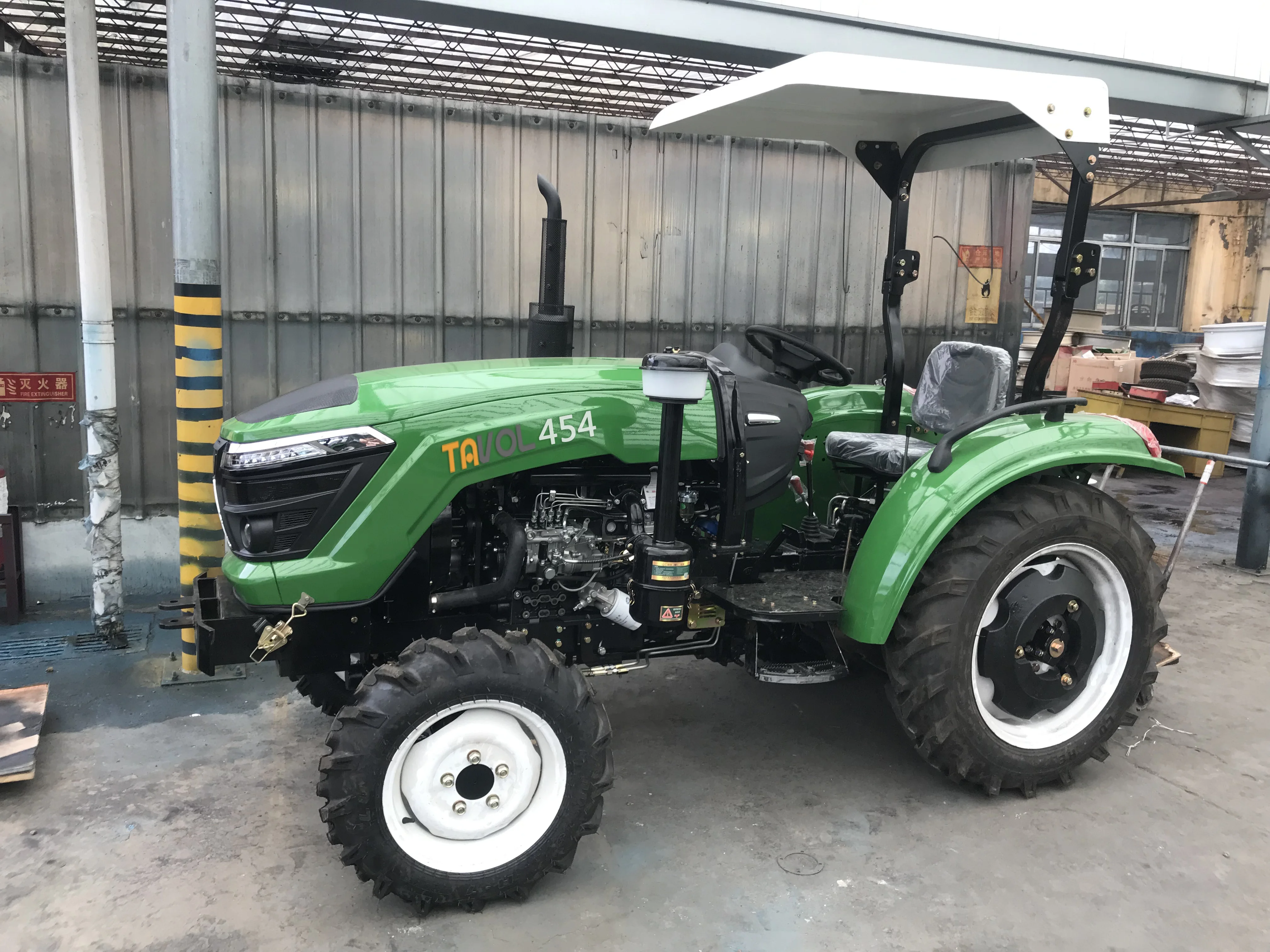

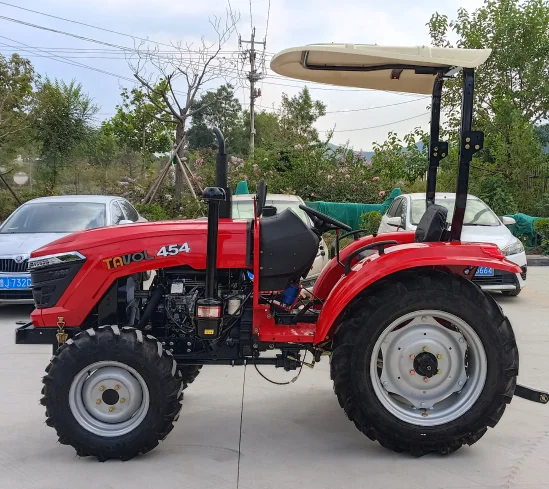

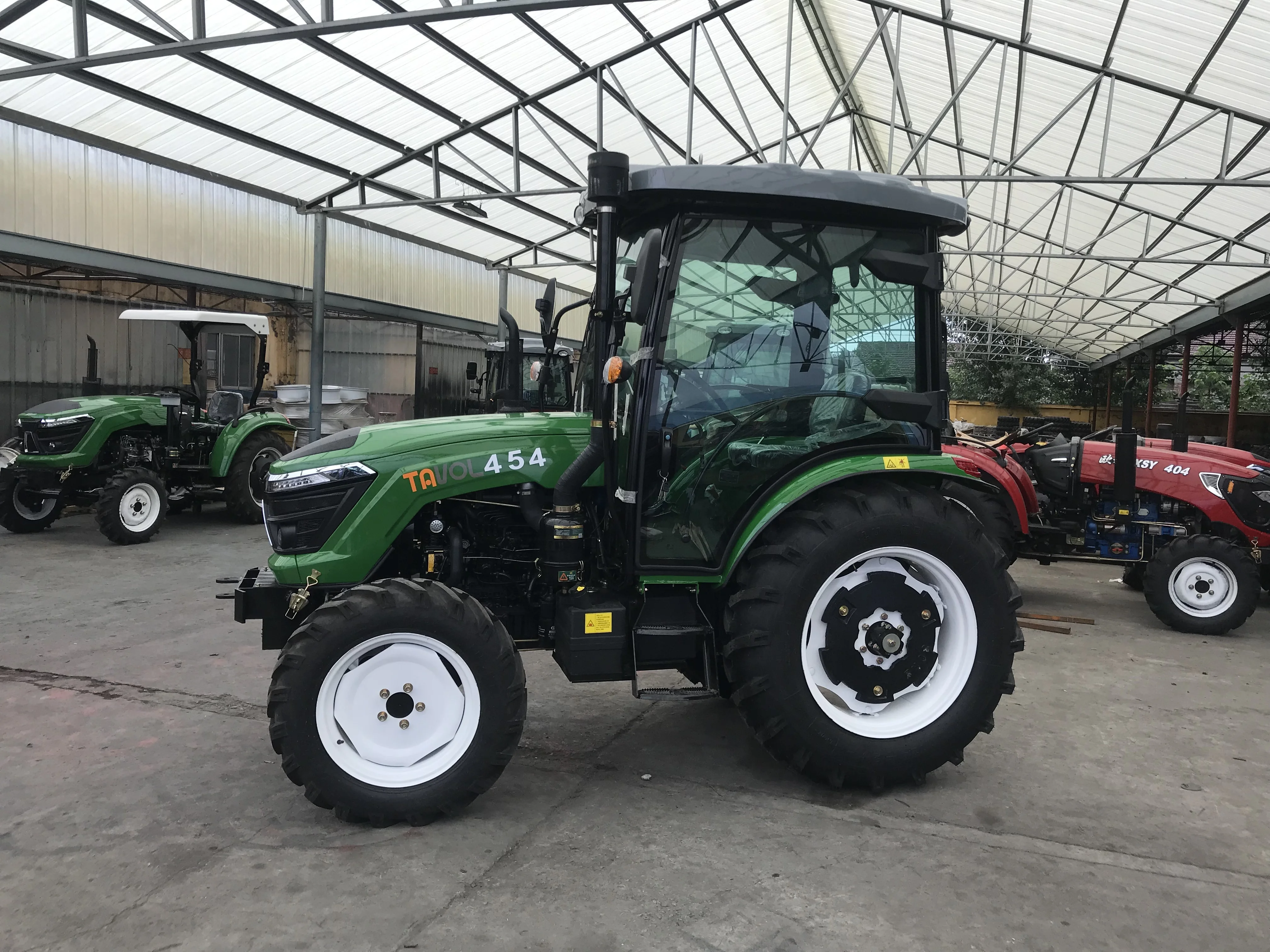

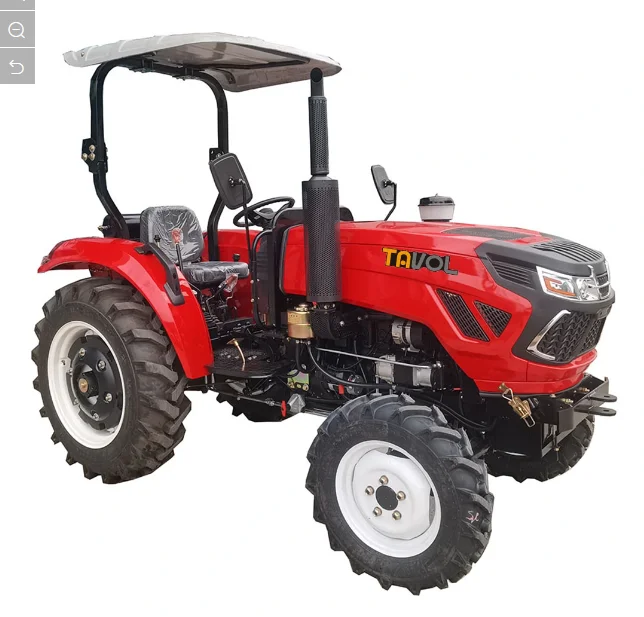

New Type 40 HP 45hp 50 HP 60 HP Mini Tractor with front and rear loader Farming Tractor Made in China
- Category: >>>
- Supplier: Shandong Tavol Group Co. Ltd
Share on (1600859620384):
Product Overview
Description

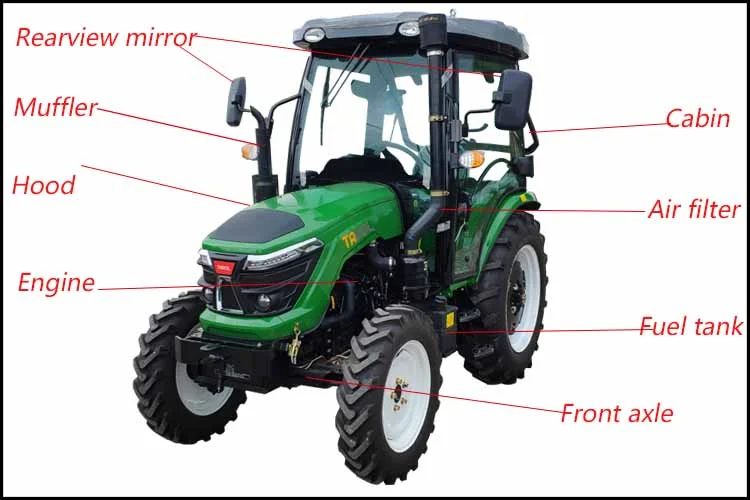

Basic introduction tractor’s
New Type 40 HP 45HP 50 HP 60 HP Mini Tractor with front and rear loader Farming Tractor Made in China
Tavol 45hp Tactor Main Parameters | ||||||
Model | TL454 | |||||
Type | 4x4 | |||||
Machine parameters | PTO power (KN) | 31.3 | ||||
Rated Traction( KN) | 10.5 | |||||
Dimensions(mm) | 3650×1650×2350 | |||||
Wheelbase(mm) | 1965 | |||||
Track(mm) | Front wheel | 1150 | ||||
Rear wheel | 1200-1360 | |||||
Minimum ground clearance(mm) | 330 | |||||
Turning circle radius | Unilateral braking | 2.7±0.20,2.85±0.20 | ||||
Not unilateral braking | 3.0±0.30,3.15±0.30 | |||||
Weight (KG) | 1828 | |||||
Drive Train | Clutch | Single or dual stage clutch | ||||
Gearbox | 8+2 shift | |||||
Walking steering | Tire | Front wheel | 6.00-16/6.5-16/7.5-16 | |||
Rear wheel | 9.4-24/11.2-24/12.4-24 | |||||
Braking system | Service brake | Shoe brake | ||||
Parking brake | Manipulator brake | |||||
Working equipment | Maximum lifting force at 610mm(KN) | 8.3 | ||||
Suspension mechanism | Three-point suspension type1 | |||||
Hydraulic output | Optional 1 or 2 groups | |||||
PTO shaft | PTO speed r/min | 540/760 or 540/1000 | ||||
Engine | Engine brand | Laidong | ||||
Engine type | Diesel engine | |||||
Engine cylinder | 4 | |||||
Start | Start method | Electric | ||||
This parameter table is for reference only, everything is based on actual products | ||||||
This series is maiddle hp tractor,which directly connected with its engine.
Jaw type differential lock can improve the pass-ability.
single stage clutch or two stage clutch.
Hydraulic output interface can make direct cinnection with the dump trailer.
This series tractor can have many different configurations.

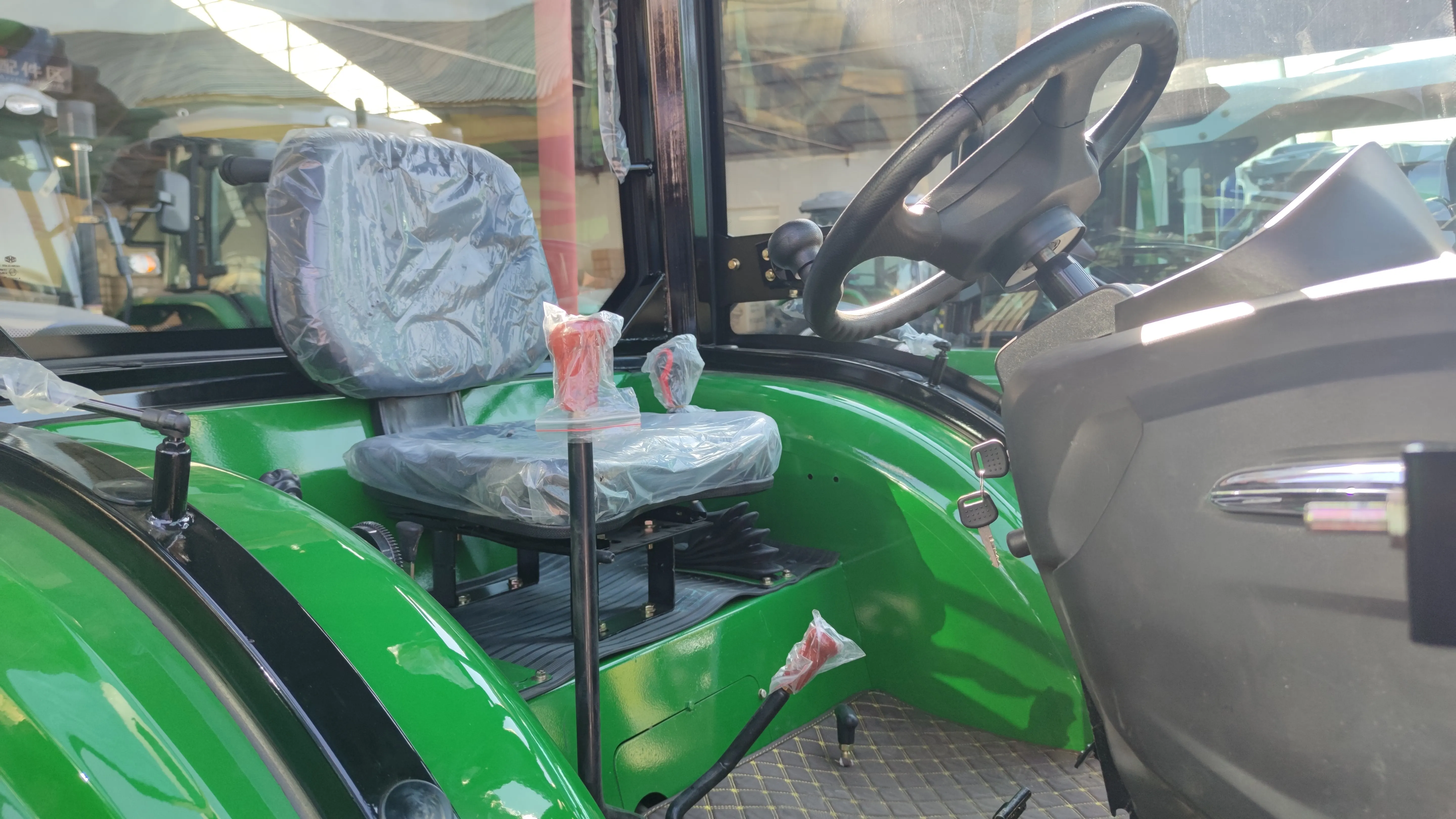

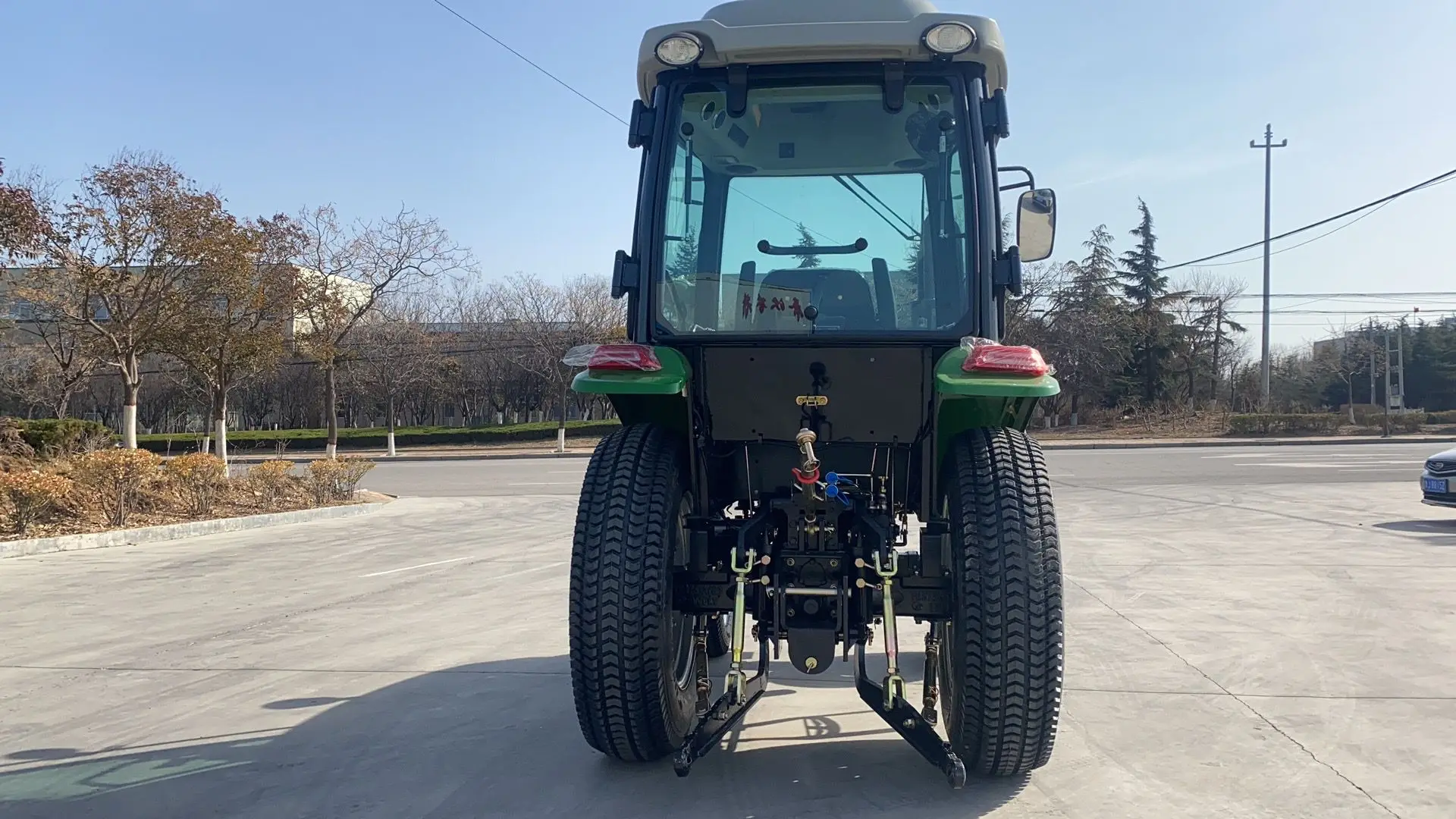

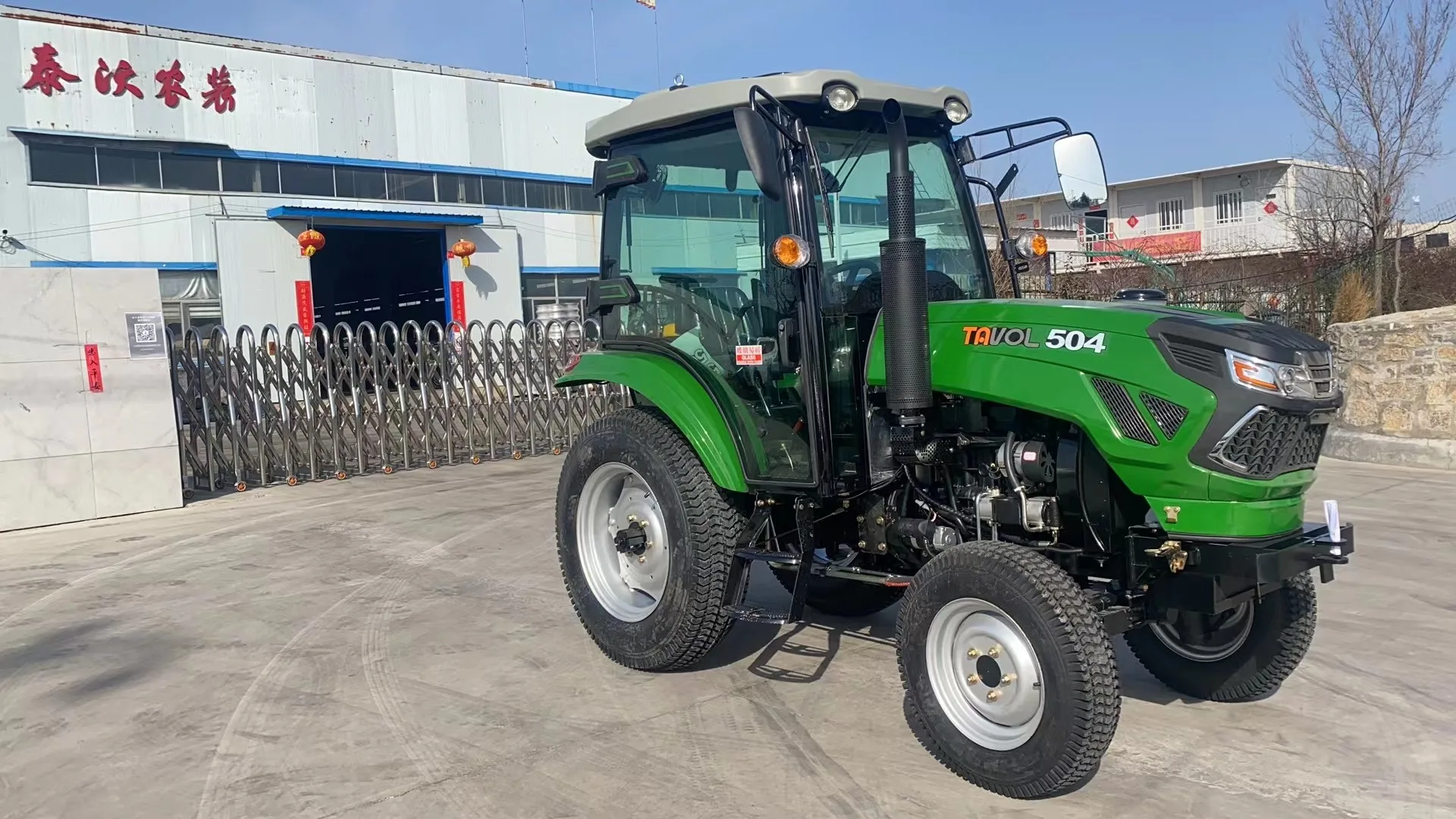

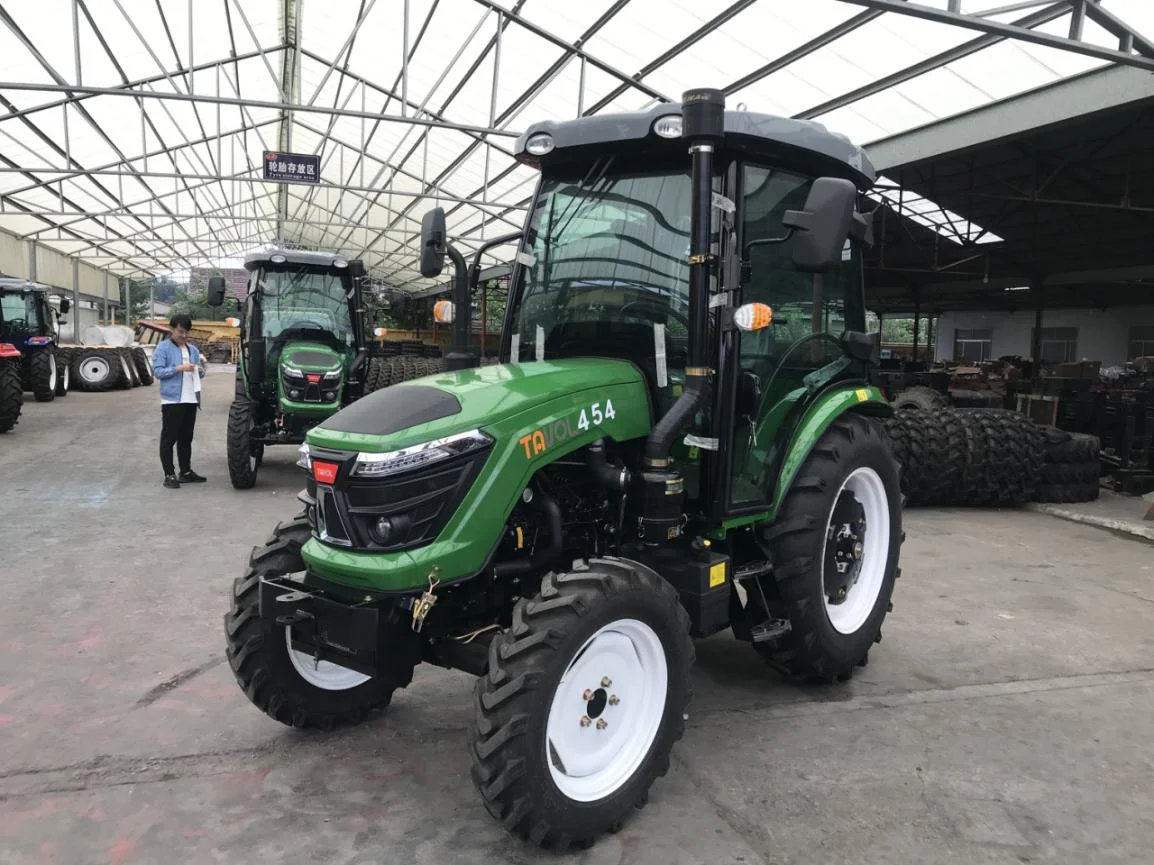

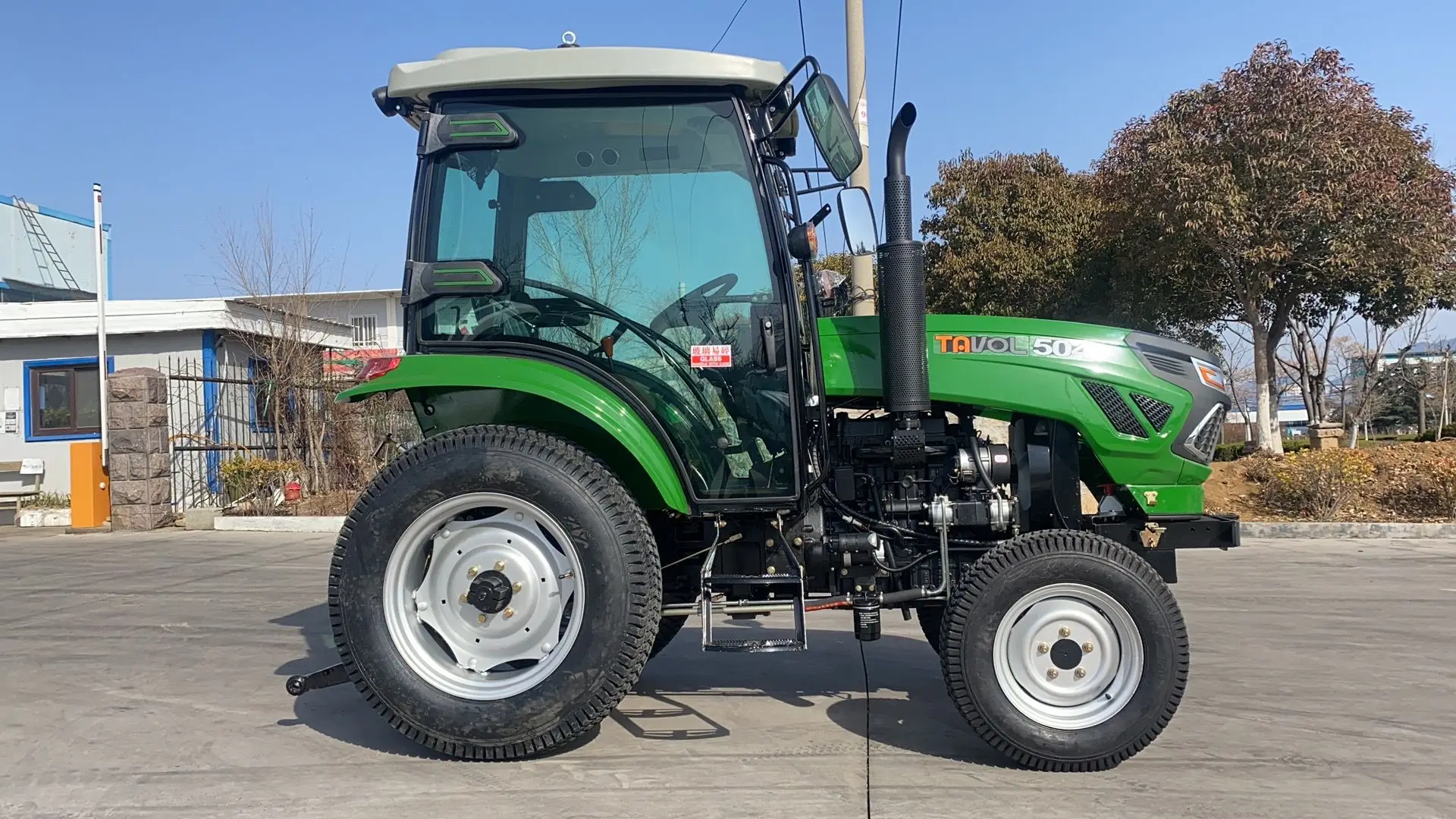

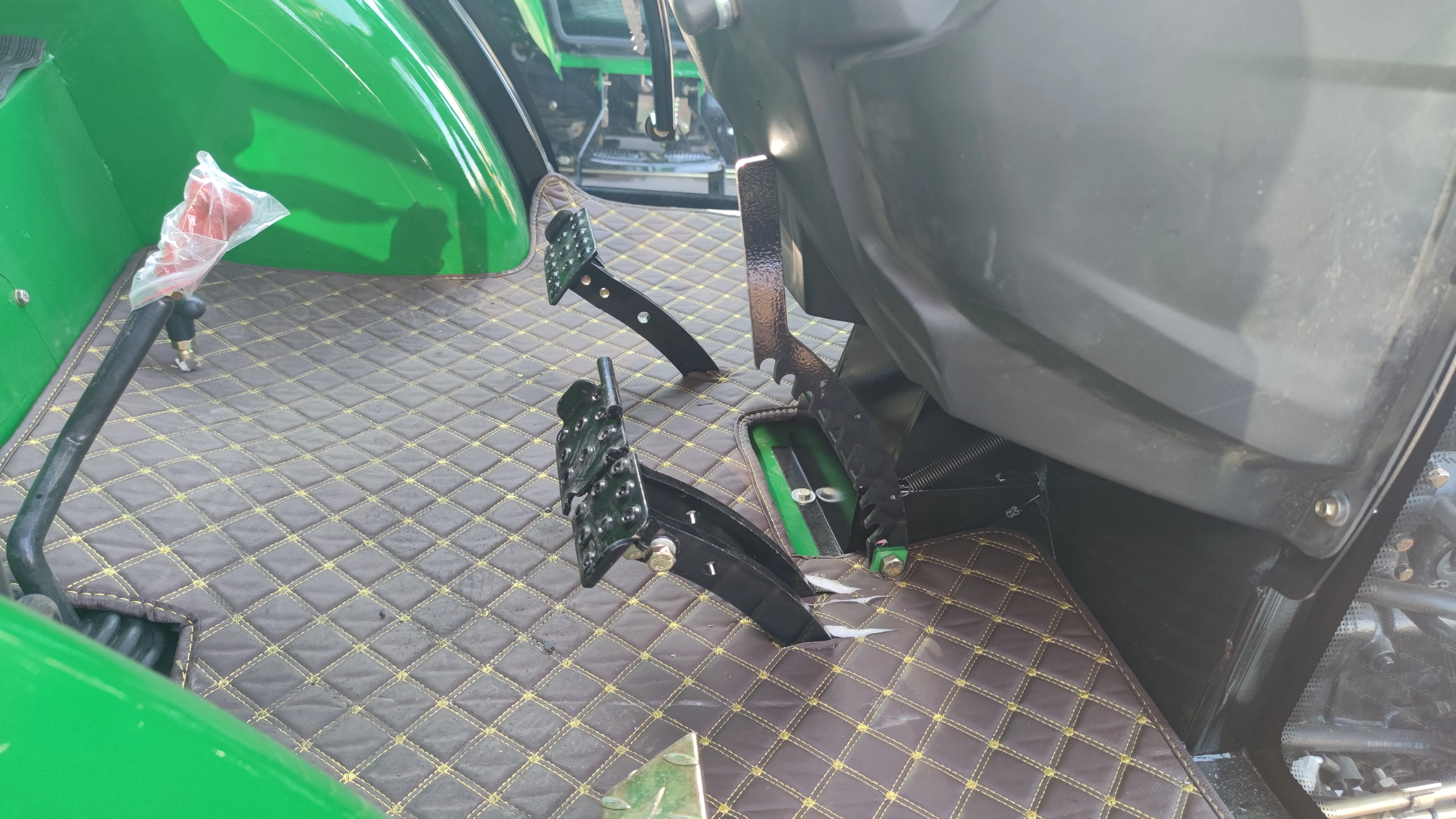

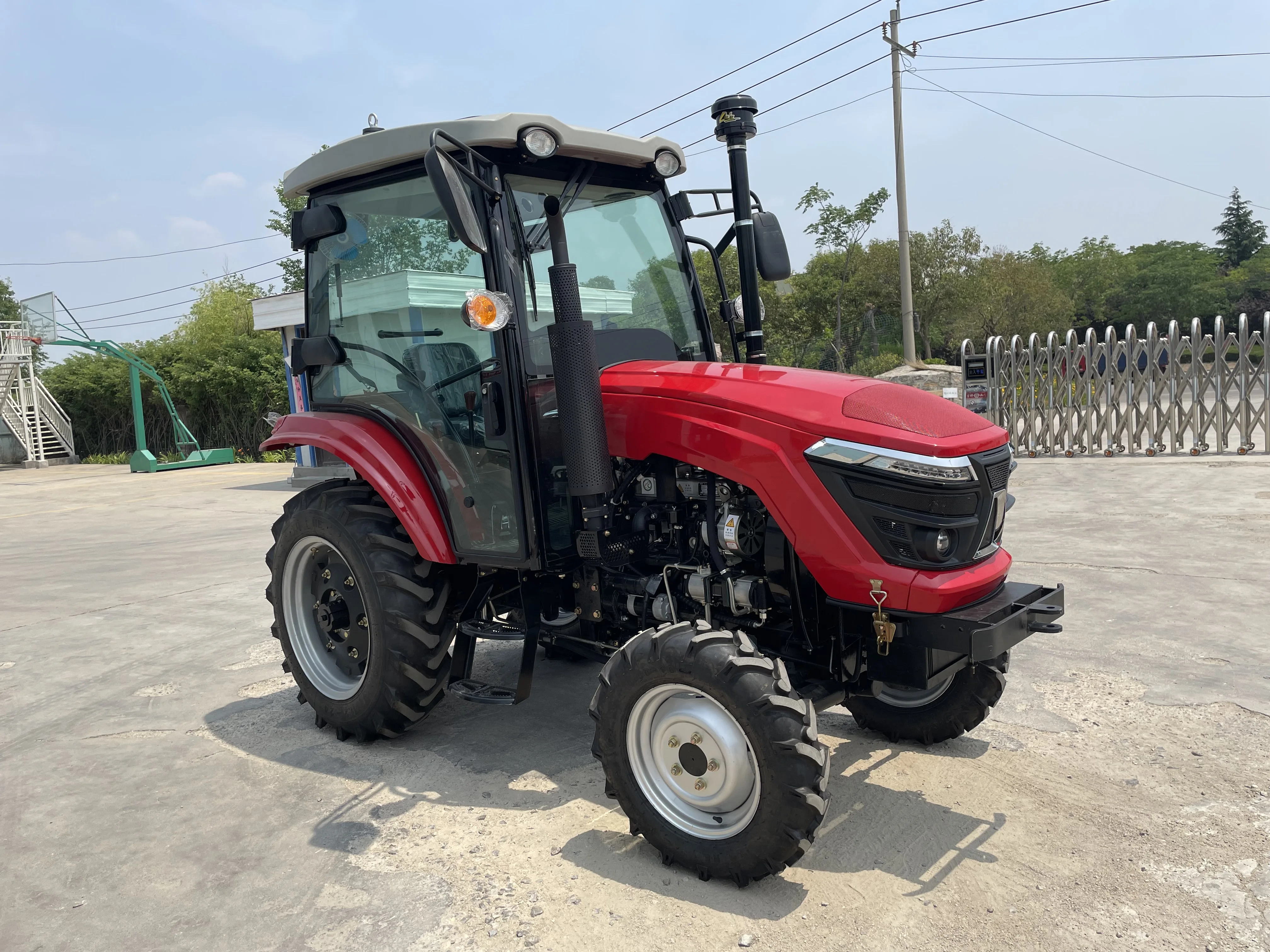

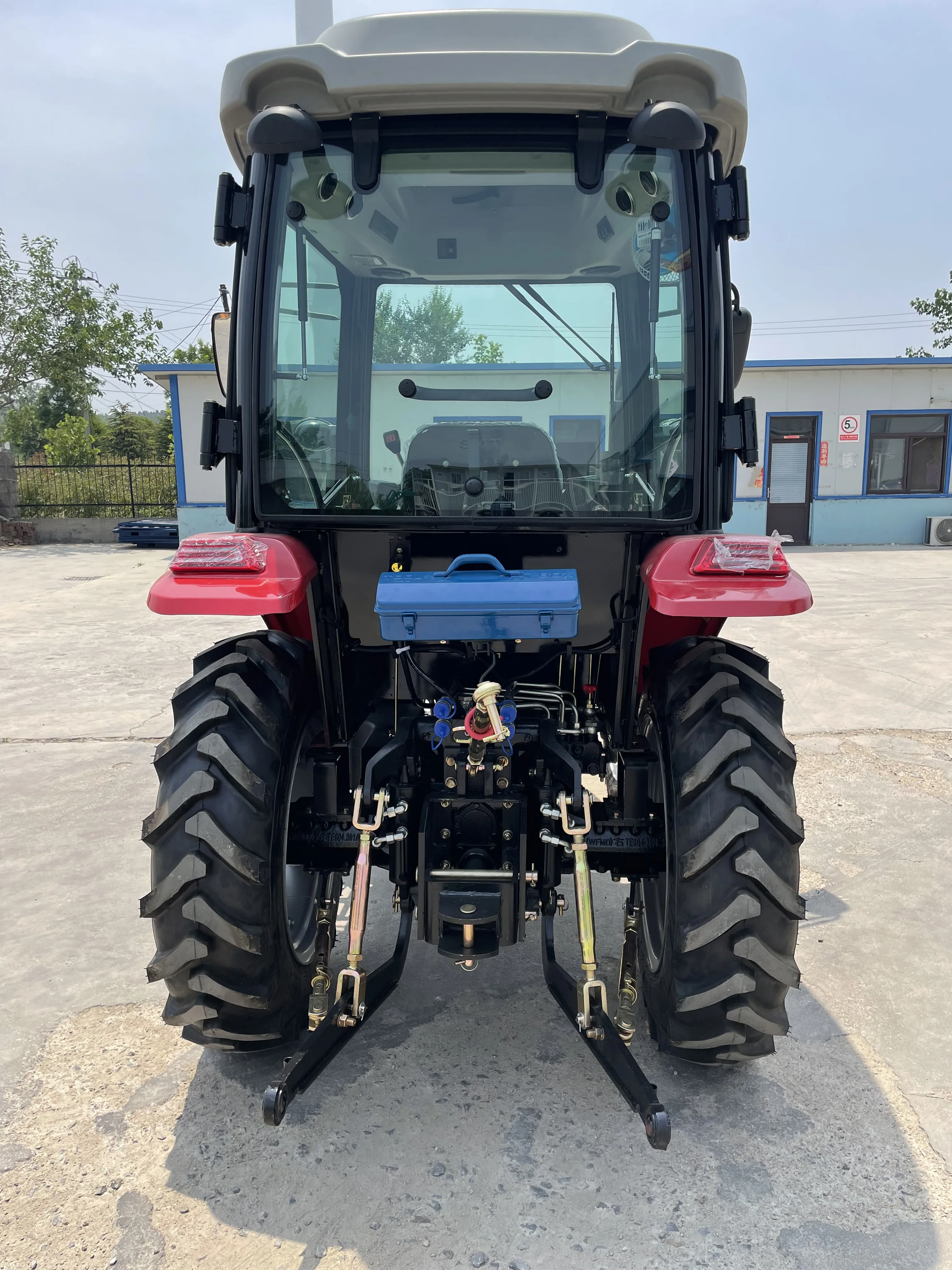

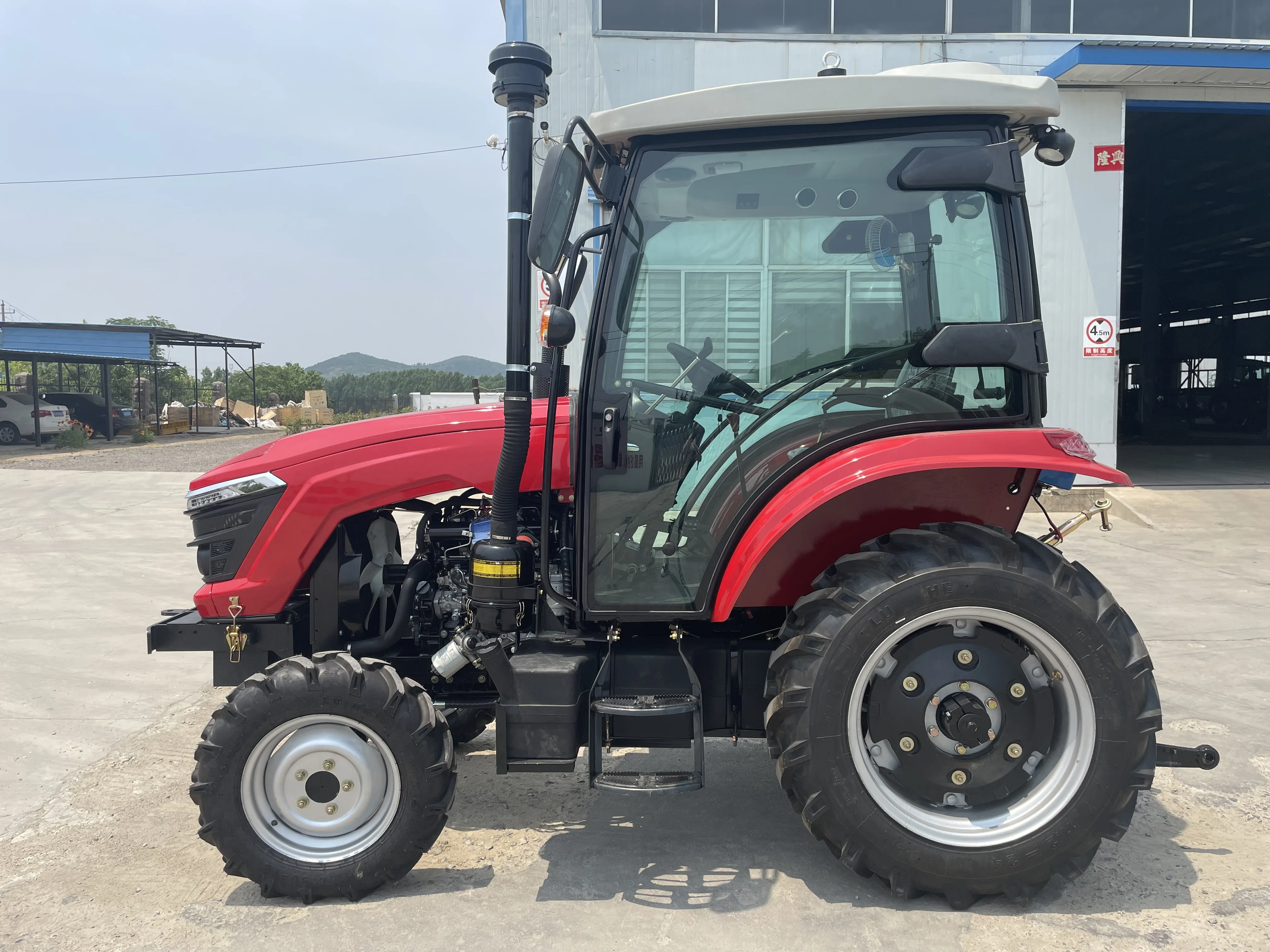

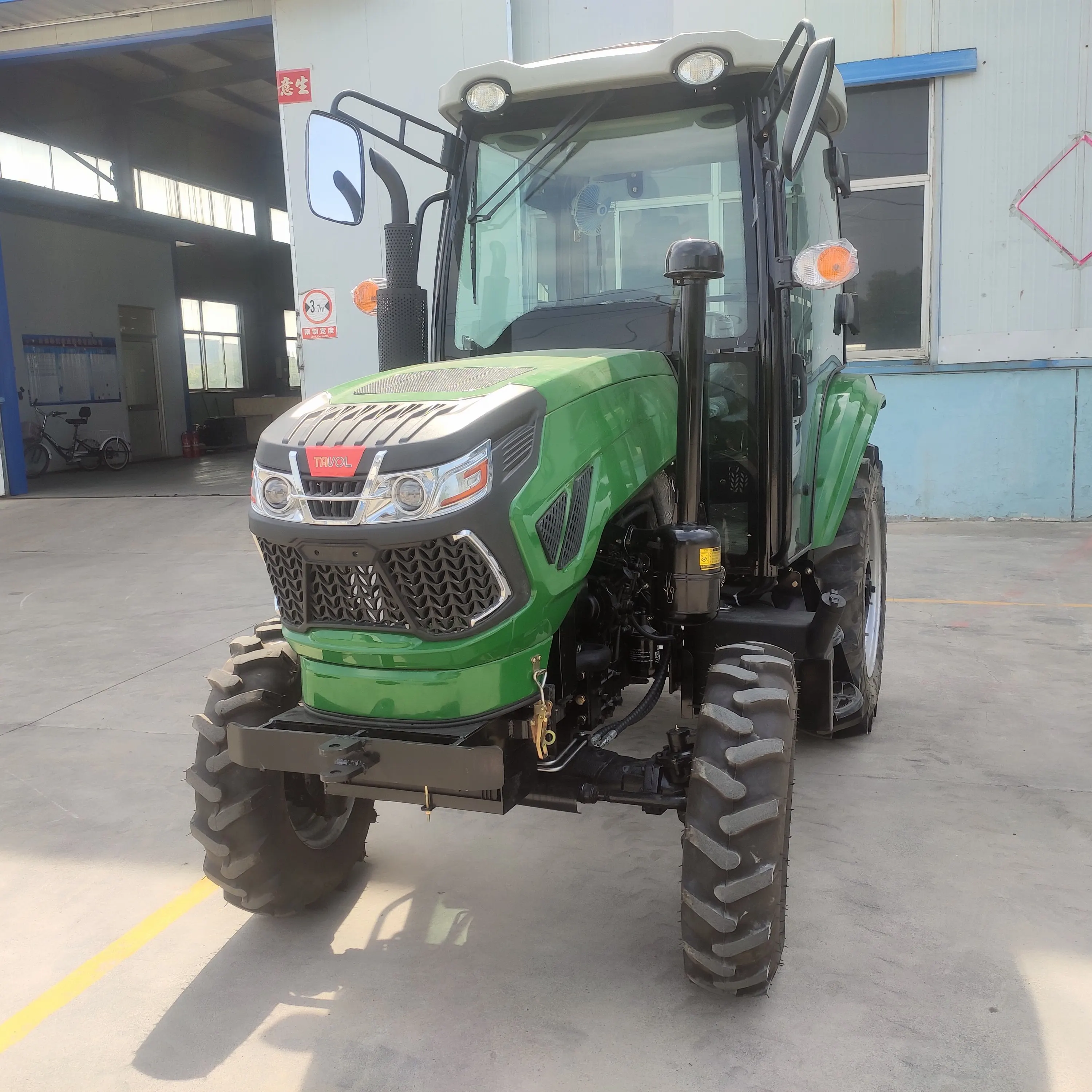

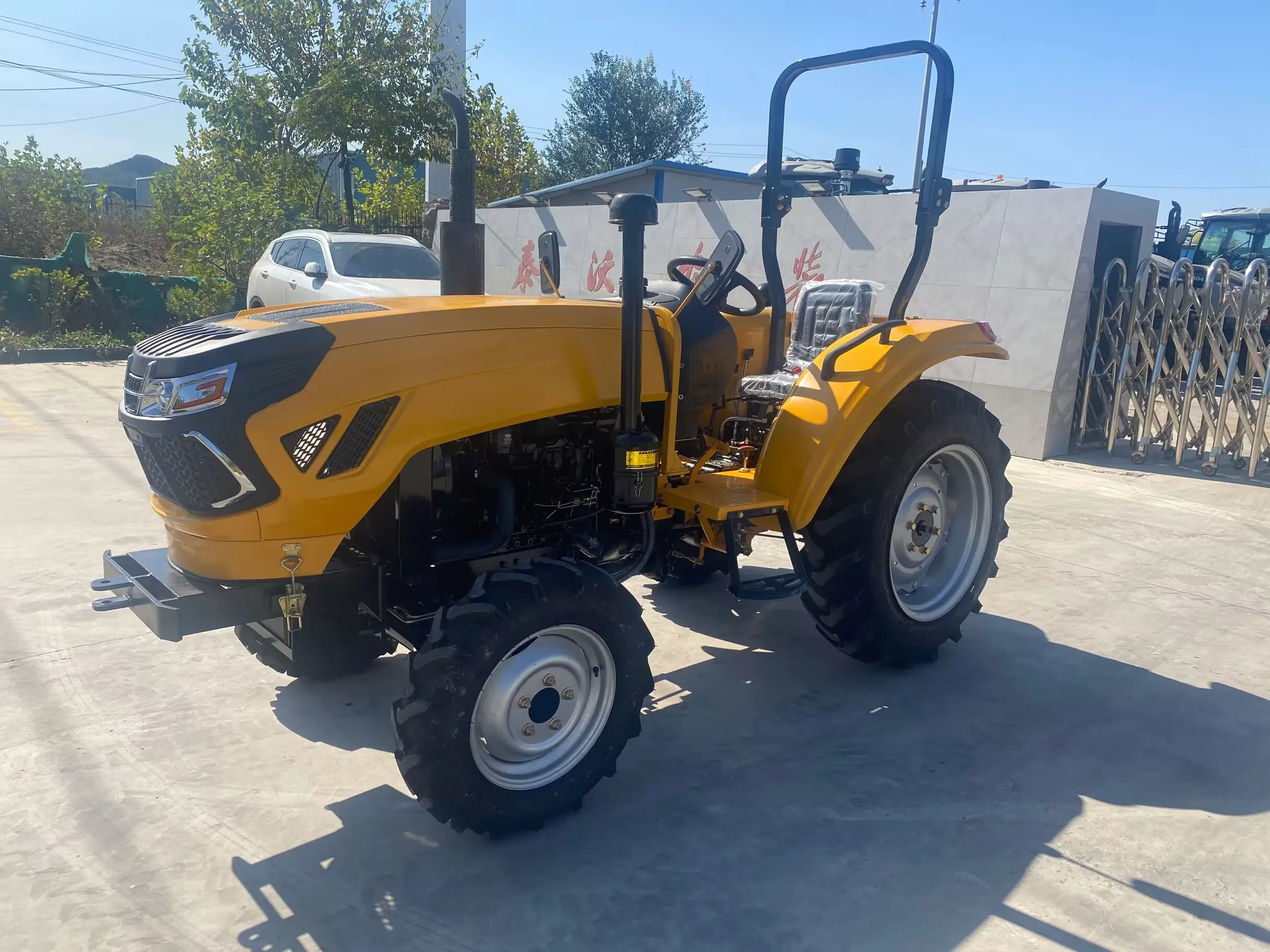

Details Images

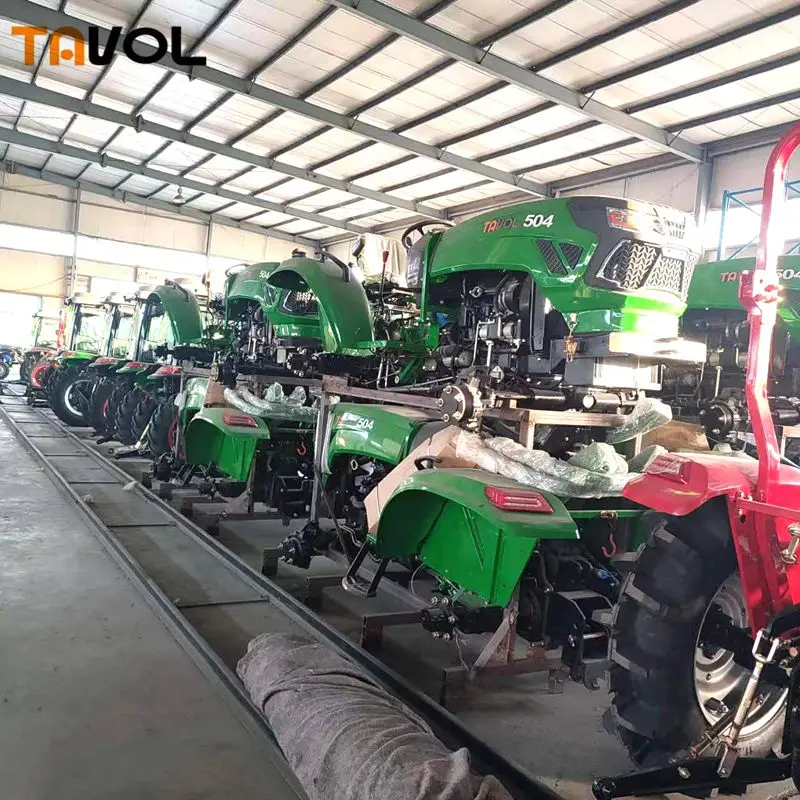

Assembly Process
Professional factory, advanced production equipment. The management system is perfect, the source process is firmly grasped, and the product quality is controlled.
Strict quality control process: laser blanking-stamping-processing-electrophoresis-coating-assembly
Strict quality control process: laser blanking-stamping-processing-electrophoresis-coating-assembly

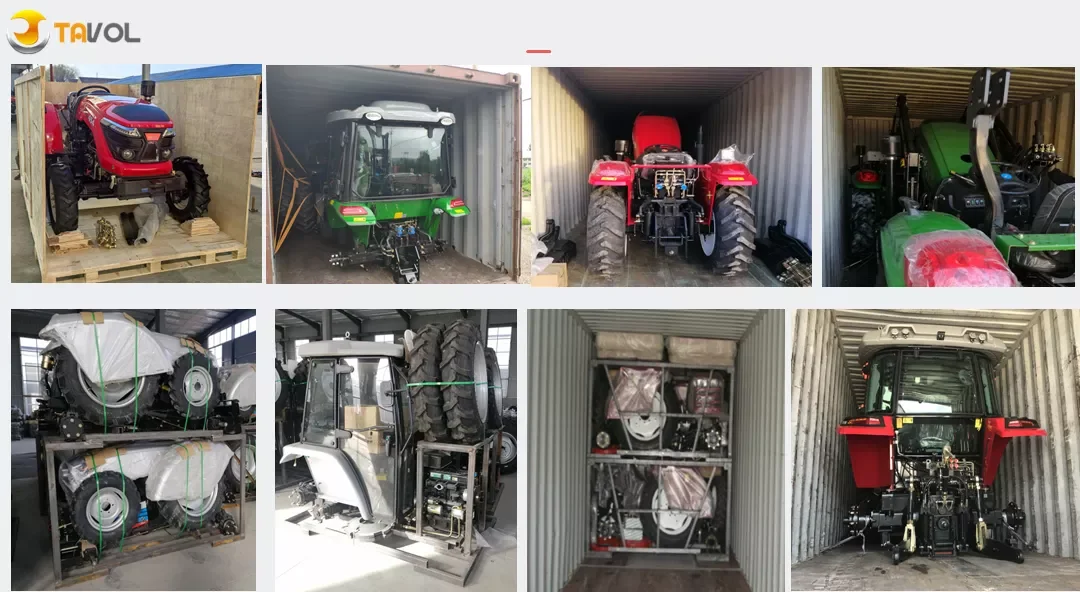

Packing photo
Optional CKD&SKD Package/ Full & Farm containers

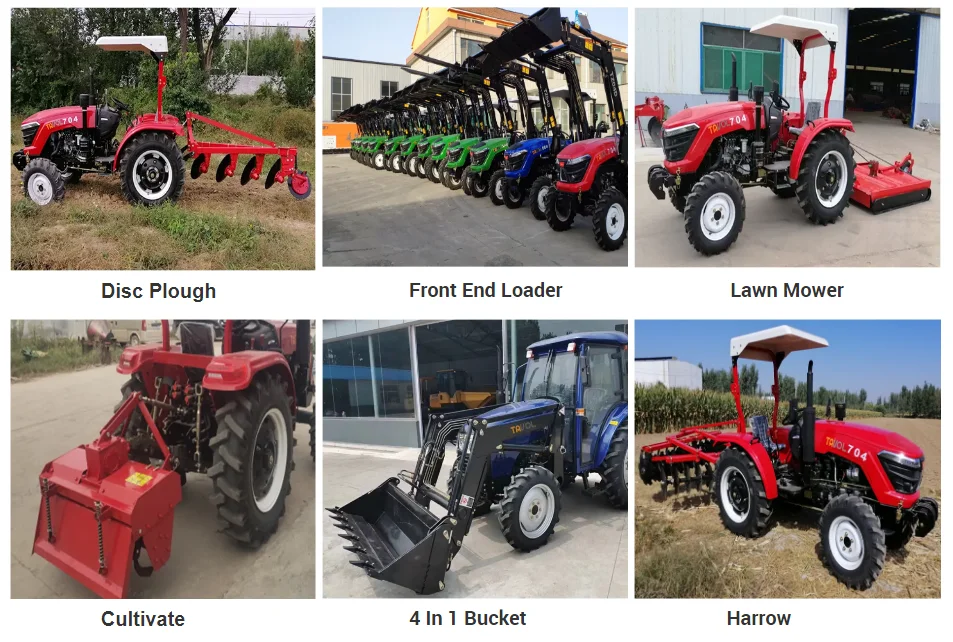

Main application
Whether it is paddy field or dry field, hilly or hillside, it can meet your different driving and working environment, help you to complete the farm work or traction work more quickly and efficiently.
Certifications
Tavol Group is a high-tech groups companies, which engage in high-end agricultural equipment manufacturing.Tavol Group is located at the foot of the world-famous Mountain Tai. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO madrid international trademark, high-tech enterprise certification and special equipment manufacturing license etc.

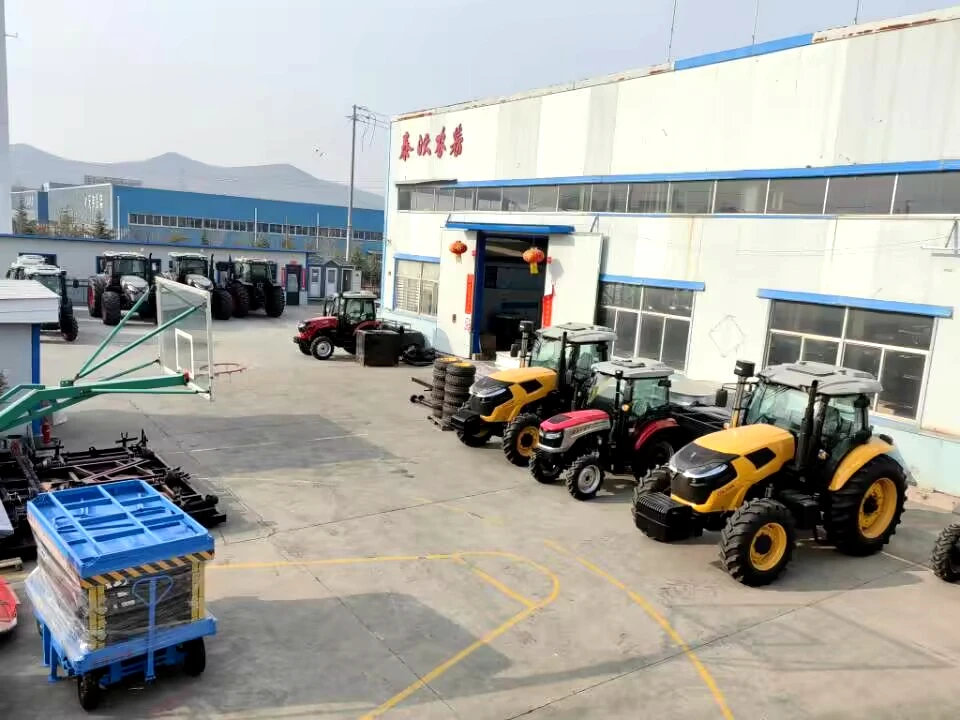

Company information
Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 25hp-280hp Farm Tractors and Other Farm Machines.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
