Share on (1600859629078):


Price:$223.00 - $233.00

Quantity:


Product Overview

Description



Bosch Rexroth is a German company with a long history.
The merger of Mannesmann Rexroth with Bosch Automationstechnik establishes a global leader in Drive & Control solutions. They reach new levels of seamless integration of all relevant technologies for improved energy efficiency and safety.


EFC 3610 & EFC 5610 are the series for global markets. They comply with all major certification standards, such as CE, UL, cUL, RCM, EAC ,TÜV and RoHS. EFC 3610 & 5610 not only have VFC 3610 & 5610 functions, but also have an additional series of functions.
► Synchronous motor control (EFC5610), which improves accuracy and reduces energy consumption.
► Built-in EMC C3 mains filter to reduce EMI.
► Designed for up to 45 °C ambient temperature without derating.
EFC 5610 enables the STO function to reach SIL3 level.
► Built-in DC reactor for EFC5610 30 kW and above.
► In addition to PROFIBUS DP and CANopen like VFC, EFC also supports ERCOS III, PROFINET IO, Ethernet IP, Modbus TCP, Ether-CAT. SERCOS III's unique speed could reach microseconds.




There are many reasons why we may want to adjust this motor speed.
* Save energy and improve system efficiency
* Converting power in hybrid applications
* Match the speed of the drive to the process requirements
* Match the torque or power of a drive to the process requirements
Improve the working environment
Lower noise levels, for example from fans and pumps
* Reduce mechanical stress on machines to extend their lifetime
Reduce peak consumption to avoid peak-demand prices and minimize the motor size required


Product Description

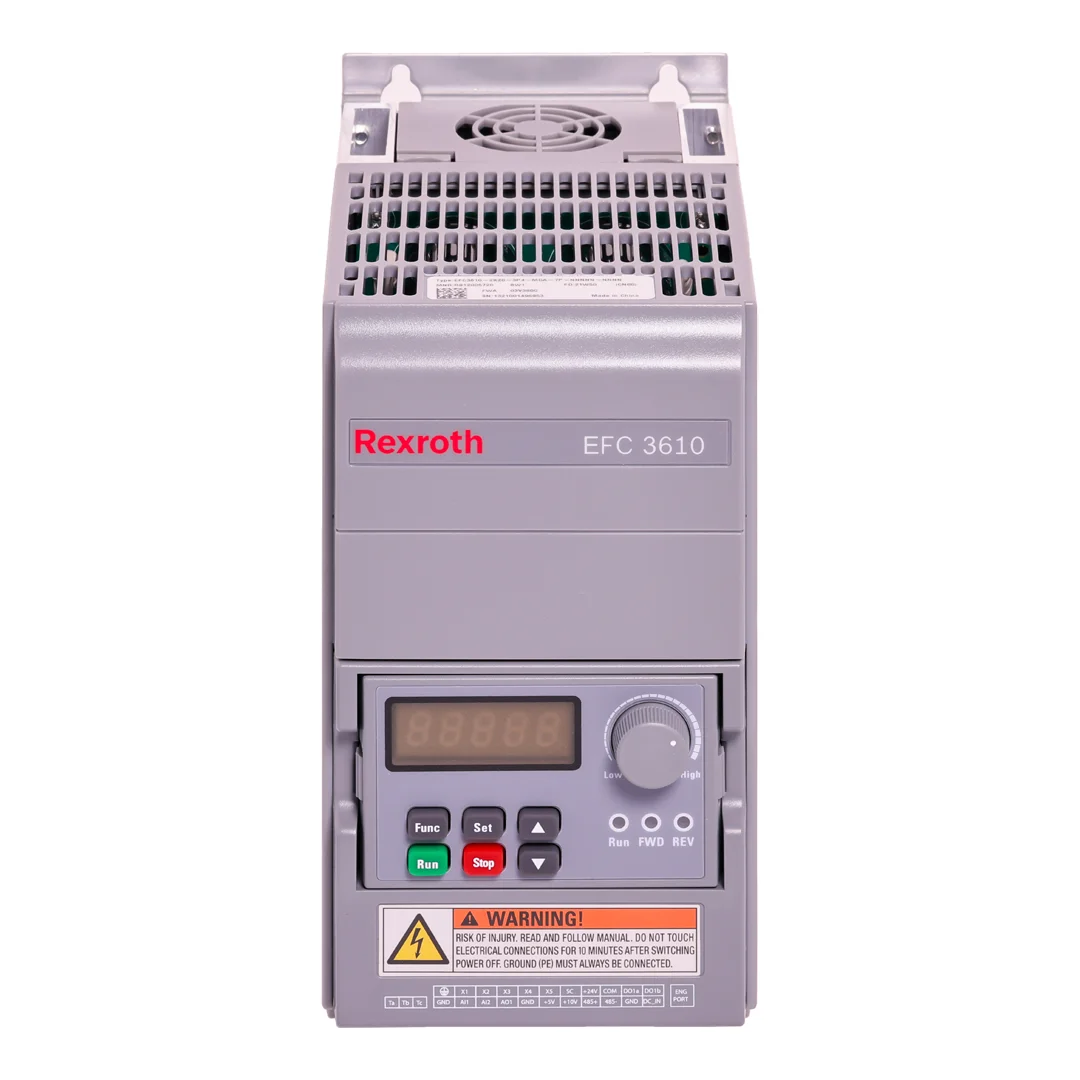

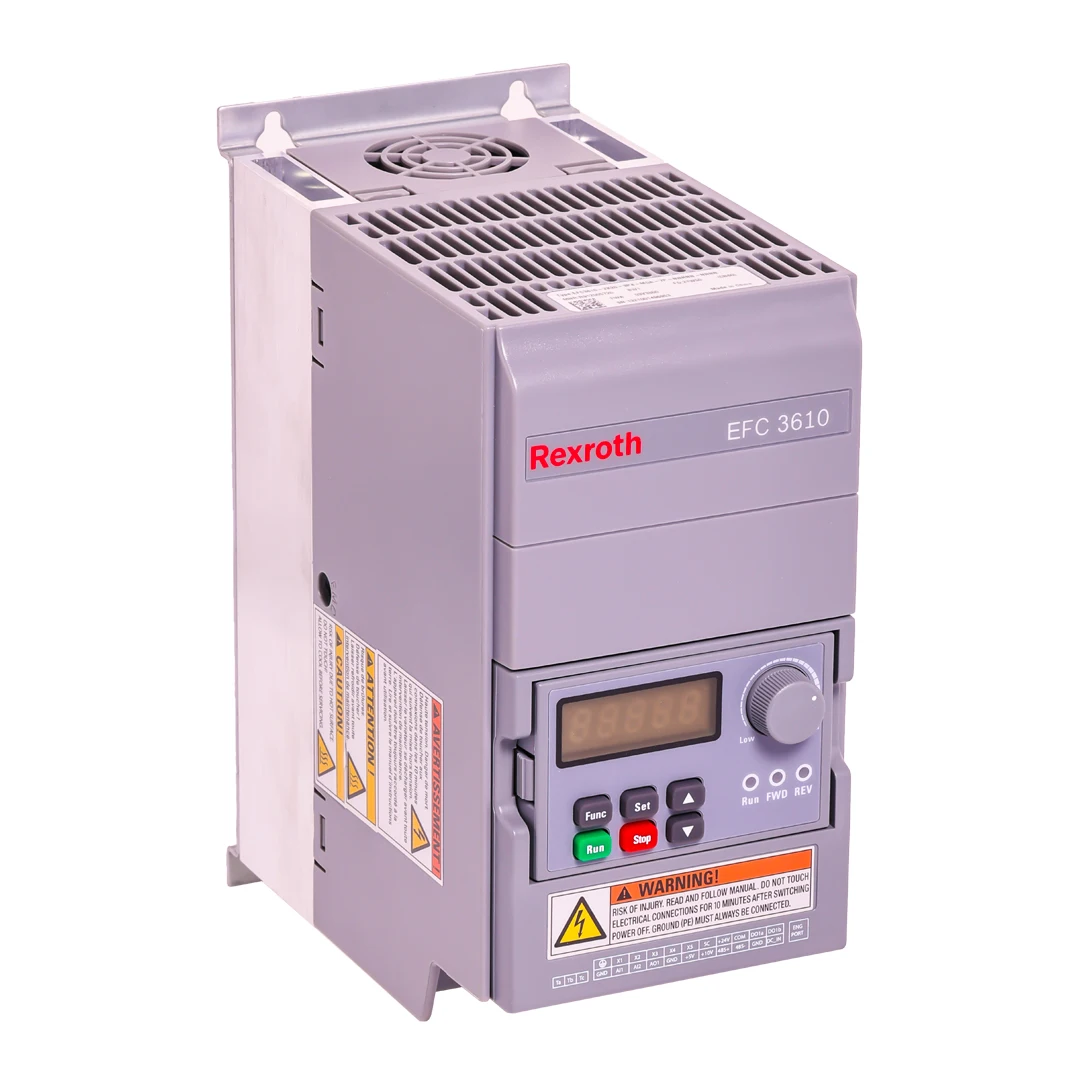

Rexroth  Frequency Converter

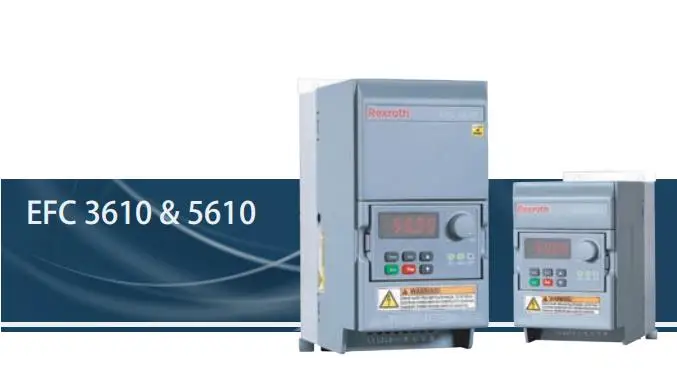

EFC 3610 & 5610
The power output range of EFC 3610 is 0.4...22 kW (Heavy duty), and the power range of EFC 5610 is 0.4...160 kW (Heavy duty). The EFC series shares the parameter structure, dimensions and connections with the VFC series as well as many functions. EFC series contains several enhanced features such as synchronous motor control (EFC 5610), built-in EMC filter, and multi-Ethernet communication to satisfy worldwide customers' demands.




Safety Torque off(STO)

Certifications

Multiple motor types



Synchronous motor drives
Except for asynchronous motors, EFC 5610 is capable of using synchronous motor drives to reduce energy consumption.
Built-in mains filter
Complies with EN61800-3 category C3 requirements and reduces electromagnetic interference on the power grid.
Up to 45 °C ambient temperature without derating
The EFC series can be used up to 45 °C (VFC up to 40 °C) without a reduction in output power.




Item No.
EFC3610 Frequency Converter Type
Rated Power/Current
Input
R912005713
Rexroth EFC3610-0K40-1P2-MDA-7P-NNNNN-NNNN
0.40 kW, 2.4 A


1P 200 VAC
R912005714
Rexroth EFC3610-0K75-1P2-MDA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005715
Rexroth EFC3610-1K50-1P2-MDA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005716
Rexroth EFC3610-2K20-1P2-MDA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005717
Rexroth EFC3610-0K40-3P4-MDA-7P-NNNNN-NNNN
0.40 kW, 1.3 A










3P 380 VAC
R912005718
Rexroth EFC3610-0K75-3P4-MDA-7P-NNNNN-NNNN
0.75 kW, 2.3 A
R912005719
Rexroth EFC3610-1K50-3P4-MDA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005720
Rexroth EFC3610-2K20-3P4-MDA-7P-NNNNN-NNNN
2.20 kW, 5.6 A
R912005721
Rexroth EFC3610-3K00-3P4-MDA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005722
Rexroth EFC3610-4K00-3P4-MDA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005091
Rexroth EFC3610-5K50-3P4-MDA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005092
Rexroth EFC3610-7K50-3P4-MDA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005093
Rexroth EFC3610-11K0-3P4-MDA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005094
Rexroth EFC3610-15K0-3P4-MDA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005723
Rexroth EFC3610-18K5-3P4-MDA-7P-NNNNN-NNNN
18.5 kW, 39.2 A
R912006279
Rexroth EFC3610-22K0-3P4-MDA-7P-NNNNN-NNNN
22.0 kW, 45.0 A


Item No.
EFC5610 Frequency Converter Type
Rated Power/Current
Input
R912005739
Rexroth EFC5610-0K40-1P2-MDA-7P-NNNNN-NNNN
0.40 kW, 2.4 A


1P 200 VAC
R912005740
Rexroth EFC5610-0K75-1P2-MDA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005741
Rexroth EFC5610-1K50-1P2-MDA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005742
Rexroth EFC5610-2K20-1P2-MDA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005743
Rexroth EFC5610-0K40-3 P4-M DA-7P-NNNNN-NNNN
0.40 kW, 1.3 A










3P 380 VAC
R912005744
Rexroth EFC5610-0K75-3 P4-M DA-7P-NNNNN-NNNN
0.75 kW, 2.3 A
R912005745
Rexroth EFC5610-1K50-3P4-MDA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005746
Rexroth EFC5610-2K20-3 P4-MDA-7P-NNNNN-NNNN
2.20 kW, 5.6 A
R912005747
Rexroth EFC5610-3K00-3 P4-MDA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005748
Rexroth EFC5610-4K00-3 P4-MDA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005099
Rexroth EFC5610-5K50-3 P4-MDA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005100
Rexroth EFC5610-7K50-3 P4-MDA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005101
Rexroth EFC5610-11K0-3P4-MDA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005102
Rexroth EFC5610-15K0-3P4-MDA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005749
Rexroth EFC5610-18K5-3P4-MDA-7P-NNNNN-NNNN
18.5 kW, 39.2 A
R912005980
Rexroth EFC5610-22K0-3P4-MDA-7P-NNNNN-NNNN
22.0 kW, 45.0 A
R912007793
Rexroth EFC5610-0K40-3P2-MDA-7P-NNNNN-L1NN
0.40 kW, 2.4 A







3P 200VAC
R912007794
Rexroth EFC5610-0K75-3P2-MDA-7P-NNNNN-L1NN
0.75 kW, 4.1 A
R912007795
Rexroth EFC5610-1K50-3P2-MDA-7P-NNNNN-L1NN
1.50 kW, 7.3 A
R912007796
Rexroth EFC5610-2K20-3P2-MDA-7P-NNNNN-L1NN
2.20 kW, 10.1 A
R912007797
Rexroth EFC5610-3K00-3P2-MDA-7P-NNNNN-L1NN
3.00 kW, 13.4 A
R912007798
Rexroth EFC5610-4K00-3P2-MDA-7P-NNNNN-L1NN
4.00 kW, 17.5 A
R912007799
Rexroth EFC5610-5K50-3P2-MDA-7P-NNNNN-L1NN
5.50 kW, 23.4 A
R912007800
Rexroth EFC5610-7K50-3P2-MDA-7P-NNNNN-L1NN
7.50 kW, 33.1 A
R912007801
Rexroth EFC5610-11K0-3P2-MDA-7P-NNNNN-L1NN
11.0 kW, 44.9 A


Rexroth Frequency Converter

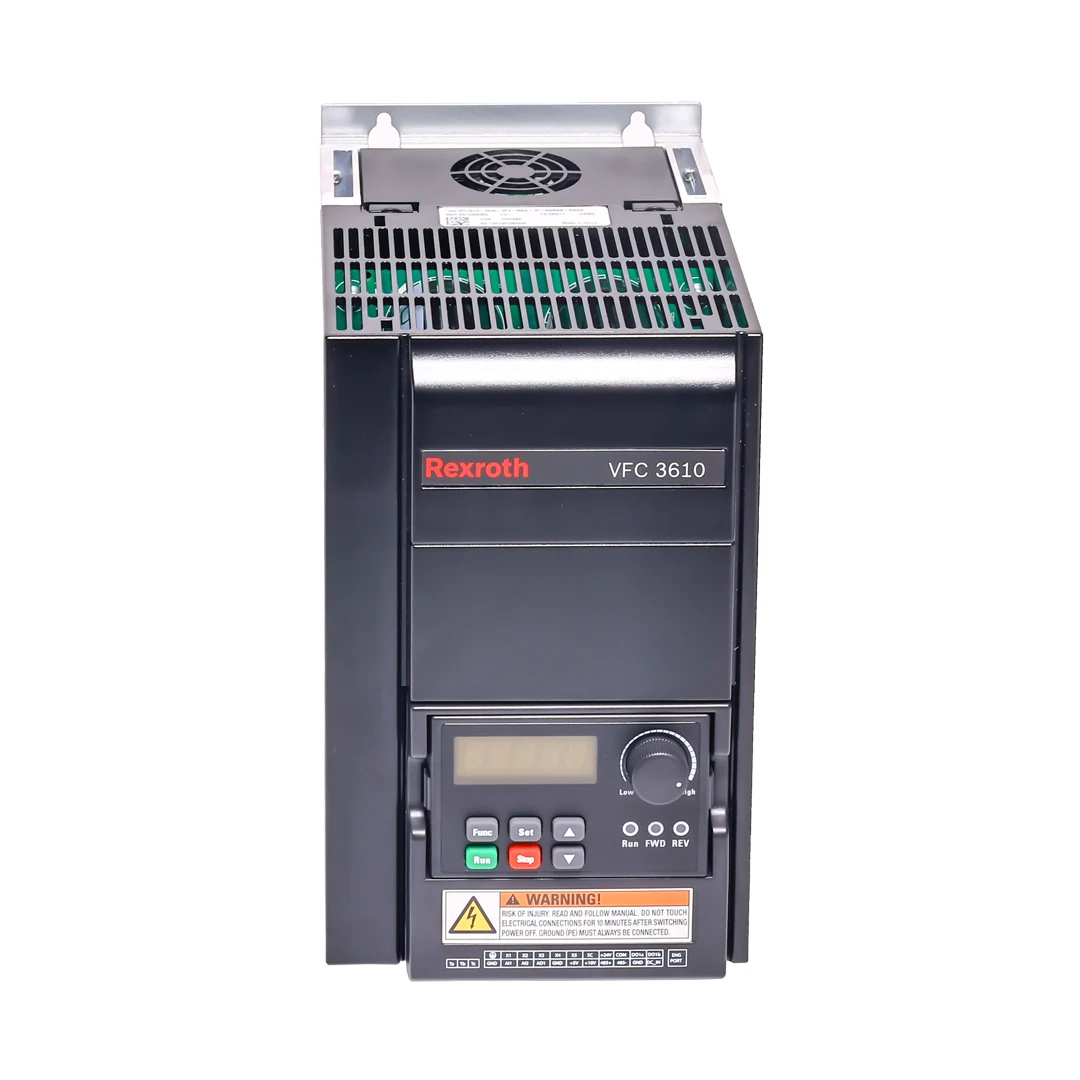

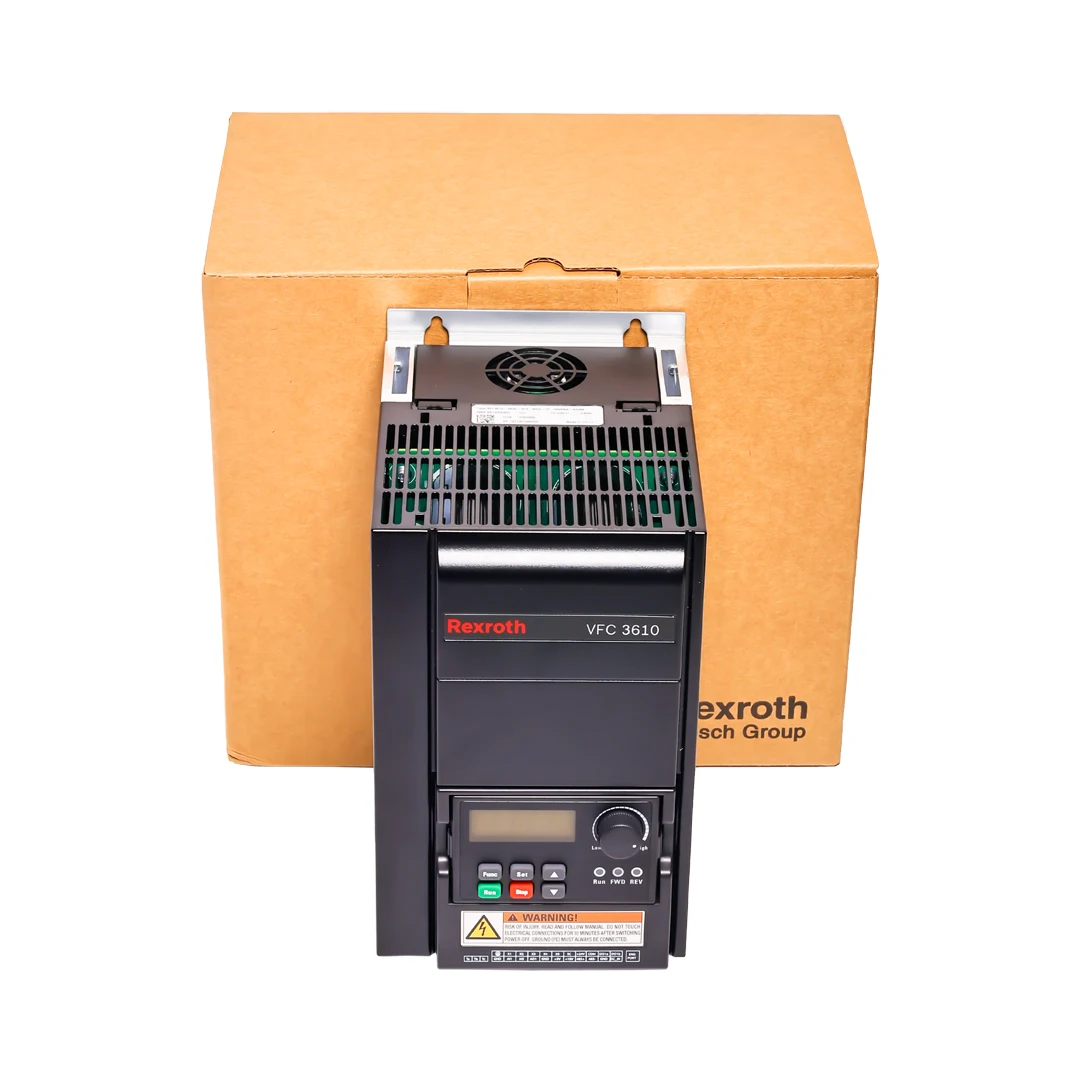

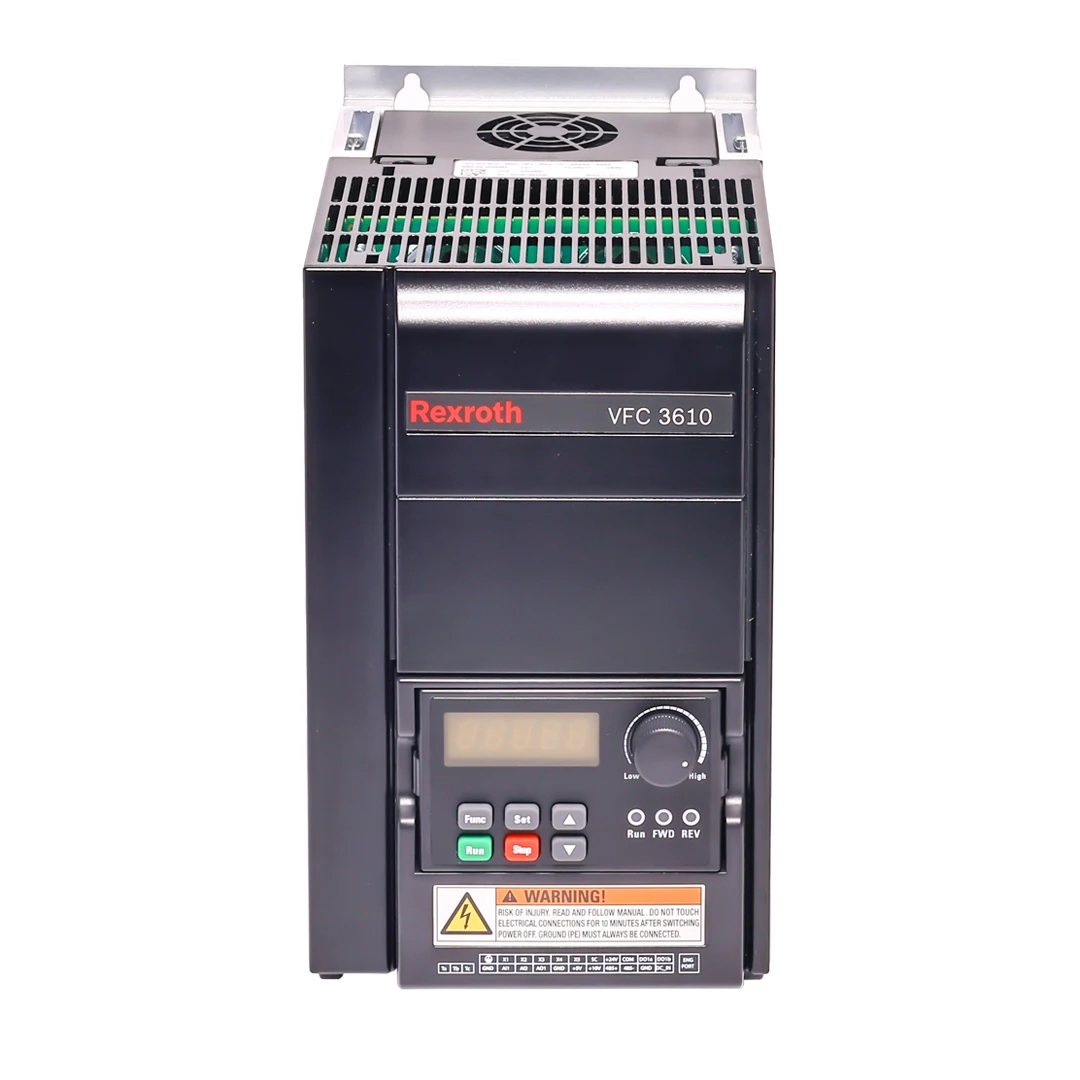

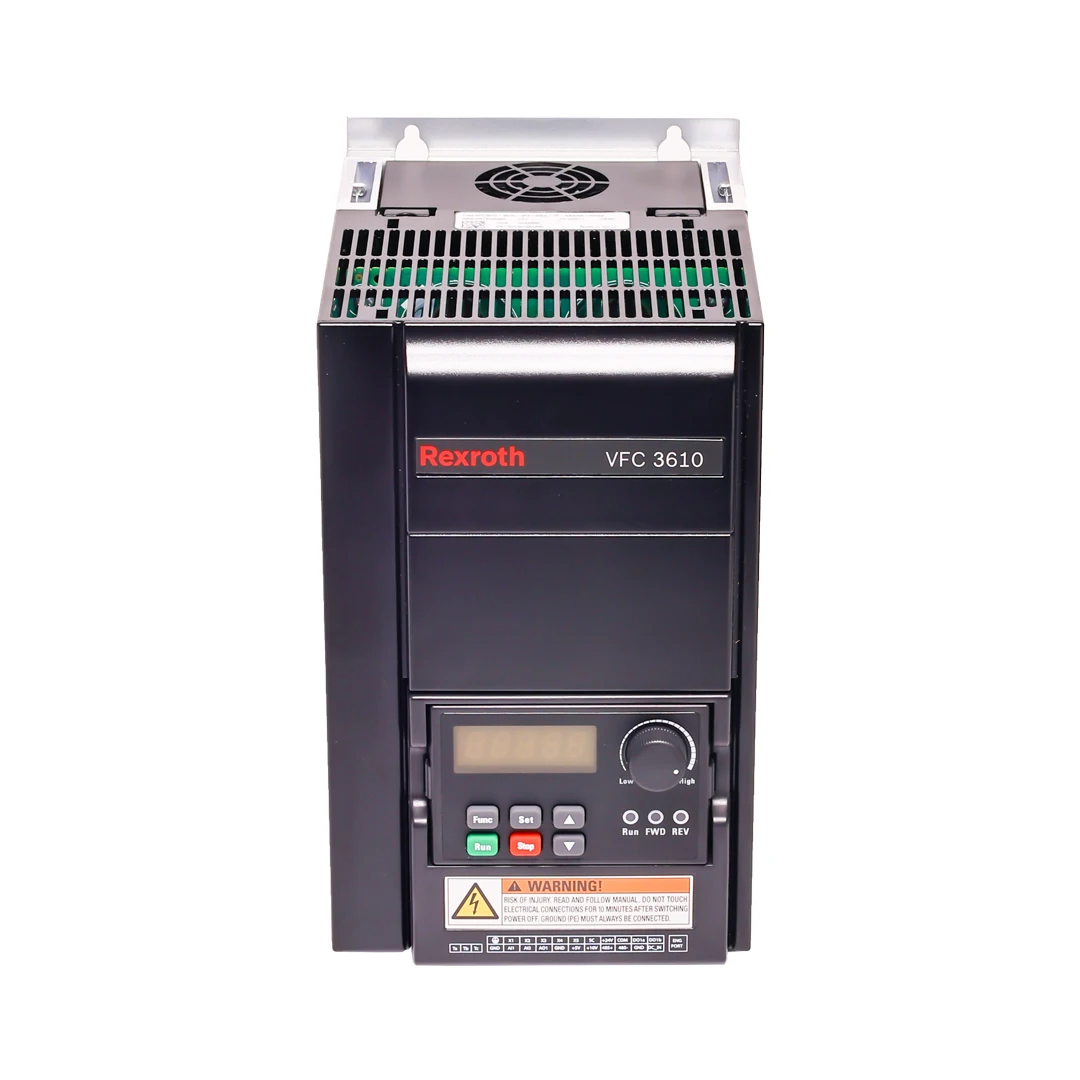

VFC 3610
0.4...22 kW(Heavy-duty)

Rexroth VFC 3610 is an enhancement solution for small machinery applications and other V/F applications. 0.4...22 kW power output, 1.5 Hz/100 % and 3 Hz/150 % start-up torque, heavy duty/normal duty, etc.


Quick connectors

Bluetooth Adapter

DIN rail mounting





Item No.
VFC3610 Frequency Converter Type
Rated Power/Current
Input
R912005373
Rexroth VFC3610-0K40-1P2-MNA-7P-NNNNN-NNNN
0.40 kW, 2.4 A


1P 200 VAC
R912005374
Rexroth VFC3610-0K75-1P2-MNA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005375
Rexroth VFC3610-1K50-1P2-MNA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005376
Rexroth VFC3610-2K20-1P2-MNA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005377
Rexroth VFC3610-0K40-3P4-MNA-7P-NNNNN-NNNN
0.40 kW, 1.3 A








3P 380 VAC
R912005378
Rexroth VFC3610-0K75-3P4-MNA-7P-NNNNN-NNNN
0.75 kW, 2.3 A
R912005379
Rexroth VFC3610-1K50-3P4-MNA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005380
Rexroth VFC3610-2K20-3P4-MNA-7P-NNNNN-NNNN
2.20 kW, 5.6 A
R912005381
Rexroth VFC3610-3K00-3P4-MNA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005382
Rexroth VFC3610-4K00-3P4-MNA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005095
Rexroth VFC3610-5K50-3P4-MNA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005096
Rexroth VFC3610-7K50-3P4-MNA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005097
Rexroth VFC3610-11K0-3P4-MNA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005098
Rexroth VFC3610-15K0-3P4-MNA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005383
Rexroth VFC3610-18K5-3P4-MNA-7P-NNNNN-NNNN
18.5 kW, 39.2 A
R912006277
Rexroth VFC3610-22K0-3P4-MNA-7P-NNNNN-NNNN
22.0 kW, 45.0 A


Rexroth Frequency Converter
VFC 5610
0.4...315 kW(Heavy-duty)

Rexroth VFC 5610 is a high performance vector frequency converter for high-end machinery applications. Power range of 0.4 - 315 kW, start-up torque of 0.5 Hz/200 %, torque control, speed control options, high control accuracy, fast response, etc.


Compact design
Modularized design
Side by side mounting capability to save cabinet space.
Easy to use
Standard equipped LED pluggable,
Bluetooth Adapter optional for easy connection by mobile.
Quick Start Menu for easy commissioning.
Powerful
Normal duty/heavy duty operation.
VFC 5610 110 kW and above have built-in DC reactor
High performance vector and torque technology (VFC 5610).


Item No.
VFC5610 Frequency Converter Type
Rated Power/Current
Input
R912005384
Rexroth VFC5610-0K40-1P2-MNA-7P-NNNNN-NNNN
0.40 kW, 2.4A


1P 200 VAC
R912005385
Rexroth VFC5610-0K75-1P2-MNA-7P-NNNNN-NNNN
0.75 kW, 4.1 A
R912005386
Rexroth VFC5610-1K50-1P2-MNA-7P-NNNNN-NNNN
1.50 kW, 7.3 A
R912005387
Rexroth VFC5610-2K20-1P2-MNA-7P-NNNNN-NNNN
2.20 kW, 10.1 A
R912005388
Rexroth VFC5610-0K40-3P4-MNA-7P-NNNNN-NNNN
0.40 kW, 1.3 A










3P 380 VAC
R912005389
Rexroth VFC5610-0K75-3P4-MNA-7P-NNNNN-NNNN
0.75 kW,2.3 A
R912005390
Rexroth VFC5610-1K50-3P4-MNA-7P-NNNNN-NNNN
1.50 kW, 4.0 A
R912005391
Rexroth VFC5610-2K20-3P4-MNA-7P-NNNNN-NNNN
2.20kW, 5.6 A
R912005392
Rexroth VFC5610-3K00-3P4-MNA-7P-NNNNN-NNNN
3.00 kW, 7.4 A
R912005393
Rexroth VFC5610-4K00-3P4-MNA-7P-NNNNN-NNNN
4.00 kW, 9.7 A
R912005103
Rexroth VFC5610-5K50-3P4-MNA-7P-NNNNN-NNNN
5.50 kW, 12.7 A
R912005104
Rexroth VFC5610-7K50-3P4-MNA-7P-NNNNN-NNNN
7.50 kW, 16.8 A
R912005105
Rexroth VFC5610-11K0-3P4-MNA-7P-NNNNN-NNNN
11.0 kW, 24.3 A
R912005106
Rexroth VFC5610-15K0-3P4-MNA-7P-NNNNN-NNNN
15.0 kW, 32.4 A
R912005394
Rexroth VFC5610-18K5-3P4-MNA-7P-NNNNN-NNNN
18.5 kW,39.2 A
R912005966
Rexroth VFC5610-22K0-3P4-MNA-7P-NNNNN-NNNN
22.0 kW, 45.0 A
R912005967
Rexroth VFC5610-30K0-3P4-MNA-7P-NNNNN-NNNN
30.0 kW, 60.8 A
R912005968
Rexroth VFC5610-37K0-3P4-MNA-7P-NNNNN-NNNN
37.0 kW, 73.7A
R912005969
Rexroth VFC5610-45K0-3P4-MNA-7P-NNNNN-NNNN
45.0 kW,89.0 A
R912005970
Rexroth VFC5610-55K0-3P4-MNA-7P-NNNNN-NNNN
55.0 kW, 108 A
R912005971
Rexroth VFC5610-75K0-3P4-MNA-7P-NNNNN-NNNN
75.0 kW, 147 A
R912005972
Rexroth VFC5610-90K0-3P4-MNA-7P-NNNNN-NNNN
90.0 kW, 176 A
R912007196
Rexroth VFC5610-110K-3P4-MNA-7P-NNNNN-NNNN
110kW,211A






3P 380 VAC
Custom

R912007197
Rexroth VFC5610-132K-3P4-MNA-7P-NNNNN-NNNN
132 kW, 253A
R912007198
Rexroth VFC5610-160K-3P4-MNA-7P-NNNNN-NNNN
160 kW, 303A
R912007686
Rexroth VFC5610-185K-3P4-MNA-7P-NNNNN-NNNN
185 kW, 351A
R912007687
Rexroth VFC5610-200K-3P4-MNA-7P-NNNNN-NNNN
200 kW, 380A
R912007688
Rexroth VFC5610-220K-3P4-MNA-7P-NNNNN-NNNN
220 kW, 411A
R912007689
Rexroth VFC5610-250K-3P4-MNA-7P-NNNNN-NNNN
250 kW, 467A
R912007690
Rexroth VFC5610-280K-3P4-MNA-7P-NNNNN-NNNN
280 kW, 522A
R912007691
Rexroth VFC5610-315K-3P4-MNA-7P-NNNNN-NNNN
315 kW, 588A


VFC & EFC Applications


HVAC——Fans, pumps, air conditioning
Energy savings calculator
Life time reminder
Speed tracing
Dry pump protection
Pump cascading
Textile and Dyeing——Heat setting stenter, twister, air-flow spinning
Smart cooling concept
Import PCBA coating
Low voltage ride-through
DC generatrix


Woodworking machinery
Welt fitting machine, Tenoning machin, Grooving machine,
Carving machine, Sanding machine, CNC machine
Compact Size
Easy Operation
performance function design
Metal processing machinery
Lathe, grinder, drill, planer, boring, cold forging
Compact design
High start torque
Quick and dynamic response
Over excitation braking
Safety Torque off(STO)


Food and packaging
Conveyor, blow molding, blender, cutter, labeling machines
Quick connectors and DIN rail mounting (up to 7.5 kW)
Counter function
Removable control panel
Integrated sequence control (16 steps)
Rubber and plastic machinery
Scroll extruder, pelletizer, bagging machine
Compact design
High start torque, 200 % at 0.5 Hz
High control accuracy, fast dynamic response
Torque limit and slip compensation


Related Products




Company Introduction


Shenzhen Gongfar Technology Co., Ltd., was established in 2012 as a distributor of Industrial Automation and Commercial Electrical and Electronic Control, Automation and Motion Products, Renewable Energy Equipments.
With many years of experience, Shenzhen Gongfar Technology Co., Ltd. is one of the most trusted suppliers of industrial automation solutions in China. We specialize in automation control systems and renewable energy equipment. Our company has world-renowned brands such as Rockwell Allen‑Bradley, Bosch Rexroth, Schneider Siemens, MEGAREVO, INVT, and others.





Our Services & Strength
An extensive inventory of automation control system modules and Renewable Energy Equipment is available for immediate shipment, including some discontinued products.IF you purchase any products from the company, we`re definitely committed to your 100% satisfaction, and offer the following services:




QUALITY
All products we sell are 100% New Original Factory packed in pristine condition and have been tested before they are shipped. We will try our absolute finest to avoid any quality problems.
WARRANTY
We offer a 12 month warranty after receiving the parcels. Please contact us first if there are any workmanship or material defects with the products. We will exchange it or offer you alternative solutions.
DISCOUNT
If you order more than one item, please contact us. We can offer further discounts for you. Furthermore, if you find other suppliers offering cheaper prices for the same product, we are also willing to provide you with references to their pricing, even more discounts.


FAQ


Q1. MOQ and delivery time ?
A: Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.


We Recommend

New Arrivals

New products from manufacturers at wholesale prices

0.2086 s.
