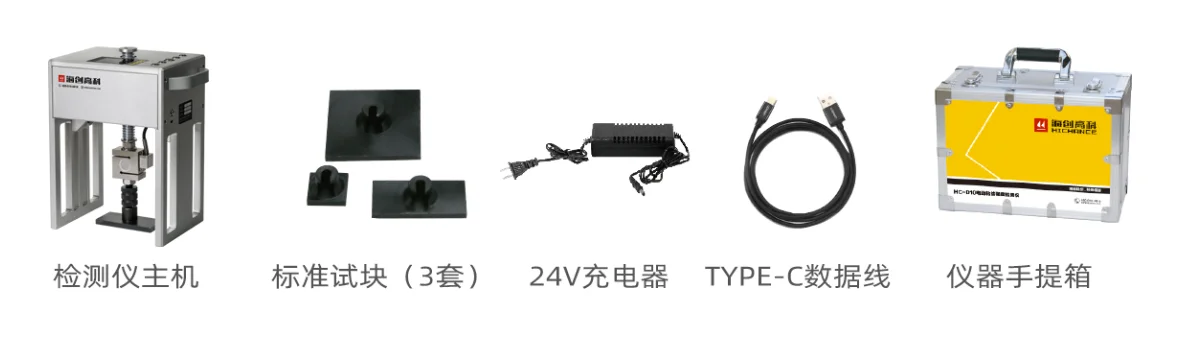

HC D10 Pull Off Adhesion Tester Rivet Pull Tester Coating Bonding Strength Tster concrete scanner
- Category: >>>
- Supplier: Zhejiang Yiyu Instrument Equipment Co. Ltd.
Share on (1600859675533):
Product Overview
Description
Product Description
Application field
HC-D10 electric bond strength detector is applicable to the drawing force of rivets of fixed heat insulation and insulation materials in building engineering, the bond strength of wall heat insulation and insulation materials, the bond strength of external wall veneer brick, carbon fiber bond strength, mortar bond strength and bonding strength of various plates, concrete surface coating and other materials.
Functional characteristics
One-piece structure, super duraluminum-alloy small body design, single independent completion of testing, easy to carry out; Flexible loading/unl oading speed, in line with industry standards; One-key loading, the specimen automatically stops after breaking, and the peak value is automatically recorded; The force curve, strength value (MPa), force value (kN) are displayed on the same screen, and the test process data is recorded completely; Fixed load detection mode, automatically stop when reaching thepreset test force value, load holding countdown and percentage decline are displayed on the same screen; 50mm large range design for a variety of detection conditions; High precision S sensor, accurate measurement, data peak maintenance, broken line correction; Hd color LCD screen, interactive and friendly detection interface, easy to learn and quickly get started; Ultra-low power consumption design, using Panasonic large capacity lithium battery, long wo rking time; Hardware and software double safety protection device design, to ensure the safety of detection, effectively extend the service life of the instrument; USB interface to export data, customize the upper computer software, support data analysis, can generate detection report.
Function | parameter |
LCD screen size | 2.2 "color LCD screen (320*240) |
Display mode | kN and MPa |
Measuring range | 0-10kN |
Resolution | 0.001kN |
Accuracy class | <0.5%F.S (special S sensor) |
Drawing stroke | 50mm |
Loading mode | constant speed 3-20 mm/min, multi-gear adjustable; Or constant force value 250±50 N/s, 29±4 N/s, two adjustable |
Storage capacity | 2000 pieces of data |
Power supply | 24V lithium battery |
Dimensions | host 190mm×145mm×280mm |
Company Profile
Our Advantages
Packaging & Shipping
FAQ
1. Production time: for common products: 7days; for special order: 15days.
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
