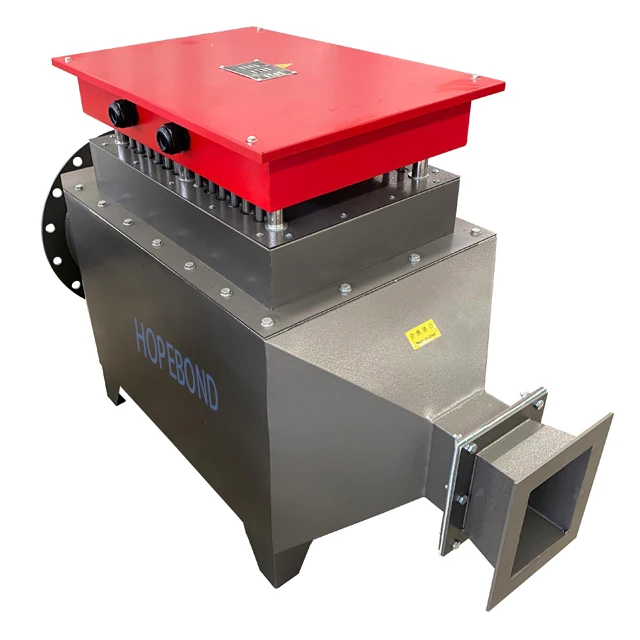

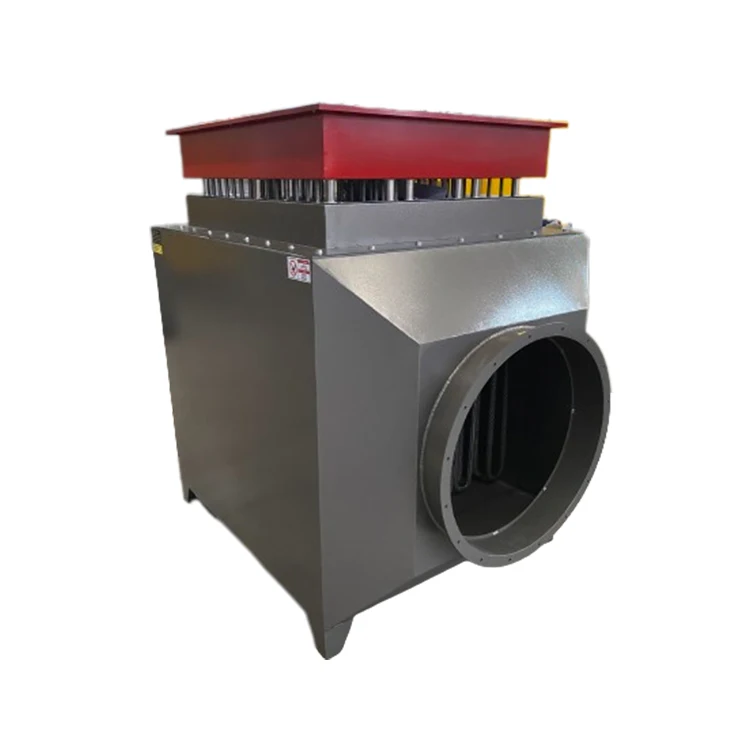

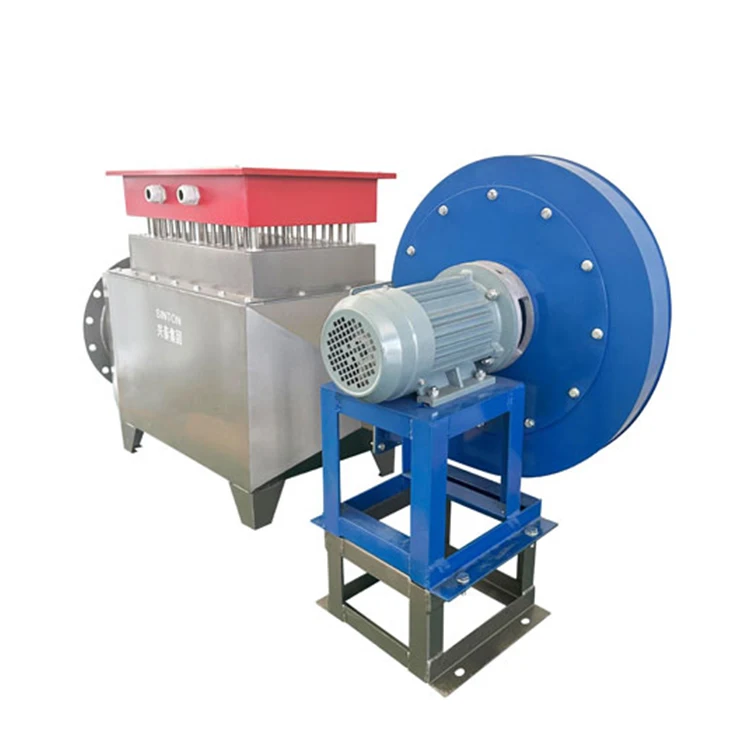

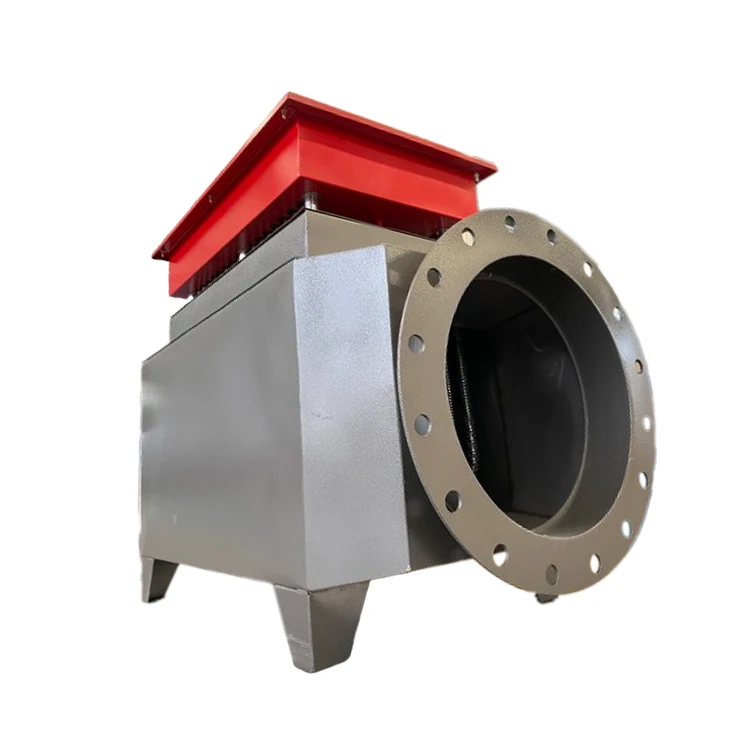

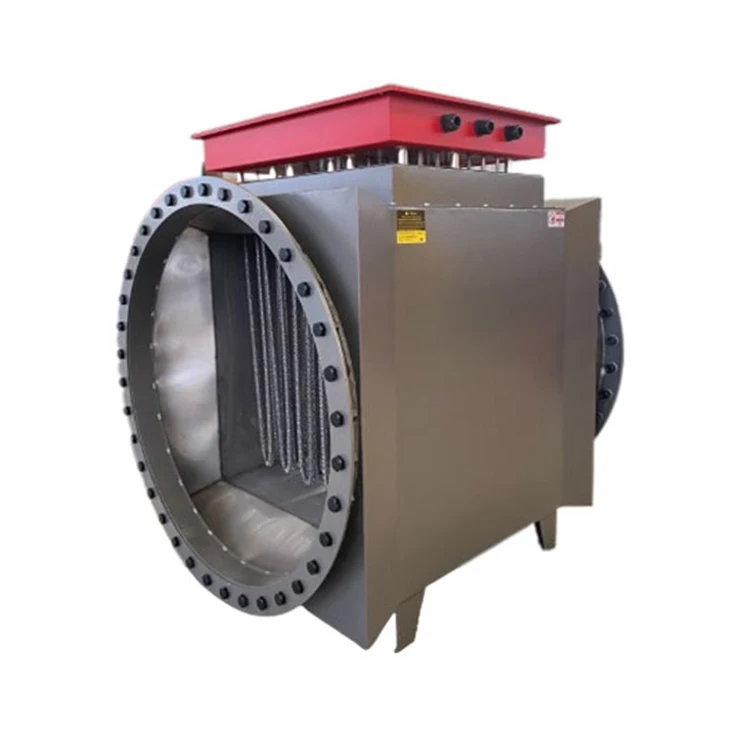

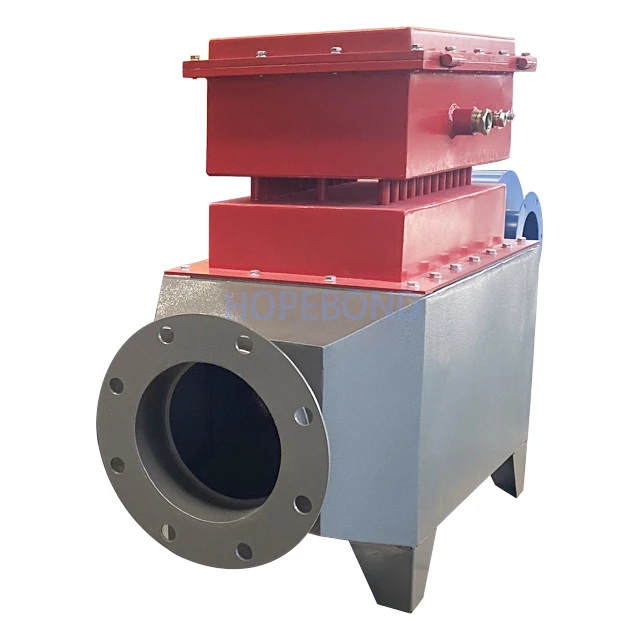

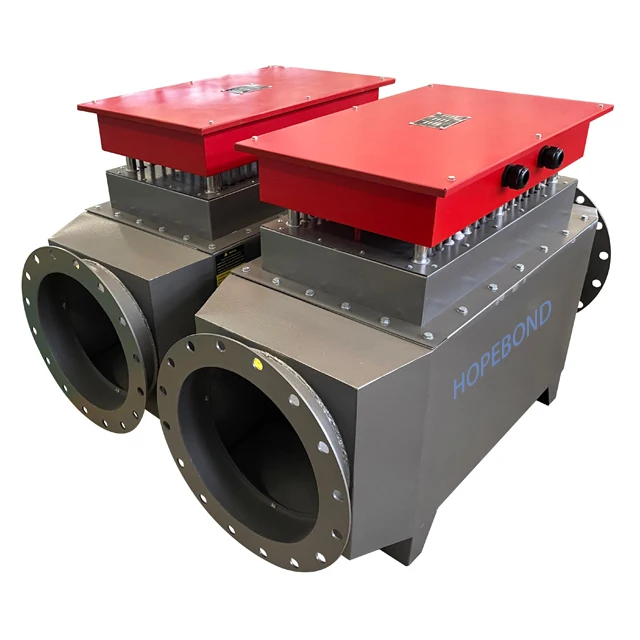

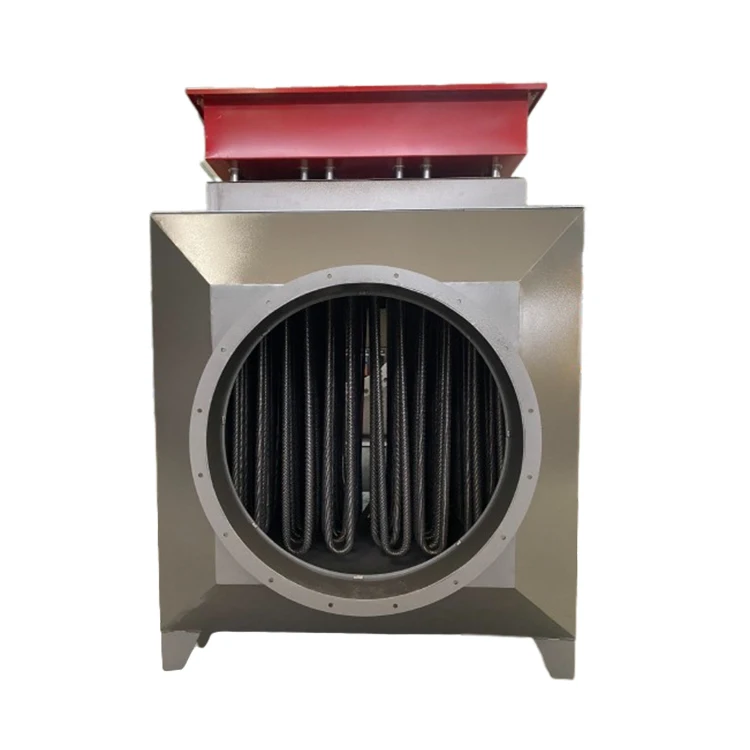

Industrial heating equipment 10kw electrical air duct heater for Automotive industry engineering
- Category: >>>
- Supplier: China Hopebond Eco Tech Co. Ltd.
Share on (1600859978705):
Product Overview
Description
Related product
Product Description
Duct heaters are mainly used for heating air through the duct. There are three types, low temperature, middle temperature and high temperature. The outer stainless steel sheath and construction can reduce the vibrationof heating elements. There is a overheat
protector in the terminal box. Air pressure through the duct should not exceed 0.3KG/cm². Or else it is better use recirculation duct heaters. Max temperature of low temperature duct heater is not more than 160 C. Max temperature of middle temperature duct
heater is not more than 260 C. Max temperature of high temperature duct heater is not more than 850 C. It has been applied extensively in aerospace industry, weapon industry, chemical industry, and research and manufacturing laboratories in institutions of higher education, etc.
Main Features
1)During heating,air max temperature can reach 850 degree celsius,but the surface temperature of the sheath is just around 50
degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years
6)Clean air,small volume
7)Made as client design,2KW~1000KW
8)After reached the max temperature,the working wattages can reduce to half.
protector in the terminal box. Air pressure through the duct should not exceed 0.3KG/cm². Or else it is better use recirculation duct heaters. Max temperature of low temperature duct heater is not more than 160 C. Max temperature of middle temperature duct
heater is not more than 260 C. Max temperature of high temperature duct heater is not more than 850 C. It has been applied extensively in aerospace industry, weapon industry, chemical industry, and research and manufacturing laboratories in institutions of higher education, etc.
Main Features
1)During heating,air max temperature can reach 850 degree celsius,but the surface temperature of the sheath is just around 50
degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years
6)Clean air,small volume
7)Made as client design,2KW~1000KW
8)After reached the max temperature,the working wattages can reduce to half.
Specification
Model | Power | Inner Chamber size | Diameter of air outlet |
KW | MM | MM | |
FD-10 | 10 | 300*300*300 | DN100 |
FD-20 | 20 | 500*300*300 | DN200 |
FD-30 | 30 | 400*400*400 | DN300 |
FD-40 | 40 | 500*400*400 | DN300 |
FD-50 | 50 | 600*400*400 | DN350 |
FD-60 | 60 | 700*400*400 | DN350 |
FD-80 | 80 | 700*400*500 | DN350 |
FD-100 | 100 | 900*400*500 | DN350 |
FD-120 | 120 | 1000*400*500 | DN350 |
FD-150 | 150 | 700*750*500 | DN400 |
FD-180 | 180 | 800*750*500 | DN400 |
FD-240 | 240 | 1000*750*600 | DN500 |
FD-300 | 300 | 1200*750*600 | DN500 |
FD-360 | 360 | 1000*800*900 | DN500 |
FD-420 | 420 | 1200*800*900 | DN500 |
FD-480 | 480 | 1400*800*900 | DN500 |
FD-600 | 600 | 1600*1000*1000 | DN600 |
FD-800 | 800 | 1800*1000*1000 | DN600 |
FD-1000 | 1000 | 2000*1000*1000 | DN600 |
Application
Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating,environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.
Packing & Delivery
Company Profile

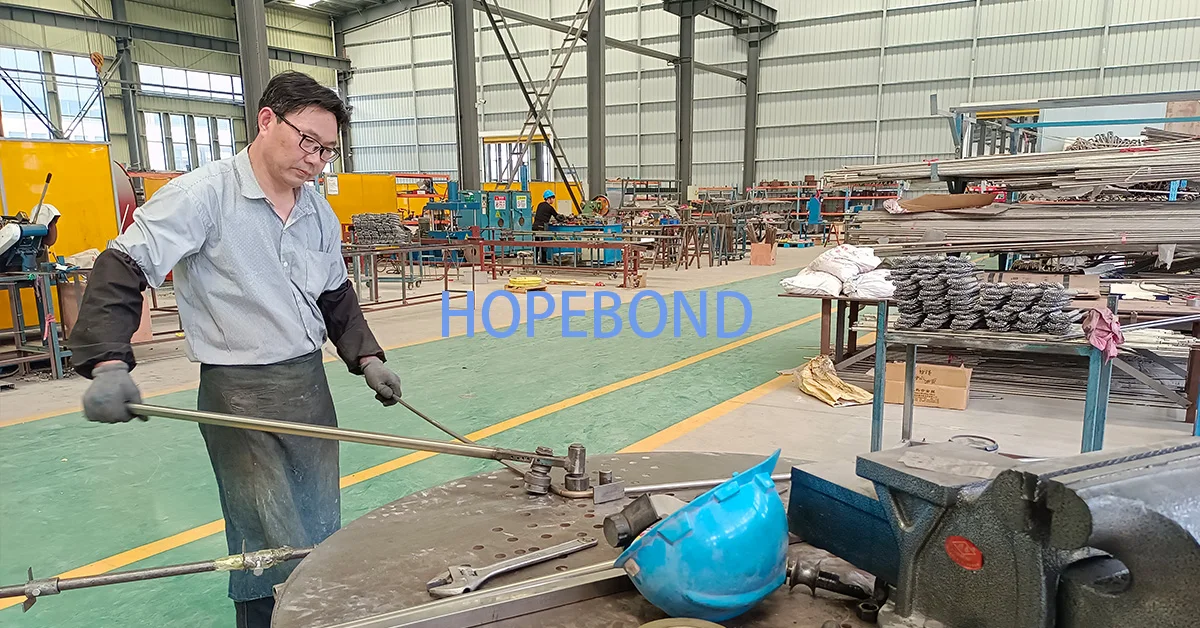

China Hopebond was formerly known as the trade of electric heating and instrumentation, the company's total assets are RMB 120million, with 360 employees. In 2010, we had our own factory building and 5A office production environment, From trade mangement to self-built factory, office building production and sales of explosion-proof heater ,air duct heater,pipeline heater, drying oven, gas mould temperature machine, electromagnetic thermal oil furnace, thermal oil furnace and all kinds of heating elements.From embarrassingly short of money to group mangement model, at present, we integrated research, development, production and sales the products are exported to 12 countries in the world,Mainly Europe and America with strong product independent research and development capabilities and technological innovation. The work has obtained the explosion proof authentication,many patents authentication, the quality system authentication.
FAQ
Q:What is our competitive advantage?
A:You are ordering directly from the factory.We provide one-stop service, from order taking, customized research and development,
to product follow-up, after-sales, etc. If you buy our products, we are responsible for you to the end.
Q: What is the lead time for Heater products?
A: Samples - within 3 working days with materials in stock Mass production - usually 7-14 working days (depends on quantity and
raw material situation, please further discuss with our team. )
Q: What is the MOQ for Heater products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on
the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our
Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions
about products or technical questions please communicate with our sales team and provide specific applications and requirements.
A:You are ordering directly from the factory.We provide one-stop service, from order taking, customized research and development,
to product follow-up, after-sales, etc. If you buy our products, we are responsible for you to the end.
Q: What is the lead time for Heater products?
A: Samples - within 3 working days with materials in stock Mass production - usually 7-14 working days (depends on quantity and
raw material situation, please further discuss with our team. )
Q: What is the MOQ for Heater products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on
the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our
Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions
about products or technical questions please communicate with our sales team and provide specific applications and requirements.
