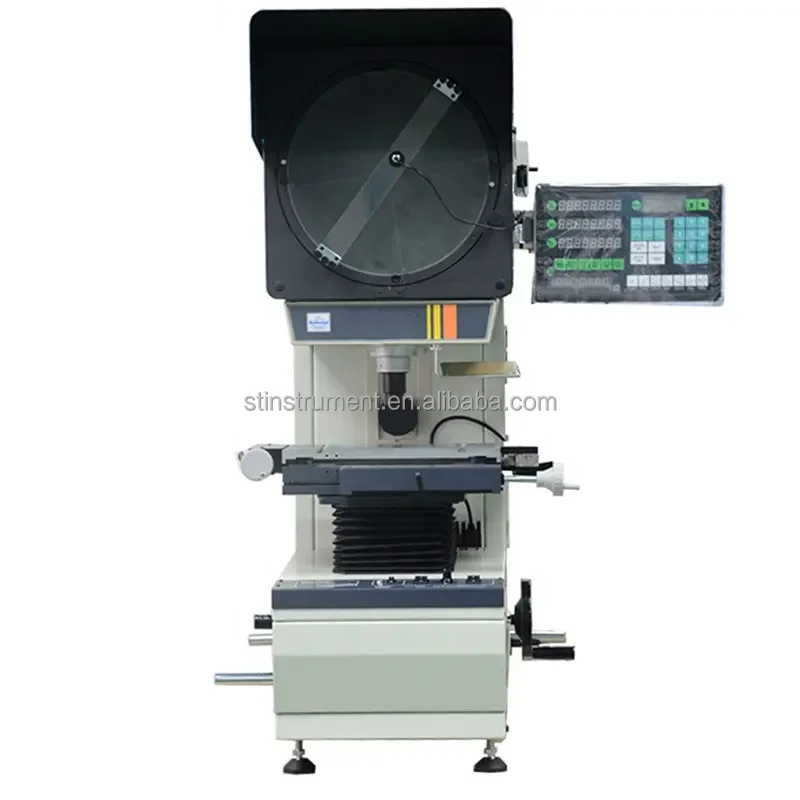

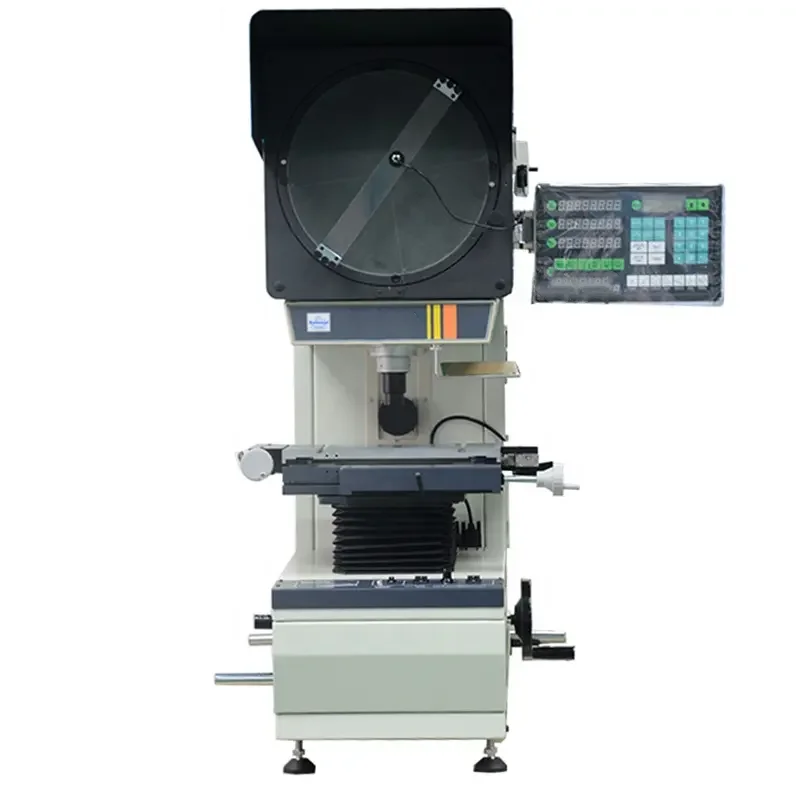

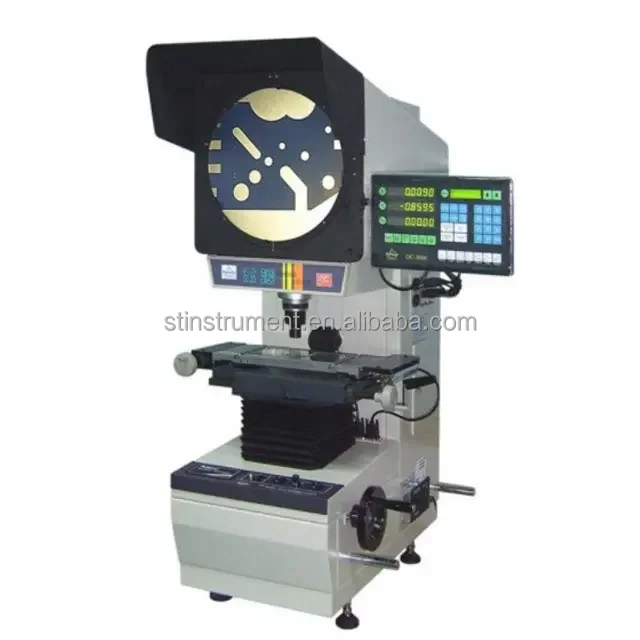

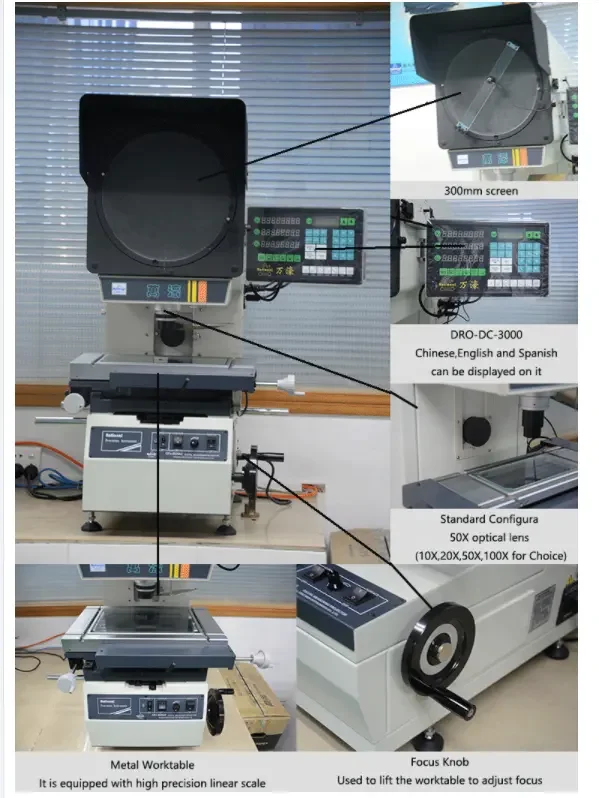

High quality Optical Vertical Profile Projector/Digital Profile Projector Profile Comparator/Vertical profile projector CPJ-3025
Features:
Digital measuring projector is compact in structure, simple and beautiful in appearance, economical and practical, and reliable. It can effectively measure and compare workpieces directly, such as stamping parts, gears, threads, tools, etc.It is widely used in machinery manufacturing, electronics, moulds, instruments and clocks and other industries.
High quality Optical Vertical Profile Projector/Digital Profile Projector Profile Comparator/Vertical profile projector
Technical parameters:
Model | CPJ-3025A/AZ | |
Work platform | Metal platform size(mm) | 450×280 |
Glass table size(mm) | 306×196 | |
X stroke(mm) | 250 | |
Ystroke(mm) | 150 | |
Zstroke | 100(focus adjustable) | |
Equipment accuracy | 3+L/75 | |
X,YCoordinate digital display resolution:0.5um | ||

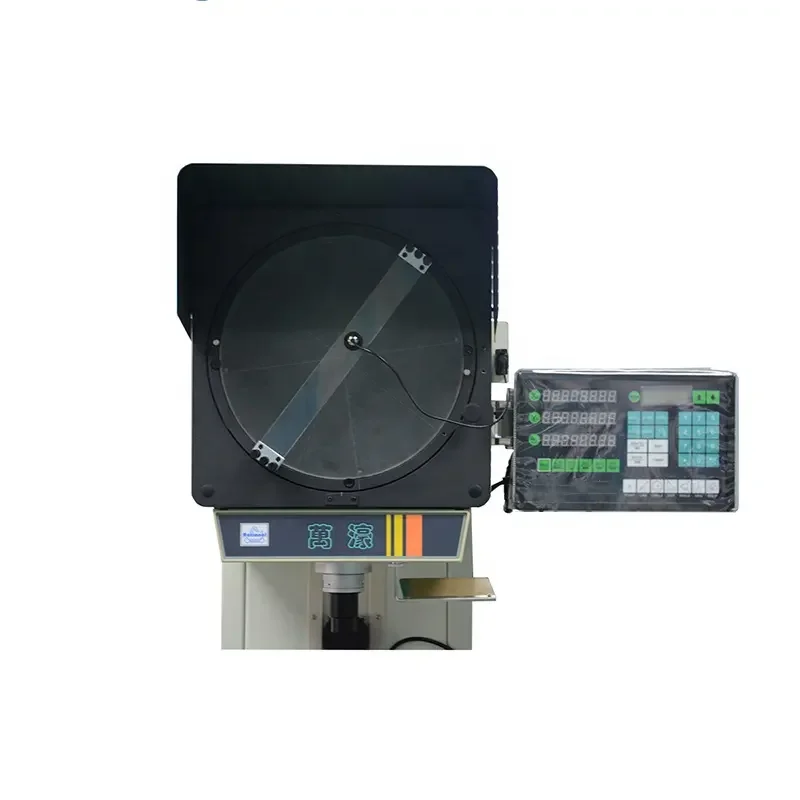

Projecto screen | Projector screen size(mm):Ø312,use range > Ø300 (It's engraved with meters). | |
Projection rotation range:0~360o | ||
Rotation Angle digital resolution:1’or 0.01o | ||
objective | magnification: 10X(optional) 20X(optional) 50X(optional) 100X(optional) | |
Object squared field of view(mm) Ø30 Ø15 Ø6 Ø3 | ||
Object side working distance(mm) 77.7 44.3 38.4 25.3 | ||

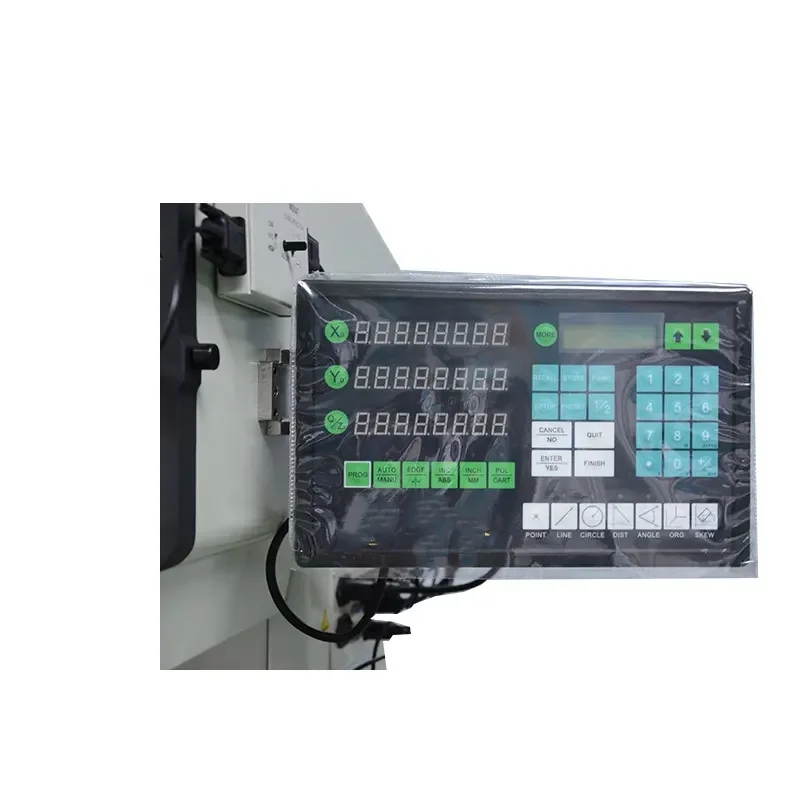

Dc-3000 Multi-function data processing system, full English display can do multi-point sampling, coordinate rotation, point, line, distance, Angle detection | ||
illumination | Both the transmitted and reflected light sources are 24V and 150W halogen lamps | |
Power | 110V/220V(AC),50/60Hz,400W | |
Cooling methods | Forced air cooling (3-axis fan) | |
Outside size | 810×780×1120 | |
weight | unit:kg | 180KG |
