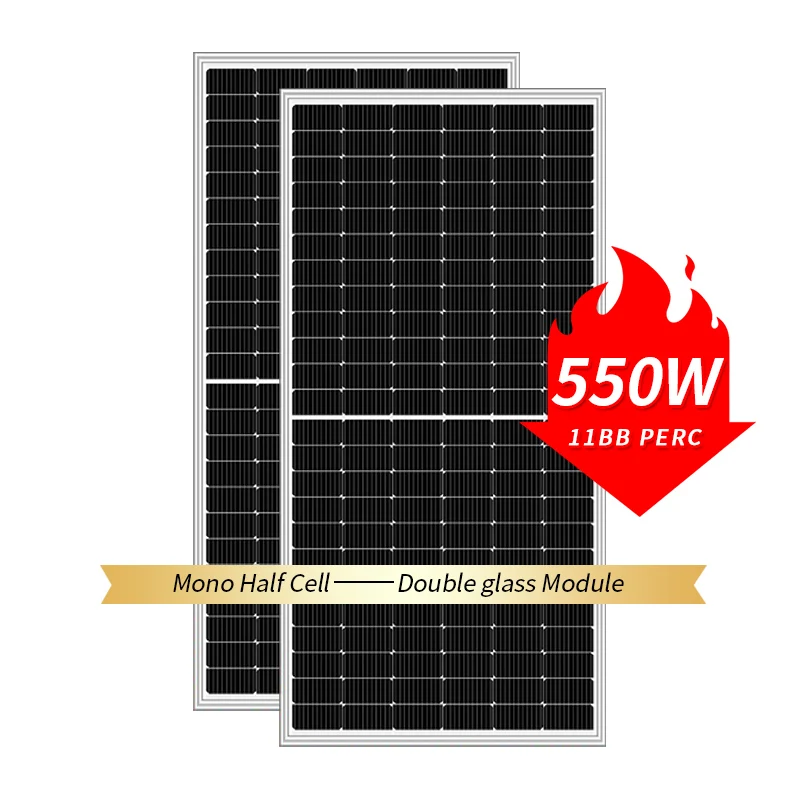

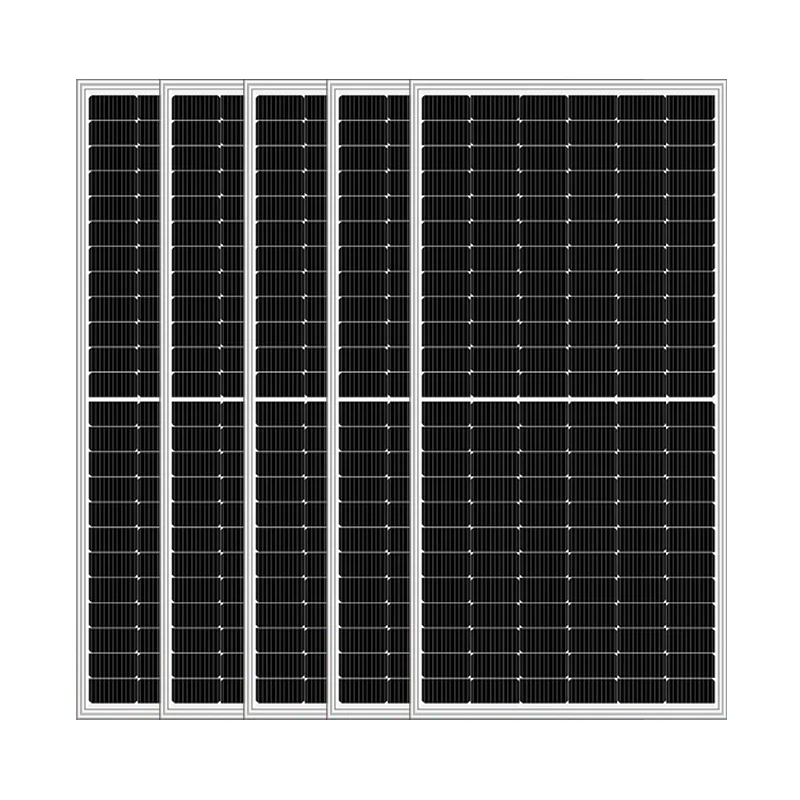

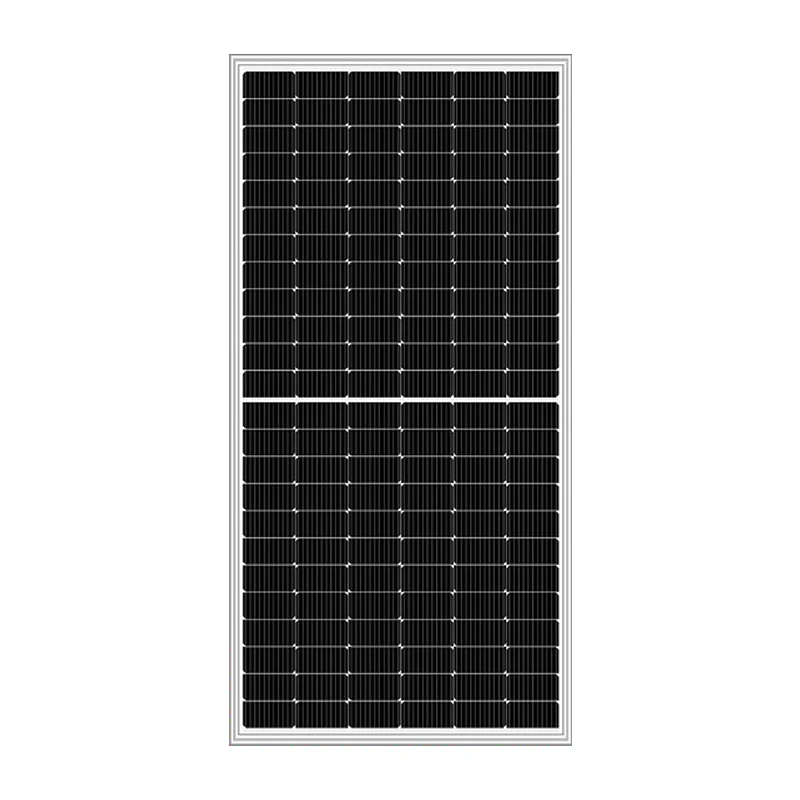

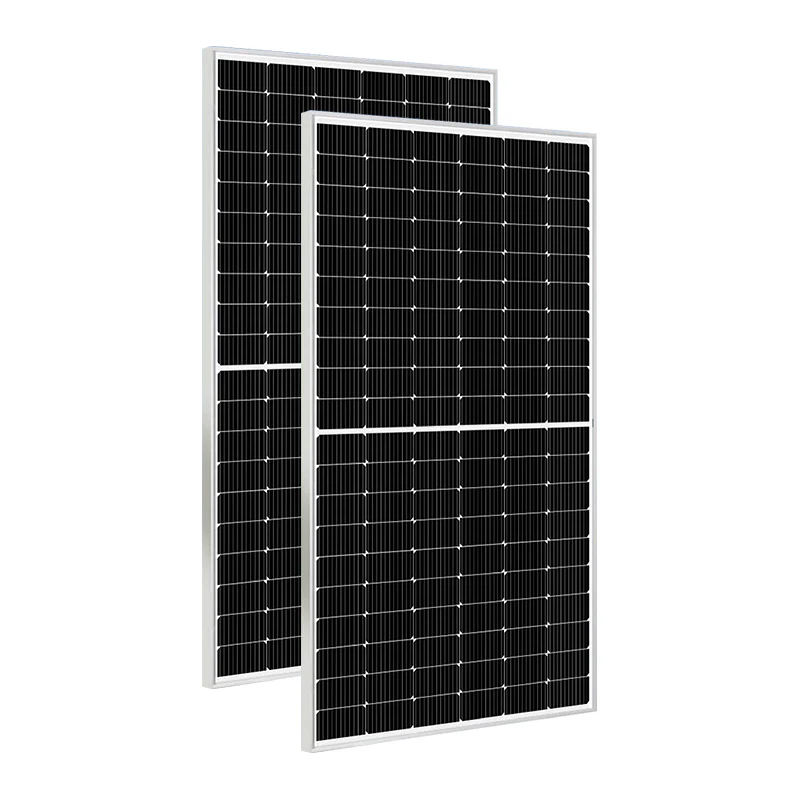

Hot Sale Jinko Tiger Trina Solar Panel 500W 550W 600W Half Cell Mono PV Module Solar Panels
- Category: >>>
- Supplier: Shenzhen Sopray Solar Technology Co. Ltd.
Share on (1600860213303):
Product Overview
Description
Hot Sale Jinko Tiger Trina Canadian Solar Panel 500W 550W 600W Half Cell Mono PV Module Solar Panels
Product Description
To Know More Details of Solar panels Or Solar Energy System? CONTACT US NOW!
If you need solar panels, please contact me!
If you need solar inverter, please contact me!
If you need solar controller, please contact me!
If you need solar batteries, please contact me!
If you need solar energy system, please contact me!
Technical parameter
| Rate Maximum Power | 300w | 400w | 450w | 500w | 550w | 600w |
| Solar Cell(Type/Size) | mono(182mm) | |||||
| ModuleEfficiency(%) | 20.50% | 20.70% | 20.80% | 21.10% | 21.30% | 21.5% |
| Solar Cells Number | 60Pcs(6x10) | 54Pcs(6x9) | 120pcs(6*10) | 132pcs(6*22) | 144pcs(6*24) | 156pcs(6*26) |
| Voltage at Pmax(Vmp) | 34.20 | 30.78 | 34.67 | 38.33 | 41.97 | 45.53 |
| Current atPmax(lmp) | 8.77 | 13.00 | 12.98 | 13.05 | 13.11 | 13.18 |
| Open CircuitVoltage(Voc) | 41.04 | 37.02 | 41.25 | 45.65 | 49.95 | 54.10 |
| Short CircuitCurrent(lsc) | 9.30 | 13.78 | 34.67 | 13.92 | 14.05 | 14.10 |
| Dimension | 1290x1134x35mm | 1725x1134x35mm | 1909x1134x35mm | 2094x1134x35mm | 2279x1134x35mm | 2464x1134x35mm |
| Weight | 14.3Kg/Pcs | 21.3Kg/Pcs | 23.9Kg/Pcs | 26.2Kg/Pcs | 28.5Kg/Pcs | 30.0Kg/Pcs |
| Frame | Anodized aluminum alloy | |||||
| Cable | 4.0mm2(+)1000mm/(-)1000mm | 4.0mm2,(+)300mm/(-)400mm | ||||
| Connector | Original MC4/Compatible MC4 | |||||
| Packing Number | 2Pcs/Ctn | 31Pcs/Pallet | ||||
| Packing Volume | 0.129Cbm/Ctn | 0.172Cbm/Ctn | 2.834Cbm/Pallet | 3.100Cbm/Pallet | 3.372Cbm/Pallet | 3.542Cbm/Pallet |
| 40HQ Container | 1088Pcs | 810Pcs | 744Pcs | 682Pcs | 620Pcs | 590Pcs |

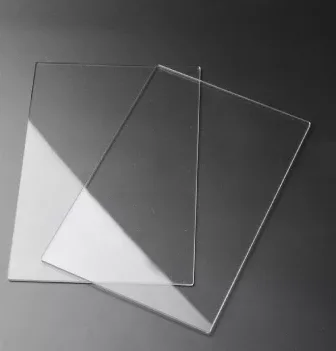

Tempered Glass
>High temperature resistance, strong
thermalstability, can withstand 3 times the
temperaturedifference of ordinary glass.
>High light transmittance, the glass surfaceadopts
>High light transmittance, the glass surfaceadopts
AR coating process, which can convertlight energy
to the greatest extent.
>High bending resistance and good impactresistance.
>High bending resistance and good impactresistance.

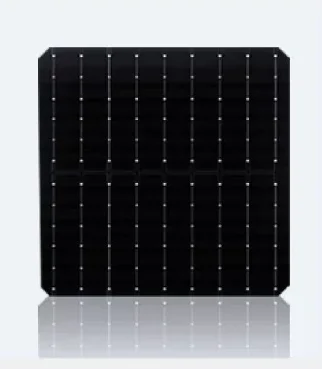

Solar cells
The solar cell can directly convert light energyinto electrical energy through photoelectric effector photo-chemical effect. As long as it is exposedto light, voltage and current can be output instant.

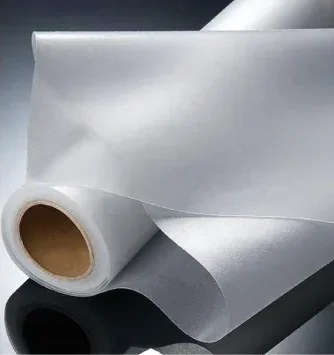

EVA
Has greater durability, provides good adhesionand protects the cells from vibration.

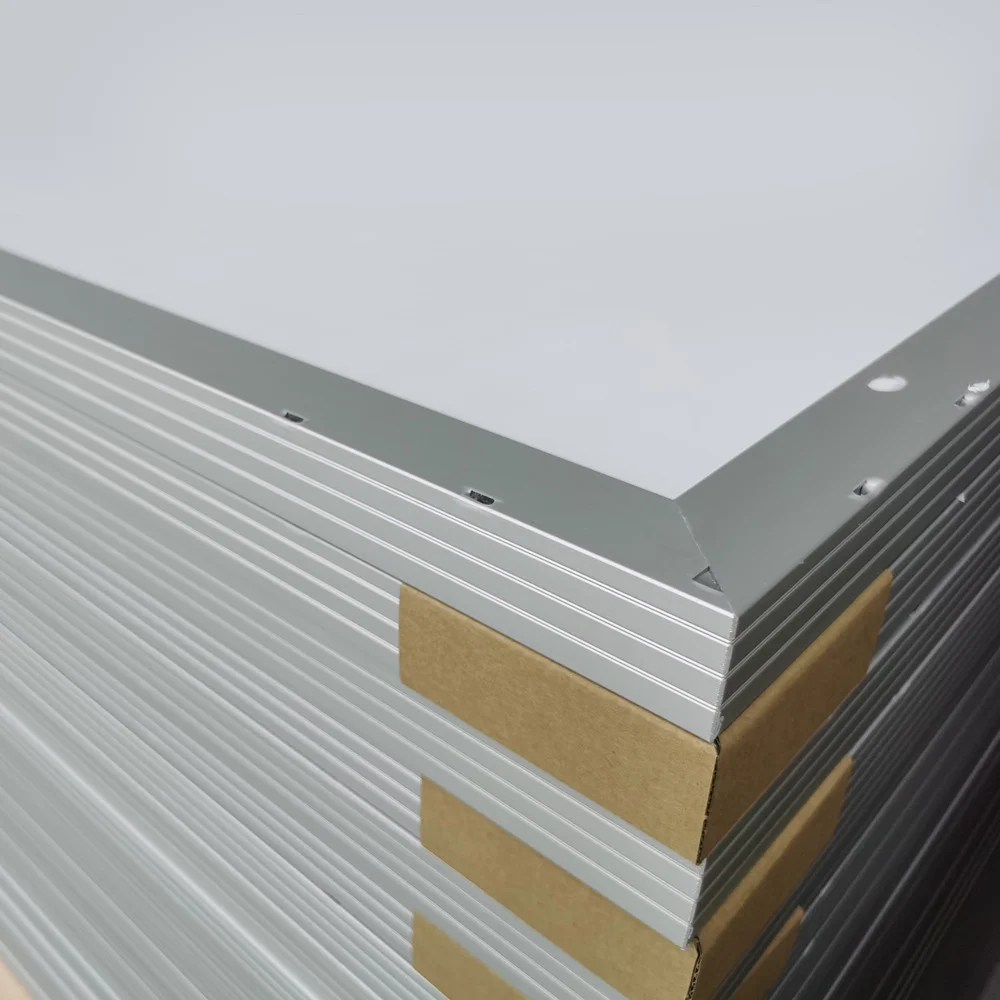

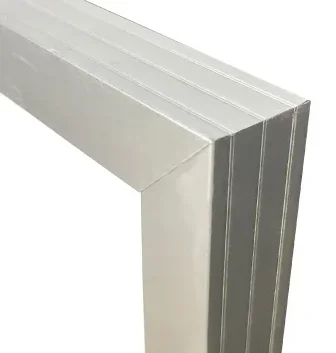

Frame
35mm-50mm Anodized Aluminium AlloyBlack/Silver Optional

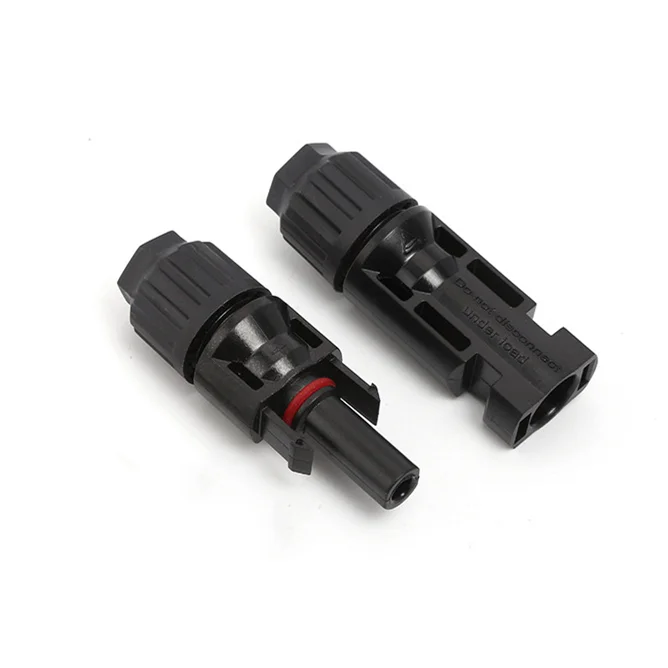

MC4 Connector
Insulated flame-retardant shell, red copper inner core tinned.
Company Information

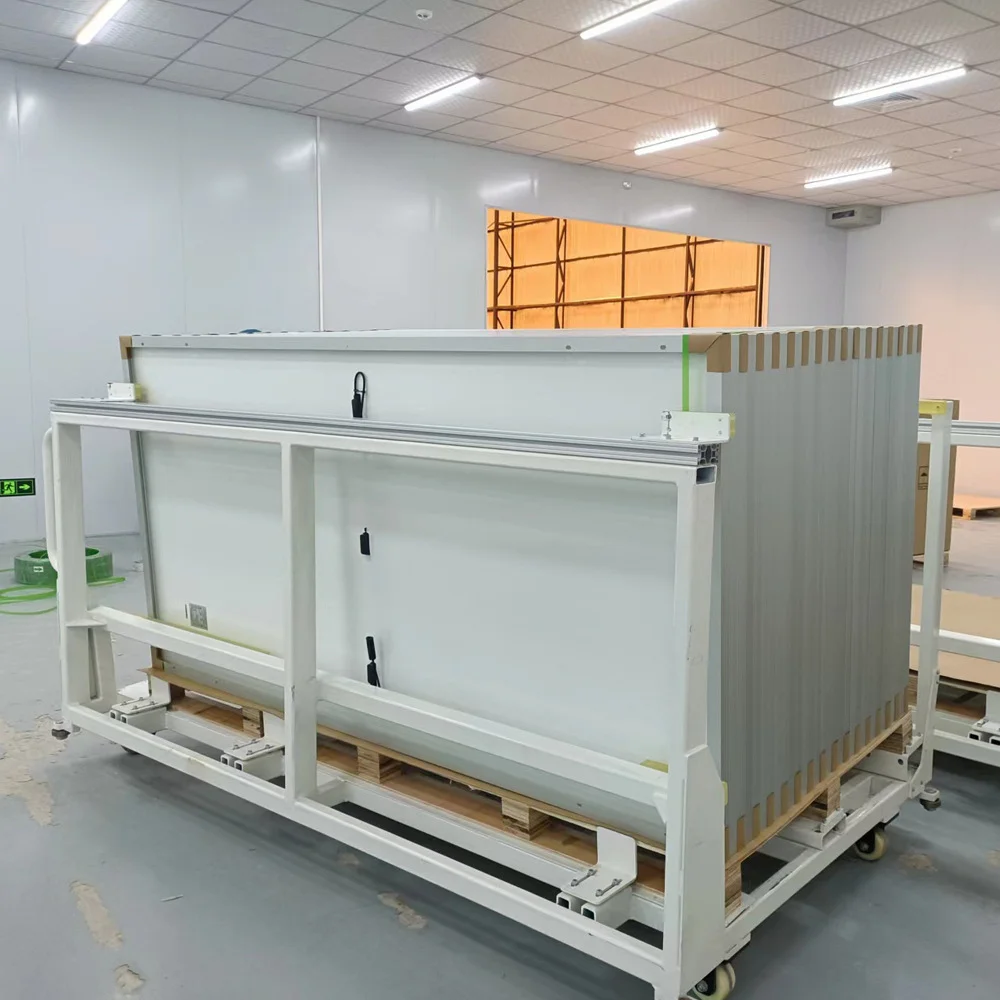

Packaging & Shipping
1. Packaging: standard carton plus wooden case or pallet.
2. Shipping: (1). Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
(2). By air or by sea for batch goods.
3. Delivery: Goods to be ready within 10~15 days depending on order quantity.
FAQ
1.What is the business type for the company?
We are manufacturer,welcome to vist our factory.
2.What is the brand for this panel?
SR solar,OEM service is available, wholesales is welcome.
3:How long flexible Monocrystalline Silicon solar panel warranty can you offer?
2.What is the brand for this panel?
SR solar,OEM service is available, wholesales is welcome.
3:How long flexible Monocrystalline Silicon solar panel warranty can you offer?
For Civil use:1 years 90% warranty power output, 2 years warranty for 80% power output.
For Army use:5years 90% warranty power output, 10years warranty for 80% power output.
4.Why isn't the flexible solar panle charger face plane ?
It is good for assimilate the sunshine.
It is good for assimilate the sunshine.
5.Can I be the agent for you?
Yes,We will discuss condition in detail.
6.Can i buy a sample for testing performance?
yes,our MOQ is one piece
Yes,We will discuss condition in detail.
6.Can i buy a sample for testing performance?
yes,our MOQ is one piece
