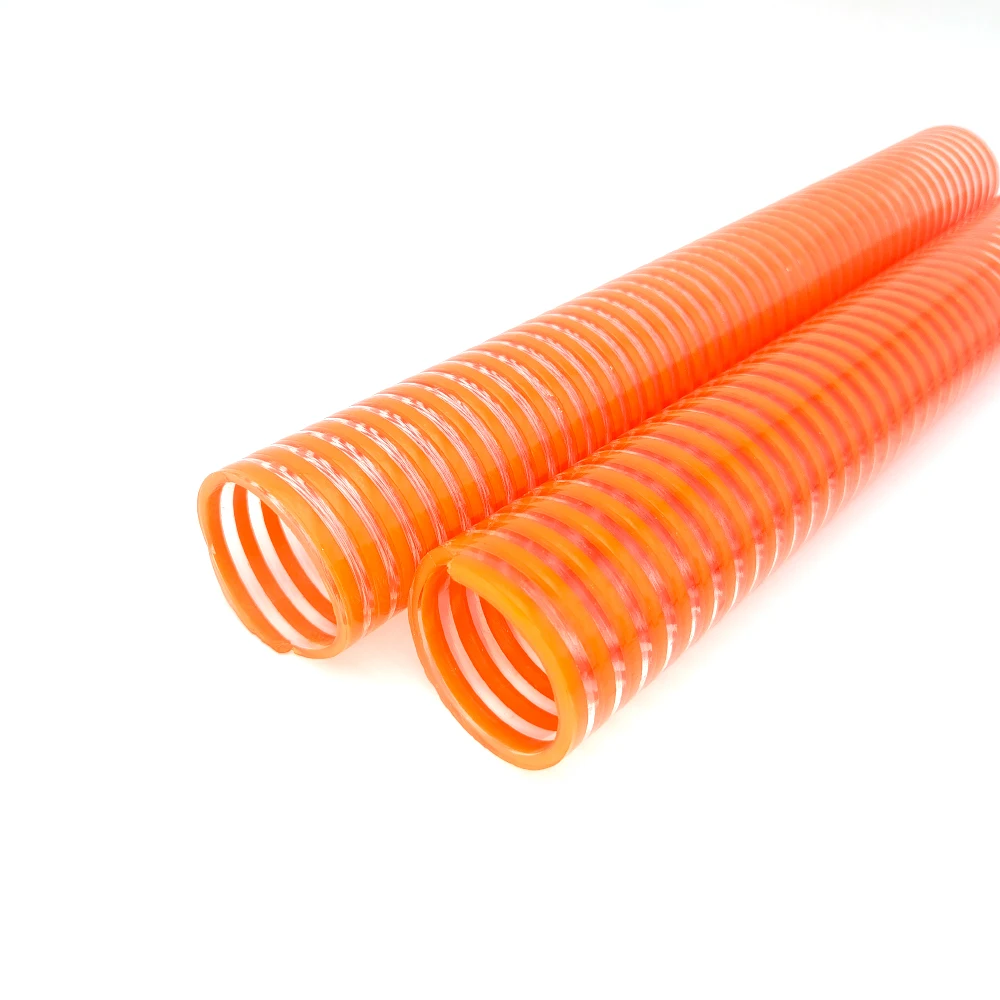

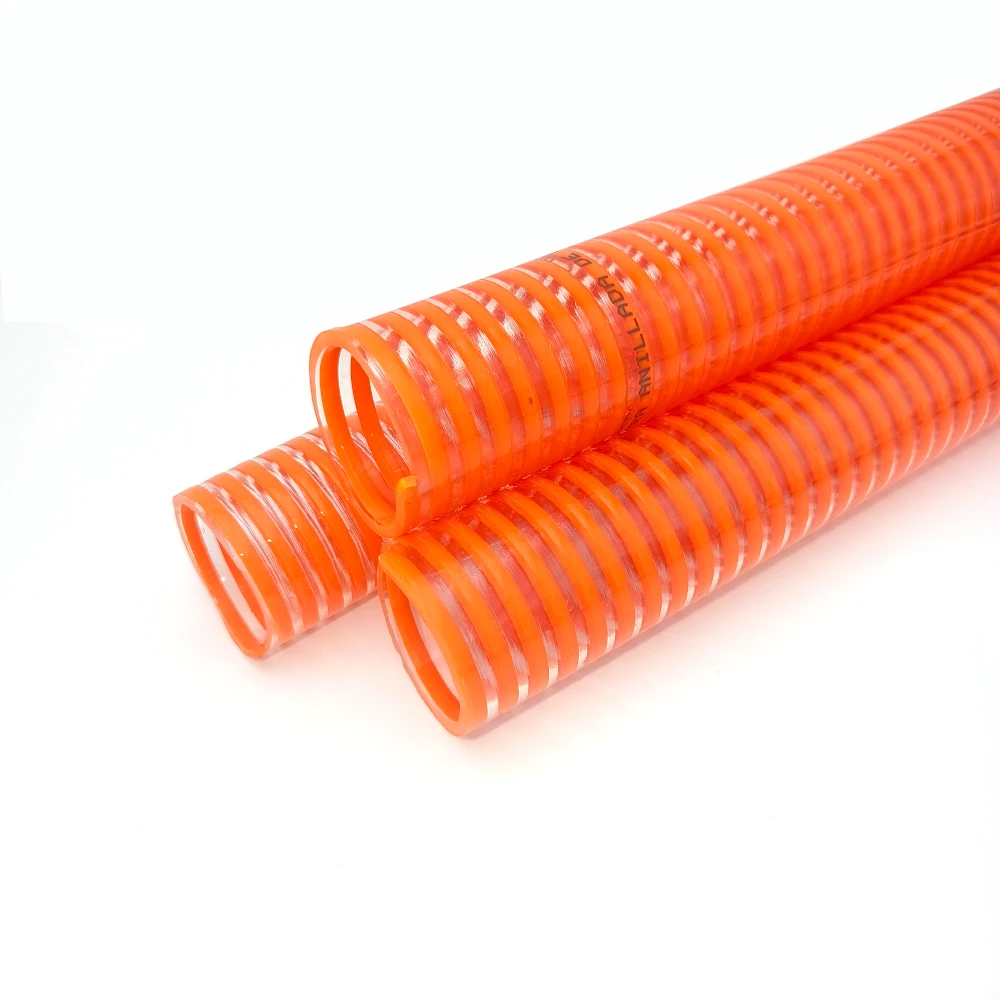

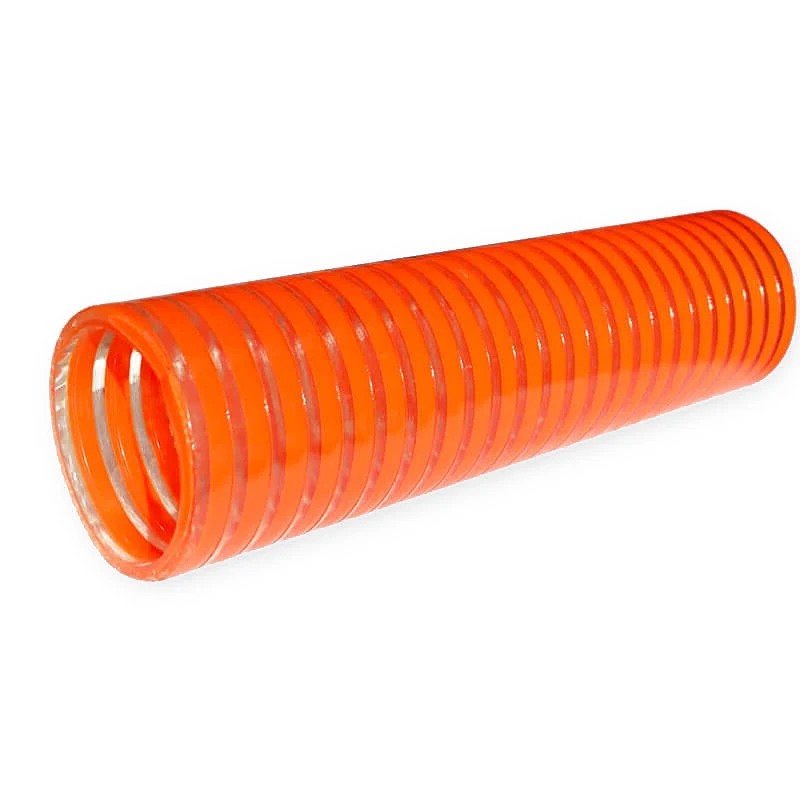

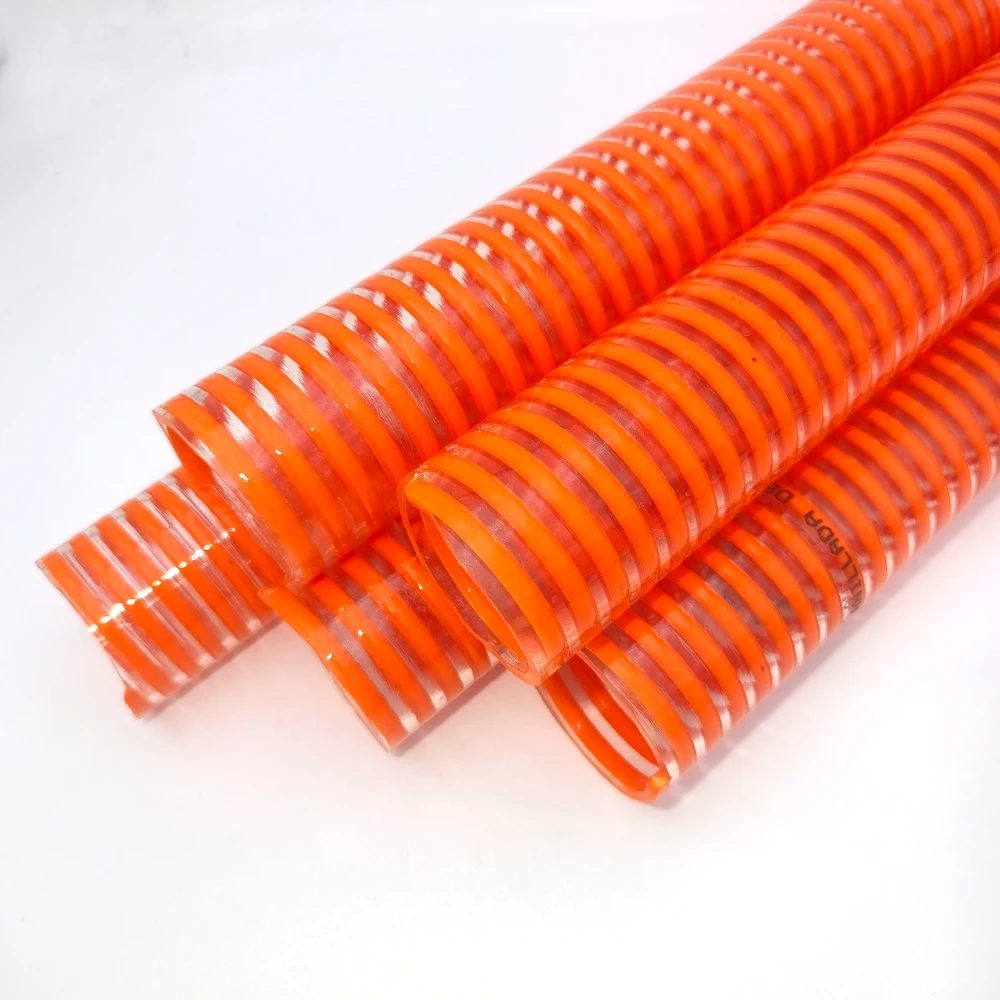

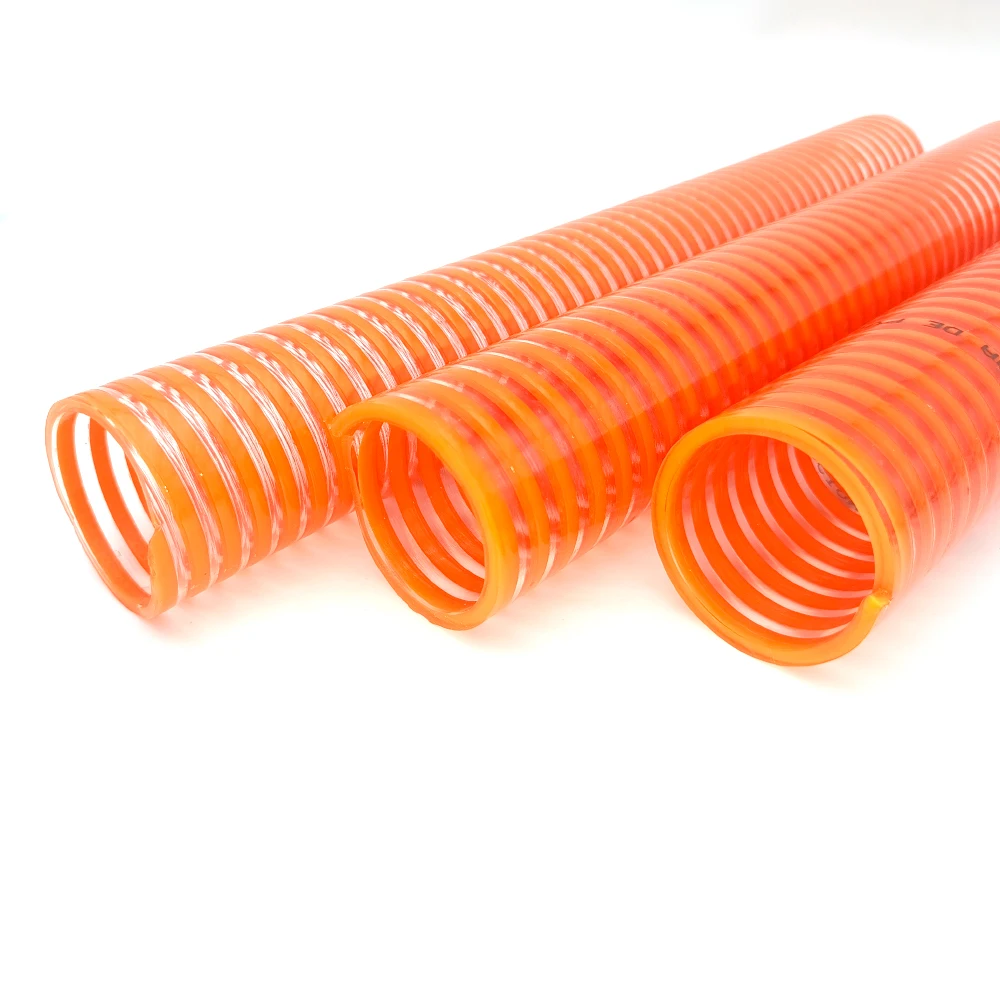

Flexible Spiral Helix Water Delivery PVC Suction Pipe Farm Irrigation Industrial PVC Water Sucion Hose
- Category: >>>
- Supplier: Weifang Sanjiang Plastic And Rubber Products Co. Ltd.
Share on (1600860313183):
Product Overview
Description
Products Description
2 Inch 30 m Durable Light Duty PVC Corrugated Pvc Sewage Suction Hose
General Information
∎ Our Industrial PVC hose includes a wide range of high-quality hose with different diameters for processing and conveyance as well as the suction of multiple substances.
∎ Based on hoses qualified material, cover, and reinforcement they are all flexible, strong, highly durable, and capable of working with high, and low pressure & heat.
∎ They are resistant to abrasion as well as to chemical substances, and kink.
∎ Moreover, all hoses are resistant to environmental conditions, so they can function through extreme environmental situations.
Key features
• Tough, flexible and extremely durable
• Outstanding resistance to the effects of weather
• Minimum frictional loss is achieved by the smooth bore
• Excellent chemical resistance
Construction

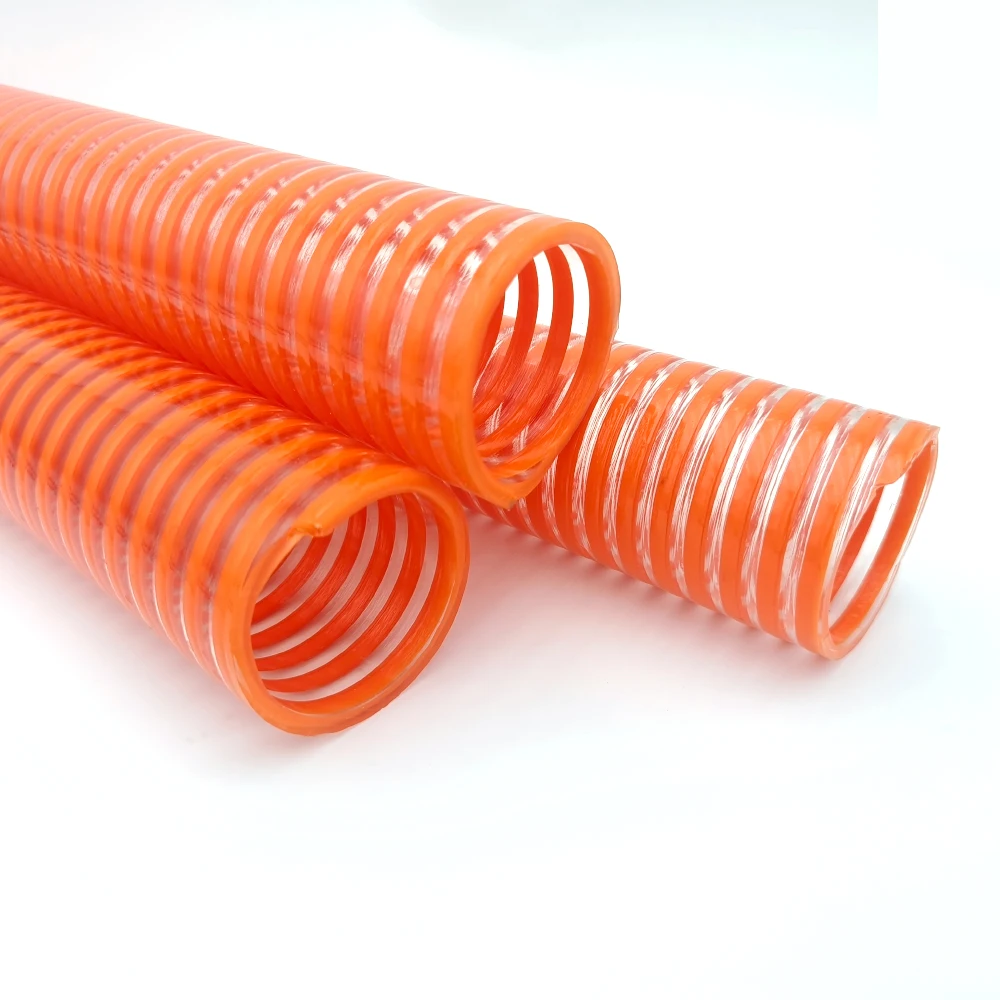

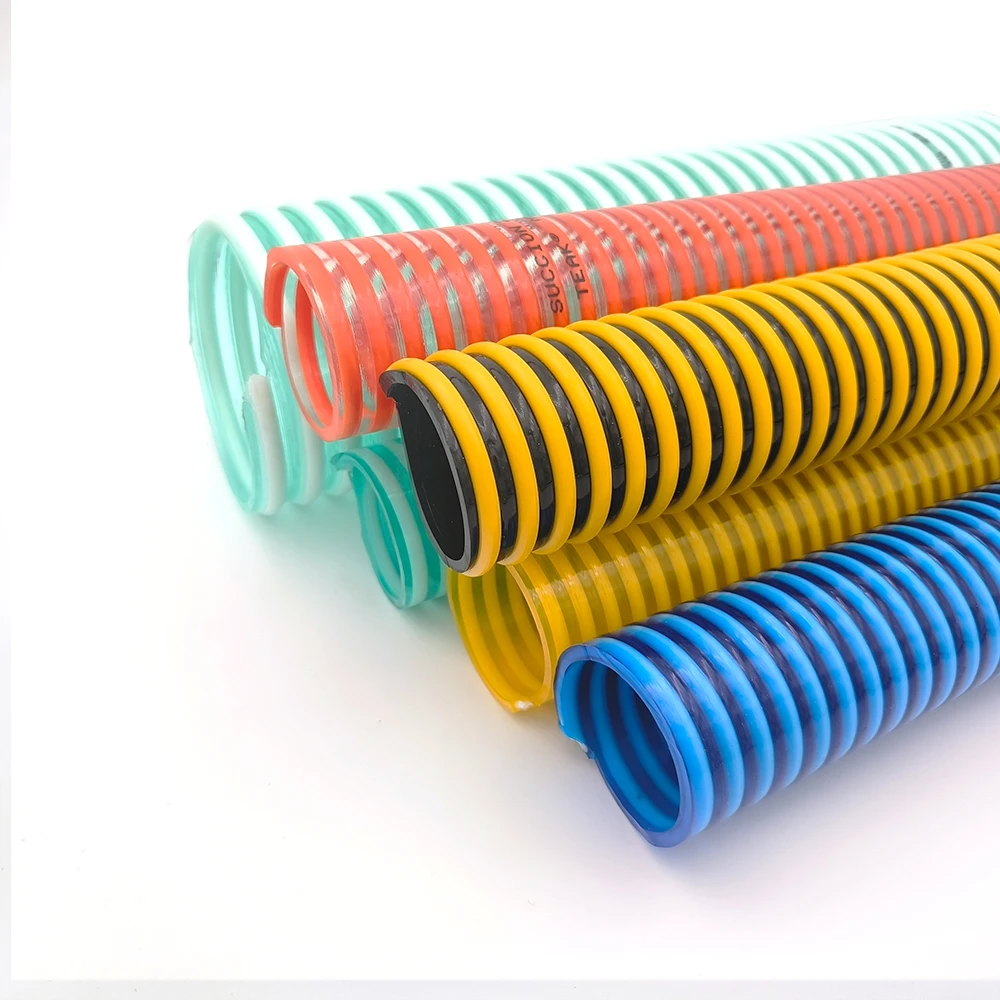

Crush resistant anti-shock PVC spiral helix encapsulated in a clear flexible PVC cover, with a smooth inside wall
Crush resistant anti-shock PVC spiral helix encapsulated in a clear flexible PVC cover, with a smooth inside wall
Applications
Water, slurries, granules, foodstuffs and dilute chemicals. Ideally suited to applications in the agricultural, food
processing, plastics handling, marine & construction industries.
Water, slurries, granules, foodstuffs and dilute chemicals. Ideally suited to applications in the agricultural, food
processing, plastics handling, marine & construction industries.
Flat Type PVC Suction Hose
model | ID mm | OD mm | Pitch mm | W.P. Mpa | B.P. MPa | W/A kg/m | Legnth m/roll |
SJSC19 | 19 | 24 | 5.5 | 0.6 | 2.1 | 0.22 | 30,50 |
SJSC25 | 25 | 30 | 6 | 0.6 | 1.8 | 0.28 | 30,50 |
SJSC32 | 32 | 37.2 | 6.5 | 0.5 | 1.5 | 0.36 | 30,50 |
SJSC38 | 38 | 43.8 | 7.5 | 0.4 | 1.4 | 0.47 | 30,50 |
SJSC50 | 50.8 | 57.8 | 8.5 | 0.4 | 1.4 | 0.76 | 30,50 |
SJSC65 | 63.5 | 72.5 | 9.5 | 0.4 | 1.4 | 1.23 | 30,50 |
SJSC75 | 76.2 | 85 | 10 | 0.4 | 1.4 | 1.43 | 30,50 |
SJSC100 | 101.6 | 113.4 | 11 | 0.4 | 1.4 | 2.55 | 30,50 |
SJSC125 | 127 | 141 | 11.5 | 0.3 | 1 | 3.73 | 10,20 |
SJSC150 | 152.4 | 166 | 13.5 | 0.25 | 0.9 | 4.34 | 10,21 |
SJSC200 | 203.2 | 220.4 | 17.5 | 0.2 | 0.8 | 7.29 | 10,22 |
CorrugatedType PVC Suction Hose
model | ID mm | OD mm | Pitch mm | W.P. Mpa | B.P. MPa | W/A kg/m | Legnth m/roll |
SJCSC19 | 19 | 25 | 6.5 | 0.3 | 1.2 | 0.17 | 30,50 |
SJCSC25 | 25 | 31.6 | 7.5 | 0.25 | 1 | 0.24 | 30,50 |
SJCSC32 | 31 | 38 | 8.5 | 0.25 | 1 | 0.31 | 30,50 |
SJCSC38 | 38 | 46.2 | 9 | 0.25 | 1 | 0.45 | 30,50 |
SJCSC50 | 50.6 | 59.8 | 10 | 0.2 | 0.8 | 0.66 | 30,50 |
SJCSC65 | 63.5 | 74.1 | 14 | 0.2 | 0.8 | 0.91 | 30,50 |
SJCSC75 | 76.4 | 88.8 | 15 | 0.2 | 0.8 | 1.33 | 30,50 |
SJCSC100 | 101.6 | 117.2 | 16.5 | 0.2 | 0.8 | 2.31 | 30,50 |
SJCSC125 | 125.9 | 144.9 | 22 | 0.15 | 0.6 | 3.18 | 10,20 |
SJCSC150 | 152.4 | 173.6 | 22 | 0.15 | 0.6 | 4.6 | 10,20 |
SJCSC200 | 203.7 | 229.7 | 23 | 0.15 | 0.6 | 8.14 | 10,20 |
1. Are you factory or trading company?
We are a professional manufacturer with factory located in Weifang City, Shandong Province.
2. Can you do the design for us?
Yes, We supply full OEM and ODM service for our customers.
Please tell us your ideas and we will help to carry out it into perfect products.
3. When can I get the quotation?
Within 24 hours after we get your inquiry, you can also call us or email to us.
So we will regard your inquiry priority.
4. Could I get a sample for checking quality?
Of course, we supply free samples for you to check the quality,
and you need to pay charge for the sample cost(DHL/FEDEX/EMS).
5. What’s your payment term?
Usually 30% as deposit, 70% before shipment by T/T.
On Alibaba, Paypal, Western Union, T/T are also ok.
6. What about the lead time for mass production?
The lead time of MOQ is about 10 to 15 days.
Honestly, it also depends on the order quantity and the season you place the order.
7. What is the shipping port?
Qingdao port. Our factory takes 2 to 3 hours from Qingdao Port
8. Where is the location of your company?
Sanjiang Plastic is located in Weifang City, Shandong Province,China.
If you would like to have a visit, you are much welcome.
We are a professional manufacturer with factory located in Weifang City, Shandong Province.
2. Can you do the design for us?
Yes, We supply full OEM and ODM service for our customers.
Please tell us your ideas and we will help to carry out it into perfect products.
3. When can I get the quotation?
Within 24 hours after we get your inquiry, you can also call us or email to us.
So we will regard your inquiry priority.
4. Could I get a sample for checking quality?
Of course, we supply free samples for you to check the quality,
and you need to pay charge for the sample cost(DHL/FEDEX/EMS).
5. What’s your payment term?
Usually 30% as deposit, 70% before shipment by T/T.
On Alibaba, Paypal, Western Union, T/T are also ok.
6. What about the lead time for mass production?
The lead time of MOQ is about 10 to 15 days.
Honestly, it also depends on the order quantity and the season you place the order.
7. What is the shipping port?
Qingdao port. Our factory takes 2 to 3 hours from Qingdao Port
8. Where is the location of your company?
Sanjiang Plastic is located in Weifang City, Shandong Province,China.
If you would like to have a visit, you are much welcome.
