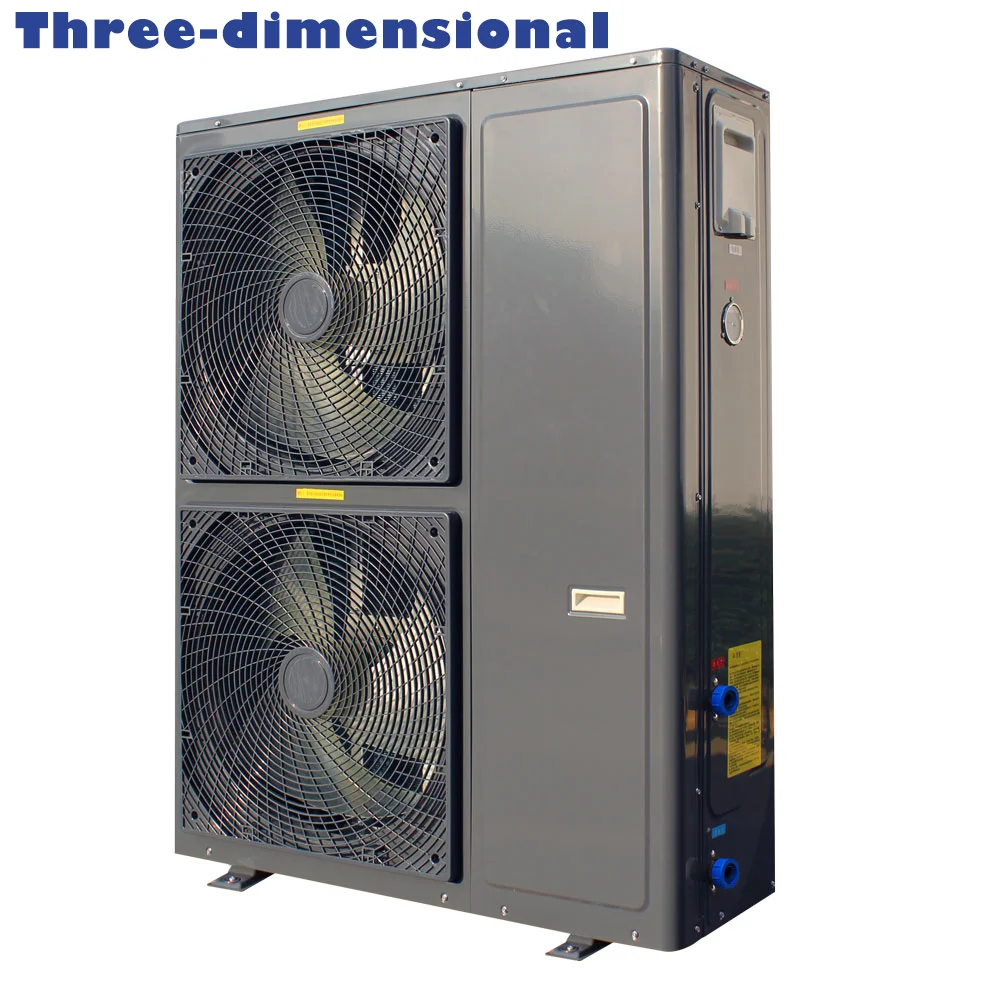

Hot sale 12KW air to water heat pump Factory Controller Pcb Pool Inverter Heater Electric Import Heat Pump Manufacturer
- Category: >>>
- Supplier: Newfair Eco-Energy(Guangdong) Co. Limited
Share on (1600860320515):
Product Overview
Description
PRODUCTS DESCRIPTION

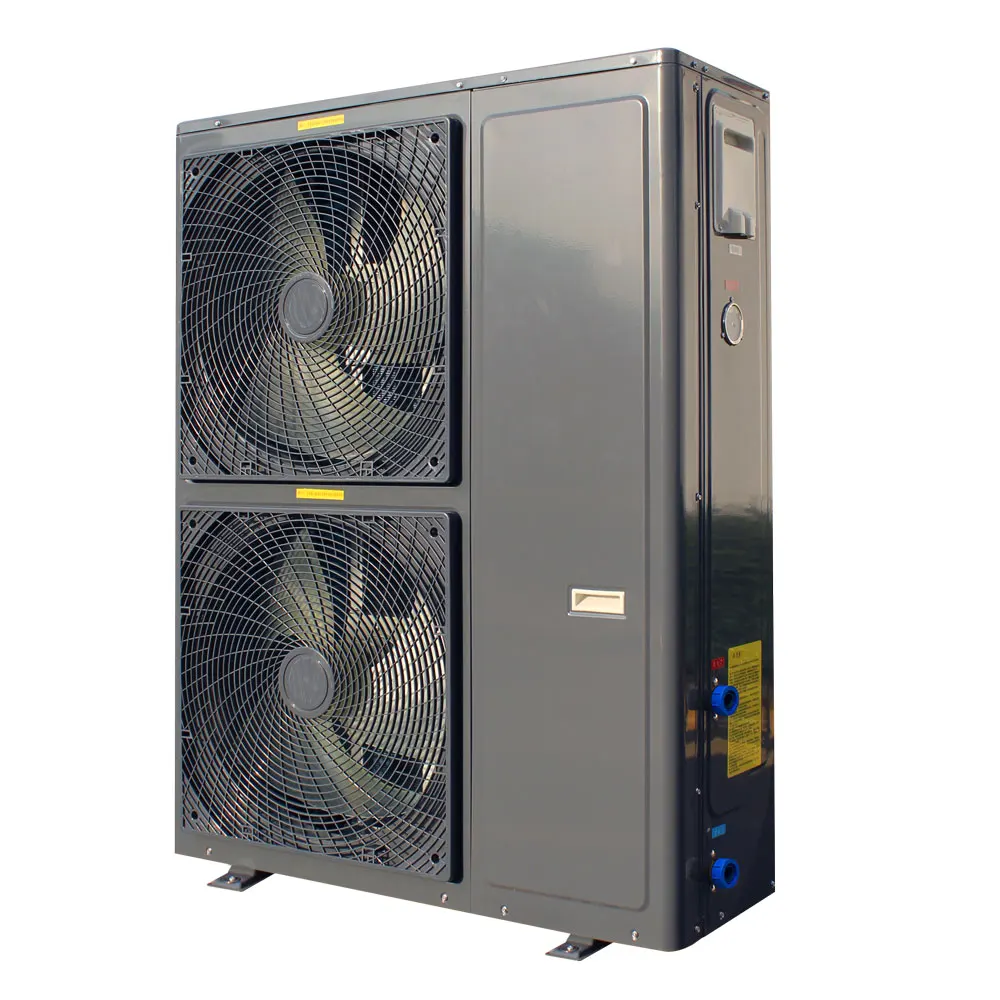

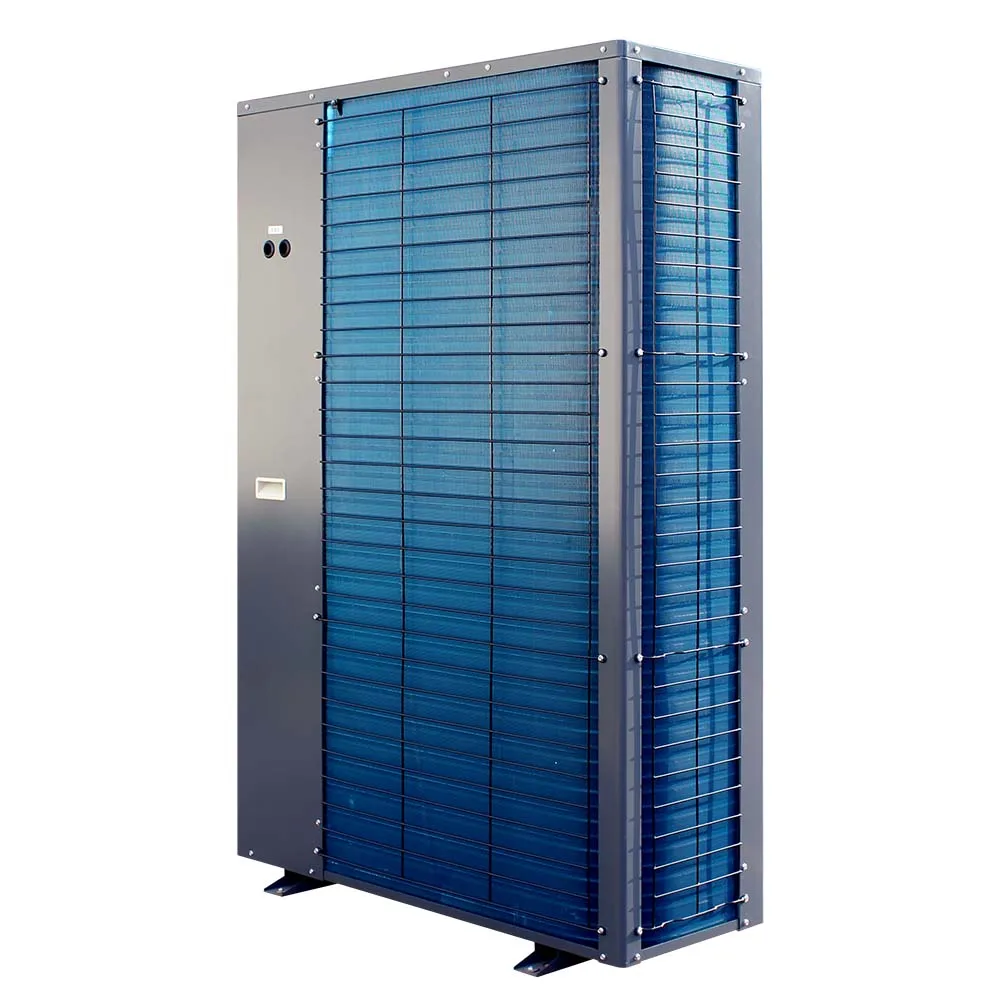

Ultra-Low Noise Air Source Heat Pump Water Heater for Swimming Pool
Ultra-low noise: as low as 46DB-62DB.

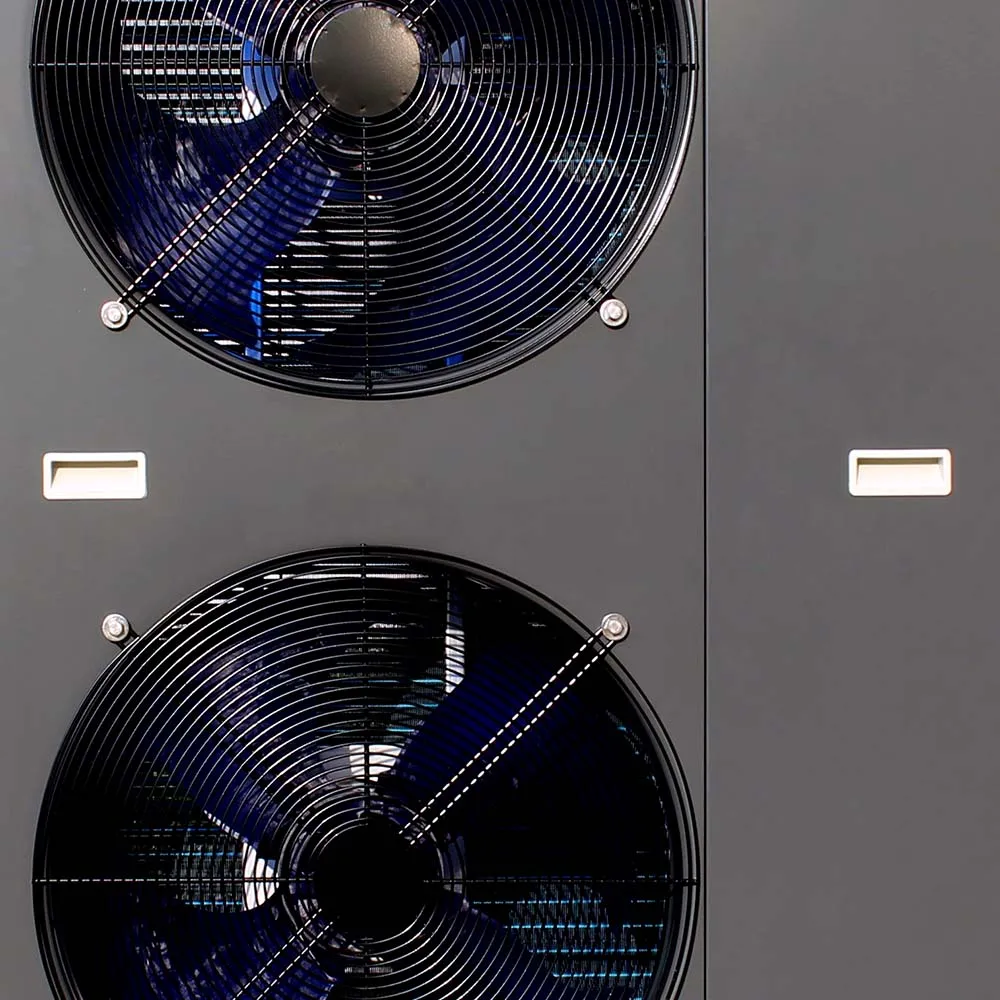

The machine uses double vibration reduction technology, equipped with brushless DC EVI fan and compressor to reduce the noise.
CORROSION RESISTANCE
CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
DETAILED SPECIFICATIONS
Model No. | NFE020H-BYDW | NFE030H-BYDW | NFE050H-BYDW | NFE060H-BYDW | NFE080H-BYDW | NFE100H-BYDW | ||||||
Rated Heating Capacity(Kw) | 9 | 16.4 | 21.7 | 27.6 | 32.5 | 42.3 | ||||||
Rated Heating Power(Kw) | 1.2 | 2.28 | 3.02 | 3.84 | 4.57 | 6.04 | ||||||
COP | 7.5 | 7.2 | 7.2 | 7.1 | 7.1 | 7.0 | ||||||
Power Supply | 220V/1ph/50Hz | 380V/3ph/50Hz | ||||||||||
Electricity（A） | 7.1 | 5 | 6.7 | 8 | 10 | 13 | ||||||
Rated Heating Water Temp.(℃) | 28℃ | |||||||||||
Max Water Temp.(℃) | 40℃ | |||||||||||
Operating Ambient Temp.(℃) | -15℃-45℃ | |||||||||||
Heat Exchanger | High Efficiency 316 Stainless Steel Plate Heat Exchanger | |||||||||||
Refrigerant | R32 | |||||||||||
Minimum Noise dB(A) | 46 | 49 | 50 | 52 | 56 | 59 | ||||||
Water Flow（m3/h） | 1.1 | 2.2 | 3.1 | 3.48 | 4.16 | 5.4 | ||||||
Water Tube Size/Type DN | DN50 | |||||||||||
IP Level | IPX4/I | |||||||||||
Weight（kg） | 46 | 95 | 100 | 148 | 152 | 185 | ||||||
Dimensions（mm） | 1160*420*860 | 1160*420*860 | 1050*370*1400 | 1050*370*1400 | 1050*370*1400 | 1050*420*1560 | ||||||
Installation Dimensions（mm） | 800*430 | 800*430 | 800*380 | 800*380 | 800*380 | 800*430 | ||||||
Remarks: Ambient Temp.:dry-bulb temp:26℃，wet-bulb temp.:20℃，water temp.:28℃ | ||||||||||||
DETAILED IMAGES

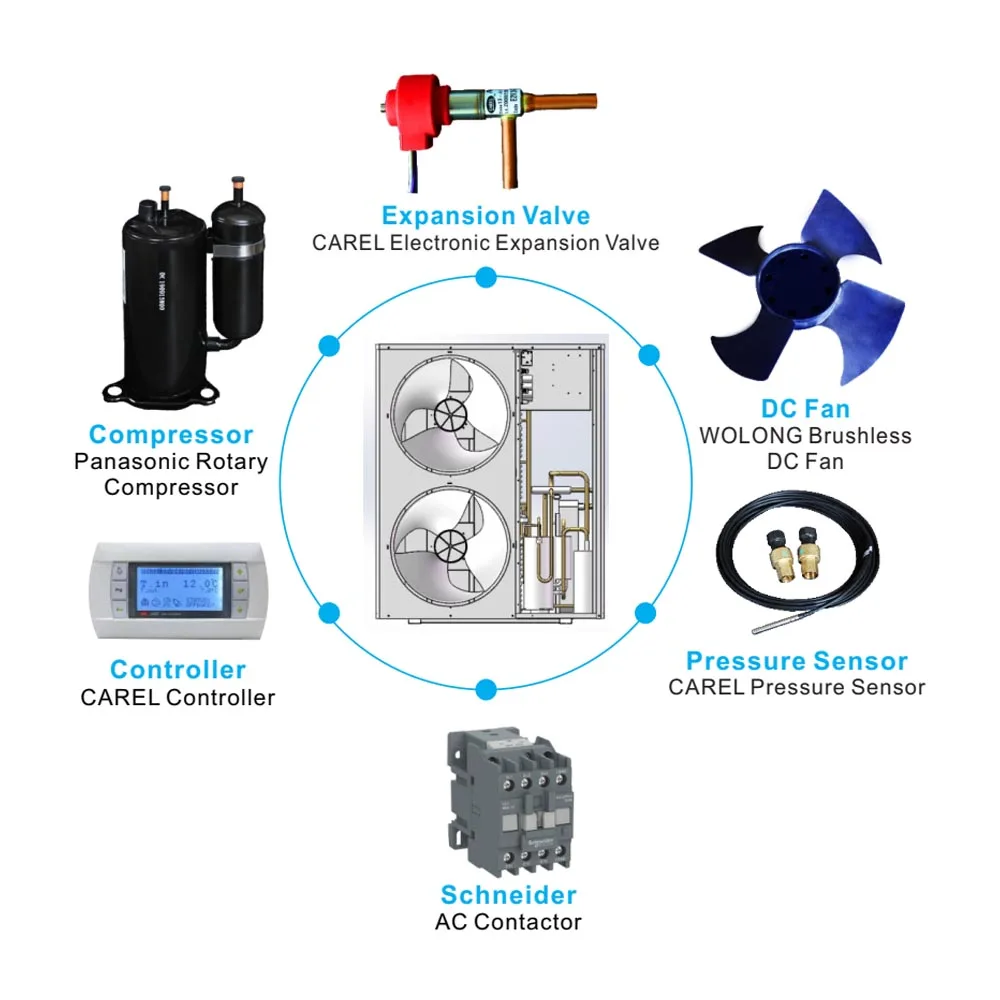

Carefully Selected Core Parts
Carel remote Wifi controller
Copeland Scroll compressor
U-shaped corrugated fin evaporator

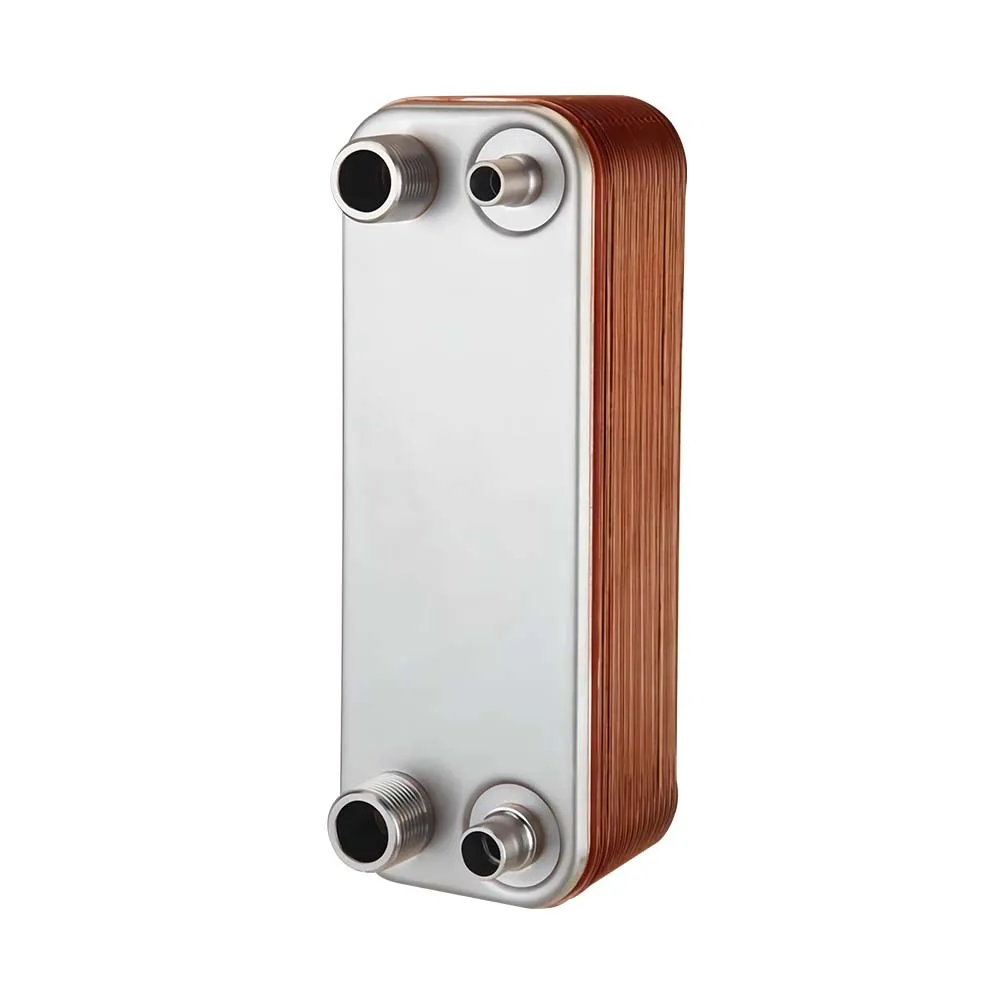

Vertical heat exchanger
4 ways reversing valve

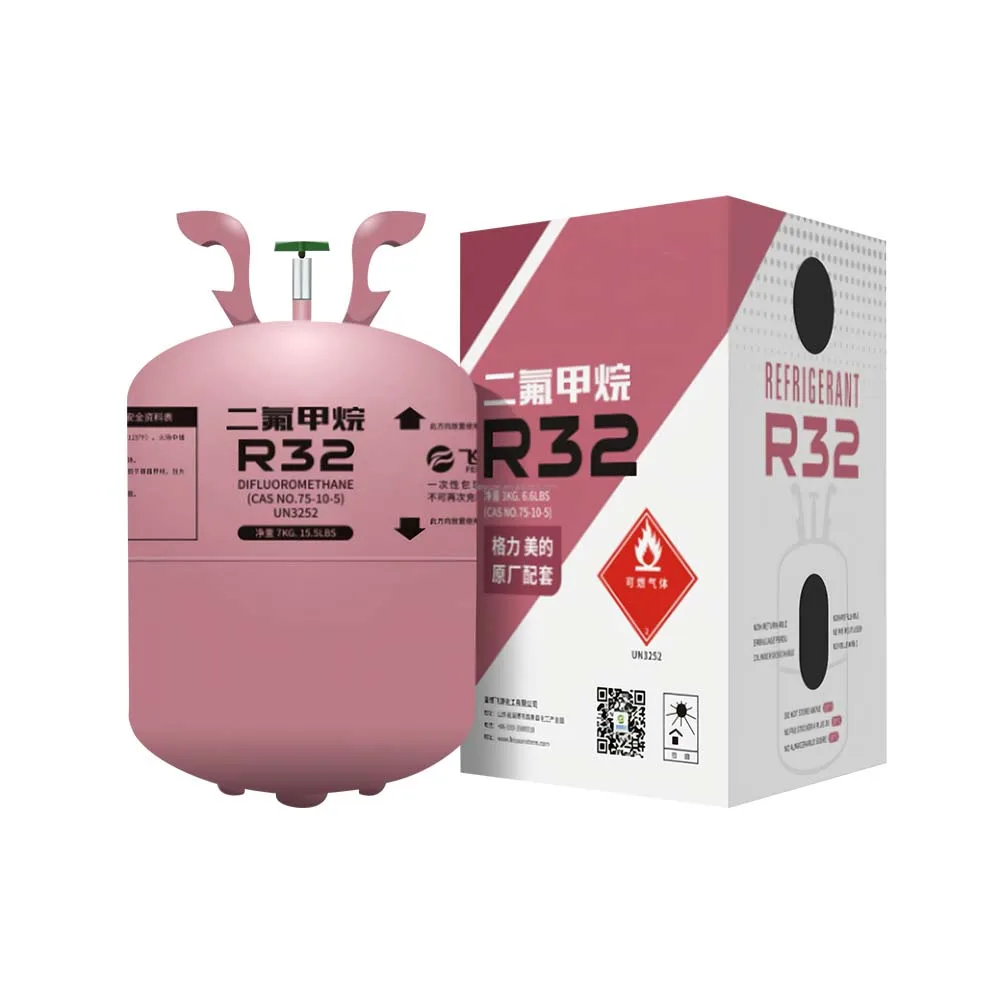

R32 refrigerant
PROJECT CASES
JiZe County Gym Centre
Luliang County Gym Centre
Prada Gym Club in Nanjing
Grand Skylight International Hotel Guanlan
Sheraton Kunming
DoubleTree by Hilton Shenzhen Nanshan Hotel & Residences
Gothenburg house, Sweden
Hofen house,Iceland
Interlaken house Switzerland
Supetar Croatia swimming pool
Swimming pool in Edinburgh, UK
Swimming pool in The Hague, Netherlands
Tangshan Oriental Bilingual School
Nanhai Experimental Middle School
The Affiliated Middle School of Jining university
Why Choose Us
1. We have over 23 years producing experience.
2. We have 122 senior electrical HVAC engineers, 48 PLC/controlling APP programmers.
3. We have 6 fully automated assembly lines, core parts coming from Copeland Scroll, Panasonic, Mitsubishi, and Siemens.
