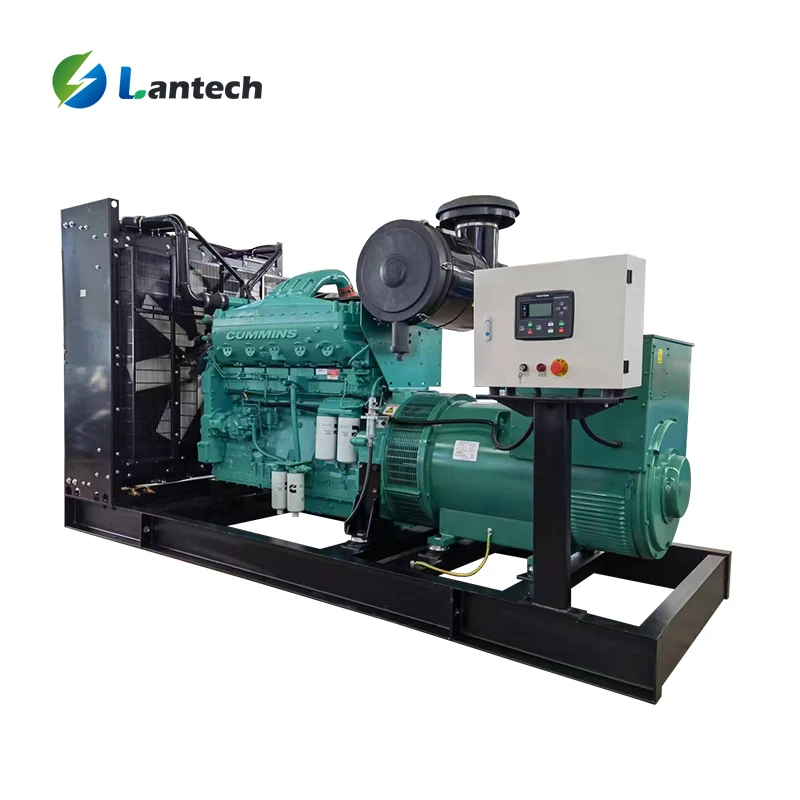

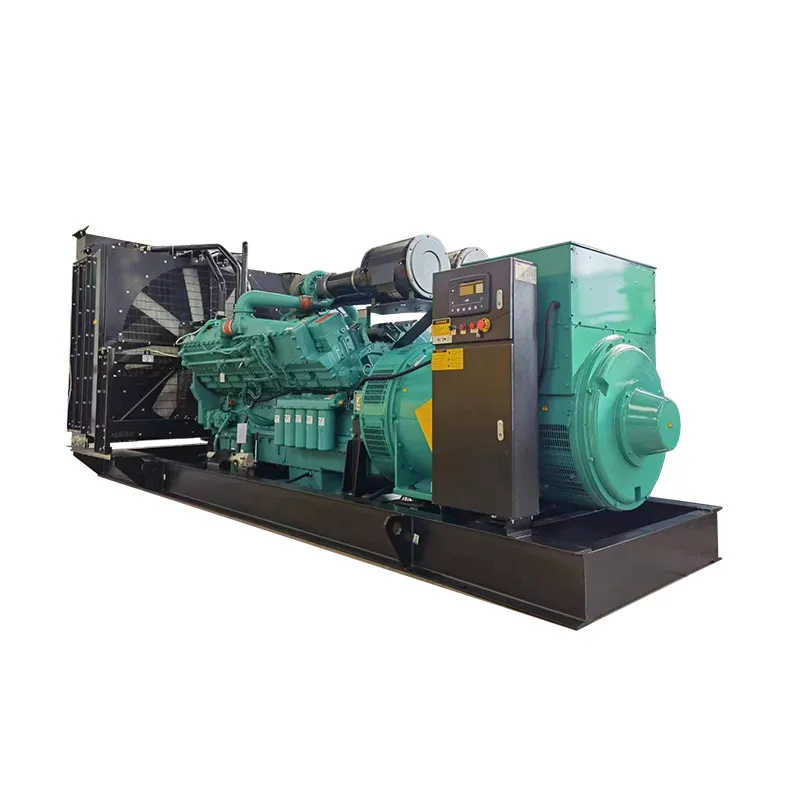

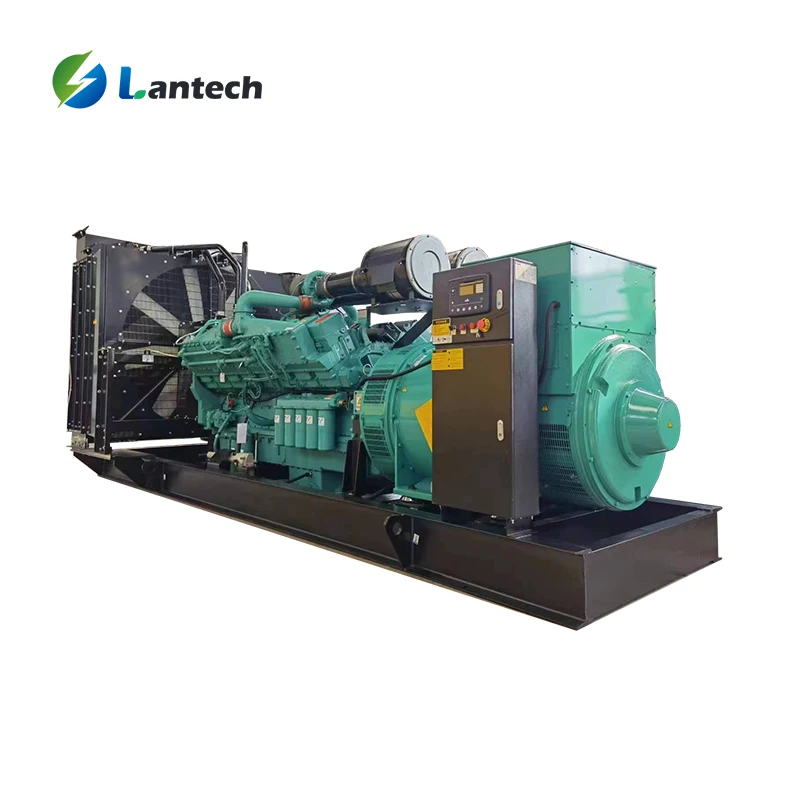

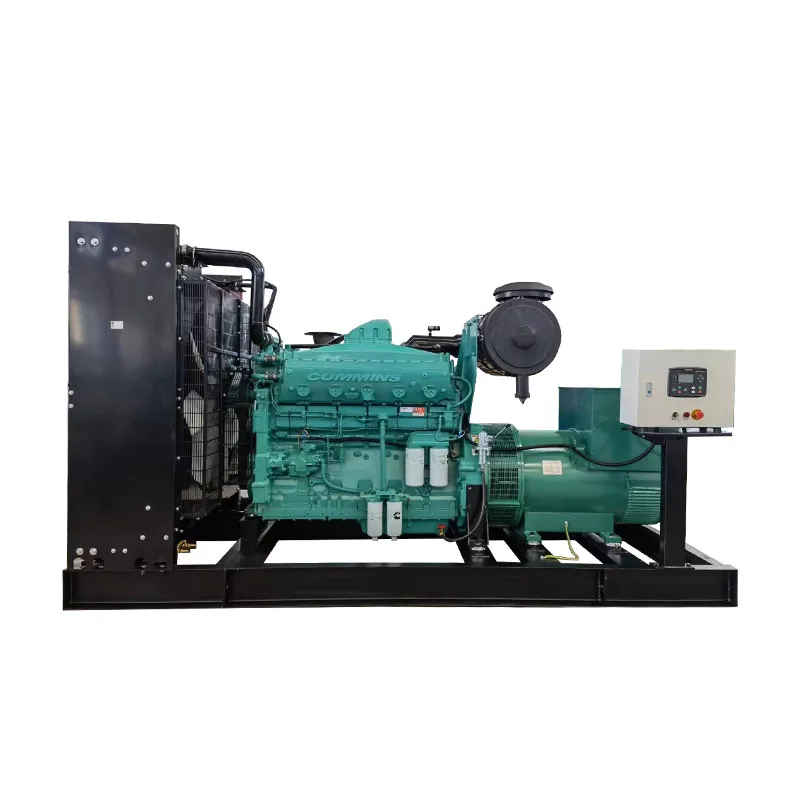

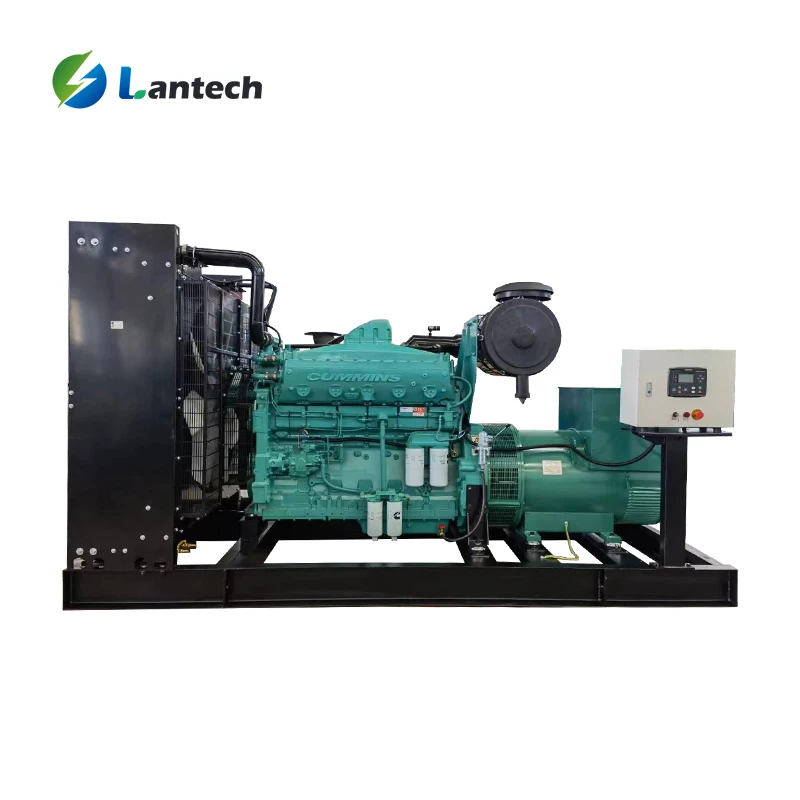

1200kva Open silent 50Hz diesel electric generator 1200kva diesel generator with genuine Cummins engine

Product Overview

Description







Diesel generator Details
Model	LTC-1200GF
Power	1200kva
Frequency	50Hz (60Hz is available)
Voltage	230/400V(voltage can be customized)
Optional Type	Open/soundproof/trailer
Size	4580*1850*2400mm
Weight	8400kg
With Diesel Engine
Brand&model	Cummins KTA38-G9
Standby Power	1089kw
Cylinders	12 in line arrangement
Bore*Stroke	159*159mm
Displacement	38L
Lubrication Oil Capacity	135L
Fuel Consumption at 100% Load	190g/kw.h
Speed Governor	Electronic
With Alternator
Optional Brands	Stamford/Leroy Somer/Mecc Alte/Marathon/ABB
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Protection Grade	IP23

Power Range	Engine brand	Alternator brand	Controller
20kw~1500kw	Cummins	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
7kw~1800kw	Perkins	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
80kw~600kw	Volvo	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
50kw~800kw	Doosan	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
500kw~2000kw	Mitsubishi	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
8kw~80kw	Yangdong	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
15kw~1000kw	SDEC	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
20kw~3000kw	Weichai	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
20kw~1200kw	Yuchai	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen
200kw~1000kw	VMAN	Stamford/Marathon/Leroy Somer/Mecc Alte/Chinese brands	Deepsea/ComAp/Smartgen





Q1.What is your MOQ of this item?

A: 1 set



Q2. How long is your delivery time?

A:7-25 days after we get the down payment.



Q3: What is your terms of payment ?

A: T/T 30% in advance and  TT 70% balance paid before shipment or 100% LC at sight.



Q4: What is your warranty period?

A: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.



Q5: Do you offer OEM service?

A: Yes



Q6:How is your package?

A:Package is Plastic film, plywood pallet or plywood case.
