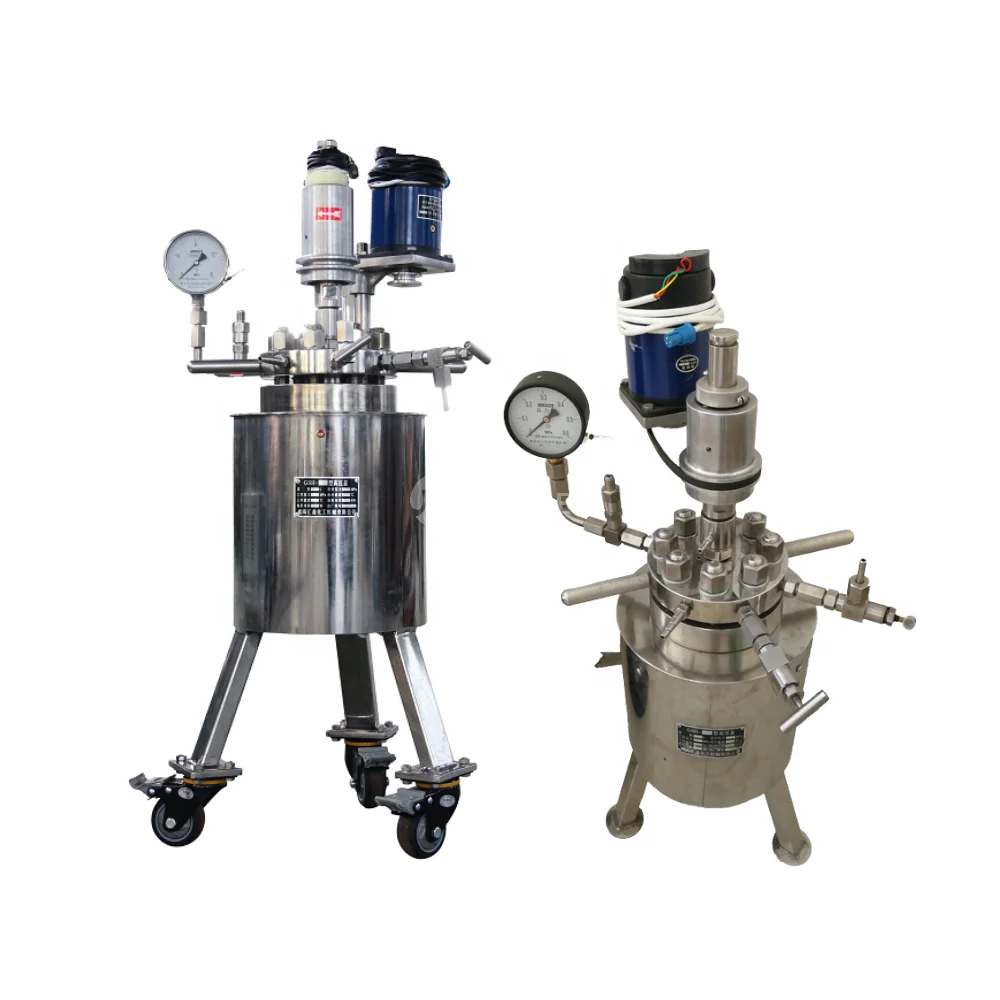

2L Non ferrous metal laboratory stirred pressure reactor
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600860904088):
Product Overview
Description
Product Description

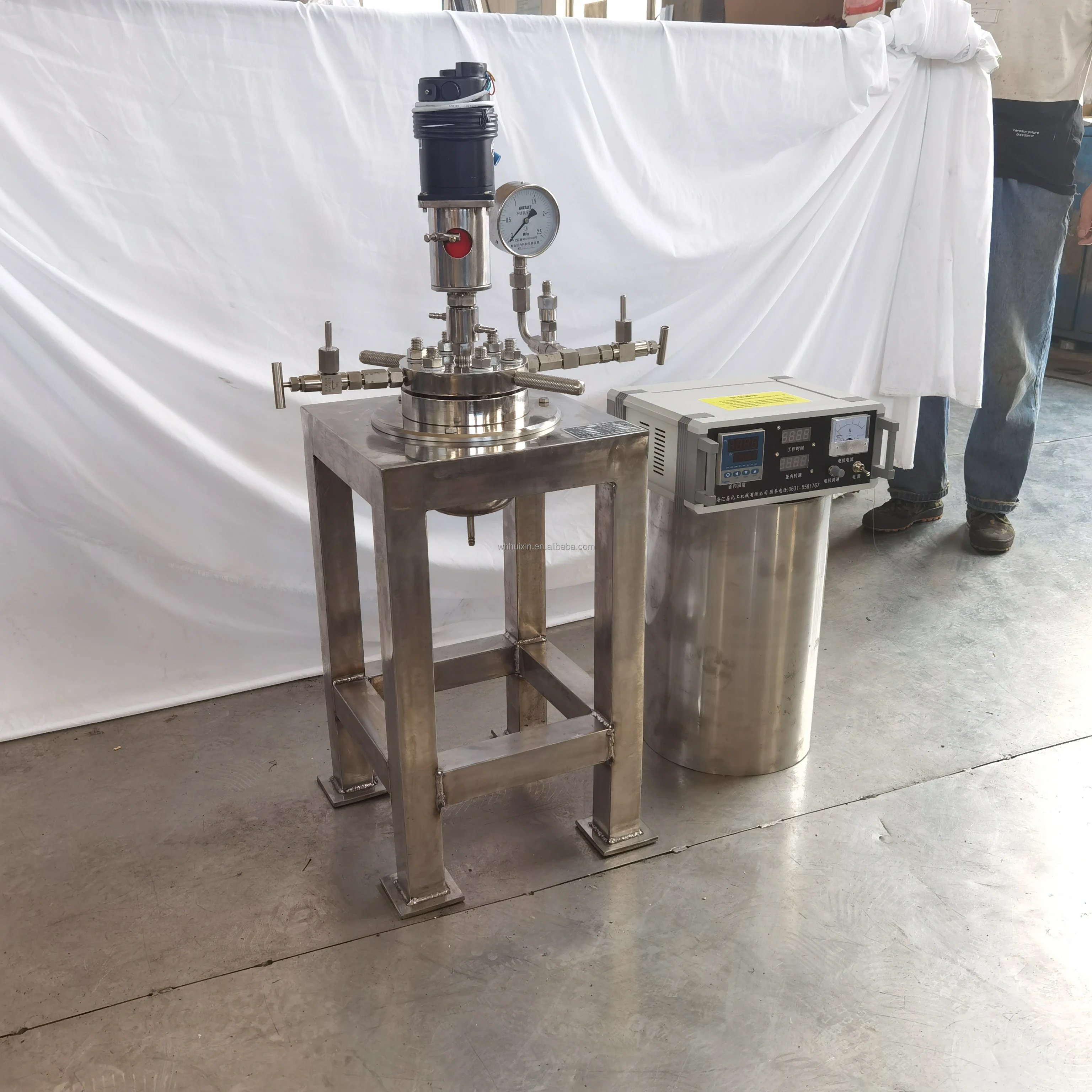

2L Non ferrous metal laboratory stirred pressure reactor
Reaction vessels from HXCHEM made of stainless steel or Hastelloy C276 for small pressure vessels corrosion resistance, tightness and durability . For even higher media resistance requirements, Hastelloy or a titanium coating or a PTFE coating are available.
Application:
Chemical development；Process optimization；Process development；Petrochemical research Corrosion test；Petrochemical development；Scale-up；Pilot-Plant；Mini-plant；Small-scale production.
HXCHEM designs and manufactures high-pressure reactors for research and development (R&D). The following reactor technologies are used:
* Laboratory batch reactors
* Semi-batch reactors (gas and/or liquid feed)
* Continuous flow reactors (continuous in one or more reagents)
* Internal-recycle reactors (conversion of kneaded studies in gas, liquid or slurry phase).
* Rotating basket reactors (for kinetic application and/or ageing studies).
* Laboratory batch reactors
* Semi-batch reactors (gas and/or liquid feed)
* Continuous flow reactors (continuous in one or more reagents)
* Internal-recycle reactors (conversion of kneaded studies in gas, liquid or slurry phase).
* Rotating basket reactors (for kinetic application and/or ageing studies).
GSH2 STANDARD SPECIFICATION(1 Liters) | ||
Model No. | GSH-2 | |
Nominal Capacity (L) | 2 | |
Working Pressure (MPa) | 10 | |
Working Temperature (℃) | 350 | |
Stirring Speed (r/min) | 0-1500 | |
Motor power (kW) | 0.2 | |
Heating Power (kW) | 2 | |
Material | SS304 OR SS316 | |
Heating Method | General electric heating | |
Cooling Method | Internal spiral coils | |
Charging Method | Charging from above | |
Stirring type | Propeller type | |
Product Features
* SS-316, SS-316L, HastelloyB/C, Monel, Nickel, Inconel, Titanium, Zirconium
* 100ml to 5 liters volume.
* Up to 350 bar & 350°C.
* Electric heating with PID control
* Internal cooling coil

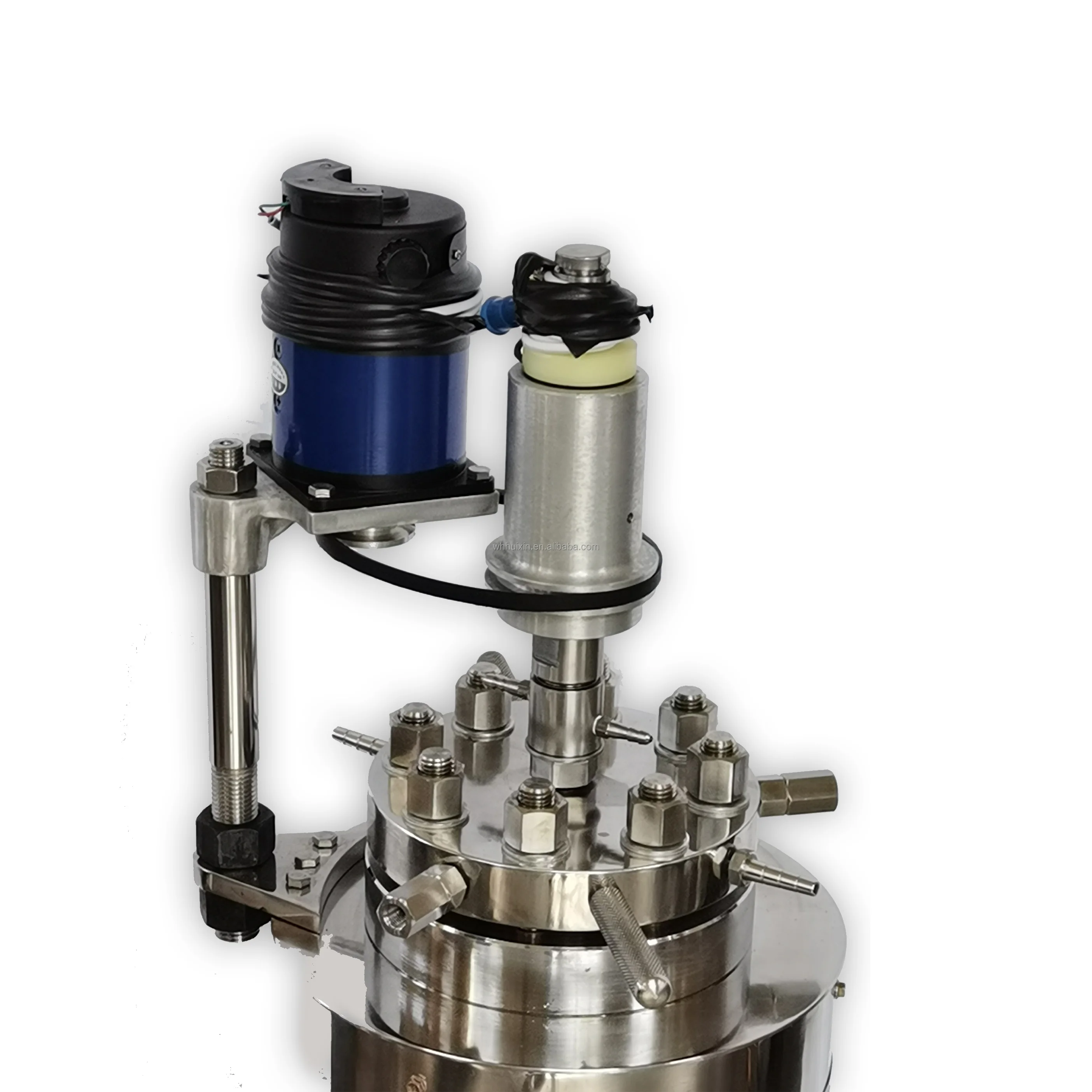

* Agitator & impeller
* Dip tube
* Temperature measuring tube
* Other
* Agitator & impeller
* Dip tube
* Temperature measuring tube
* Other
* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
& Safety Device
* The pointer display is clear.
* Convenient installation, suitable for a variety of complex environments.
* Custom measuring range.

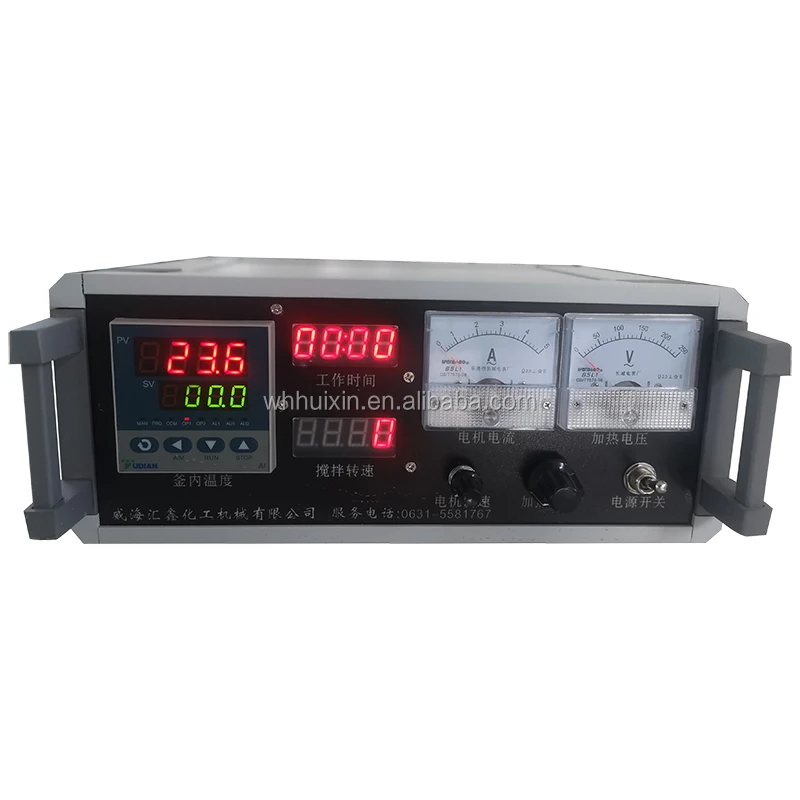

Intelligent digital temperature controlwith the temperature, stirring speed display & control and working time display
Product Paramenters
QUICK SELECTION(0.5liters to 5 liters) | ||||||||||
Model No. | GSH-0.5 | GSH-1 | GSH-2 | GSH-3 | GSH-5 | |||||
Nominal Capacity (L) | 0.5 | 1 | 2 | 3 | 5 | |||||
Working Pressure (MPa) | 10 | 10 | 10 | 10 | 10 | |||||
Working Temperature (℃) | 350 | 350 | 350 | 350 | 350 | |||||
Stirring Speed (r/min) | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | |||||
Motor power (kW) | 0.15 | 0.2 | 0.2 | 0.2 | 0.6 | |||||
Heating Power (kW) | 1 | 2 | 2 | 3 | 4 | |||||
Material | SS304 or SS316 | |||||||||
Heating Method | General electric heating | |||||||||
Cooling Method | Internal spiral coils | |||||||||
Charging Method | Charging from above | |||||||||
Stirring type | Propeller, paddle type, anchor type or customized | |||||||||
Control panel | Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control | |||||||||
Standard fittings | Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil | |||||||||

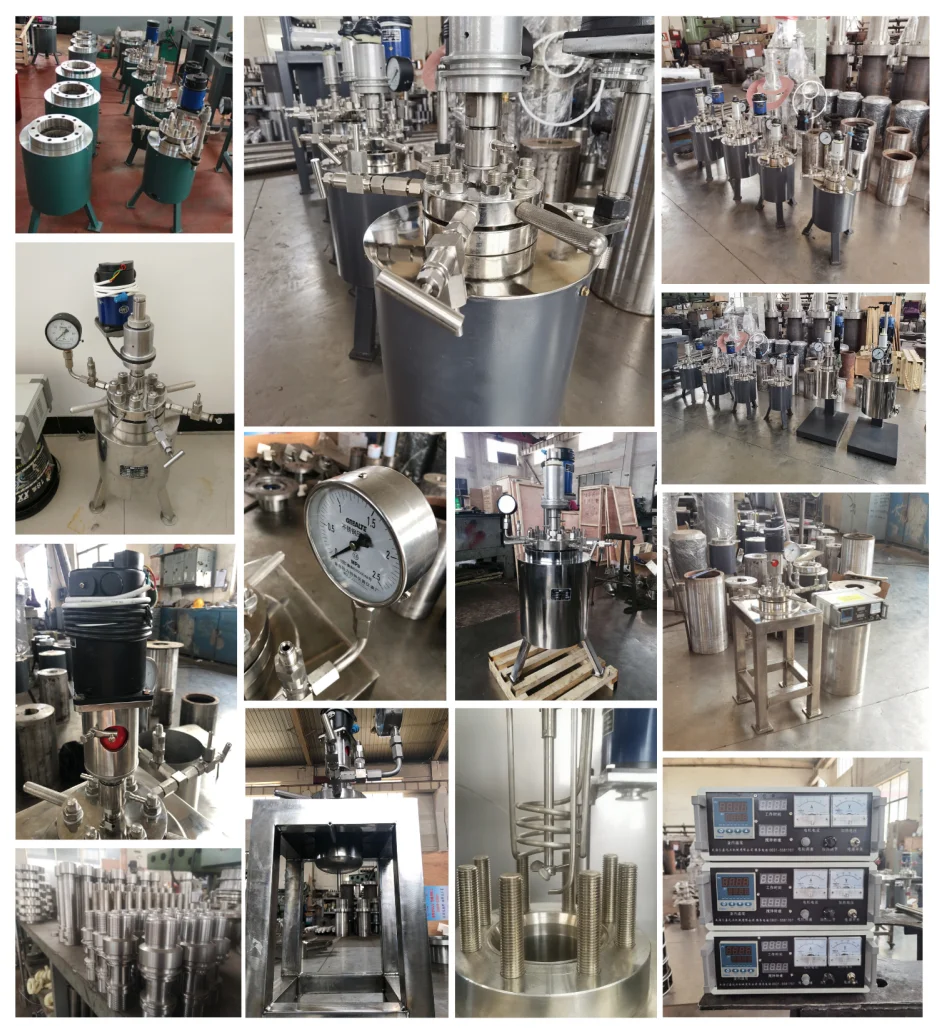

Details Images
Recommend Products
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
Certifications
Pressure vessel certificate
ASME "U" Certificate
ISO9001 Certificate
ISO 14001 Certificate
ISO 45001 Certificate
CE Certificate
Company Introduction
Bench top pressure reactor
Floor stand pressure reactor
Lab reactor with lift & tilt
Pressure reactor
Lifting pressure reactor
Multi stage pressure reactor
Horizontal autoclaves
Lifting pilot reactor
Pilot scale pressure reactor
NOTES: The stirred autoclaves are usually equipped with a dished bottom. However, conical vessel bottoms or conical vessels are also available. The lid layout can be adapted as desired. When the container is open, the entire inner diameter is available for emptying, cleaning and inspection.
They are available up to a working pressure of 350 bar and a maximum temperature up to 500 °C. Available materials: stainless steel, Hastelloy, PTFE or nickel，Inconel coated.
Various heating/cooling systems, magnetic stirrers or magnetically coupled overhead stirrers, as well as a wide variety of gas and liquid supplies are available. Matching PTFE or glass liners (inlays), catalyst baskets complete the available options. They can be designed as single and parallel reactor plants. In addition to the standard configurations, you can also have plants specially tailored to your requirements.
The HiClave systems are suitable for numerous applications:
* (High pressure) extraction
* (High pressure) digestion
* (High pressure) hydrolysis
* (High pressure) hydrogenations
* Hydrothermal carbonization
* Development of hydrogen storage technology
* (radical, cationic, anionic and coordinative) polymerization
* numerous other high pressure syntheses
* (High pressure) digestion
* (High pressure) hydrolysis
* (High pressure) hydrogenations
* Hydrothermal carbonization
* Development of hydrogen storage technology
* (radical, cationic, anionic and coordinative) polymerization
* numerous other high pressure syntheses
We also manufacture pressure vessels and apparatus for laboratory and pilot plants according to your individual requirements and specifications. The special production of reaction vessels is a particular strength of our company which is based on decades of experience in apparatus and boiler construction. For example, we manufacture reactors for pressure and vacuum with special equipment and in special shapes from stainless steel and high-quality alloys according to your specifications.We manufacture complete experimental plants according to customer requirements. The add-on parts are interchangeable and changeable due to the modular system.
