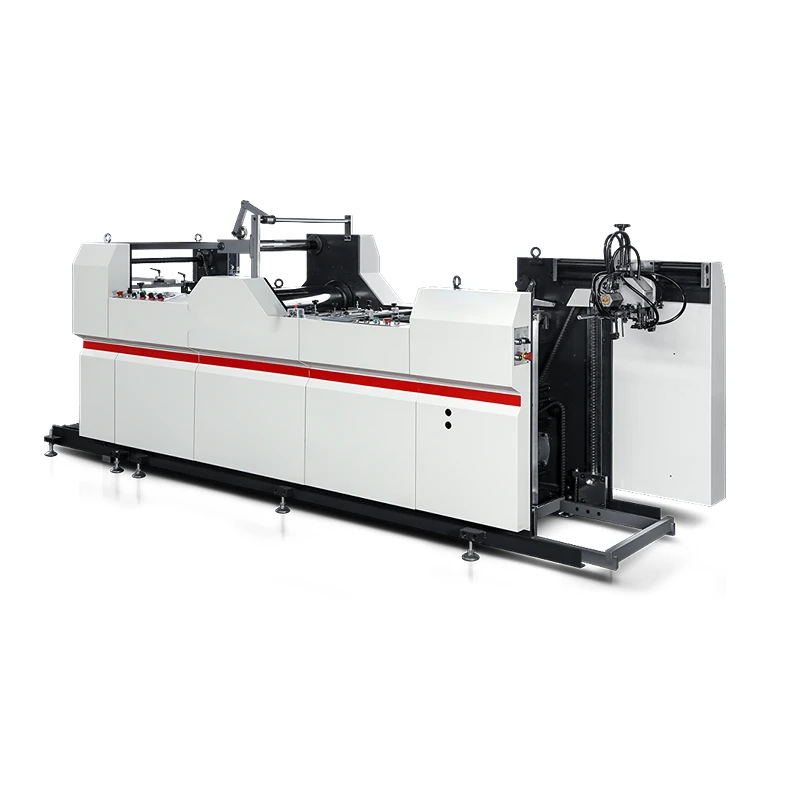

Automatic feeding pre coating BOPP OPP heating thermal film laminator (GK FM 880YTS)
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (1600861263010):
Product Overview
Description
Product Description
Model GK-880YTS is one of our fully automatic laminators newly developed upon market
needs. The most attractive features of the machine are compact structure and humanized design.
SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped
perfect the running stability and safety of the laminator. The machine realizes automated
operation, and suits two kinds of film, pre-glued film and glueless film for paper lamination.
For the laminating treatment of greeting cards, certificates, documents, book covers, packing
boxes etc, this model is an excellent choice.
APPLICATIONS:
1.Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2.Automatic paper feeding system is equipped with no paper protector and paper break
protector, which are controlled by photoelectric and mechanical systems. When no paper or
paper break occurs, the machine will stop automatically for self-protection.
3.Man-machine interface system: color touch screen simplifies the machine operation. On the
touch screen, as long as the operator inputs paper size, overlap length and working speed etc.,
the machine can realize completely automated operation. And on touch screen, working status
of the machine can be checked at any time.
4.High precision of chrome plated heating roller is equipped with built-in oil heating system,
which has excellent performance to temperature control. The laminating temperature is
adjustable upon applications.
5.Pneumatic pressuring system provides automatically stable pressure to guarantee
good laminating quality. And the pressure can also be adjusted upon requests.
6.Air expansion shaft releases film roll, and positions film roll more accurately, and
also makes the loading and unloading of film roll more convenient.
7.The combination of air expansion shaft and braking device can adjust film release
tension and speed.
8.Film cutter cuts film width to make it meet paper size.
9.Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
10.Anti-curvature device: when going though the anti-curvature device, the laminated paper
shall be leveled at once and won't curve again after cut.
11.Pneumatic cutting system realizes automatic paper cut.
12.After cut, the laminated paper will be sent automatically to vibrating receiving table and be
put into order.
Product parameters
Model No. | HM-880YTS |
Max Paper Size | 880X800mm |
Min Paper Size | 250X220mm |
Paper Thickness | 105-500gsm |
Working Speed | 0-60m/min |
Gross Power | 22kw |
Overall Dimensions | 6500X1200X1700mm |
Weight | 3500kgs |
Packaging & Shipping
FAQ
1. What is the machine warranty?
one year.
2. Does your machine with CE certificate?
Yes, it does
3. What is the production time while placing order?
About 30 days
4. What is the delivery time?
Within 30 days after get the payment.
5. Can your company handle shipping for customers?
Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6. Does the packing strong?
Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7. How about after-sales service process?
When your machine has problem, contact your sales and we will solve your problem as soon as possible.
8. Are you manufacturer?
Yes, we are manufacturer with 10-year experience and profession.
9. Do you have stock product to sell?
Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10. Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping to ensure there is nothing problem of the machine .
11. What's the payment term?
T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
We are professional manufacturer since 2005. We believe our products will provide
you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
