Vanch executive inventory machine 4 channel long range fixed mount barcode reader warehouse inventory system for retail library
- Category: >>>
- Supplier: Shenzhen Vanch Intelligent Technology Co. Ltd.
Share on (1600861582102):
Product Overview
Description
Product Description
Specification

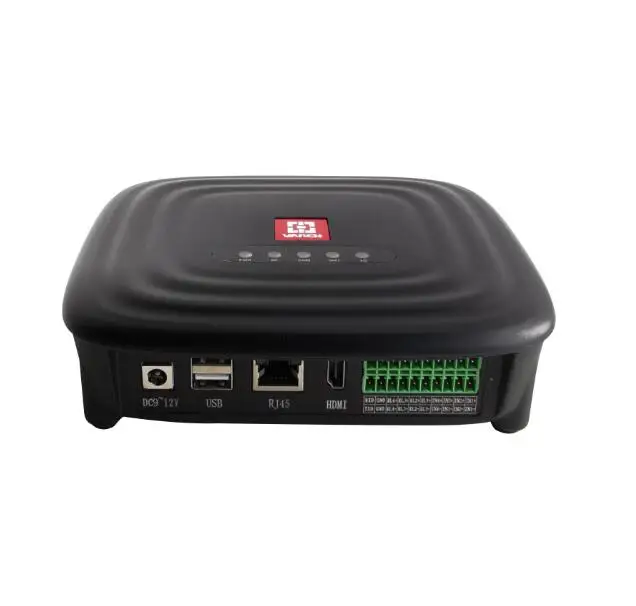

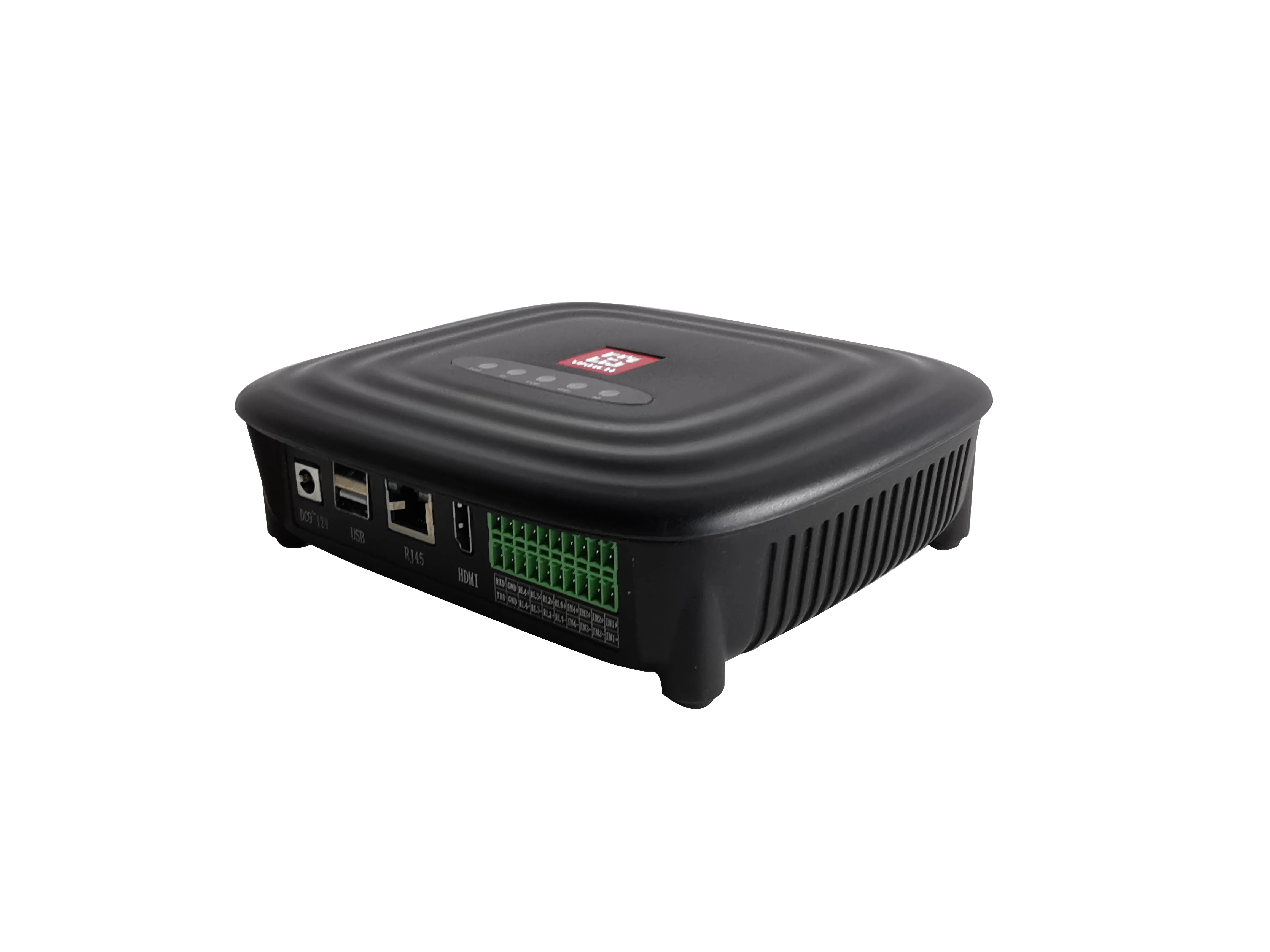

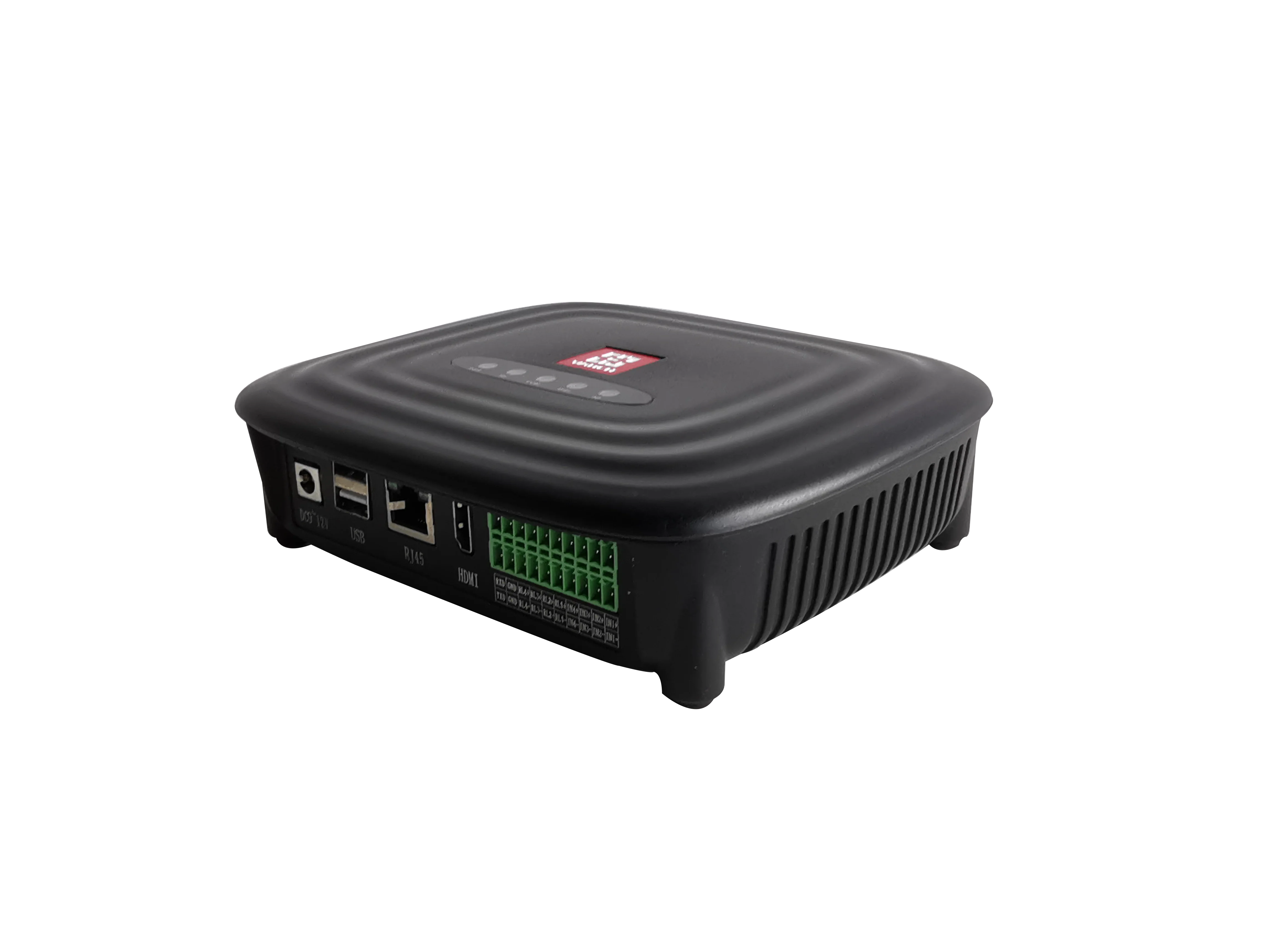

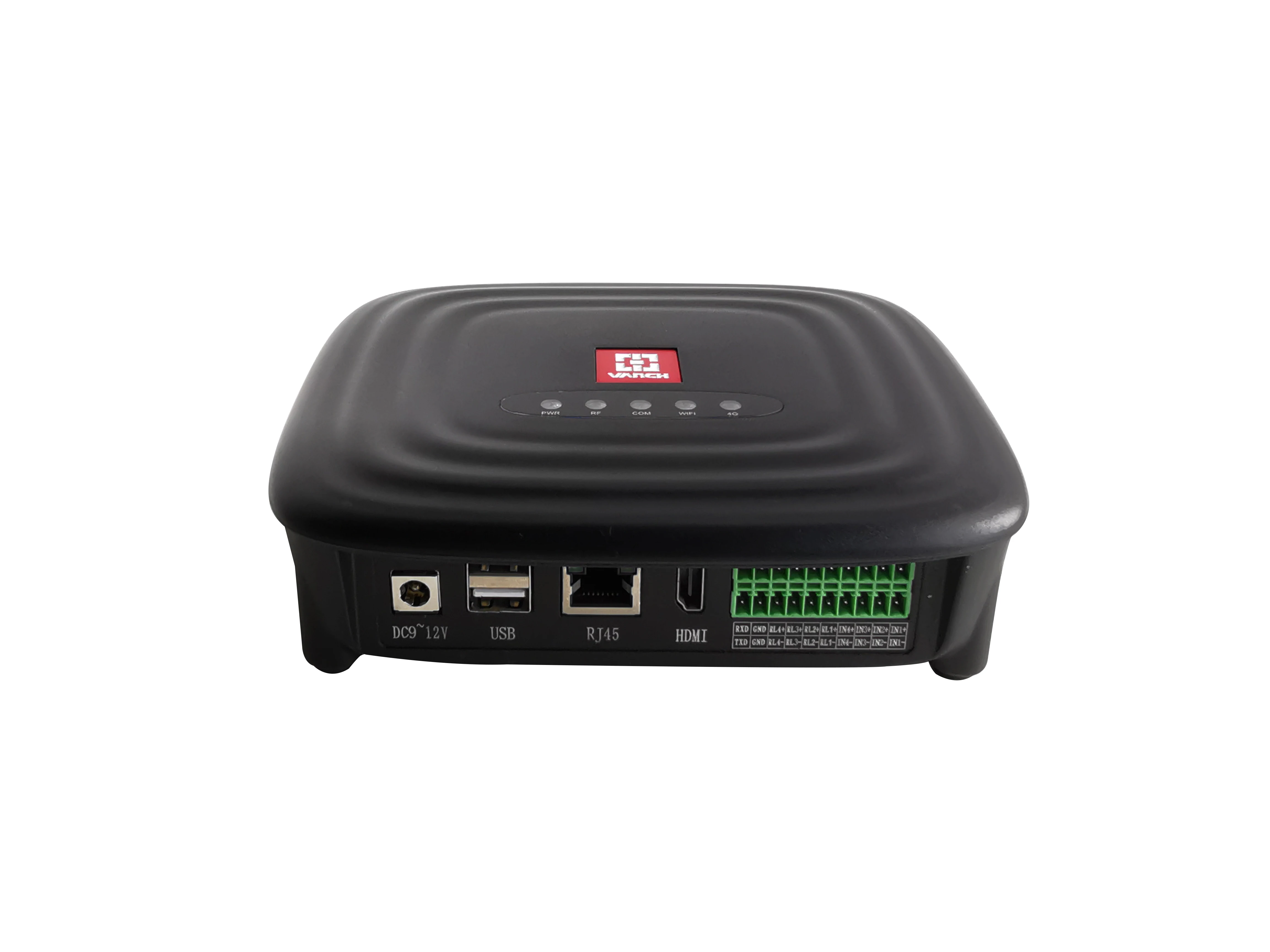

Android RFID Reader VF-S108 | ||
Physical parameter | ||
Size | 215(L)*185 (W)*34(H)mm | |
Weight | 1.5KG | |
Housing material | Die-cast aluminum alloy | |
Protect level | IEC IP54 | |
Electrical parameter | ||
Operating system | Android 5.1/6.0/7.1 | |
CPU processor | Qualcomm MSM8909 chip platform, 1.8GHz quad-core A7 processor, clocked at up to 1.8GHz | |
GPU graphics processor | Support 4K, H.2265 hard decoding with Mali-T764 GPU | |
RAM+ROM memory | LPDDR2+eMMC 2GB/4GB/16GB/32GB | |
Built-in storage SD | Support SD card*1, up to 128GB | |
USB interface | USB2.0 or higher*1, USB OTG | |
HDMI | Support video 1*HDMI interface（1080P） | |
Input power | DC12/3A | |
Power | 25W（RF output power 30dBm） | |
Ambient temperature detection | Supported | |
I/O interface | 4 optocoupler inputs(initial low level), 4 relay outputs(loadable DC24V/2A） | |
Communication interface | ||
WIFI | Support IEEE 802.11 n/b/g(optional) | |
Bluetooth | Support Bluetooth 4.0(optional) | |
GPS | Support GPS+GLONASS+Beidou(optional) | |
4G Internet | 4G：Mobile（TD-LTE)；4G：Unicom(FDD-LTE)；4G：Telecom(FDD-LTE)；4G：Unicom(TD-LTE) (optional) | |
3G/2G Internet | 3G：Mobile(TD-SCDMA)；3G：Unicom(WCDMA)；3G: Telecom(CDMA2000)；2G：Mobile & Unicom(GSM)+Telecom(CDMA) (optional) | |
RS232 | 1 way communication | |
Internet connection | 1 way; 10M / 100BASE-T Ethernet | |
SIM card interface | 1 | |

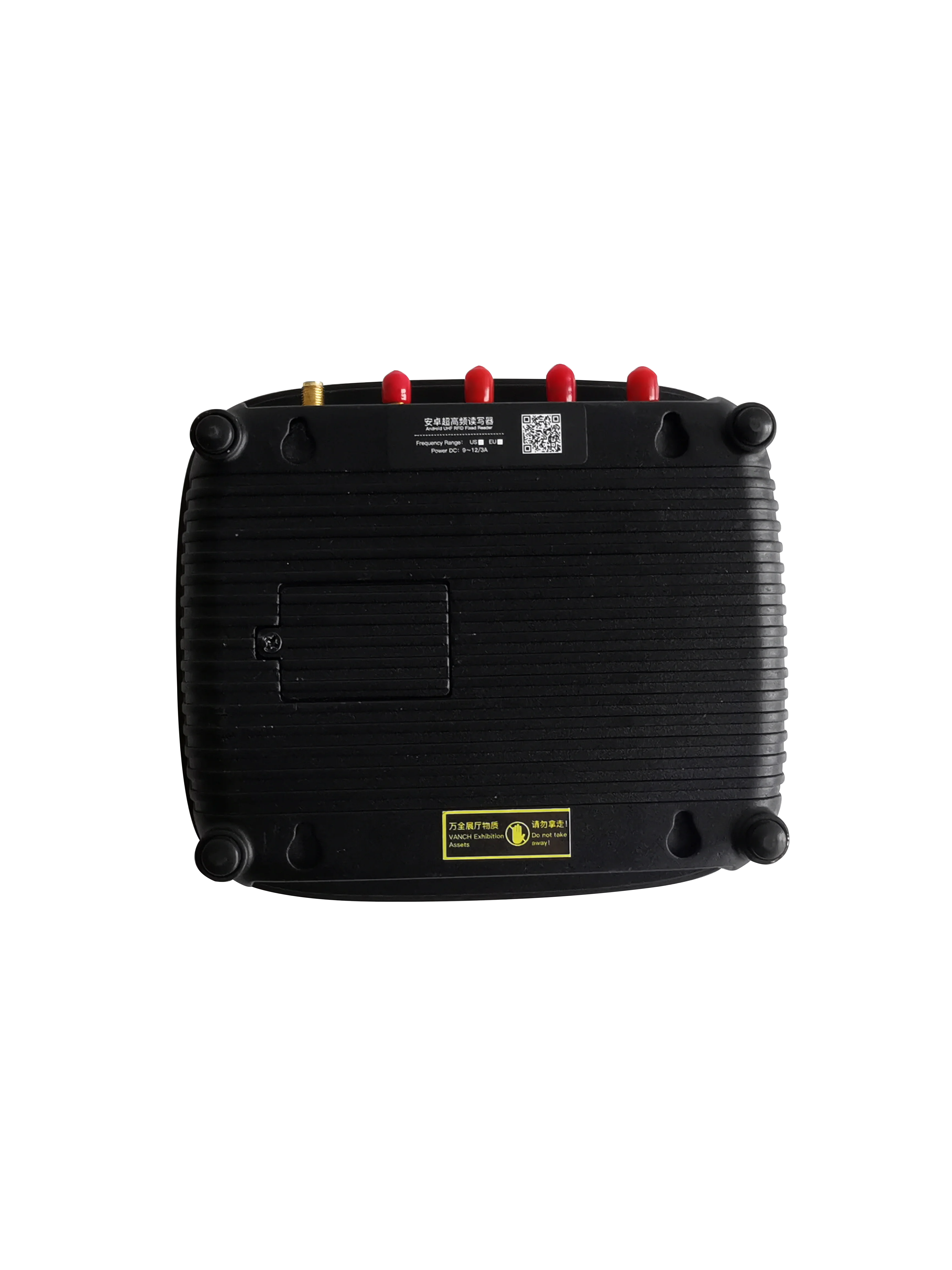

RF interface | 4 SMA antenna connectors | |
Online upgrade | Support remote update of systems and applications | |
UHF RFID parameter | ||
RF core chip | American British frequency IMPINJ INDY R2000 dedicated RF chip | |
Air interface agreement | EPC Global UHF class1 Gen2/ISO 18000-6c/ISO 18000-6B | |
Working frequency | 902-928MH or 865-868MHz | |
Output power | 20～30dBm±1dBm | |
Output power adjustment | 1dBm step(set by VANCH software） | |
Receiving sensitivity | ＜﹣85dBm | |
Tag identification peak speed | ＞800 times/sec | |
Reading distance | 0-25 meters(related to reader parameter configuration, antenna gain, label type) | |
Writing distance | 0-10 meters(related to reader parameter configuration, antenna gain, label type) | |
Tag RSSI | Supported | |
Antenna detector | Supported | |
Work area support | America, Canada and other FCC part 15 compliant regions Europe and other areas that comply with ETSI EN 302 308 China, India, Japan, Korea, Malaysia, Taiwan | |
Circumstance parameter | ||
Operation temperature | ﹣20℃～﹢85℃ | |
Storage temperature | ﹣40℃～﹢85℃ | |
Environment humidity | ＜95%（non-condensing） | |
Work status indication | ||
Power Indicator | Red light, red light on | |
Communication indicator | Yellow light, blinking constantly during communication | |
Card reading indicator | Green light, flash once after reading the card | |
3G/4G indicator | Blue light, 3G / 4G module working indicator is always on | |
WIFI indicator | Blue light, WIFI module working indicator is always on | |
Buzzer | Working status sound indication | |
Tips: | For more information, please consult online customer service, thank you | ||||||
Application and Cases
FAQ
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
