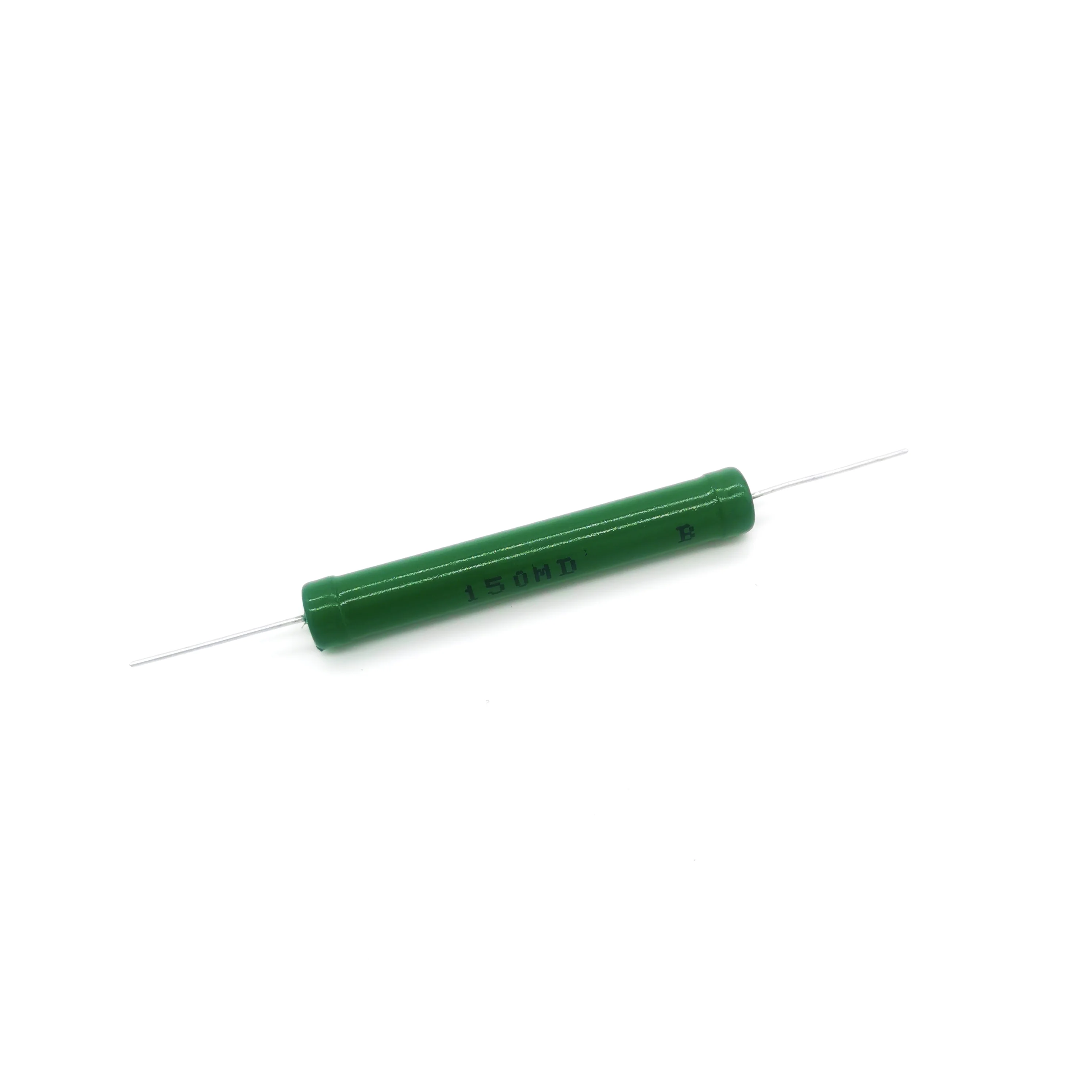

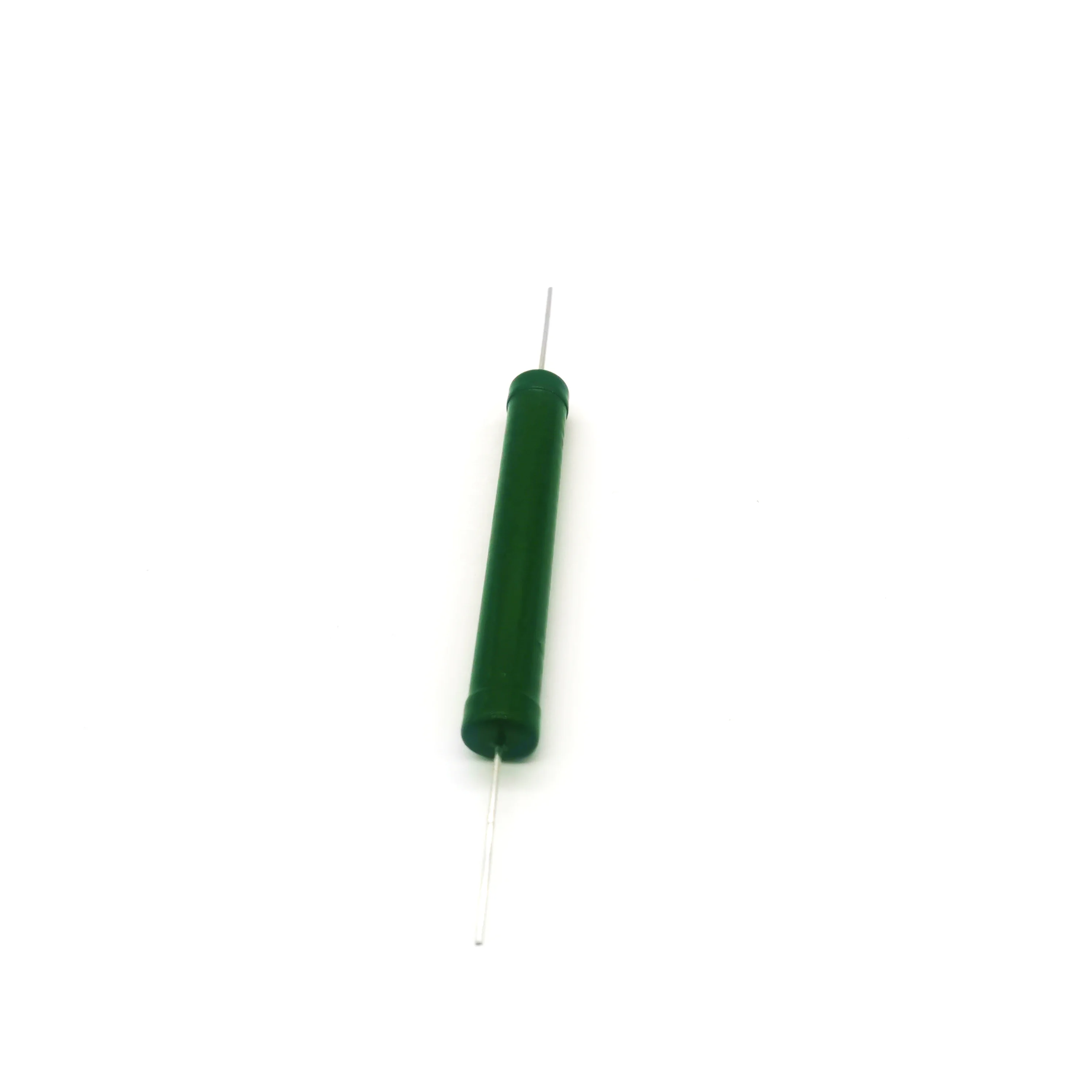

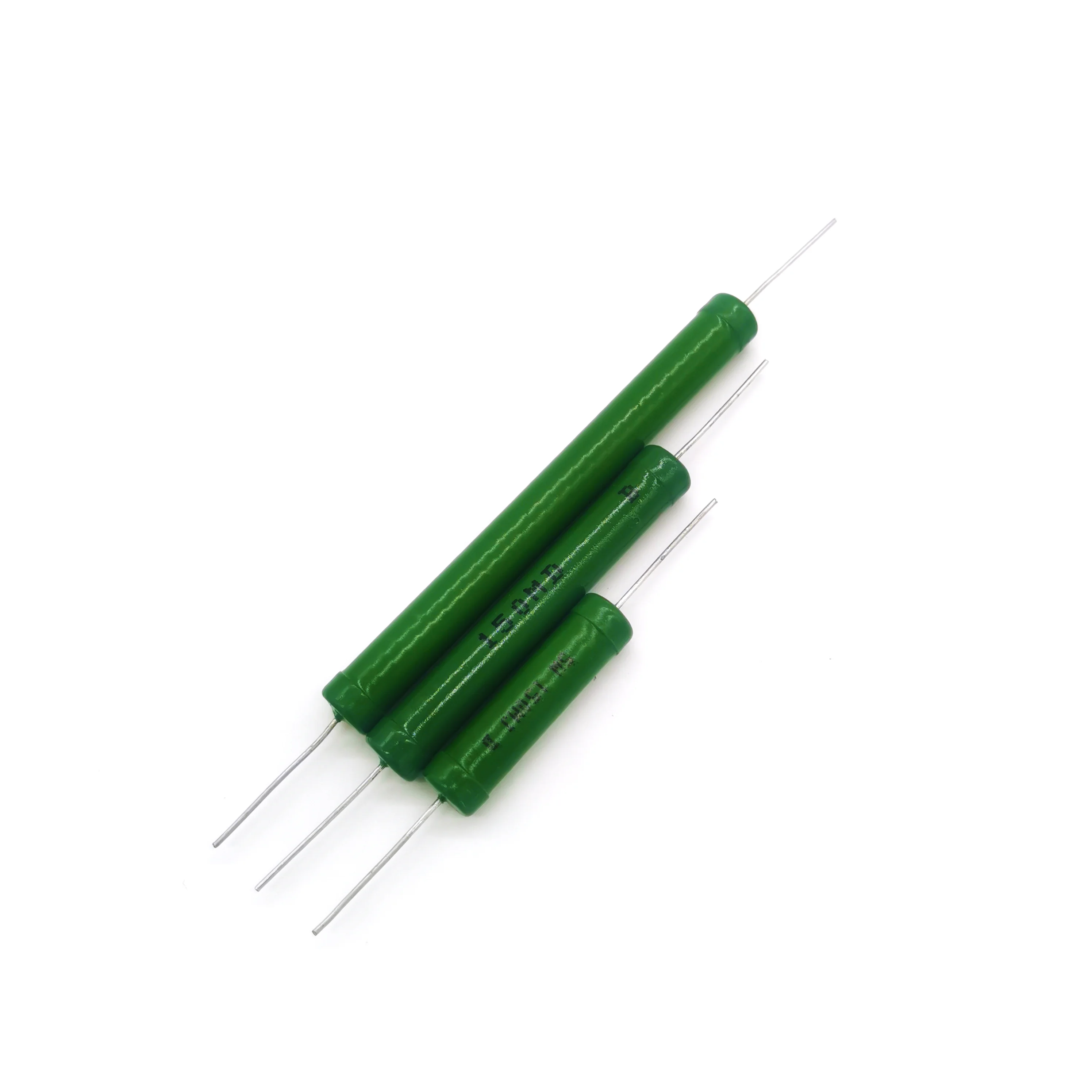

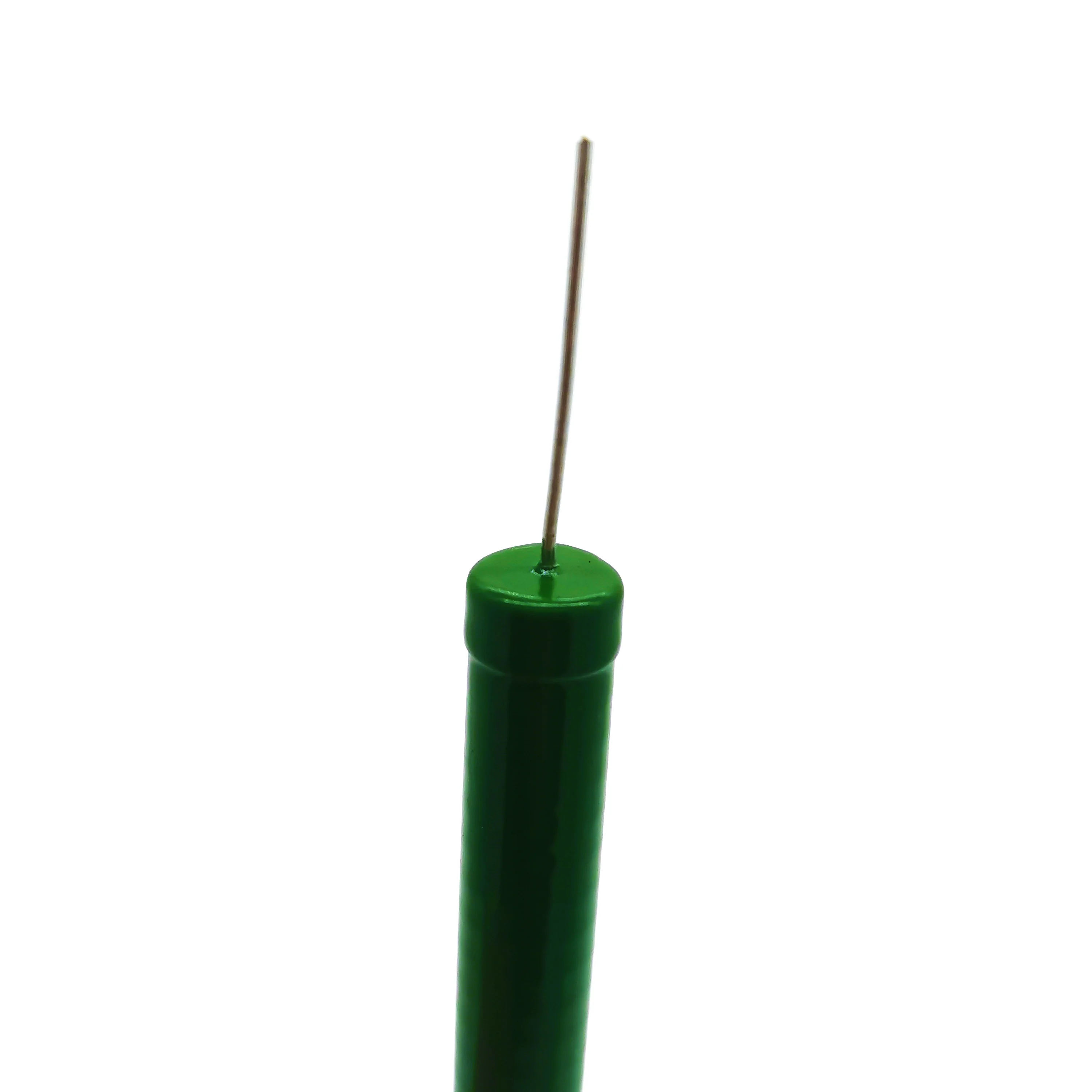

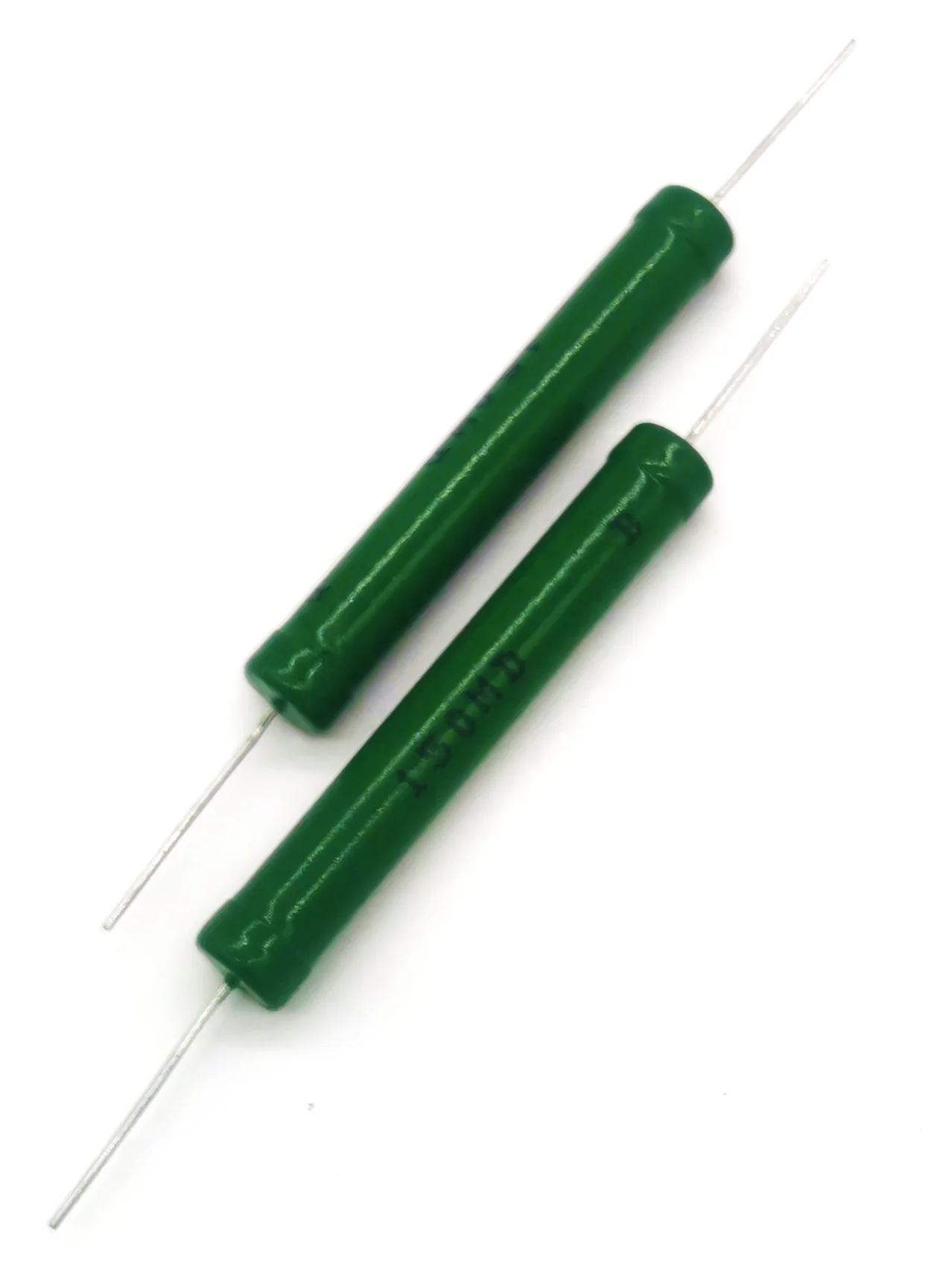

5KV 10KV 15KV 20KV high voltage resistor
- Category: >>>
- Supplier: Xianyang Qinhua Special Electronic Components Co. Ltd.
Share on (1600861823968):
Product Overview
Description
Product Description

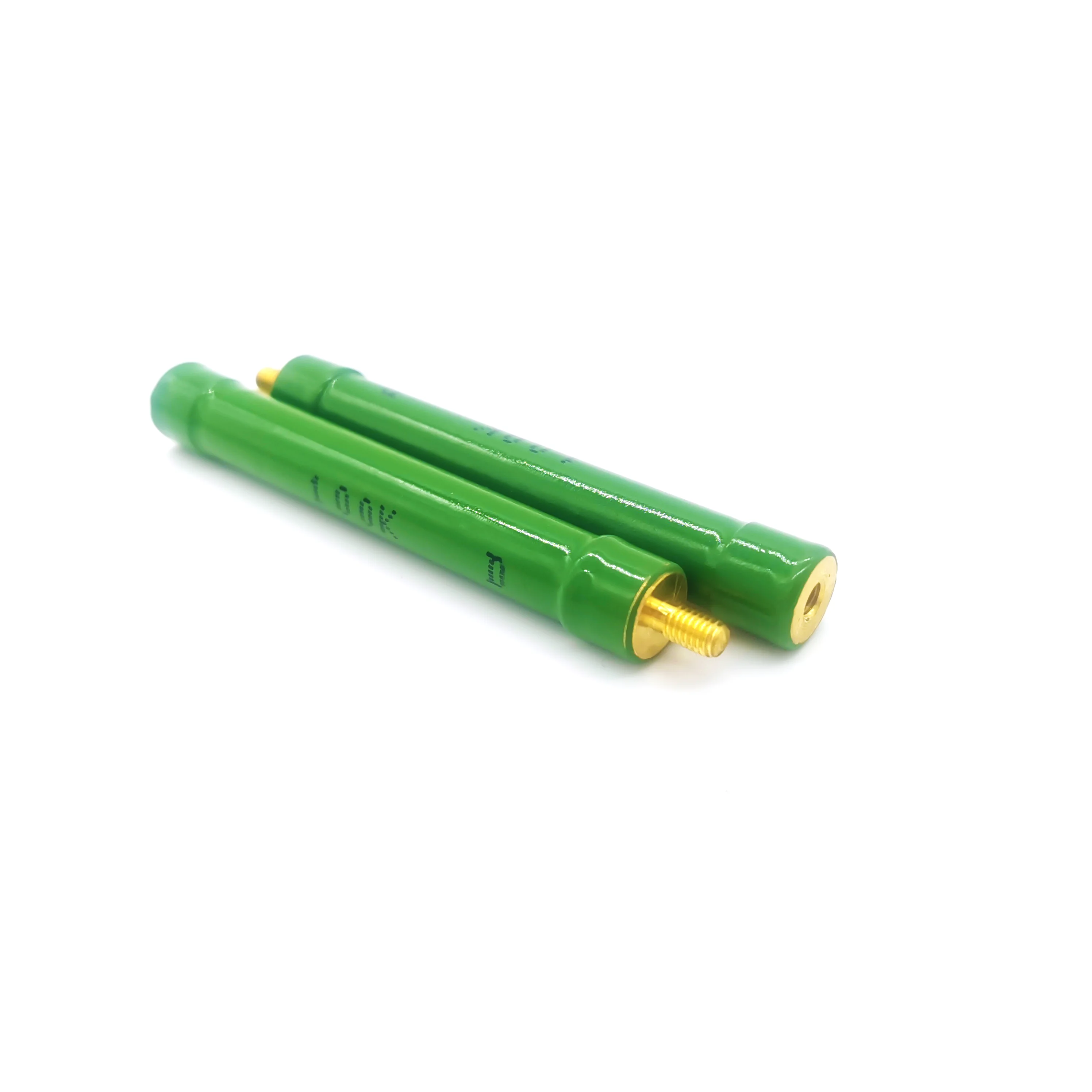

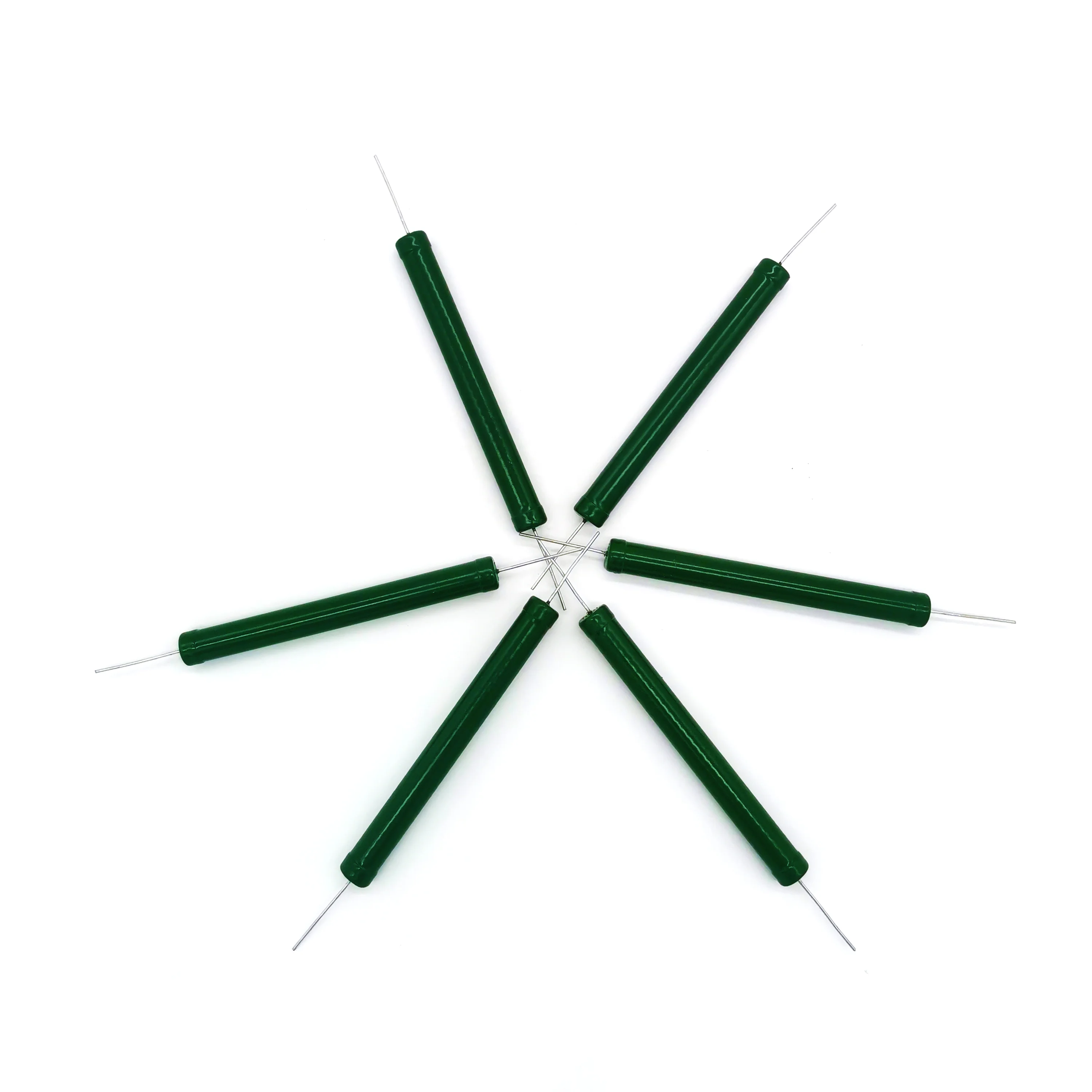

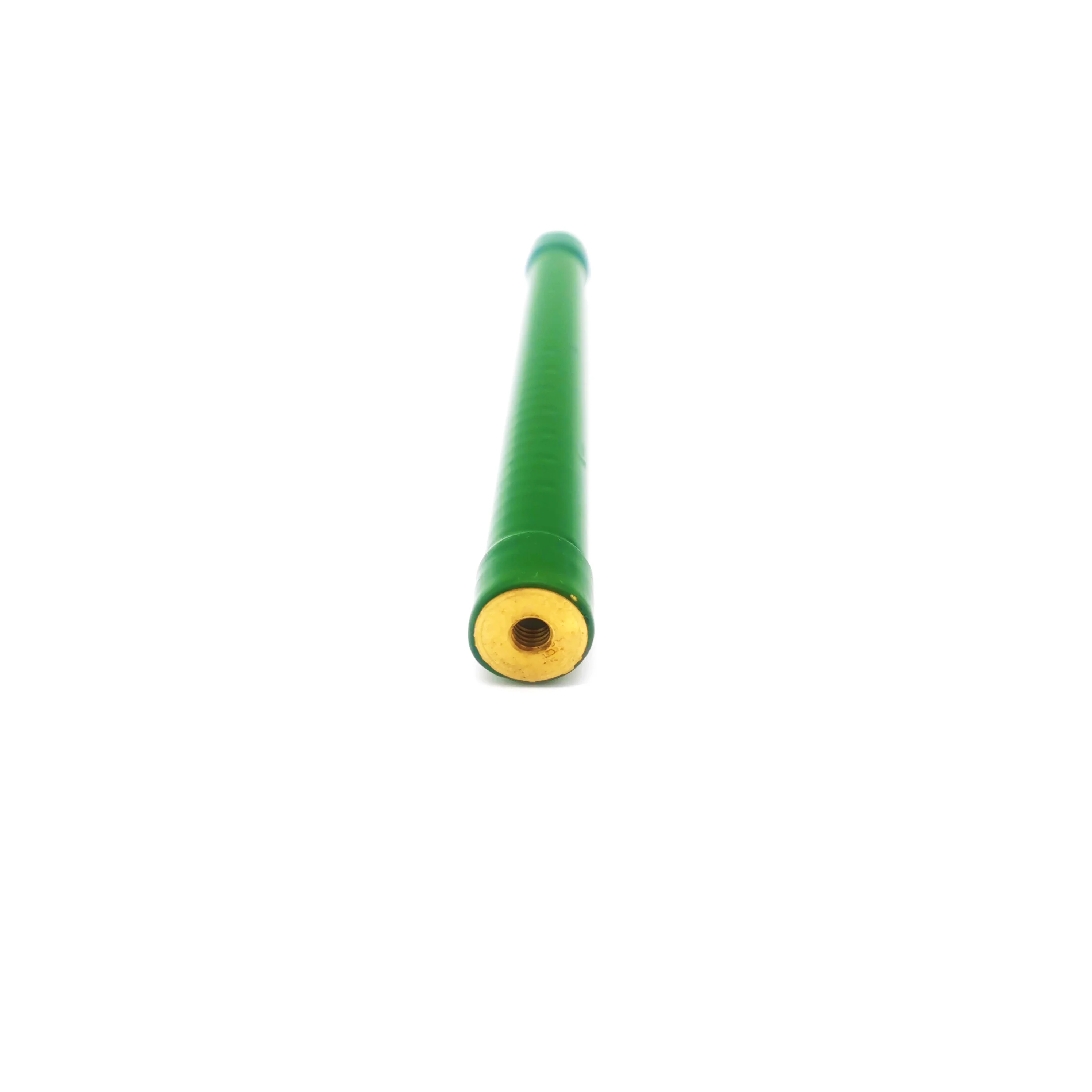

High voltage resistors
Feature
*Non Inductive Design
*voltage up to 100kv
* high resistance range 1R -100G R
*High precision: 0.1% -5%
* Delivery time: 3-7 business days
* Sample available
* RoHS complaint
Organic painted
Low TCR

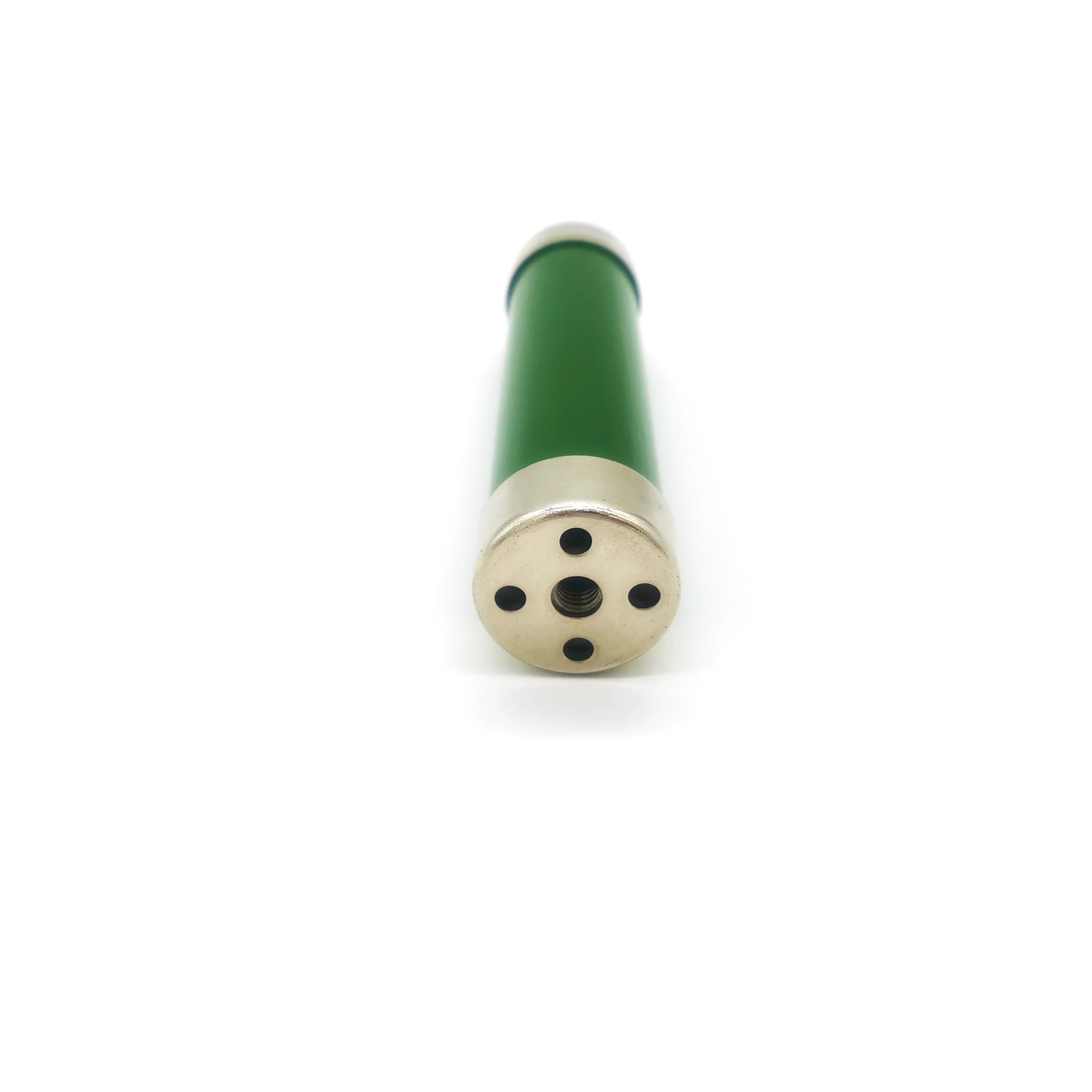

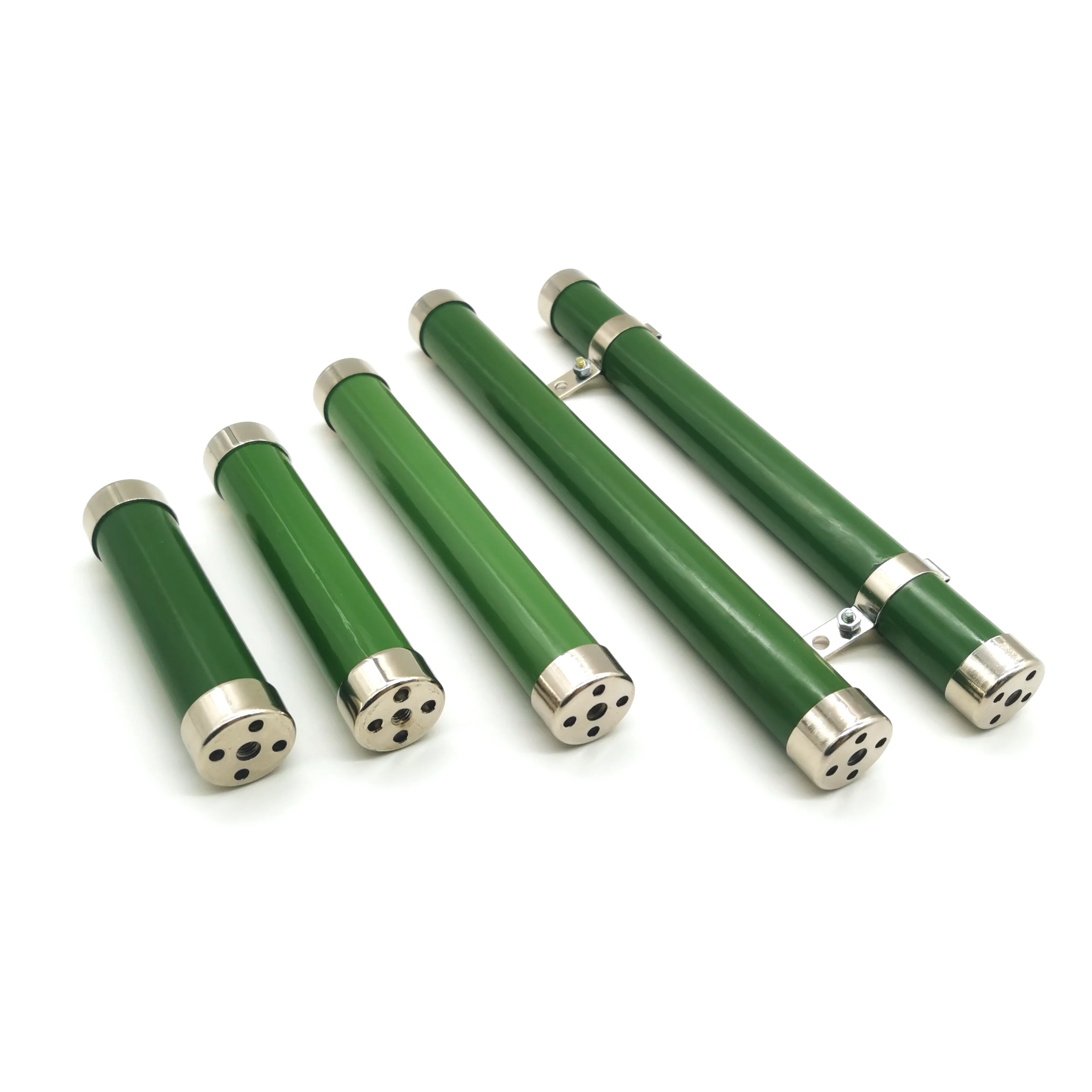

M5/M6/M8 strew with heat emission hole

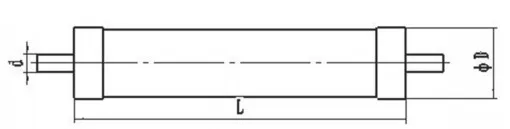

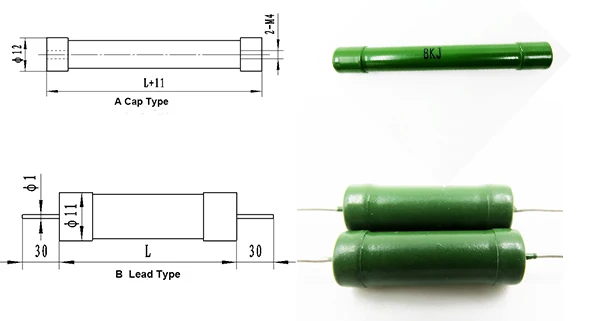

Size Information
Special high voltage resistor dimension can be customized according to customer's using conditions
Common size
Rated power (W) | Resistance (OHM) | Tolerance(%) | Limiting voltage(kv) | Diameter(mm) | Length(mm) |
40W | 10R-10G | 0.1%-5% | 35KV | 27 | 100 |
50W | 10R-10G | 0.1%-5% | 45KV | 27 | 133 |
60W | 10R-10G | 0.1%-5% | 58KV | 27 | 160 |
70W | 10R-10G | 0.1%-5% | 62KV | 27 | 180 |
80W | 10R-10G | 0.1%-5% | 75KV | 27 | 200 |
90W | 10R-20G | 0.1%-5% | 82KV | 27 | 210 |
100W | 10R-50G | 0.1%-5% | 95KV | 27 | 260 |
150W | 10R-50G | 0.1%-5% | 150KV | 27 | 310 |
200W | 10R-100G | 0.1%-5% | 82KV | 42 | 210 |
250W | 10R-100G | 0.1%-5% | 110KV | 42 | 270 |
300W | 10R-100G | 0.1%-5% | 100KV | 37 | 310 |
500W | 10R-100G | 0.1%-5% | 240KV | 62 | 360 |

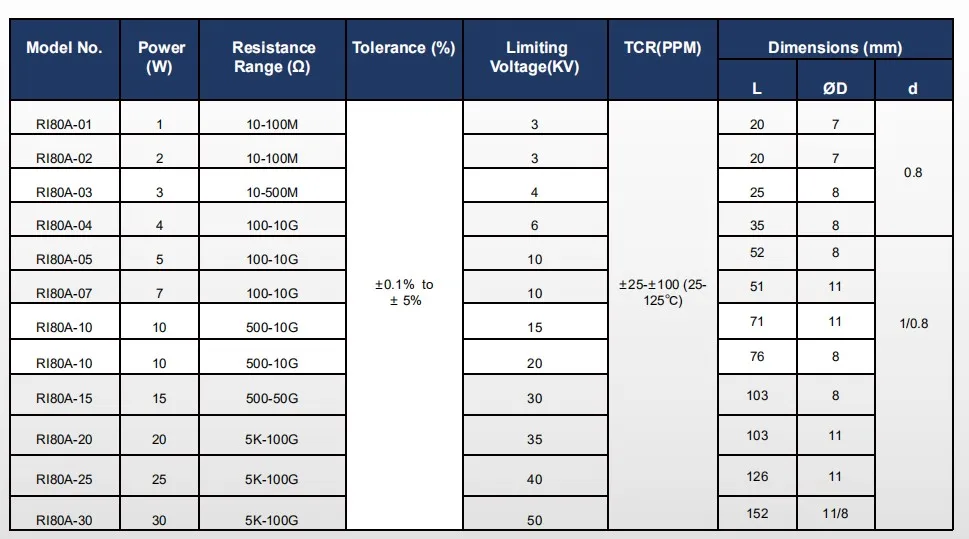

Manufacture Specification
Typical Application:
* High Voltage Divider
* High Voltage Measuring Equipment
* Current Limiting Devices
* Electrostatic
* Instrumentation
* Medical (X-Ray)
* Power Supply
* Motor Drives & Controls
* Converter
* Smart Grid Sensing / Metering
* High Voltage Divider
* High Voltage Measuring Equipment
* Current Limiting Devices
* Electrostatic
* Instrumentation
* Medical (X-Ray)
* Power Supply
* Motor Drives & Controls
* Converter
* Smart Grid Sensing / Metering
Best Selling

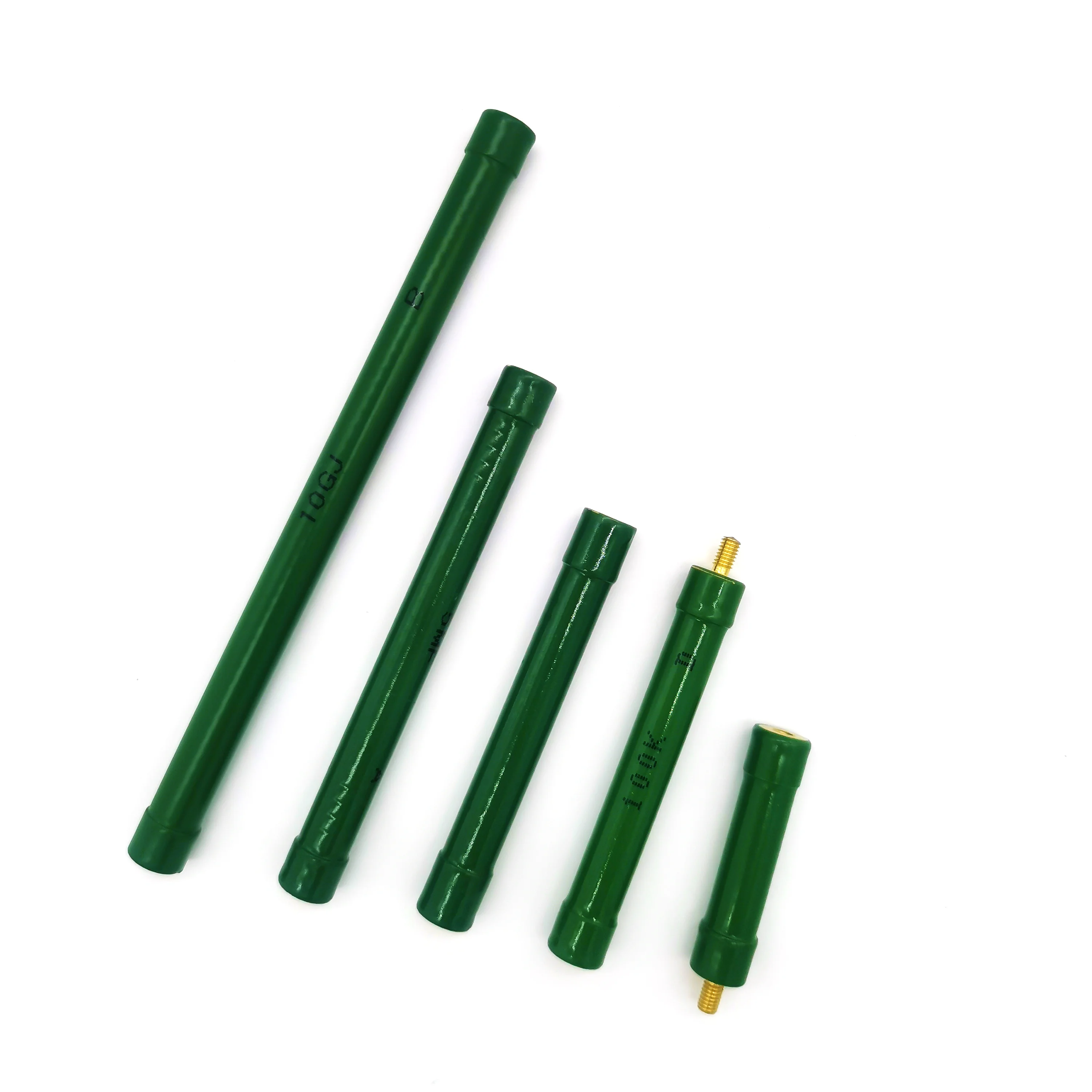

Recommending Styles
Customized resistors
High resistance resistor
High voltage resistor Divider
5kw water cooled resistor
Packaing & Shipping

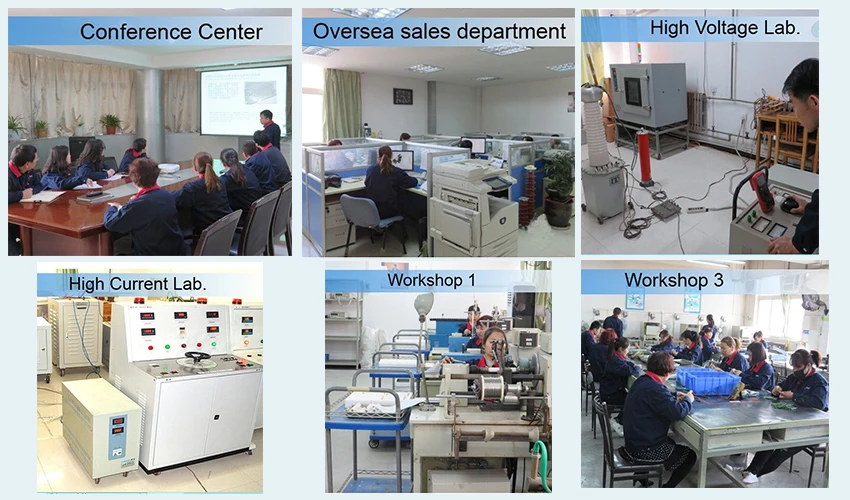

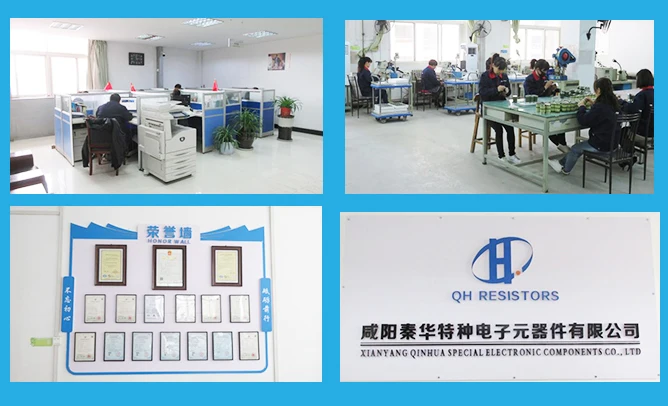

Company Introduction
Xianyang Qin Hua Specialized Electronic Device Factory was established in 2000, as a comprehensive manufacturing and trading company. We have been in product sales and R&D for more than seventeen years.We are specialized in producing all kinds of metal glaze film resistor, oxide film resistor,wire wound resistor, resistance cabinets and so on.In December 2010,our factory have got GB/T19001-2008 / ISO9001:2008 Quality Management Systems Certificate. We are famous for our superior quality, competitive prices, first-class craftworks, safe package and prompt delivery. Therefore, we can fully satisfy your demands and have a large customer base. Our products sell well in Britain and Malaysia. Apart from our own products, we also provide OEM services and accept customized orders as well. We have developed designs for our customers in Britain and our products are popular in overseas markets. The products are mainly used in electronic test equipment, high voltage measure, high voltage switch, high voltage electric transport, large power electron of military scientific research institute, national defense technology academy, university teaching and research section and the electronic power& energy department. They are also used in electronic specialized precision instrument, new type medical equipment manufacture, high voltage electrostatic precipitator and more. Among them, the special resistors of the high voltage inverters and the high voltage soft star have well properties of enduring high voltage, can distribute voltage equally, and can maintain resistance steady in high voltage state, reached the advanced world level. We will supply much better products with diversified designs and professional services.
We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your inquiries soon.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2014,sell to Domestic Market(60.00%),Western Europe(15.00%),North
America(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),South America(3.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High Voltage Resistor,Wire Wound Resistor,Water Cooled Resistor,High Frequency Non-Inductive Resistor
4. why should you buy from us not from other suppliers?
Xianyang Qinhua Special Electronic Components Co., Ltd produce many kinds of special electronic resistors. Our company have strong capacity to develop specific electronic devices. We have professional
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Russian,Italian
We are based in Shaanxi, China, start from 2014,sell to Domestic Market(60.00%),Western Europe(15.00%),North
America(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),South America(3.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High Voltage Resistor,Wire Wound Resistor,Water Cooled Resistor,High Frequency Non-Inductive Resistor
4. why should you buy from us not from other suppliers?
Xianyang Qinhua Special Electronic Components Co., Ltd produce many kinds of special electronic resistors. Our company have strong capacity to develop specific electronic devices. We have professional
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Russian,Italian
